AsiaRF AP7628-UWH User manual

www.asiarf.com
TEL: [phone]
Copyright © AsiaRF . All rights reserved. While every effort is made to ensure the information is accurate, AsiaRF does not accept
liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
AsisRF Co., Ltd. | www.asiarf.com | ([phone] | [e-mail] | Last Updated: 27/07/2023
P.1
Wi-Fi HaLowTM
Gateway
Ethernet to
USB-C
PN: AP7628-UWH
V 1.1 2023/10/18
User Manual

www.asiarf.com
TEL: [phone]
Copyright © AsiaRF . All rights reserved. While every effort is made to ensure the information is accurate, AsiaRF does not accept
liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
AsisRF Co., Ltd. | www.asiarf.com | ([phone] | [e-mail] | Last Updated: 27/07/2023
P.2
Content
A. Introduction ........................................................................................................... 3
Star Topology Network....................................................................................................... 4
B. Hardware Information ........................................................................................... 5
B.1 Contents ................................................................................................................... 5
B.2 LED Indicators ........................................................................................................ 6
B.3 Interfaces .................................................................................................................. 6
C. How to Use AP7628-UWH .................................................................................... 7
C.1 For USB dongle........................................................................................................ 7
C.2 For Wi-Fi gateway.................................................................................................... 9
D. Software Setting...................................................................................................10
D.1 Firmware Information ............................................................................................ 10
D.1.1 Firmware Version .................................................................................................... 10
D.1.2 Firmware Upgrade .................................................................................................. 11
D.2 HaLow Setting........................................................................................................ 14
D.2.1 Internet Network (LAN)........................................................................................... 14
D.2.1.1 BR-LAN settings (def: 192.168.5.5) ...................................................... 14
D.2.1.2 Wi-Fi 4 AP settings (def: AsiaRF_Halow-STA_xxxx).......................... 16
D.2.2 HaLow Network....................................................................................................... 19
D.3.2.1 HaLow Client settings (def: MM_AsiaRF) ........................................... 19
D.3.2.2 Bridge active ......................................................................................... 21

www.asiarf.com
TEL: [phone]
Copyright © AsiaRF . All rights reserved. While every effort is made to ensure the information is accurate, AsiaRF does not accept
liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
AsisRF Co., Ltd. | www.asiarf.com | ([phone] | [e-mail] | Last Updated: 27/07/2023
P.3
A. Introduction
AP7628-UWH is a small-size 9 (L) x 6 (W) x 1.5 (H) cm, Wi-Fi4 & Wi-Fi HaLowTM IoT Gateway Ethernet
to USB Type-C Dongle.
USB drivers: Windows, MAC and Linux supported.
Wi-Fi HaLowTM is the best solution for long distance IoT applications
and Video stream transmission. Wi-Fi HaLowTM Throughput reaches
20Mbps. With standard surveillance system, users are allowed to
have a long distance linking as well as perfect quality.
Gateway can transfer Video and IoT by HaLow more than 1 KM distance.
Wi-Fi HaLowTM gateway can reach more than 1 KM, which is 10x farther
than 2.4 GHz Wi-Fi or Bluetooth along with 100x the coverage of
traditional Wi-Fi networks, making it perfect for warehouses, factories,
retail stores and other large campus environments.
HaLowTM Gateway
Ethernet to USB Type-C
Sub 1GHz
Distance > 1km / 0.625mi
Wi-Fi 2.4GHz
Wi-Fi HaLowTM 900MHz
Modes: AP, Client
USB Drivers:
Windows, Windows CE
MAC
Linux supported

www.asiarf.com
TEL: [phone]
Copyright © AsiaRF . All rights reserved. While every effort is made to ensure the information is accurate, AsiaRF does not accept
liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
AsisRF Co., Ltd. | www.asiarf.com | ([phone] | [e-mail] | Last Updated: 27/07/2023
P.4
Star Topology Network
AP7688-WHM as an Access Point links to AP7628-UHM as the Clients.

www.asiarf.com
TEL: [phone]
Copyright © AsiaRF . All rights reserved. While every effort is made to ensure the information is accurate, AsiaRF does not accept
liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
AsisRF Co., Ltd. | www.asiarf.com | ([phone] | [e-mail] | Last Updated: 27/07/2023
P.5
B. Hardware Information
B.1 Contents
1. Box x 1
2. Wi-Fi HaLowTM Gateway x 1
3. Wi-Fi HaLowTM Antenna x 1
1.
2.
3.

www.asiarf.com
TEL: [phone]
Copyright © AsiaRF . All rights reserved. While every effort is made to ensure the information is accurate, AsiaRF does not accept
liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
AsisRF Co., Ltd. | www.asiarf.com | ([phone] | [e-mail] | Last Updated: 27/07/2023
P.6
B.2 LED Indicators
LED light meaning
B.3 Interfaces
NAME
ACTION
DESCRIPTION
Power (Blue)
ON
Power on
Wi-Fi (Orange)
ON
Wi-Fi ready
Ethernet
(Green)
ON USB Type-C plugged

www.asiarf.com
TEL: [phone]
Copyright © AsiaRF . All rights reserved. While every effort is made to ensure the information is accurate, AsiaRF does not accept
liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
AsisRF Co., Ltd. | www.asiarf.com | ([phone] | [e-mail] | Last Updated: 27/07/2023
P.7
C. How to Use AP7628-UWH
There are two kinds of way to use AP7628-UWH. One is using as a USB dongle on PC.
Another is using as a Wi-Fi gateway.
Both ways demand a Wi-Fi HaLowTM AP (Access Point) to connect.
C.1 For USB dongle
Instruction: Use a USB A to USB Type-C cable to connect AP7628-UWH with PC.

www.asiarf.com
TEL: [phone]
Copyright © AsiaRF . All rights reserved. While every effort is made to ensure the information is accurate, AsiaRF does not accept
liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
AsisRF Co., Ltd. | www.asiarf.com | ([phone] | [e-mail] | Last Updated: 27/07/2023
P.8
After confirming the new network interface on PC, you can connect to AP7628-UWH with
ethernet. AP7628-UWH will be a Wi-Fi AP (Access Point) at the same time. Before
connecting with the Wi-Fi HaLowTM AP, you need to finish the related setting, which can be
found in D.2.1. Connect to device at page 15.

www.asiarf.com
TEL: [phone]
Copyright © AsiaRF . All rights reserved. While every effort is made to ensure the information is accurate, AsiaRF does not accept
liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
AsisRF Co., Ltd. | www.asiarf.com | ([phone] | [e-mail] | Last Updated: 27/07/2023
P.9
C.2 For Wi-Fi gateway
Instruction: Use USB cable connecting with power supply to be a Wi-Fi AP.
To let AP7628-UWH work as a Wi-Fi AP, you can connect AP7628-UWH with power
supply and enjoy the function like hotspot.
Before connecting with the Wi-Fi HaLowTM AP, you need to finish the related setting,
which can be found in D.2.1. Connect to device at page 15.
AP7628-UWH
AP7688-WHM

www.asiarf.com
TEL: [phone]
Copyright © AsiaRF . All rights reserved. While every effort is made to ensure the information is accurate, AsiaRF does not accept
liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
AsisRF Co., Ltd. | www.asiarf.com | ([phone] | [e-mail] | Last Updated: 27/07/2023
P.10
D. Software Setting
D.1 Firmware Information
Introduce about firmware information on our device, it can improve our communication with
you.
D.1.1 Firmware Version
You can know how to get firmware version. When you have any problem on our
product, provide us your firmware version for the best after-sale service.
Click “Overview” in the “Status” tab.
You can get a firmware version. For example, AsiaRF-STA OP-SDK2203 v114-master-15 /
LuCI Master git-23.201.45367-44a9e86.

www.asiarf.com
TEL: [phone]
Copyright © AsiaRF . All rights reserved. While every effort is made to ensure the information is accurate, AsiaRF does not accept
liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
AsisRF Co., Ltd. | www.asiarf.com | ([phone] | [e-mail] | Last Updated: 27/07/2023
P.11
D.1.2 Firmware Upgrade
Weather we have new firmware for customers, follow this chapter to upgrade your
device for your best experience.
Click “Overview” in the “Status” tab.
Click “Flash image”.

www.asiarf.com
TEL: [phone]
Copyright © AsiaRF . All rights reserved. While every effort is made to ensure the information is accurate, AsiaRF does not accept
liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
AsisRF Co., Ltd. | www.asiarf.com | ([phone] | [e-mail] | Last Updated: 27/07/2023
P.12
Click to choose your firmware.

www.asiarf.com
TEL: [phone]
Copyright © AsiaRF . All rights reserved. While every effort is made to ensure the information is accurate, AsiaRF does not accept
liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
AsisRF Co., Ltd. | www.asiarf.com | ([phone] | [e-mail] | Last Updated: 27/07/2023
P.13
Do not choose any option!!!
And click “Continue” start to upgrade.
It will reboot as soon as after flash the image. This will take about four minutes to finish
booting.
Don’t forget our default IP address is 192.168.3.3 (AP) and 192.168.5.5 (Client), default
Wi-Fi SSID is “AsiaRF_HaLow-AP/STA” and password is “12345678”.

www.asiarf.com
TEL: [phone]
Copyright © AsiaRF . All rights reserved. While every effort is made to ensure the information is accurate, AsiaRF does not accept
liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
AsisRF Co., Ltd. | www.asiarf.com | ([phone] | [e-mail] | Last Updated: 27/07/2023
P.14
D.2 HaLow Setting
D.2.1 Internet Network (LAN)
Our product is a pair of AP7688-WHM. It has default setting with Wi-Fi HaLowTM. If you don’t
need to set HaLow in special configuration, you can skip this chapter.
D.2.1.1 BR-LAN settings (def: 192.168.5.5)
Click the “Interfaces” in the “Network” tab.
Click the “Edit” in the br-lan interface.

www.asiarf.com
TEL: [phone]
Copyright © AsiaRF . All rights reserved. While every effort is made to ensure the information is accurate, AsiaRF does not accept
liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
AsisRF Co., Ltd. | www.asiarf.com | ([phone] | [e-mail] | Last Updated: 27/07/2023
P.15
Change your own IPv4 address and click "Save".
Click the “Save & Apply” button to save the configuration.

www.asiarf.com
TEL: [phone]
Copyright © AsiaRF . All rights reserved. While every effort is made to ensure the information is accurate, AsiaRF does not accept
liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
AsisRF Co., Ltd. | www.asiarf.com | ([phone] | [e-mail] | Last Updated: 27/07/2023
P.16
D.2.1.2 Wi-Fi 4 AP settings (def: AsiaRF_Halow-STA_xxxx)
Use PC or mobile phone and connect to the Wi-Fi.
(SSID: AsiaRF_Halow-STA_xxxx, Password: 12345678)
Open the browser and type “192.168.5.5”.
Click “Login” (No password in default).

www.asiarf.com
TEL: [phone]
Copyright © AsiaRF . All rights reserved. While every effort is made to ensure the information is accurate, AsiaRF does not accept
liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
AsisRF Co., Ltd. | www.asiarf.com | ([phone] | [e-mail] | Last Updated: 27/07/2023
P.17
Click the “Wireless” in the “Network” tab.
Click the “Edit” button.
Change ESSID to your new name.

www.asiarf.com
TEL: [phone]
Copyright © AsiaRF . All rights reserved. While every effort is made to ensure the information is accurate, AsiaRF does not accept
liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
AsisRF Co., Ltd. | www.asiarf.com | ([phone] | [e-mail] | Last Updated: 27/07/2023
P.18
*** If you don’t need to set the Wi-Fi password. ***
*** You can press the “Save” button to skip the next step. ***
Click “Wireless Security” and choose one of the encryption types.
Ex. “WPA-PSK/WPA2-PSK Mixed Mode (medium security)”
Input your Wi-Fi password in “Key” field and don’t forget it.
Click the “Save & Apply” button to save the configuration.

www.asiarf.com
TEL: [phone]
Copyright © AsiaRF . All rights reserved. While every effort is made to ensure the information is accurate, AsiaRF does not accept
liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
AsisRF Co., Ltd. | www.asiarf.com | ([phone] | [e-mail] | Last Updated: 27/07/2023
P.19
D.2.2 HaLow Network
D.3.2.1 HaLow Client settings (def: MM_AsiaRF)
Click “Station Configuration” in the “Morse” tab.
The Wi-Fi HaLow default connect SSID is “MM_AsiaRF”.
You can click “Scan” button to scan the Wi-Fi HaLowTM AP around it.
It will choose the Wi-Fi HaLowTM AP around you, or you can choose one in the list. Don’t
forget to input the password. Ex. SSID: MM_AsiaRF_2

www.asiarf.com
TEL: [phone]
Copyright © AsiaRF . All rights reserved. While every effort is made to ensure the information is accurate, AsiaRF does not accept
liability for any errors or mistakes that may arise. All specifications are subject to change without notice.
AsisRF Co., Ltd. | www.asiarf.com | ([phone] | [e-mail] | Last Updated: 27/07/2023
P.20

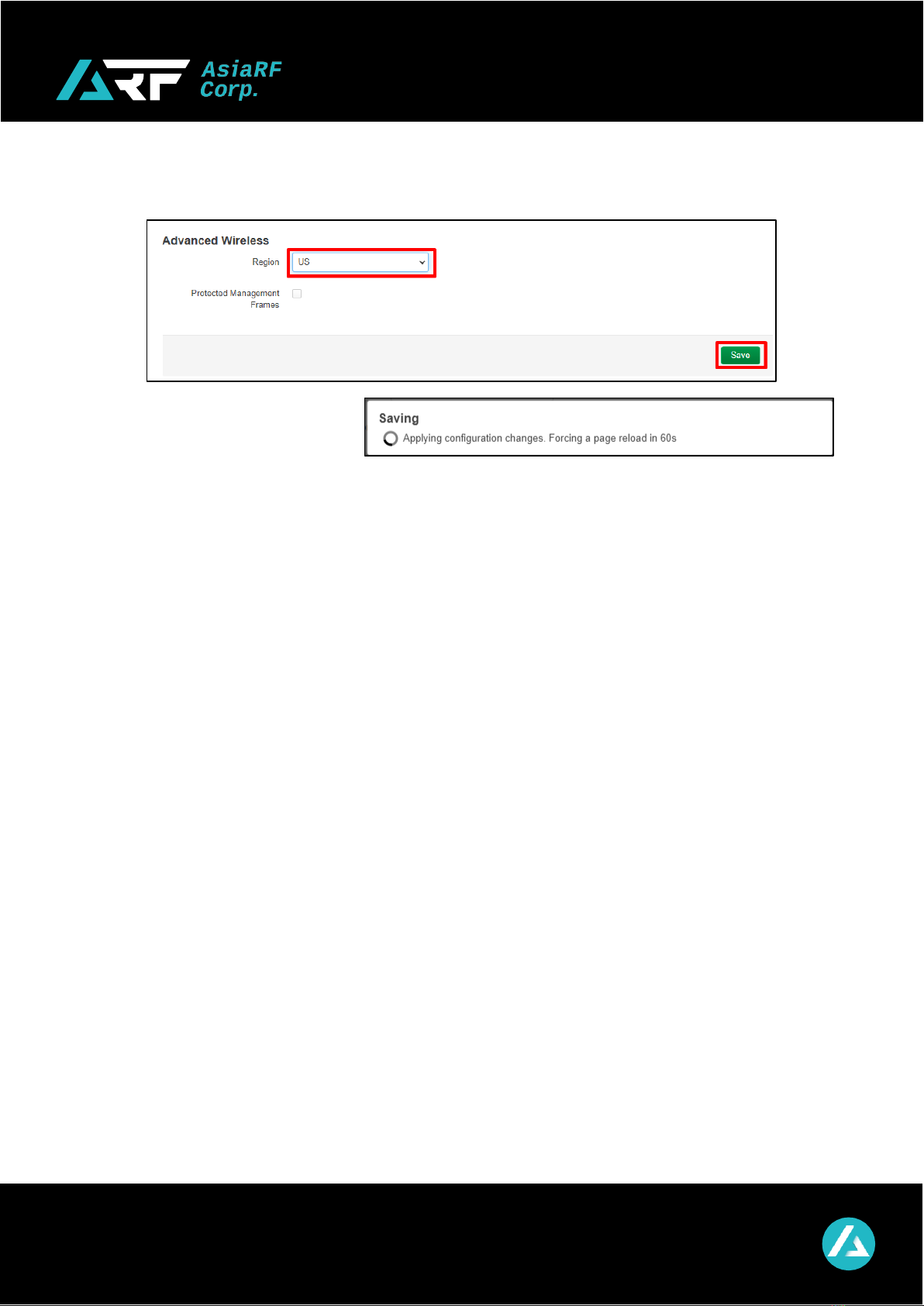

Click “Save” button to save the configuration.
