Asko DBI664IXXLSSOF Guide

REVISED 10/2017
DESIGN GUIDE

Features and specications are subject to change at any
time without notice. Visit askona.com/specs for the most
up-to-date information.
IMPORTANT NOTE: Throughout this guide, dimensions may
vary by ± 1/8"(3). Dimensions in parentheses are millimeters
unless otherwise specied.
Contents
3Asko Dishwashers
4Specications
8Custom Panel
9Asko Washers | Dryers
11 Specications
19 Warranty

askona.com/specs | 3
ASKO DISHWASHERS

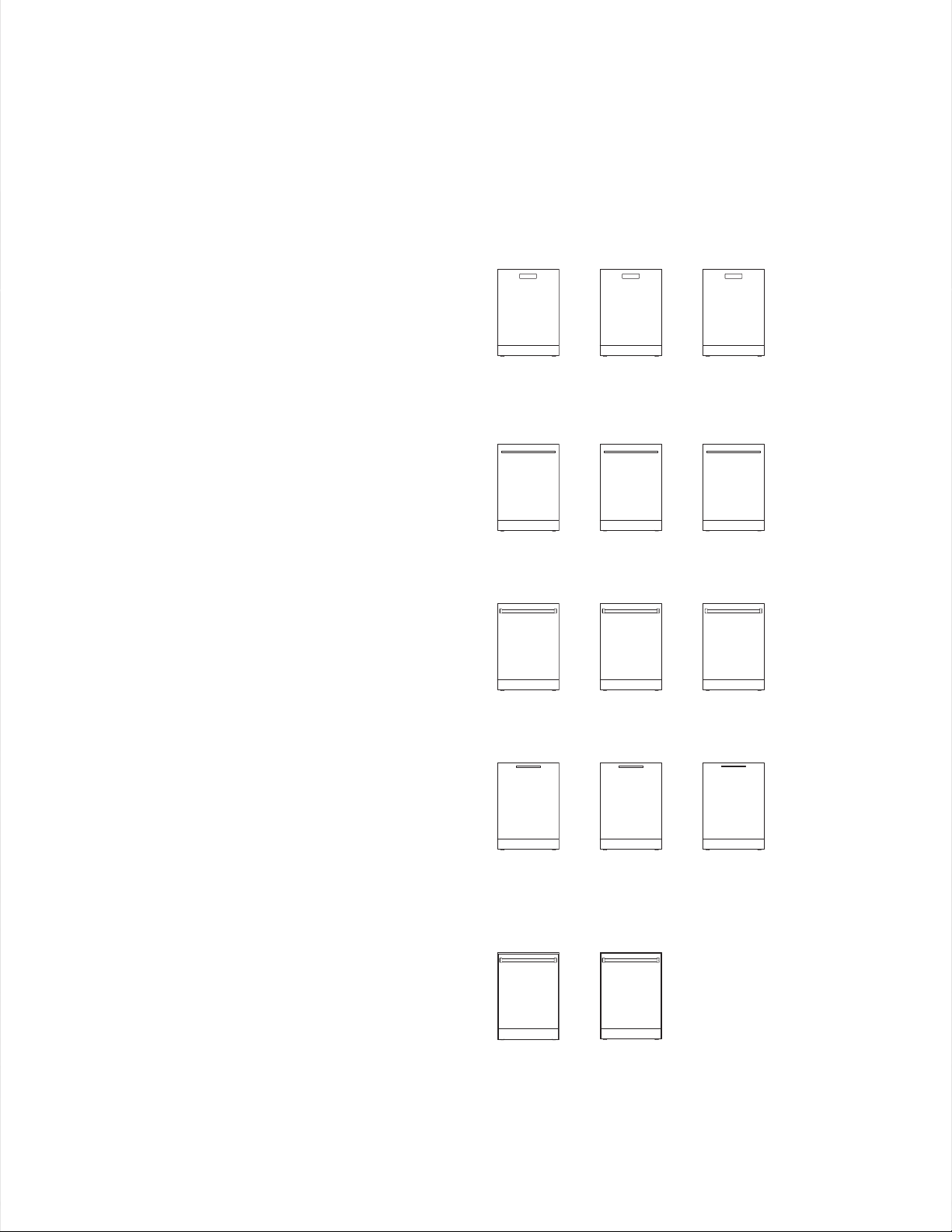

DISHWASHER MODELS
INTEGRATED HANDLE
TUBULAR HANDLE
PANEL READY
OUTDOOR
DBI663IS
DBI663ISSOF
DBI664IXXLS
DBI664IXXLSSOF
DBI675IXXLS
DFI663
DFI663XXL
DFI664
DFI664XXL
DFI664XXLSOF
DFI675XXL
DBI663THS DBI664THXXLS
D5956OUTDOORPH

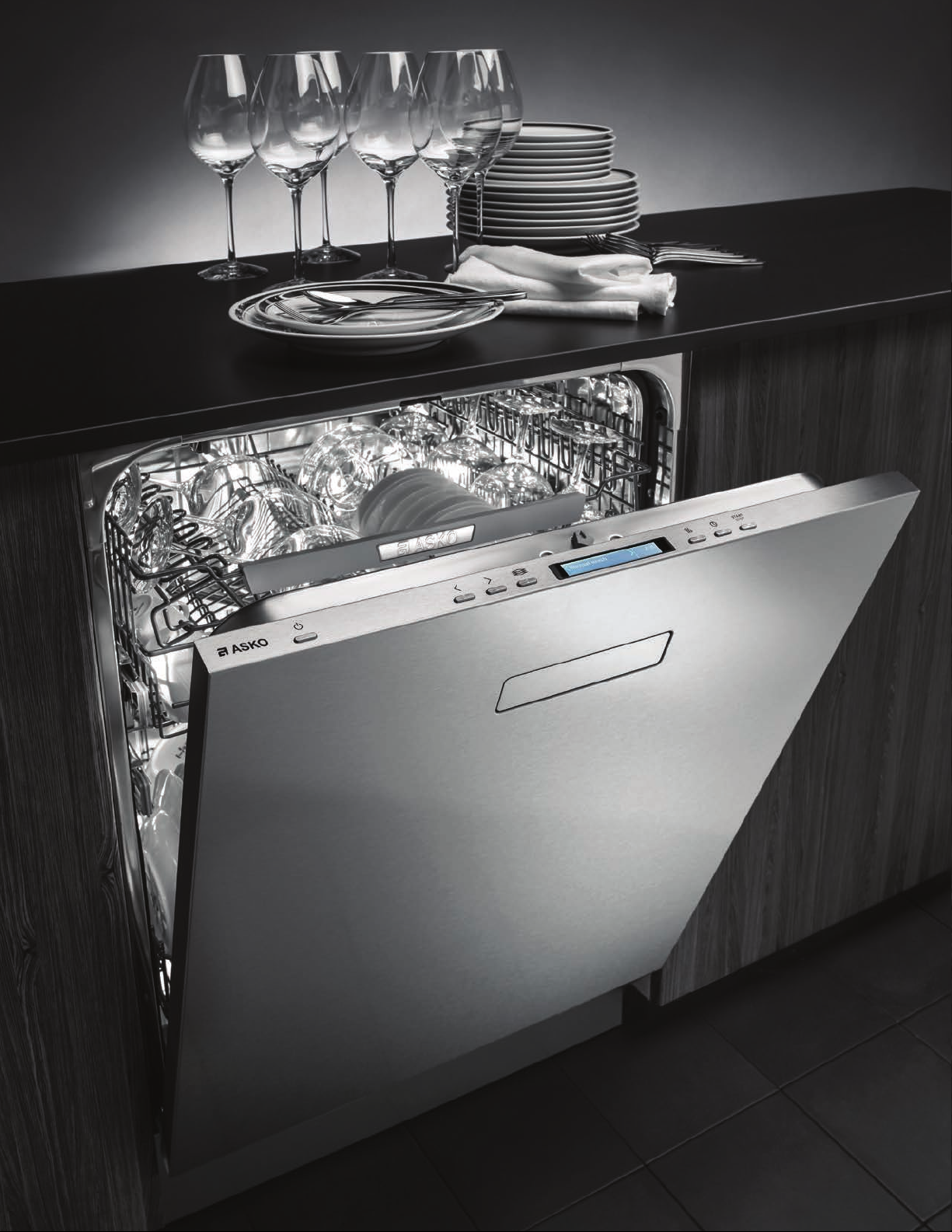

Asko Dishwashers
At Asko, we design and manufacture premium quality
dishwashers with a special Scandinavian touch for design
and function. Panel ready models accept a custom panel
and handle. Tubular and pro handle models match Sub-Zero
and Wolf products. Our products meet the highest demands
in performance and durability, as well as environmental
awareness.
PRO HANDLE
DBI663PHS DBI664PHXXLS
DBI675THXXLS
DBI675PHXXLS
DOD651PHXXLS

4 | Asko Customer Care 800.222.7820
ASKO DISHWASHERS
OPEN DOOR
237/8"(606)
H
4" (102)*
22" (559)
2"
(51)
53/8"*
(137)
*D
imension will vary with product height.
245/8"
(625)

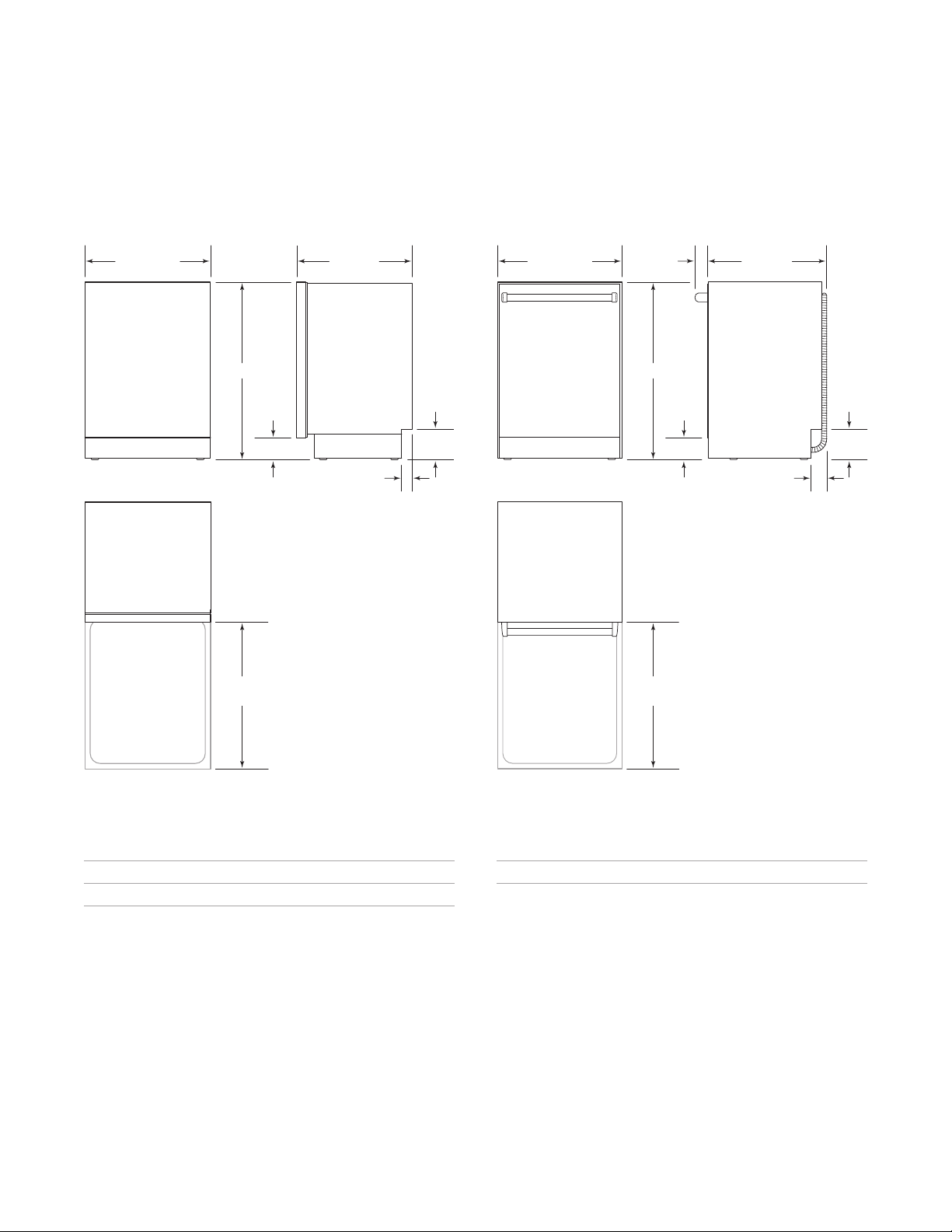

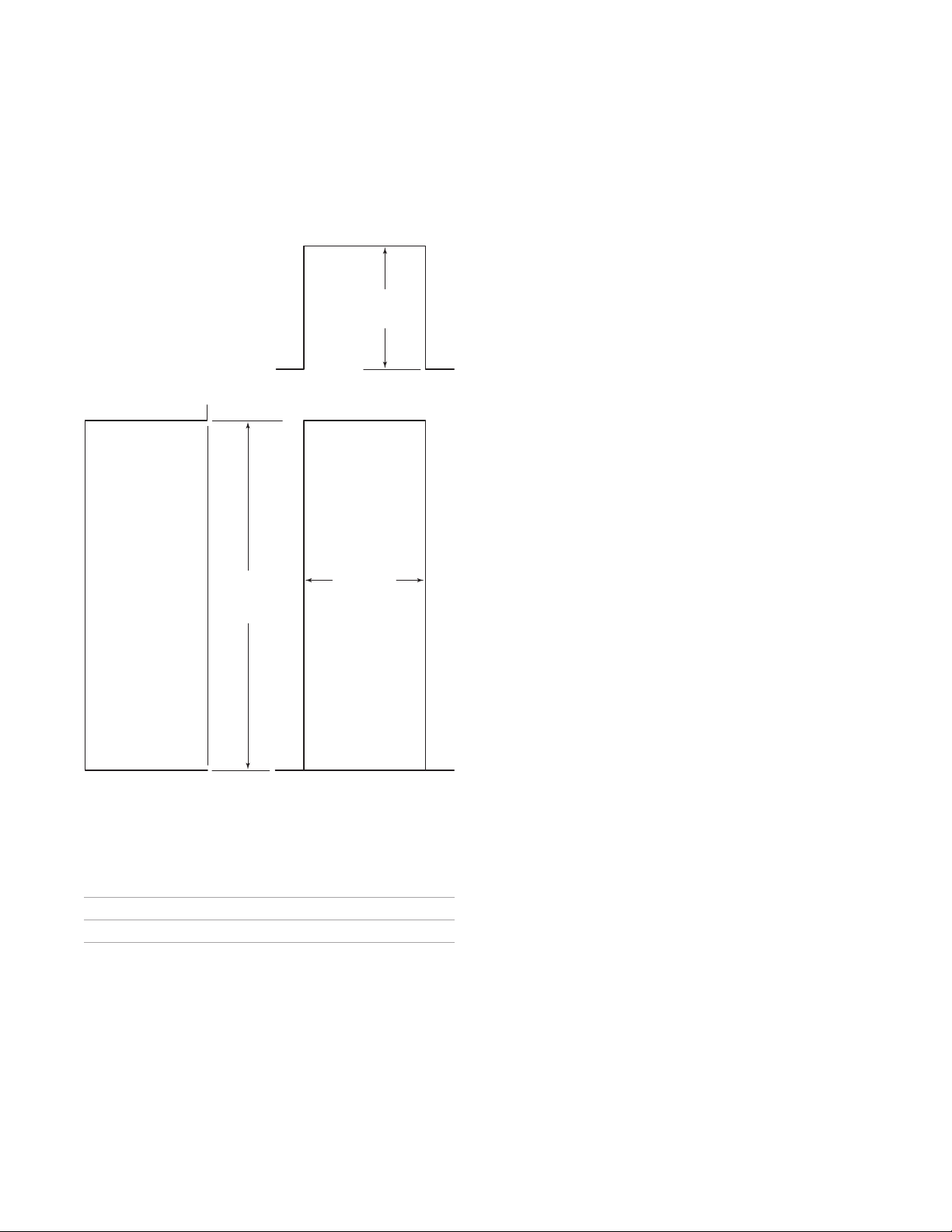

Overall Dimensions
INTEGRATED HANDLE
HEIGHT H
Non-XXL Model 323/4"(832)* – 343/4"(883)
XXL Model 34" (864) – 353/4"(908)
*Can be reduced to 321/4"(819) by removing top trim and lowering side trim.
OPEN DOOR
237/8"(606) 23/8"
(60)
H
4" (102)*
22" (559)
2"
(51)
53/8"*
(137)
*Dimension will vary with product height.
245/8"
(625)
TUBULAR | PRO HANDLE
HEIGHT H
Non-XXL Model 323/4"(832)* – 343/4"(883)
XXL Model 34" (864) – 353/4"(908)
*Can be reduced to 321/4"(819) by removing top trim and lowering side trim.

askona.com/specs | 5
ASKO DISHWASHERS
Overall Dimensions
PANEL READY
235/8"(600)
OPEN DOOR
*D
imension will vary with product height.
H
4" (102)*
245/8"
(625)
22" (559)
2"
(51)
53/8"*
(137)
OPEN DOOR
245/8"(625) 23/8"
(60) 25" (635)
H
4" (102)*
47/8"
(124)
53/8"*
(137)
*Dimension will vary with product height.
245/8"
(625)
OUTDOOR
HEIGHT H
Outdoor Model 35" (889) – 353/4"(908)
HEIGHT H
Non-XXL Model 323/4"(832)* – 343/4"(883)
XXL Model 34" (864) – 353/4"(908)
*Can be reduced to 321/4"(819).
IMPORTANT NOTE: Overall dimensions for panel ready
models do not include panels or handles. Dimensions will
vary with panel thickness.

6 | Asko Customer Care 800.222.7820
ASKO DISHWASHERS
W
OPENING WIDTH
H
OPENING
HEIGHT
D
OPENING
DEPTH
TOP VIEW
SIDE
VIEW FRONT VIEW
NOTE:
31/2"(89) finished returns will be visible and should be finished to match cabinetry.
31/2"(89)
FINISHED
RETURN
FRAMELESS CABINETRY
3/4"
(19)
TYPICAL
31/2"(89)
FINISHED
RETURN
FILLER
FRAMED CABINETRY
W W

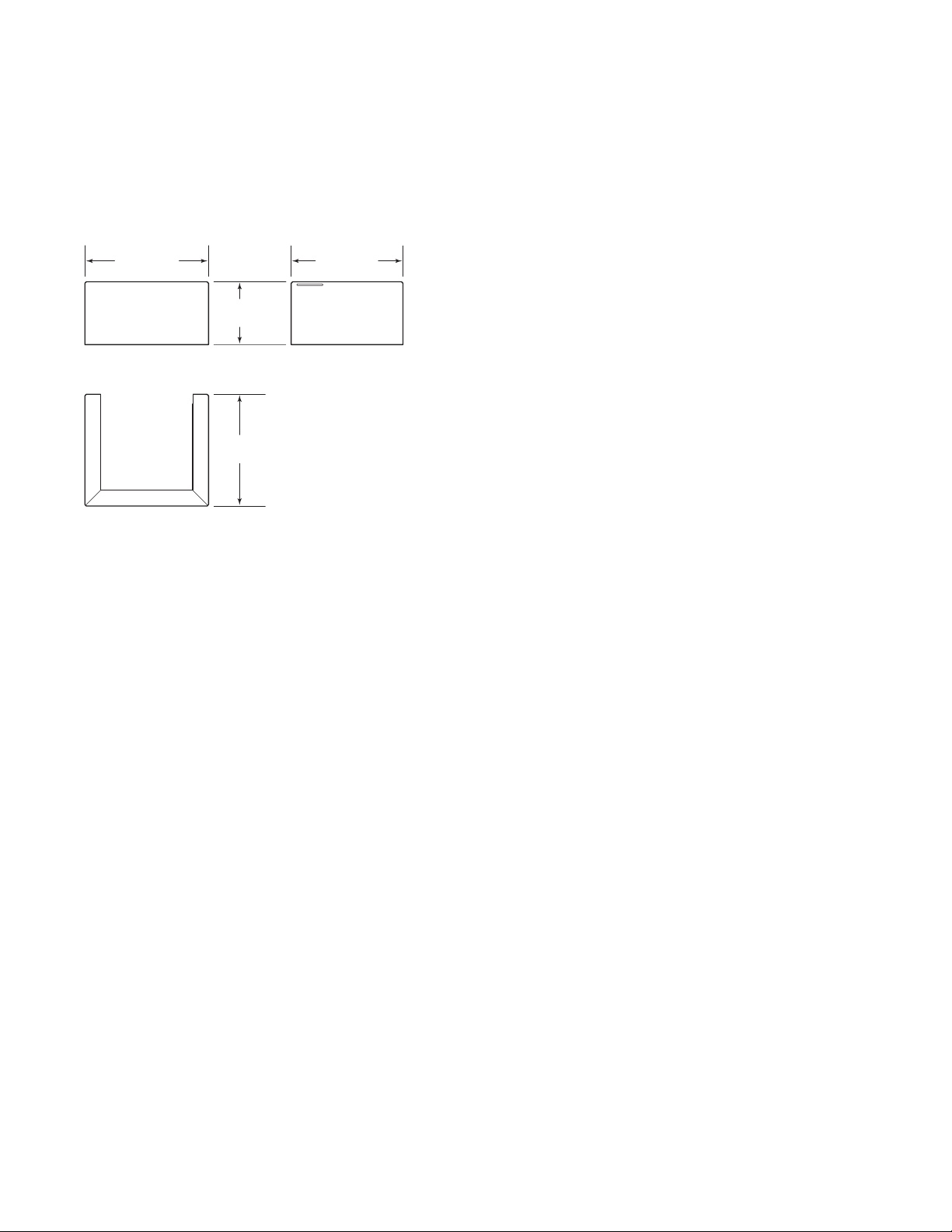

Opening Dimensions
DISHWASHERS IMPORTANT NOTE: All indoor models can accommodate
varying opening widths, however, 24" (610) and 235/8"
(60 cm) are the two most common. A 235/8" (60 cm) opening
will provide minimum reveals.
OPENING WHD
Indoor Model 235/8"(600) 341/2"(876) 24" (610)
Outdoor Model 247/8"(632) 351/2"(902) 251/4"(641)
A minimum 31/2"(89) nished return is required on all sides
of the opening. Framed cabinets will require additional
nished ller material behind the face frame for a proper
installation. Refer to the illustration.
Indoor models include top and side trim to accommodate
varying opening dimensions. Top and side trim can be
removed to achieve minimum reveals.
For ADA installations and height restricted openings, all
indoor, non-XXL models can be installed in a 321/4"(819)
opening by removing top trim and lowering side trim.

askona.com/specs | 7
Electrical
The electrical supply should be located in an adjacent
cabinet. If the supply cannot be located in an adjacent
cabinet, it must be located within the shaded area shown in
the illustration below. A separate circuit, servicing only this
appliance is required.
IMPORTANT NOTE: For the outdoor model, a ground fault
circuit interrupter (GFCI) is required to reduce the risk of
electrical shock. A GFCI is not recommended for use with
other models and may cause interruption of operation.
Installation must comply with all applicable electrical codes.
ELECTRICAL REQUIREMENTS
Electrical Supply 115 VAC, 60 Hz
Service 15 amp dedicated circuit
Receptacle 3-prong grounding-type
53/8"
(137)
OPENING
WIDTH
AREA EXTENDS 2" (51)
FORWARD ON FLOOR

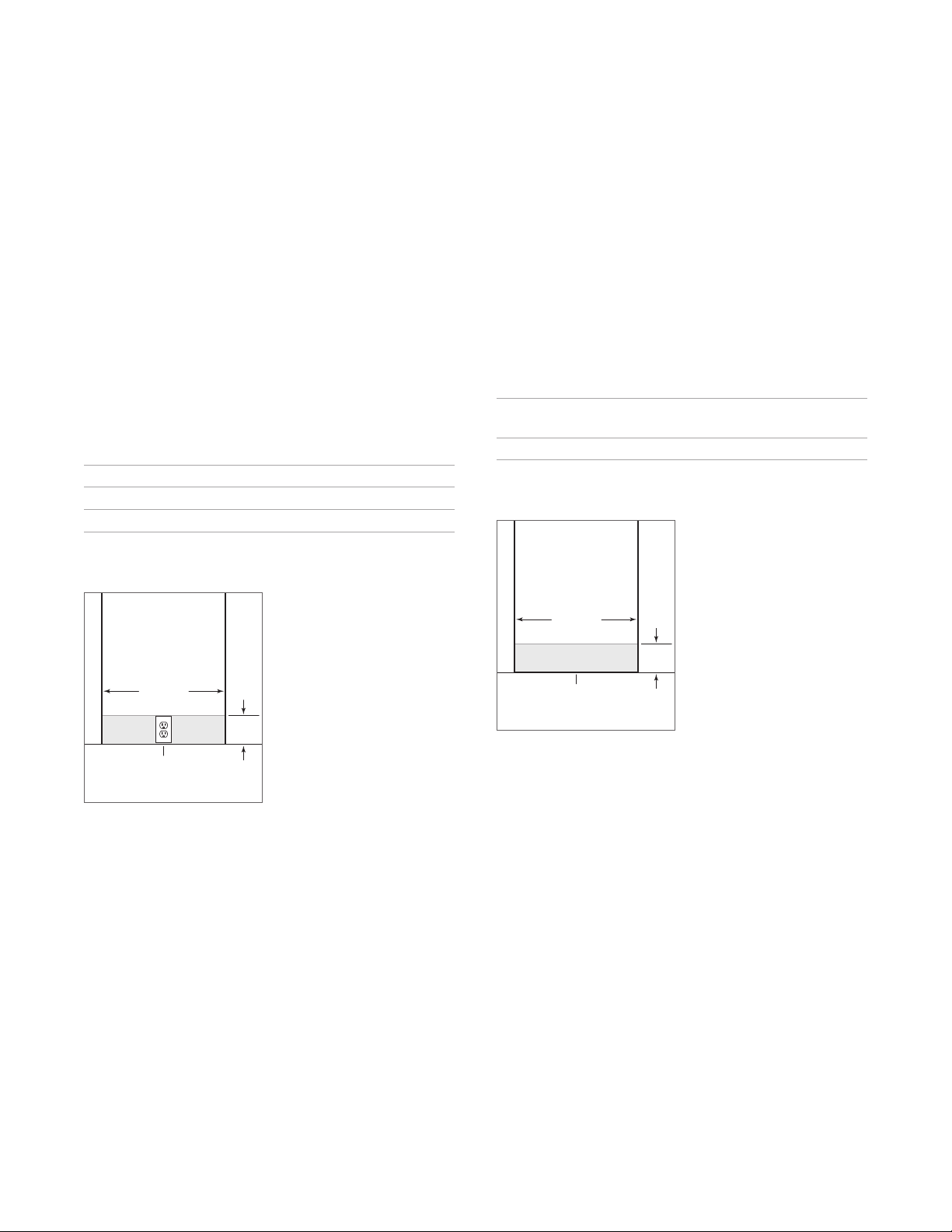

Electrical supply location.
Plumbing
The water supply and drain should be located in an adjacent
cabinet. If they cannot be located in an adjacent cabinet,
they must be located within the shaded area shown in the
illustration below. The water supply line should be con-
nected to a hot or cold house supply with an easily acces-
sible shut-off valve between the supply and the unit.
Installation must comply with all applicable plumbing codes.
PLUMBING REQUIREMENTS
Water Connection 6' (1.8 m) PEX tubing with
3/8" NPT female connection
Pressure 4.2–140 psi (.3–9.7 bar)
ASKO DISHWASHERS
53/8"
(137)
OPENING
WIDTH
AREA EXTENDS 2" (51)
FORWARD ON FLOOR
Water supply and drain location.

8 | Asko Customer Care 800.222.7820
ASKO DISHWASHERS
Custom Panel
PANEL READY
IMPORTANT NOTE: The size of the custom door panel is
directly related to the size of the opening.
The two most common dishwasher opening widths are
24" (610) and 235/8" (60 cm). For all other widths, the panel
should be 1/4"(6) less than the opening to achieve minimum
reveals. The minimum panel width is 233/8"(594).
The most common dishwasher opening height is 341/2"
(876). The panel dimensions in the chart below are based on
a 341/2"(876) opening, with a 4" (102) toe kick and 3/8"(10)
top reveal. For all other opening and toe kick heights, the
panel must be adjusted accordingly. The minimum panel
height is 28" (711). The minimum toe kick height is 4" (102).
Finish all sides of the custom panel. They may be visible
when the door is open.
PANEL DIMENSIONS W H
235/8" (60 cm) Opening 233/8"(594) 301/8"(765)
24" (610) Opening 233/4"(603) 301/8"(765)
PANEL REQUIREMENTS
Max Weight (including handle) 20 lb (9 kg)
Min Thickness 3/4"(19)
W
H
Panel dimensions.
ADA CUSTOM PANEL HEIGHT
The American with Disabilities Act limits the countertop
height to 34" (864). Differing countertop thickness will affect
the overall panel height.
Typical panel dimensions are based on a 321/2"(826)
opening height with a 4" (102) toe kick and 3/8"(10) top
reveal. The panel height cannot be less than 28" (711). Refer
to the chart below for typical panel dimensions.
PANEL DIMENSIONS (ADA) W H
235/8" (60 cm) Opening 233/8"(594) 281/8"(714)
24" (610) Opening 233/4"(603) 281/8"(714)
PANEL REQUIREMENTS
Max Weight (including handle) 20 lb (9 kg)
Min Thickness 3/4"(19)

10 | Asko Customer Care 800.222.7820
WASHER MODELS
ASKO WASHERS | DRYERS
DRYER MODELS

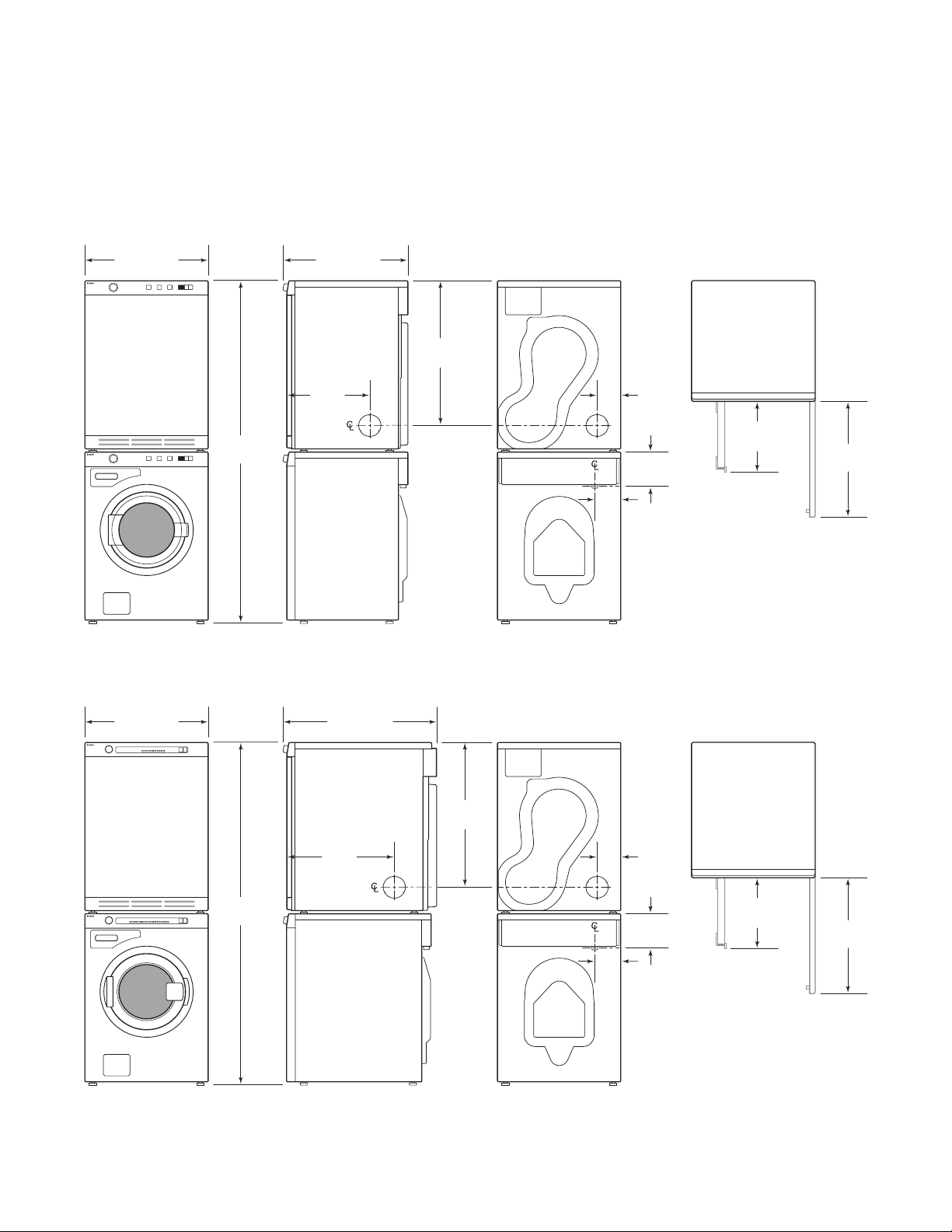

Asko Washers | Dryers
Asko’s range of washers and dryers reect 60 years of
Swedish ingenuity and continuous innovation, designed
to balance performance and durability with environmental
considerations. They provide the best possible washing and
drying results, handling your clothes with care. No matter
what life throws at you, Asko has the perfect UltraCare
system to make short work of your laundry. From the high-
efciency family size to the supersized XL washers and
dryers, Asko has the right laundry system for any family,
large or small.
W6424W
W6424T
W8844XLW
T754W
T754T
T754CW
T884XLW T884XLHPW
