Asko OCM8464A User manual

Instructions for use
OVEN
OCM8464A / BO4CM4S3-42
OCM8464B / BO4CM4S3-42
OCM8464S / BO4CM4S3-42

EN Instructions for use EN 3 - EN 29
Pictograms used
Important information
Tip

EN 3
CONTENTS
Your oven
Introduction 4
Description of the appliance 5
Guide rails/Telescopic guide rails 5
Accessories 6
Door 6
Cooling fan 6
Control panel 7
Control panel general use 8
First use
Before first use 10
Use
Microwaves 12
Guidelines for cookware 13
Please note! 14
Explanation of the knobs and the keys 14
Description of the main functions 16
Description of the sub functions 17
Plus menu 21
Operation
Using the appliance cooking functions 22
Settings
Settings menu 24
Maintenance
Cleaning the appliance 25
Cleaning function (Steam clean) 25
Removing and cleaning the guide rails 26
Replacing the oven lamp 26
Malfunctions
General 27
Environmental aspects
Disposal of the appliance and packaging 29

EN 4
YOUR OVEN
Introduction
Congratulations on choosing this oven. This product is designed with simple operation and
optimum comfort in mind.
This manual shows how you can best use this oven. In addition to information about operating
the appliance, you will also find background information that may be useful when using the
appliance.
Please read the separate safety instructions carefully before
using the appliance!
Read this manual before using the appliance and keep it in a safe place for future use.
The installation instructions are included separate.

EN 5
Description of the appliance
1. Control panel
2. Oven levels
3. Oven door
4. Door handle
Guide rails/Telescopic guide rails
• The oven has four or five guide rails (Level 1 to 4/5), depending on the model. Level 1 is
mainly used in combination with bottom heat. The two upper levels are mainly used for the
grill function.
• Place the oven rack, baking tray or steam dish in the gap between the guide rail sliders.
• A number of shelf levels can have fully-retractable telescopic guide rails, depending on the
model.
▷Pull the telescopic guide rails out of the oven cavity completely and place the oven rack
/ baking tray / steam dish on them. Then slide the oven rack / baking tray / steam dish
on the telescopic guide rails, back into the oven cavity.
▷Only close the oven door when the telescopic guide rails have been returned completely
back into the oven cavity.
YOUR OVEN
1
3
Level 1
Level 2
Level 3
Level 4
2
4

EN 6
Accessories
Your appliance is accompanied by a range of accessories, depending on the model. Only use
original accessories; they are specially suited to your appliance. Be sure that all the accessories
that are being used are able to withstand the temperature settings of the chosen oven function.
Note: not all accessories are suitable/available for every appliance (it may also differ by country).
When purchasing, always provide the exact identification number of your appliance. Please see
the sales brochures or check online for more details about optional accessories.
Note: never place an accessory on the bottom of the oven!
Accessories that can be supplied with your appliance (depending on the model)
Enamelled baking tray; to be used for pastries and cakes.
• Do not use the enamelled baking tray for microwave functions!
• Suitable for pyrolysis cleaning.
Oven rack; mainly used for grilling. A steam dish or pan with food
can also be placed on the oven rack.
• The oven rack is equipped with a safety peg. Lift the rack slightly
at the front to slide it out of the oven.
• Do not use the oven rack for microwave functions!
Deep enamelled baking tray; to be used for roasting meat and
baking moist pastry.
• Do not place the deep baking tray on the lowest level during
a cooking process, except when using it as a drip tray during
grilling, roasting or roasting with a spit roast (when available).
• Do not use the deep enamelled baking tray for microwave
functions!
• Suitable for pyrolysis cleaning.
Glass baking tray; for microwave and oven use.
• NOT suitable for pyrolysis cleaning.
Door
• The door switches interrupt the operation of the oven when the door is opened during use.
The oven continues operating when the door is closed.
Cooling fan
• The appliance is equipped with a cooling fan that cools the casing and control panel.
YOUR OVEN

EN 7
Control panel
12 13 14 15 16 17
1 10 116 7 8 9543
2
1. Function knob (in ‘Off’ position)
2. Defrost
3. Automatic programs
4. Fast preheat
5. Oven functions
6. Microwave functions
7. Combi microwave functions
8. Warming
9. Cleaning
10. Display
11. Selection knob
12. On/off key and stop key (cancel)
13. Light key
14. Navigation key left
15. Navigation key right
16. Plus key
17. Confirm key (add 30 seconds microwave time / available when using the ‘Microwave’ function)
The keys respond best if you touch them shortly with a large area of your fingertip.
Every time you touch a key during use, a short acoustic signal will sound.
YOUR OVEN

EN 8

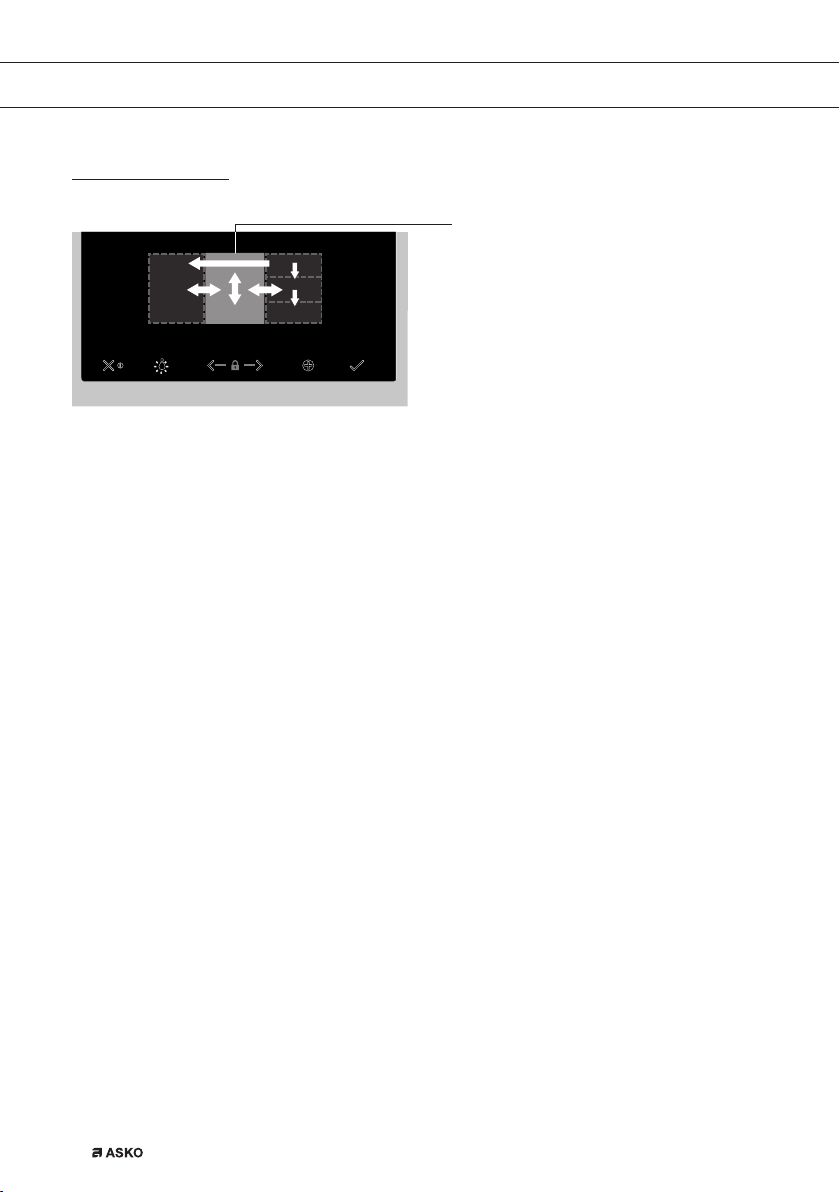

Control panel general use
Activated area (grey background)
Set a function and settings
1. Touch and hold the on/off key to switch on the appliance.
2. Turn the function knob to set a main oven function.
The main oven functions are visible around the oven function knob and in the display.
The function icon is displayed larger. The ‘active area’ (recognizable by a grey background)
moves to the right.
3. Turn the selection knob to select a sub oven function.
The ‘active area’ shows the several different sub oven functions. Scroll up or down to view
the different functions. If a chosen main function does not have a sub function then the next
available setting appears in the active area.
4. Touch the selection knob (or the right navigation key) to confirm the chosen sub oven
function or setting.
The ‘active area’ (grey background) moves to the right.
5. Turn the selection knob to change the next available settings (left = decrease, right =
increase) and confirm by touching the selection knob or touching the right navigation key.
• When all elements in the screen are set, then confirm these settings by touching the confirm
key.
• When the confirm key is blinking it is possible to start the oven with the default settings.
• Touch the left navigation key to move the active area to the left to change an already made
setting. Change the setting by turning and touching the selection knob.
• Touch the stop key to go one-step back in the menu.
Follow the instructions on the display.
YOUR OVEN

EN 9
YOUR OVEN
Egg timer
Clock
Cooking time
Finishing time
Temperature 14:30
Feedback bar
Active area (grey background)
Main function icon
• The display will show the icon and name of the activated function for about 1.5 seconds.
• The feedback bar shows what setting you are changing.
Delayed start
• Set an desired cooking time and finishing time to start cooking at a later time.
Display
When the appliance is in progress you see the following information in the display:
• Temperature and/or microwave power
• Active oven (sub) function
• Egg time (when set /see ‘Plus menu’)
• Cooking time (cooking time counting up or counting down when cooking time has been set)
• Finishing time (when cooking time has been set)
Stand-by mode
The stand-by display will show the time, date and the timer (if set). The appliance goes to stand-
by mode after turning the function knob to 0 (‘off’ position).
Switching on the appliance
• Touch and hold the on/off key to switch on the appliance.
• The appliance can also be switched on by turning the function knob to a function.
Shutting down the appliance
• Touch and hold the stop key to shut down the appliance manually.
• Default the appliance will shut down when there has been no action during 30 minutes.

EN 10
FIRST USE
Before first use
• Clean the appliance interior and accessories with hot water and washing-up liquid.
Do not use aggressive cleaning agents, abrasive sponges and similar.
• The appliance will emit a particular odor when it is used for the first time; this is normal.
Make sure that there is good ventilation during initial use.
When the appliance is first plugged in or after connection when the appliance was
disconnected from the power mains for a long period of time, you have to set ‘Language’,
‘Date’ and ‘Time’.
Setting the language
English
Nederlands
12:00Language
Français
In case you are not comfortable with the language on the display, you can select another
language. The default setting is ‘English’.
1. Turn the selection knob and select your preferred language from the displayed list.
2. Confirm the setting by touching the confirm key.
The next screen will be displayed.
Setting the date and time
English
Nederlands
12:00Language
Français
12:00Year
01 01 2017
2018
12:00Hours
30
11
13
12
1. Turn the selection knob and change the first setting (Year).
2. Confirm this setting by touching the right navigation key or by touching the selection knob.
3. Turn the selection knob and change the next setting (Month).
4. Confirm this setting by touching the right navigation key or by touching the selection knob.
5. Turn the selection knob and change the last setting (Day).
6. Confirm this setting by touching the confirm key.
The next screen will be displayed. Now set the hours and minutes with the selection knob
and navigation key. Confirm your setting by touching the confirm key.

EN 11
FIRST USE
All the start-up settings are now set and the display will show the stand-by screen. The appliance
is now ready for use.
The language, time and date can be adjusted in the settings menu (see ‘Settings menu’
chapter). The settings menu can be opened from the start display via the ‘Plus’ menu.

EN 12
Microwaves
Microwaves are high-frequency electromagnetic waves. The energy makes it possible to cook
or warm up a dish without affecting the form or colour.
Cooking principle
• The microwaves the microwave generates are spread evenly by a distribution system.
This cooks the dish evenly.
• The food absorbs the microwaves to a depth of approximately 2.5 cm. Cooking then
continues, because the heat is spread in the dish.
• The cooking times vary and depend on the dish you use and the properties of the food:
▷Quantity and density
▷Moisture content
▷Starting temperature (whether or not it is chilled)

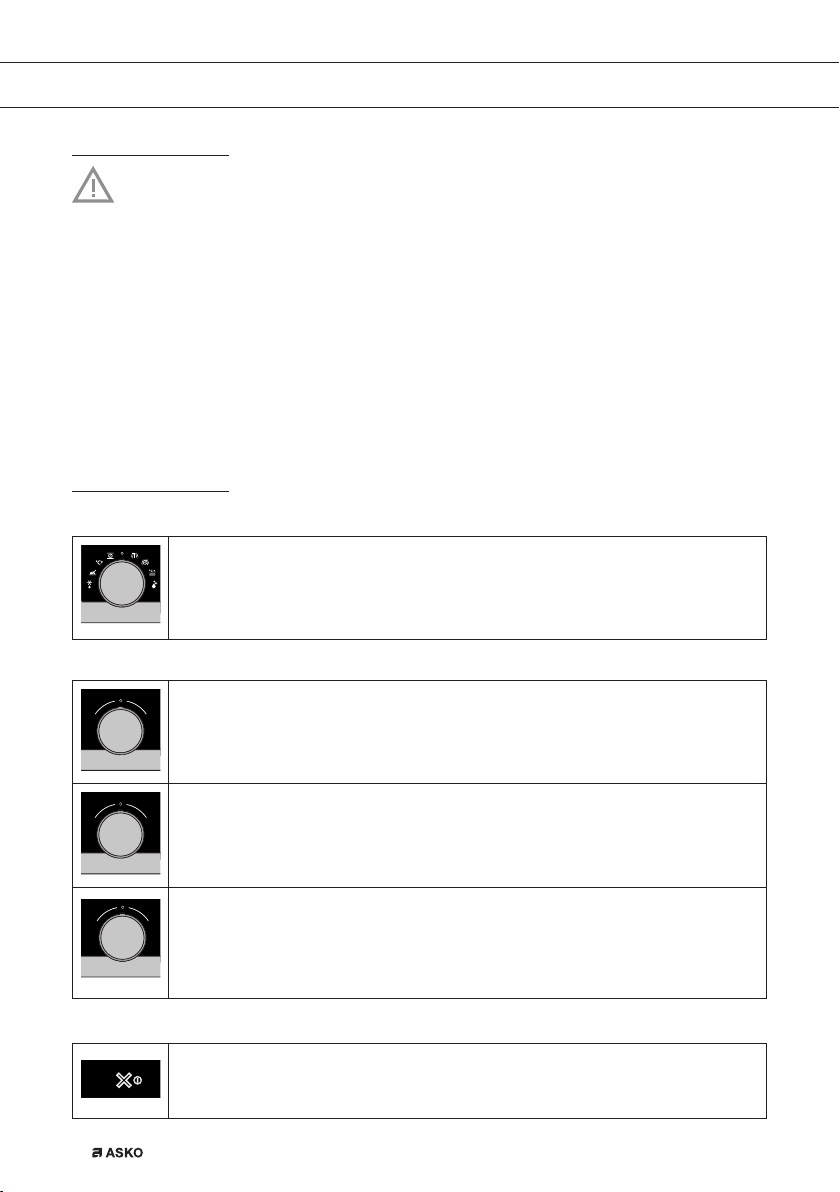

Please note!
The dish is cooked from the inside out by means of heat distribution. The cooking
continues even when you take the dish from the oven. Standing times in recipes should
therefore be adhered to, in order to ensure:
• Even heating into the middle of the dish.
• Equal temperatures in all parts of the dish.
Microwave power setting
Power Use
1000 W • For quick heating of drinks, water and dishes containing a lot of moisture.
• For cooking fresh or frozen vegetables.
750 W • For prepairing and heating of drinks and dishes.
600 W • For melting chocolate.For cooking fish and seafood.
• For heating on two levels.
• For cooking dried beans at low temperatures.
• For heating or cooking delicate dishes with eggs.
360 W • For cooking dairy products or jam at low temperatures.
180 W • For fast defrosting of dishes.
• For softening butter or ice cream.
90 W • For defrosting cakes containing cream.
USE

EN 13
Guidelines for cookware
Cookware that you use for the microwave function should not block the microwaves. Metals
such as stainless steel, aluminium and copper reflect microwaves. For that reason, do not use
metal cookware. Cookware which is designated as microwave-safe can be used safely. For more
information about suitable cookware, consult the following guidelines and always use the glass
baking tray on level one if you use the microwave function.
Cookware Microwave
safe Remarks
Aluminium foil 37 Can be used in small quantities to prevent certain parts of
the dish from overcooking. Arcing can occur if the foil is too
close to the oven wall or if too much foil is used.
Porcelain and
earthenware
3Porcelain, earthenware, glazed earthenware and ivory
porcelain are usually suitable, unless they have a metal edge.
Disposable crockery
made from polyester
or cardboard
3Frozen meals are sometimes packaged in disposable
tableware.
Fast food packaging
• Polystyrene
cups
• Paper bags or
newspaper
• Recycled paper
or metal edges
3
7
7
Can be used to warm up dishes.
Polystyrene can melt if it overheats.
Can catch fire.
Can cause arcing.
Glassware
• Oven dishes
• Fine glassware
• Glass jars
3Can be used, unless it has a metal edge.
Can be used to warm up dishes or liquids. Thin glass can
break or shatter with sudden heating.
The lid must be removed. Only suitable for warming.
Metal 7Can cause arcing or fire.
Paper
• Plates, cups,
kitchen paper
• Recycled paper
3
7
For short cooking times and warming. For absorbing excess
moisture.
Can cause arcing.
Plastic 3Only use heat-resistant thermoplastic material. Other types
of plastic can warp or discolour at high temperatures. Do not
use melamine plastic. Only if boil-proof or ovenproof.
Must not be airtight. If necessary, prick it with a fork.
3: Recommended
37 : Careful
7: Unsafe
USE

EN 14
Please note!
Warning!
• Heating liquids in the microwave can result in delayed boiling. This means that the liquid
may start to boil furiously after it is removed from the microwave, with the risk of scalding.
You can offset the delayed boiling effect by placing a plastic or glass spoon in the liquid
prior to heating it in the microwave.
• Take care with baby food:
▷Shake or stir the content of babies’ bottles or pots of baby food after heating.
▷Check the temperature of the food carefully prior to consumption to prevent
scalding injuries.
• Cutlery and tableware may become hot after using the microwave.
Explanation of the knobs and the keys
Function knob
Select a function
Turn this knob to select the desired function.
• See ‘Description of the functions’ for more information.
Selection knob
To choose an sub oven function
Turn this knob to choose a sub oven function.
• See ‘Control panel general use’ for more information.
Change the settings
Turn this knob to change the settings that are in the active area.
• See ‘Control panel general use’ for more information.
Go to the next setting
Touch this knob to go to the next setting.
• The next to change setting will be in the grey active area.
On/off key and stop key
To switch the appliance on or off
Touch and hold the key for several seconds to switch the appliance on or off.
USE

EN 15
To cancel or go back in the menu
Touch this key to cancel an operation or to go back one-step in the menu.
Lighting key
Switch the lighting on/off
Touch this key to switch the cavity lighting on or off.
Navigation keys
Navigate to the right
Touch the right navigation key to confirm the setting and to move the active area
to the right.
Navigate to the left
Touch the left navigation key to move the active area to the left.
Turn on/off the child lock function
Touch and hold the navigation keys simultaneously to activate/deactivate the
child lock function.
• The oven’s control panel can be locked by means of the Child Safety Lock,
to protect the oven against unintended use.
Plus key
To open the settings menu (see ‘Settings’)
Touch this key in stand-by mode to open or exit the settings menu:
• Egg timer
• General
• Display
• Cooking
• System
To open extra options (see ‘Plus menu’)
Touch this key in operation mode to open or exit the extra options possible at
that moment:
• Egg timer
• Fast preheat
Confirm key
Confirm key
To confirm all the white settings/elements in the screen.
Add microwave time
Add 30 seconds microwave time (microwave function).
USE

EN 16
Description of the mains functions
Consult the tables to select the preferred function. Also consult the instructions for preparation
on the dish packaging. Some main functions have sub functions.
In ‘Microwave function’: do not use metal cookware or utensils and do not preheat
the oven. Be sure that all the accessories that are being used are able to withstand
the temperature settings of the chosen oven function.
Main functions (to select with the function knob)
Function Description
Oven
• Use one of the functions available for grilling,
baking or roastig.
• Sub functions are available (consult Oven
functions table).
2
Fast preheat
• With this function, the oven space quickly
reaches the desired temperature. Do not use
this setting when you have a dish in the oven
space.
Programs
• Use ‘Programs’ for baking and roasting by
selecting a dish from a list of pre-programmed
dishes.
Defrost
• This function uses microwaves. Dishes are
defrosted quickly and efficiently.
Microwave
• Microwave energy is used to cook and defrost
foods. It provides fast efficient cooking without
changing the colour or form of food.
• Default settings can be changed in the settings
menu.
• Place the glass dish on level 1.
• Suggested power: 750 W
1
USE

EN 17
Function Description
Combi microwave
• Use one of the functions for (fast) cooking of
meals.
• Sub functions are available (consult Combi
microwave functions table).
Warming
• Use one of the functions to warm dishes.
• Sub functions are available (consult warming
functions table).
Cleaning
• Grease and grime can easily be removed from
the oven walls with a damp cloth.
Description of the sub functions
Oven functions (to select with the selection knob)
Function Description
Hot air
• Heating by means of hot air from the back of
the oven.
• This mode provides uniform heating and is ideal
for baking.
• Place the baking tray or oven rack in the middle
of the oven.
• Suggested temperature: 180 °C
• Preheating is recommended.
2
Hot Air + Bottom heat
• Heating by means of hot air from the back of
the oven and the bottom heating element.
• This mode can be used to bake pizza, moist
pastry, fruitcakes, leavened dough and short crust.
• Place the baking tray or oven rack in the middle
of the oven.
• Suggested temperature: 200 °C
• Preheating is recommended.
2
USE

EN 18
Top + Bottom heat
• Heating by means of the upper and lower
heating elements.
• This mode can be used for traditional baking
and roasting.
• Place the baking tray or oven rack in the middle
of the oven.
• Suggested temperature: 200 °C
• Preheating is recommended.
2
Large Grill
• Heating by means of the upper element and
grill element.
• This mode can be used with dishes and baked
goods that require a distinctive bottom crust or
browning. Use just before the end of the baking
or roasting time.
• Place the oven rack in the upper part of the oven
and the baking tray in the middle of the oven.
• Monitor the cooking process at all times.
The dish may burn quickly due to the high
temperature.
• Maximum allowed temperature: 240 °C
2
4
Grill
• Heating by means of the grill element.
• This mode can be used for grilling a smaller
amount of open sandwiches, beer sausages,
and for toasting bread.
• Place the oven rack in the upper part of the
oven and the baking tray in the middle of the oven.
• Monitor the cooking process at all times.
The dish may burn quickly due to the high
temperature.
• Maximum allowed temperature: 240 °C
2
4
Large grill + Fan
• Heating by means of the top heating elements.
The heat is distributed by the fan.
• This mode can be used for grilling meat, fish and
vegetables.
• Place the oven rack in the upper part of the oven
and the baking tray in the middle of the oven.
• Suggested temperature: 170 °C
• Monitor the cooking process at all times. The dish
may burn quickly due to the high temperature.
• Preheating is recommended.
2
4
USE

EN 19
Top heat
• Heating only by means of the upper heating
element.
• This mode can be used when you wish to bake/
roast the top part of your dish.
• Place the baking tray or oven rack in the middle
of the oven.
• Suggested temperature: 150 °C
2
Bottom heat
• Heating only by means of the lower heating
element.
• This mode can be used with dishes and baked
goods that require a distinctive bottom crust or
browning.
• Place the baking tray or oven rack in the lower
part of the oven.
• Use just before the end of the baking or roasting
time.
• Suggested temperature: 160 °C
Bottom heat + Fan
• Heating by means of the lower heating element.
The heat is distributed by the fan.
• This mode can be used for baking low leavened
cakes, as well as for preservation of fruit and
vegetables.
• Place a not too high baking tray in the lower
part of the oven, so that hot air can also
circulate over the upper surface of the food.
• Suggested temperature: 180 °C
2
Pro roasting
• Heating by means of the upper heating element
in combination with the grill heating element
and hot air.
• This mode can be used for roasting all types of
meat. Suggested temperature: 180 °C
USE

EN 20
ECO Hot air
• Heating by means of hot air. ECO hot air uses
less energy but gives the same result as the hot
air setting. Cooking takes a few minutes longer.
• This mode can be used for roasting meat and
baking pastry. Place the baking tray in the middle
of the oven.
• Suggested temperature: 180 °C
• This setting makes use of the residual heat
(heating is not on the whole time) to achieve
low energy consumption (in accordance with
energy class EN 60350-1). In this mode the actual
temperature in the oven is not displayed.
2
Combi microwave functions (to select with the selection knob)
Function Description
Hot air + Microwave
• This system employs a combination of
microwaves and hot air; therefore, the cooking
time is shorter.
• Use this for all types of meat, stews, vegetables,
pies, cakes, bread and dishes au gratin (i.e. food
that require longer cooking time).
• Place the glass dish on level 1.
• Suggested temperature: 160 °C
• Suggested power: 600 W
Grill + Fan + Microwave
• The food is cooked with a combination of
microwaves and grill with fan.
• Use this combination for smaller chunks of
meat, fish and vegetables.
• It allows fast cooking and the food will have a
nicely browned crispy crust.
• Place the glass dish on level 1.
• Suggested temperature: 200 °C
• Suggested power: 600 W
USE
