We thank you for your trust and the purchase of our appliance.
This detailed instruction manual is supplied to make the use of this product easier. The instructions
should allow you to learn about your new appliance as quickly as possible.
Make sure you have received an undamaged appliance. If you do find transport damage, please
contact the seller from which you purchased the appliance, or the regional warehouse from which
it was supplied. The telephone number can be found on the invoice or on the delivery note.
Instructions for installation and connection are supplied on a separate sheet.
The following symbols are used throughout the manual and they have the following meanings:
INFORMATION!
Information, advice, tip, or recommendation
WARNING!
Warning –general danger
It is important that you carefully read the instructions.
3
Introduction

IMPORTANT SAFETY PRECAUTIONS –CAREFULLY READ THE
INSTRUCTIONS AND SAVE THEM FOR FUTURE REFERENCE.
Appliance must be connected to fixed wiring which has incorporated
means of disconnection. Fixed wiring must be made in accordance
with the wiring rules.
Means for disconnection must be incorporated in the fixed wiring in
accordance with the wiring rules.
The appliance must not be installed behind a decorative door in
order to avoid overheating.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard (only for appliances supplied with connection
cord).
During use the appliance becomes hot. Care should be taken to
avoid touching the heating elements inside the oven.
This appliance can be used by children aged 8 years and above,
and by persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge, if they have been given
supervision or instruction concerning the use of the appliance in a
safe way, and if they understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall
not be done by children without supervision.
WARNING: Accessible parts may become hot during use. Young
children should be kept away.
WARNING: The appliance and some of its accessible parts may
become very hot during use. Care should be taken to avoid touching
heating elements. Children less than 8 years of age shall be kept
away unless continuously supervised.
The appliance is not intended to be controlled by external timers or
separate remote controll system.
Only use the temperature probe recommended for use in this oven.
4
Safety precautions

Do not use harsh abrasive cleaners or sharp metal scrapers to clean
the oven door glass/ the glass of hinged lids of the hob (as
appropriate), since they can scratch the surface, which may result
in shattering of the glass.
Do not use steam cleaners or high-pressure cleaners to clean the
appliance as this may result in an electric shock.
WARNING: Before replacing the light bulb, make sure the appliance
has been disconnected from the mains power, in order to prevent
the hazard of an electric shock.
Never pour water directly on the bottom of the oven cavity.
Temperature differences could result in damage to the enamel
coating.
5
Safety precautions

The appliance is intended for household use. Do not use it for any other purpose, such as room
heating, drying of pets or other animals, paper, fabrics, herbs etc. As this may lead to injury or fire
hazard.
Appliance must be connected to fixed wiring which has incorporated means of disconnection. Fixed
wiring must be made in accordance with the wiring rules.
Do not lift the appliance by holding it by the door handle.
Oven door hinges may be damaged when under excessive load. Do not stand or sit on the open
oven door, and do not lean against it. Also, do not place any heavy objects onto the oven door.
If the power cords of other appliances placed near this appliance get entangled in the oven door,
they can be damaged, which in turn can result in a short circuit. Therefore, make sure the power
cords of other appliances are always at a safe distance.
Oven door become very hot during operation. A third glass is installed for extra protection, reducing
the temperature of the outside surface (only with some models).
Make sure the vents are never covered or obstructed in any other way.
Do not line the oven cavity with aluminium foil, and do not place any baking trays or other cookware
on the oven bottom. This would obstruct and reduce air circulation in the oven, slow down the baking
process, and destroy the enamel coating.
We recommend you avoid opening the oven door during baking, as this increases power consumption
and increases condensate accumulation.
At the end of the baking process, and during baking, be careful when opening the oven door, as
there is danger of scalding.
To prevent limescale accumulation, leave the oven door open after baking or using the oven, to
allow the oven cavity to cool down to room temperature.
Clean the oven when it has completely cooled down.
Eventual mismatches in colour shades between different appliances or components within a single
design line may occur due to various factors, such as different angles under which the appliances
are observed, different coloured backgrounds, materials, and room illumination.
Never pour water onto the oven cavity bottom. Temperature differences could result in damage to
the enamel coating.
Do not use the appliance if it is damaged. Call an authorized service centre.
WARNING!
Carefully read the instructions for use before connecting the appliance. Repair or any
warranty claim resulting from incorrect connection or use of the appliance shall not be
covered by the warranty.
6
Other important safety warnings

INFORMATION!
Appliance functions and equipment depend on the model.
Basic equipment of your appliance includes wire guides, shallow baking tray, and a wire rack.
5. Guides –cooking levels1. Control unit
6. Rating plate2. Door switch
7. Oven door3. Lighting
8. Door handle4. Temperature probe socket
Rating plate –product information
A rating plate with basic information about the appliance is attached to the edge of the oven.
5. Code/ID1. Serial number
6. QR code (depending on the model)2. Model
7. Technical information3. Type
8. Compliance indications/symbols4. Brand
7
Appliance description

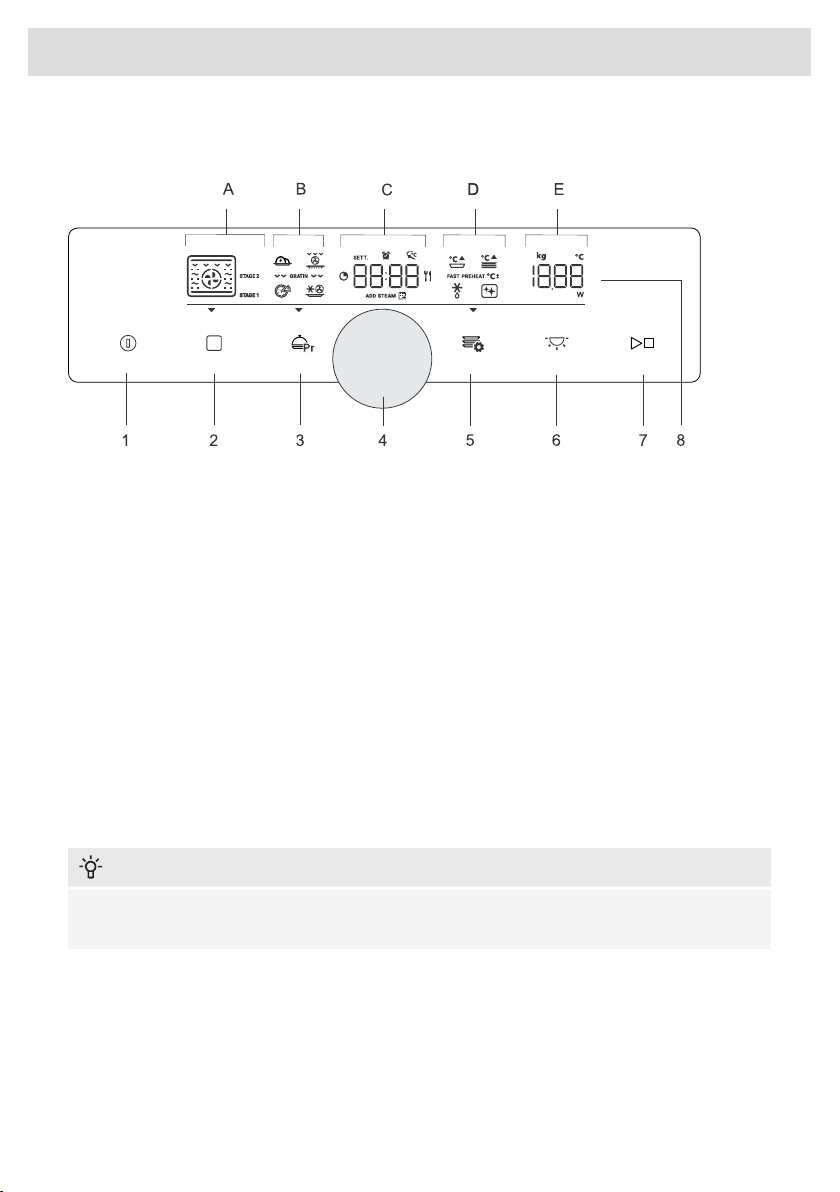

Control unit
(depending on the model)
1. on I off key
2. (pro bake) professional mode key
3. (auto bake) automatic mode key
4. settings selection and confirmation knob
- rotate the knob to choose a setting
- press the knob to confirm the setting
5. (extra bake) key for extra functions and general appliance settings
6. (light) key for switching the oven lighting on and off
7. start I stop key for starting or pausing, and confirming settings
8. Display unit:
A. baking systems, step mode (STEP)
B. special baking systems, automatic programs, gratins
C. clock, timer functions, temperature probe, baking time
D. special programs, preheating
E. temperature, weight
INFORMATION!
For better key response, touch the keys with a large area of your fingertip. Each time you press
a key, this will be acknowledged by a short acoustic signal (if the function is available).
8
Appliance description

Control lights
Oven light: oven light is switched on when you open or close the oven door, when you switch on
the oven, at the end of the baking process, and when you touch the oven light key on the control
unit.
Guides

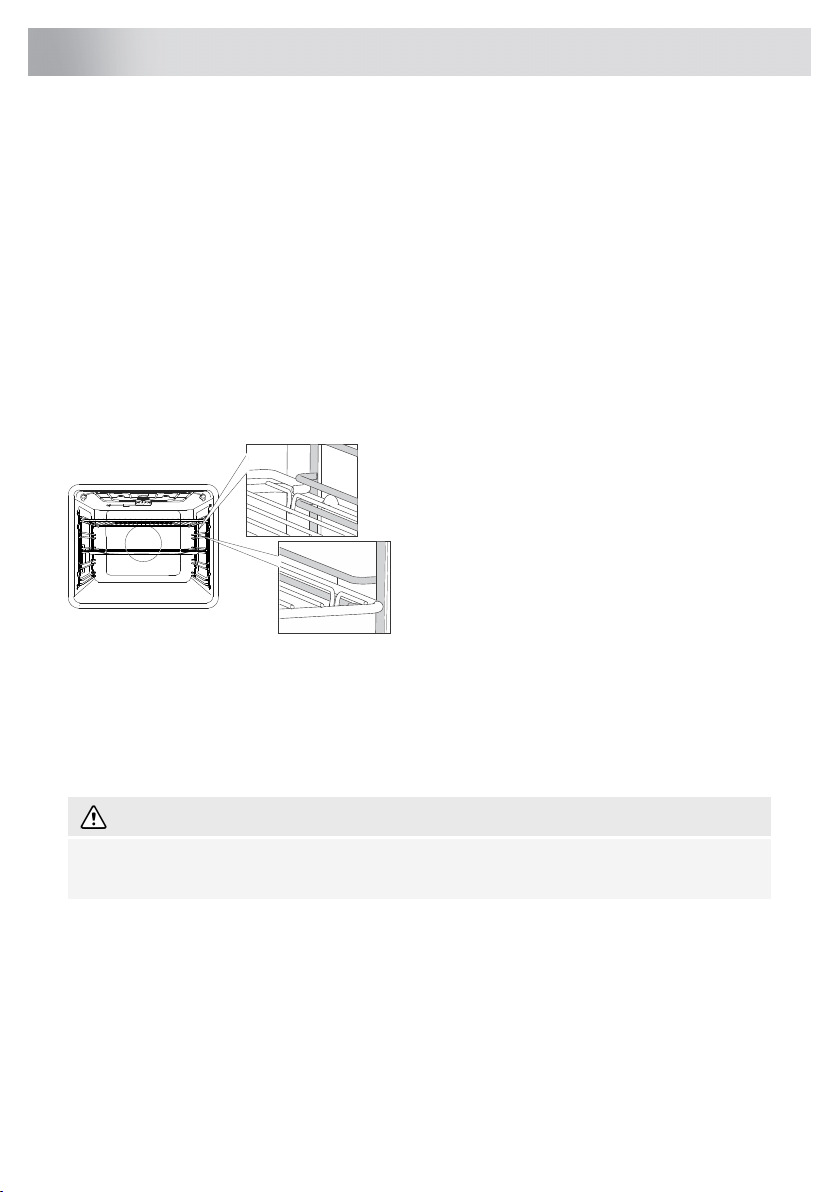

•The guides allow cooking or baking on 5 rack levels.
•The height levels of guides into which the racks can be inserted shall be counted from bottom
up.
•Guide levels 4 and 5 are intended for grilling/broiling.
•When inserting equipment, it should be correctly rotated.
•Always push the equipment all the way into the appliance.
Wire guides
In case of wire guides, always insert the wire
rack and the baking tray into the slot between
the upper and lower part of each guide level.
Oven door switch
(depending on the model)
If the oven door is opened during oven operation, the switch turns off the heater and fan in the oven
cavity. When the door is closed, the switch turns the appliance operation back on.
WARNING!
Using the oven with the door open and the door switch engaged (closed) is not allowed.
The oven will signal an error, and it will have to be reset.
Cooling fan
The appliance is fitted with a cooling fan that cools the housing, the door, and the appliance control
unit. After the oven is switched off, the cooling fan continues to operate for a short while in order to
cool down the oven.
9
Appliance equipment

Oven equipment and accessories
(depending on the model)

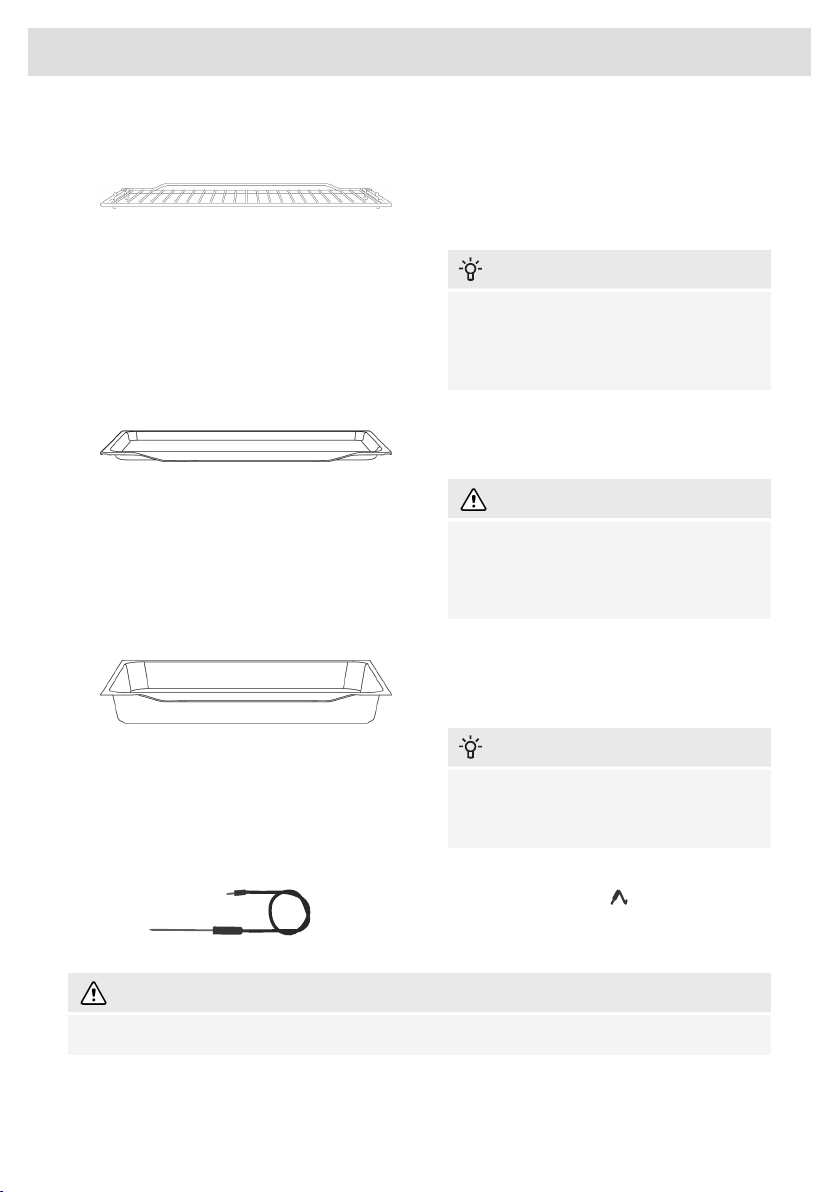

The WIRE RACK is used for grilling/broiling
or as support for a pan, baking tray or baking
dish with the food you are baking.
INFORMATION!
There is a safety latch on the wire rack.
Therefore, the wire rack has to be lifted
slightly at the front when pulling it out from
the oven.
SHALLOW BAKING TRAY is used for flat and
small pastry. It can also be used as a drip tray.
WARNING!
The shallow baking tray may deform as
it heats up in the oven. Once it cools
down, it returns to the initial shape. Such
deformation does not affect its function.
The ALL-AROUND DEEP BAKING TRAY is
used for roasting vegetables and baking moist
pastry. It can also be used as a drip tray.
INFORMATION!
Never insert the all-purpose (or universal)
deep baking tray into the first guide during
baking.
Temperature PROBE ( BAKESENSOR).
WARNING!
The appliance and some of the accessible parts tend to heat up during cooking.
10
Appliance equipment

•Remove oven accessories and any packaging (cardboard, polystyrene foam) from the oven.
•Wipe the oven accessories and interior with a damp cloth. Do not use abrasive or aggressive
cloths or cleaners.
•Heat an empty oven for approximately one hour with the top and bottom heater system at a
temperature of 250 °C. The characteristic "new oven scent" will be released; therefore, ventilate
the room thoroughly during this process.
11
Before first use

After connecting your appliance or after an extended power outage, 12:00 will flash on the display.
First, choose and confirm the following basic settings.
INFORMATION!
Change them by rotating the KNOB. To confirm the desired setting, press the KNOB or touch
the key.
1. CLOCK SETTING
Set the clock/time of day. First, set and confirm the minutes; then set
and confirm the hours.
INFORMATION!
To set or adjust the clock later on, see chapter Extra functions.
2. ACOUSTIC SIGNAL VOLUME
Medium volume is the default setting. The sign VoL and the currently
set value for the acoustic signal volume will appear on the display unit.
Rotate the KNOB to increase or decrease the key volume.
3. DISPLAY DIMMER
Medium light intensity is the default setting. The sign brht and the
currently set value for the display light intensity will appear on the display
unit. Rotate the KNOB to increase or decrease lighting intensity.
After you confirm the selected settings, the clock will appear on the display unit. The appliance is
in standby mode.
12
Switching on for the first time

The interface allows choosing several operating modes:
•Professional mode (pro bake)
•Automatic mode (auto bake)
•Extra functions (extra bake)
•Step program (STAGE) in the professional mode (pro bake)
•Automatic programs in automatic mode (auto bake)
INFORMATION!
•Rotate the KNOB to scroll through the settings.
•First, confirm the selected setting by pressing the KNOB; then, change the setting.
•Confirm each setting by pressing the KNOB.
•A line and an arrow indicate the location of the parameter that you are looking to set.
•Press the key to start the program.
•Operation of the key:
- brief touch: switch the oven on or off, stop the baking process or function.
–long touch: the oven switches to low power consumption (power saving) mode.
No key or KNOB are active, except for the key. To switch on the oven, long-touch this
key.
PROFESSIONAL MODE (pro bake)
This function allows setting the baking parameters –baking system, temperature, fast preheating,
and baking time –freely, at the user's discretion.
Touch the key and set the following:

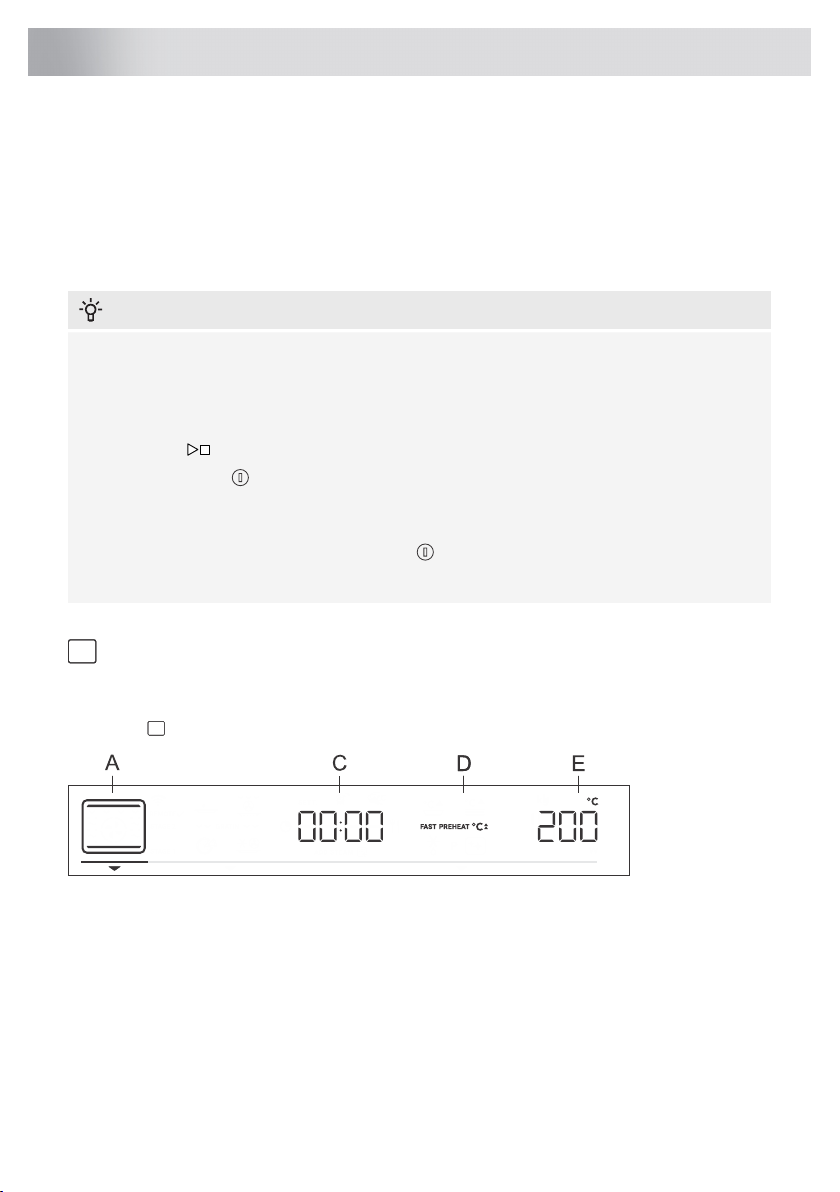

A baking system
C program duration
D preheating
E temperature
Additionally, the following can be set:
- timer functions (see chapter Timer functions)
- step baking mode (STAGE) (see chapter step program)
- gratin (GRATIN) (see chapter Starting the cooking process)
Fast preheat
Use the fast preheating function if you wish to heat the oven to the desired temperature as quickly
as possible.
13
Choosing the settings

To activate fast preheating, rotate the KNOB to the setting (see image, label D).
Confirm the selection. Rotate the KNOB to select the fully lit sign and confirm it. The function is now
activated.
When the selected temperature is reached, the preheating process stops and an acoustic signal is
emitted. door will appear on the display unit. Open the door and insert the food. The program will
automatically continue baking with selected settings.
INFORMATION!
When the fast preheat function is activated, delayed start function cannot be used.
CHOOSING THE COOKING SYSTEM
INFORMATION!
Appliance functions and equipment depend on the model.
UseSymbol
HOT AIR
Hot air allows better flow of hot air around the food. This way, it dries out the surface
and creates a thicker crust. Use this system to cook meat, pastry and vegetables,
and to dry food on a single rack or multiple racks simultaneously.
PIZZA SYSTEM
This system is optimal for baking homemade pizza and pastry with higher water
content. Use it to bake on a single rack, when you want the food to be done faster
and to be crunchy.
EXTRA CRISP (INTENSIVE BAKING)
This cooking method results in a crunchy crust without added fat. This is a healthy
version of fast-food preparing, resulting in lower calorie content. Suitable for smaller
cuts of meat, fish, vegetables, and frozen products ready for extra crispiness
(French fries,chicken nuggets).
GRILL WITH HOT AIR
Hot air allows better flow of hot air around the food. This will dry out the surface. In
combination with the grill heater/broiler, this will also result in a more intensive
colour.
For faster baking of meat and vegetables.
TURBO BAKE
For dishes where even crispiness from all sides is desirable. The system is also
suitable as the first step in the step baking mode, as it allows quick browning of
the surface in the first stage and slow baking in the second stage. The meat will
be juicy with a nicely browned crust.
LARGE GRILL
Use this system to grill large amounts of flat-shaped food like toast, open
sandwiches, grill sausages, steaks, fish, skewers etc., as well as for cooking au
gratin and for browning the crust. The heaters mounted on the top of the oven cavity
evenly heat the entire surface.
Maximum allowed temperature: 240 °C
14
Choosing the settings

UseSymbol
TOP AND BOTTOM HEATER
Use this system for conventional baking on a single rack, making soufflés, and
baking at low temperatures (slow cooking).
GENTLE BAKING
For gentle and controlled slow cooking of delicate food (soft cuts of meat) and
baking pastry with a crunchy bottom.
TOP AND BOTTOM HEATER WITH FAN
For even baking of food on a single rack, and for making soufflés.
LARGE GRILL WITH FAN
For roasting poultry and larger cuts of meat under a broiler.
LARGE GRILL AND BOTTOM HEATER
For faster baking on a single rack and for crisply browning the top of your pastry.
GRILL WITH BOTTOM HEATER AND FAN
For optimum baking of yeast-leavened dough, all types of bread, and for
preservation.
INFORMATION!
In these systems, it is possible to use the gratin function (see chapter Starting the cooking process).
Touch the key to start the cooking process. Selected settings will appear on display unit.
TIMER FUNCTIONS
Rotate the KNOB to select the timer functions.
Timed cooking
In this mode, you can specify the duration of oven operation (cooking
time).
The cooking duration symbol will appear on the display unit. Rotate
the KNOB to set the desired cooking time. Confirm the setting by
pressing on the KNOB.
Touch the key to start baking.
Table continued from last page
15
Choosing the settings

Setting the delayed start
INFORMATION!
Delayed start is not possible when the preheating function is
activated.
Use this function when you wish to start cooking the food in the oven
after a certain period of time. Place the food into the oven, then set the
system and temperature. Then, set the program duration and the time
when you wish your food done.
Example:
Current time: 12:00 (noon)
Cooking time: 2 hours
End of cooking: at 18:00 (6 p.m.)
The cooking duration symbol will appear on the display unit. Choose
the setting and confirm it by pressing the KNOB (in our case, 2:00).
Press the KNOB again and rotate it to select the symbol . Confirm
and set the time when you wish your food to be done (in our case, this
is 18:00, or 6 p.m.). Desired cooking end time will appear on the display
unit (18:00). Confirm the setting by pressing on the KNOB.
Touch the key to start baking.
While waiting to be activated, the oven switches to a partial stand-by
(the display unit goes dark). The oven will switch on with the selected
settings automatically (in our case at 16:00, or 4 p.m.). The oven will
switch off at the set time (in our case, this is 18:00, or 6 p.m.).
INFORMATION!
Cooking end time and the clock will alternate on the display unit.
After the set time expires, the oven will automatically stop operating.
Sign End and 00.00 will alternate on the display unit. An acoustic signal
will be emitted, which can be turned off by touching any key. After one
minute, the acoustic signal will be switched off automatically.
WARNING!
This function is not suitable for food requiring fast preheating.
Perishable food should not be kept in the oven for a long time.
Before using this mode, check whether the clock on the
appliance is accurately set.
16
Choosing the settings

Minute minder setting
The minute minder can be used independently of oven operation. The
longest possible setting is 24 hours. During the last minute, the minute
minder is displayed in seconds.
Rotate the KNOB to select the symbol and confirm your setting.
Rotate the KNOB and set the minute minder duration. Confirm the setting
by pressing on the KNOB.
INFORMATION!
The select timer function can be reset to 00:00 by long-pressing the KNOB.
INFORMATION!
The most recently used timer function values can be stored and offered as preset values the next
time you use the timer. As a factory setting, this function is off, but it can be activated (see chapter
Selecting extra functions, Adaptive function).
STEP PROGRAM
This function allows baking in two steps or stages (two consecutive baking steps are combined in
a single cooking process).
A1 first cooking step STAGE1, (STAGE2)
C program duration/end of program (see chapter "Timer Functions")
E temperature/power
Step:STAGE1
In the mode, set the baking system and temperature. You can also choose the fast preheating
function. Then, set the baking duration for STAGE1 (see chapter Timer Functions). Confirm the
setting by pressing on the KNOB.
INFORMATION!
In STAGE1, you can set the delayed start; however, if you do so, you cannot activate fast
preheating.
Step:STAGE2
Press and hold the key. STAGE2 (second cooking step) will appear on the display unit (the first
one has already been set). Set the baking system, temperature, and duration. Confirm the setting
by pressing on the KNOB.
If you wish, you can also modify STAGE1 or STAGE2 before starting them.
17
Choosing the settings

Touch the key and select STAGE1. Now you can change the settings. Then, do the same for
STAGE2.
To delete the step mode, press and hold the key.
key to start baking. The oven first starts to operate with the settings selected for STAGE1. When the
STAGE1 is done,STAGE2 is activated.
18
Choosing the settings

AUTOMATIC MODE (auto bake)
In this mode, you may choose between special baking systems or automatic programs (preset
programs for particular types of food).
Special baking systems
Touch the key and set the following:
B special baking systems
C program duration (see chapter Timer functions)
E temperature
Rotate the KNOB and choose your settings. Preset values will be displayed: You can change the
temperature and program duration.
UseSymbol
BAKING FROZEN FOOD1)
This method allows baking frozen food in a shorter period of time without
pre-heating. Optimum for pre-baked frozen products (bakery products, croissants,
lasagne, French fries, chicken nuggets), meat and vegetables.
PIZZA SYSTEM1)
This system is optimal for baking homemade pizza and pastry with higher water
content. Use it to bake on a single rack, when you want the food to be done faster
and to be crunchy.
SLOW BAKING2)
For gentle, slow and even cooking of meat, fish and pastry on a single rack. This
cooking method will leave the meat with a higher water content, making it juicier
and more tender, while pastry will be evenly browned/baked. This system is used
in the temperature range between 140 °C and 220 °C.
EXTRA CRISP (INTENSIVE BAKING)1)
This cooking method results in a crunchy crust without added fat. This is a healthy
version of fast-food preparing, with fewer calories in the cooked food. Suitable for
smaller cuts of meat, fish, vegetables, and frozen products ready for extra crispiness
(French fries, chicken nuggets).
1) In these systems, it is possible to use the gratin function (see chapter Starting the cooking process).
2) This function is used for determining the energy efficiency class pursuant to the EN 60350-1 standard.
Fast preheat
Cooking procedures for some dishes in the auto bake mode also include the fast preheating function.
The sign will be fully lit. When the selected temperature is reached, the preheating process stops
and an acoustic signal is emitted. door will appear on the display unit. Open the door and insert the
food. The program will automatically continue baking with selected settings.
19
Choosing the settings

INFORMATION!
When the fast preheat function is activated, delayed start function cannot be used.
Automatic programs
In the automatic mode , you may choose between numerous automatic programs (the appliance
will recommend the optimum cooking method, temperature, and cooking duration depending on
the type of food specified).
Press and hold the key to display the automatic programs on the display unit (see table).
Where possible, you can also set the weight of the food.
Confirm your setting by pressing the KNOB. Touch the key to start baking. Preset values will
appear on the display unit.
A baking system
C automatic program indication/program duration
D fast preheating
E selected amount
TurningPreheatingLevelEquipmentProgram nameIndication
noyes3shallow baking traypiped cookiesPr01
noyes3shallow baking traycupcakesPr02
noyes2baking pan/dish on wire
rack
sponge cakePr03
noyes2shallow baking trayyeast-leavened
small pastry
Pr04
noyes2shallow baking traypuff pastryPr05
nono2baking pan/dish on wire
rack
apple piePr06
nono2shallow baking trayapple strudelPr07
noyes3baking pan/dish on wire
rack
chocolate souffléPr08
nono2shallow baking trayrising and proofingPr09
noyes2shallow baking traybreadPr10
nono2small baking dish on
wire rack
pork roastPr11
20
Choosing the settings
