Introduction
Congratulations on choosing this Asko oven.
This product is designed to offer simple operation and optimum
user-friendliness. The oven has a wide range of settings enabling you to
select the correct cooking method every time.
This manual shows how you can best use this oven. In addition to
information about operating the oven, you will also find background
information that may be useful when using the appliance.
Please read the separate safety instructions
carefully before using the appliance!
Read this manual before using the appliance and keep it in a safe
place for future use.
Installation instructions are supplied separately.
YOUR OVEN

EN 5
YOUR OVEN
Control panel

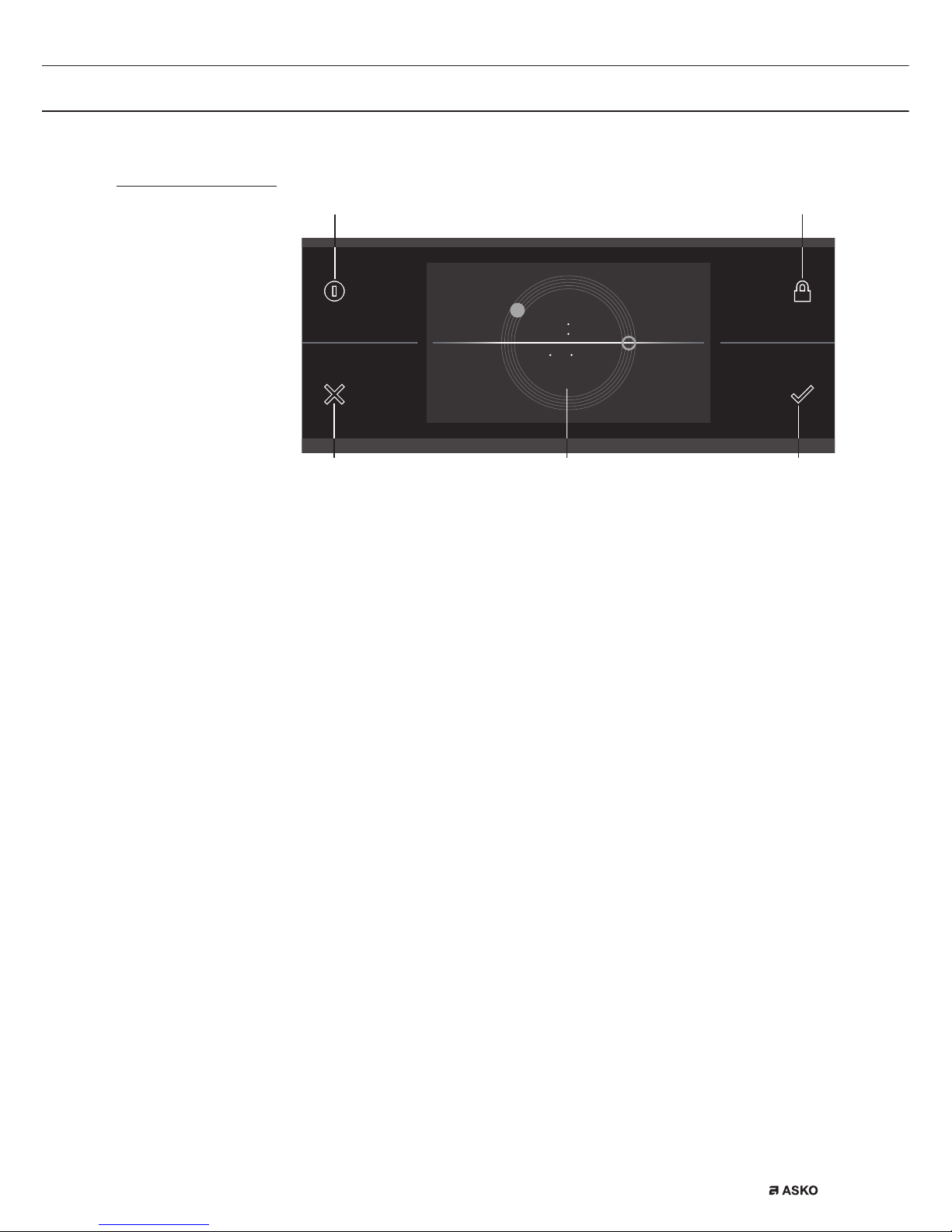

01. On/Off key; use to:
▷switch on the appliance.
▷switch to stand-by
▷switch off the appliance. Keep the ‘On/Off’ key pressed until the
appliance switches off.
02. X key; use to:
▷go a step back in the menu.
▷close or answer ‘No’ to a pop-up.
▷close or cancel a menu or function.
03. Key lock key; use to:
▷Lock all the keys to clean the dashboard or to prevent that the
appliance gets into progress accidentally. Hold the key pressed
until the key lock is enabled.
04. Confirm key; use to:
▷confirm settings
▷start a function.
▷close or answer ‘Yes’ to a pop-up.
05. Touch screen/display
10 15
10 10 2015
040502
01 03

EN 6
YOUR OVEN
Description
1. Control panel
2. Shelf levels
▷OP8678G: 5 levels*
▷OP8478G: 4 levels
3. Oven door
4. Door handle
The following accessories are supplied with your oven:
• Baking tray; used for pastries and cakes.
• Oven rack; mainly used for grilling.
A dish or pan with food can also be placed on the oven rack.
This oven rack is equipped with a safety peg. Lift the rack at the
front slightly to slide this out of the oven space.
• Deep baking tray; used for roasting meat and baking moist cakes.
The deep baking tray can also be used as a drip tray. Place the
deep baking tray on the first level to grill or to use as a drip tray.
1
3
Level 1
Level 2
Level 3
Level 4
Level 5*
2
4

EN 7
Culisensor
• Culisensor; can be used to measure the core temperature of
the dish. When the desired temperature is reached, the cooking
process will be stopped automatically.

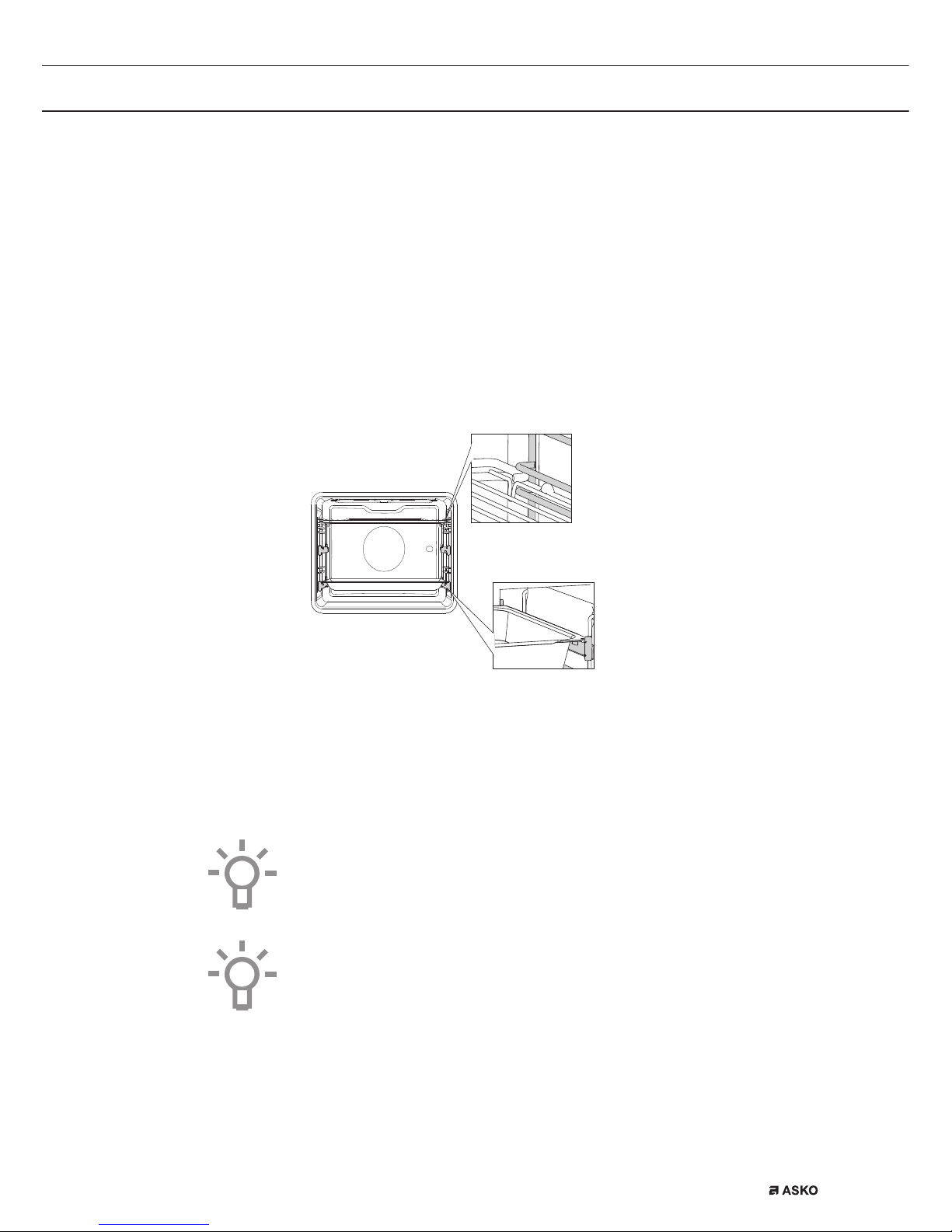

Guide rails
• The oven has four or five shelf levels, depending on the model.
Level 1 is mainly used in combination with bottom heat.
Levels 3 and 4/5 are used mainly for the grill function.
• Place the oven rack or baking tray in the gap between the guide
rail sliders.
Telescopic guide rail
• A number of shelf levels have a fully-retractable telescopic guide
rail.
• Pull the telescopic guide rails out of the oven cavity completely
and place the oven rack or baking tray. Then slide the oven rack or
baking tray, on the telescopic guide rails, back into the oven cavity.
Only close the oven door when the telescopic guide rails are returned
completely back into the oven cavity.
Pyrolysis guide rail
• Only use for pyrolysis cleaning. If you also want to clean the baking
tray with pyrolysis, then place these guide rails.
• Please note; the high temperature during pyrolysis can cause the
guide rails to discolour.
YOUR OVEN

EN 8
YOUR OVEN
Rotisserie
This is used for roasting all kinds of dishes such as rolled meats or
chicken. The rotisserie comprises a spit with 2 clamps, a detachable
handle and a spit roast that fits in the centre of the oven. The spit fits in
the rotisserie motor in the back wall of the oven.
• Slide the deep baking tray in at level 1 to catch juices or fat.
• Slide one of the clamps onto the spit and then slide the meat you
wish to roast onto the spit.
• Place the spit roast in the central oven level with the ‘v’ shape to
the front.
• The handle can be screwed onto the blunt end of the spit to make
positioning the spit easier.
• Place the spit on the spit roast with the pointed end away from you.
Push gently until the spit fits in the rotisserie motor in the back wall.
The blunt end of the spit needs to fit in the ‘v’ shape. (The spit has
two notches, both of which need to be mounted on the oven door
side so that the spit stays in position. The notches also serve as a
grip for the handle.)
• The rotisserie motor starts running when a function with grill has
been started
• Remove the handle prior to baking or roasting. You can then
reattach the handle to the spit to remove this from the oven easily.
Door
• The door switches interrupt the operation of the oven when the oven
door is opened during use. The oven resumes operation when the
door is closed.
• This oven has a ‘Soft close door system’. When closing the oven
door, this system dampens the movement, from a certain angle, and
silently closes the oven door.

EN 9
YOUR OVEN
Cooling fan
• The appliance is equipped with a cooling fan that cools the casing
and control panel.
Touch screen
• Operate your oven’s touch screen by tapping or swiping it.
• Tap the display to open a function or adjust a setting.
• Swipe the display for further information/show options or adjust
a setting.
Tapping: Swiping:
EXTRASOVEN FAST PREHEAT

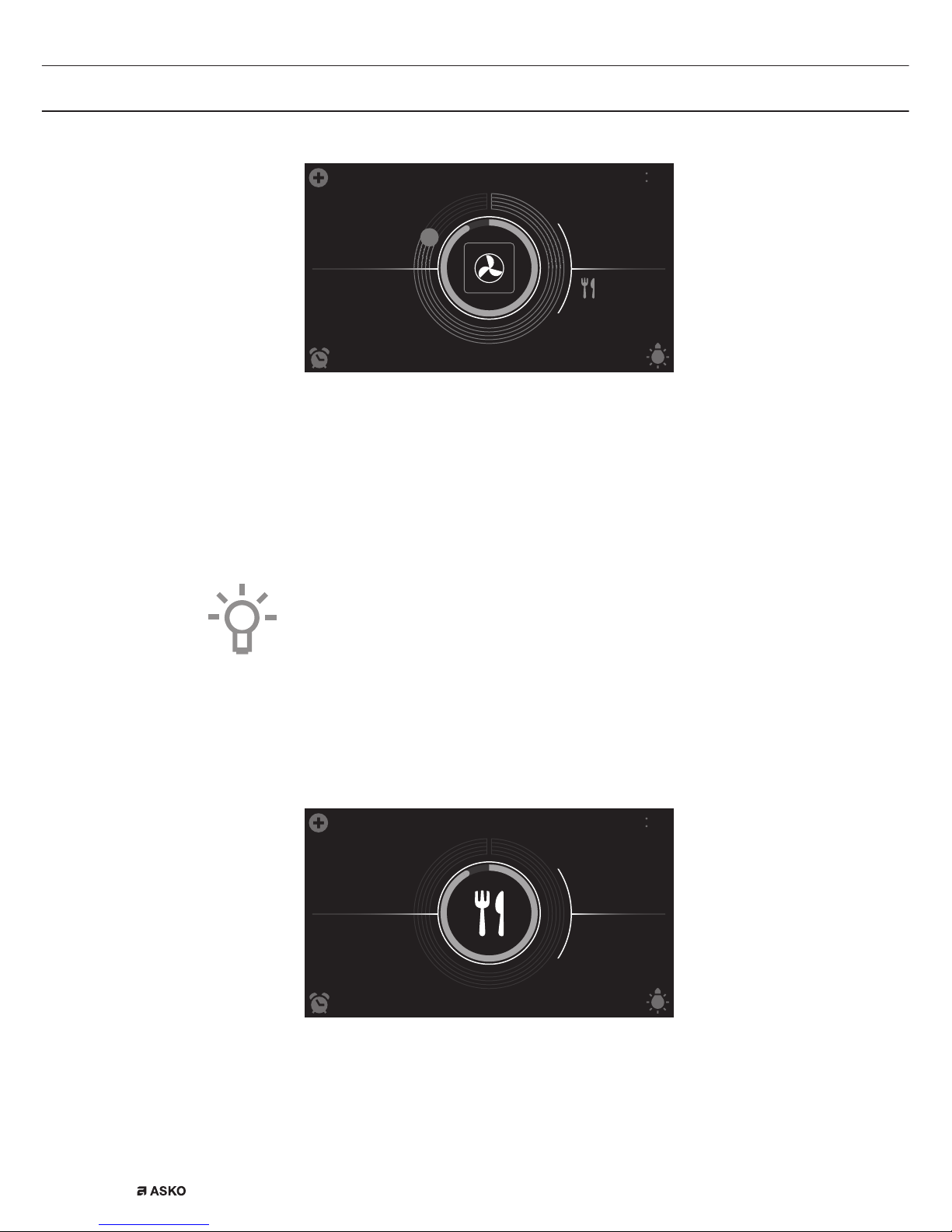

10:15
:
:
Hot air
352*5$06
180 30
31
°C
10:15
For the best response, touch the keys with the main part of your
fingertip. Every time you tap a key during use, a short tone will sound
(unless this is adjusted in the settings).

EN 10
YOUR OVEN
Main displays
Start display
EXTRASOVEN FAST PREHEAT
10:15
01
03
02
04
05
07
06

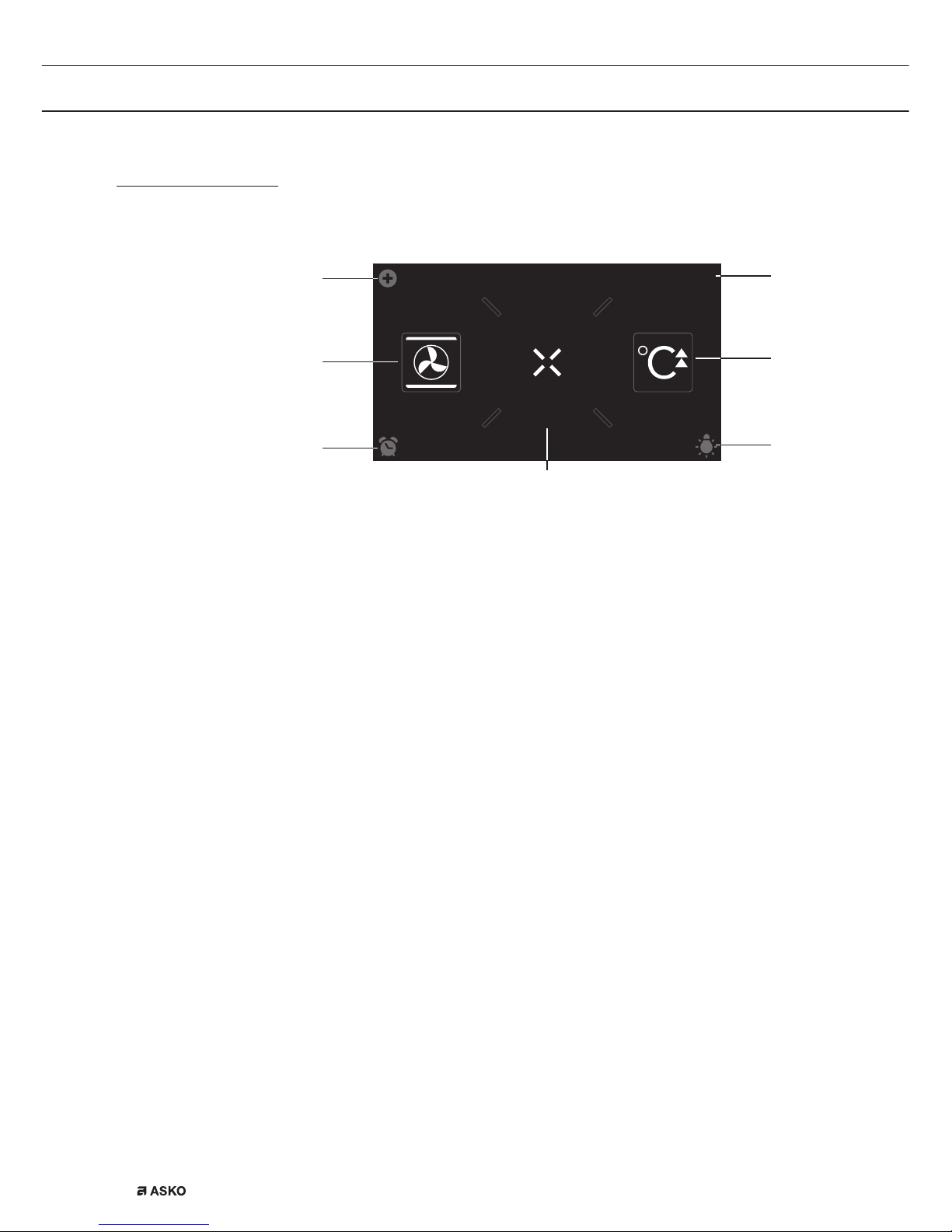

Plus menu (01)

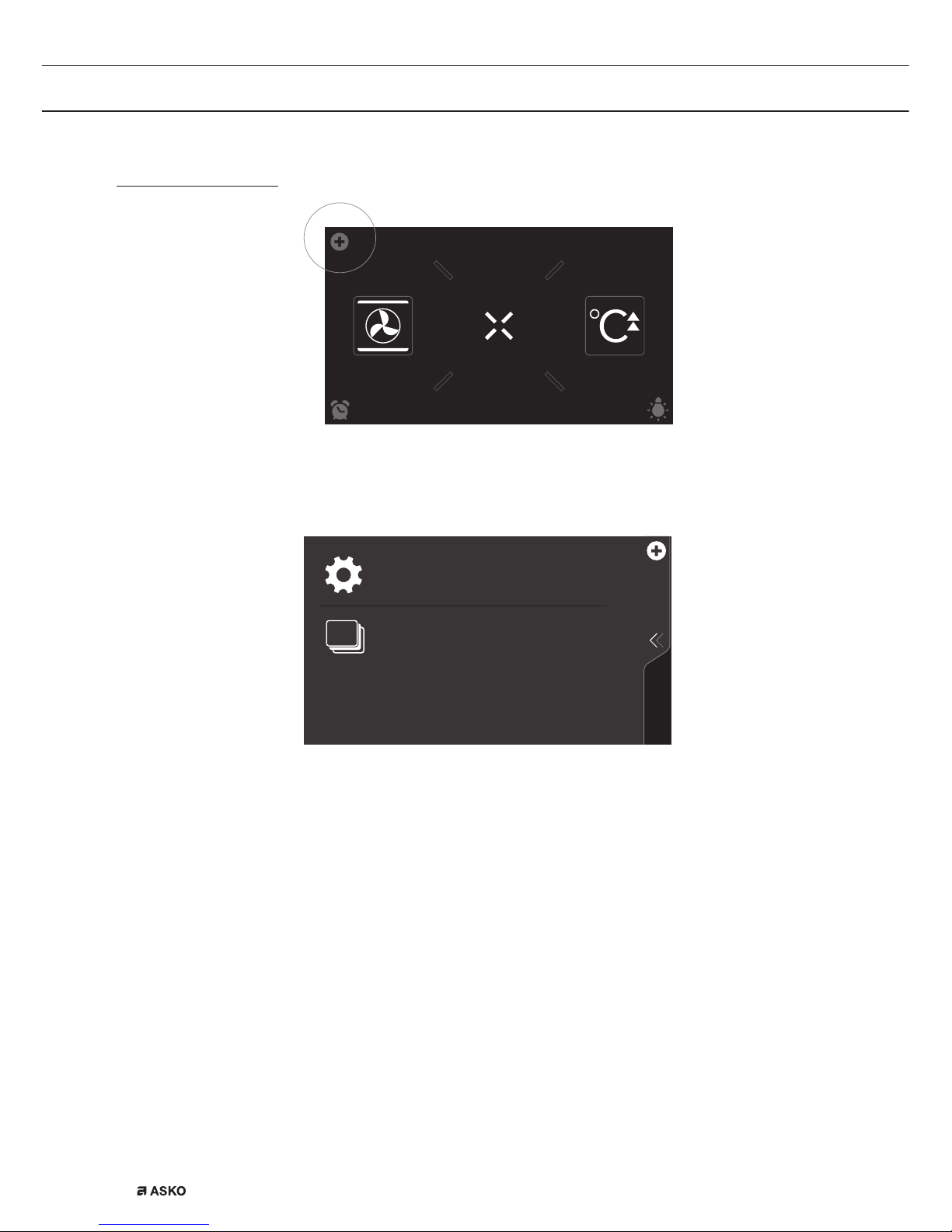

• Tap the plus symbol to open the ‘Plus’ menu. The contents of this
menu change according to the control options available at that time.
Oven (02)
• Tap ‘OVEN’ to open the oven function menu.
Egg timer (03)
• Tap the egg timer symbol to open the egg timer menu. The egg
timer can be used independently from the oven function.
▷The longest possible alarm time is 24 hours.
▷When an egg timer goes off, a pop-up will appear and an
acoustic signal will sound.
▷Tap on the X key, confirm key or the display to switch off
the signal and close the pop-up. The sound signal will stop
automatically after approximately 1 minute.
Extras (04)
• Tap on ‘EXTRAS’ to show the appliance’s extra functions.
Time (05)
• The time is shown here.
Fast preheat (06)
• Tap on ‘FAST PREHEAT’ to open the fast preheat function.

EN 11
Light (07)
• Tap on the ‘lamp’ symbol to switch the oven light on or off.
• The oven light will also light up when you open the oven door or
start cooking. The oven light will dim automatically (unless this is
adjusted in the settings).
Extras display

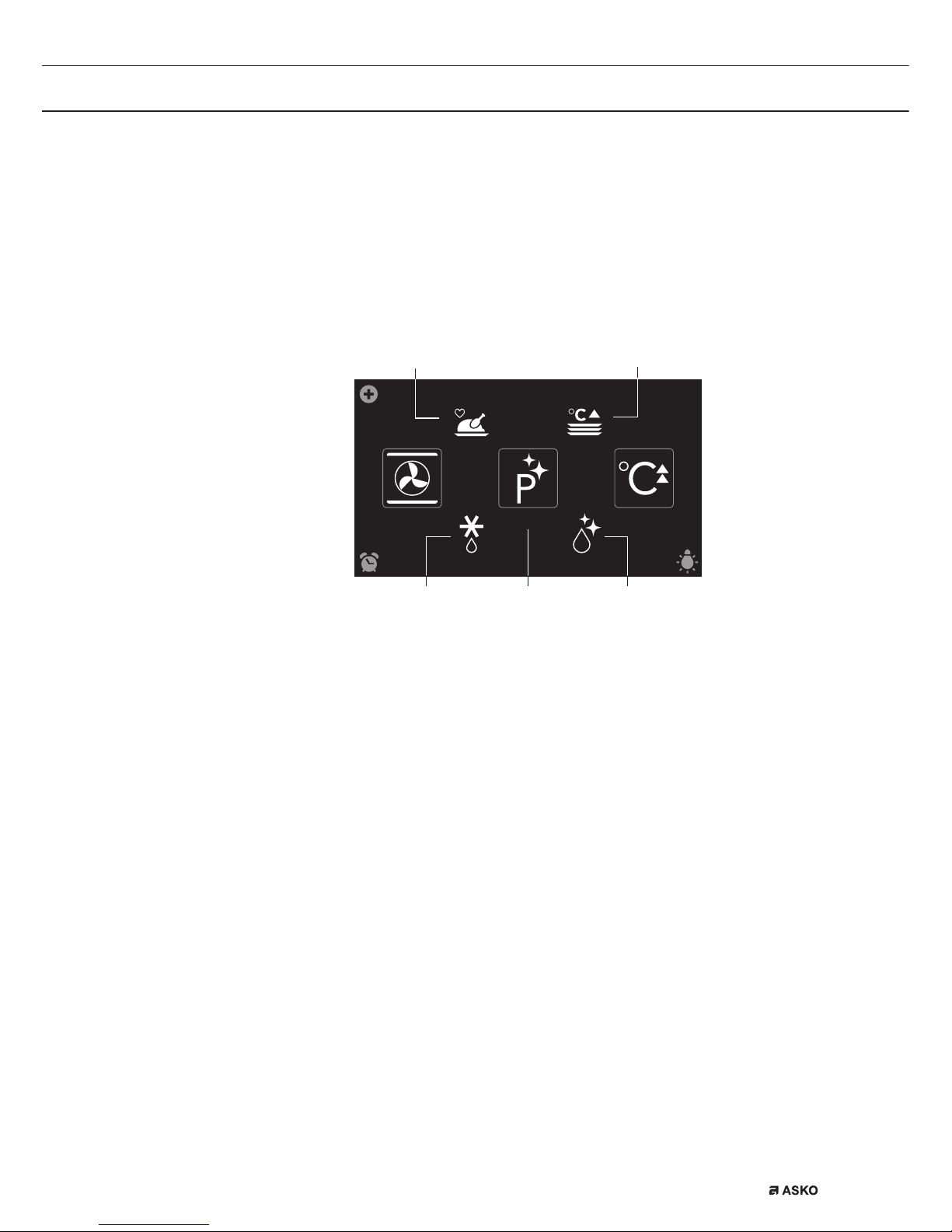

PYROLYSIS
PROGRAMS WARMING
CLEANINGDEFROST
10:15
0201 03
04
05
Defrost (01)
• Tap on ‘DEFROST’ to open the defrost function.
Pyrolysis (02)
• Tap on ‘PYROLYSIS’ to open the pyrolysis function.
Cleaning (03)
• Tap on ‘CLEANING’ to open the cleaning function.
Warming (04)
• Tap on ‘WARMING’ to open the warming function menu.
Plate warming and keep warm can be found here.
Programs (05)
• Tap on ‘PROGRAMS’ to open the programs menu. The favourites
and automatic programs can be found here.
YOUR OVEN

EN 12
Function-setting display
Hot air
PROGRAMS 10:15
180°C
01
02
05
04
03

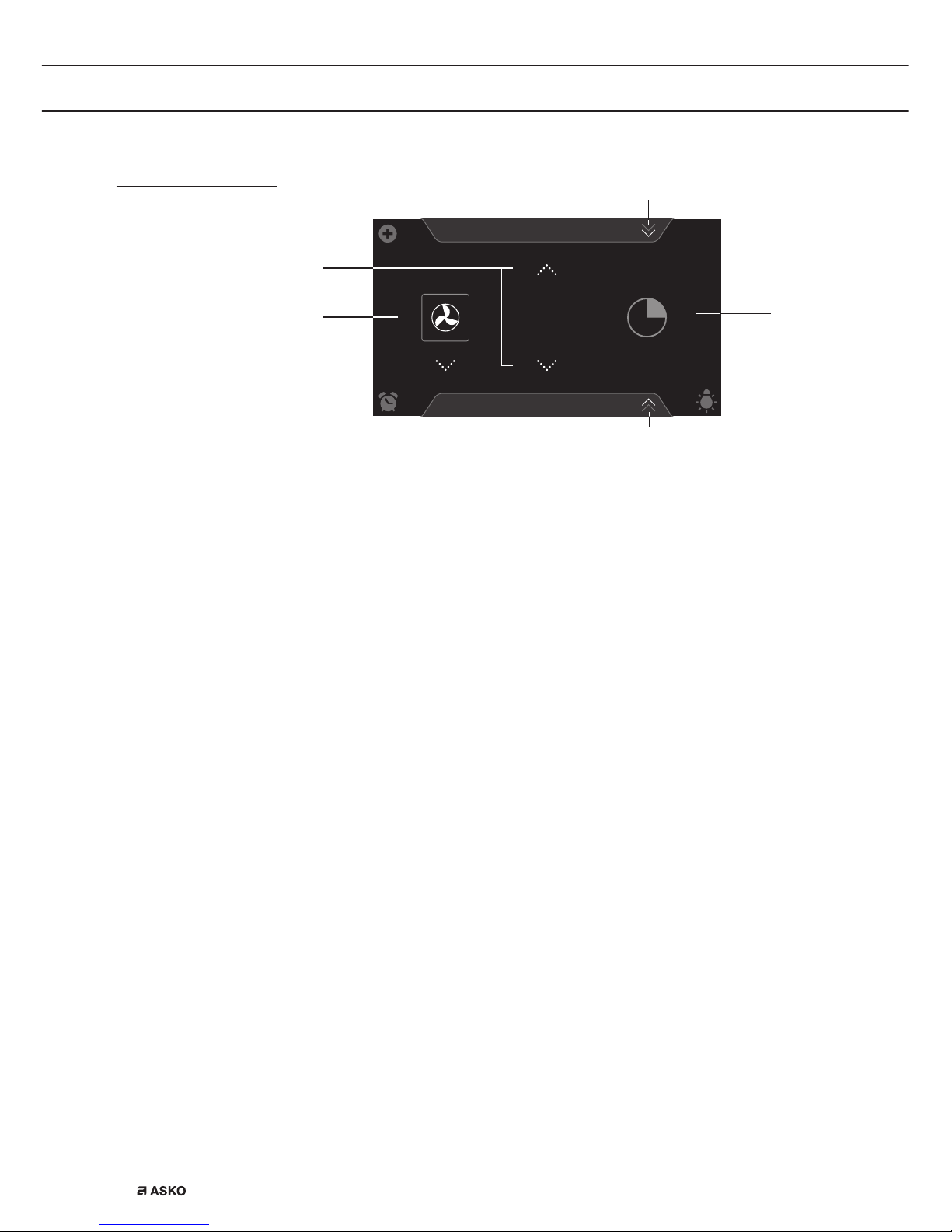

Selecting a function (01)
• Tap on the arrows above and below the function or sweep over the
symbol to select a function (see also ‘Opening the Keyboard’).
Setting the temperature (02)
• Tap on the arrows above and below the temperature or sweep
over the temperature indicator to select a temperature or (see also
‘Opening the Keyboard’).
Cooking time (03)
• Tap the cooking time symbol if you want to set a cooking time. If a
cooking time is already stated, it is necessary to set this.
• Tap on the arrows above and below the time or swipe over the time
to adjust it (see also ‘Opening the Keyboard’).
Programs (04)
• Tap on ‘PROGRAMS’ to open the program menu. The favourites
and automatic programs can be found here.
Info tab (05)
• The name of the selected function appears in the bottom tab of
the display. Tap on the tab to request more information about the
selected function.
YOUR OVEN

EN 13
YOUR OVEN
Stand-by display
10 15
10 10 2015
9:27 125°C
01
05 06
02 03
04
Display time (digital/01)
• Actual time of day.
Display time (analog/02 and 03)
• Actual time of day.
• The hour hand of the analog clock is indicated with a ‘closed’
circle (02) and the minute hand with an ‘open’ circle (03).
Display of date (04)
• Actual date.
Display egg timer (05)
• The expiring egg timer.
Display descending temperature (06)
• Actual temperature in the oven (waste heat).

EN 14
Initial use
• Clean the oven interior and accessories with hot water and
washing-up liquid. Do not use aggressive cleaning agents, abrasive
sponges and similar.
• The oven will emit a particular odor when it is used for the first
time; this is normal. Make sure that there is good ventilation during
initial use.
When the appliance is plugged in for the first time or after the appliance
was disconnected from the mains for a longer period of time, you have
to set ‘Language’, ‘Time’ and ‘Date’.
Setting the language
English
Nederlands
Deutsch
Francais
LANGUAGE
Set the desired language in which the appliance’s display texts will
appear. ‘English’ is selected as standard.
1. Swipe over the display to view all languages.
2. Tap on a language to select this.
3. Press on the confirm key to save the set language.
INITIAL USE

EN 15
Setting the time
TIME
12:00
1. Tap on the arrows above and below the time or swipe over the time
to adjust it.
2. For fast entry, tap in the centre of the time display; a pop-up
keyboard will appear on which the desired time can be typed
(see ‘Opening the Keyboard’ chapter).
3. Press on the confirm key to save the set time.
Setting the date
DATE
DAY MONTH YEAR
01 01 2015
1. Tap on the arrows above and below the day, month or year or
swipe over the day, month or year to adjust these.
2. Press on the confirm key to save the set date.
The appliance is now ready for use.
The language, time and date can be adjusted in the settings menu
(see ‘Settings’ chapter). The settings menu can be opened from the
start display via the ‘Plus’ menu.
INITIAL USE

EN 16
OPERATION
Using the ‘Plus’ menu
EXTRASOVEN FAST PREHEAT
10:15
The ‘Plus’ menu comprises a number of functions or settings.
The offered plus functions depend on the display that is active.
SETTINGS
Combine up to three functions in one
cooking process
Go to the appliance settings
STAGE COOKING
• From the start display, the following functions/menus can be found
in the ‘Plus’ menu:
▷Settings; Set your preferences (see ‘Settings’ chapter).
▷Stage cooking; Combine up to three functions in one cooking
process (see ‘Stage cooking’ chapter).

EN 17
OPERATION
Preheat the oven space quickly
Don't insert the dish yet
FAST PREHEAT
DELAYED START
The cooking process starts automatically at
the preferred time
STAGE COOKING
Combine up to three functions in one
cooking process
• From the oven function-settings display, the following functions can
be found in the ‘Plus’ menu:
▷Fast preheat; Preheat the oven space quickly to the desired
temperature within a cooking process (see ‘Fast preheat’
chapter).
▷Delayed start; The cooking process will start automatically at
the time you set.
▷Stage cooking; Combine up to three functions in one cooking
process (see ‘Stage cooking’ chapter).
ADD TO FAVOURITES
Save the current cooking settings to your
favourites
• When an oven function is started, the following functions can be
found in the ‘Plus’ menu:
▷Add to favourites; Add the settings for the cooked dish to your
favourites (see ‘Additional functions’ chapter).

EN 18
Opening the keyboard
A keyboard can be opened for fast entry of a function, temperature or
cooking time. A quick setting can be selected with this or a value can
be entered.
Hot air
352*5$06 10:15
180°C 30H:0
:
1. Tap in the centre of the function symbol, temperature or cooking
time (activated). The keyboard appears.
Set function 2
45
78
13
9
6
000
Set temperature
°C
2
45
78
Set cooking time 13
9
6
00:00H:M
2. Enter the desired value or tap the desired value.
3. If the set value is not confirmed automatically, press on the confirm
key to confirm the entry.
OPERATION

EN 19
USE
Oven function
Use the oven functions to cook dishes using, for instance, hot air,
bottom heat or grill.
Hot air
PROGRAMS 10:15
180°C
• Various oven functions can be selected.
• A temperature and a cooking time can be set for each oven function.
• `Plus’ menu functions such as fast preheat, stage cooking and
delayed start can also be selected. Tap on the plus symbol for this.
See the ‘Using the ‘Plus’ menu’ chapter.
Using an oven function
Select the oven function appropriate for the meal you are cooking.
Consult the Functions table for this. You can also consult the info tab.
Tap on the tab at the bottom of the display to request more information
about the selected function.
1. Switch on the oven using the ‘On/Off’ key.
2. Place the dish in the oven.
3. Tap ‘OVEN’ to open the oven function menu.
4. Select an oven function (see ‘Function-setting display’ chapter).
5. Select a temperature (see ‘Function-setting display’ chapter).
6. Tap the ‘cooking time’ symbol and set a cooking time (see
‘Function-setting display’ chapter).
Cooking can also be started without a cooking time being set. You
should then skip step 6.
7. Select any additional settings using the ‘Plus’ menu (for example
fast preheat).
8. Start cooking the dish using the confirm key.

EN 20
USE
165 23:54
10:45
°C
180°C
10 21
• The following values can now be read in the display:
▷current temperature (165 °C)
▷set temperature (180 °C)
▷status indicator time (outer circle)
▷status indicator temperature (inner circle)
▷cooking time (23:54)
▷end time (10:45)
• Tap in the middle of the display during cooking to open a pop-up
display with settings. Adjust these if desired.
• At the end of a dish’s cooking time a sound signal will sound.
The signal can be switched off by opening the oven door or
pressing a key.
• The selected settings can be saved in ‘Favourites’.
Open ‘ADD TO FAVOURITES’ from the ‘Plus’ menu (see ‘Saving a
cooking method’ in the ‘Additional functions’ chapter).
165 0:00
°C
10 50
Display view at the end of cooking.
