ASTEL LIGHTING METEOR LSR0640 User manual

METEOR
LSR0640
UNDERWATER
POOL
LIGHT
Operating Instructions
LIGHTING

2
CONTENTS
Preface...............................................................................................................................................................3
Features.............................................................................................................................................................3
Precautions........................................................................................................................................................3
Components and Connectors ............................................................................................................................4
Installation..........................................................................................................................................................5
Controls..............................................................................................................................................................7
Appearance........................................................................................................................................................9
Technical Specifications.....................................................................................................................................9
Warranty...........................................................................................................................................................10
Declaration of Conformity.................................................................................................................................11
_________________________________________________________________________________

3
PREFACE
The METEOR LSR0640 series of a compact
ultra-thin underwater pool light with built-in
driver is designed to use the latest LED lighting
technology.
The surface-mount designed casing enable
very simple installation on the flat surface
without any surface preparation during
construction and the max. diameter of the hole
through the wall is 8 mm.
The METEOR LSR0640 series is available in
stainless steel casings. The lighting is available
in white, blue, green or RGB colors with 6 high-
power LEDs.
The multi-color RGB version allows changing
of the color of lighting manually or
automatically through the complete rainbow
spectrum.
The most advanced electronic design with
built-in microprocessor enables network
connection and simple control of complete
group of lights with dimming.
FEATURES
Innovative Design
Stainless Steel Ultra-Thin Casing
6 Power LEDs Design
White, Blue, Green or Multi-Color RGB
Lighting
High Grade Polycarbonate Glass Optical
Window
Vacuum Metalized Reflector
Remote Control
Digital Dimming
Built-in ASTEL Protocol for DMX512
Control of Multi-Color RGB version
Polarity Protection
Transient Protection
Thermal Protection
Wide Range Power Supply
Low Power Consumption
Simple Installation
Optional Accessories for Different Pools
Installations
PRECAUTIONS
The underwater pool light has to be
installed and used in accordance with the
instructions of this manual only.
The power supply has to be disconnected
before installation.
The underwater pool light is recomended to
be installed around 0.2 m below the water
line for the best illumination and to avoid
over-heating.
The optical window must be clear and not
covered by any kind of isolating or other
material.
The optical window has to be cleaned with
a mild soap or detergent and lukewarm
water by using a soft cloth or sponge. Do
not use abrasive or highly alkaline cleaners.
Never scrape with razor blades or other
sharp instruments. Benzene, leaded
gasoline, acetone or carbon tetrachloride
should never be used.
Do turn power off immediately and refer
servicing to qualified service personnel if
the underwater pool light does not operate
normally following the operating
instructions.

4
COMPONENTS AND CONNECTORS
1
2
4
3
(1) Optical window
High-grade polycarbonate glass optical window.
(2) Underwater pool light casing
Stainless steel casing with fixing holes and cable gland.
(3) Cable
The 4-pole multi-core cable to connect the 12-24Vdc power supply and optional remote control or
switch.
(4) Fixing screw
The fixing screws to fix the underwater pool light on the wall.

5
INSTALLATION
The underwater light kit consists of the following components:
Underwater Light METEOR LSR0640
4 x fixing screw 5.5x38 with wallplugs
Operating Instructions with Declaration of Conformity and Warranty conditions
The METEOR LSR0640 has to be installed on a flat surface on the pool wall under water line.
Do not try to install the underwater pool light while the pool is filled with water.
When the installation is finished briefly test the underwater light prior to fill the pool with water.
The installation have to be realized by a qualified personnel.

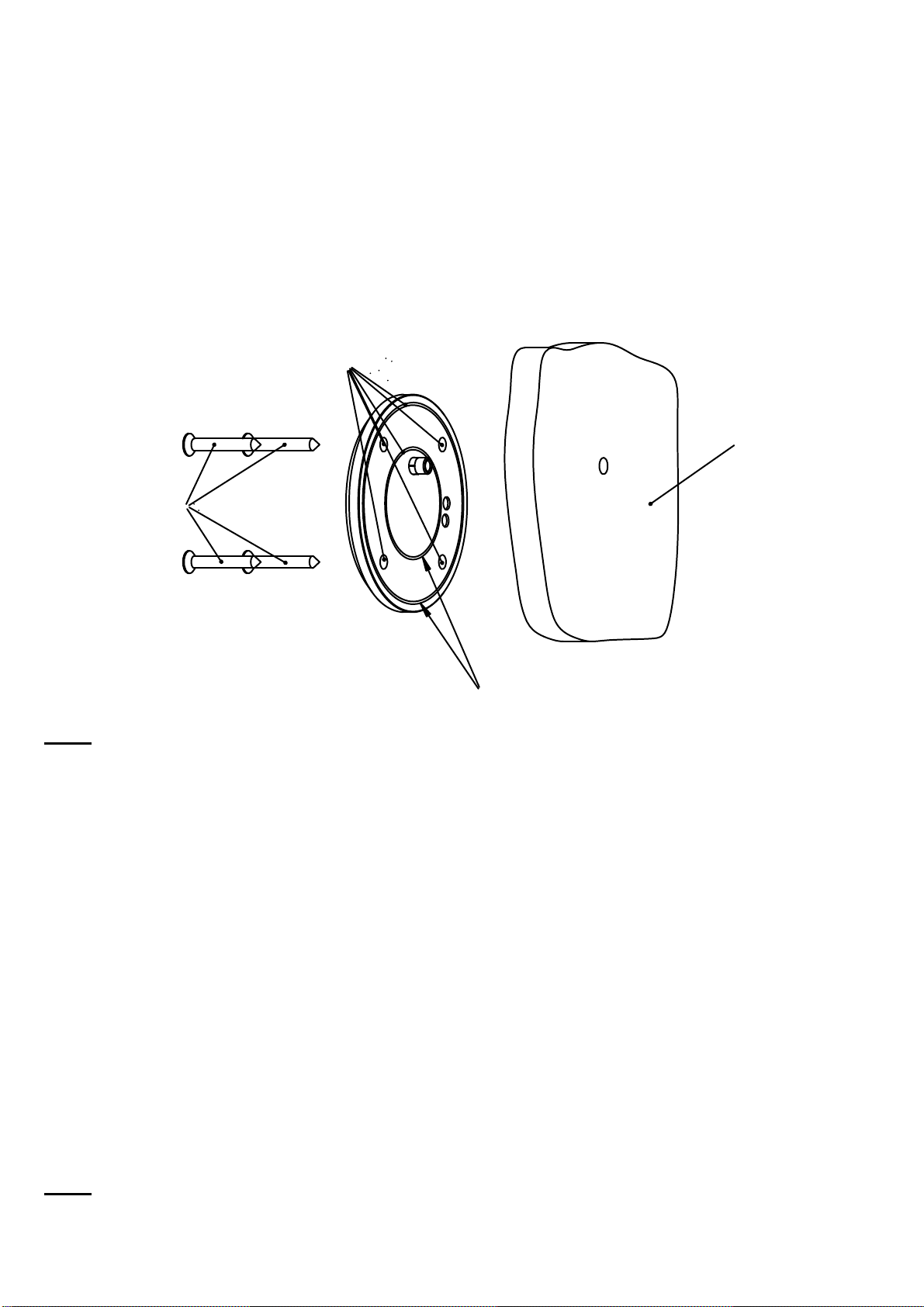

WALL
SCREW 5.5X38
SEALING GROOVES (2X)
SEALING
Note:
Avoid using the underwater pool light out of the water for more than 2 minutes.
The underwater pool light is protected by a temperature sensor against over-heating.
When the temperature of the underwater pool light exceeds 85°C the underwater pool light
is automatically switched off.
Wall preparation
The underwater pool light is recommended to be installed around 0.2 m below the waterline for the
best illumination and to avoid over-heating.
To fix the underwater pool light with screws 5.5x38 the diameter of holes drilled into the wall has to
be 8 mm.
The diameter of the hole for cable gland drilled through the wall has to be 8 mm.
Sealing
Before inserting the cable with gland through the hole the sealant has to be used into the grooves,
around the four fixing holes and around the gland in the rear surface of the underwater pool light.
The sealant can be on silicon basis but the best solution is two-component polymer sealant.
Fixing
The underwater light has to be fixed with four screws 5.5x38 with wallplugs.
Note:
Do not overtighten the screws as this can result in underwater pool light damage.

6
Earthing
The underwater pool light has to be earthed by using a pre-tinned green wire with a yellow stripe a
minimum of 8 AWG (8.36 mm2). The wire has to be connected to the underwater pool light by the
help of one fixing screw 5.5x38.
Connection
The power supply has to be connected through the main switch (not included) with correct polarity
and protected by a fuse (not included). The power supply voltage has to be from 10 - 30Vdc.
Note:
The power supply has to be switched off before installation.
The underwater light has to be connected as described in the table below:
METEOR LSR0640
wire color FUNCTION
Red + DC Power Supply
Black GND Power Supply
Orange + Control
Brown GND Control
Remote control connection
Single-color white (W), blue (B) or green (G) models
To remotely turn-on and turn-off the underwater pool light the simple switch (not included) can be
used and connected to the CONTROL wires by a 2-pole signal cable (not included).
Note:
If the remote control is not used at single-color models for normal operation the both
CONTROL wires have to be bridged and insulated or connected to the GND.
Optional PWM dimmer LDU13 can be connected to the CONTROL wires by using a 2-pole signal
cable (not included).
Multi-color (M) model
To control the mode of lighting the simple momentary-switch (not included) has to be used and
connected to the CONTROL wires by the 2-pole signal cable (not included).
Optional LXU01 or LXU03 interfaces can be connected to the CONTROL wires by using a 2-pole
signal cable (not included).

7
CONTROLS
Single-color white (W), blue (B) or green (G) models
Remote control can be used to turn-on and turn-off the underwater pool light and to control the
luminosity.
Dimming
The dimming are enabled by using optional PWM dimmer LDU13.
DMX512 control
The network connection to control the lights with the standard DMX512 protocol is enabled by using
optional PWM dimmer LDU13 and optional LXU01 or LXU03 interfaces.
Multi-color (M) model:
Remote control has to be used to turn-on and turn-off the underwater pool light and to control the
mode of lighting and luminosity.
The multi-color underwater pool light can be controlled by using the momentary-switch.
When the light is turned-off the color or mode of lighting can be changed sequentially by pressing
the momentary switch for 2 seconds:
METEOR LSR0640
Sequence of lighting
Custom Color
Full RGB
Cool White
Bluish White
Red
Green
Blue
Rainbow Color Spectrum
Turning on /off
Press the momentary-switch shortly.
Changing the color or mode of lighting
When the light is turned-off press the momentary-switch for 2 seconds.
Setting the Custom Color
At the selected Rainbow Color Spectrum mode press the momentary-switch shortly to turn the light
off. After that press the momentary-switch for 5 seconds or until the light is switched to the selected
color and then the Custom Color is set and selected.
Dimming
When the light is turned-on press the momentary-switch until the desired illumination is achieved. By
another pressing of the momentary-switch the luminosity will increase to the maximum illumination.
Set default
Press the momentary switch for min. 40 seconds or until the light is turned off.

8
Synchronization
When more than one multi-color underwater pool light is connected to the system the optional
Synchronization Unit LSU08 is recommended to synchronize the colors of lighting at the Rainbow
Color Spectrum mode of lighting. On the other case the colors of all installed lights would not be the
same after few minutes or hours of operation in the Rainbow Color Spectrum mode.
If the multi-color light is used only with one of the fixed color of lighting the synchronization is not
necessary.
DMX512 control
The built-in ASTEL protocol enables the network connection to control the lights with the standard
DMX512 protocol by using optional LXU01 or LXU03 interfaces.

9
APPEARANCE
99
9
8
TECHNICAL SPECIFICATIONS
Power supply 12 – 24 Vdc, max. 680 mA/12 Vdc or 380 mA/24 Vdc
Lens angle 60°
Optical window High-grade polycarbonate glass
Luminous flux max. 650 lm
White color temperature 6.000 - 10.000 K
ASTEL protocol default address 1
Operating temperature -10C - +50C
Casing Stainless steel (316L)
Protection IP 68
Dimensions Ø99 x 9 mm
Weight 0.4 kg
Design and specifications subject to change without notice.

10
WARRANTY
1. The equipment manufactured by ASTEL d.o.o. is warranted to be free from defects in
workmanship and materials under normal use and service.
2. This Warranty is in effect for of two years from the date of purchase by the user. Proof of purchase
must be included, to establish that it is inside the warranty period.
3. This Warranty is transferrable and covers the product for the specified time period.
4. In case any part od the equipment proves to be defective, other than those parts excluded in
paragraph 5 below, the owner should do the following:
(a) prepare a detailed written statement of the nature and circumstances of the defect, to the best
of the Owner’s knowledge, including the date of purchase, the place of purchase, the name and
adress of the installer, and the Purchaser’s name, adress and telephone number;
(b) the Owner should return the defective part or unit along with the statement referenced in the
preceding paragraph to the warrantor, ASTEL d.o.o., or an authorized distributor,
postage/shipping prepaid and at the expense of the Purchaser;
(c) if upon the Warrantor’s or authorized distributor’s examination, the defect is determined to
result from defective material or workmanship, the equipment will be repaired or replaced at the
Warrantor’s option without charge, and returned to the Purchaser at the Warrantor’s expense;
(d) no refund of the purchase price will be granted to the Purchaser, unless the Warrantor is
unable to remedy the defect after having a reasonable number of opportunities to do so. Prior
to refund of the purchase price, Purchaser must submit a statement in writing from a
professional supplier that the installation instructions of the Operating Instructions manual have
been complied with and that the defect remains;
(e) warranty service shall be performed only by the Warrantor, or an authorized distributor, and
any attempt to remedy the defect by anyone else shall render this warranty void.
5. There shall be no warranty for defects or damages coused by faulty installation or hook-up, abuse
or misuse of the equipment including exposure to excessive heat, salt or fresh water spray, or
water immersion except for equipment specially designed as waterproof.
6. There shall be no responsibility or liability whatsoever on the part of the Warrantor or its
employees and representatives for injury to any person or persons, or damage to property, loss of
income or profit, or any other consequential or resulting damage or cost which may be claimed to
have been incurred through the use or sale of the equipment, including any possible failure or
malfunction of the equipment, or part thereof.

11
DECLARATION OF CONFORMITY
according to IEC Guide 22 and EN 45014
Manufacturer's Name: ASTEL, Podjetje za projektiranje, proizvodnjo in
trgovino, d.o.o.
declares that the products
Item, Product Name and Model Number: 1. Underwater Pool Light METEOR LSR0640
conform to the following Product Specifications:
EMC: EN 55015:2006 + A1:2007
EN 61547:1995 + A1:2000 + A2:2009
EN 61547:2009
Safety: EN 60598-1:2004 + A1:2006
Supplementary Information:
The products herewith comply with the requirements of the following Directives and carry the CE-
marking accordingly:
- the EMC Directive 2004/108/EC
- the Low Voltage Directive 2006/95/EC
22nd April, 2011
