GR6
3
Contents
About this manual ............................................................................................. 5
Conventions used in this manual ............................................................... 5
Typography......................................................................................................... 5
Package contents............................................................................................... 6
Getting to know your ROG GR6
Features ................................................................................................................. 8
Front panel.......................................................................................................... 8
Bottom view .....................................................................................................10
Top view.............................................................................................................10
Rear panel .........................................................................................................11
Using your ROG GR6
Getting started..................................................................................................16
Positioning your ROG GR6...........................................................................16
Connecting the AC power adapter ..........................................................17
Connecting a display panel ........................................................................19
Connecting the keyboard or mouse........................................................20
Turning on your ROG GR6 ...........................................................................21
Using the Steam Big Picture Launcher.....................................................22
Recovering your system.................................................................................23
Resetting your PC...........................................................................................23
Removing everything and reinstalling Windows® .............................25
Turning off your ROG GR6.............................................................................26
Putting your ROG GR6 to sleep ...................................................................26
Entering the BIOS Setup ................................................................................26
Quickly enter the BIOS..................................................................................27

4
GR6
Contents
Upgrading your ROG GR6
Upgrading memory modules......................................................................30
Installing a 2.5-inch storage drive..............................................................35
Appendix
Safety information ...........................................................................................42
Setting up your system.................................................................................42
Care during use...............................................................................................43
Regulatory notices...........................................................................................44
ASUS contact information ............................................................................50

GR6
5
About this manual
This manual provides information about the hardware and software
features of your PC, organized through the following chapters:
Chapter 1: Getting to know your ROG GR6
This chapter details the hardware components of your ROG GR6.
Chapter 2: Using your ROG GR6
This chapter provides you with information on using your ROG
GR6.
Chapter 3: Upgrading your ROG GR6
This chapter provides information on how to upgrade the
memory modules and the storage drive of your ROG GR6.
Appendix
This section includes notices and safety statements of your ROG
GR6.
Conventions used in this manual
To highlight key information in this manual, some texts are
presented as follows:
IMPORTANT! This message contains vital information that must be
followed to complete a task.
NOTE: This message contains additional information and tips that
can help complete tasks.
WARNING! This message contains important information that must
be followed to keep you safe while performing certain tasks and
prevent damage to your ROG GR6's data and components.
Typography
Bold text Indicates a menu or an item to select.
Italic This indicates sections that you can refer to in this manual.

6
GR6
Package contents
NOTE: * Actual product specications and package contents may
vary depending on your country or region.
IMPORTANT! Bring the warranty card to the ASUS Service Center
for replacement of the defective components if the device or its
components fail or malfunction during normal and proper use within
the warranty period.
Your ROG GR6 package contains the following items:
ROG GR6
Power cable*
Technical documentations
AC power adapter* set of screws

1
Getting to know your ROG GR6

8
GR6
Features
Front panel

GR6
9
Power button
The power button allows you to turn the ROG GR6 on or
o.
Steam Big Picture Launcher
The Steam Big Picture Launcher allows you to access Steam
Big Picture mode from power o, sleep, hibernate,
or Windows® operating system.
Headphone jack
This port allows you to connect amplied speakers or
headphones.
Microphone
The built-in microphone can be used for video
conferencing, voice narrations, or simple audio recording.
USB 2.0 port (with USB charger feature)
The USB (Universal Serial Bus) port is compatible with USB
2.0 or USB 1.1 devices such as keyboards, pointing devices,
ash disk drives, external HDDs, speakers, cameras and
printers.
The USB 2.0 port with the icon comes with a USB
Charger feature that allows charging of mobile devices
even while your ROG GR6 is on sleep, hibernate, or power
o state.

10
GR6
Bottom view
Air vents
The air vents allow cool air to enter your ROG GR6 chassis
and expel hot air out.
IMPORTANT! For optimum heat dissipation and air
ventilation, ensure that the air vents are free from
obstructions.

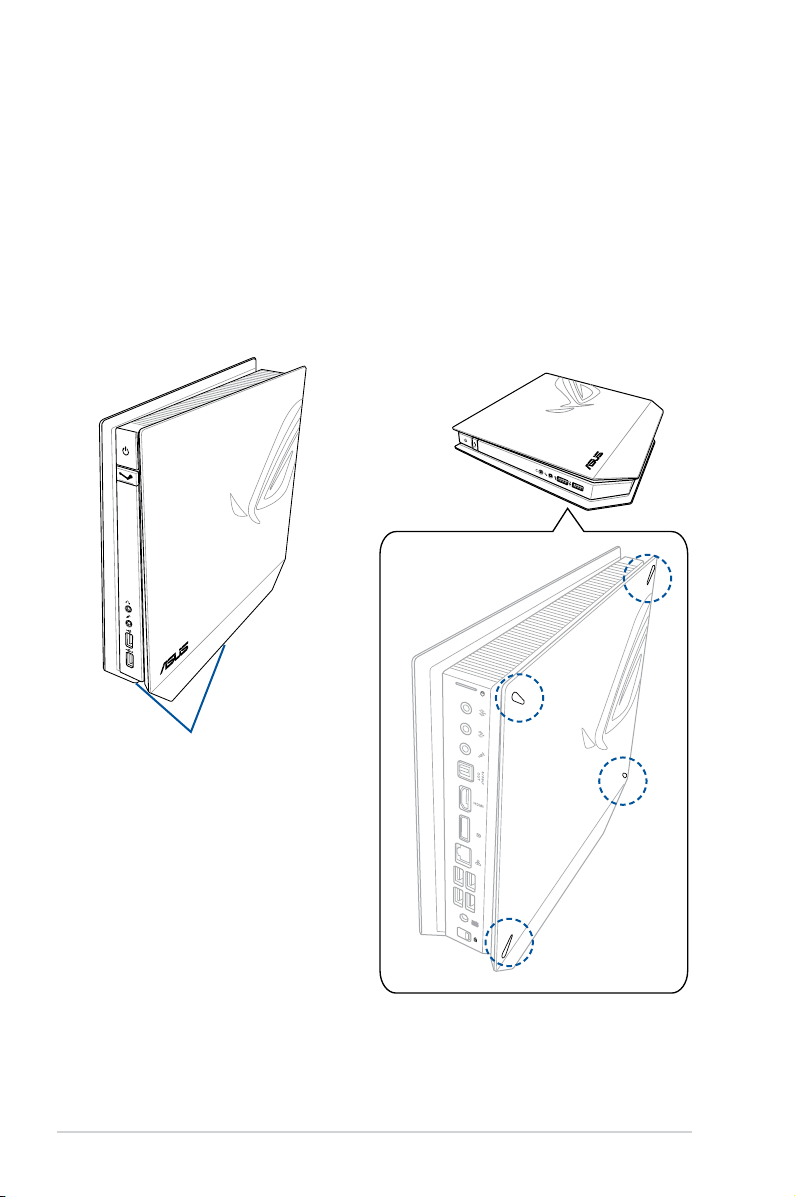

Rubber feet
The rubber feet help prevent the ROG GR6 from slipping
thus providing more stability when the ROG GR6 is in a
stand-up position.
Top view

GR6
11
Rear panel

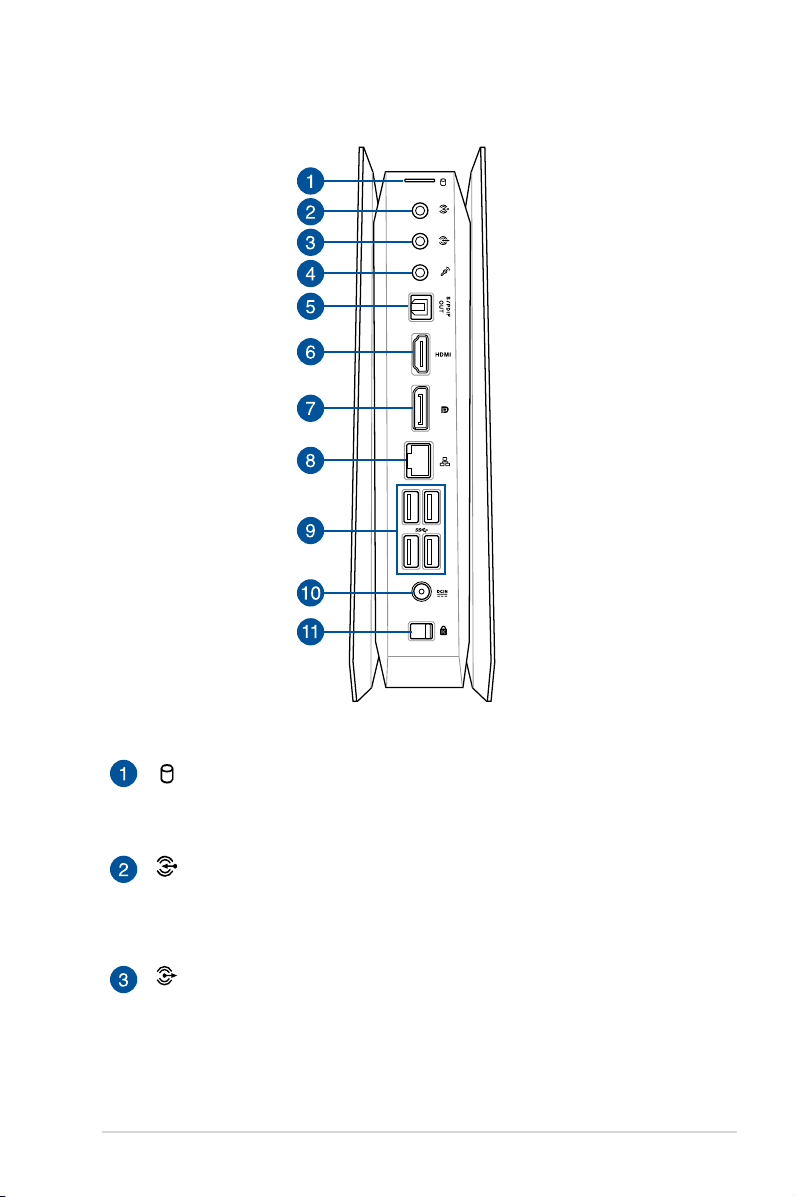

HDD/Drive LED indicator
This indicator lights up when your ROG GR6 is accessing the
internal storage drives.
Audio Input Jack
This 1/8-inch stereo input jack can be used to connect a
stereo audio source to the ROG GR6. This feature is used
mainly to add audio to multimedia applications.
Audio Output Jack
This stereo audio jack is used to connect the system’s audio
out signal to amplied speakers.

12
GR6

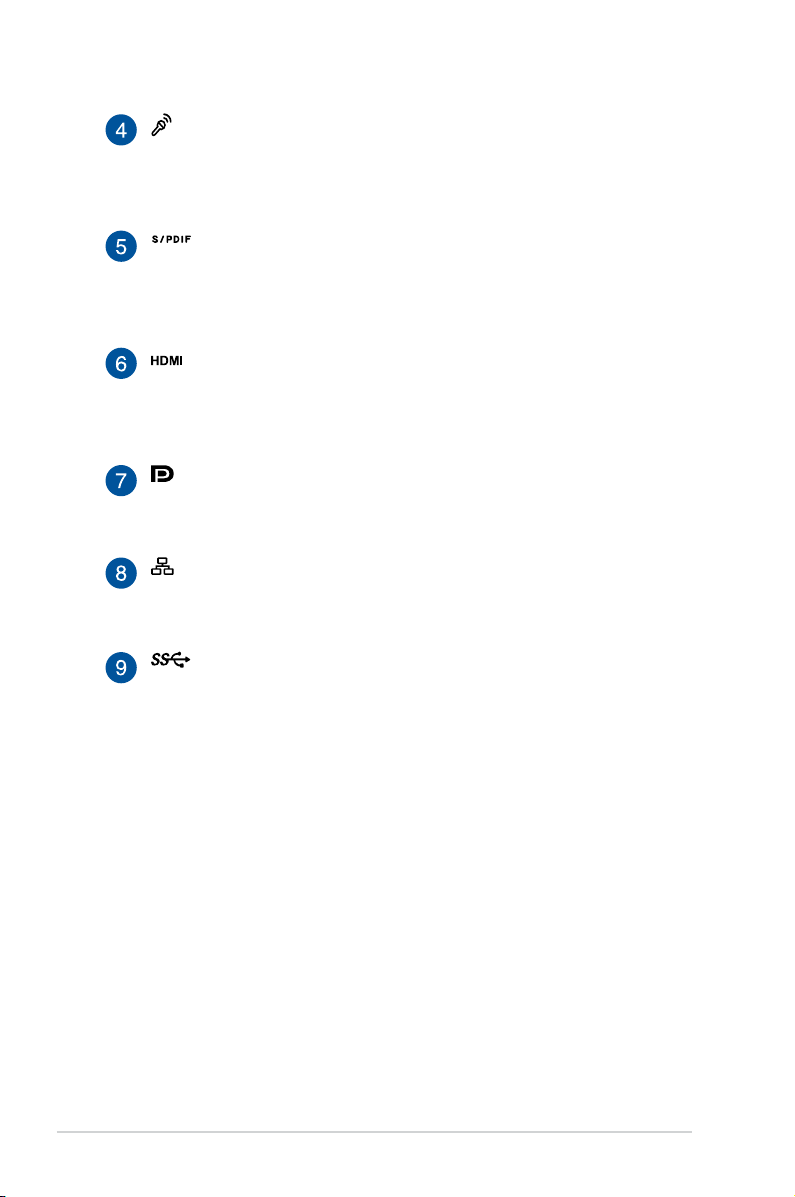

Microphone jack
The microphone jack allows you to connect an external
microphone for video conferencing, voice narrations, or
simple audio recordings.
Digital audio out port (S/PDIF optical)
The Sony/Philips Digital Interface (S/PDIF) optical out port
allows you to transfer digital audio from your ROG GR6 into
an amplier or your TV.
HDMI port
This port is for the HDMI (High-Denition Multimedia
Interface) connector and is HDCP compliant for HD DVD,
Blu-ray, and other protected content playback.
DisplayPort port
Use this port to connect your ROG GR6 to a DisplayPort
external display.
LAN port
The 8-pin RJ-45 LAN port supports a standard Ethernet
cable for connection to a local network.
USB 3.0 port
The USB 3.0 (Universal Serial Bus 3.0) port provides a transfer
rate up to 5 Gbit/s and is backward compatible to USB 2.0.

GR6
13
Power input (DC 19V)
The supplied power adapter converts AC power to DC
power for use with this jack. Power supplied through this
jack supplies power to the PC. To prevent damage to the PC,
always use the bundled power adapter.
WARNING! The power adapter may become warm to
hot when in use. Do not cover the adapter and keep it
away from your body.
Cover lock latch + Kensington security slot
The cover lock latch fastens the side cover on your ROG GR6.
The Kensington security slot allows you to secure your ROG
GR6 using Kensington® security products.

2
Using your ROG GR6

16
GR6
Getting started
Positioning your ROG GR6
The ROG GR6 can be positioned standing up or lying down. When
positioning your ROG GR6, ensure that the rubber studs or the
rubber feet are in contact with the at and stable surface of your
table or desk.
Standing up Lying down
Location of rubber studs
rubber feet

GR6
17
Connecting the AC power adapter
To connect the AC power adapter to your ROG GR6:
A. Connect the AC power cord to the AC/DC adapter.
B. Plug the AC power cord into a 100V~240V power source.
C. Connect the DC power connector into your ROG GR6’s power
(DC) input port.
NOTE: The power adapter may vary in appearance, depending on
your region.

18
GR6
IMPORTANT!
• WestronglyrecommendthatyouuseonlytheACpower
adapter and cable that came with your ROG GR6.
• UseagroundedwallsocketwhileusingyourROGGR6.
• Thesocketoutletmustbeeasilyaccessibleandnearyour
ROG GR6.
• TodisconnectyourROGGR6fromitsmainpowersupply,
unplug your ROG GR6 from the power socket.

GR6
19
Connecting a display panel
You can connect a display panel or projector to your ROG GR6 that
has the following connectors:
• HDMIconnector
• DisplayPortconnector
To connect a display panel to your ROG GR6:

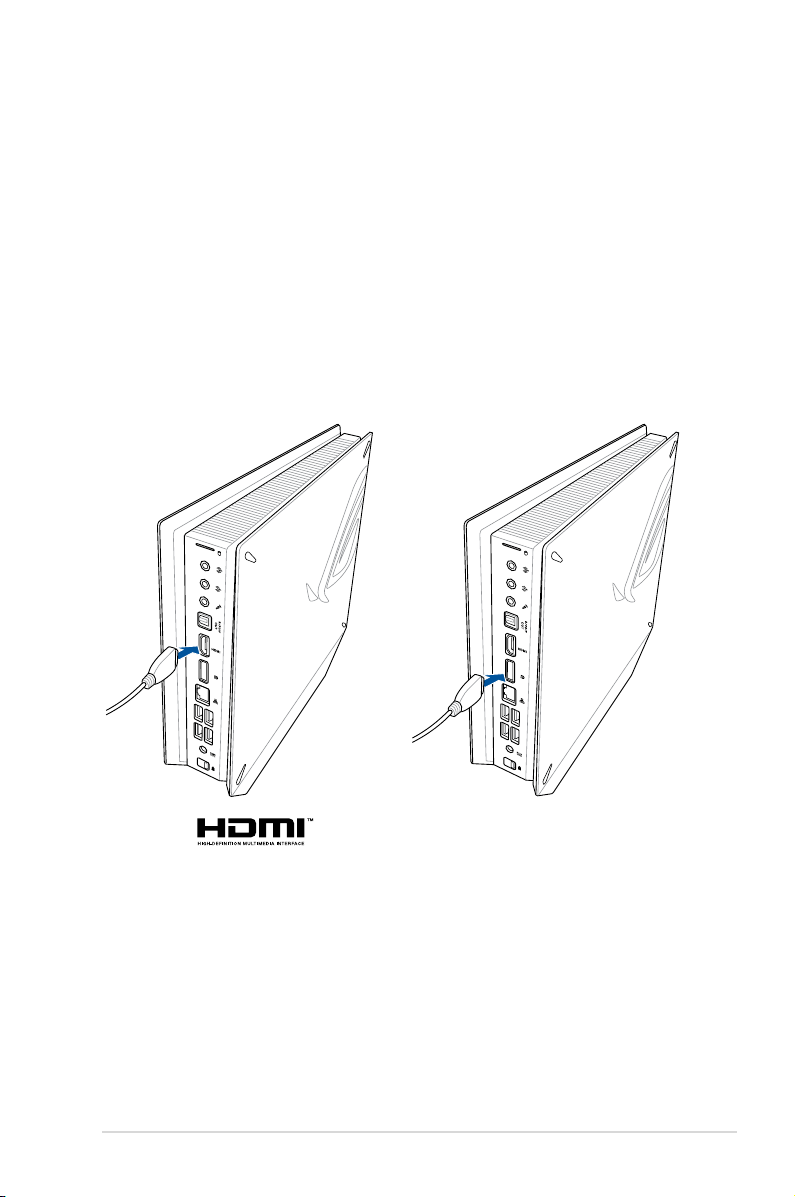

Connect a display cable either to the HDMI or DisplayPort port.
Connecting display via HDMI port Connecting display via DisplayPort port

20
GR6
Connecting the keyboard or mouse
You can connect generally any USB keyboard and mouse to your
ROG GR6. You can also connect a USB dongle for a wireless keyboard
and mouse set.
To connect a keyboard and mouse to your ROG GR6:
Connect the USB cable from your keyboard and mouse to any of the
USB 2.0/3.0 ports of your ROG GR6.

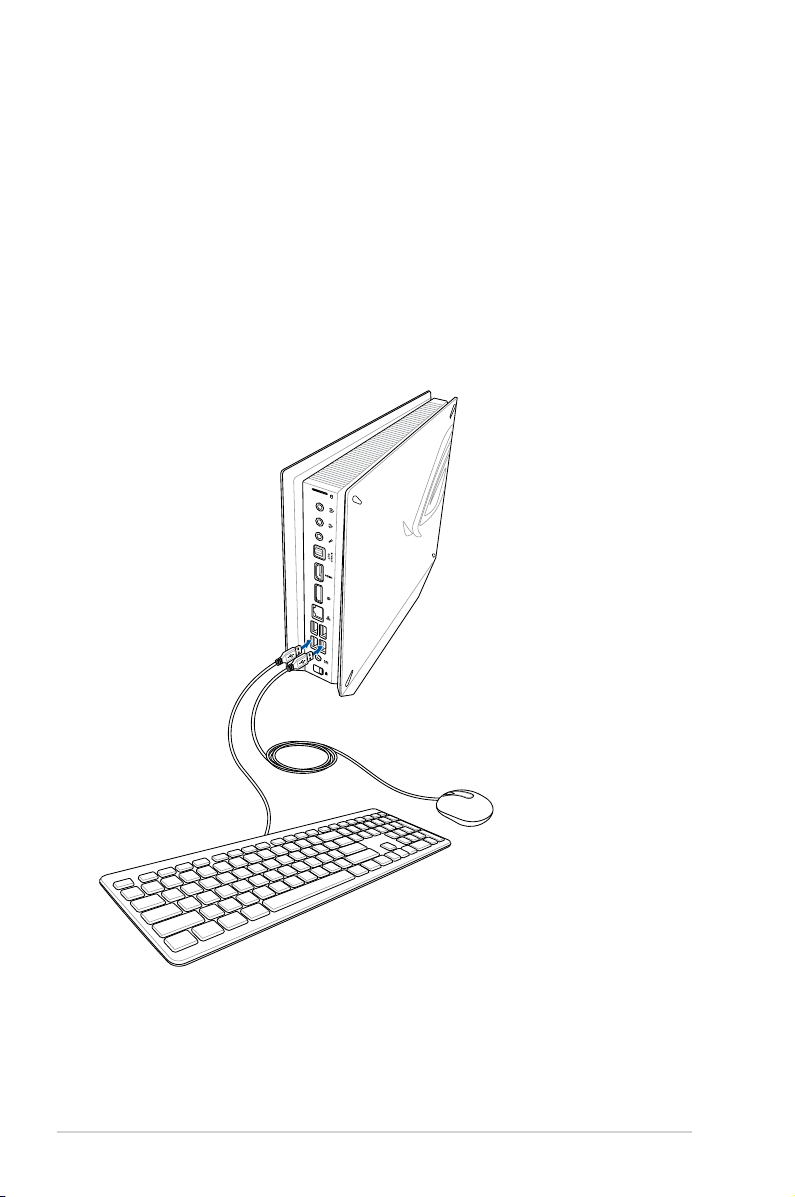

Connecting a USB keyboard or mouse
