Asus UL30A Instructions for use

Notebook PC
Hardware User’s Manual
E4790/ July 2009

2
Table of Contents
Contents
1. Introducing the Notebook PC
About This User’s Manual �������������������������������������������������������������������������������6
Notes For This Manual������������������������������������������������������������������������������������������� 6
Safety Precautions ������������������������������������������������������������������������������������������7
Preparing your Notebook PC���������������������������������������������������������������������������9
2. Knowing the Parts
Top Side���������������������������������������������������������������������������������������������������������12
Bottom Side���������������������������������������������������������������������������������������������������15
Left Side ��������������������������������������������������������������������������������������������������������17
Right Side������������������������������������������������������������������������������������������������������18
Rear Side�������������������������������������������������������������������������������������������������������20
Front Side������������������������������������������������������������������������������������������������������20
3. Getting Started
Power System �����������������������������������������������������������������������������������������������22
Using AC Power��������������������������������������������������������������������������������������������������� 22
Using Battery Power �������������������������������������������������������������������������������������������� 23
Battery Care��������������������������������������������������������������������������������������������������������� 24
Powering ON the Notebook PC ��������������������������������������������������������������������������� 25
The Power-On Self Test (POST)�������������������������������������������������������������������������� 25
Checking Battery Power �������������������������������������������������������������������������������������� 26
Charging the Battery Pack����������������������������������������������������������������������������������� 26
Power Options ����������������������������������������������������������������������������������������������������� 27
Power Management Modes��������������������������������������������������������������������������������� 28
Sleep and Hibernate �������������������������������������������������������������������������������������������� 28
Thermal Power Control���������������������������������������������������������������������������������������� 28
Special Keyboard Functions��������������������������������������������������������������������������29
Colored Hot Keys������������������������������������������������������������������������������������������������� 29
Multimedia Control Keys (on selected models) ��������������������������������������������������� 31
Microsoft Windows Keys�������������������������������������������������������������������������������������� 32
Switches and Status Indicators ���������������������������������������������������������������������33
Switches��������������������������������������������������������������������������������������������������������������� 33
Status Indicators �������������������������������������������������������������������������������������������������� 34

3
Table of Contents (Cont.)
Contents
4. Using the Notebook PC
Pointing Device����������������������������������������������������������������������������������������������38
Using the Touchpad ��������������������������������������������������������������������������������������������� 38
Touchpad Usage Diagrams ��������������������������������������������������������������������������������� 39
Caring for the Touchpad��������������������������������������������������������������������������������������� 41
Automatic Touchpad Disabling����������������������������������������������������������������������������� 41
Storage Devices ��������������������������������������������������������������������������������������������42
Flash Memory Card Reader �������������������������������������������������������������������������������� 42
Hard Disk Drive���������������������������������������������������������������������������������������������������� 43
Memory (RAM)����������������������������������������������������������������������������������������������������� 45
Connections���������������������������������������������������������������������������������������������������46
Network Connection �������������������������������������������������������������������������������������������� 46
Wireless LAN Connection (on selected models) ������������������������������������������������� 47
Windows Wireless Network Connection �������������������������������������������������������������� 48
Bluetooth Wireless Connection (on selected models) ����������������������������������������� 49
Appendix
Optional Accessories����������������������������������������������������������������������������������� A-2
Optional Connections ���������������������������������������������������������������������������������������� A-3
Bluetooth Mouse Setup (optional) ��������������������������������������������������������������������� A-4
Operating System and Software������������������������������������������������������������������ A-6
System BIOS Settings ��������������������������������������������������������������������������������������� A-6
Common Problems and Solutions ��������������������������������������������������������������������� A-9
Windows Vista Software Recovery������������������������������������������������������������������ A-14
Glossary ���������������������������������������������������������������������������������������������������� A-16
Declarations and Safety Statements ��������������������������������������������������������� A-20
Notebook PC Information �������������������������������������������������������������������������� A-30

4
Contents

5
1. Introducing the Notebook PC
About This User’s Manual
Notes For This Manual
Safety Precautions
Preparing your Notebook PC
Photos and icons in this manual are used for artistic purposes only and do not
show what is actually used in the product itself.
There may be differences between your Notebook PC and the drawings shown in
this manual. Please accept your Notebook PC as being correct.

6
About This User’s Manual
You are reading the Notebook PC User’s Manual. This User’s Manual provides
information on the various components in the Notebook PC and how to use them. The
following are major sections of this User’s Manuals:
1. Introducing the Notebook PC
Introduces you to the Notebook PC and this User’s Manual.
2. Knowing the Parts
Gives you information on the Notebook PC’s components.
3. Getting Started
Gives you information on getting started with the Notebook PC.
4. Using the Notebook PC
Gives you information on using the Notebook PC’s components.
5. Appendix
Introduces you to optional accessories and gives additional information.
Notes For This Manual
A few notes and warnings in bold are used throughout this guide that you should be aware of in order
to complete certain tasks safely and completely. These notes have different degrees of importance as
described below:
NOTE: Tips and information for special situations.
TIP: Tips and useful information for completing tasks.
IMPORTANT! Vital information that must be followed to prevent damage to data,
components, or persons.
WARNING! Important information that must be followed for safe operation.
Text enclosed in < > or [ ] represents a key on the keyboard; do not actually type the
< > or [ ] and the enclosed letters.
< >
[ ]
1 Introducing the Notebook PC

7
Safety Precautions
The following safety precautions will increase the life of the Notebook PC. Follow all precautions and
instructions. Except as described in this manual, refer all servicing to qualied personnel.
IMPORTANT! Disconnect the AC power and remove the battery pack(s) before
cleaning. Wipe the Notebook PC using a clean cellulose sponge or chamois cloth
dampened with a solution of nonabrasive detergent and a few drops of warm water
and remove any extra moisture with a dry cloth.
DO NOT expose to or use near
liquids, rain, or moisture. DO NOT
use the modem during an electrical
storm.
DO NOT expose to dirty or dusty en-
vironments. DO NOT operate during
a gas leak.
SAFE TEMP: This Notebook PC
should only be used in environments
with ambient temperatures between
10°C (50°F) and 35°C (95°F)
Battery safety warning:
DO NOT throw the battery in re.
DO NOT short circuit the contacts.
DO NOT disassemble the battery.
DO NOT expose to strong magnetic
or electrical elds.
DO NOT place on uneven or unsta-
ble work surfaces. Seek servicing if
the casing has been damaged.
DO NOT place or drop objects on
top and do not shove any foreign
objects into the Notebook PC.
DO NOT press or touch the display
panel. Do not place together with
small items that may scratch or enter
the Notebook PC.
DO NOT leave the Notebook PC on
your lap or any part of the body in
order to prevent discomfort or injury
from heat exposure.
DO NOT carry or cover a Notebook PC that is powered ON with any materials that will
reduce air circulation such as a carrying bag.
INPUT RATING: Refer to the rat-
ing label on the bottom of the Note-
book PC and be sure that your power
adapter complies with the rating.
Introducing the Notebook PC 1
DO NOT use damaged power cords,
accessories, or other peripherals.
DO NOT use strong solvents such
as thinners, benzene, or other chemi-
cals on or near the surface.

8
CAUTION! There are three main types of airport security devices: X-ray machines
(used on items placed on conveyor belts), magnetic detectors (used on people
walking through security checks), and magnetic wands (hand-held devices used on
people or individual items). You can send your Notebook PC and diskettes through
airport X-ray machines. However, it is recommended that you do not send your
Notebook PC or diskettes through airport magnetic detectors or expose them to
magnetic wands.
Charge Your Batteries
If you intend to use battery power, be sure to fully charge your battery pack and any optional battery
packs before going on long trips. Remember that the power adapter charges the battery pack as long as
it is plugged into the computer and an AC power source. Be aware that it takes much longer to charge
the battery pack when the Notebook PC is in use.
Airplane Precautions
Contact your airline if you want to use the Notebook PC on the airplane. Most airlines will have
restrictions for using electronic devices. Most airlines will allow electronic use only between and not
during takeoffs and landings.
Transportation Precautions
To prepare the Notebook PC for transport, you should turn it OFF and disconnect all external pe-
ripherals to prevent damage to the connectors. The hard disk drive’s head retracts when the power
is turned OFF to prevent scratching of the hard disk surface during transport. Therefore, you should
not transport the Notebook PC while the power is still ON. Close the display panel and check that it is
in the closed position to protect the keyboard and display panel.
CAUTION! The Notebook PC’s surface is easily dulled if not properly cared for. Be
careful not to rub or scrape the Notebook PC surfaces.
Cover Your Notebook PC
Purchase a carrying bag to protect the Notebook PC from dirt, water, shock, and scratches.
1 Introducing the Notebook PC
DO NOT throw the Notebook PC in municipal waste. This product has been designed
to enable proper reuse of parts and recycling. The symbol of the crossed out wheeled
bin indicates that the product (electrical, electronic equipment and mercury-containing
button cell battery) should not be placed in municipal waste. Check local regulations for
disposal of electronic products.
DO NOT throw the battery in municipal waste. The symbol of the crossed out wheeled
bin indicates that the battery should not be placed in municipal waste.

9
Preparing your Notebook PC
These are only quick instructions for using your Notebook PC. Read the later pages for detailed infor-
mation on using your Notebook PC.
1. Install the battery pack 2. Connect the AC Power Adapter
IMPORTANT! When opening, DO NOT
force the display panel down to the table
or else the hinges may break! Never lift
the Notebook PC by the display panel!
2
1
3
3. Open the Display Panel 4. Turn ON the Notebook PC
The power switch turns ON and OFF the Note-
book PC or putting the Notebook PC into sleep
or hibernation modes. Actual behavior of the
power switch can be customized in Windows
Control Panel > Power Options > System Set-
tings.
13
110V-220V
2
Introducing the Notebook PC 1

10
1 Introducing the Notebook PC

11
2. Knowing the Parts
Basic sides of the Notebook PC
Photos and icons in this manual are used for artistic purposes only and do not
show what is actually used in the product itself.
There may be differences between your Notebook PC and the drawings shown in
this manual. Please accept your Notebook PC as being correct.

12
3
2
4
5
6
7
1
8
9

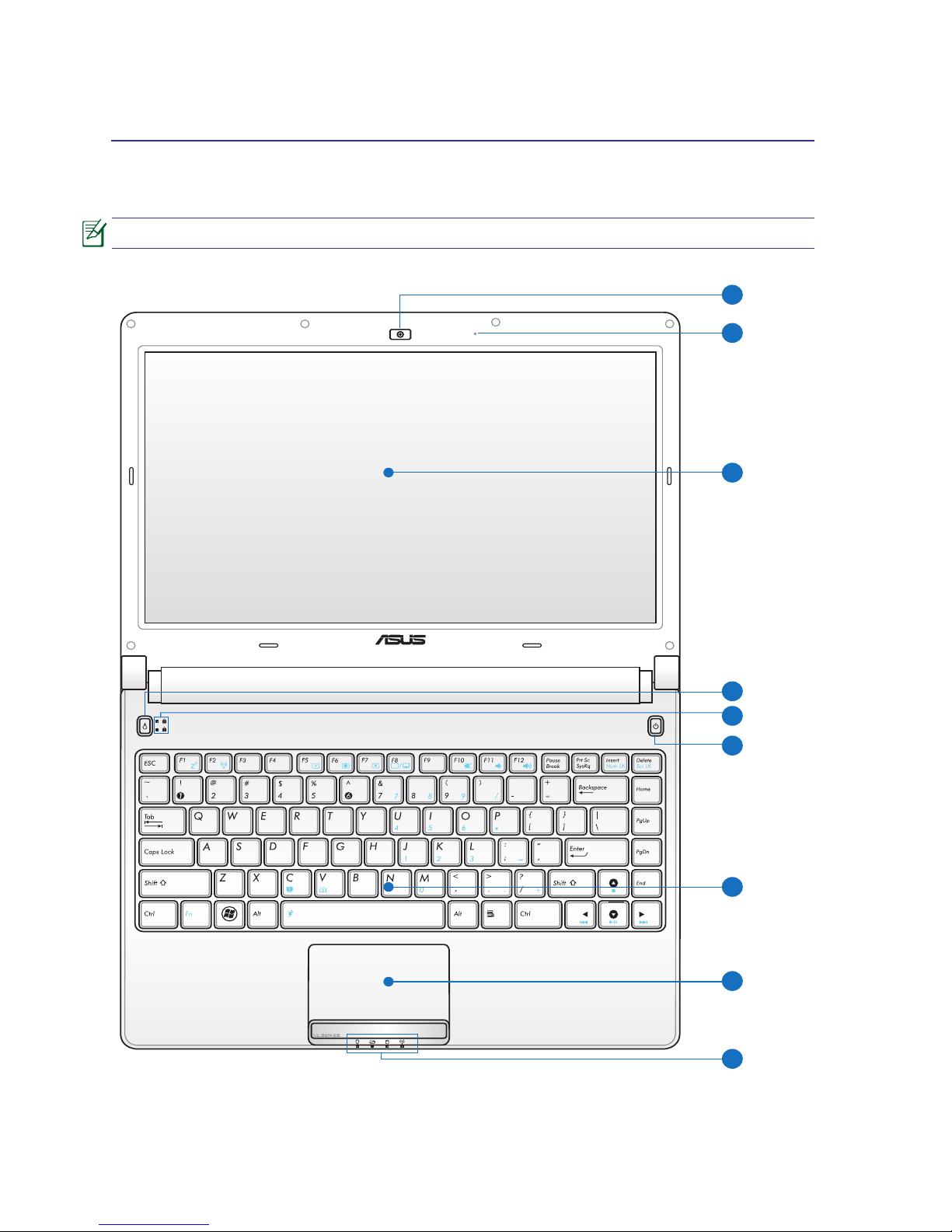

Top Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
The keyboard differs for each territory.
2 Knowing the Parts

13
Display Panel
The display panel functions the same as a desktop monitor. The Notebook PC uses
an active matrix TFT LCD, which provides excellent viewing like that of desktop
monitors. Unlike desktop monitors, the LCD panel does not produce any radiation or
ickering, so it is easier on the eyes. Use a soft cloth without chemical liquids (use
plain water if necessary) to clean the display panel.
Camera (on selected models)
The built-in camera allows picture taking or video recording. Can be used with video
conferencing and other interactive applications.
1
Power Switch
The power switch turns ON and OFF the Notebook PC or putting the Notebook PC into
sleep or hibernation modes. Actual behavior of the power switch can be customized in
Windows Control Panel “Power Options.”
Express Gate & Power4Gear Hybrid Key
Pressing this button will launch Express Gate. Refer to the Express Gate User’s Manual for details.
This key functions as the instant key for Power4Gear Hyrid when in Windows environment.
2
3
4
5
6
Knowing the Parts 2
Keyboard
The keyboard provides full-sized keys with comfortable travel (depth at which the
keys can be depressed) and palm rest for both hands. Two Windows function keys are
provided to help ease navigation in the Windows operating system.
7
Microphone (Built-in)
The built-in mono microphone can be used for video conferencing, voice narrations, or simple
audio recordings.
Status Indicators (top)
Status indicators represent various hardware/software conditions. See indicator details in
section 3.

14
8Touchpad and Buttons
The touchpad with its buttons is a pointing device that provides the same functions as a
desktop mouse. A software-controlled scrolling function is available after setting up the
included touchpad utility to allow easy Windows or web navigation.
Status Indicators (front)
Status indicators represent various hardware/software conditions. See indicator details in
section 3.
2 Knowing the Parts
9

15
Bottom Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
3 521 4
WARNING! The bottom of the Notebook PC can get very hot. Be careful when han-
dling the Notebook PC while it is in operation or recently been in operation. High
temperatures are normal during charging or operation. Do not use on soft surfaces
such as beds or sofas which may block the vents. DO NOT PUT THE NOTEBOOK
PC ON YOUR LAP OR OTHER PARTS OF THE BODY TO AVOID INJURY FROM THE
HEAT.
The bottom side may vary in appearance depending on model.
The battery pack size varies depending on model.
Knowing the Parts 2

16
Memory (RAM) Compartment
The memory compartment provides expansion capabilities for additional memory.
Additional memory will increase application performance by decreasing hard disk
access. The BIOS automatically detects the amount of memory in the system and
congures accordingly. There is no hardware or software (including BIOS) setup
required after the memory is installed. Visit an authorized service center or retailer for information on
memory upgrades for your Notebook PC. Only purchase expansion modules from authorized retailers
of this Notebook PC to ensure maximum compatibility and reliability.
1
2
3Battery Pack
The battery pack is automatically charged when the Notebook PC is connected to an AC
power source and maintains power to the Notebook PC when AC power is not connected.
This allows use when moving temporarily between locations. Battery time varies by usage
and by the specications for this Notebook PC. The battery pack cannot be disassembled
and must be purchased as a single unit.
Battery Lock - Manual
The manual battery lock is used to keep the battery pack secured. Move the manual lock
to the unlocked position to insert or remove the battery pack. Move the manual lock to the
locked position after inserting the battery pack.
Battery Lock - Spring
The spring battery lock is used to keep the battery pack secured. When the battery pack is
inserted, it will automatically lock. To remove the battery pack, this spring lock must be held
in the unlocked position.
4
Hard Disk Drive Compartment
The hard disk drive is secured in a compartment. Visit an authorized service center or
retailer for information on hard disk drive upgrades for your Notebook PC. Only purchase
hard disk drives from authorized retailers of this Notebook PC to ensure maximum compat-
ibility and reliability.
2 Knowing the Parts
5

17
Left Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
13
24
1
2
USB Port (2.0/1.1)
The USB (Universal Serial Bus) port is compatible with USB 2.0 or USB 1.1 devices such
as keyboards, pointing devices, cameras, hard disk drives, printers, and scanners connected
in a series up to 12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB allows many
devices to run simultaneously on a single computer, with some peripherals acting as additional plug-in
sites or hubs. USB supports hot-swapping of devices so that most peripherals can be connected or
disconnected without restarting the computer.
Air Vents
The air vents allow cool air to enter and warm air to exit the Notebook PC.
IMPORTANT! Ensure that paper, books, clothing, cables, or other objects
do not block any of the air vents or else overheating may occur.
3
4
Knowing the Parts 2
HDMI Port
HDMI (High-Denition Multimedia Interface) is an uncompressed all-digital
audio/video interface between any audio/video source, such as a set-top box, DVD
player, and A/V receiver and an audio and/or video monitor, such as a digital tel-
evision (DTV). Supports standard, enhanced, or high-denition video, plus multi-
channel digital audio on a single cable. It transmits all ATSC HDTV standards and
supports 8-channel digital audio, with bandwidth to spare to accommodate future
enhancements or requirements.
HDMI
Display (Monitor) Output
The 15-pin D-sub monitor port supports a standard VGA-compatible device such as a moni-
tor or projector to allow viewing on a larger external display.

18
Microphone Input Jack
The mono microphone jack (1/8 inch) can be used to connect an external microphone or out-
put signals from audio devices. Using this jack automatically disables the built-in microphone.
Use this feature for video conferencing, voice narrations, or simple audio recordings.
Headphone Output Jack
The stereo headphone jack (1/8 inch) is used to connect the Notebook PC’s audio out signal to
amplied speakers or headphones. Using this jack automatically disables the built-in speakers.
Right Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
21 43 6 7 85
1
2
3
4
Flash Memory Slot
Normally an external memory card reader must be purchased separately in order to use
memory cards from devices such as digital cameras, MP3 players, mobile phones, and PDAs.
This Notebook PC has a built-in high-speed memory card reader that can conveniently read
from and write to many ash memory cards as mentioned later in this manual.
SIM Card Compartment (on selected models)
The SIM card compartment allows insertion of a mobile SIM card for 3G functions.
This compartment does not support hotplugging.
2 Knowing the Parts

19
USB Port (2.0/1.1)
The USB (Universal Serial Bus) port is compatible with USB 2.0 or USB 1.1 devices such as key-
boards, pointing devices, cameras, hard disk drives, printers, and scanners connected in a series up to
12Mbits/sec (USB 1.1) and 480Mbits/sec (USB 2.0). USB allows many devices to run simultaneously
on a single computer, with some peripherals acting as additional plug-in sites or hubs. USB supports
hot-swapping of devices so that most peripherals can be connected or disconnected without restarting
the computer.
LAN Port
The RJ-45 LAN port with eight pins is larger than the RJ-11 modem port and supports
a standard Ethernet cable for connection to a local network. The built-in connector al-
lows convenient use without additional adapters.
Power (DC) Input
The supplied power adapter converts AC power to DC power for use with this jack. Power
supplied through this jack supplies power to the Notebook PC and charges the internal
battery pack. To prevent damage to the Notebook PC and battery pack, always use the
supplied power adapter. CAUTION: MAY BECOME WARM TO HOT WHEN IN
USE. BE SURE NOT TO COVER THE ADAPTER AND KEEP IT AWAY FROM
YOUR BODY.
Security Port
The security port allows the Notebook PC to be secured to a xed object with a 2 mm metal cable.
5
6
7
8
Knowing the Parts 2

20
Rear Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
1
Battery Pack
The battery pack is automatically charged when the Notebook PC is connected to an AC
power source and maintains power to the Notebook PC when AC power is not connected.
This allows use when moving temporarily between locations. Battery time varies by usage
and by the specications for this Notebook PC. The battery pack cannot be disassembled
and must be purchased as a single unit.
1
2 Knowing the Parts
1
Front Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
1 12
Status Indicators (front)
Status indicators represent various hardware/software conditions. See indicator details in
section 3.
Audio Speaker
The built-in stereo speaker system allows you to hear audio without additional attach-
ments. The multimedia sound system features an integrated digital audio controller
that produces rich, vibrant sound (results improved with external stereo headphones or
speakers). Audio features are software controlled.
2
Other manuals for UL30A
1
This manual suits for next models
2
Table of contents
Other Asus Laptop manuals

Asus
Asus Zenlock 14 UM431DA-AM005T User manual

Asus
Asus S530FN-EJ313T User manual

Asus
Asus X512U User manual

Asus
Asus L1A User manual

Asus
Asus A40JK User manual

Asus
Asus GL552VW Assembly instructions

Asus
Asus UX391FA User manual

Asus
Asus Goes Mobile P6000 Series Manual

Asus
Asus N73SM-DS72 User manual

Asus
Asus P2451FA Guide
