Asus W1J Instructions for use

Notebook PC
Hardware User’s Manual
DV
E2543 / Apr 2006

2
Contents
1. Introducing the Notebook PC...................................................................5
About This User’s Manual .......................................................................................... 6
Notes For This Manual...........................................................................................6
Preparing your Notebook PC...................................................................................... 9
2. Knowing the Parts...................................................................................11
Top Side....................................................................................................................12

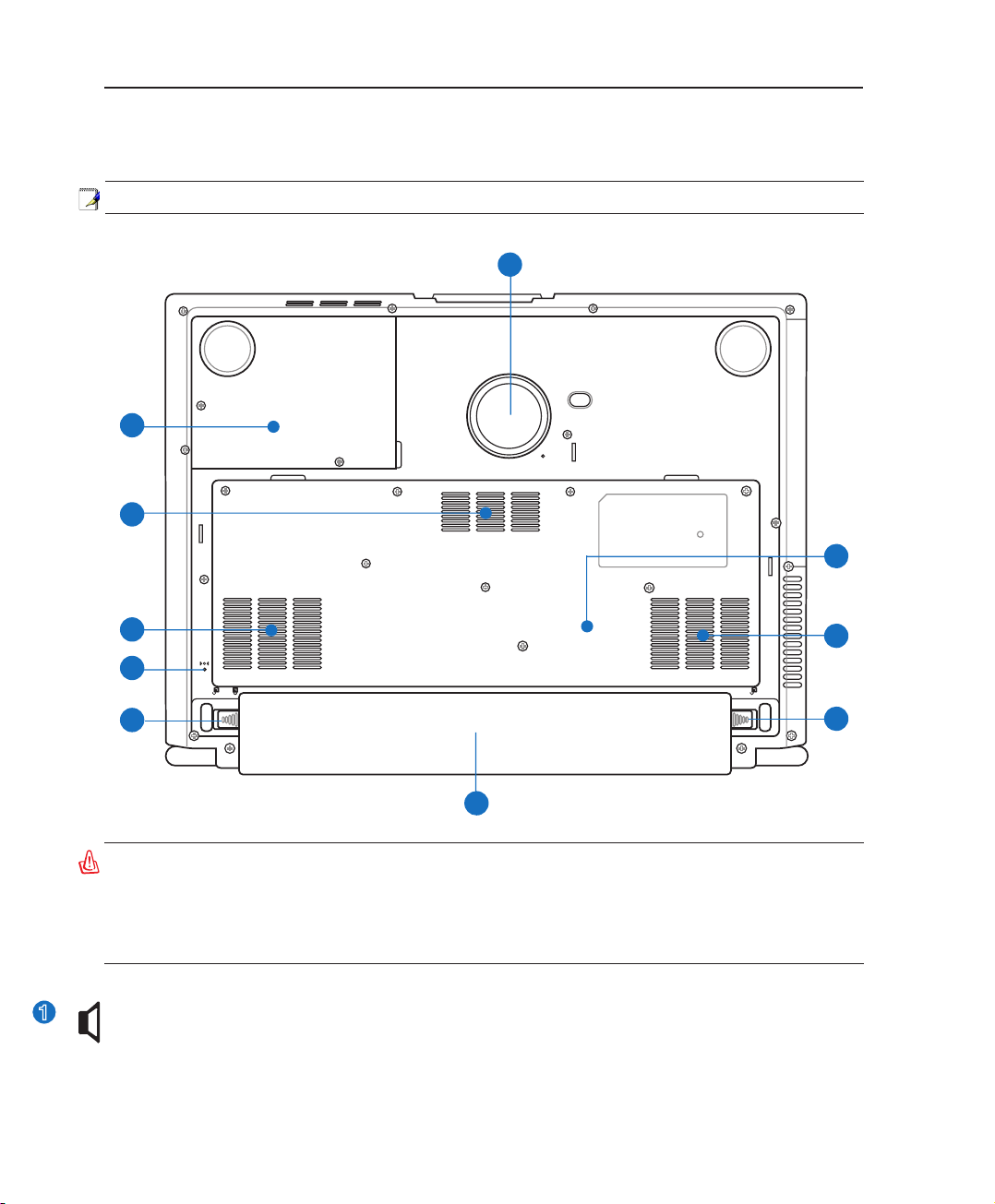

Bottom Side..............................................................................................................14
Left Side ................................................................................................................... 16
Right Side.................................................................................................................18
Front Side.................................................................................................................19

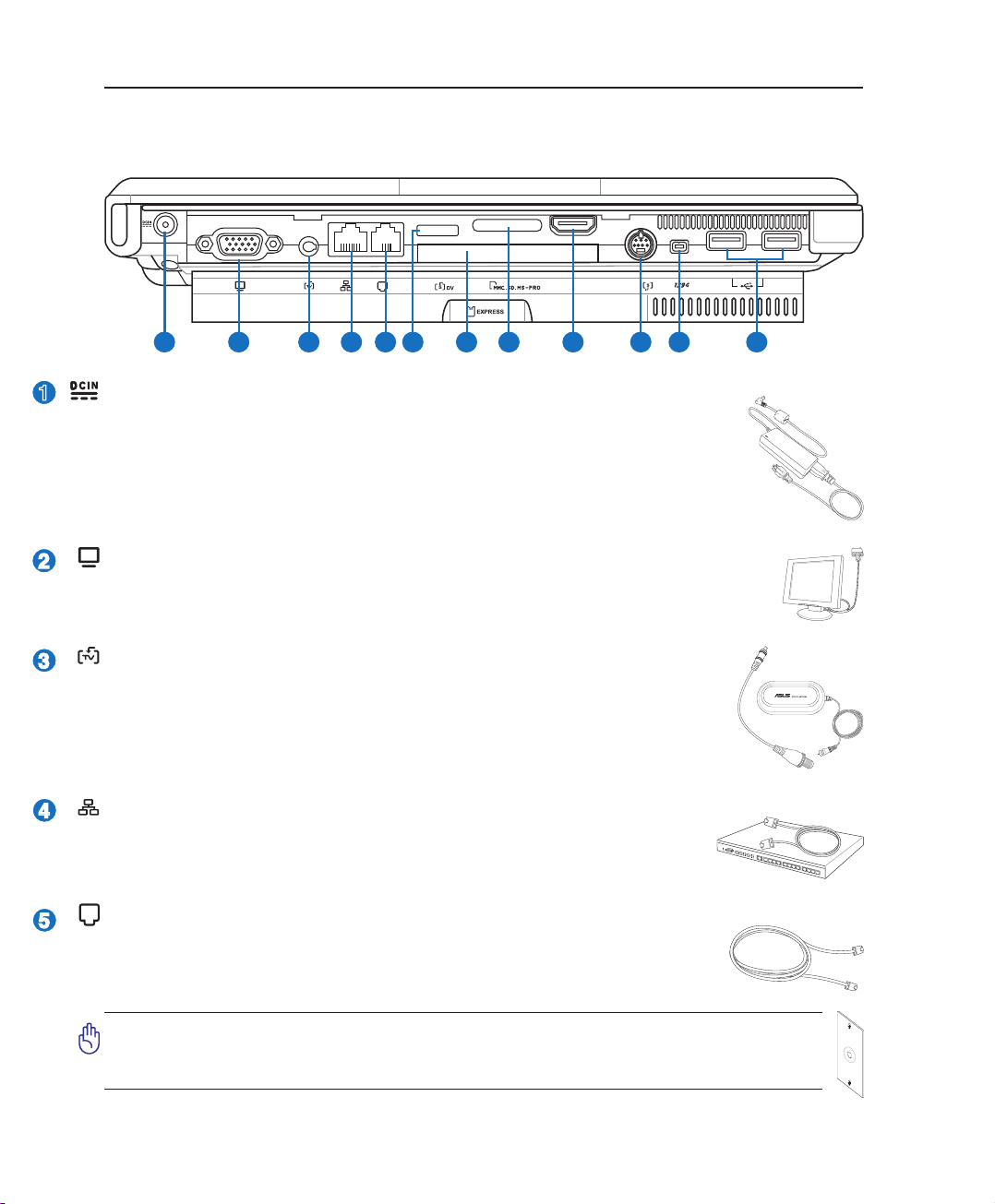

Rear Side..................................................................................................................20
3. Getting Started.........................................................................................21
Power System .......................................................................................................... 22
Using AC Power................................................................................................... 22
Using Battery Power ............................................................................................ 23
Battery Care......................................................................................................... 23
Powering ON the Notebook PC ........................................................................... 24
The Power-On Self Test (POST)..........................................................................24
Checking Battery Power ......................................................................................25
Charging the Battery Pack................................................................................... 25
Restarting or Rebooting....................................................................................... 26
Powering OFF...................................................................................................... 26
Special Keyboard Functions.....................................................................................27
Colored Hot Keys.................................................................................................27
Microsoft Windows Keys......................................................................................29
Keyboard as a Numeric Keypad ......................................................................... 29
Keyboard as Cursors ........................................................................................... 29
Switches and Status Indicators ................................................................................ 30
Switches...............................................................................................................30
Status Indicators .................................................................................................. 32

3
Contents
4. Using the Notebook PC...........................................................................35
Operating System..................................................................................................... 36
Support Software ................................................................................................. 36
Automatic Touchpad Disabling (on selected models) ......................................... 36
Pointing Device......................................................................................................... 37
Using the Touchpad ............................................................................................. 37
Touchpad Usage Illustrations...............................................................................38
Caring for the Touchpad.......................................................................................39
Storage Devices ....................................................................................................... 40
ExpressCard ........................................................................................................ 40
Optical Drive – tray type ......................................................................................41
Optical Drive – slot type (on selected models) ....................................................42
Flash Memory Card Reader ................................................................................44
Hard Disk Drive....................................................................................................44
Connections..............................................................................................................45
Modem Connection.............................................................................................. 45
Network Connection ............................................................................................ 46
Wireless LAN Connection (on selected models) .................................................47
Bluetooth Wireless Connection (on selected models) ......................................... 48
Trusted Platform Module (TPM) (on selected models) ........................................ 49
Power Management Modes...................................................................................... 50
Full Power Mode & Maximum Performance ........................................................ 50
ACPI.....................................................................................................................50
Suspend Mode..................................................................................................... 50
Power Savings ..................................................................................................... 50
Power State Summary......................................................................................... 51
Thermal Power Control........................................................................................ 51
Stand by and Hibernate ....................................................................................... 52
Multimedia Connections (on selected models).........................................................53
Appendix ......................................................................................................55
Optional Accessories ................................................................................................ 56
Glossary ...................................................................................................................62
Declarations and Safety Statements ........................................................................ 66
Notebook PC Information ......................................................................................... 78

4
Contents

5
1. Introducing the Notebook PC
About This User’s Manual
Notes For This Manual
Safety Precautions
Preparing your Notebook PC

6
1Introducing the Notebook PC
About This User’s Manual
You are reading the Notebook PC User’s Manual. This User’s Manual provides information
on the various components in the Notebook PC and how to use them. The following are
major sections of this User’s Manuals:
1. Introducing the Notebook PC
Introduces you to the Notebook PC and this User’s Manual.
2. Knowing the Parts
Gives you information on the Notebook PC’s components.
3. Getting Started
Gives you information on getting started with the Notebook PC.
4. Using the Notebook PC
Gives you information on using the Notebook PC’s components.
5. Appendix
Introduces you to optional accessories and gives additional information.
Notes For This Manual
A few notes and warnings in bold are used throughout this guide that you should be aware of in order
to complete certain tasks safely and completely. These notes have different degrees of importance as
described below:
NOTE: Tips and information for spe-
cial situations.
TIP: Tips and useful information for
completing tasks.
Text enclosed in < > or [ ] represents a key on the keyboard; do not actually type the
< > or [ ] and the enclosed letters.
< >
[ ]
WARNING! Important information that
must be followed for safe operation.
IMPORTANT! Vital information that
must be followed to prevent damage
to data, components, or persons.

7
Introducing the Notebook PC 1
Safety Precautions
The following safety precautions will increase the life of the Notebook PC. Follow all precautions and
instructions. Except as described in this manual, refer all servicing to qualied personnel. Do not use
damaged power cords, accessories, or other peripherals. Do not use strong solvents such as thinners,
benzene, or other chemicals on or near the surface.
IMPORTANT! Disconnect the AC power and remove the battery pack(s) before clean-
ing. Wipe the Notebook PC using a clean cellulose sponge or chamois cloth dampened
with a solution of nonabrasive detergent and a few drops of warm water and remove
any extra moisture with a dry cloth.
DO NOT expose to or use near liquids,
rain, or moisture. DO NOT use the
modem during an electrical storm.
DO NOT expose to dirty or dusty en-
vironments. DO NOT operate during
a gas leak.
SAFE TEMP: This Notebook PC
should only be used in environments
with ambient temperatures between
5°C (41°F) and 35°C (95°F)
Battery safety warning:
DO NOT throw the battery in re.
DO NOT short circuit the contacts.
DO NOT disassemble the battery.
DO NOT expose to strong magnetic
or electrical elds.
DO NOT place on uneven or unstable
work surfaces. Seek servicing if the
casing has been damaged.
DO NOT place or drop objects on top
and do not shove any foreign objects
into the Notebook PC.
DO NOT press or touch the display
panel. Do not place together with
small items that may scratch or enter
the Notebook PC.
DO NOT leave the Notebook PC on
your lap or any part of the body in
order to prevent discomfort or injury
from heat exposure.
DO NOT throw the Notebook PC
in municipal waste. Check local
regulations for disposal of electronic
products.
DO NOT carry or cover a Notebook
PC that is powered ON with any ma-
terials that will reduce air circulation
such as a carrying bag.
INPUT RATING: Refer to the rating
label on the bottom of the Notebook
PC and be sure that your power adapter
complies with the rating.

8
1Introducing the Notebook PC
Transportation Precautions
To prepare the Notebook PC for transport, you should turn it OFF and disconnect all external peripher-
als to prevent damage to the connectors. The hard disk drive’s head retracts when the power is turned
OFF to prevent scratching of the hard disk surface during transport. Therefore, you should not transport
the Notebook PC while the power is still ON. Close the display panel and check that it is latched securely
in the closed position to protect the keyboard and display panel.
Cover Your Notebook PC
Charge Your Batteries
If you intend to use battery power, be sure to fully charge your battery pack and any optional battery
packs before going on long trips. Remember that the power adapter charges the battery pack as long as
it is plugged into the computer and an AC power source. Be aware that it takes much longer to charge
the battery pack when the Notebook PC is in use.
Airplane Precautions
Contact your airline if you want to use the Notebook PC on the airplane. Most airlines will have restric-
tions for using electronic devices. Most airlines will allow electronic use only between and not during
takeoffs and landings.
CAUTION! There are three main types of airport security devices: X-ray machines
(used on items placed on conveyor belts), magnetic detectors (used on people walking
through security checks), and magnetic wands (hand-held devices used on people or
individual items). You can send your Notebook PC and diskettes through airport X-ray
machines. However, it is recommended that you do not send your Notebook PC or
diskettes through airport magnetic detectors or expose them to magnetic wands.
CAUTION: The Notebook PC’s surface is easily dulled if not properly
cared for. Be careful not to rub or scrape the Notebook PC surfaces
when transporting your Notebook PC. You can purchase an optional
carrying case to protect it from dirt, water, shock, and scratches.

9
Introducing the Notebook PC 1

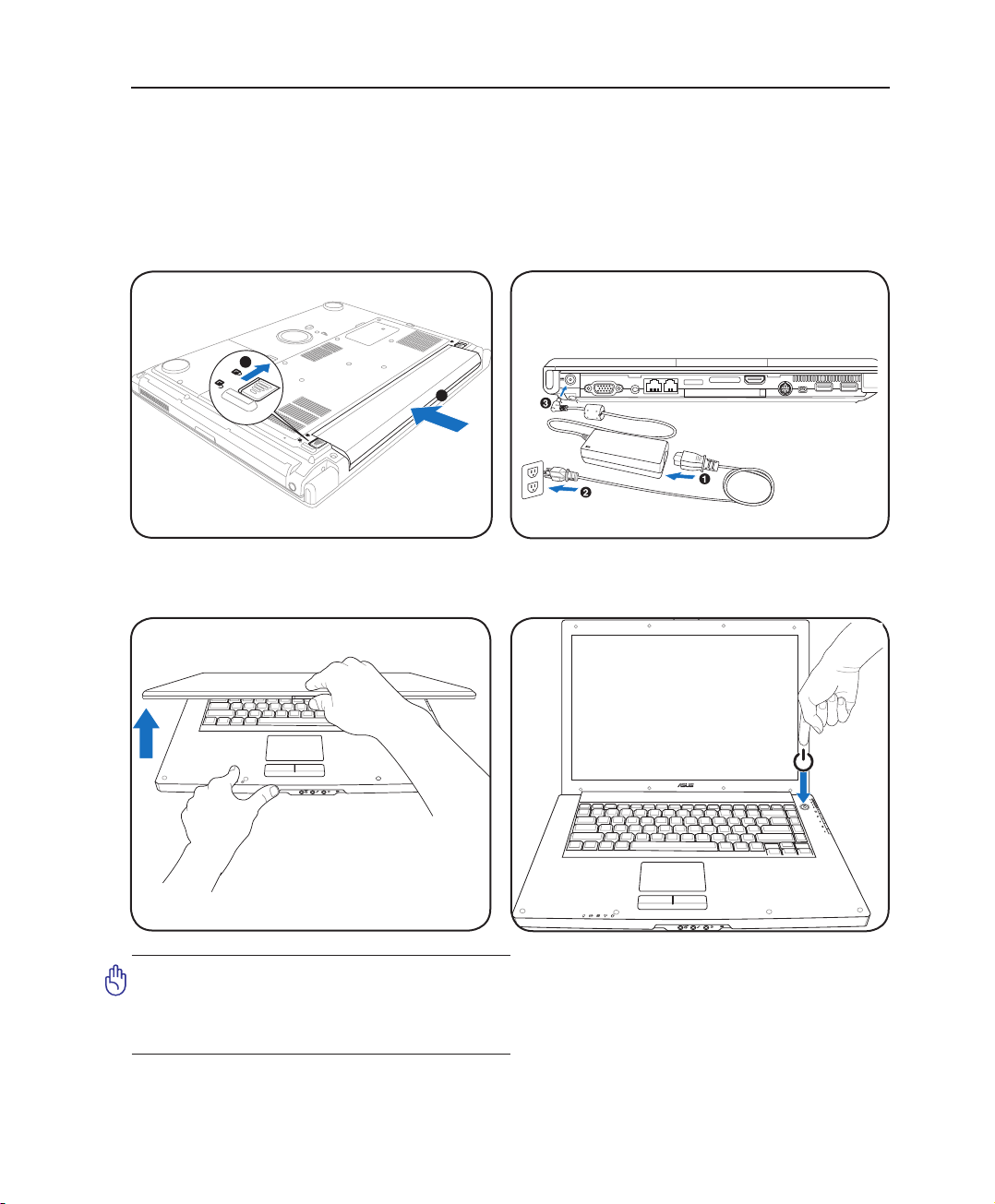

Preparing your Notebook PC
These are only quick instructions for using your Notebook PC. Read the later pages for detailed informa-
tion on using your Notebook PC.
1. Install the battery pack
3. Open the Display Panel 4. Turn ON the Notebook PC
2. Connect the AC Power Adapter
Press the power button and release.
(In Windows XP, this button can also be used to
safely turn OFF the Notebook PC.)
1
2
IMPORTANT! When opening, do not force
the display panel down to the table or else
the hinges may break! Never lift the Note-
book PC by the display panel!

10
1Introducing the Notebook PC

11
2. Knowing the Parts
Basic sides of the Notebook PC

12
2Knowing the Parts

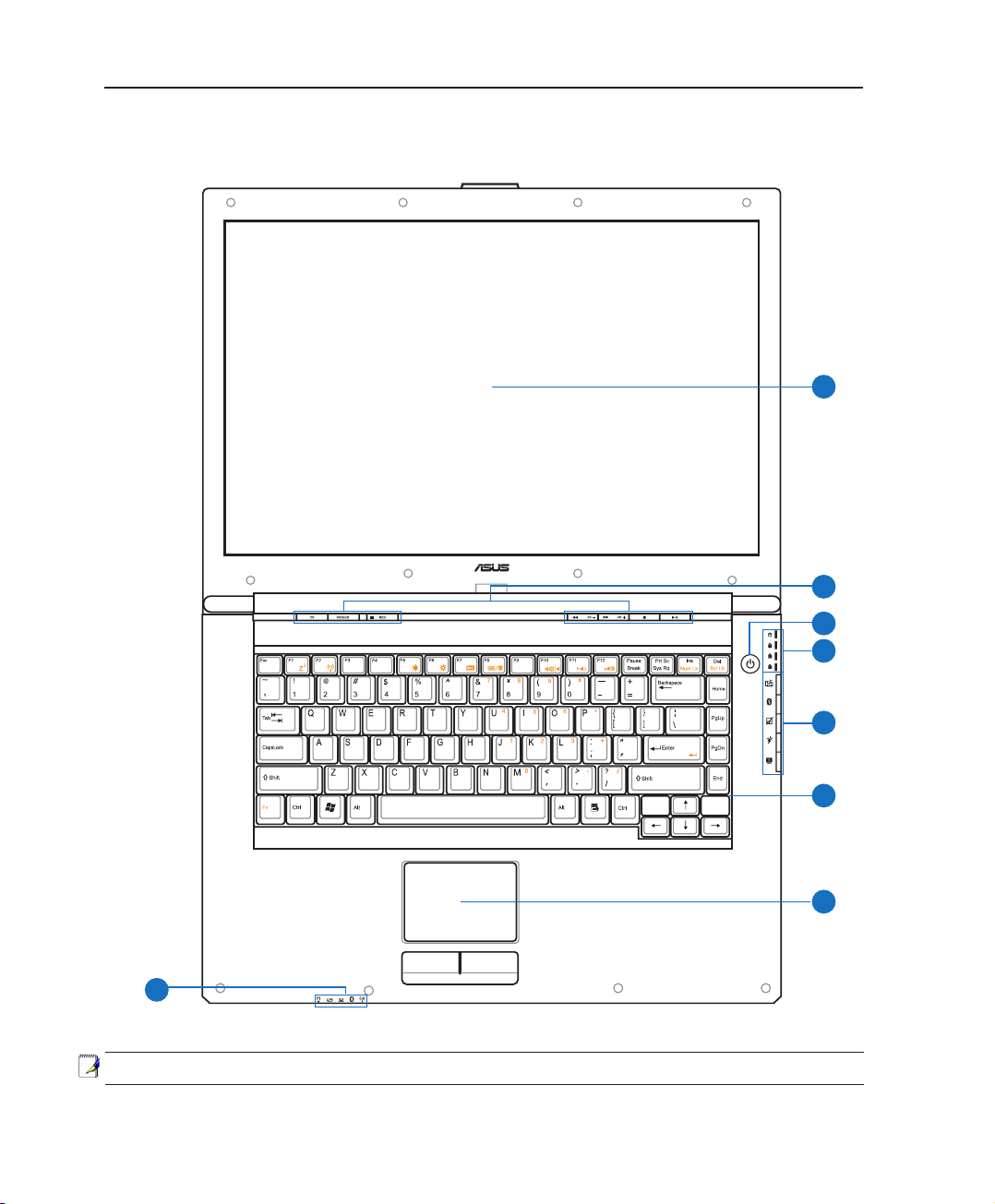

Top Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
NOTE: The keyboard will be different for each territory.
1
4
3
5
6
2
7
8

13
Knowing the Parts 2

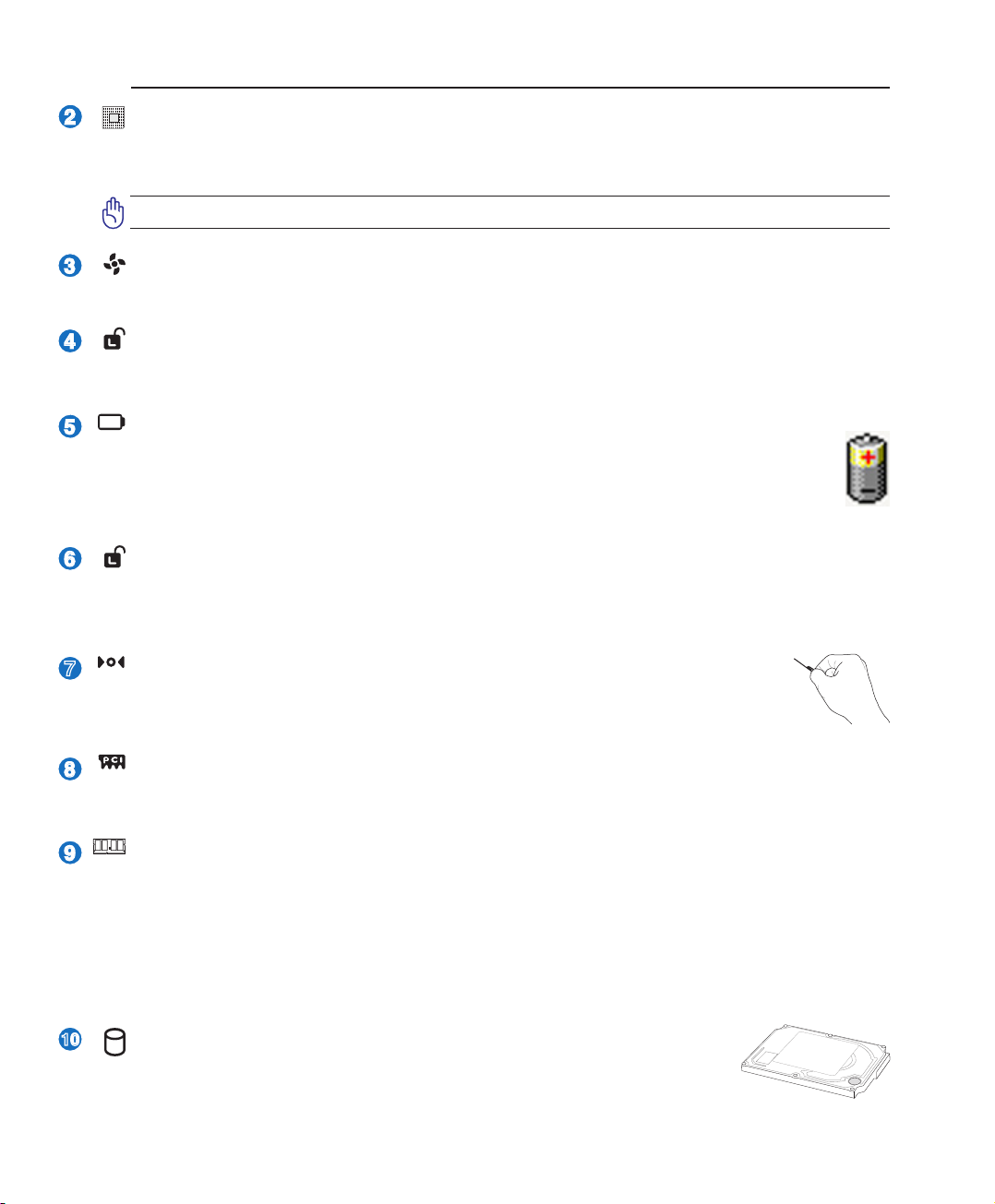

2
3
4
5
6
1
Keyboard
The keyboard provides full-sized keys with comfortable travel (depth at which the keys can be depressed)
and palm rest for both hands. Two Windows™ function keys are provided to help ease navigation in the
Windows™ operating system.
Display Panel
The display panel functions the same as a desktop monitor. The Notebook PC uses an
active matrix TFT LCD, which provides excellent viewing like that of desktop monitors.
Unlike desktop monitors, the LCD panel does not produce any radiation or ickering,
so it is easier on the eyes. Use a soft cloth without chemical liquids (use plain water if
necessary) to clean the display panel.
Power Switch
The power switch allows powering ON and OFF the Notebook PC and recovering from STD. Use the
switch once to turn ON and once to turn OFF the Notebook PC. In Windows XP, this button
can also be used to safely turn OFF the Notebook PC. The power switch only works when
the display panel is opened.
Status Indicators (top)
Status indicator details are described in section 3.
Instant Keys
Instant keys allow you to launch frequently used applications with one push of a button. Details are
described in section 3.
7
8
Multimedia Keys
Multimedia keys allow you to activate frequently used multimedia commands with one push of a button.
Details are described in section 3.
Status Indicators (front)
Status indicator details are described in section 3.
Touchpad and Buttons
The touchpad with its buttons is a pointing device that provides the same functions as a
desktop mouse. A software-controlled scrolling function is available after setting up the
included touchpad utility to allow easy Windows or web navigation.

14
2Knowing the Parts
1
Bottom Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
1
4
3
5
6
2
7
8
9
10
WARNING! The bottom of the Notebook PC can get very hot. Be careful when handling
the Notebook PC while it is in operation or recently been in operation. High tempera-
tures are normal during charging or operation. Do not use on soft surfaces such as
beds or sofas which may block the vents. DO NOT PUT THE NOTEBOOK PC ON YOUR
LAP OR OTHER PARTS OF THE BODY TO AVOID INJURY FROM THE HEAT.
NOTE: The bottom side may vary in appearance depending on model.
Audio Sub-Woofer
The built-in sub-woofer speaker allows you to enjoy amazing bass (low frequency) sounds in your
multimedia applications.

15
Knowing the Parts 2
2
3
4
Battery Lock - Spring
The spring battery lock is used to keep the battery pack secured. When the battery pack is inserted, it will
automatically lock. To remove the battery pack, this spring lock must be held in the unlocked position.
Memory (RAM) Compartment
The memory compartment provides expansion capabilities for additional memory. Additional memory
will increase application performance by decreasing hard disk access. The BIOS automatically detects
the amount of memory in the system and congures CMOS accordingly during the POST (Power-On-
Self-Test) process. There is no hardware or software (including BIOS) setup required after the memory
is installed. Visit an authorized service center or retailer for information on memory upgrades for your
Notebook PC. Only purchase expansion modules from authorized retailers of this Notebook PC to ensure
maximum compatibility and reliability.
Battery Lock - Manual
The manual battery lock is used to keep the battery pack secured. Move the manual lock to the unlocked
position to insert or remove the battery pack. Move the manual lock to the locked position after insert-
ing the battery pack.
Shutdown Button (Emergency)
In case your operating system cannot properly turn OFF or restart, the shutdown button
can be pressed with a straightened paper clip to shutdown the Notebook PC.
Battery Pack
The battery pack is automatically charged when connected to an AC power source and maintains
power to the Notebook PC whenAC power is not connected. This allows use when moving tempo-
rarily between locations. Battery time varies by usage and by the specications for this Notebook
PC. The battery pack cannot be disassembled and must be purchased as a single unit.
Hard Disk Drive Compartment
The hard disk drive is secured in a compartment. Hard disk drive upgrades are to
be done by authorized service centers or dealers only.
Central Processor Unit (CPU) Compartment
Some Notebook PC models feature a socketed-processor design to allow upgrading to faster processors
in the future. Some models feature a ULV design for compactness and may not be upgraded. Visit an
authorized service center or retailer for information on upgrades.
WARNING! End-user removal of the CPU or hard disk drive will void the warranty.

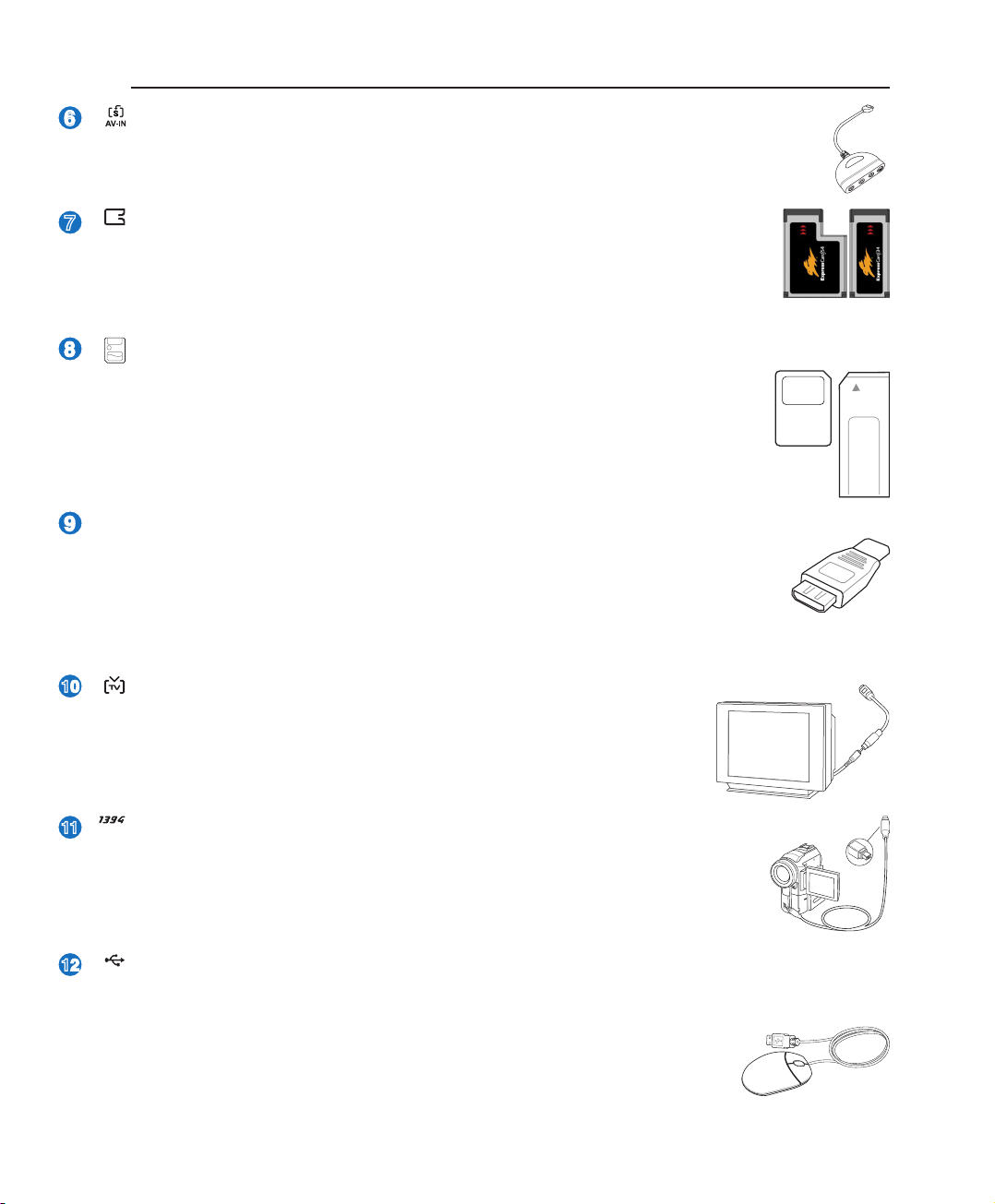

6
7
5
TV-Tuner Card Compartment
The TV-tuner card compartment allows the installation of a TV-Tuner card for viewing television pro-
grams on this Notebook PC.
8
9
10
Cooling Fan
The cooling fan is activated to remove excess heat depending on temperature threshold settings.

16
2Knowing the Parts
Modem Port
The RJ-11 modem port with two pins is smaller than the RJ-45 LAN port and supports
a standard telephone cable. The internal modem supports up to 56K V.90 transfers.
The built-in connector allows convenient use without additional adapters.
IMPORTANT! The built-in modem does not support the voltage used in digital
phone systems. Do not connect the modem port to a digital phone system or else
damage will occur to the Notebook PC.
Left Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
12
12 3 6 74 5 8 9 10 11
2
3
4
5
1
LAN Port
The RJ-45 LAN port with eight pins is larger than the RJ-11 modem port and
supports a standard Ethernet cable for connection to a local network. The built-in
connector allows convenient use without additional adapters.
Display (Monitor) Output
The 15-pin D-sub monitor port supports a standard VGA-compatible device such as a
monitor or projector to allow viewing on a larger external display.
Power (DC) Input
The supplied power adapter converts AC power to DC power for use with this jack.
Power supplied through this jack supplies power to the Notebook PC and charges the
internal battery pack. To prevent damage to the Notebook PC and battery pack, always
use the supplied power adapter. CAUTION: MAY BECOME WARM TO HOT
WHEN IN USE. BE SURE NOT TO COVER THE ADAPTER AND KEEP IT
AWAY FROM YOUR BODY.
Antenna Input
The antenna input is for TV or FM Radio (on selected models) frequency signal and
allows for use with the provided digital TV/FM antenna or input from subscription
television services. The provided antenna can receive digital TV or FM radio. Cable
service connection can receive digital TV, analog TV, or FM radio depending on paid
services. Note: Use the provided adapter for use with coaxial connectors.

17
Knowing the Parts 2
6
7
8
9
Flash Memory Slot
Normally a PCMCIA or USB memory card reader must be purchased separately in
order to use memory cards from devices such as digital cameras, MP3 players, mobile
phones, and PDAs. This Notebook PC has a built-in memory card reader that can read
many ash memory cards as specied later in this manual. The built-in memory card
reader is not only convenient, but also faster than most other forms of memory card
readers because it utilizes the high-bandwidth PCI bus.
ExpressCard Slot
One 26pin Express card slot is available to support one ExpressCard/34mm or one
ExpressCard/54mm expansion card. This new interface is faster by using a serial bus
supporting USB 2.0 and PCI Express instead of the slower parallel bus used in the PC
card slot. (Not compatible with previous PCMCIA cards.)
IEEE1394 Port
IEEE1394 is a high speed serial bus like SCSI but has simple connections and hot-
plugging capabilities like USB. The interface IEEE1394 has a bandwidth of 100-400
Mbits/sec and can handle up to 63 units on the same bus. IEEE1394 is also used in
high-end digital equipment and should be marked “DV” for Digital Video port.
TV-Out Port
The TV-Out port is an S-Video connector that allows routing the Notebook
PC’s display to a television or video projection device. You can choose between
simultaneously or single display. Use an S-Video cable (not provided) for high
quality displays or use the provided RCAto S-Video adapter for standard video
devices. This port supports both NTSC and PAL formats.
10
11
12
Audio Video Input (AV/S-Video Input)
The audio video input is a way of inputting audio and video signals through RCA jacks or
S-Video (requires the RCA adapter included with selected models). This function only works
when purchased with the TV tuner hardware and software package.
HDMI Compatible Port (see Appendix for more)
HDMI (High-Denition Multimedia Interface) is an uncompressed all-digital audio/video
interface between any audio/video source, such as a set-top box, DVD player, and A/V
receiver and an audio and/or video monitor, such as a digital television (DTV). Supports
standard, enhanced, or high-denition video, plus multi-channel digital audio on a single
cable. It transmits all ATSC HDTV standards and supports 8-channel digital audio, with bandwidth to
spare to accommodate future enhancements or requirements.
2.0
USB Port (2.0/1.1)
The USB (Universal Serial Bus) port is compatible with USB 2.0 or USB 1.1 devices such as keyboards,
pointing devices, cameras, hard disk drives, printers, and scanners connected in a series up to 12Mbits/sec
(USB 1.1) and 480Mbits/sec (USB 2.0). USB allows many devices to run simul-
taneously on a single computer, with some peripherals acting as additional plug-in
sites or hubs. USB supports hot-swapping of devices so that most peripherals can
be connected or disconnected without restarting the computer.

18
2Knowing the Parts
Right Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
1 2 3 4 5
2
3
1
4
5
Air Vents
The air vents allow cool air to enter and warm air to exit the Notebook PC.
IMPORTANT! Make sure that paper, books, clothing, cables, or other objects do not
block any of the air vents or else overheating of the Notebook PC may occur.
Optical Drive Electronic Eject
The optical drive eject has an electronic eject button for opening the tray. You can also
eject the optical drive tray through any software player or by right clicking the optical
drive in Windows™ “My Computer.”
Kensington®Lock Port
The Kensington®lock port allows the Notebook PC to be secured using Kensington®com-
patible Notebook PC security products. These security products usually include a metal
cable and lock that prevent the Notebook PC to be removed from a xed object. Some
security products may also include a motion detector to sound an alarm when moved.
Optical Drive (type varies by model)
The Notebook PC comes in various models with different optical drives. The Notebook
PC’s optical drive may support compact discs (CD) and/or digital video discs (DVD) and may have record-
able (R) or re-writable (RW) capabilities. See the marketing specications for details on each model.
2.0
USB Port (2.0/1.1)
The USB (Universal Serial Bus) port is compatible with USB 2.0 or USB 1.1 devices such as keyboards,
pointing devices, cameras, hard disk drives, printers, and scanners connected in a series up to 12Mbits/sec
(USB 1.1) and 480Mbits/sec (USB 2.0). USB allows many devices to run simul-
taneously on a single computer, with some peripherals acting as additional plug-in
sites or hubs. USB supports hot-swapping of devices so that most peripherals can
be connected or disconnected without restarting the computer.

19
Knowing the Parts 2
Front Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
1
3 6 74 5
1
2
SPDIF Output Jack
This jack provides connection to SPDIF (Sony/Philips Digital Interface) compliant devices
for digital audio output. Use this feature to turn the Notebook PC into a hi- home enter-
tainment system.
Headphone Output Jack
The stereo headphone jack (1/8 inch) is used to connect the Notebook PC’s audio out signal to
amplied speakers or headphones. Using this jack automatically disables the built-in speakers.
Combo
Microphone Input Jack
The mono microphone jack (1/8 inch) can be used to connect an external microphone or output
signals from audio devices. Using this jack automatically disables the built-in microphone.
Use this feature for video conferencing, voice narrations, or simple audio recordings.
Audio Speakers
The built-in stereo speaker system allows you to hear audio without additional attachments.
The multimedia sound system features an integrated digital audio controller that produces
rich, vibrant sound (results improved with external stereo headphones or speakers). Audio
features are software controlled.
WARNING! When opening, do not force the display panel down to the table or else
the hinges may break! Never lift the Notebook PC by the display panel!
Display Panel Tab
Lift the display panel tab to open the display panel.
Audio Input Jack
The stereo input jack (1/8 inch) can be used to connect a stereo audio source to the Notebook
PC. This feature is used mainly to add audio to multimedia applications.
CIR (Consumer Infrared) Port
The consumer infrared (IrDA) communication port allows convenient wireless control of the
provided multimedia software in selected models using the provided wireless remote control in
selected models.
ON/OFF TV MUSIC
PICTURES VIDEO
DVD/MENU
BACK SELECT
PLAY/PAUSE
STOP FWDREW
FULLSCREENMUTE
JUMP
VOL CH
OK
RECORD
RADIO
SETUPMENU
Multimedia Status Indicators
Multimedia status indicators give information when using the Notebook PC’s multimedia functions.
Details are described in section 3.
6
7
2
3
4
5
1

20
2Knowing the Parts
Rear Side
Refer to the diagram below to identify the components on this side of the Notebook PC.
1
1
Battery Pack
The battery pack is automatically charged when connected to an AC power source and maintains
power to the Notebook PC whenAC power is not connected. This allows use when moving tempo-
rarily between locations. Battery time varies by usage and by the specications for this Notebook
PC. The battery pack cannot be disassembled and must be purchased as a single unit.
