Asus RT-AC66U B1 User manual

Quick Start Guide
RT-AC66U B1
Wireless-AC1750 Dual Band Gigabit
Router
EEU15861 / Revised Editon V7 / August 2019

Table of contents
English.............................................................................................3
Български......................................................................................16
Hrvatski...........................................................................................29
Čeština.............................................................................................42
Eesti..................................................................................................55
Magyar ............................................................................................68
Lietuvių ...........................................................................................81
Latviski ............................................................................................94
Polski................................................................................................107
Русский...........................................................................................120
Română...........................................................................................133
Srpski ...............................................................................................146
Slovensky........................................................................................159
Slovenščina....................................................................................172
Türkçe ..............................................................................................185
Українська.....................................................................................198

3
English
Package contents
RT-AC66U B1 AC adapter
RJ-45 cable Quick Start Guide
Warranty card
A quick look
1) USB 3.0 port 5) Power LED 9) Reset button
2) LAN LED 6) Power (DC-IN) port 10) WAN port
3) WAN LED 7) Power switch 11) LAN ports
4) 2.4GHz/5GHZ LED 8) USB 2.0 port 12) WPS button
NOTE: If any of the items is damaged or missing, contact your retailer.

4
English
NOTES:
• USB External HDD/Flash disk:
 •ThewirelessrouterworkswithmostUSBHDDs/Flashdisksupto
2TBandsupportsread-writeaccessforFAT16,FAT32,EXT2,EXT3,
andNTFS.
 •TosafelyremovetheUSBdisk,launchthewebGUI
(http://router. asus.com), then in the Network Map page's upper
right corner, click the USB icon and click Eject USB 1.
 •IncorrectremovaloftheUSBdiskmaycausedatacorruption.
 •Forthelistoflesystemandharddiskpartitionsthatthe
wirelessroutersupports,visithttp://event.asus.com/networks/
disksupport
• Forthelistofprintersthatthewirelessroutersupports,visit
http://event.asus.com/networks/printersupport

5
English
Positioning your wireless router
Forthebestwirelesssignaltransmissionbetweenthewirelessrouterandthe
networkdevicesconnectedtoit,ensurethatyou:
• Placethewirelessrouterinacentralizedareaforamaximumwirelesscoverage
forthenetworkdevices.
• Keepthedeviceawayfrommetalobstructionsandawayfromdirectsunlight.
• Keepthedeviceawayfrom802.11gor20MHzonlyWi-Fidevices,2.4GHz
computerperipherals,Bluetoothdevices,cordlessphones,transformers,
heavy-dutymotors,uorescentlights,microwaveovens,refrigerators,andother
industrialequipmenttopreventsignalinterferenceorloss.
• Toensurethebestwirelesssignal,orientthethreedetachableantennasas
shown in the drawing below.
• Foroptimumperformance,adjusttheinternalcoolingsystem.Refertotheuser
manual for details.
• Alwaysupdatetothelatestrmware.VisittheASUSwebsiteat
http://www.asus.comtogetthelatestrmwareupdates.
90° 90°

6
English
Before you proceed
1. Unpluganddisconnectthewires/cablesfromyourexistingmodemsetup
and release your computer’s outmoded IP address.
a: Unplug the AC adapter from the power outlet and disconnect it from your
cable/ADSL modem.
b: Disconnect the network cable from your cable/ADSL modem.
c: Reboot your computer (recommended).
Modem
OFF!
a
b
c
d
a
b
c
d
a
b
c
d
WARNING! Before disconnecting the wires/cables, ensure that your
cable/ADSL modem has been turned o for at least two minutes. If your
modemhasabackupbattery,removeitaswell.

7
English
2. Setupyourwirelessenvironment.
a: Insert your wireless router’s AC adapter to the DC-IN port and plug it to a
power outlet.
b: Using the bundled network cable, connect your computer to your wireless
router’s LAN port.
IMPORTANT! Ensure that the WAN and LAN LEDs are blinking.
c: Using another network cable, connect your modem to your wireless router’s
WAN port.
d: Insert your modem’s AC adapter to the DC-IN port and plug it to a power
outlet.
3. Disable some settings on your computer.
A. Disable the proxy server, if enabled.
B. Set the TCP/IP settings to automatically obtain an IP address.
C. Disable the dial-up connection, if enabled.
NOTE:Formoredetailsondisablingyourcomputersettings,referto
Frequently Asked Questions (FAQs).
RT-AC66U B1
c
WAN
a
db
LAN
Internet
Modem

8
English
1. Congureyourwirelesssettingsviathewirelessrouter’swebgraphics
user interface (web GUI).
a: LaunchyourwebbrowsersuchasInternetExplorer,Firefox,GoogleChrome,
or Safari.
Getting started
a
b
c
d
a
b
c
d
NOTE: If QIS does not launch automatically, follow these steps to
manuallylaunchQIS:
•Onyourwebbrowser,keyinhttp://router.asus.com and run the
Quick Internet Setup (QIS) Wizard again.
•Disabletheproxysettings,dial-upconnection,andsetyourTCP/IP
settingstoautomaticallyobtainanIPaddress.Formoredetails,refer
to the FAQs section for auto-diagnosis.

9
English
b: The wireless router’s Quick Internet Setup (QIS) feature automatically detects
if your ISP connection type is Dynamic IP, PPPoE, PPTP, L2TP, and Static IP.
Keyinthenecessaryinformationforyourconnectiontype.
IMPORTANT!ObtainthenecessaryinformationaboutyourInternet
connectiontypefromyourInternetServiceProvider(ISP).
NOTE: The auto-detection of your ISP connection type takes place
whenyoucongurethewirelessrouterforthersttimeorwhenyour
wireless router is reset to its default settings.
NOTE: You can assign a network name with up to 32 characters.
c: Assign the network name (SSID)
and security key for your 2.4GHz
and 5GHz wireless connection. Click
Apply when done.
d: Your Internet and wireless settings
are displayed. Click Next to
continue.
e: Read the wireless network
connection tutorial. When done,
click Finish.

10
English
English

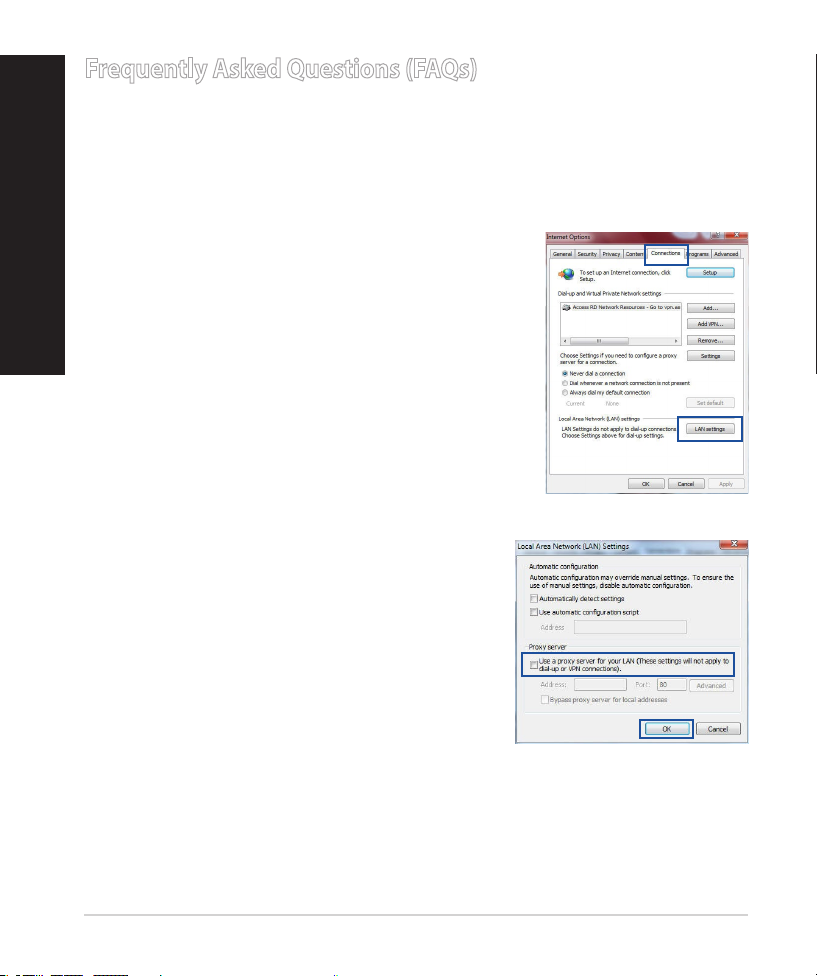

Frequently Asked Questions (FAQs)
After following the steps, I still cannot access the wireless router’s web
graphics user interface (web GUI) to congure the wireless router settings.
A. Disable the proxy server, if enabled.
Windows® 7
1. Click Start > Internet Explorer to launch the web
browser.
2. Click Tools > Internet options > Connections tab
> LAN settings.
3. FromtheLocalAreaNetwork(LAN)Settings
screen, untick Use a proxy server for your
LAN.
4. Click OK when done.
English

11
English
English
MAC OS
1. FromyourSafaribrowser,clickSafari >
Preferences > Advanced > Change Settings...
2. FromtheNetworkscreen,deselectFTP Proxy
and Web Proxy (HTTP).
3. Cllick Apply Now when done.
NOTE: Refer to your browser's help feature for details on disabling the
proxyserver.
B. Set the TCP/IP settings to automatically obtain an IP address.
Windows® 7
1. Click Start > Control Panel > Network and
Internet > Network and Sharing Center >
Manage network connections.
2. Select Internet Protocol Version 4 (TCP/IPv4),
then click Properties.
English

12
English
English
3. ToobtaintheiPv4IPsettingsautomatically,tick
Obtain an IP address automatically.
4. Click OK when done.
MAC OS
1. Click the Apple icon located on the top left of
your screen.
2. Click System Preferences > Network >
Congure...
3. FromtheTCP/IP tab, select Using DHCP in the
Congure IPv4 dropdown list.
4. Cllick Apply Now when done.
NOTE: Refer to your operating system’s help and support feature for
detailsonconguringyourcomputer’sTCP/IPsettings.
English

13
English
English
C. Disable the dial-up connection, if enabled.
D. Close all running web browsers.
NOTE: Refer to your browser's help feature for details on disabling
the dial-up connection settings.
Windows® 7
1. Click Start > Internet Explorer to launch the
browser.
2. Click Tools > Internet options > Connections tab.
3. Tick Never dial a connection.
4. Click OK when done.
The client cannot establish a wireless connection with the router.
Out of Range:
 • Puttherouterclosertothewirelessclient.
 • Trytochangethechannelsettings.
Authentication:
 • Usewiredconnectiontoconnecttotherouter.
 • Checkthewirelesssecuritysettings.
 • PresstheResetbuttonattherearpanelformorethanveseconds.
English

14
English
Cannot nd the router:
 • PresstheResetbuttonattherearpanelformorethanveseconds.
 • CheckthesettinginthewirelessadaptersuchasSSIDandencryption
settings.
Cannot access the Internet via wireless LAN adapter.
• Movetherouterclosertothewirelessclient.
• Checkwhetherthewirelessadapterisconnectedtothecorrectwireless
router.
• Checkwhetherthewirelesschannelinuseconformstothechannels
availableinyourcountry/area.
• Checktheencryptionsettings.
• CheckiftheADSLorCableconnectioniscorrect.
• RetryusinganotherEthernetcable.
If the ADSL “LINK” light blinks continuously or stays o, Internet access is
not possible - the Router is unable to establish a connection with the ADSL
network.
• Ensurethatallyourcablesareallproperlyconnected.
• DisconnectthepowercordfromtheADSLorcablemodem,waitafew
minutes, then reconnect the cord.
• IftheADSLlightcontinuestoblinkorstaysOFF,contactyourADSLservice
provider.
Network name or encryption keys are forgotten.
• Trysettingupthewiredconnectionandconguringthewirelessencryption
again.
• PresstheResetbuttonofthewirelessrouterformorethanveseconds.
• Factorydefaultsettings:
User name / Password:
admin / admin
IP address:
http://router.asus.com
SSID:
Check the rating label
on the back side of your
router

15
English
Where can I nd more information about the wireless router?
• OnlineFAQsite: http://support.asus.com/faq
• TechnicalSupportsite:https://www.asus.com/support/
• CustomerHotline:RefertotheSupportHotlineinthisQuickStartGuide

16
български
Бърз преглед
RT-AC66U B1 Адаптер за променлив ток
RJ-45 кабел Ръководство за бърз старт
Гаранционна карта
Бърз преглед
ЗАБЕЛЕЖКА: Ако някой от компонентите е повреден или липсва, свържете
се с Вашия търговски представител.
1) USB 3.0 портове 5) Индикатор на 9) Бутон за нулиране
2) LAN индикатор 6) Порт захранване
(DC-IN) 10) WAN Порт
3) WAN индикатор 7) Превключвател
на захранването 11) Портове LAN
4) 2.4GHz/5GHZ
индикатор 8) USB 2.0 портове 12) WPS бутон

17
български
ЗАБЕЛЕЖКИ:
• USB Външен хард / флаш диск:
 •БезжичниятрутерработисповечетоUSBхарддисковеифлаш
дискове до 2 TB и поддържа достъп четене-писане за FAT16,
FAT32, EXT2, EXT3 и NTFS.
 •ЗасигурноизключваненаUSBдискастартирайте
потребителскияинтерфейсотмрежатаGUI(http://router.
asus.com), след това на страница Network Map (Карта на
мрежата) в горния десен ъгъл щракнете иконата на USB и
щракнете Eject USB 1 (Изхвърляне на USB 1).
 •НеправилнотоизважданенаUSBдискаможедапредизвика
повреждане на данните.
 •Списъканасистемнитеидисковираздели,поддържаниот
безжичния рутер, можете да намерите на http://event.asus.
com/networks/disksupport
• Списъканапринтерите,поддържаниотбезжичниярутер,можете
да намерите на http://event.asus.com/networks/printersupport

18
български
Разположение на безжичния рутер
Запостиганенамаксималнодобропредаваненабезжичнитесигнали
между безжичния рутер и свързаните с него мрежови устройства трябва:
• Дапоставитебезжичниярутернацентралномястозамаксималнопокритие
на мрежовите устройства.
• Рутерътдаеотдалеченотметалнипреградииданееизложеннаслънчева
светлина.
• РутерътдаеотдалеченотWi-Fiустройства802.11gили20MHz,компютърни
периферниустройства2.4GHz,Bluetooth(блутут)устройства,безжични
телефони,трансформатори,мощнимотори,флуоресцентнилампи,
микровълнови печки, хладилници и други промишлени машини за
избягване на смущенията или загубите на сигнала.
• Заосигуряваненамаксималнодобърсигналтритесвалящисеантенидасе
ориентират както е показано на схемата по-долу.
• Заоптималнадасерегулиравътрешнатаохлаждащасистема.Повече
подробности са дадени в ръководството на потребителя.
• Винагиизползвайтенай-новитеверсиинафърмуера.Посететесайтана
ASUS http://www.asus.comзасваляненапоследнитеверсиинафърмуера.
90° 90°

19
български
1. Откачете жиците и кабелите от съществуващата система с модем и
освободете стария IP адрес на компютъра.
Преди започване
а :Изключете адаптера за променлив ток от контакта и го извадете от
кабелния/ADSL модем.
б :Извадете мрежовия кабел от Вашия кабелен/ADSL модел.
в :Рестартирайте компютъра (препоръчително).
Modem
OFF!
a
b
c
d
a
b
c
d
a
b
c
d
ПРЕДУПРЕЖДЕНИЕ: Преди да откачите жиците и кабелите вашият
кабелен или ADSL модем трябва да бъде изключен най-малко за две
минути. Ако модемът има поддържаща батерия, свалете и нея.

20
български
2. Конфигурирайтебезжичнатасреда.
а: Свържетесвоябезжиченрутерсвходазаправток,следкоетоговключетев
контакт.
б: Спомощтанамрежовкабел,свържетекомпютърасисLANпортана
безжичния рутер.
ВАЖНО! Уверете се, че WAN и LAN индикаторите мигат.
в: СпомощтанадругмрежовкабелсвържетемодемасисWANпортана
безжичния рутер.
г: Свържетеадаптеразапроменливтокнамодемасвходазаправток,следкоето
го включете в контакт.
3. Блокирайте някои настройки на компютъра.
A. Деактивирайте прокси сървъра, ако е активиран.
B. Конфигурирайте TCP/IP настройките за автоматично получаване на IP
адрес.
C. Деактивирайте комутируемата връзка, ако е активирана.
ЗАБЕЛЕЖКА: По-подробни сведения за блокирането на
настройките на компютъра ще намерите в Често задавани
въпроси (FAQs).
RT-AC66U B1
c
WAN
a
db
LAN
Internet
Modem
