Asus ROG Kunai Gamepad User manual

ROG kunai
GAMEPAD
User Guide
(ZS660KLCL_A)
(ZS660KLCL_AD)
E16054
Third Edition / October 2019

2
E16054
October 2019
Third Edition
ROG Phone Accessory (ROG Kunai Gamepad)
Model: ZS660KLCL_A / ZS660KLCL_AD
Contents
Safety notices for your ROG Kunai
Gamepad................................................................3
Specications summary....................................4
Product overview ................................................4
Hardware features...............................................6
Device charging...................................................7
Device connection..............................................7
LED indicator.........................................................12
Buttons....................................................................12
Notices.....................................................................13

3
ROG Phone Accessory (ROG Kunai Gamepad)
Model: ZS660KLCL_A / ZS660KLCL_AD
Contents
Safety notices for your ROG Kunai
Gamepad
WARNING!
• Thisproductshouldonlybeusedin
environments with ambient temperatures
between 5°C (41°F) and 35°C (95°F).
• Thepoweradaptermaybecomewarmto
hot while in use. Do not cover the adapter
and keep it away from your body while it is
connected to a power source.
• DonotleaveyourROGKunaiGamepad
connected to the power source once it is
fully charged. Your ROG Kunai Gamepad
is not designed to be connected to the
power source for extended periods of time.
Safety notices
• Donotremovethenon-detachableLi-on
battery as this will void the warranty.
• Donotremoveandreplacethebattery
withanon-approvedbattery.
• Donotremoveandsoakthebatteryin
water or any other liquid.
• Donotremoveandshort-circuitthe
battery, as it may overheat and cause a re.
Keep it away from jewelry or metal objects.
• Donotremoveanddisposeofthebattery
in re. It could explode and release harmful
substances into the environment.
• Donotremoveanddisposeofthebattery
with your regular household waste. Take it
to a hazardous material collection point.

4
Specications summary
Product Name ROG Kunai Gamepad
Platform Android V4.0 or later
Connection
Wired USBType-C
Wireless RF 2.4Ghz
Bluetooth v4.2
Dimensions 141 x 102 x 53mm
Battery Up to 7 hours in wireless
mode
Dongle
DC5V(USBType-A)
RF 2.4Ghz
Package
contents
2 x ROG Kunai controllers
1 x ROG Kunai holder
1 x ROG Kunai bumper
1xType-CtoUSBcable
1xType-Cto3.5mm
audio adapter
1 x User guide
1 x Warranty card
Product overview
ROG Kunai Gamepad is portable, providing
you with both an indoor and outdoor gaming
experience. To achieve this goal, we have
modularized the Gamepad, and integrated the
ROG series of accessories to fulll dierent using
scenarios.

5
ROG Kunai controllers
The ROG Kunai
controllers have
basic action
buttons and can
be applied on
either the ROG
Kunai holder or
the ROG Kunai
bumper.
ROG Kunai holder
A holder, with
built-inbattery
and RF/Bluetooth
dual module,
provides users
not only an
ergonomic feeling
but multiple
connection
choices.
ROG Kunai bumper
A ROG Phone
II proprietary
bumper, which
provides a wired
connection
between the
mobile and ROG
Kunai controllers
to achieve zero
latency.

6
Front view
Hardware features
Home
Prole Function
Select Start
Right
thumbstick
Left
thumbstick
Individual
D-Pad
Aura
lighting bar
Mode switch
Bumper (R1) Bumper (L1)
Bumper (R2) Bumper (L2)
Trigger (R2) Trigger (L2)
Multi-
function
(M3)
Multi-
function
(M4)
Multi-function(M1) Multi-function(M2)
Reset
button
RF receiver
Rear view
NOTE: Trigger L2(R2) and Bumper L2(R2) share
the same keybind. Pressing either the Trigger
or the Bumper will active the same shortcut key
(L2 or R2).

7
L2 R2
USBType-Cconnector
Top view
LED indicator
Device charging
To charge your ROG Kunai Gamepad:
1. Move the mode switch on the rear side of
the ROG Kunai holder to USB.
2. Connect the USB cable to your Gamepad
and a PC or a power adapter.
Device connection
A. Wired connection
• UsingtheROGKunaibumper
Follow the steps below to use your phone with
the ROG Kunai bumper.
1. Place your ROG
Phone into
the ROG Kunai
bumper.

8

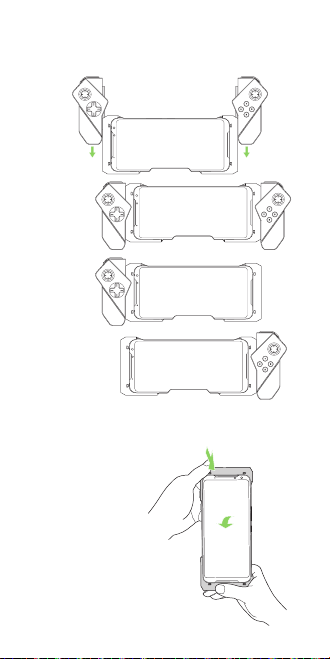

2. Slide down the ROG Kunai controllers onto
the ROG Kunai bumper.
Supported
Supported
NOT supported
Removing the ROG Kunai bumper
Orientate the ROG
Kunai bumper
upright and then
remove it from the
upper left corner.

9

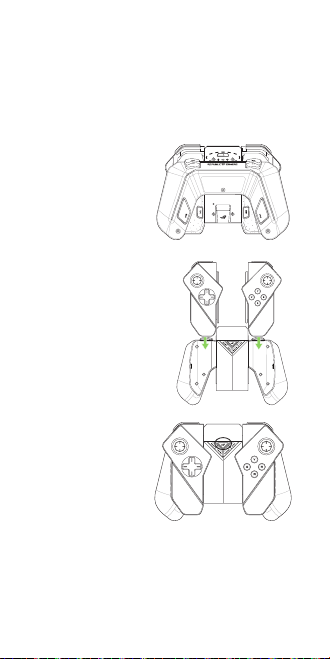

• UsingtheROGKunaiholder
Follow the steps below to use your phone with
the ROG Kunai holder.
2. Slide down the ROG
Kunai controllers into
the ROG Kunai holder.
3. PlugtheUSBType-Ccableintoyour
Gamepad and your USB hub, and then
connect your phone to the USB hub
properly.
1. Move the mode
switch on the rear
side of the ROG
Kunai holder to
USB.
Phone

10
B. Wireless connection
• ViaBluetooth
Follow the steps below to connect your phone
with the Gamepad via Bluetooth.
1. Move the mode
switch on the
rear side of the
ROG Kunai holder
to Bluetooth.
2. Slide down the ROG
Kunai controllers
into the ROG Kunai
holder.
3. Press the Home
button for 5
seconds until the
LED indicator
blinks blue to
indicate that the
Gamepad enters
pairing mode.
4. Turn on Bluetooth on your ROG Phone and
search for Bluetooth devices.

11
• ViaRF
Follow the steps below to connect your phone
with the Gamepad via RF.
1. Move the mode
switch on the rear
side of the ROG
Kunai holder to
RF.
2. Slide down
the ROG Kunai
controllers into the
ROG Kunai holder.
3. Plug the RF
receiver into your
USB hub, and
then connect
your phone to the
USB hub properly.
Phone
4. Press the Home
button to
power on your
Gamepad. Then
it will connect to
the RF receiver
automatically.

12
LED indicator
LED color Status
Red 0-25%charged
Yellow 25-90%charged
Green 90-100%charged
Blinking blue Bluetooth pairing mode
Buttons
Function Actions
Home Press the Home button .
Back Press the Select button .
• IftheLEDstopsblinkingandturnssolid,
your Gamepad has been successfully
connected.
• IfyourGamepadfailstoconnecttotheRF
receiver, you can:
 a)Disconnectandre-plugtheRFreceiver.
b) Long press the Home button to pair
your Gamepad and the RF receiver
again. The LED indicator will rapidly
ash during this process.

13
Notices
Federal Communications
Commission Statement
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
• Thisdevicemaynotcauseharmful
interference.
• Thisdevicemustacceptanyinterference
received including interference that may cause
undesired operation.
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed
and used in accordance with manufacturer’s
instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment o and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweenthe
equipment and receiver.
• Connecttheequipmenttoanoutletona
circuit dierent from that to which the receiver
is connected.
• Consultthedealeroranexperiencedradio/TV
technician for help.

14
English ASUSTeK Computer Inc. hereby declares
that this device is in compliance with the essential
requirements and other relevant provisions of
related Directives. Full text of EU declaration of
conformity is available at: www.asus.com/support
NCC
警語
低功率電波輻射性電機管理辦法
第十二條
型式認証合格之低功率射頻電機，非經許可，公司、商
號或使用者均不得擅自變更頻率、加大功率或變更原設
計之特性及功能。
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通
信﹔經發現有干擾現象時，應立即停用，並改善至無干
擾時方得繼續使用。前項合法通信，指依電信法規定作
業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用
電波輻射性電機設備之干擾。
CE Mark Warning
CAUTION! The use of shielded cables for
connection of the monitor to the graphics
card is required to assure compliance with
FCC regulations. Changes or modications to
this unit not expressly approved by the party
responsible for compliance could void the user’s
authority to operate this equipment.

15
India RoHS
Thisproductcomplieswiththe“IndiaE-Waste
(Management) Rules, 2016”and prohibits
use of lead, mercury, hexavalent chromium,
polybrominated biphenyls (PBBs) and
polybrominated diphenyl ethers (PBDEs) in
concentrationsexceeding0.1%byweightin
homogenousmaterialsand0.01%byweightin
homogenous materials for cadmium, except for
the exemptions listed in Schedule II of the Rule.
