1. Introduction
Introduction of Auto Configuration Software
Ambiance Technology AutoConfig_WM allows you to download on your AT-Q5 Smartphone the Mobile Network Operator parameter
settings of the: Dutch, German and Belgium Mobile Network Operators.
These Mobile Network Operator parameter settings contain the GPRS- and MMS settings of the selected Mobile Network Operator. You
need these Mobile Network Operator parameter settings for the use of:
♦Browsing with Internet Explorer.
♦Sending and receiving e-mail.
♦Sending and receiving direct push mail.
♦Sending and receiving MMS messages.
♦Use of Pocket MSN.
Before you can start using the AutoConfig_WM software, this manual will guide you through the installation process.
Note:
Use an USB cable and the downloaded AT AutoConfig_WM software only.
2. Functions
Functions of AutoConfig_WM Software
Selecting of Mobile Network Operator parameter settings out of the counties:
♦The Netherlands.
♦Germany.
♦Belgium.
3. Microsoft ActiveSync Software
ActiveSync 4.2
Be sure before you want to install the “AutoConfig_WM” Software on your AT-Q5 mobile phone, that first MicrosoftActiveSync 4.2 is
installed on your Computer or Laptop and Synchronization is made before between yourAT-Q5 and Microsoft Outlook.
Note:
Use only Microsoft ActiveSync 4.1 or ActiveSync 4.2 version. Microsoft ActiveSync 4.2 is supplied in
the box of your AT-Q5.
4. Copying AutoConfig_WM Software
Steps of copying AutoConfig_WM Software
AutoConfig_WM.CAB
CopyingAutoConfig_WM Software file o be installed: ”AutoConfig_WM.CAB”
4

AT-Q5 Auto Configuration Software
Follow the steps below to copy the “AutoConfig_WM” Software on yourAT-Q5 Smartphone:
1. Connect yourAT-Q5 with a USB cable on your Computer or Laptop.
2. StartActiveSync on your PC.
3. Open ”Explore” inActiveSync program on you Computer or Laptop (see picture 1).
Picture 1
AutoConfig_WM.CAB
4. Select the “AutoConfig_WM.CAB” file which you’ve download from the AT Telecom website:
5. Open the directory “My Windows Mobile-Based Device” (see picture 2).
Picture 2
6. Copy ”AutoConfig_WM” file into yourAT-Q5 Smartphone. Place the complete “AutoConfig_WM” file into the directory “My Windows
5

AT-Q5 Auto Configuration Software
Mobile-Based Device” (see picture 3 + 4).
Picture 3
Picture 4
7. Now the AutoConfig_WM file is copied to your AT-Q5 Smartphone.
8. You could disconnect your AT-Q5 from your Computer or Laptop.
6

AT-Q5 Auto Configuration Software
5. Install AutoConfig_WM Software
Steps of the installation
Follow the steps below to install the “AutoConfig_WM” Software on your AT-Q5 Smartphone:
1. Open on your AT-Q5 the directory “My Stuff”, via: [Start] -> [More] -> [More] -> [My Stuff] (see picture 5 till 7).
Picture 5 Picture 6
Picture 7
2. In the directory “My Documents”, press once [Up] via [ ] the left soft key (see picture 8).
Picture 8
7

AT-Q5 Auto Configuration Software
3. In the directory “My Device”, scroll [Down] via the down arrow key till the [AutoConfig_WM]. Select this file by
pushing on the [OK] key (see picture 9 + 10).
Picture9 Picture10
4. The “AutoConfig_WM.CAB” file starts to be installed on your AT-Q5 Smartphone (see picture 11).
Picture 11
5. On the display comes during the “Installation” a menu with the possibility to choose the location of the installation of the
“AutoConfig_WM.CAB” software. The possibilities are: 1. In the Device.
2. On the Storage Card.
Select the option [Device] with the left or right arrow keys (see picture 12).
Picture 12
8

AT-Q5 Auto Configuration Software
6. Push on [Install] via: [ ] the left soft key (see picture 13).
Picture 13
. The installation is now running (see picture 14).
P
. The following message comes up if the in tion of the “AutoConfig_WM.CAB” file was successfully installed on your AT-Q5
7
icture 14
8stalla
Mobile Smartphone. Push on [Done] via: [ ] the left soft key when ready (see picture 15).
. Go to back to the main menu screen of your AT-Q5, pushing on [
Picture 15
]9the red end key.
9

AT-Q5 Auto Configuration Software
6. Select your Mobile Network Operator settings
Steps of selecting your Mobile Network Operator settings
Fo the ne:llow steps below to select your preferred Mobile Network Operator settings on your AT-Q5 Smartpho

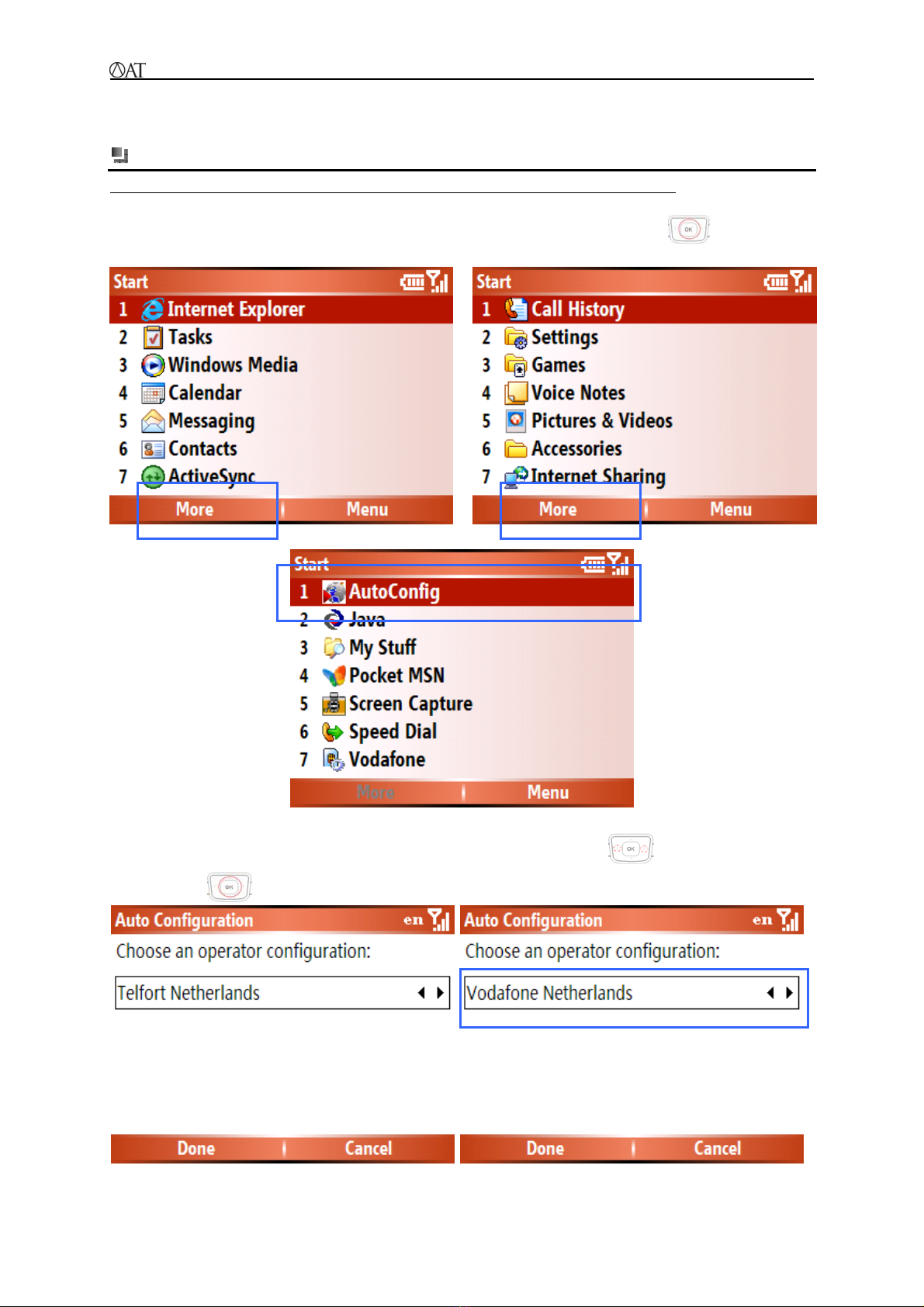

1. To open the “AutoConfig_WM” program via: [Start] -> [More] -> [More] -> [AutoConfig} and press on [OK ]
P
. Select inAuto Configuration menu the preferred Mobile Network Operator by using the left of right arrow keys
N rator s
Picture 19 Picture 20
(see picture 16 till 18).
Picture 16 Picture 17
icture 18
2and press on the [OK] key to confirm your selected preferred Mobile ettings (see picture 19
+20). etwork Ope
10

AT-Q5 Auto Configuration Software
Q5 Smartphone. The Auto Configuration application will be clo
picture 21).
Pi
7.
3. After you’ve pushed on the [OK] key, your preferred Mobile Network Operator settings will be stored in yourAT-
sed automatically and theAT-Q5 will go back to the main menu (see
cture 21
Remark
Remark AutoConfig_WM Mobile Network Operator parameter settings
1. It’s possible if you selected your preferred Mobile Network Operator via the Auto configuration application that more as
one APN is programmed in the settings of the “GPRS” menu. You need to delete the APN(s) which are not connected to
you subscription.
. To delete needless APN(s), please follow the following procedure:
a. Push on: [Start] -> [More] -> [Settings] -> [Connections] -> [GPRS] (see picture 22 till 25).
Picture 25
2
Picture 22 Picture 23
Picture 24
11

AT-Q5 Auto Configuration Software
b. Select the needless APN which you want to delete and push on [Menu] via [ ]the left soft key (see picture 26).
c. Select [Delete] a .
d. If you pushed on p s on the screen. Select [Yes]
via [
Picture 26
nd push on the [OK] key (see picture 27)
Picture 27
earthe [OK] key, the following message ap
] the left soft key (see picture 28).
Picture 28
12

AT-Q5 Auto Configuration Software
e. If the selected needlessAPN settings are deleted please push on the [Done] via [ ] the left soft key (see picture 29).
tw
nd ready for use
Picture 29
f. Your AT-Q5 Mobile Smartphone is now programmed with your preferred Mobile Ne ork Operator parameter settings
a ] the red end key.. You can go to the main menu screen, by pushing on [
Warning:
you change your SIM card of your preferred Mobile Network Operator with another SIM card of another Mobile Network Operators, you
eed to select via the Auto Configuration application, the correct new Mobile Network Operator parameter settings again. Follow the
rocedure which is written in this manual at “Steps of selecting your Mobile Network Operator settings” (page 10).
If
n
p
Meaning:
PN = AAccess Point Name, is the name of an access point for the settings which are used for a GPRS connection.
you don’t know whichAPN is connected on your subscription, please contact your Mobile Network Operator.If
Tip:
For the pa e et
Service Pr de
ram ter settings, for use of your e-mail with Microsoft Outlook, Direct Push Mail or Pocket MSN, please contact your Intern
ovi or your IT department.
