AT&T
MERLIN LEGEND™
Communications System
MLX-10D™, MLX-28D™, and MLX-20L™
Digital/ISDN Display Telephones User's Guide

Copyright © 1991 AT&T AT&T 555-610-122
All Rights Reserved
Issue 1
Printed in U.S.A. August 1991
Notice
Every effort was made to ensure that the information in this book was
complete and accurate at the time of printing. However, information is
subject to change.
Federal Communications Commission (FCC)
Electromagnetic Interference Information
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user will be
required to correct the interference at his own expense.
Canadian Department of Communications (DOC)
Interference Information
This digital apparatus does not exceed the Class A limits for radio noise
emissions set out in the radio interference regulations of the Canadian
Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques
dépassant Ies Iimites applicable aux appareils numériques de la classe
A prescribes clans Ie Règlement sur Ie brouillage radioélectrique edicté
par Ie ministère des Communications du Canada.
Trademarks
MLX-10D, MLX-20L, and MLX-28D are trademarks of AT&T.
MERLIN LEGEND is a trademark of AT&T.

Rings
One long Inside call
One long and one short Outside call
One long and two short Transfer or returning call
One long and three short Returning Callback call
Line Button Lights
Red Automatic connection
Green
Line or feature in use
Red and green Line Request in use
Red and green
You’re on line
Red and flash green
Incoming call
Red and flash green
Returning transfer
Fast flash green Held call (yours)
Slow flash green
Held call (co-worker’s)
Conference Calls
Transfer Calls
1. Dial first extension or number
2. Press Conf
3. Press line button
4. Dial next extension or number
5. Announce call and press
Conf
6. Repeat steps 2-5 for each
participant
7. Hang up to end conference
■ Press Drop and line button to
drop single participant
■ Press Hold to temporarily leave
conference
■ Press any participant’s line button
to rejoin conference
Unannounced Transfer
1. Press Transfer
2. Press line or SA button
3. Dial extension or number
4. Press Transfer or hang up
Announced Transfer
1. Press Transfer
2. Press line or SA button
3. Dial extension or number
4. Announce call
5. Press Transfer, hang up,
or return to call on hold
One-Touch ManuaI Transfer
1. Press Auto Dial
2. Announce call
3. Press Transfer, hang up,
or return to call on hold
One-Touch Auto Transfer
1. Press Auto DiaI
Camp-On
1. Press Camp-On or
press Feature and
Select

Feature Use
Feature use continued
Display
Paging
1. Select from Menu
■ Loudspeaker
BF
■ Speakerphone
B
or Feature screen
2. Follow prompts
Park
BF
Personal Directory
M*
Programmed Button
Persona! Speed Dial
C
1. Program a line button for each
Pickup BF
feature (Appendix C) Privacy
BC
2. Press programmed button Recall
BC
Feature Code
Reminder Service
BC
Saved Number Dial
1. Press Feature B
2. Dial code Signaling B
■ Notify B
B = Programmed button C = Code System Directory
M
F = Feature M = Menu System Speed Dial
BC
Timer M
Account Code Entry
BCF
* Also on Home screen
Alarm Clock
M
Auto Dial
BAccount Codes
Callback—Selective
BCF
Call Waiting-Pickup C
Name
Code
Camp-On
BCF
Coverage-Off B
■ Individual Coverage B
■ Group Coverage
B
Do Not Disturb
B
Extension Directoy M
Follow Me
FC
Forward BC
Headset/ Handset Mute
B
Last Number Dial
BCF
Messaging M
■ Cancel C
■ Delete
M
■ Leave
BF
■ Next M
■ Posted M
■ Return Call M

Contents
About This Book
ix
■ Conventions Used
x
■ How to Comment on This Book
xi
Your Disp ay Telephone
1-1
■
■
■
■
■
■
■
■
MLX-1OD
MLX-28D
MLX-20L
The Display Area
Dedicated Feature Buttons
Line
Line
Buttons
Button Lights
Caring for Your Phone
Adjusting the Desk Stand
1-2
1-4
1-6
1-8
1-17
1-19
1-24
1-25
1-26
Contents i

Contents
2
Making and Answering Calls
■ Making Outside Calls on
with SA Buttons
■ Making Outside Calls on
with ICOM Buttons
■ Making Inside Calls
■ Answering Calls
■ Tones
Phones
Phones
2-1
2-2
2-3
2-4
2-6
2-9
3 Using and Programming Features 3-1
■ Using Features
3-4
■ Programming Features
3-5
4
Feature Finder
4-1
ii
Contents

Contents
5
Features
Account Code
Alarm Clock
Auto Dial
Callback
Call Waiting
Conference
Entry
Coverage
Do Not Disturb
Extension Directory
Follow Me
Fonvard
Headset/Handset Mute
Inspect
Last Number Dial
Line Request
Messaging
Paging
Park
Personal Directory
Personalized Ring
5-1
5-3
5-5
5-6
5-9
5-13
5-15
5-18
5-25
5-26
5-28
5-28
5-32
5-34
5-35
5-36
5-37
5-42
5-45
5-48
5-53
Contents iii

Contents
5
Features—Continued
■
■
■
■
■
■
■
■
■
■
Personal Speed Dial
Pickup
Privacy
Recall
Reminder Service
Ringing Options
■
Saved Number Dial
Signaling and Notify
System Directory
System Speed Dial
Timer
Transfer
Voice Announce
5-54
5-56
5-59
5-60
5-61
5-63
5-66
5-68
5-71
5-73
5-75
5-76
5-83
A Programming Special Characters
A-1
B
iv
Feature Codes
Contents
B-1

Contents
C
Programming Codes
C-1
DFeature Name Display
Abbreviations
D-1
IG
Index/Glossary
IG-1
Contents v

vi

The exclamation point in an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the product.
IMPORTANT SAFETY INSTRUCTIONS
Always follow these basic safety precautions when using your
telephone equipment. These precautions reduce the risk of fire,
electric shock, and injury to you and damage to the equipment.
Read and understand all instructions.
Follow all warnings and instructions marked on or packed with
the telephone.
Do not use the telephone near water, as in a wet basement.
The telephone can be hazardous if immersed in water. To
avoid the possibility of electrical shock, do not use it when you
are wet. If you accidentally drop it into water, do not retrieve it
until you have first unplugged the line cord from the modular
wall jack. Do not plug the telephone back
in until it has dried
thoroughly.
Do not use the telephone (other than a cordless-type
telephone) during electrical storms in your immediate area.
There is a remote risk of electric shock from lightning.
Unplug the telephone from the wall outlet before cleaning.
Use a damp cloth for cleaning. Do not use liquid or aerosol
cleaners on the phone.
vii

Do not use the telephone near a gas leak. If you suspect a
gas leak, report it immediately, but use a telephone away from
the area in question. The telephone’s electrical contacts could
generate a tiny spark. While unlikely, it is possible
spark could ignite heavy concentrations of gas.
Never push objects of any kind into the telephone
openings or slots. Never spill liquid of any kind on
telephone.
that the
through
the
To reduce the risk of electric shock, do not disassemble the
telephone. There are no user-serviceable parts inside.
Opening or removing covers may expose you to hazardous
voltages, and incorrect reassembly can cause electric shock
when the telephone is used.
Call your AT&T representative or authorized dealer when
service or repair work is needed.
Accessories include answering machines, alerts, modems,
and fax machines. To connect an accessory, you must first
have a
Multi-Function Module (MFM).
WARNING:
For your personal safety DO NOT install
yourself.
ONLY an authorized AT&T technician or
an MFM
dealer rep-
resentative shall install, set options, or repair an
MFM.
To eliminate the risk of personal injury due to electric
shock, DO NOT attempt to install or remove an
MFM
from your MLX telephone. Opening or removing the
module cover of your telephone may expose you to
dangerous voltages.
SAVE THESE INSTRUCTIONS
viii

About This Book
This book gives you the information you need to use your
display telephone. If you have questions about this book or
need additional information, see your system manager. He or
she is a co-worker who is responsible for managing the
system.
About This Book ix

About This Book
Conventions Used
The following typographic conventions are used in this book:
■ Buttons that you program (“hand-labeled” buttons) are
shown in bold italic type with initial capitals:
Press Privacy.
■ Buttons that are programmed at the factory (imprinted
buttons) are shown in bold Roman type with initial capitals:
Press Transfer.
■ Information that appears on your display is shown
similar to that used in the display. Information as it
in a type
appears
on a 2-line by 24-character display phone is shown in
brackets following the information as it appears on a 7-line
by 24-character display phone:
Select Ext Program [Ext Prog].
If a bracketed word is not shown, the information is the
same for the 7-line and 2-line display phones.
■ Important words are shown in bold type:
Use this button to make inside and outside calls.
■ Symbols or numbers that you enter using the dialpad are
shown in bold type:
Dial ✱ 760.
x About This Book

About This Book
How to Comment on This
Book
We welcome your feedback on this book. Please use the
feedback form on the next page. If the form is missing, send
your comments to A. Sherwood, AT&T, 99 Jefferson Road,
Rm. # 2A25, Parsippany, NJ 07054.
How to Comment
xi

Your Display Telephone
The three MLX display phones that can be used with the
communications system are shown on the following pages.
Your Display Telephone 1-1
The MLX-10D,™ the MLX-20L,™ and the MLX-28D™ phones
are all digital/lSDN display phones. The differences are the
number of buttons available (10, 20, or 28) to make and
receive calls, and the size of the display.
Your display phone is part phone, part intercom, and part
computer. It has touch-tone dialing, a speakerphone, and
programming capabilities.
The display shows you the number you are calling, gives you
information about incoming calls, lists features for using the
phone, and gives you programming instructions.

Your Display Telephone

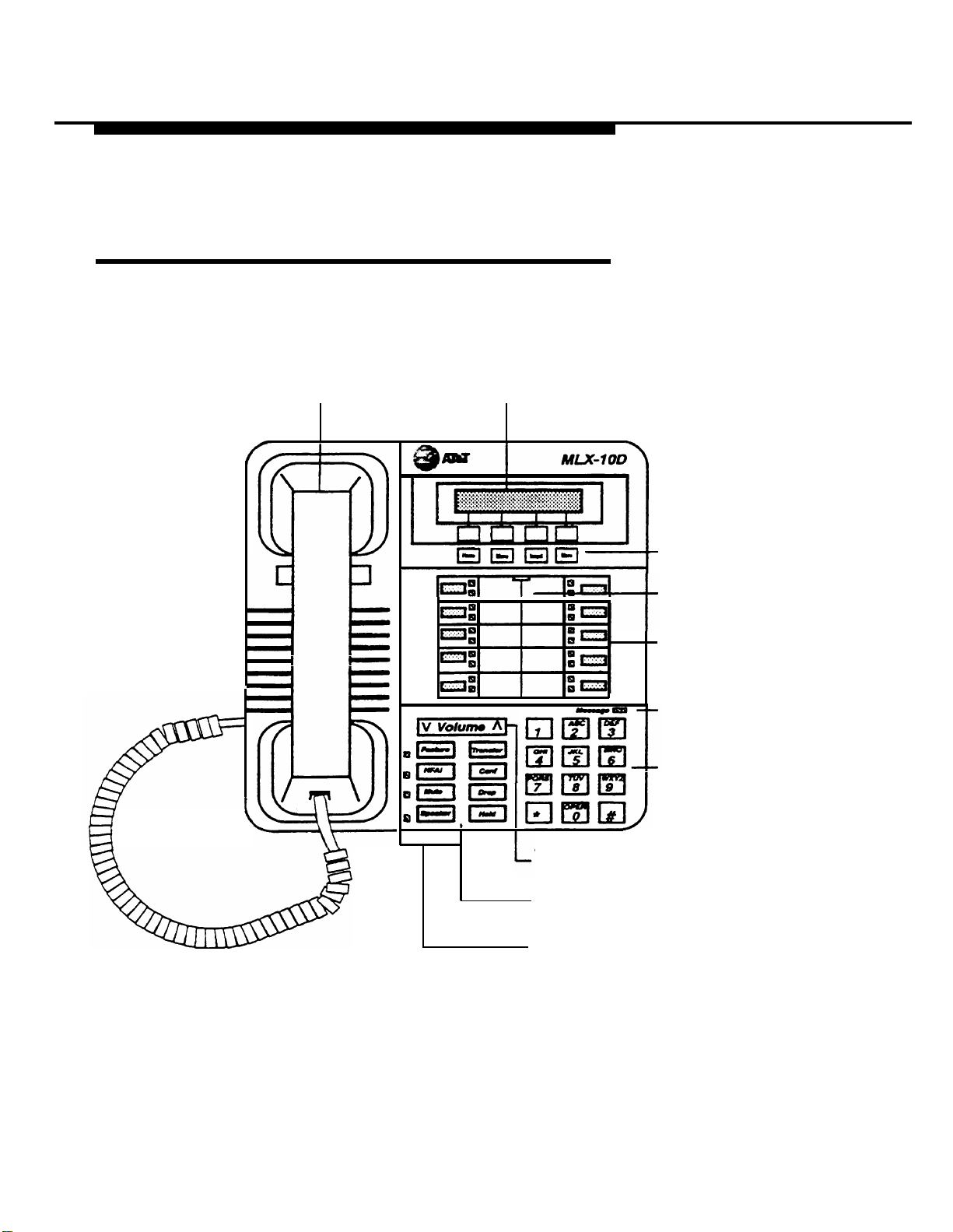

MLX-10D
Handset
Display Screen
Display Buttons (8)
Button Labeling Card
Line Buttons (10)
Message
Dialpad
Light
Volume Control
Dedicated Feature Buttons (8)
I
User Cards and Tray
1-2
MLX-10D

Your Display Telephone
Button labeling card
Cards you can label with the line
or feature assigned to each line
button
Dedicated feature buttons
The 8 imprinted buttons for the
features used most often
Desk stand (not shown)
A support that adjusts to two
heights and can be removed for
wall mounting
Dialpad
The numbered buttons, and the
asterisk ( ✱ ) and pound sign ( # )
Display buttons
The Home, Menu, More, and
Inspect buttons that control the
display screens, and the
unlabeled buttons that activate
features shown on the screens
Display screen
A 2-line by 24-character screen
where you view call information,
phone directories, and
instructions for using features
and programming the phone
Handset
The hand-held part of the phone
that you pick up, talk into, and
listen from
Line buttons
The 10 buttons with red and
green lights used to make and
receive calls, You can program
any unlabeled buttons for feature
use.
Message light
A light that goes on when a
co-worker or system operator
leaves a message-on your
display or when you have a
voice-mail message or a fax
User cards and tray
Instructions for feature use and
directory information in a sliding
tray under the phone
Volume control
A button for controlling the
volume of the speaker, handset,
and ringer
MLX-10D 1-3

Your Display Telephone
MLX-28D
Handset Display Screen
Volume Control
Display Buttons (8)
Button Labeling Cards
Line Buttons (28)
Message Light
Dialpad
Dedicated Feature Buttons (8)
User Cards and Tray
1-4 MLX-28D

Your Display Telephone
Button labeling cards
Cards you can label with the line
or feature assigned to each line
button
Dedicated feature buttons
The 8 imprinted buttons for the
features used most often
Desk stand (not shown)
A support that adjusts to two
heights
Dialpad
The numbered buttons, asterisk
( ✱ ), and pound sign ( # )
Display buttons
The Home, Menu, More, and
Inspect buttons that control the
display screens, and the
unlabeled buttons that activate
features shown on the screens
Display screen
A 2-line by 24-character screen
where you view call information,
phone directories, and
instructions for using features
and programming the phone
Handset
The hand-held part of the phone
that you pick up, talk into, and
listen from
Line buttons
The 28 buttons with red and
green lights used to make and
receive calls. You can program
any unlabeled buttons for feature
use.
Message light
A light that goes on when a
co-worker or system operator
leaves a message on your
display or when you have a
voice-mail message or a fax
User cards and tray
Instructions for feature use and
directory information in a sliding
tray under the phone
Volume control
A button for controlling the
volume of the speaker, handset,
and ringer
MLX-28D 1-5
