AT&T Merlin Legend MLX-10D User manual

555-620-122
Issue 1
October 1992
MERLIN LEGEND
COMMUNICATIONS SYTEM
Release 2.0
MLX-10D, MLX-28D, and MLX20L
Display Telephones User’s Guide

Copyright © 1992 AT&T
All Rights Reserved
Printed in U.S.A.
Notice
Every effort was made to ensure that
complete and accurate at the time 01
subject to change.
AT&T 555-620-122
Issue 1
October 1992
the information in this book was
printing. However, information is
Federal Communications Commission (FCC)
Electromagnetic Interference Information
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user will be
required to correct the interference at his own expense.
Canadian Department of Communications (DOC)
Interface Information
This digital apparatus does not exceed the Class A limits for radio noise
emissions set out in the radio interference regulations of the Canadian
Department of Communications.
Le Present Appareil Numerique n’emet pas de bruits radioelectriques
depassant Ies Iimites applicable aux appareils numeriques de la class A
prescribes clans Ie Reglement sur Ie brouillage radioelectrique edicte par
Ie ministere des Communications du Canada.
Trademarks
MERLIN LEGEND, MLX-10, MLX-10D, MLX-28D, and MLX-20L are
trademarks of AT&T in the U.S. and other countries.
Mirage, StarSet, Supra, and Supra NC are registered trademarks of
Plantronics, Inc.

Contents
About This Guide
1
■ Conventions 2
■ How to Comment on This Guide
3
1
Your Display Telephone
1-1
MLX-10D Telephone
MLX-28D Telephone
MLX-20L Telephone
MLX Telephones
The Display Area
Dedicated Feature Buttons
Line Buttons
Line Button Lights
Caring for Your Phone
Adjusting the Desk Stand
Additional Equipment
1-2
1-3
1-4
1-5
1-6
1-17
1-20
1-25
1-26
1-27
1-29
Contents i

Contents
2
Quick Start
Identifying Call Types
Making Calls
Answering Calls
Transferring Calls
To Set Up a Conference
2-1
2-1
2-4
2-7
2-9
2-11
3
Using and Programming
Features
■ Using Features
■ Programming Features
3-1
3-4
3-5
4
Feature Finder
4-1
ii
Contents

Contents
5 Features
Account Code Entry
Alarm Clock
Auto Dial
Callback
Call Waiting
Conference
Coverage
Do Not Disturb
Extension Directory
Forward and Follow Me
Headset/Handset Mute
Inspect
.
Language
Last Number Dial
Line Request
Messaging
Night Service
5-1
5-2
5-5
5-7
5-11
5-16
5-18
5-22
5-32
5-35
5-37
5-42
5-44
5-46
5-48
5-50
5-51
5-57
Contents
●
iii

Contents
Features (continued)
■ Paging
■ Park
■ Personal Directory
■ Personal Speed Dial
■ Pickup
■ Privacy
■ Recall
■ Reminder Service
■ Ringing Options
■ Saved Number Dial
■ Signaling and Notify
■ System Directory
■ System Speed Dial
■ Timer
■ Transfer
■ Voice Announce
■ Volume
5-58
5-62
5-66
5-72
5-75
5-80
5-82
5-84
5-87
5-93
5-95
5-99
5-101
5-103
5-104
5-114
5-115
iv
Contents

Contents
A Programming Special
Characters
A-1
B Feature Codes
B-1
C
Programming Codes
C-1
D Feature Name Display
Abbreviations
D-1
Contents
v

vi

The exclamation point in an
equilateral triangle is intended to
alert the user to-the presence of
important operating and
maintenance (servicing)
instructions in the literature
accompanying the product.
IMPORTANT SAFETY INSTRUCTIONS
Always follow these basic safety precautions when using your
telephone equipment. These precautions reduce the risk of
fire, electrical shock, and injury to you and damage to the
equipment.
■ Read and understand all instructions.
■ Follow all warnings and instructions marked on or
packed with the telephone.
■ Do not use the telephone near water, as in a wet
basement. The telephone can be hazardous if
immersed in water. To avoid the possibility of
electrical shock, do not use it when you are wet. If you
accidentally drop it into water, do not retrieve it until
you have first unplugged the line cord from the
modular wall jack. Do not plug the telephone back in
until it has dried thoroughly.
vii

Do not use the telephone during electrical storms in
your immediate area. There is a remote risk of
electrical shock from lightning.
Unplug the telephone from the wall outlet before
cleaning. Use a damp cloth for cleaning. Do not use
liquid or aerosol cleaners on the telephone.
Never push objects of any kind into the telephone
through openings or slots. Never spill liquid of any
kind on the telephone.
Do not use the telephone near a gas leak. If you
suspect a gas leak, report it immediately, but use a
telephone away from the area in question. The
telephone’s electrical contacts could generate a tiny
spark. While unlikely, it is possible that the spark could
ignite heavy concentrations of gas.
To reduce the risk of electrical shock, do not
disassemble the telephone. There are no user-
serviceable parts inside. Opening or removing covers
may expose you to hazardous voltages, and incorrect
reassembly can cause electrical shock when the
telephone is used.
Call your sales representative or authorized dealer
when service or repair work is needed.
SAVE THESE INSTRUCTIONS
viii

About This Guide
This guide gives you the information you need to use your
MERLIN LEGEND™ Communications System display phone.
If you have any questions about using your phone’s features,
contact your system manager. He or she is a co-worker who
is responsible for managing the system.
About This Guide 1

About This Guide
Conventions
The following typographical conventions are used in this
guide:
Bold type is used for phone buttons.
Press
Menu to to list features and functions.
Constant width type is used for information on
phone display screens or on a PC screen.
Select Ext Program.
Bold constant width type indicates information
that you enter exactly as shown.
Dial
❉ 34.
A smaller italic font
is used for additional information
provided after the step of a procedure:
The green Iight flashes.
2
Conventions

About This Guide
How to Comment on This
Guide
We welcome your feedback on this guide. Please use the
feedback form on the next page. If the form is missing, send
your comments to A. Sherwood, AT&T, 99 Jefferson Road,
Rm. # 2A25, Parsippany, NJ 07054.
How to Comment on This Guide
3

Your Display Telephone
The MLX-10D™, the MLX-20L™, and the MLX-28D™ phones
are all display phones. The differences are the number of
buttons available (10, 20, or 28) to make and receive calls
and the size of the display. The three MLX display phones
that can be used with the co
on the following pages. mmunications system are shown
Your Display Telephone 1-1

Your Display Telephone

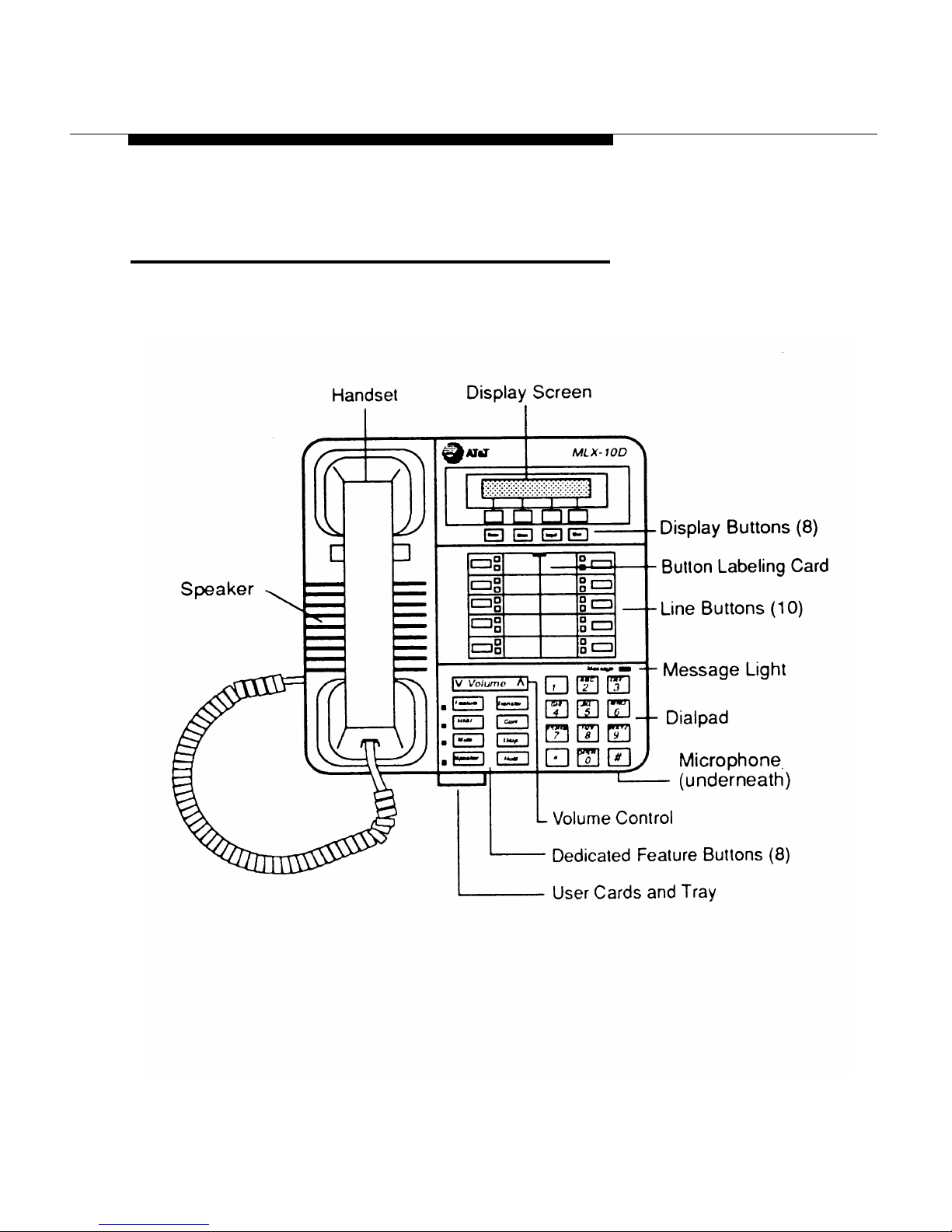

MLX-10D Telephone
See descriptions on page 1-5.
12
.
MLX-10D Telephone

Your Display Telephone
MLX-28D Telephone
See descriptions on page 1-5,
Handset Display Screen
Speaker
-Volume Control
Display Buttons (8)
Button Labeling Cards
Line Buttons (28)
Message
Dialpad
Light
Microphone
(underneath)
-
Dedicated Feature Buttons (8)
User Cards and Tray
MLX-28D Telephone
1-3

Your Display Telephone
MLX-20L Telephone
See descriptions on page 1-5.
1-4
MLX-20L Telephone

Your Display Telephone
MLX Telephones
Button labeling cards
Cards you can label with the line or
feature assigned to each line button.
Contrast control (not shown)
On MLX-20L Telephones only, a
sliding switch on the top of the
phone used to brighten and dim the
display.
Dedicated feature button
The eight imprinted buttons for the
features used most often.
Desk stand (not shown)
A support that adjusts to two angles
Dialpad
The numbered buttons, along with ❉
and #, that are used to dial phone
numbers and feature codes
Display buttons
The Home, Menu, More, and Inspect
buttons that control the display
screens, and the unlabeled buttons
that activate features shown on the
screens.
Display screen
A 2-line by 24-character screen
(MLX-10D and MLX-28D) or a 7-line
by 24-character screen (MLX-20L)
where you view call information,
phone directories, and InstructIons
for using features and programming
the phone.
Handset
The hand-held part of the
phone that you pick up, talk,
into and listen from.
Line buttons
The 10 (MLX-10D), 20
(MLX-20L), or 28 (MLX-28D)
buttons with red and green
lights used to make and
receive calls.
You can program any
unassigned buttons for feature
use.
Message light
A light that goes on when a co-
worker or system operator
leaves a message on your
display or when you have a
voice mail message or a fax
Microphone (not shown)
Use when the speakerphone is
active
Speaker
The loudspeaker device
User cards and tray
Instructions for feature use and
directory Information in a
sliding tray under the phone
Volume control
A button for controlling the
volume of the speaker, handset,
and ringer
MLX Telephones 1-5

Your Display Telephone
The Display Area
The display on your phone acts as an alarm clock, timer,
phone book, and message center. It also helps you locate
features you want to use or program.
If you have a MLX-20L phone, you have the large
(7-line by
24-character) display. If you have a MLX-10D or MLX-28D
phone, you have the small (2-line by 24-character) display.
You can use features from the display by pressing
Feature or
Menu and selecting a feature from the display. You can also
program features from the display by pressing Menu and
then selecting Ext Pprogram [Prog]. The display leads you
step-by-step through programming procedures and shows
the feature you have chosen.
Feature names are spelled out on large displays but
shortened on small displays. In this guide, the large display
feature name is shown first, followed immediately by the
abbreviated, small display version in brackets. For example,
Alarm Clock [AlClk] or Auto Dial [AutoD]. If a
bracketed word is not shown, the information is the same for
small and large displays. Feature names and their
abbreviations are listed in Appendix D.
1-6
The Display Area

Your Display Telephone
The display has labeled and unlabeled buttons next to or
below it. The labeled buttons —
Home, Menu, Inspct, and
More —
are used to move among the display screens. The
unlabeled buttons are used to access and activate features.
The functions of the unlabeled buttons change when the
screens change.
To select a feature or option that appears on a screen, press
the unlabeled button that is next to it on the large display or
underneath it on the small display. If there is more information
than can be displayed on one screen, the > symbol is
displayed. Press More, and the additional information is
displayed.
NOTE:
On all display phones, the > symbol indicating more
information appears on the right hand side of the display,
next to or above the More button.
The Display Area 1-7
