User’s manual
TR1909
Trimline® telephone
with caller ID/call waiting

Model #: TR1909
Product name: Trimline telephone with caller ID/call waiting
Serial #:
(found on the bottom of the telephone base)
Purchase date:
Place of purchase:
Congratulations
on purchasing your
new AT&T product.
Before using this AT&T product, please
read the Important product information
on pages 29-30 of this manual.
Please thoroughly read the user’s
manual for all the feature operations
and troubleshooting information necessary to install
and operate your new
AT&T product. You can also visit our
website at www.telephones.att.com
or call 1 [phone].
In Canada, dial 1 [phone].
© 2009 Advanced American Telephones. All rights reserved.
AT&T and the AT&T logo are trademarks of AT&T Intellectual Property II, L.P. d/b/a
AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78219.
Trimline® is a registered trademark of Advanced American Telephones.

Save your sales receipt and original packaging in the event warranty service is
necessary.
Your telephone contains the following items:
User’s manual Handset
Parts checklist
Telephone base with mounting
bracket attached for tabletop
position (telephone line cord
installed)
Coiled handset cord
Getting started
Mounting bracket
(attached)
Directory card
(stuck on the cover of the
battery compartment)
Quick start guide

i
User’s manual
TR1909
Trimline telephone with
caller ID/call waiting
Getting started
Product overview ..................................... 1
Handset layout .......................................... 2
Screen display messages ..................... 3
Screen icons.......................................... 3
Screen display messages................ 3
Installation preparation......................... 4
Battery installation.................................. 5
Telephone installation ........................... 6
Installation options.................................. 7
Wall installation .................................. 7
Tabletop installation ......................... 8
Telephone settings
About the feature menu....................... 10
Feature summary...................................... 10
Contrast ........................................................ 11
Home area code ....................................... 11
Local area code......................................... 12
Time and date............................................ 13
Call waiting ................................................. 14
Language...................................................... 15
Tone/pulse................................................... 15
Telephone operation
Basic telephone operation .................. 16
Make and answer a call .................. 16
Last number redial............................. 16
Adjust ringer volume ........................ 16
Adjust listening volume................... 16
Options while on calls........................... 17
Flash.......................................................... 17
Mute .......................................................... 17
Temporary tone dialing ................... 17
Telephone memory
Memory operation (one-touch) ......... 18
To store a number in
one-touch............................................... 18
To review a number in
one-touch............................................... 18
To dial a number in one-touch.... 18
Memory operation (two-touch) ......... 19
To store a number in
two-touch............................................... 19
To review a number in
two-touch............................................... 19
To dial a number in two-touch.... 19
Directory card ............................................ 19
Caller ID operation
Caller ID overview.................................... 20
About caller ID..................................... 20
How caller ID works.......................... 21
Caller ID special messages............ 22
How call log works............................ 22
Reviewing the call log........................... 23
To review the call log....................... 23
To dial the displayed number....... 23
Deleting call log entries ....................... 24
To delete a call log entry............... 24
To delete all call log entries......... 24
Copying a call log entry
into memory.......................................... 25
Appendix
Troubleshooting ........................................ 26
Maintenance................................................ 28
Important product information.......... 29
Safety information.............................. 29
Especially about corded
telephones ............................................. 30
Especially about telephones
answering systems............................. 30
FCC and ACTA information.................. 31
Part 15 of FCC rules............................... 33
Limited warranty....................................... 34
Technical specifications ........................ 37
Index...................................................38
Table of contents

1
Getting started
Product overview
This AT&T TR1909 trimline with caller ID/call waiting can be used either in
tabletop or wall installation position, and requires four AA alkaline batteries
(not included) for battery-powered functions. The telephone can still operate
with limited features when there are no batteries installed.
The TR1909 also features a 13-number memory for fast dialing and has a call
log which can store up to 80 additional numbers with names. This telephone
has a caller ID feature which supports caller ID with call waiting service.
(Caller ID services are subscriber services available from your local telephone
companies for a fee.)
This user’s manual contains detailed instructions for installing and operating
your AT&T TR1909 trimline with caller ID/call waiting. Please follow the
instructions carefully.

Getting started
2
Handset layout
MEMORY
Press to access telephone
numbers stored in the
memory (page 19).
Listening volume
Adjust the handset listening
volume to LO,MED, or HI
(page 16).
PAUSE/REDIAL
When the handset is lifted, press
to redial the last number dialed
(page 16).
When storing a number in the
memory, press to insert a 3-
second pause in the dialing
sequence.
PROG
Press to store a telephone
number in the memory (page 18).
M1, M2, M3
Press to dial a one-touch
number from the memory
(page 18).
MUTE
Press and hold MUTE to silence
the microphone to prevent the
other party from hearing you,
but you will still be able to hear
the other party. Release MUTE
to return to the original two-way
conversation (page 17).
Switch hook
When held, the telephone is in
idle mode.
When released, the telephone is
ready to make a call.
OPTION
Press to display the setting
options.
While in the option menu, press
to save the selection and move
to the next feature (page 10).
FLASH
When there is a call waiting signal,
press FLASH to put the current call
on hold and connect to the new
call. Press FLASH again to return
to the original call. Also, press
FLASH to activate other telephone
company subscriber services such
as three-way calling (page 17).
IN USE
Flashes quickly when there is an
incoming call.
Flashes slowly when the
telephone line cord is not
plugged into a wall jack or
another telephone at the same
line is in use.
CALL LIST /
When the telephone is in idle
mode, press to display caller ID
information (page 23).
REMOVE
While viewing the call log,
press to delete entry currently
displayed, press and hold to
remove all entries (page 24).
CLEAR
Press to exit dialing, to exit storing
a number in memory, to exit the
call log, or to return to the idle
screen anytime without saving the
changes.
DISPLAY DIAL
Press to dial the number currently
displayed (page 23).

3
Getting started
Screen display messages
CALL# Call number in the call log.
NEW New (unreviewed) call.
REP Repeat call from the same number.
The telephone line cord is not plugged into the wall
jack.
The telephone or another telephone on the same line is
in use.
•
•
LOW
The battery power is low.
Screen icons
Screen display messages
REMOVE ALL? Remove all call log entries.
END OF LIST You have reached the end of the call log
entries.
Pro Program a one-touch or two-touch memory.
LIFT RECEIVER A caller ID entry is ready to be dialed by
lifting the handset.
TOTAL XX NEW XX The total and new (unreviewed) calls in the
call log.
CALL#
NEW
REP 0110 : 03AM 12/01
800-222-3111
LOW
TOTAL 12 NEW 01

4
Getting started
For customer service or product information, visit our website at
www.telephones.att.com or call 1 [phone]. In Canada, dial
1 [phone].
CAUTION: To reduce the risk of fire or injury to persons or damage to
the telephone, read and follow these instructions carefully:
• Use only AA alkaline batteries (not included).
• Observe proper polarity orientation between the battery and metallic
contacts.
• Do not disassemble your telephone. There are no user serviceable parts
inside. Refer to qualified service personnel for servicing.
STOP!
Installation preparation
If you subscribe to high-speed Internet service (digital subscriber line - DSL)
through your telephone lines, you must install a DSL filter between the
telephone line cord and the telephone wall jack. The filter prevents noise and
caller ID problems caused by DSL interference. Please contact your DSL service
provider for more information about DSL filters.
Your product may be shipped with a protective sticker covering the handset or
telephone base display - remove it before use.
Make sure to install four
AA alkaline batteries (not
included) before using the
telephone.
See page 5 for easy
instructions.

5
Getting started
Battery installation
Before using the telephone, you should install four good AA alkaline batteries
(not included) to provide memory backup and enable the use of some features.
The four AA batteries are required for caller ID features and the IN USE light to
work. If good batteries are not installed, the display only works when you lift
the handset.
If you unplug the telephone from the wall jack, or you lose telephone service
for over 10 minutes, and good batteries are not installed, the following
information is lost: call list, numbers stored in one- and two-touch memory,
redial list, and all settings in the feature menu. It is recommended that you
initially install new batteries and change the batteries soon after the low
battery icon appears.

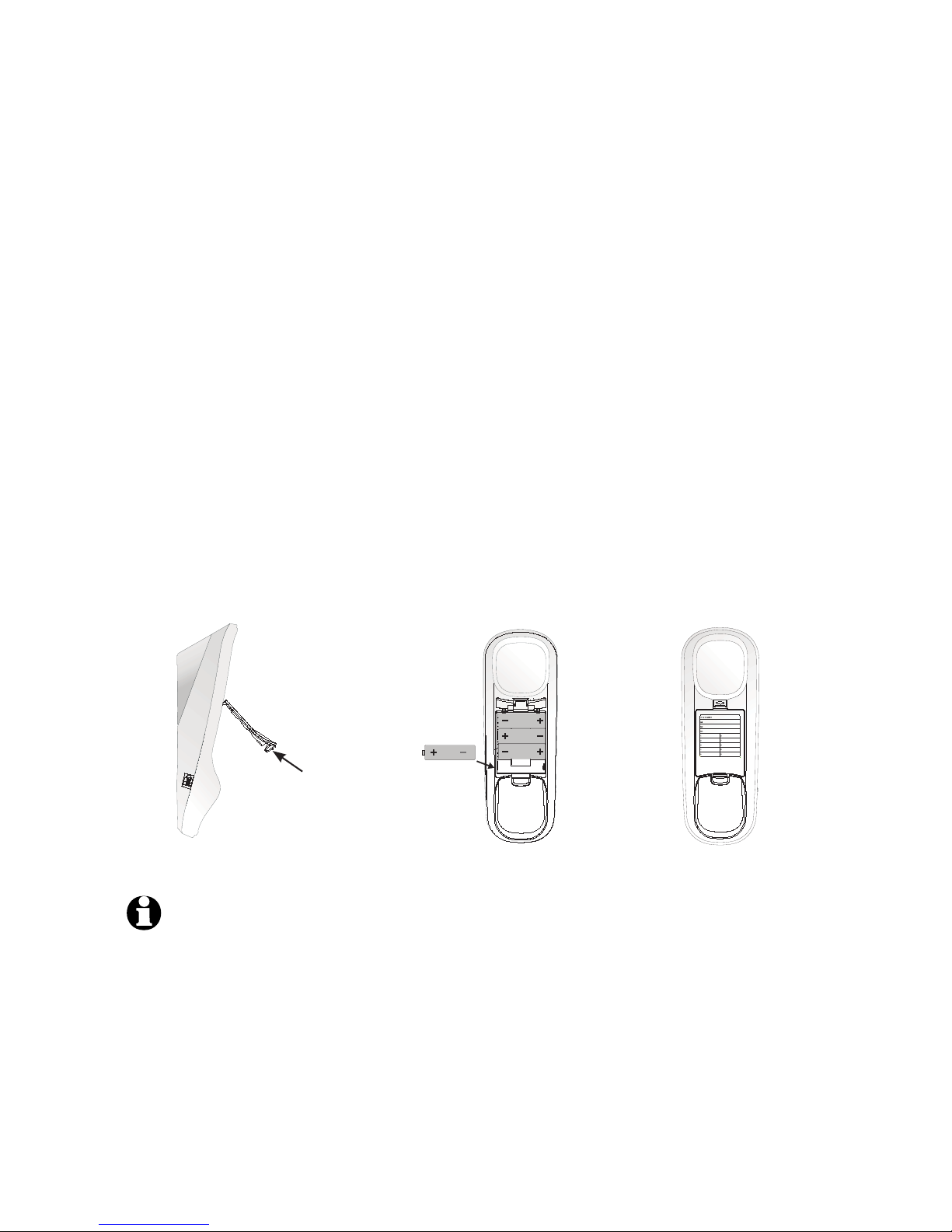

Press on the tab to open the cover of the battery compartment.
Install four new AA batteries (not included) in the battery compartment
according to the label + and - engraved in the compartment.
Close the battery compartment cover. Make sure it clicks into place.
1.
2.
3.
NOTES:
Do not mix old and new batteries and do not mix alkaline and standard
(carbon-zinc) batteries.
When the batteries are installed, the screen will show 12:00 and the clock
will begin to run. It will reset to the correct time when the first caller ID
data is received.
Always disconnect all telephone lines from the wall outlets before replacing
batteries.
Install new batteries every six months to maintain the call log and
telephone memory.
•
•
•
•
Press this
tab to
open.
Step 1 Step 2 Step 3

Getting started
6
Telephone installation
If you subscribe to high-speed Internet service (digital subscriber line - DSL)
through your telephone lines, you must install a DSL filter between the
telephone line cord and the telephone wall jack. The filter prevents noise and
caller ID problems caused by DSL interference. Please contact your DSL service
provider for more information about DSL filters. Install the telephone as shown
below.
Plug one end of the coiled
handset cord into the handset
jack on the left side of the
telephone base. Plug the other
end into the handset.
One end of the telephone line
cord has been plugged into the
telephone jack on the bottom
of the telephone base. Double
check that it is plugged in firmly.
Thread the cord through the
channel and out of the mounting
area as shown.
Plug the other end of the
telephone line cord into a
telephone wall jack.
Put the handset on the
telephone base.
1.
2.
3.
4.
5.
DSL filter
(not included)

7
Getting started

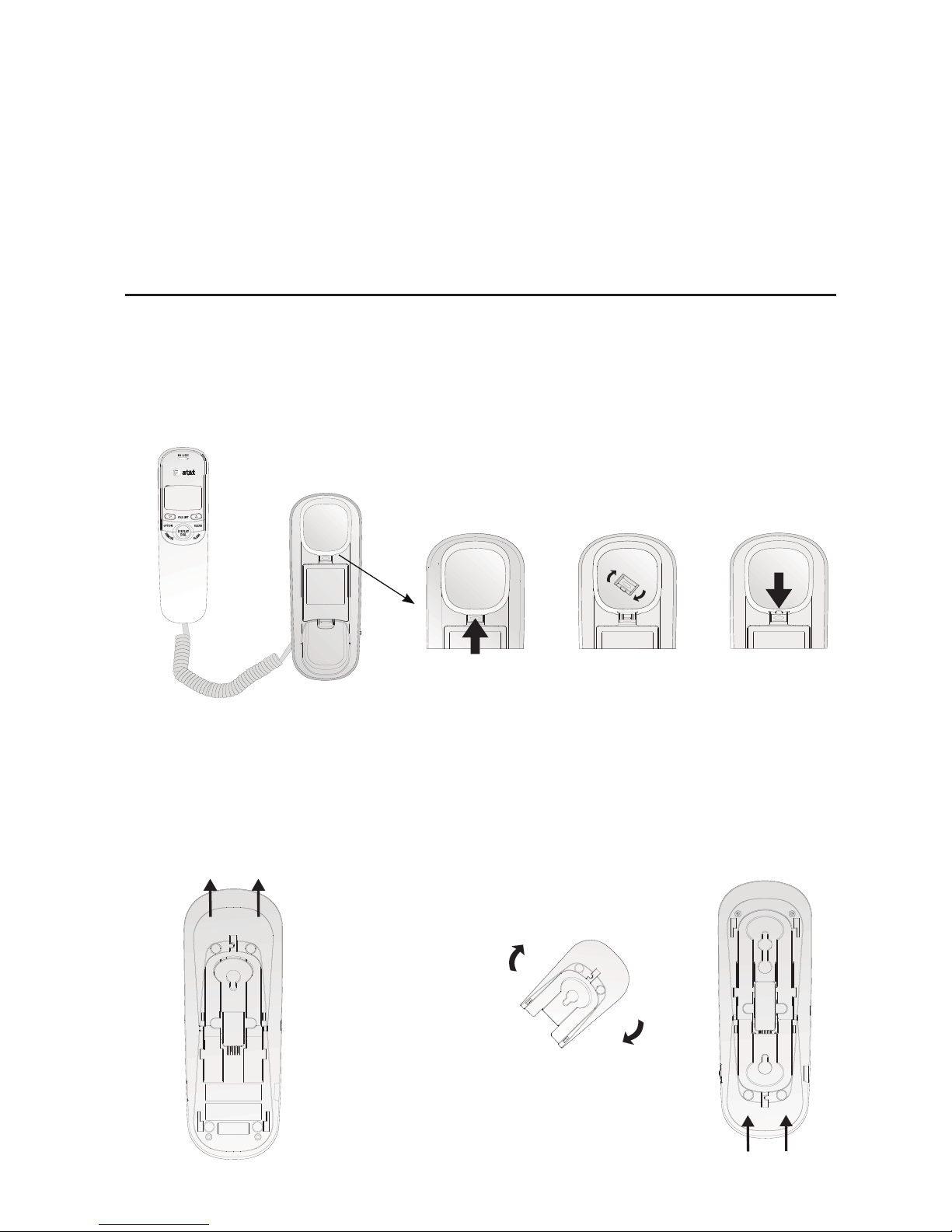

Installation options
Wall installation
To install the telephone base in the wall mount position, make sure that you
first unplug all cords connected to the telephone base.
1. Lift the handset and place it aside. On the telephone base, pull out the
handset tab and rotate it 180 degrees. Replace the handset tab back to the
grooves until it clicks into position.
Your telephone base is ready for tabletop use. If you want to mount your
telephone on a wall, use the provided wall mount bracket to connect with
a standard dual-stud telephone wall mounting plate. If you do not have this
mounting plate, you can purchase one from many hardware or consumer
electronic retailers. You might need a professional to install the mounting
plate.
2. Remove the bracket from the
base, hold the telephone base
with both hands, slide the
bracket upwards as the arrows
indicate.
3. Rotate the bracket to the wall
installation position, push the
bracket upwards as shown below
until it clicks into place.

Getting started
8
4. Route the telephone line cord through
the slot as shown below and plug the
other end of the telephone line cord
into a telephone wall jack. To mount
the telephone on the wall, position
the mounting holes A and B over
the telephone outlet mounting studs.
Slide the bracket down firmly so the
telephone is held securely on the
telephone outlet mounting studs.
5. Place the handset back on the
telephone base.
Installation options
Tabletop installation
To return the bracket from the wall installation to tabletop use, follow the
instructions below.
2. Lift the handset and place it aside. On the telephone base, pull out the
handset tab and rotate it 180 degrees. Replace the handset tab back to the
grooves until it clicks into position.
1. Remove the telephone base from the wall mounting plate. Unplug the
telephone line cord from the telephone wall jack and remove the cord from
the slots under the telephone base.
DSL filter
(not included)
A
B

9
Getting started
Installation options
3. Remove the bracket from
the base, hold the telephone
base firmly, slide the bracket
downwards as the arrows
indicate.
4. Rotate the bracket to the tabletop
installation position, push the
bracket down as shown below
until it clicks into place.
5. Route the telephone line cord through
the slot as shown below. Plug the
other end of the telephone line cord
into the telephone wall jack.
6. Place the handset back on
the telephone base.

10
About the feature menu
The table below provides a summary of the
feature menu. Use the instructions below to
change a feature in the menu:
When the telephone is in idle mode,
press OPTION repeatedly until the screen
displays the desired feature.
Press or until the screen displays the
desired setting.
Press OPTION to save your selection and
move to the next feature.
-OR-
Press CLEAR to exit without saving your
selection and return to idle mode.
-OR-
Wait 10 seconds, the telephone returns to
idle mode automatically.
1.
2.
3.
Feature summary
Default settings are indicated by an asterisk (*).
Screen display Function Options
SET CONTRAST
Adjust the screen brightness to a comfortable
level, from 1 (lightest) to 5 (darkest). The contrast
may be different for table setting and for wall
mounting.
1, 2, 3*, 4, 5
HOME AREA CODE? Set the telephone to recognize calls from the home
area code. HAC - ___
LOCAL AREA CODE? Program up to four area codes which may not
require dialing 1 before them.
LAC 1- ___
LAC 2- ___
LAC 3- ___
LAC 4- ___
SET TIME/DATE Set the time and date on the handset. 12:00AM, 1/01
CALL WAITING?
Choose to allow the telephone to show the caller
ID information of call-waiting calls and store them
in the call log.
ON*, OFF
SET TONE/PULSE Set whether the telephone should be tone dial or
pulse dial.
TONE*
PULSE
SET LANGUAGE Choose the screen display language.
ENGLISH*,
FRANCAIS
ESPANOL
NOTE: Press OPTION
within ten seconds after
choosing a setting to save
and advance to the next
feature.
NOTE: The features are listed in the order they appear after the initial
setup. When you first install batteries, the orders are: SET LANGUAGE, SET
CONTRAST, HOME AREA CODE, LOCAL AREA CODE, SET TIME/DATE, CALL
WAITING, SET TONE/PULSE.
Telephone settings

10
11
Telephone settings
Contrast
This feature allows you to adjust the screen
contrast level for different lighting conditions.
Press OPTION repeatedly until the screen
displays SET CONTRAST.
Press or to select the desired screen
contrast level from 1 (lightest) to 5 (darkest).
Press OPTION to save your selection and
move to the next feature.
- OR -
Press CLEAR to exit without saving your
selection and return to idle mode.
1.
2.
3.
SET CONTRAST
3
Home area code
Home area code is the area code associated with
your telephone number. It is necessary to program
a home area code so the telephone can properly
display incoming calls and dial the telephone
numbers from the call log.
Press OPTION repeatedly until you see
HOME AREA CODE?
Press the or to enter the first digit of the
home area code. Use or to decrease or
increase the number.
Press DISPLAY DIAL to save the digit and
advance to the next digit.
Repeat steps 2 and 3 for the second and third
digits of your home area code.
Press OPTION to save the home area code
and continue to set the local area code.
1.
2.
3.
4.
5.
For calls within your area codes:
Dial Enter in step 2:
7 digits
(phone number, no area code) Your area code
10 digits
(area code + phone number) 000
11 digits
(1 + area code + phone number) 000
HOME AREA CODE?
HAC - ___

12
Telephone settings
Local area codes
Local area codes are area codes associated
with other telephone numbers for which you
must dial the area code, but do not need to
dial 1. This includes your own area code if you
must dial the area code but not 1to make
calls in your own area code.
Up to four local area codes can be
programmed. Do not program area codes for
which you must dial a 1.
Press OPTION until you see LOCAL
AREA CODE?
Press the or to enter the first digit of
the local area code in LAC 1. Use or
to decrease or increase the number.
Press DISPLAY DIAL to move to next
digit of the local area code and repeat
step 2.
Press OPTION to save your selection and
move to next local area code (LAC 2,
LAC 3 or LAC 4).
Press OPTION to save your selection and
move to the next feature when you have
finished entering local area codes.
- OR -
Press CLEAR to exit without saving your
selection and return to idle mode.
1.
2.
3.
4.
5.
LOCAL AREA CODE?
LAC 1 - ___
LOCAL AREA CODE?
LAC 2 - ___
LOCAL AREA CODE?
LAC 3 - ___
LOCAL AREA CODE?
LAC 4 - ___
For calls outside your area codes:
For: Dial:
All calls outside your area code 11 digits
(1+ area code + telephone number)
Some calls outside your area
code
10 digits
(area code + telephone number)
If you dial 10 digits (area code + phone number) for calls within your
own area code, include your area code as a local area code.

12
13
Telephone settings
Time and date
This feature allows you to set the time and
date when the telephone is in idle mode. If you
subscribe to caller ID service, the time and date
are set automatically by the incoming caller ID
information.
Press OPTION repeatedly until the screen
displays SET TIME/DATE.
When the hour is flashing, use the and
keys to scroll through the list of numbers
from 1to 12 to select the right number for
the hour and AM or PM. Press DISPLAY DIAL
to save the entry and advance to the next
setting.
When the minutes are flashing, use the and
keys to scroll through the list of numbers
from 00 to 59 to select the right number for
the minutes. Press DISPLAY DIAL to save the
entry and advance to the next setting.
When the month is flashing, use the and
keys to scroll through the list of numbers
from 1to 12 to select the right number for
the month. Press DISPLAY DIAL to save the
entry and advance to the next setting.
When the day is flashing, use the and
keys to scroll through the list of numbers
from 1to 31 to select the right number for
the date. Press DISPLAY DIAL to return to
step 2 above to make any corrections.
- OR -
Press OPTION to save the entry and advance
to CALL WAITING?
- OR -
Press CLEAR to exit without saving your
selection and return to idle mode.
NOTE: When entering the hours, after 11AM
is 12PM, and after 11PM is 12AM.
1.
2.
3.
4.
5.
10:12AM 1/01
SET TIME/DATE
10:12AM 12/03
SET TIME/DATE
8:00PM 12/03
SET TIME/DATE

14
Telephone settings
15
Call waiting
If you subscribe to caller ID and call waiting
service provided by your local telephone
company (page 20), select ON in this feature
to enable the telephone to show the caller
ID information of those call-waiting calls
(page 21) and store them in the call log.
If you do not subscribe to caller ID or call
waiting service provided by your local
telephone company, select OFF in this
feature.
Press OPTION repeatedly until the screen
displays CALL WAITING?
Press or to select ON or OFF.
Press OPTION to save your selection and
move to the next feature.
-OR-
Press CLEAR to exit without saving your
selection and return to idle mode.
1.
2.
3.
CALL WAITING?
ON
NOTE: If you subscribe to call waiting
service with your local telephone company,
you can put your current call on hold by
pressing FLASH to take the new incoming
call (page 17).

14
15
Telephone settings
Language
This telephone comes factory set for English
displays. If you wish to change the displayed
language to Spanish or French, follow the steps
below:
Press OPTION repeatedly until the screen
displays SET LANGUAGE.
Press or to select the desired language
displayed on the screen (ENGLISH,
FRANCAIS or ESPANOL).
Press OPTION to save your selection and
move to the next feature.
-OR-
Press CLEAR to exit without saving your
selection and return to idle mode.
1.
2.
3.
ENGLISH
SET LANGUAGE
Tone/pulse
This telephone comes factory set for touch-tone
dialing. If you do not have touch tone dialing
service, you can change this setting to PULSE by
following the steps below:
Press OPTION repeatedly until the screen
displays SET TONE/PULSE.
Press or to select the dialing mode
between TONE and PULSE.
Press OPTION to save your selection and
return to idle mode.
-OR-
Press CLEAR to exit without saving your
selection and return to idle mode.
1.
2.
3.
TONE
SET TONE/PULSE
NOTE: If you have pulse dial (rotary) service,
you can temporarily switch to touch-tone dialing
during a call by pressing TONE* (page 17). After
hanging up or pressing FLASH, the telephone
automatically returns to its original dial mode.

16
17
Make and answer a call
To make a call:
Lift the handset and wait for a dial tone.
Then use the dial pad keys (0through 9,
or #) to enter the number you want to
dial. Place the handset on the telephone
base to hang up.
To answer a call:
Lift the handset.
Place the handset on the telephone base
to hang up.
1.
2.
1.
2.
Last number redial
To redial the last number you dialed out (up
to 32 digits), follow the steps below:
Lift the handset and wait for a dial tone.
Then press REDIAL on the handset.
Place the handset on the telephone base
to hang up.
1.
2.
3.
Telephone operation
Basic telephone operation
Adjust ringer volume
To adjust the ringer volume, slide the RINGER
switch on the right side of the telephone
base. You can set the ringer to off, low or
high (OFF, LO or HI).
Adjust listening volume
To adjust the listening volume, slide the
volume switch on the handset. You can set
the listening volume to low, medium or high
(LO, MED or HI).
