1. PREFACE
In order to provide our customers with quality, reliability and versatility,
been made to strict production standards. This manual includes all the necessary
information about installation, debugging, discharging and maintenance. Please read this
manual carefully before you open or maintain the unit. The manufacture of this product will
not be held responsible if someone is injured or the unit is damaged, as a result of
improper installation, debugging, or unnecessary maintenance. It is vital that the
instructions within this manual are adhered to at all times. The unit must be installed by
qualified personnel.
this product has
The unit can only be repaired by qualified installer centre , personnel or an authorised
dealer.
Maintenance and operation must be carried out according to the recommended time and
frequency, as stated in this manual.
Use genuine standard spare parts only.
Failure to comply with these recommendations will invalidate the warranty.
Swimming Pool Heat Pump Unit heats the swimming pool water and keeps the temperature
constant. For split type unit, The indoor unit can be Discretely hidden or semi-hidden to
suit a luxury house.
Our heat pump has following characteristics:
1 Durable
The heat exchanger is made of PVC & Titanium tube which can withstand prolonged
exposure to swimming pool water.
2 Installation flexibility
The unit can be installed outdoors or indoors.
3 Quiet operation
The unit comprises an efficient rotary/ scroll compressor and a low-noise fan motor,
which guarantees its quiet operation.
4 Advanced controlling
The unit includes micro-computer controlling, allowing all operation parameters to be
set. Operation status can be displayed on the LED wire controller. Remote controller can be
chosen as future option.
1
1.1 PREFACE

1. PREFACE
2
1.2 Safety precautions
ELECTRICAL POWER MUST BE SWITCHED OFF
BEFORE STARTING ANY WORK ON JUNCTION BOXES
The aim of this manual is to provide instructions for installation, commissioning, operation.
WARNING !
The installation, commissioning and
maintenance of these machines should be
performed by qualified personnel having a
good knowledge of standards and local
regulations, as well as experience of this
type of equipment.
WARNING !
Any wiring produced on site must comply
with local electrical regulations.
WARNING !
Ensure that the electrical supply
corresponds to the specification indicated
on the unit's maker's plate before
proceeding with the connection in
accordance with the wiring diagram
supplied.
WARNING !
The unit must be EARTHED to avoid any
risks caused by insulation defects.
WARNING !
No wiring must come in contact with the
heat source or the fan rotating parts.
WARNING !
Preparation for shutting down the unit for a
prolonged period if the installation does
not contain glycol, the evaporator and the
chilled water pipes need to be carefully and
completely drained of water.
WARNING!
In preparation for shutting down the unit for a
prolonged period the condenser and the chilled
water pipes on the reversible unit need to be
carefully flushed with fresh water( during 15
minutes by the outlet) and then completely
drained of water.
Take care !
The unit should be handled using lifting and
handling equipment appropriate to the unit's
size and weight.
Take care !
It is forbidden to start any work on the
electrical components without switching off
the electrical supply to the unit.
Take care !
It is forbidden to start any work on the
electrical components if water or high
humidity is present on the installation site.
Take care !
When the unit is being connected, ensure that
no impurities are introduced into the pipe
work and the water circuits.
Take care!
The setting water temperature can not over 40℃ ，
0
(105 F)to assure the unit running safety.
Take care!
An insulated pipe for protection must be used for
the 3-core signal wire at the wire outlet for outdoor
installation.
Take care!
Use copper supply wires.
The Manufacturer's warranty will not apply if the installation
recommendations listed in this manual are not followed.

3
2.SPECIFICATION
2.1 Performance data of Swimming Pool Heat Pump Unit
*** REFRIGERANT : R410A
Measurement conditions of table :
Cooling: Outdoor air temp:53℃/43℃ ,Inlet water temp:35℃/26℃
Heating:Outdoor air temp:27℃/15℃ ,Inlet water temp:26℃
Models, parameters, performance will change for the improvement of product, please forgive
for
no especial notice. Specific parameters is on the base of nameplate
Unit
Cooling Capacity
Cooling Power Input
Heating Capacity
Heating Power Input
Running Current
Power Supply
Compressor Quantity
Compressor
Fan Quantity
Fan Power Input
Fan Rotate Speed
Fan Direction
Noise
Water Connection
Water Flow Volume
Water Pressure Drop(MAX)
Unit Net Dimensions(L/W/H)
Unit Shipping Dimensions(L/W/H)
Net Weight/shipping Weight
KW
BTU/h
kW
kW
BTU/h
kW
A
W
RPM
dB(A)
mm
kPa
mm
mm
kg
3
m /h
see the drawing of the units
see package label
see nameplate/see package label
AMHP110
8.2-18.4
27978-62781
2.02-6.28
12.2-65
41626-221780
0.76-10.65
21
1
Rotary
2
200×2
850
vertical
60
63
25
25
380V~415V~/3PH～/50Hz

2.2 The dimensions for Swimming Pool Heat Pump Unit
2.SPECIFICATION
4
1750
830
1750
Drainage
Φ32
Water outlet
Φ63
Water inlet
Φ63
150
245
175
230

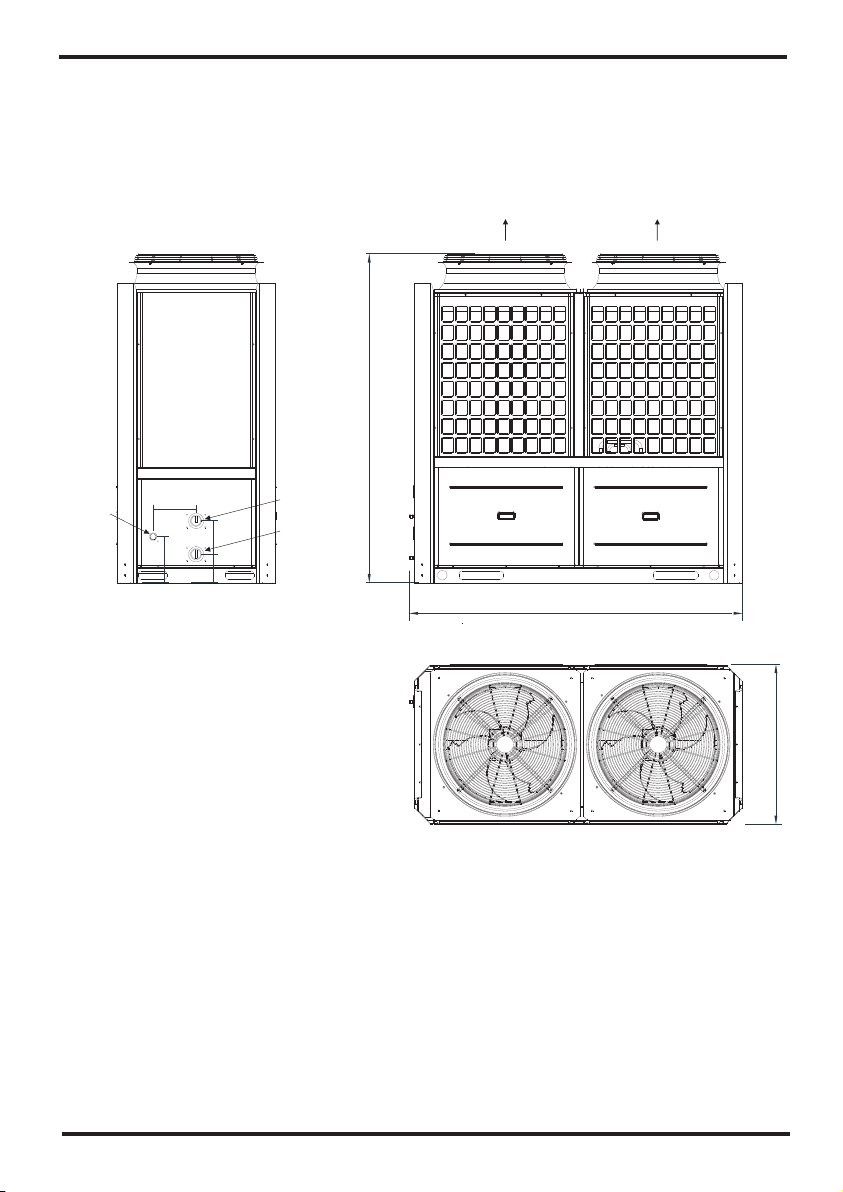

Model: AMHP110
unit：mm
Airflow direction

3.1 Installation illustration
3.INSTALLATION AND CONNECTION
5

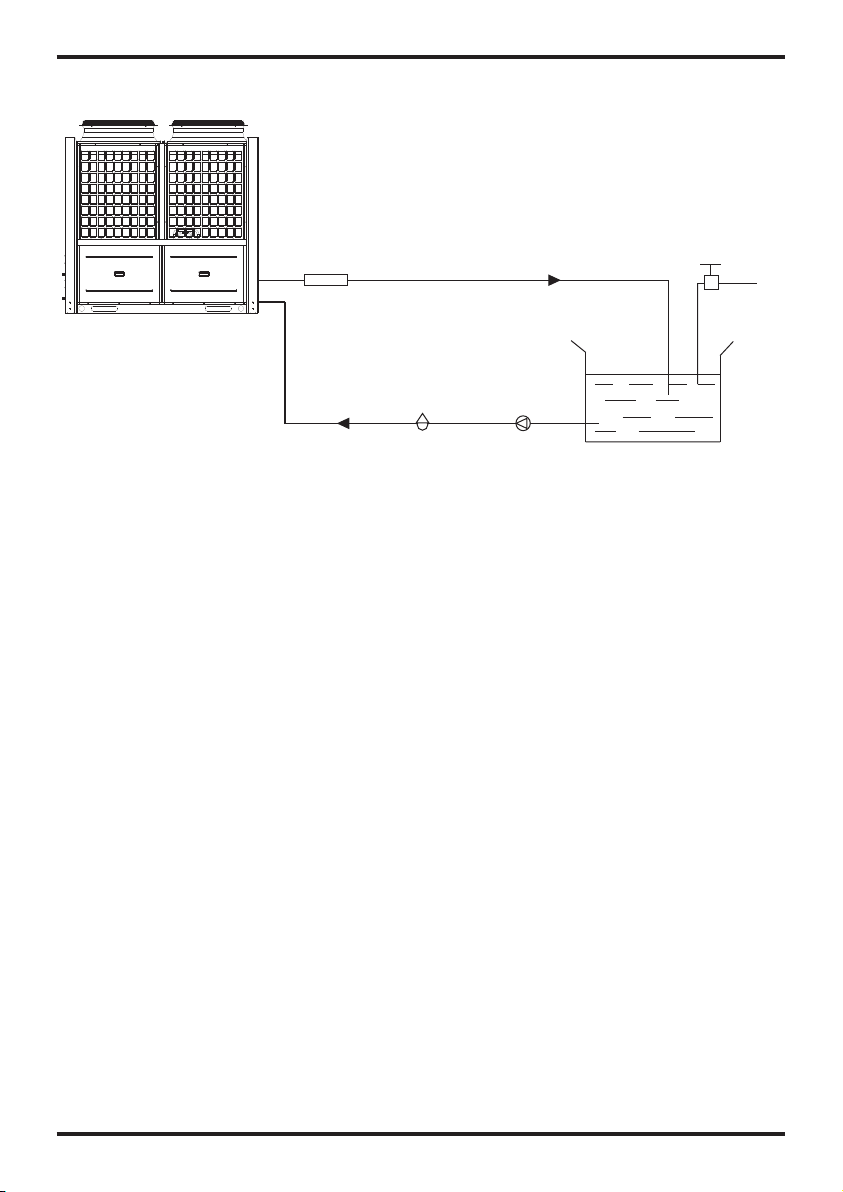

Installation items:
The factory only provides the main unit and the water unit; the other items in the illustration
are necessary spare parts for the water system ,that provided by users or the installer.
Attention:
Please follow these steps when using for the first time
1.Open valve and charge water.
2.Make sure that the pump and the water-in pipe have been filled with water.
3.Close the valve and start the unit.
ATTN: It is necessary that the water-in pipe is higher than the pool surface.
The schematic diagram is for reference only. Please check the water inlet/outlet label on the
heat pump while plumbing installation.
Chlorinator cell
Water outlet
Pool
Valve
Water supply
Water inlet Water pump
Sand filter
(or other type filter)

3.2 Swimming Pool Heat Pumps Location
6
3.INSTALLATION AND CONNECTION

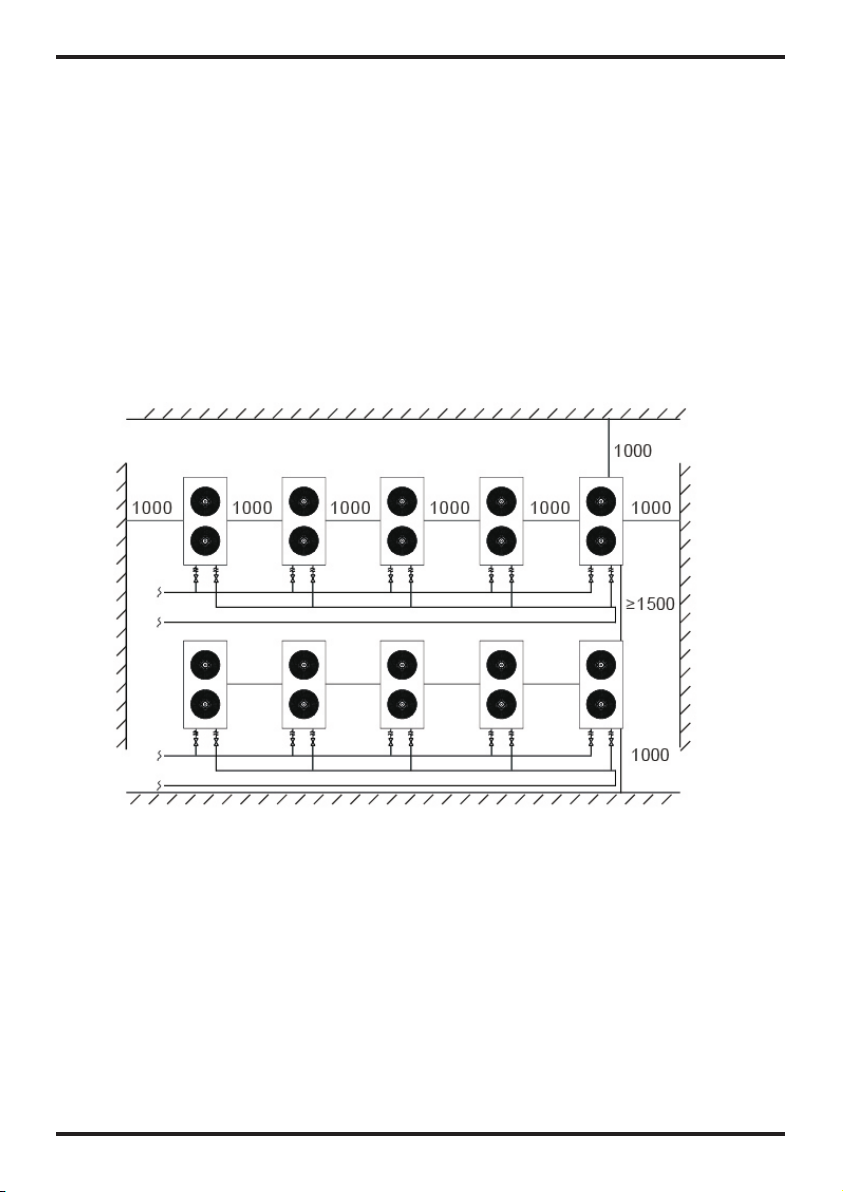

The unit will perform well in any outdoor location provided that the following three factors are
presented:
1. Fresh Air - 2. Electricity - 3. Pool filter piping
The unit may be installed virtually anywhere outdoors. For indoor pools please consult the
supplier. Unlike a gas heater, it has no draft or pilot light problem in a windy area.
DO NOT place the unit in an enclosed area with a limited air volume, where the units
discharge air will be re-circulated.
DO NOT place the unit to shrubs which can block air inlet. These locations deny the unit of a
continuous source of fresh air which reduces it efficiency and may prevent adequate heat
delivery.
Normally, the pool heat pump is installed within 7.5 metres of the pool. The longer the
distance from the pool, the greater the heat loss from the piping. For the most part ,the piping
is buried. Therefore, the heat loss is minimal for runs of up to15 meters(15 meters to and from
the pump = 30 meters total), unless the ground is wet or the water table is high. A very rough
estimate of heat loss per 30 meters is 0.6 kW-hour,(2000BTU) for every 5 ℃ difference in
temperature between the pool water and the ground surrounding the pipe, which translates to
about 3% to 5% increase in run time.
3.3 How Close To Your Pool?

3.4 Swimming Pool Heat Pumps Plumbing
Location: Connect the unit in the pool pump discharge (return) line downstream of all filter
and pool pumps, and upstream of any chlorinators, ozonators or chemical pumps.
Standard model have slip glue fittings which accept 40mm NB PVC pipe for connection to
the pool or spa filtration piping. By using a 50 NB to 40NB you can plumb 50NB PVC piping
Give serious consideration to adding a quick coupler fitting at the unit inlet and outlet to allow
easy draining of unit for winterizing and to provide easier access should servicing be
required.
Condensation: Since the Heat pump cools down the air about 4 -5℃, water may condense on
the fins of the horseshoe shaped evaporator. If the relative humidity is very high, this could
be as much as several litres an hour. The water will run down the fins into the basepan and
drain out through the barbed plastic condensation drain fitting on the side of the basepan.
This fitting is designed to accept 20mm clear vinyl tubing which can be pushed on by hand
and run to a suitable drain. It is easy to mistake the condensation for a water leak inside the
unit.
NB: A quick way to verify that the water is condensation is to shut off the unit and keep the
pool pump running. If the water stops running out of the basepan, it is condensation. AN
EVEN QUICKER WAY IS to TEST THE DRAIN WATER FOR CHLORINE - if the is no chlorine
present, then it's condensation.
3.INSTALLATION AND CONNECTION
7

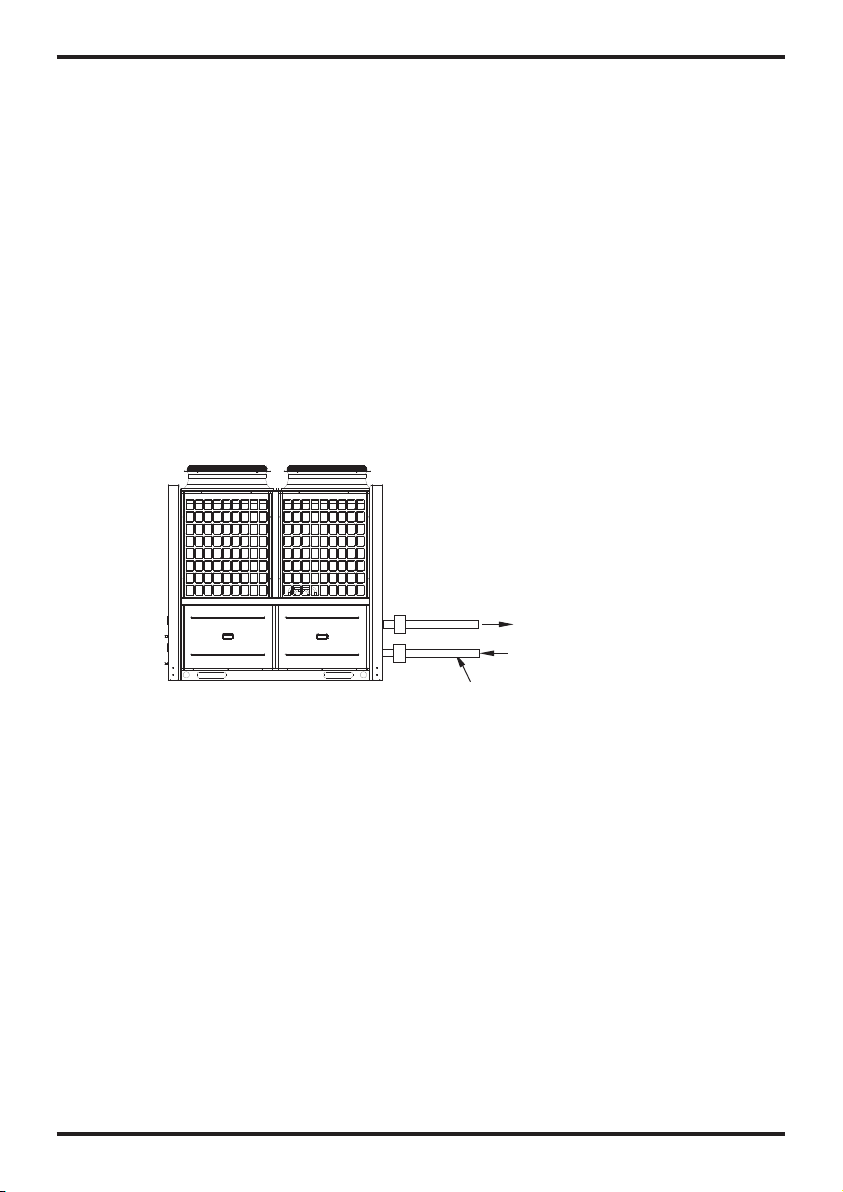

The Swimming Pool Heat Pumps exclusive rated flow titanium heat exchanger requires no
special plumbing arrangements except bypass(please set the flow rate according to the
nameplate). The water pressure drop is less than 10kPa at max. Flow rate. Since there is no
residual heat or flame Temperatures, The unit does not need copper heat sink piping. PVC
pipe can be run straight into the unit.
To pool
From pump
PVC COUPLER
RECOMMENDED(Provided)

3.5 Swimming Pool Heat Pumps Electrical Wiring
NOTE: Although the unit heat exchanger is electrically isolated from the rest of the unit, it
simply prevents the flow of electricity to or from the pool water. Grounding the unit is still
required to protect you against short circuits inside the unit. Bonding is also required.
3.INSTALLATION AND CONNECTION
3.6 Initial startup of the Unit
NOTE- In order for the unit to heat the pool or spa, the filter pump must be running to
circulate water through the heat exchanger.
Start up Procedure - After installation is completed, you should follow these steps:
1. Turn on your filter pump. Check for water leaks and verify flow to and from the pool.
2. Turn on the electrical power supply to the unit, then press the key ON/OFF of wire
controller, It should start in several seconds.
3. After running a few minutes make sure the air leaving the top(side) of the unit is
cooler(Between 5-10 ℃)
4. With the unit operating turn the filter pump off. The unit should also turn off automatically,
5. Allow the unit and pool pump to run 24 hours per day until desired pool water emperature is
reached. When the water-in temperature reach setting, The unit just shuts off. The unit will
now automatically restart (as long as your pool pump is running)when the pool temperature
drops more than 2℃below set temperature.
Time Delay- The unit is equipped with a 3 minute built-in solid state restart delay included to
protect control circuit components and to eliminate restart cycling and contactor chatter.
This time delay will automatically restart the unit approximately 3 minutes after each control
circuit interruption. Even a brief power interruption will activate the solid state 3 minute
restart delay and prevent the unit from starting until the 5 minute countdown is completed.
Power interruptions during the delay period will have no effect on the 3 minute countdown.
8
The unit has a separate molded-in junction box with a standard electrical conduit nipple
already in place. Just remove the screws and the front panel, feed your supply lines in
through the conduit nipple and wire-nut the electric supply wires to the three connections
already in the junction box (four connections if three phase). To complete electrical hookup,
connect Heat Pump by electrical conduit, UF cable or other suitable means as specified (as
permitted by local electrical authorities) to a dedicated AC power supply branch circuit
equipped with the proper circuit breaker, disconnect or time delay fuse protection.
Disconnect - A disconnect means (circuit breaker , fused or un-fused switch) should be
located within sight of and readily accessible from the unit, This is common practice on
commercial and residential air conditioners and heat pumps. It prevents remotely-energizing
unattended equipment and permits turning off power at the unit while the unit is being
serviced.

9
USAGE AND OPERATION

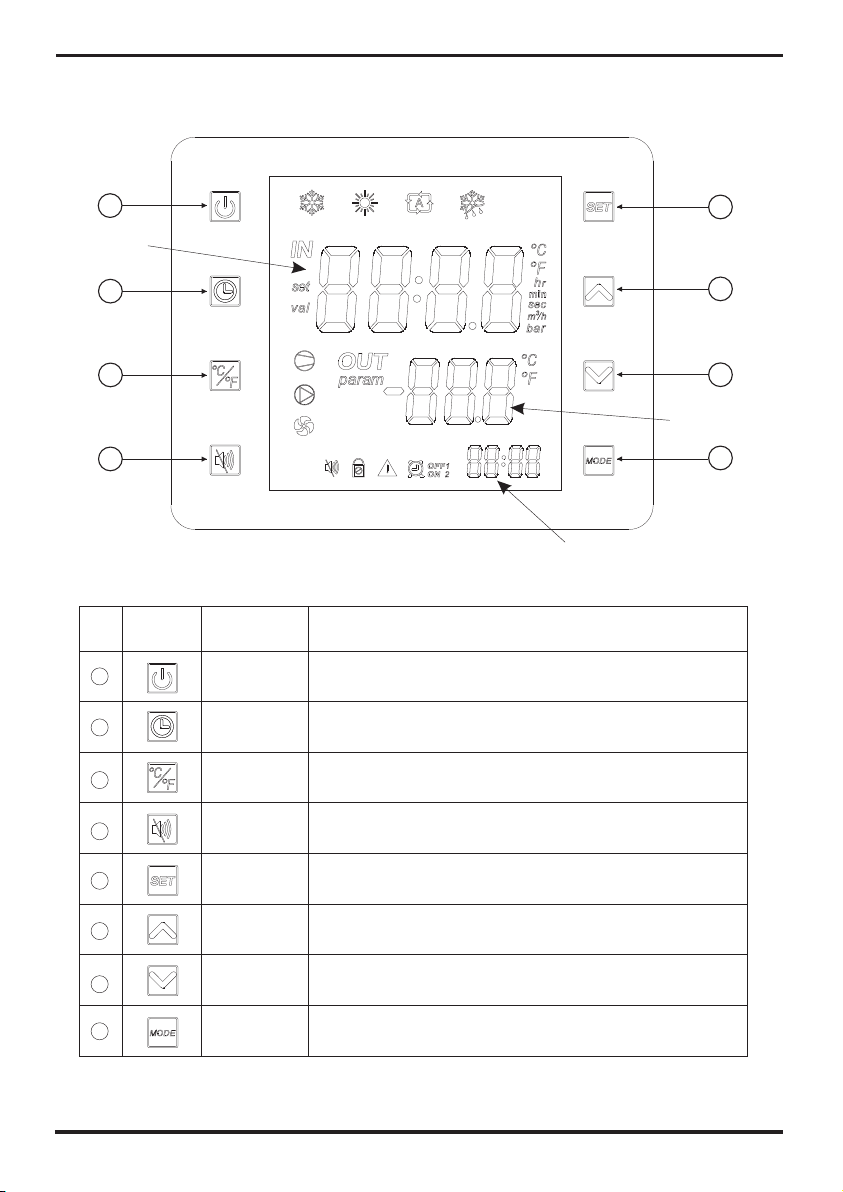

1.Function introduction of line controller
Main display area
1）Button function
No. Button
Icon
Button
Name Function
1
2
3
4
Power
On/off
Mode
Up
Down
Using for switching mode
Using for choose upper page or increase values
Using for choose following page or decrease values
1
4
5
3
5
2
Time Using for time setting and timing setting
6
7
8
6
7
8
Temp unit
Switch Using for switching between Fahrenheit and Celsius
Mute Using for turning on/off mute function, turn off timing
mute function.(referring to actual units)
Setting Using for temp setting and saving setting
Time display area
Supplementary
display area
Using for power on/off, cancel present operation
and back to the last operation
reset

10
USAGE AND OPERATION
2）Display function

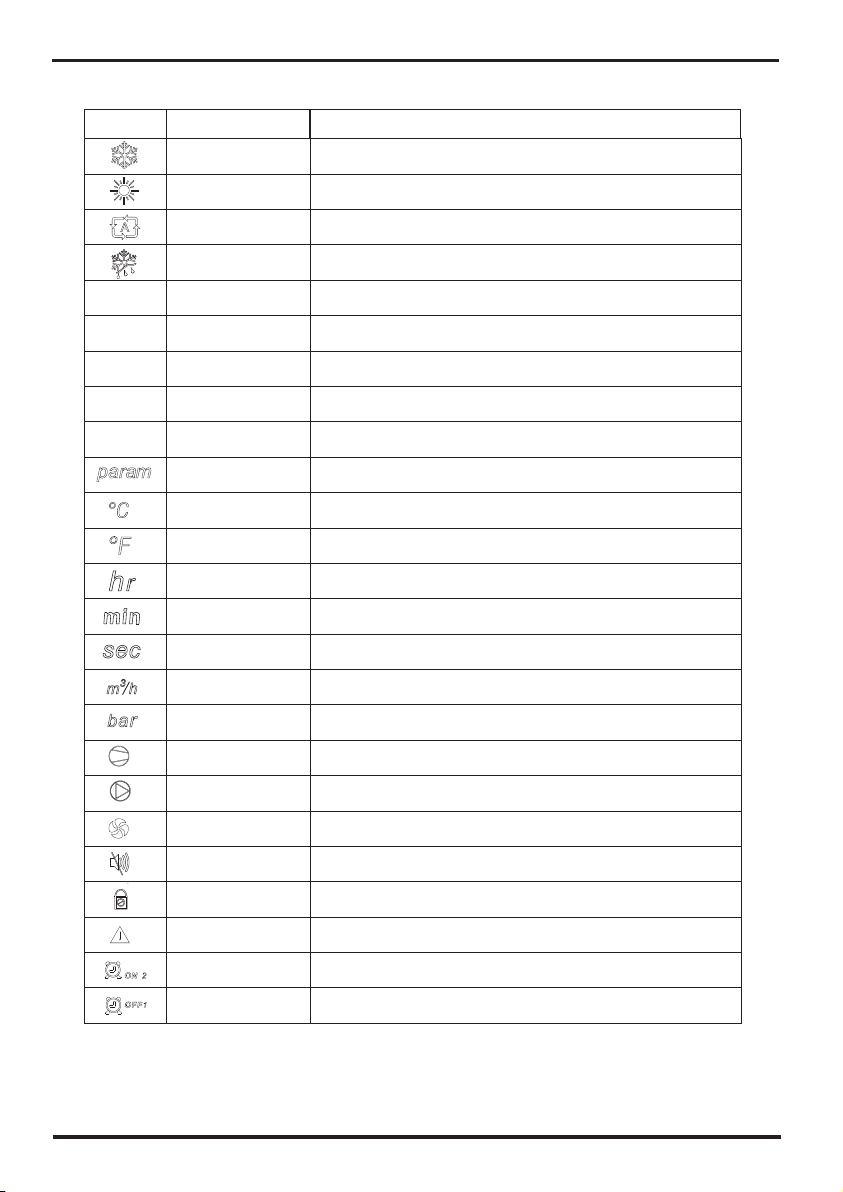

Icon Meaning Function
reset Lighted on when parameters are uploaded and downloadedParameter recovery
Celsius Lighted on when the main or auxiliary area display degree
Centigrade parameter
Lighted on when parameters are adjustable
Cooling
Heating
Automatic
Mode
Display at cooling mode
Display at heating mode
Display at automatic mode
Water flow Display when the main area displays the rate of flow parameter
Defrosting Lighted on when defrosting
Water inlet
Water outlet
Lighted on when main display area shows inlet water temp
Lighted on when supplementary display area shows outlet
water temp
Parameter category Lighted on when supplementary display area shows parameter
Category
Minute
Fahrenheit Lighted on when the main or auxiliary area display degree
Fahrenheit parameter
Display when the main area displays minute parameter
Setting
Parameter value Lighted on when main display area shows parameter value
Hour Display when the main area displays hour parameter
Second Display when the main area displays second parameter
Pressure Display when the main area displays pressure parameter
Lock Display when keyboard is locked
Timing power on
Timing power off
Display when timing power on started
Display when timing power off started
Fault Display when fault occurs
Mute Display while the function or timing low speed is on
Compressor
Water pump
Fan motor
Display while the compressor is on
Display while the water pump is on
Display while the fan motor is on
set
val
IN
OUT

11
USAGE AND OPERATION
2.Usage of the controller
2.1 Power on/off

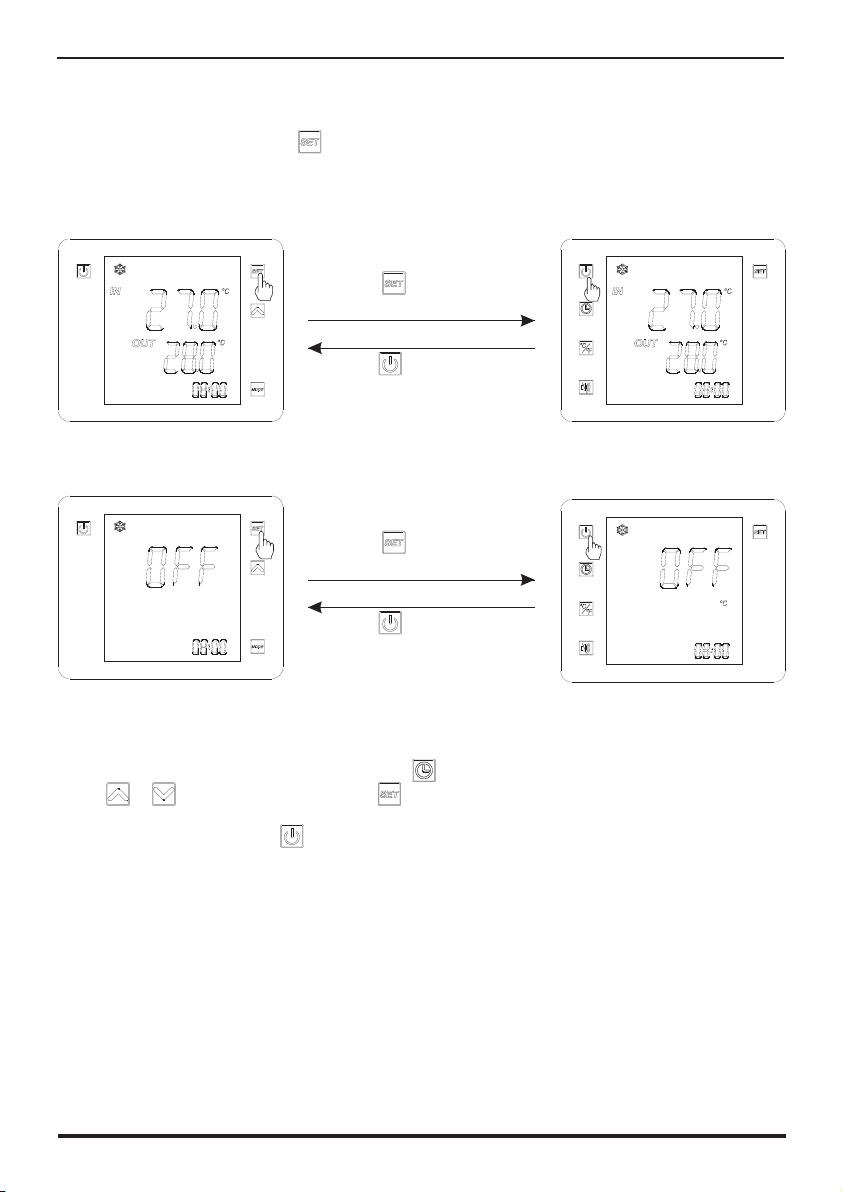

At the power on state, press for 0.5s to power off, the screen displays units mode, main
display area shows OFF.
At the power off state, press for 0.5s to power on, the screen displays units mode, main
display area shows inlet water temp, supplementary display area shows outlet water temp.
Attention: power on/off operation could only be done at power on/off main interface.

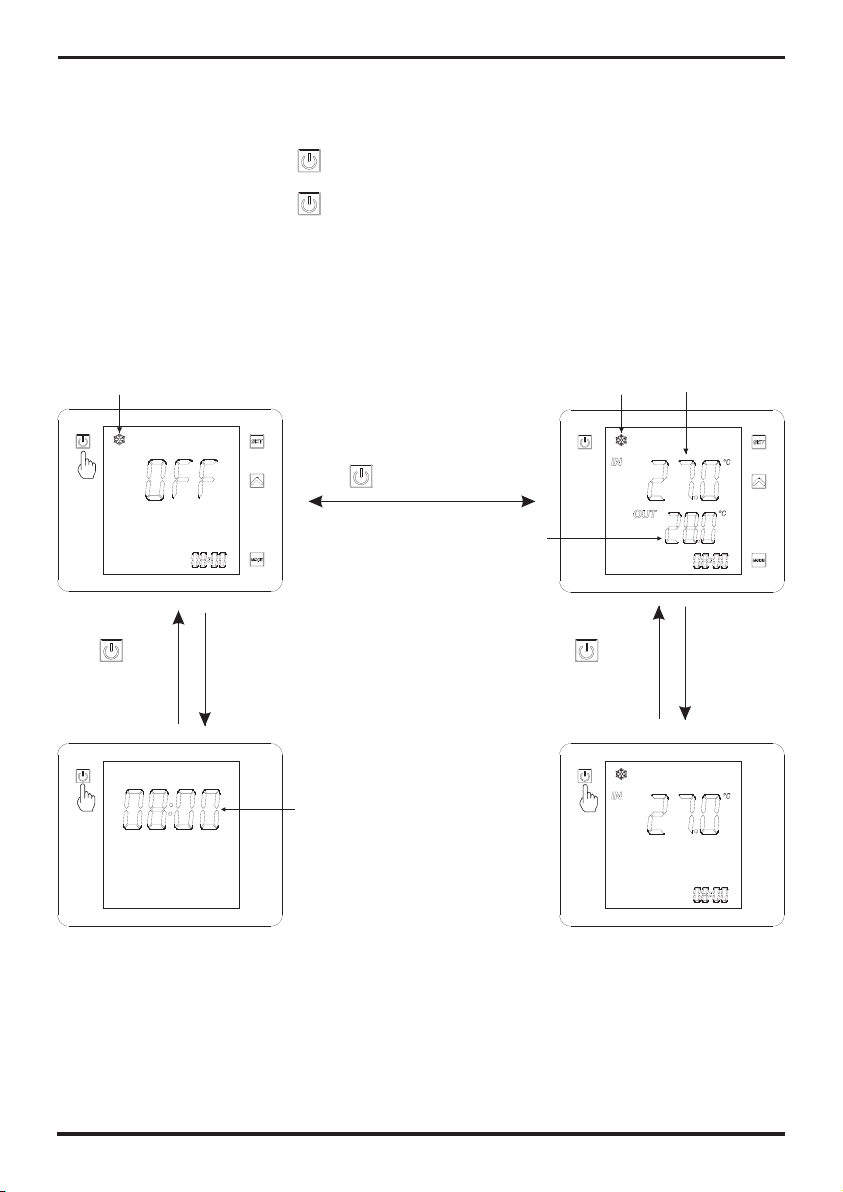

For example:
Press for 0.5 s to power on/off
Mode
Present water
outlet temp.
Mode Present water inlet temp.
Power off main interface: Power on main interface:
Screen out if
no operation
for 1min.
Press to back
to power off main
interface.
System time
Screen out if
no operation
for 1min.
Press to back
to power on main
interface.

12
USAGE AND OPERATION
2.2 Mode switch

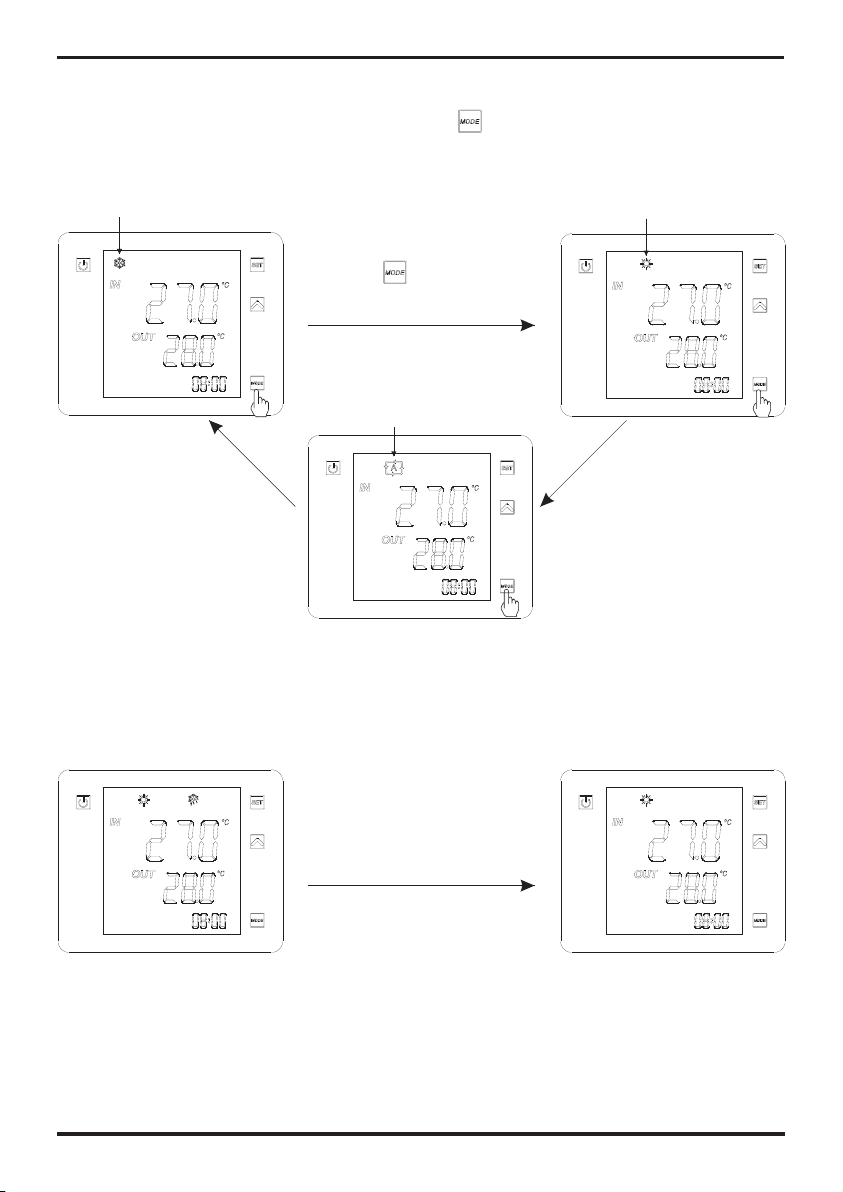

At power on/off main interface, continually press to circularly switch among cooling,
heating and automatic mode.
ttentionA : If your units are single cooling or single heating type, the mode switch is invalid.
Short press
circularly, after no operation for 2 s,
the current mode will be saved.
to switch the mode
Operation descriptions:
1). Mode switch operation can only be conducted in the main interface.
2). When the unit is under the defrosting state, the defrosting symbol is on, with the display
interface as follows:
Notes:
During the defrosting, mode switch is available. And when switching the mode, the unit will
not work under a new mode until defrosting is completed.
After completing the defrosting, the
unit will be automatically switched to
the heating / automatic mode
(Keeping consistent with the mode
before defrosting).
Automatic mode
Cooling mode Heating mode

13
USAGE AND OPERATION
2.3 Target temp. setting
press or and present mode target temp. flashes,
press to make the value increase. Press to make the value decrease. Press to
save the setting and back to
Press will not save the setting but get back to
Attention：If there is no operation for 20s, the system will remember the settings and back to

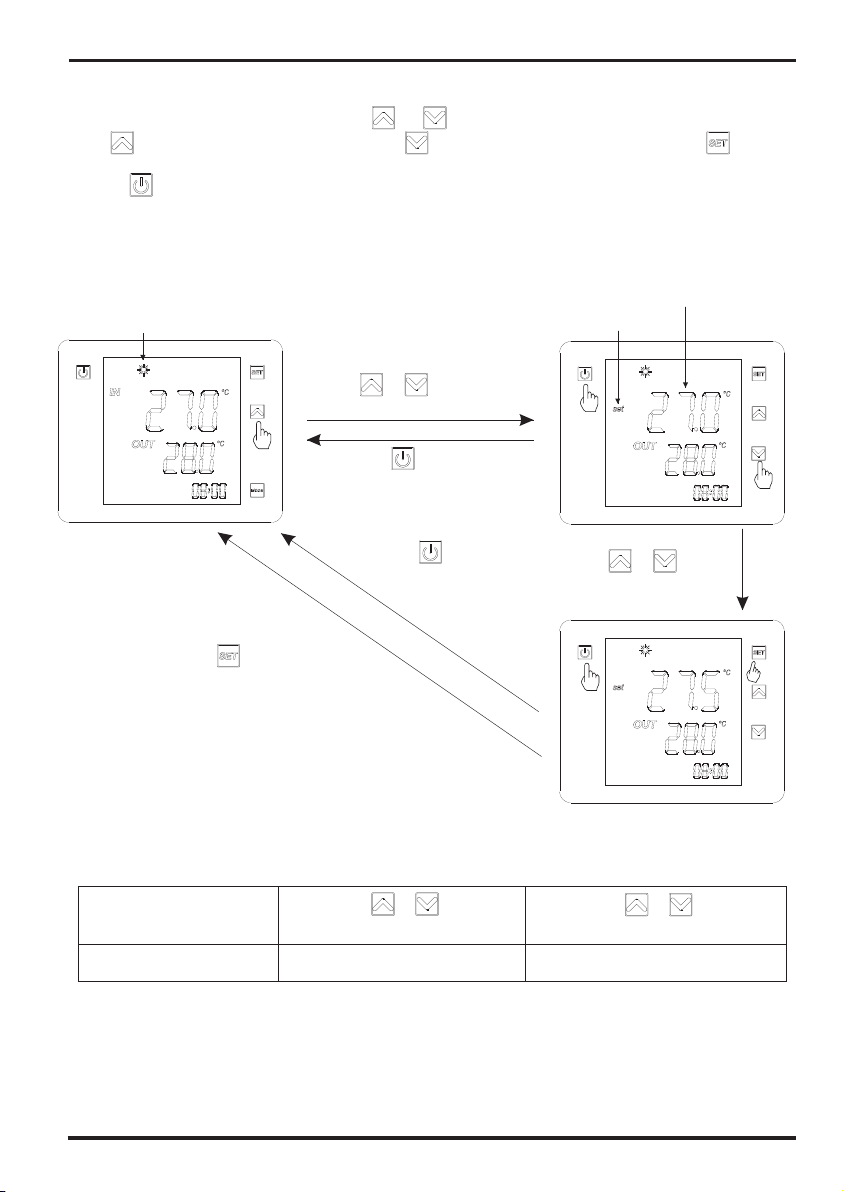

For example:
At power on/off main interface,
power on/off main interface.
power on/off main interface.
power on/off main interface.
Press to save the settings
or no operation for 20s, it will save
the setting automatically and get back.
Press to return to
main interface without
saving the settings.
Press or to revise
target temp. value.
Remark:
Long press or to change
each time
Operation
Range of temp. variation 0.5℃ 0.5℃
Short press or to change
each time
Press to get back.
Press or to enter target
temperature change page.
Heating target temp flashes
Setting icon lighted on
Heating mode

14
USAGE AND OPERATION

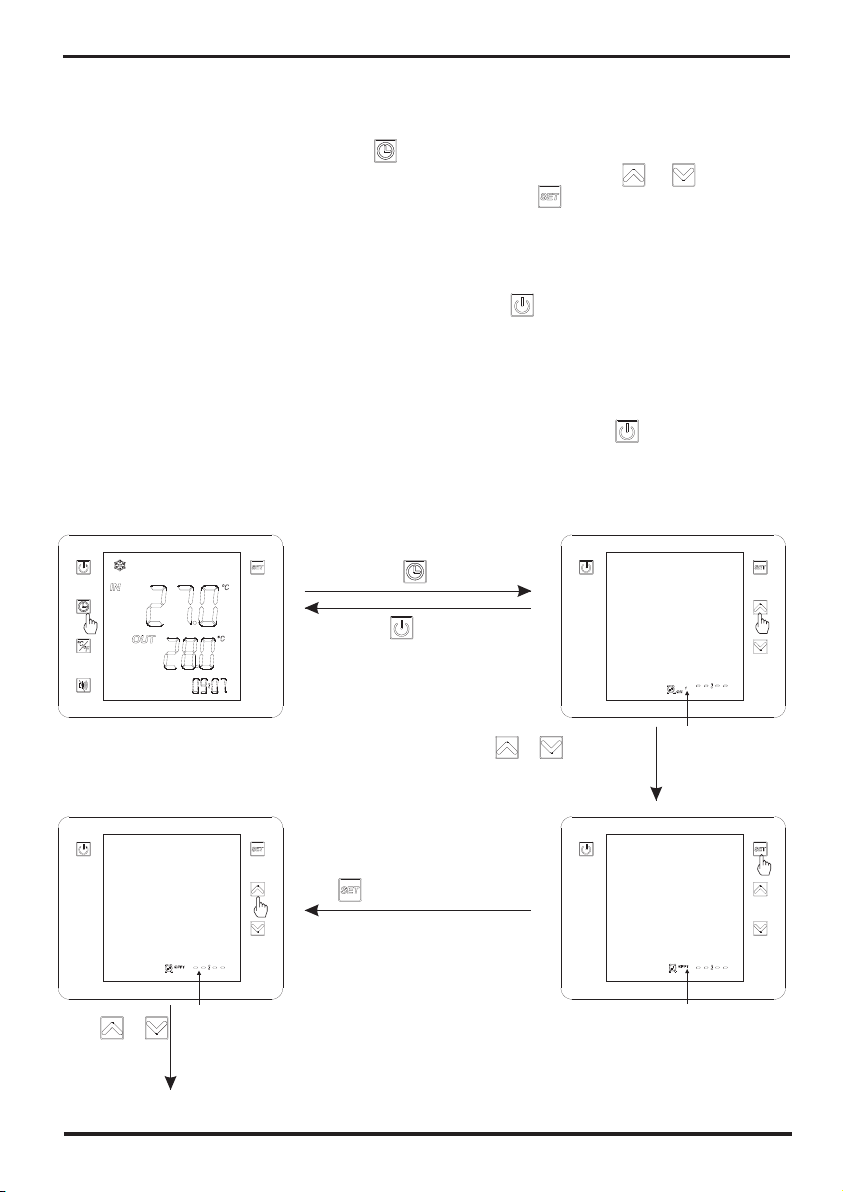

At the advanced user interface, you can set the time of system, sound on/off, timer setting.
At the main interface, press to enter advanced user interface.
For example:
2.4.1 System time setting
At the advanced interface, press the clock ,and the hour digit start to flash, and then
press or to change the hour, press to save the change, use the same way to change
the minute.
During the setting, press to exit system time setting and will not save the settings, if no
operation for 20s, the system will remember the settings automatically and back to the power
on/off interface.
For example:
Power on main interface:
Advanced user interface:
Power off main interface:
2.4 Advanced user interface
Press to enter the
advanced user interface.
Press to back to
interface automatically.
power on
Press to enter the
advanced user interface.
Press to back to
interface automatically.
power off
Advanced user interface:

15
USAGE AND OPERATION
System time is not updated
System time update finished
Press to enter the interface of
system time setting.
Press or no operation for 20s to
back to the power on/off interface.
Hour digit flashes
Hour digit flashes
Press or
to set the minute
digit.
Minute digit flashes
Hour digit update
Press or to
set the hour digit.
Minute digit flashes
Press to save the settings of
hour digit.
Press to
save the minute
digit setting.
Press to go back.
Press to go back.

16
USAGE AND OPERATION
Press to go back.
Press for 2s.
At the advanced user interface, press for 2s to enter timer 1 power on setting interface,
ON 1 in the timing display area and the time display area will flash (press or to change
among ON1, OFF 1, ON 2, OFF 2 and timing low speed. Press and then hour digit flashes,
the setting method is the same as“2.4.1 System time setting”. The ON1 power on time of
timer 1 setting finished, OFF 1 will flash automatically, at this time, the OFF 1 ending time of
timer 1 can be set, setting method is the same as On1.
If you do not need to set the OFF1 power off time of timer 1, after finishing the setting of On1
power on time of timer 1, OFF1 flashes , at this time, press to skip the setting of OFF1
power off time of timer 1 and exit.
If no operation for 20s, the system will remember the setting automatically and back to the
power on/off interface.
Cancel the timing:
it should be done during the hour or minute digit flashing state, press , referring to 2.4.3
for details.

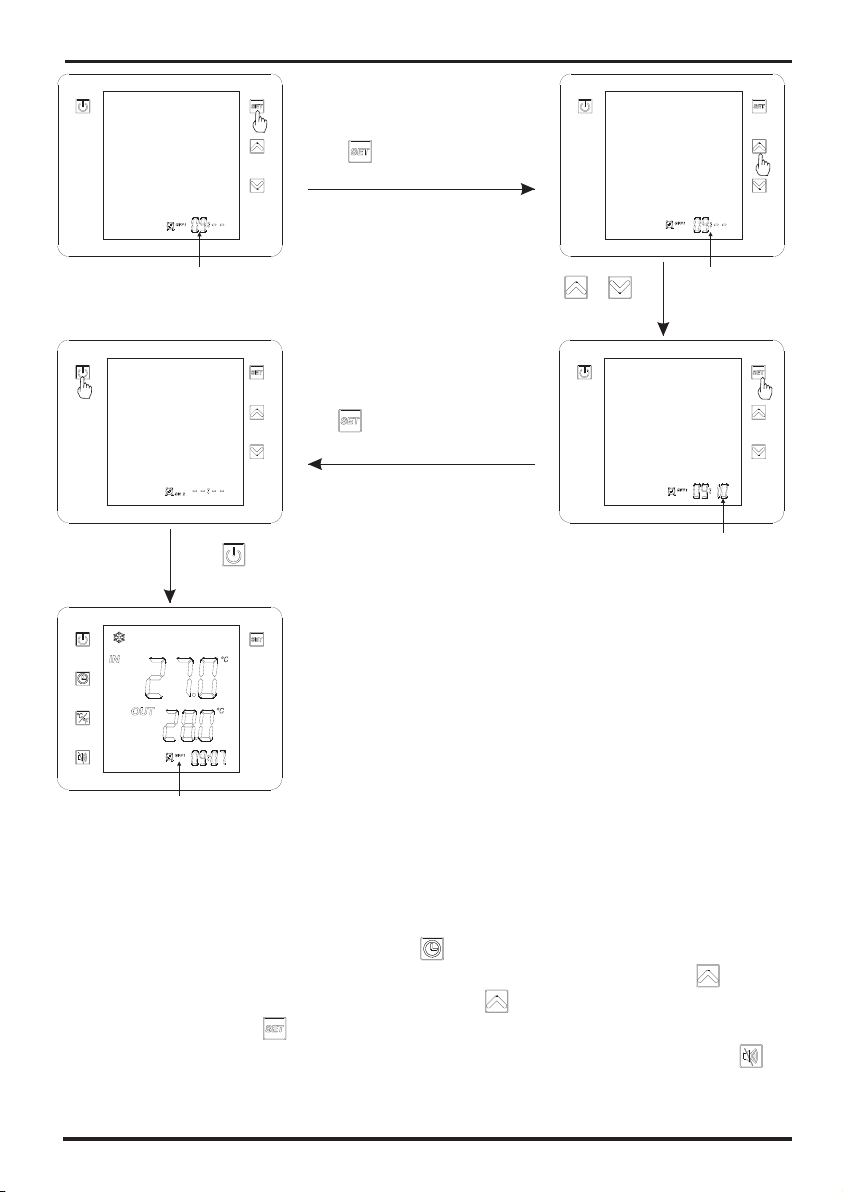

For example:
2.4.2 Timing power on/off and timing mute setting
1). Timing power on/off setting
ON 1 and - -:- - flash
OFF 1 and - -:- - flash
Press or can switch
among the ON 1, OFF 1,ON 2,
OFF 2 and timing mute.
Press and then hour digit flashes.
Hour digit flashes
Press or
to change hour
digit.

17
USAGE AND OPERATION
Hour digit lights up,
minute digit flashes
Press to save hour digit setting,
minute digit flashes automatically.
Press or to
change minute digit
Minute digit flashes
Press to save minute digit setting,
ON 2 flashes automatically.
Press to return to
advanced user interface.
OFF1 and timing icon light on, Timer 1 power off time setting succeed.
The units will be power off at 9:10 automatically, meanwhile, OFF 1 and timing icon light off.
Timing power off mission accomplished.
2). Timing mute setting
At the advanced users interface, long press for 2s to enter timer 1 power on setting
interface. ON 1 in the timing display area and the time display area will flash, press for 4
times to change to timing mute start time setting, press again to change to timing mute
ending time setting, press and then hour digit flashes, method is the same as “Timing
power on/off setting”.Cancel timing mute setting: at the advanced user interface, press
can cancel timing mute setting.
Hour digit flashes
