Spectra Slim Panel
LED ABS / SS

Important
This manual includes essential information on the safety measures to be implemented for installation
and start-up. Therefore, the installer, as well as the user, must read these instructions before beginning
installation and start-up.
Underwater Super Bright
Ultra Slim Panel LED Lighting
Instructions for use
“Adding light to your life”
To be used with:
LED Modulator

atecpool.com

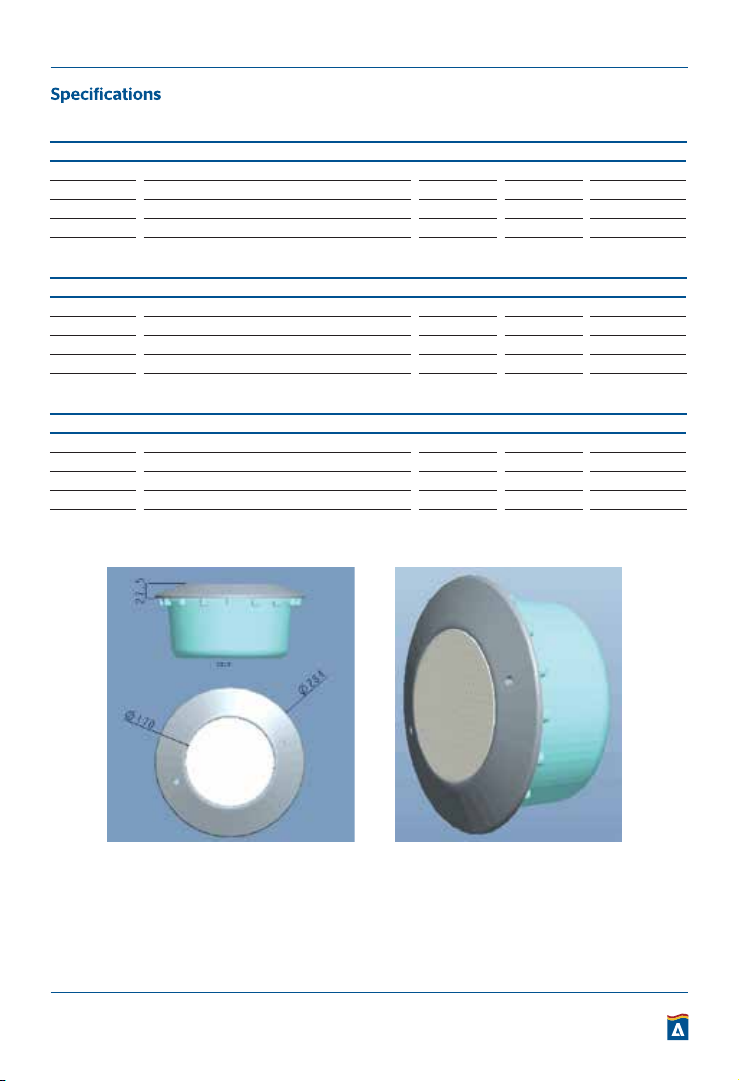

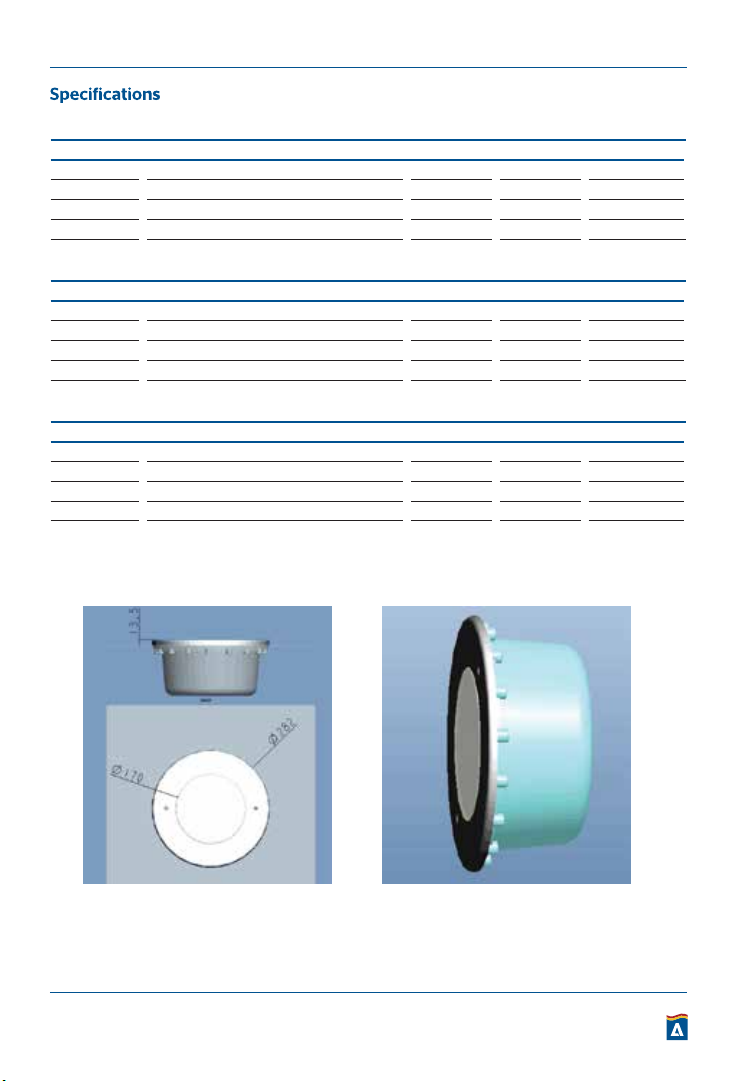

Dimensions
Owner’s Manual > Underwater Super Bright Ultra Slim Panel LED Lighting
Spectra-Slim Panel 252 LED ABS Lighting 18/21W
Code Description Power / Voltage Lumen Color Temperature
18W/12V AC 1350 lm RGB 16 modes
21W/12V AC 2100 lm 6000K
21W/12V AC 2100 lm 3000K
91252 RGB
91252 CW
91252 WW
91252 B
Spectra Panel 252 LED RGB ABS w/ niche
Spectra Panel 252 LED Cool White ABS w/ niche
Spectra Panel 252 LED Warm White ABS w/ niche
Spectra Panel 252 LED Blue ABS w/ niche 21W/12V AC 1900 lm Single Blue
Spectra-Slim Panel 432 LED ABS Lighting 30/33W
Code Description Power / Voltage Lumen Color Temperature
91432 RGB Spectra Panel 432 LED RGB ABS w/ niche 30W/12V AC 2300 lm RGB 16 modes
91432 CW Spectra Panel 432 LED Cool White ABS w/ niche 33W/12V AC 3300 lm 6000K
91432 WW Spectra Panel 432 LED Warm White ABS w/ niche 33W/12V AC 3300 lm 3000K
91432 B Spectra Panel 432 LED Blue ABS w/ niche 33W/12V AC 2800 lm Single Blue
Spectra-Slim Panel 531 LED ABS Lighting 55/60W
Code Description Power / Voltage Lumen Color Temperature
91531 RGB Spectra Panel 531 LED RGB ABS w/ niche 55W/12V AC 4100 lm RGB 16 modes
91531 CW Spectra Panel 531 LED Cool White ABS w/ niche 60W/12V AC 5200 lm 6000K
91531 WW Spectra Panel 531 LED Warm White ABS w/ niche 60W/12V AC 5200 lm 3000K
91531 B Spectra Panel 531 LED Blue ABS w/ niche 60W/12V AC 4650 lm Single Blue

atecpool.com
Dimensions
Owner’s Manual > Underwater Super Bright Ultra Slim Panel LED Lighting
Spectra-Slim Panel 252 LED S.S. 316 Lighting 18/21W
Code Description Power / Voltage Lumen Color Temperature
93252 RGB Spectra Panel 252 LED RGB S.S. 316 w/ ABS niche 18W/12V AC 1350 lm RGB 16 Mode
93252 CW Spectra Panel 252 LED Cool White S.S. 316 w/ ABS niche 21W/12V AC 2100 lm 6000K
93252 WW Spectra Panel 252 LED Warm White S.S. 316 w/ ABS niche 21W/12V AC 2100 lm 3000K
93252 B Spectra Panel 252 LED Blue S.S. 316 w/ ABS niche 21W/12V AC 1900 lm Single Blue
Spectra-Slim Panel 432 LED S.S. 316 Lighting 30/33W
Code Description Power / Voltage Lumen Color Temperature
93432 RGB Spectra Panel 432 LED RGB S.S. 316 w/ ABS niche 30W/12V AC 2300 lm RGB 16 Mode
93432 CW Spectra Panel 432 LED Cool White S.S. 316 w/ ABS niche 33W/12V AC 3300 lm 6000K
93432 WW Spectra Panel 432 LED Warm White S.S. 316 w/ ABS niche 33W/12V AC 3300 lm 3000K
93432 B Spectra Panel 432 LED Blue S.S. 316 w/ ABS niche 33W/12V AC 2800 lm Single Blue
Spectra-Slim Panel 531 LED S.S. 316 Lighting 55/60W
Code Description Power / Voltage Lumen Color Temperature
93531 RGB Spectra Panel 531 LED RGB S.S. 316 w/ ABS niche 55W/12V AC 4100 lm RGB 16 Mode
93531 CW Spectra Panel 531 LED Cool White S.S. 316 w/ ABS niche 60W/12V AC 5200 lm 6000K
93531 WW Spectra Panel 531 LED Warm White S.S. 316 w/ ABS niche 60W/12V AC 5200 lm 3000K
93531 B Spectra Panel 531 LED Blue S.S. 316 w/ ABS niche 60W/12V AC 4650 lm Single Blue

atecpool.com
This is a high technology electronic controlled light based on LED’s in three colors: red, green
and blue. These three base colors together can produce many other colors to create the perfect
LED’s are driven by constant current. The technology of True PWM is adopted on the lights. High
temperature protection makes the LED’s protected while the internal temperature reaches a
high level. All these technologies guarantee long working life of the LED lamps. The lights must
be used / operated while fully submerged underwater only.
•
lamps that need replacement.
•This lamp is designed to be used only once. Should it become defective, repair is impossible,
and replacement is necessary.
•The manufacturer is not responsible in any circumstances for assembly, installation or start-
up of any electric components which have been inserted or handled at locations other than
its own premises
16 Programs of RGB LED Bulbs
1. White: sun white
2. Red: one color red
3. Green: one color green
4. Blue: one color blue
5.
6.
7.
8. Evening sea: slow animation red/blue
9. Evening rivers: slow animation red/green
10. Riviera: slow animation green/blue
11. White: neutral white
12. Rainbow: slow animation blue/red/green
13. River of colors: program 12, followed by program 15
14. Disco: fast animation
15. Four seasons: slow animation in red/blue/green/violet
16. Party: fast animation
Owner’s Manual > Underwater Super Bright Ultra Slim Panel LED Lighting

atecpool.com
Installation
All lamps should be placed on the wall of the pool at approximately 700mm below the water
surface, in areas that are easily accessible from the upper edge of the pool.
•It is highly recommended to use the underwater cable gland
•All lamps should be installed on the same transformer and switch.
•The lamp is supplied with cable of 2m, 4m, 6m, 10m, 16m or 20m according to the need of
the user, making it possible to install multiple lamps connected to a single junction box.
Disassemble the bracket from the back of the lamp. Place the bracket over the desired location,
mark the holes, drill the holes, insert the wall plugs, and fasten the bracket on the pool wall using
the stainless steel screws provided. Wind the cable behind the lamp, and then fasten the lamp
on the bracket.
Installation
Prior to commencing, make sure there is no electricity passing through the wires and cables
to be connected. Mount the transformer on a solid and secure wall at a minimum distance of
2 meters from any water source or pipes. Connect the 220V input voltage into the terminals
clearly marked as 220V AC INPUT. Connect the lamp cables to the terminals clearly marked
as LAMP 12VAC OUTPUT. It is good practice to check and verify that there is a fuse inside the
fuse carrier, and that it is functioning. It is essential to make sure the connections are as tight as
possible in order to avoid sparking.
Owner’s Manual > Underwater Super Bright Ultra Slim Panel LED Lighting
concrete Liner
concrete Liner
Spectra-Slim Panel ABS Lighting
Spectra-Slim Panel SS Lighting

atecpool.com

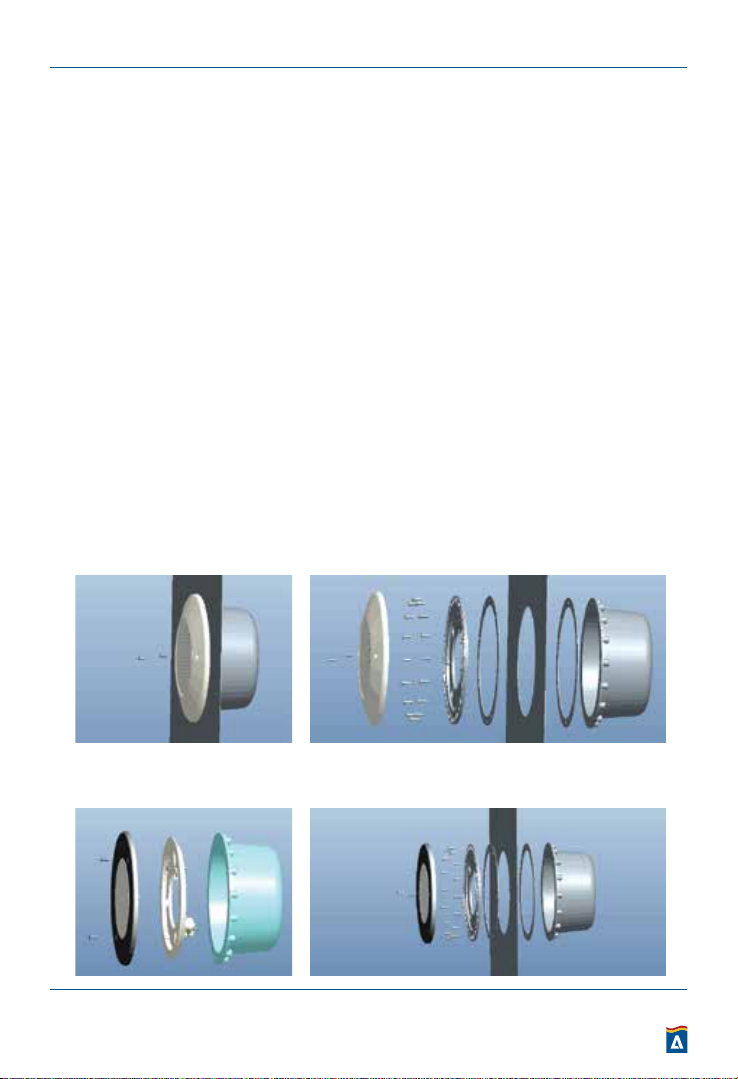

outer ring. Refer to the below picture.
Installation
There is no maintenance required for this lamp – it is designed to be used only once, meaning
that replacement is necessary if it becomes defective (repairing is impossible). Before any
handling, ensure that there is NO voltage supplied to the lamp. To replace, unfasten the lamp
from the bracket. Ensure the new lamp is of the same model and characteristics as the one
being replaced.
Owner’s Manual > Underwater Super Bright Ultra Slim Panel LED Lighting

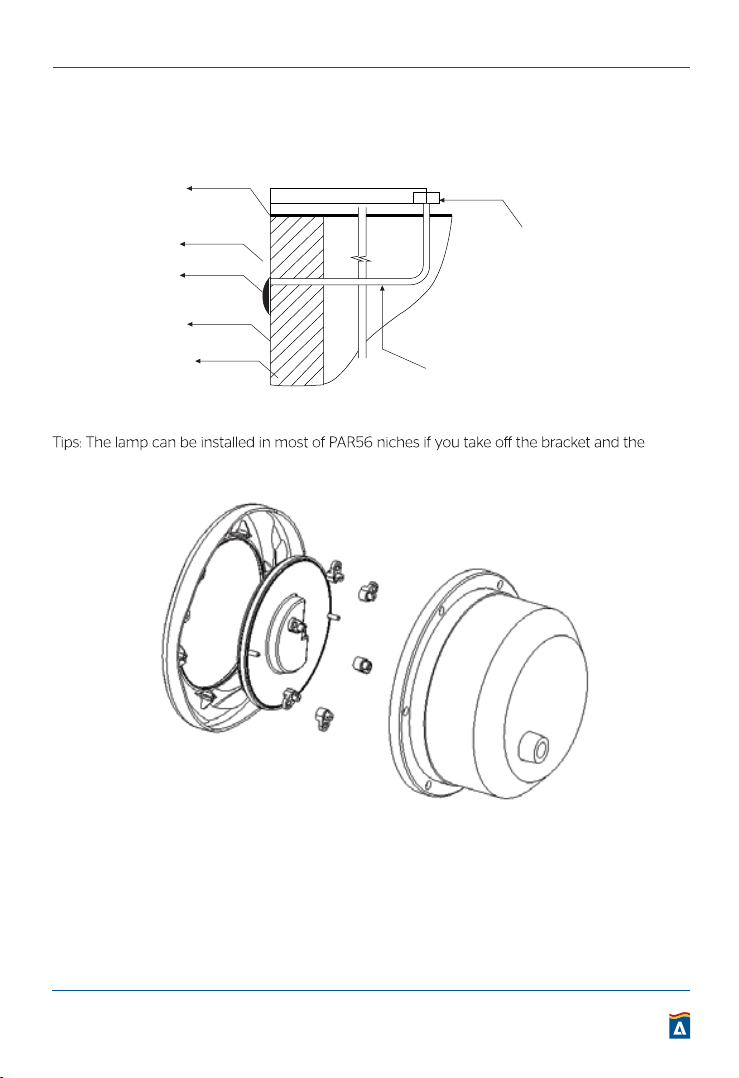

1200mm(minimum)
Min. From bottom of
Junction box or low voltage
Transformer to water line
To GFCL circuit breaker and
power source
Rigid conduit
Pool wall
Decorative surface
Screw at top
Min.from water line
to top of lens
INSTALLATION DIAGRAM

atecpool.com

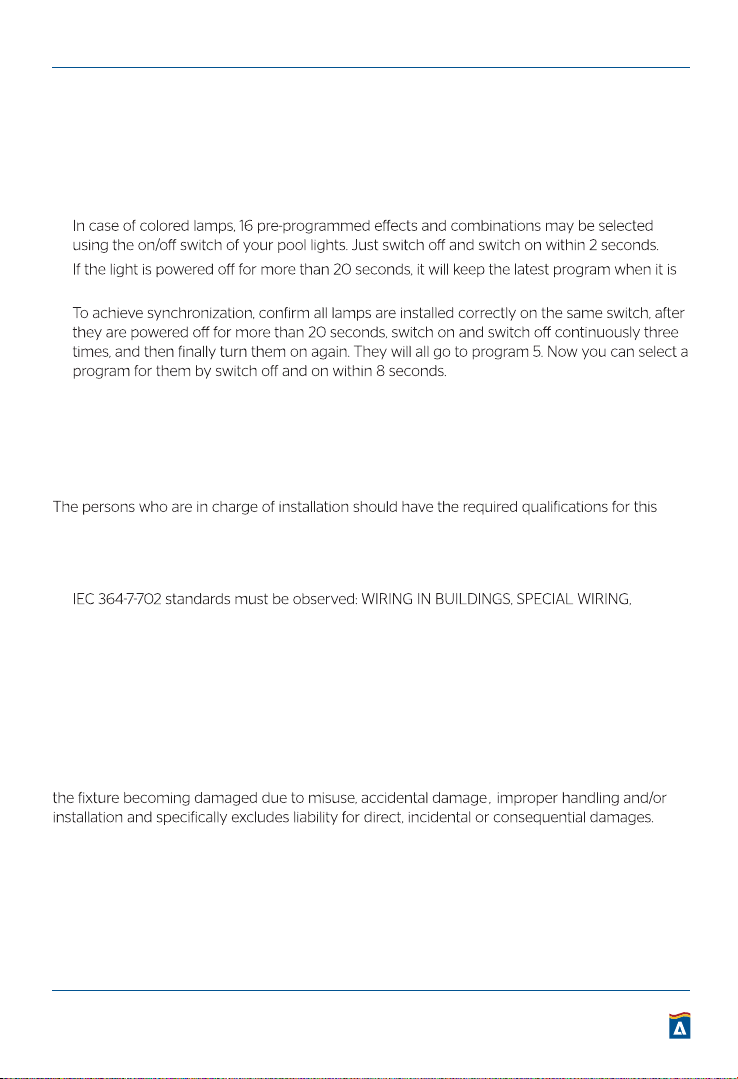

Start-up
•The lamp should only be operated underwater while secured to the vertical walls of the pool.
Never switch on the lamp if it is not underwater.
•
•
turned on again.
•
•Alternatively, we recommend using our optional controller (with in-built safety transformer)
which comes with (a) remote control for easy operation and (b) auxiliary connection of 24V
for operation of any other electrical item.
Safety Warnings
type of work.
•Avoid making contact with the electric voltage.
•Comply with the current standards regarding accident prevention.
•
SWIMMING POOLS.
•Replacement must be performed with the lamp disconnected from the electric power
system.
•Do not handle any electrical components with wet feet.
Warranty
The manufacturer warrants this LED underwater lights against defects in materials and
workmanship for a period of one year from the date of purchase. This warranty does not cover
Owner’s Manual > Underwater Super Bright Ultra Slim Panel LED Lighting

Manufacturer: ATECPOOL INTERNACIONAL ESPAÑA
Address City: 2aPlanta - Muelle de Barcelona
Country: Spain
Declaration the following apparatus:
Place: SPAIN
Date: 05-06-2011
EC DECLARATIONS OF CONFORMITY
Product Name: Underwater Super Bright Ultra Slim Panel LED Lighting
Model Name: Spectra-Slim LED Panel ABS / SS
Code for ABS: 91252 RGB, 91252 CW, 91252 WW, 91252 B
91432 RGB, 91432 CW, 91432 WW, 91432 B
91531 RGB, 91531 CW, 91531 WW, 91531 B
atecpool.com
Swimming Pool / Water Feature Underwater LED Lighting
CE Directives
The designated product meets the essential safety reqirements of the EC-Directive
2004/108 EC Electromagnetic Compatibility Directive and 2006/95/EC Low Voltage Directive.
2004/108 EC Electromagnetic Compatibility Directive and 2006/95/EC Low Voltage Directive.
The confirmity with the provisions of this directive is proved by the compliance with
following standards
We hereby declare that the equipment above named has been designed to comply with the
relevant sections of above referenced specifications. The unit complies with all applicable
Essential Requirements of the Directives.
EN 60598-1: 2009
EN 60598-1/AMD 1 1
EN 60598-2-18
EN 60598-2-18: 1994/AMD 1
Owner’s Manual > Underwater Super Bright Ultra Slim Panel LED Lighting
Spectra-Slim Panel 252 LED ABS Lighting 18/21W
Spectra-Slim Panel 432 LED ABS Lighting 30/33W
Spectra-Slim Panel 531 LED ABS Lighting 55/60W
Product description:
Spectra-Slim Panel 252 LED S.S. 316 Lighting 18/21W
Spectra-Slim Panel 432 LED S.S. 316 Lighting 30/33W
Spectra-Slim Panel 531 LED S.S. 316 Lighting 55/60W
Code for SS: 93252 RGB, 93252 CW, 93252 WW, 93252 B
93432 RGB, 93432 CW, 93432 WW, 93432 B
93531 RGB, 93531 CW, 93531 WW, 93531 B
