ATEN VE802 User manual

VE802
HDMI HDBaseT-Lite Extender
with PoH

VE802 User Manual
ii
Compliance Statements
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE
STATEMENT
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC ules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
The device complies with Part 15 of the FCC ules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC Caution
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
Warning
Operation of this equipment in a residential environment could cause radio
interference.
Achtung
Der Gebrauch dieses Geräts in Wohnumgebung kann Funkstörungen
verursachen.
KCC Statement

VE802 User Manual
iii

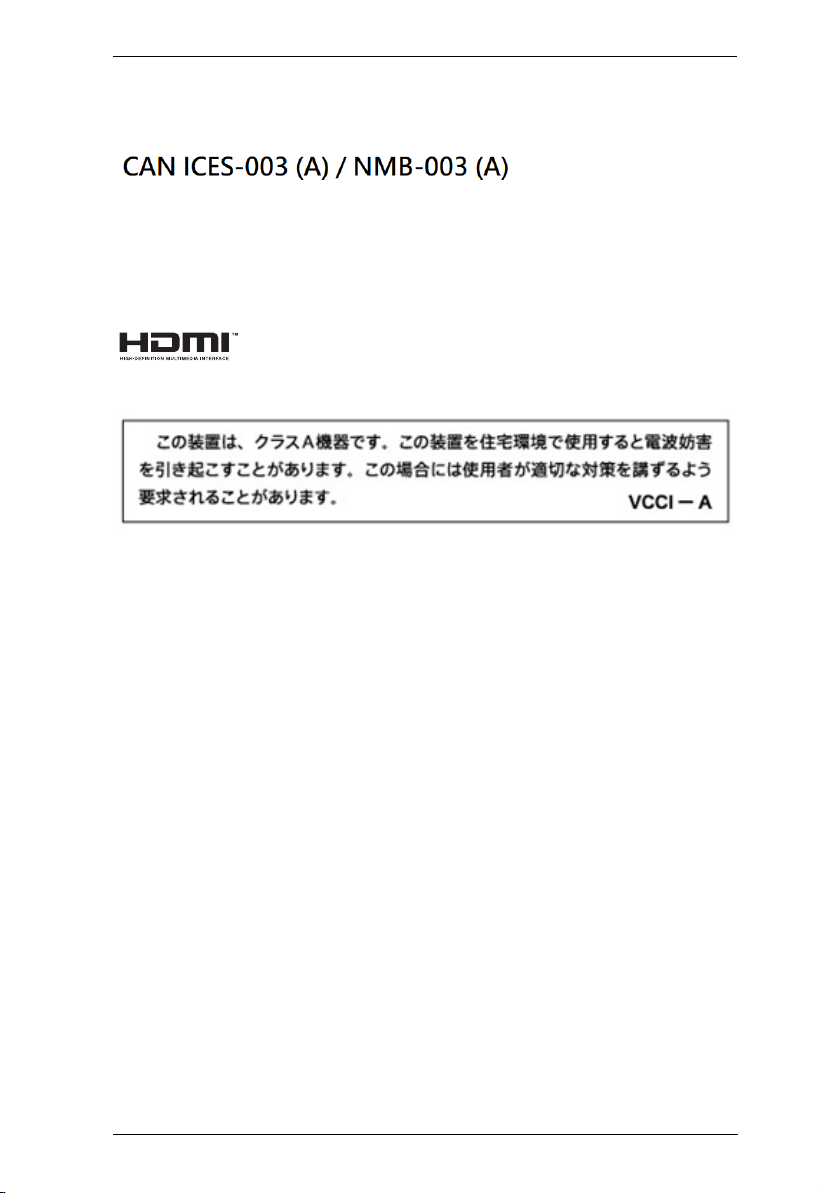

Industr Canada Statement
This Class A digital apparatus complies with Canadian ICES-003.
HDMI Trademark Statement
The terms HDMI, HDMI High-Definition Multimedia Interface, and the
HDMI Logo are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc.
VCCI Statement
RoHS
This product is oHS compliant.

VE802 User Manual
iv
User Information
Online Registration
Be sure to register your product at our online support center:
Telephone Support
For telephone support, call this number:
User Notice
All information, documentation, and specifications contained in this manual
are subject to change without prior notification by the manufacturer. The
manufacturer makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any
warranties as to merchantability or fitness for any particular purpose. Any of
the manufacturer's software described in this manual is sold or licensed as is.
Should the programs prove defective following their purchase, the buyer (and
not the manufacturer, its distributor, or its dealer), assumes the entire cost of all
necessary servicing, repair and any incidental or consequential damages
resulting from any defect in the software.
The manufacturer of this system is not responsible for any radio and/or TV
interference caused by unauthorized modifications to this device. It is the
responsibility of the user to correct such interference.
The manufacturer is not responsible for any damage incurred in the operation
of this system if the correct operational voltage setting was not selected prior
to operation. PLEASE VE IFY THAT THE VOLTAGE SETTING IS
CO ECT BEFO E USE.
International http://eservice.aten.com
International 886-2-8692-6959
hina 86-400-810-0-810
Japan 81-3-5615-5811
Korea 82-2-467-6789
North America 1-888-999-ATEN ext 4988
1-949-428-1111

VE802 User Manual
v
Product Information
For information about all ATEN products and how they can help you connect
without limits, visit ATEN on the Web or contact an ATEN Authorized
eseller. Visit ATEN on the Web for a list of locations and telephone numbers:
Package Contents
VE8 2 Package Contents
1 VE802T/ HDMI HDBaseT-Lite Extender with PoH
1 Power Adapter
1 I Transmitter
1 I eceiver*
2 Terminal Blocks
1 User Instructions
VE8 2T Package Contents
1 VE802T HDMI HDBaseT-Lite Transmitter with PoH
1 Power Adapter
1 I Transmitter
1 Terminal Block
1 User Instructions
VE8 2R Package Contents
1 VE802 HDMI HDBaseT-Lite eceiver with PoH
1 I eceiver*
1 Terminal Block
1 User Instructions
1 Power Adapter
Check to make sure that all the components are present and that nothing got
damaged in shipping. If you encounter a problem, contact your dealer.
International http://www.aten.com
North America http://www.aten-usa.com

VE802 User Manual
vi
ead this manual thoroughly and follow the installation and operation
procedures carefully to prevent any damage to the unit, and/or any of the
devices connected to it.
Features may have been added to the VE802 since this manual was published.
Please visit our website to download the most up-to-date version of the manual.
Note: * The included I receiver supports full frequency I signals from
30kHz to 60kHz. The I receiver cable included with the package,
however, only supports signals from 30kHz to 56 kHz.

VE802 User Manual
vii
Contents
ompliance Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Online Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Telephone Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
User Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Product Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Package ontents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
VE802 Package ontents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
VE802T Package ontents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
VE802R Package ontents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .viii
onventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix
1. Introduction
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Source Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
ables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
omponents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2. Hardware Setup
Setting Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installation Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
RS-232 hannel Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3. Operation
LED Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
VE802T (Transmitter) and VE802R (Receiver) 13
Appendix 15
Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
International . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
North America . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

VE802 User Manual
viii
About this Manual
This User Manual is provided to help you get the most from your system. It
covers all aspects of installation, configuration and operation. An overview of
the information found in the manual is provided below.
Chapter 1, Introduction, introduces you to the VE802 system. Its purpose,
features and benefits are presented, and its front and back panel components
are described.
Chapter 2, Hardware Setup, describes the steps that are necessary to
quickly and safely set up your installation.
Chapter 3, Operation, explains the fundamental concepts involved in
operating the VE802
An Appendix, provides specifications and other technical information
regarding the VE802.
Note:
ead this manual thoroughly and follow the installation and operation
procedures carefully to prevent any damage to the unit and/or connected
devices.
The product may be updated, with features and functions added, improved,
or removed since the release of this manual. For an up-to-date user
manual, visit http://www.aten.com/global/en/.

VE802 User Manual
ix
Conventions
This manual uses the following conventions:
Monospaced Indicates text that you should key in.
[ ] Indicates keys you should press. For example, [Enter] means to
press the Enter key. If keys need to be chorded, they appear
together in the same bracket with a plus sign between them:
[ trl+Alt].
1. Numbered lists represent procedures with sequential steps.
♦Bullet lists provide information, but do not involve sequential steps.
>
Indicates selecting the option (on a menu or dialog box, for
example), that comes next. For example, Start > Run means to
open the Start menu, and then select Run.
Indicates critical information.

VE802 User Manual
x
This Page Intentionally Left Blank

1
Chapter 1
Introduction
Overview
The VE802 HDMI HDBaseT-Lite Extender extends an HDBaseT signal up to
70m from the HDBaseT source using one Cat 5e/6 cable. VE802 supports S-
232 and I signaling pass-through, allowing you to control the HDMI source
device from the remote unit (VE802 ) while also granting access to the HDMI
display device from the local unit (VE802T). I signals can also be extended
in both directions. The VE802 features Power over HDBaseT (PoH) which can
send power over Cat 5e/6 cable without an additional power supply. The
VE802 is HDMI (3D, Deep Color,4kx2k) and HDCP compatible. The VE802
is perfect for a digital entertainment center or any installation that requires
superior video quality.

VE802 User Manual
2
Features
HDBaseT Connectivity – extends an HDMI connection over a long
distance via one Cat 5e/6a cable
HDBaseT Anti-jamming – resists signal interference during high-quality
video transmission using HDBaseT technology
EDID Expert – configures optimum EDID settings for smooth power-up,
high-quality display and use of the best resolution across different screens
PoH (Power over HDBaseT) – supplies power from Transmitter to
eceiver over a long distance via one Cat 5e/6a cable
A bi-directional S-232 serial port to connect with a high-end system for
more device control
A bi-directional I channel for I signal control; I transmission is
processed one way at a time
Supports I signal frequencies from 30kHz to 60kHz*
ack- Mountable
Note: * The included I receiver supports full frequency I signals from
30kHz to 60kHz. The I receiver cable included with the package,
however, only supports signals from 30kHz to 56 kHz.

hapter 1. Introduction
3
Requirements
Display
An HDMI display capable of the highest required resolution
Source Device
The following equipment is required:
A source device with an HDMI port
Cables
Cat 5e cable is required to connect the Transmitter and eceiver units.
Cable of a lower standard will result in degrading the video signal. We
strongly recommend using Cat 5e cables or above.
For better quality over longer distances, we suggest using 2L – 2801 (350
MHz) Low Skew Cable.
Maximum Cable Distances
Note:* 70m is the maximum cable distance when using a Cat 6a or above
cable.
Connection Distance
omputer to Transmitter (VE802T) 3 m
Transmitter (VE802T)
to Receiver (VE802R)
70 m*
Receiver (VE802R) to monitor 3 m

VE802 User Manual
4
Components
See Chapter 3, Operation for details.
No. Component Description
1 F/W Upgrade Switch The Firmware upgrade port is reserved for tech
support. If you would like to do a firmware
upgrade yourself, please contact your dealer.
2 IR Port onnect an IR Transmitter to the IR port on the
VE802T.
3 RS-232 Port You can connect the RS-232 main controller to the
VE802, such as the P or ontrol system.
4 HDMI Input Port onnect the HDMI Input Port on the VE802T to
the HDMI Output Port on the video source device
using an HDMI cable.
5 HDBaseT Output Port The at 5e cables that connects the Receiver
Units, plug in here.
6 Locking Power Jack The cable from the Power adapter connects here.

hapter 1. Introduction
5
VE802T Top View

VE802 User Manual
6
No. Component Description
1 HDBaseT Input Port The at 5e cables that connects to the
Transmitter Unit plugs in here.
2 Locking Power Jack The cable from the Power adapter connects here.
3 F/W Upgrade Switch The Firmware upgrade port is reserved for tech
support. If you would like to do a firmware
upgrade yourself, please contact your dealer.
4 IR Port onnect an IR Receiver to the IR port on the
VE802R.
5 RS-232 Port You can connect RS-232 serial devices/
peripherals to the VE802, such as touchscreens
and bar code scanners.
6 HDMI Output Port onnect the HDMI display to this port.

hapter 1. Introduction
7
See Chapter 3, Operation for details.
VE802R Top View

VE802 User Manual
8
This Page Intentionally Left Blank

Chapter 2
Hardware Setup
Setting Up
Setting up the VE802 HDBaseT-Lite Extender system is simply a matter of
plugging in the cables. Make sure that all the equipment to be connected are
powered off, then refer to the installation diagram on the next page and do the
following:
1. Connect the HDMI Input Port on the VE802T to the HDMI Output Port on
your video source device using HDMI cable.
2. Connect one end of the J-45 cable to the HDBaseT output port on the
transmitter. Then connect the other end of the J-45 cable to the HDBaseT
input port on the receiver.
3. Connect the HDMI Output Port on the VE802 to the HDMI Input Port on
your video display device using HDMI Cable.
4. Plug the power adapter into the power jack on the VE802T.
(Optional) Plug the power adapter into the Power Jack on the VE802 if
necessary.
5. (Optional) Connect you computer or controller system to the terminal
block on the VE802 to serial commands
6. (Optional) Connect an I Transmitter/ eceiver to the I port on the
VE802T/VE802 .
1. Important safety information is provided on page 15. Please
review it before proceeding.
2. Make sure that the power to all devices connected to the
installation are turned off. You must unplug the power cords of
any computers that have the Keyboard Power On function.

VE802 User Manual
10
Installation Diagram
RS-232 Channel Transmission
You can connect S-232 serial devices/peripherals to the VE802, such as
touchscreens and bar code scanners. The S-232 signal transmission flow is
shown in the following example:
From a source device, the S-232 signal is transmitted (Tx) to the VE802T
receiving ( x) unit; the VE802 transmits (Tx) signals to the display device
( x).
