CS1822 / CS4824 RS-232 Commands
3
RS-232 Operation
Overview
The CS1822 / CS1824’s built-in bi-directional RS-232 serial interface allows
system control through a high-end controller or PC. RS-232 serial operations
in a CS1822 / CS1824 installation are managed via HyperTerminal sessions on
systems that are running Windows. In order to use this feature to send
commands to the CS1822 / CS1824, you must first download and install a
HyperTerminal application. For detailed instructions and information about
each of the commands provided in this manual, please refer to the CS1822 /
CS1824 user manual.
Setup
Install a HyperTerminal application on a computer that is not part of the
installation, which will be used to control the switch via the RS-232
connection. HyperTerminal applications can be download from the Internet,
and many operating systems are embedded with HyperTerminal applications.
Hardware Connection
Use a RJ-11 to DB-9 serial adapter (LIN5-04A2-J11G) to connect a
computer’s serial port to the serial port on the CS1822 / CS1824, as shown
below:

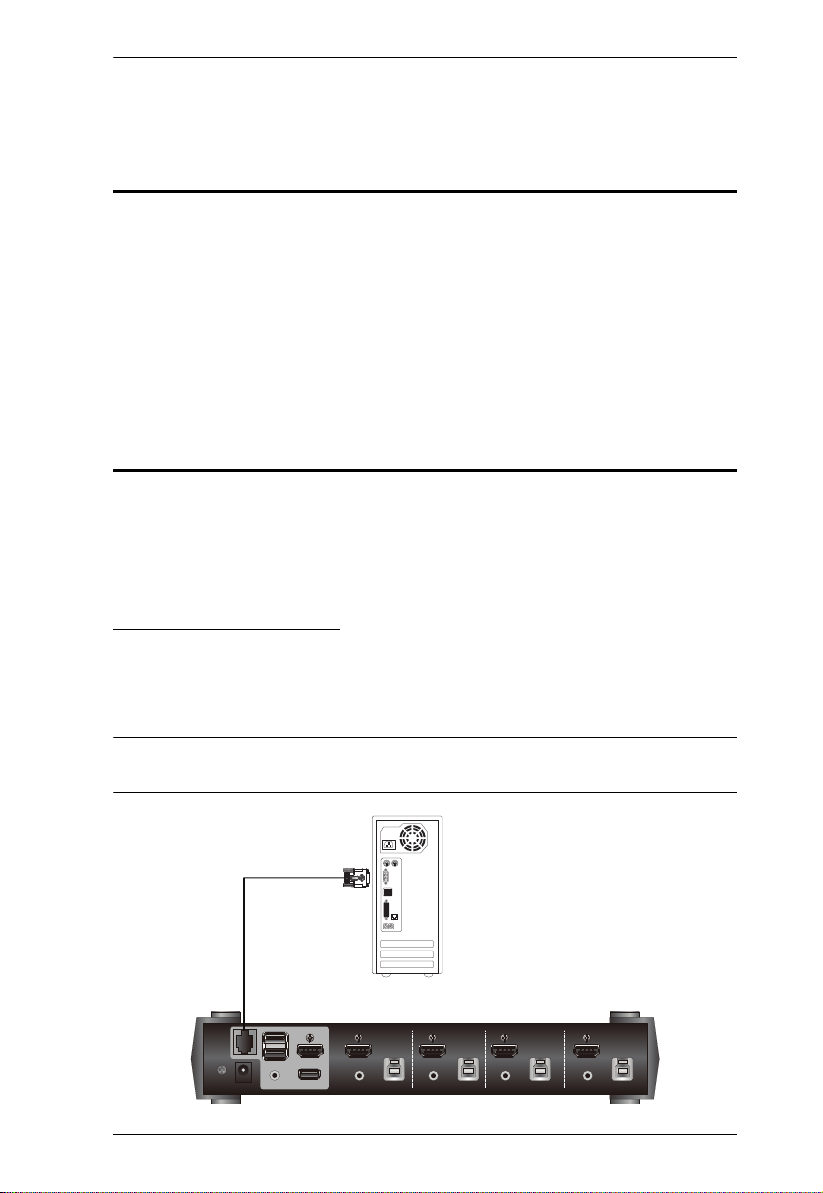

Note: The unit used in the diagram below is CS1824, the procedure for
connecting CS1822 is identical with fewer KVM ports.
RJ-11 to DB-9 Adapter

CS1822 / CS4824 RS-232 Commands
4
RS-232 Pin Assignments
Pin assignments for the CS1822 / CS1824’s rear RJ-11 Serial Port that is used
for connecting to a serial terminal are given in the table, below:
Note: This RJ-11 female connector is 4P4C.
Pin Assignment
1 TXD: Transmit Data
RJ-11 Female
2 RXD: Receive Data
3N/A
4 GND: Signal Ground
14

CS1822 / CS4824 RS-232 Commands
5
Console Login - HyperTerminal
Once a physical connection from the computer to the CS1822 / CS1824 has
been made, you can establish a HyperTerminal session using the instructions
below.
1. Open the HyperTerminal application, and configure the port settings for
COM1 port, then click OK.
Bits per Second: 19200, Data Bits: 8, Parity: None, Stop bits: 1, Flow Control:
None.
2. After configuring the port settings you must enable serial control on the
switch by typing the command: Open + [Enter].

CS1822 / CS4824 RS-232 Commands
6
RS-232 Commands
After you login via HyperTerminal (see Console Login - HyperTerminal) use
the instructions below to send RS-232 commands to control the switch from the
computer.
When RS-232 control is enabled via the Open + [Enter] command, the
CS1822 / CS1824’s front panel pushbuttons and hotkeys (excluding the mouse
cursor shift and monitor layout hotkeys) will be disabled, until the serial
connection is closed.
For detailed information about the controls listed in this guide, please refer to
the CS1822 / CS1824 user manual.
Verification
After entering a command, a verification message appears, as shown below, at
the end of the command line, as follows:
With all commands in the sections that follow:
Each command string can be separated with a space.
The [Enter] command can be replaced with the ASCII code: 0x0D0A
Response Message Description
Command OK Command or parameter is correct.
Command incorrect Command or parameter is incorrect.

CS1822 / CS4824 RS-232 Commands
7
Open / Close
The Open and Close commands allows you to start and end the link between
the computer sending RS-232 commands and the CS1822 / CS1824. When the
link is open, the CS1822 / CS1824 only accepts RS-232 commands and will
not respond to front panel pushbuttons and hotkeys (excluding the mouse
cursor shift and monitor layout hotkeys) – until the link is closed. The link
starts with the open command and ends with the close command or after 2
minutes if no command is sent. The default value is close.
Use the Formula - to set Parameters - to create a Command.
Formulas:
Command + [Enter]
Parameters:
Open/Close RS-232 Link Command
The available formulas for the Open/Close RS-232 Link commands are as
follows:
1. Command + [Enter]
For example, to open the RS-232 link between the computer and CS1822 /
CS1824, type the following:
open [Enter]
2. Command + [Enter]
For example, to close the RS-232 link between the computer and CS1822 /
CS1824, type the following:
close [Enter]
Command Description
open Open RS-232 Link command
close Close RS-232 Link command
Enter Description
Enter Enter and send out command

CS1822 / CS4824 RS-232 Commands
8
Switch Port
The Switch Port command allows you to switch ports. The default port is 01.
Use the Formula - to set Parameters - to create a Command.
Formula:
Command + Control + [Enter]
Parameters:
Switch Port Commands
Some available formulas for the Switch Port commands are as follows:
1. Command + Control + [Enter]
For example, to switch to port 2, type the following:
sw i02 [Enter]
Note: The Control command can be skipped and the default value will be
used.
Command Description
sw Switch Port Command
Control Description
ixx Input Port Number
xx= 01~02 (CS1822) / 01~04 (CS1824)
Enter Description
Enter Enter and send out command

CS1822 / CS4824 RS-232 Commands
9
Set Baud Rate
The Set Baud Rate command allows you to configure the baud rate setting for
the serial port connection. The default baud rate is 19200.
Use the Formula - to set Parameters - to create a Command.
Formula:
Command + Control + [Enter]
Parameters:
Set Baud Rate Commands
Some available formulas for the Set Baud Rate commands are as follows:
1. Command + Control + [Enter]
For example, to set the baud rate to 19200, type the following:
baud 19200 [Enter]
2. Command + Control + [Enter]
For example, to set the baud rate to 38400, type the following:
baud 38400 [Enter]
Command Description
baud Baud Rate Command
Control Description
19200 Set baud rate to 19200 (Default)
38400 Set baud rate to 38400
9600 Set baud rate to 9600
Enter Description
Enter Enter and send out command

CS1822 / CS4824 RS-232 Commands
10
Keyboard Language Layout
The Keyboard Language Layout command allows you to change the keyboard
language layout. The default language is English.
Use the Formula - to set Parameters - to create a Command.
Formula:
Command + Control + [Enter]
Parameters:
Keyboard Language Layout Commands
Some available formulas for Keyboard Language Layout commands are as
follows:
1. Command + Control + [Enter]
For example, to change the keyboard language layout to Japanese, type the
following:
layout jp [Enter]
2. Command + Control + [Enter]
For example, to change the keyboard language layout to French, type the
following:
layout fr [Enter]
Command Description
layout Keyboard Language Layout Command
Control Description
en Change the keyboard language layout to
English (Default)
fr Change the keyboard language layout to
French
jp Change the keyboard language layout to
Japanese
ge Change the keyboard language layout to
German
Enter Description
Enter Enter and send out command
