ATEN CL6708MW User manual

CL6708MW
8-Port USB DVI Single Rail
WideScreen LCD KVM Switch
User Manual

CL6708MW User Manual
ii
Compliance Statements
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE
STATEMENT
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC ules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
The device complies with Part 15 of the FCC ules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC Caution
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
Warning
Operation of this equipment in a residential environment could cause radio
interference.
Achtung
Der Gebrauch dieses Geräts in Wohnumgebung kann Funkstörungen
verursachen.
KCC Statement

CL6708MW User Manual
iii
Industr Canada Statement
This Class A digital apparatus complies with Canadian ICES-003.
RoHS
This product is oHS compliant.

CL6708MW User Manual
iv
User Information
Online Registration
Be sure to register your product at our online support center:
Telephone Support
For telephone support, call this number:
User Notice
All information, documentation, and specifications contained in this manual
are subject to change without prior notification by the manufacturer. The
manufacturer makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any
warranties as to merchantability or fitness for any particular purpose. Any of
the manufacturer's software described in this manual is sold or licensed as is.
Should the programs prove defective following their purchase, the buyer (and
not the manufacturer, its distributor, or its dealer), assumes the entire cost of all
necessary servicing, repair and any incidental or consequential damages
resulting from any defect in the software.
The manufacturer of this system is not responsible for any radio and/or TV
interference caused by unauthorized modifications to this device. It is the
responsibility of the user to correct such interference.
The manufacturer is not responsible for any damage incurred in the operation
of this system if the correct operational voltage setting was not selected prior
to operation. PLEASE VE IFY THAT THE VOLTAGE SETTING IS
CO ECT BEFO E USE.
International http://eservice.aten.com
International 886-2-86 2-6 5
China 86-400-810-0-810
Japan 81-3-5615-5811
Korea 82-2-467-678
North America 1-888- -ATEN ext 4 88
1- 4 -428-1111

CL6708MW User Manual
v
Product Information
For information about all ATEN products and how they can help you connect
without limits, visit ATEN on the Web or contact an ATEN Authorized
eseller. Visit ATEN on the Web for a list of locations and telephone numbers:
International http://www.aten.com
North America http://www.aten-usa.com

CL6708MW User Manual
vi
Package Contents
Check to make sure that all the components are in working order. If you
encounter any problem, please contact your dealer.
The CL6708MW’s standard package consists of:
1 CL6708MW 8-Port DVI Single ail LCD KVM Switch
1 custom USB DVI KVM cable set
1 power cord
1 firmware upgrade cable
1 user instructions

CL6708MW User Manual
vii
Contents
Compliance Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Online Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Telephone Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
User Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x
Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
1. Introduction
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
External Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Computers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operating Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

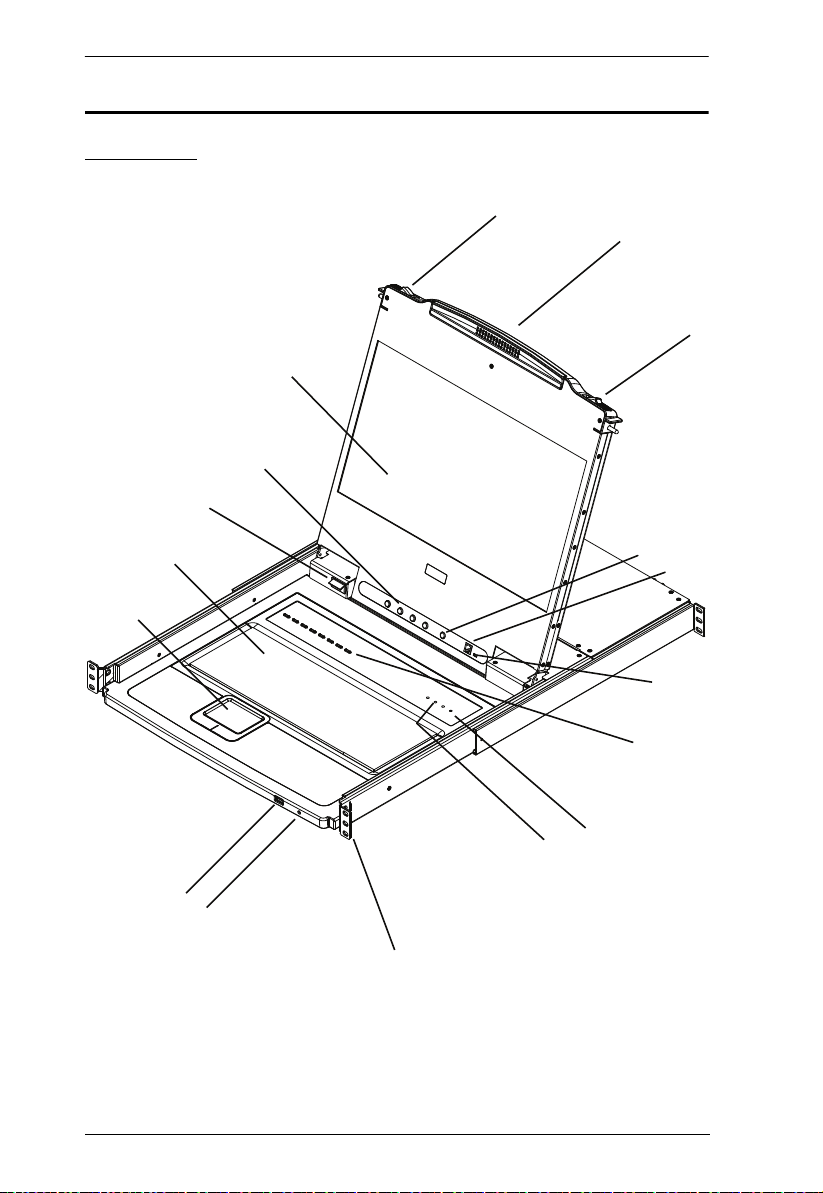

Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2. ardware Setup
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Standard Rack Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Optional Rack Mount Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Single-Level Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Cabling Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Multi-Level Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3. Basic Operation
Opening the Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Closing the Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Operating Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Powering Off and Restarting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
LCD OSD Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
The LCD Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
LCD Adjustment Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Hot Plugging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Hot Plugging KVM Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

CL6708MW User Manual
viii
Port Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Manual Port Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Port ID Numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4. OSD Operation
OSD Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
OSD Login. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Dedicated Invocation Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
OSD Hotkey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
OSD Main Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
OSD Main Screen Headings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
OSD Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
OSD Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
F1: GOTO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
F2: LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
F3: SET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
F4: ADM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
F5: SKP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
F6: BRC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
F7: SCAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
F8: LOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
5. Keyboard Port Operation
Hotkey Port Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Invoke Hotkey Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Dedicated Invocation Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Number Lock and Minus Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Control and F12 Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Select the Active Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Auto Scan Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Invoking Auto Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Skip Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Computer Keyboard / Mouse Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Hotkey Beeper Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Quick Hotkey Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
OSD Hotkey Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Port OS Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Set USB Speed. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Restore Default Values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Hotkey Summary Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
6. Keyboard Emulation
Mac Keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Sun Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

CL6708MW User Manual
ix
7. The Firmware Upgrade Utility
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Downloading the Firmware Upgrade Package . . . . . . . . . . . . . . . . . .53
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Starting the Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Upgrade Succeeded . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Upgrade Failed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Appendix
Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Rack Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Consignes de sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Général . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Montage sur bâti . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
International . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
North America . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Manufacturing Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Connection Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
CL6708MW to Compatible 8-Port Switches . . . . . . . . . . . . . . . . . . . . 6
Supported KVM Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Restoring Factory Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
OSD Factory Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
ATEN Standard Warranty Policy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

CL6708MW User Manual
x
About this Manual
This user manual is provided to help you get the most out of your CL6708MW.
It covers all aspects of the device, including installation, configuration, and
operation.
The LCD KVM switch model covered in this manual is:
An overview of the information found in the manual is provided below.
Chapter 1, Introduction, introduces you to the CL6708MW, its purpose,
features, and benefits, with its front and back panel components described.
Chapter 2, ardware Setup, describes how to set up your CL6708MW,
and the necessary steps — from a basic single-level hookup to a complete 17-
switch two-level operation.
Chapter 3, Basic Operation, explains the fundamental concepts involved
in operating the CL6708MW.
Chapter 4, OSD Operation, provides a complete description of the
CL6708MW OSD (on-screen display), and the various functions provided
Chapter 5, Keyboard Port Operation, details all of the concepts and
procedures involved in the hotkey operation of your CL6708MW installation.
Chapter 6, Keyboard Emulation, provides tables that list PC-to-Mac and
PC-to-Sun keyboard emulation mappings.
Chapter 7, The Firmware Upgrade Utility, explains how to upgrade the
CL6708MW’s firmware to the latest available versions using the firmware
upgrade utility.
Appendix, provides the specifications and other technical information at the
end of the manual.
Note:
ead this manual thoroughly and follow the installation and operation
procedures carefully to prevent any damage to the unit or connected
devices.
Model Product Name
CL6708MW 8-Port USB DVI Single Rail WideScreen LCD KVM Switch

CL6708MW User Manual
xi
The product may be updated, with features and functions added, improved
or removed since the release of this manual. For an up-to-date user
manual, visit http://www.aten.com/global/en/
Conventions
This manual uses the following conventions:
Monospaced Indicates text that you should key in.
[ ] Indicates keys you should press. For example, [Enter] means to
press the Enter key. If keys need to be chorded, they appear
together in the same bracket with a plus sign between them:
[Ctrl+Alt].
1. Numbered lists represent procedures with sequential steps.
♦Bullet lists provide information, but do not involve sequential steps.
>Indicates selecting consecutive options (such as on a menu or
dialog box). For example, Start > Run means to open the Start
menu, and then select Run.
Indicates critical information.

CL6708MW User Manual
xii
This Page Intentionally Left Blank

1
Chapter 1
Introduction
Overview
The CL6708MW 8-Port DVI Single ail LCD KVM Switch features an
integrated 17.3" LED-backlit LCD panel along with a keyboard and touchpad,
and allows access to and control of up to 8 computers. Additionally, as many
as 8 additional switches can be cascaded for managing a total of 64 computers.
The CL6708MW’s compact design lets users to install it within a 1U system
rack, while providing additional ports for a second, external KVM console
(keyboard, mouse, speakers and DVI monitor) from its rear panel.
Setup is fast and easy — plugging cables into their appropriate ports is all that
is needed. The switch supports DVI and USB connection interfaces for the
external console and managed computers, with no configurations needed.
Switching between computers is easily accomplished by pressing front panel
pushbuttons, entering hotkeys or via a menu-driven on-screen display (OSD).
The CL6708MW incorporates the YUV video format for greater compatibility
with high-definition signals from source devices. Similarly, the CL6708MW is
HDCP-compatible, making it effective for use with content-protected media in
corporate, educational and commercial settings. To further enhance usability,
ATEN’s LED illumination light brightens the keyboard and touchpad for easy
viewing in low-light conditions.

CL6708MW User Manual
2
Features
Integrated KVM switch with a 17.3” Widescreen DVI Full HD LCD
monitor
Single rail housing with top and bottom clearance for smooth operation in
a 1U high system rack
Controls eight Single Link DVI computers
Supports an external console with DVI video port
Exclusive LED illumination light — to illuminate the keyboard and
touchpad for operation under low-light conditions
KVM Port extendable via one-level cascade (CS1768)
Computer selection via front panel pushbuttons, hotkeys, and multilingual
on-screen display (OSD)
Broadcast mode — allows you to send commands from the console to all
computers to perform the same operations simultaneously
Supports YUV video format for greater compatibility
DVI monitor support — fully compliant with the DVI specifications
Video DynaSync™ — exclusive ATEN technology eliminates boot-up
display problems and optimizes responsiveness when switching between
ports*
HDCP-compatible
Superior video quality – 1920 x 1080 @ 60 Hz; DDC, DDC2, DDC2B
Compatible with most ATEN DVI KVM switches
Adjustable depth to fit within the rack
Audio support for connecting to speakers
Auto Scan Mode for automated alternating between selected computers
for convenient monitoring
Multiplatform support — Windows, Linux, Mac, Sun
Console lock — enables the console drawer to remain securely locked
away in position when not in use
DDC emulation — video settings of attached computers are automatically
adjusted for optimal output to the monitor

Chapter 1. Introduction
3
Console mouse port emulation/bypass feature supports most mouse
drivers
Optional rack mount kits available, including easy installation options
Firmware upgradable
Mac/Sun keyboard support and emulation*
Multilingual OSD supports English, German, Japanese, Traditional
Chinese and Simplified Chinese
Standard 105-key keyboard; Sun keyboard emulation
Keyboard Language support: English (US); English (UK); German;
German (Swiss); French; Spanish; Traditional Chinese; Japanese; Korean;
Swedish; Italian; ussian; Hungarian and Greek
Note: 1. Video DynaSync
TM
only works in conjunction with digital video
sources.
2. PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun
keyboard work only with their own computers

CL6708MW User Manual
4
Requirements
External Console
The following hardware components are required for the external console:
A DVI-I monitor capable of displaying the highest resolution provided by
any computer in the installation.
A USB keyboard and mouse.
Computers
The following equipment must be installed on each computer:
A DVI-I video graphics card.
Note: The integrated 17.3” LCD monitor's maximum resolution is
1920 x 1080 @ 60 Hz. Make sure that none of the computer
resolution settings exceed the LCD monitor's maximum resolution.
At least one USB port.
Direct support Sun USB systems; or, for Sun legacy systems, an ATEN
CV130A Sun Console Converter.
Cables
Substandard cables may damage the connected devices or affect the overall
performance of the installation. For optimum signal integrity and simplified
layout, we strongly recommend that you use the high-quality cables described
below:
*Contact your KVM dealer for ordering information.
Function Length Part Number*
USB DVI-D Single Link KVM
cable
1.8 m
3.0 m
5.0 m
2L-7D02U
2L-7D03U
2L-7D05U

Chapter 1. Introduction
5
Operating Systems
Supported operating systems are shown in the table below:
OS Version
Windows 2000 or above
Linux RedHat .0 or later
SuSE 10 or later
Debian 3.1 or later
Ubuntu 7.04 or later
UNIX AIX 4.3 or later
FreeBSD 5.5 or later
Sun Solaris 8 or later
Novell Netware 5.0 or later
Mac OS or later

CL6708MW User Manual
6
Components
Front View
8
2
2
1
3
4
6
7
9
10
11 12
16
15
14
5
13

Chapter 1. Introduction
7
No. Component Description
1 upper handle Pull to slide the LCD module out; push to slide it in.
See Opening the Console, page 1 , for details on sliding the
console in and out.
2 module release
catches
In order to slide the console out, you must first release it by
sliding these catches to the inside.
3 LCD module After sliding the LCD module out, flip up the cover to access
the LCD display.
4 LCD controls The buttons to control the position and picture settings of the
LCD display are located here. See page 23 for details.
5 LED illumination
light
Illuminates the keyboard and touchpad to allow visibility in
low-light conditions. Press the exit / light pushbutton to turn
the LED light on / off (default: on).
6 keyboard module Standard 105-key keyboard.
7 touchpad Standard mouse touchpad.
8 USB port The USB port is available to connect a USB peripheral
device (flash drive, CD-ROM drive, etc.) to the console, or a
USB mouse for users who prefer to use an external mouse.
power LED Lights (green) to indicate that the unit is receiving power.
10 rack mount
brackets
The rack mount brackets are located at each corner of the
unit. See Standard Rack Mount, page 10, for details.
11 lock LEDs The Num Lock, Caps Lock, Scroll Lock LEDs are located
here.
12 reset button Located to the right of the Lock LEDs. Press this button in
with a thin object to perform a system reset.
13 port LEDs / port
switches
An orange online LED lights to indicate that the computer
attached to its corresponding port is up and running. A green
selected LED lights to indicate that the computer attached to
the corresponding port is selected for KVM control.
Press the port pushbuttons to bring the KVM focus to the
computer attached to the corresponding port.
14 firmware upgrade
switch
During normal operation and while performing a firmware
upgrade, this switch should be in the normal position. If a
firmware upgrade operation does not complete successfully,
switch to Recovery to recover the situation. See Upgrade
Failed, page 58, for details.
15 firmware upgrade
port
The firmware upgrade cable that transfers the firmware
upgrade data from the administrator’s computer plugs into
this RJ-11 connector.
16 LCD on / off
button
Push this button to turn the LCD monitor on and off. The
button lights when the LCD monitor is off.
Note: The light indicates that only the monitor is off, not the
attached KVM switch.

CL6708MW User Manual
8
Rear View
No. Component Description
1 power socket This is a standard 3 prong AC power socket. The power cord
from an AC source plugs in here.
2 power switch This is a standard rocker switch that powers the CL6708MW
on and off.
3 external console
section
For flexibility and convenience, the CL6708MW supports an
independent, external, KVM console. The external console's
USB keyboard and mouse, DVI, VGA, or HDMI monitor, and
audio cables plug in here.
4 KVM port section The custom KVM cable supplied with the package for linking
the CL6708MW to a computer or switch plugs in here.
5 grounding
terminal
The grounding wire (used to ground the unit) attaches here.
1234
5
