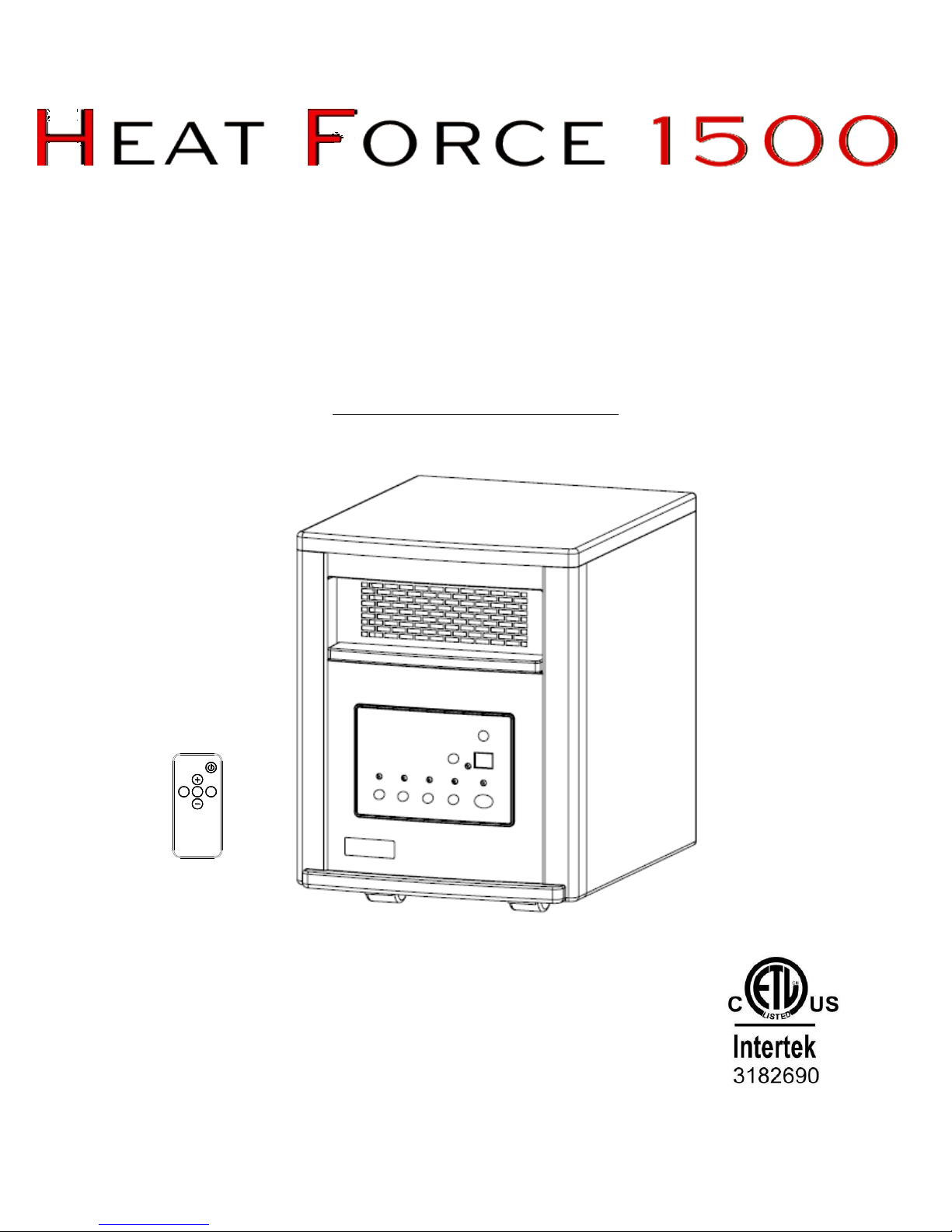

ATI Technologies Heat Force 1500 User manual

INFRARED ZONE HEATING SYSTEM
OWNER’S MANUAL
Model No. ATI-HF-X
www.advancedtechinfrared.com
MODE
UV.
TIMER

PLEASE SAVE THESE INSTRUCTIONS
WARNIN : READ THIS OWNER’S MANUAL CAREFULLY BEFORE USE.
Thank you for choosing the Heat Force 1500 Infrared Zone Heating System. This owner’s
manual will rovide you with valuable information necessary for the ro er care and
maintenance of your new roduct. Please take a few moments to thoroughly read the
instructions and familiarize yourself with all the o erational as ects of your new
heater.
IMPORTANT INSTRUCTIONS
When using this electric unit, basic safety recautions should always be followed to reduce the
risk of fire, electric shock, and injury to ersons, including the following:
1. Read ALL instructions before using this unit.
2. CAUTION: Risk of Electric Shock. DO NOT o en or try to re air the heater yourself.
3. This heater may get hot when in use. To avoid burns, DO NOT let bare skin touch hot
surfaces. If rovided, use handles when moving this heater.
4. Kee combustible materials, such as furniture, illows, bedding, a er, clothes, and
curtains at least 3 ft from the front of the heater and kee them away from the sides, to ,
and rear. DO NOT lace towels or other objects on the heater.
5. Extreme caution is necessary when any heater is used by or near children or the disabled,
or when the heater is left o erating and unattended.
6. DO NOT o erate any heater with a damaged cord or after the heater malfunctions, has
been dro ed or damaged in any manner. Return heater to authorized service facility for
examination, electrical or mechanical adjustment, or re air.
7. This heater is not intended for use in bathrooms, laundry areas and similar indoor
locations. NEVER locate heater where it may fall into a bathtub or other water container.
To rotect against electrical hazards, DO NOT immerse in water or other liquids.
8. DO NOT touch the control anel or lug with a wet hand.
9. DO NOT run cord under car eting. DO NOT cover cord with throw rugs, runners, or
similar coverings. Arrange cord away from traffic area and where it will not be tri ed
over.
10. DO NOT insert or allow foreign objects to enter any ventilation or exhaust o ening as
this may cause an electric shock or fire, or damage the heater.
11. To revent a ossible fire, DO NOT block the air intakes or exhaust in any manner. DO
NOT use on soft surfaces, like a bed, where o enings may become blocked.
12. A heater has hot and arcing or s arking arts inside. DO NOT use in areas where
gasoline, aint, ex losive and/or flammable liquids are used or stored. Kee unit away
from heated surfaces and o en flames.
13. Avoid the use of an extension cord because the extension cord may overheat and cause a
risk of fire. However, if you have to use an extension cord, the cord shall be No. 16
2

AWG minimum size and rated not less than 1500W.
14. To avoid fire or shock hazard, lug the unit directly into a 115 V AC electrical outlet.
15. To disconnect heater, turn controls to OFF, then remove lug from outlet. Pull firmly on
the lug, DO NOT un lug by ulling on the cord.
16. Always un lug the unit before moving or cleaning, or whenever the heater is not in use.
17. Use only for intended household use as described in this manual. Any other use not
recommended by the manufacturer may cause fire, electric shock, or injury to ersons.
The use of attachments not recommended or sold by unauthorized dealers may cause
hazards.
18. Always use on a dry, level surface. Use on floor only.
19. DO NOT use outdoors.
20. WARNING: To reduce the risk of fire or electric shock, DO NOT use this unit with any
solid-state s eed control device.
21. DO NOT attem t to re air or adjust any electrical or mechanical functions on this unit.
Doing so will void your warranty. The inside of the unit contains no user serviceable
arts. Qualified ersonnel should erform all servicing only.
22. Connect to ro erly grounded outlets only.
23. .Save these instructions.
SPECIFICATIONS
Voltage Rating 120 V (60Hz)
Power Consum tion 1000/1500W
Unit Size 13 in. (W) x 16 3/5 in. (D) x 16 4/5 in. (H)
Unit Weight 22.7 lbs
SAFETY FEATURES
Tip-Over Safety Feature
This heater is equi ed with a ti -over safety feature. Once the heater is ti ed over, an internal
switch will automatically shut the heater off. Once the heater is restored to an u right osition,
the heater will reset. To continue o eration, turn on the heater using the su lied remote control
or the control anel on the heater.
Overheat Safety Feature
This heater is equi ed with an overheat safety feature. When the heater’s internal com onents
reach a certain tem erature that could cause overheating and ossible fire, the heater will
automatically shut off.
3

WARNING: This heater has a voltage rating of
120 volts. The cord has a lug as shown in A. An
ada ter as shown in C is available for connecting
three-blade grounding-ty e lugs to two-slot
rece tacles. The grounding lug extending from the
ada ter must be connected to a ermanent ground
such as a ro erly grounded outlet box. The
ada ter should not be used if a three-slot grounded
rece tacle is available.
DO NOT DEFEAT THE SAFETY PURPOSE OF
THE GROUNDED PLUG.
WARNING: It is normal for the ower cord to feel warm to the touch; however, a loose fit
between the outlet and the lug may cause overheating of the lug. If this occurs, try inserting
the lug into a different outlet. Contact a qualified electrician to ins ect the original outlet for
damage.
IN THE BOX
·INFRARED ZONE HEATING SYSTEM
·REMOTE CONTROL
·REMOTE CONTROL BATTERY
·INSTRUCTION BOOKLET
PRODUCT DIA RAM
MODEUV.TIMER
4
Plastic Cabinet
Air Outlet
Front Panel
Control Panel
Wheel
Remote Control
Air Intake
Cord Clam
Power Switch

1、Signal-receiving window for receiving remote control signal.
2、Digital display indicate set room tem erature or time value according to the timer.
3、Power indication Light indicate when the unit connects to ower su ly.
4、ON/OFF switch button for ower-on or off.
5、Energy-saving mode The light ‘s on when energy-saving mode goes.
6、Mode button for select running mode.
7、Heat-down mode indication light The light ‘s on when heat-down mode goes.
8、Temp up button for setting tem u ward.
9、Heat-up mode indication light The light ‘s on when heat-u mode goes.
10、Temp down button for setting tem downward.
11、Timer indication light The light’s on when timer functions.
12、Timer button：used for setting the timer and adjust time value for the timer.
13、UV. lamp button：used for on/off the sterilization function and fan.
14、UV. lamp sterilize indicator：indicate when the UV lam is in sterilization function.
Remote Control
5
Control Panel

PREPARATION
Place the heater on a firm, level surface and lug into a grounded 120V 60Hz ower outlet. Turn
on the ower switch in the rear of the unit. Only o erate heater in an u right osition with caster
wheels attached.
When using remote control, lease ull out the insulating film. See below:
6
PULL
Remote control Insulating film Battery cover
Power button: Used for ower-on or ower-off
Tem u button: to make set tem erature raise
Mode button: Used for mode selection
UV. lam button：used for on/off the sterilization function and fan
Tem down button: to make set tem erature ecline
Timer button: used for setting timer and adjust time value of timing

OPERATIN INSTRUCTIONS
1、Start and select working mode
Or
Turn the heater on by ressing the ON/OFF button on the
control anel or by ressing the Power button on the
su lied remote control.
Or
Select a heat setting.
Press the MODE button to toggle between the three heat
settings.
Power for High mode is 1500W; and Low is 1000W. ECO
mode is an Economic Energy Saving Function. When ECO
mode is chosen the heater will consume one-third less
ower once the room tem erature reaches a certain oint.
2、Setting room temperature
Or Or
Or
Adjust the thermostat by ressing the arrows on the control
anel or remote control.
Set tem erature indication varies from 59℉ to 86℉.Once
you have chosen the desired tem erature, the heater will
remain on until the room tem erature increases to the
tem erature on the digital dis lay. The heater will cycle on
and off to maintain the desired room tem erature.
3、operate air purification
Note: Air purification can be individually started under OWER-OFF.
Or
Press the UV. lam button on the control board or on the
remote.
That Air urification indicating light is on means air
urifying starts.
Or
Press the UV. lam button again on the control board or
on the remote, sterilization function and fan closed.
7

4、Setting timer to power-off
Attention! ONLY under ower-on mode can you set timer ower-off function.
When starting the unit, ress the timer button on the
control anel.
Digital dis lay turns the set tem erature to time value for
the timer. Press the timer button more than once, the value
will vary from 0 to 12hr (1 hr interval) in circulation.
The light is on when timer ower-off is set.
5、Setting timer to power-on
Attention! ONLY under ower-off mode can you set timer ower-on function.
Under ower-off, ress the timer button on the control
anel.
Digital dis lay indicates time value for the timer. Press the
timer button more than once, the value will vary from 0 to
12hr (1 hr interval) in circulation.
The light is on when timer ower-on is set.
6、Setting electro lock
The function of the electro lock can avoid mis-o eration from children. Locking can be set in
both ower-on and ower-off modes.
And
Press Tem U and Tem Down buttons once for 3
seconds. Locking is fulfilled when a buzzer rings. When
locked, the control anel and remote control fail to function.
And
When release is needed, lease re- ress Tem U and
Tem Down buttons once for 3 seconds. Release is fulfilled
when a buzzer rings. Lock indication disa ears. Control
anel and remote control return to function.
MAINTENANCE
8

1. Turn off the ower switch in the rear of the unit.
2. Un lug the unit and let it cool com letely.
3. To kee the heater clean, the outer shell may be cleaned with a soft, dam cloth. You
may use a mild detergent if necessary. After cleaning, dry the unit with a soft cloth.
CAUTION: DO NOT let liquid enter the heater.
4. DO NOT use alcohol, gasoline, abrasive owders, furniture olish, or rough brushes to
clean the heater. This may cause damage or deterioration to the surface of the heater.
5. DO NOT immerse the heater in water.
6. Wait until the unit is com letely dry before use.
7. Air filter needs cleaning after 3 months of use. Please remove the filter as shown below.
Flush and clean the filter with water, then dry and re-install.
8. If the unit is not in use for a long time, lease take out the battery in the remote control
according to following ste s:
9
PULL
PUSH
Battery cover Battery
Remote control
Air filterThe unit
Fixing anel
Fixing screws

STORA E
Store the heater in a cool, dry location when not in use. To revent dust and dirt build-u , use the
original ackaging to re ack the unit.
TROUBLESHOOTIN
If the heater will not o erate, lease check the following before seeking re air of service:
1. Check if the ower cord is lugged into an electrical outlet, if not, lug in.
2. Check if electricity to the main fuse is working.
3. Check if the battery in the remote control is in good use, and that the insulating film is
removed.
NOTE: The heater may not be o erating if the thermostat is set higher than the room
tem erature. To begin o eration, increase the thermostat tem erature for a higher heat
setting.
