ATI Technologies All-In-Wonder X1800 Series User manual

All-In-Wonder®
X1800 Series
Installation and Setup
User’s Guide
P/N 137-70993-10

ii
Copyright © 2005, ATI Technologies Inc. All rights reserved.
ATI, the ATI logo, and ATI product and product-feature names are trademarks and/or registered
trademarks of ATI Technologies Inc. All other company and/or product names are trademarks and/or
registeredtrademarksoftheirrespectiveowners.Features,performanceandspecificationsaresubject
to change without notice. Product may not be exactly as shown in diagrams.
Reproductionofthismanual,orpartsthereof,inanyform,withouttheexpresswrittenpermissionofATI
Technologies Inc. is strictly prohibited.
Disclaimer
While every precaution has been taken in the preparation of this document, ATI Technologies Inc.
assumes no liability with respect to the operation oruse of ATI hardware, software or other products
and documentation described herein, for any act or omission of ATI concerning such products or this
documentation, for any interruption of service, loss or interruption of business,loss of anticipatory
profits, or for punitive,incidental or consequential damages in connection with the furnishing,
performance, or use of the ATI hardware, software, or other products and documentation provided
herein.
ATI Technologies Inc. reserves the right to make changes without further notice to a product or system
described herein to improve reliability, function or design. With respect to ATI products which this
document relates, ATI disclaims all express or implied warranties regarding such products, including
but not limited to, the implied warranties of merchantability, fitness for a particular purpose, and non-
infringement.
Product Notices
Dolby® Laboratories, Inc.
ManufacturedunderlicensefromDolby®Laboratories.Dolbyandthedouble-Dsymbolaretrademarks
of Dolby Laboratories. Confidential Unpublished Works.
© 1992-1997 Dolby Laboratories, Inc. All rights reserved.
Macrovision
Apparatus Claims of U.S. Patent Nos.4,631,603, 4,577,216,4,819,098, and 4,907,093 licensed for
limited viewing uses only.
This product incorporates copyright protection technology that is protectedby method claims of certain
U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology must be authorized by Macrovision Corporation,
and is intended for home and other limited viewing uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Documentation Updates
ATI is constantly improving its product and associated documentation. To maximize the value of your
ATI product, you should ensure that you have the latest documentation. ATI’s documentation contains
helpful installation/configuration tips and other valuable feature information.

iii
LIMPORTANT SAFETY INSTRUCTIONS
•Read Instructions - All the safety and operating instructions should
be read before the product is operated.
•Retain Instructions - The safety and operating instructions should be
retained for future reference.
•Heed Warnings - All warnings on the product and the operating
instructions should be adhered to.
•Compatibility - This option card is for use only with IBM AT or
compatible UL Listed personal computers that have Installation
Instructions detailing user installation of card cage accessories.
•Grounding - For continued protection against risk of electric shock
and fire, this accessory should be installed only in products equipped
with a three-wire grounding plug, a plug having a third (grounding) pin.
This plug will only fit into a grounding-type power outlet. This is a
safety feature. If you are unable to insert the plug into the outlet,
contact your electrician to replace the obsolete outlet. Do not defeat
the safety purpose of the grounding-type plug.
•Secure Attachment - All card securement pins shall be completely
tightened as to provide continuous bonding between the option card
and the PC chassis.
•Outdoor Antenna Grounding - Since an outdoor antenna or cable
system is connected to the product, be sure that the antenna or cable
system is grounded so as to provide some protection against voltage
surges and built-up static charges. Article 810 of the National
Electrical Code, ANSI/NFPA 70, provides information with regard to
proper grounding of the mast and supporting structure, grounding of
the lead-in wire to the antenna discharge unit, size of grounding
conductors, location of antenna-discharge unit, connection of
grounding electrodes, and requirements for the grounding electrode.
•Lightning - For added protection for this product during a lightning
storm, or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet, and disconnect the antenna or
cable system. This will prevent damage to the product due to lightning
and power-line surges.
•Power Lines - An outside antenna system should not be located in
the vicinity of overhead power lines or other light or power circuits, or
where it can fall into such power lines or circuits.
•Antenna Installation - When installing an outside antenna system,
extreme care should be taken to keep from touching such power lines
or circuits, as contact with them may be fatal.
•Note to CATV System Installer - This reminder is provided to call the
CATV systems installer’s attention to Section 820-40 of the NEC,
which provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.

iv

1
Table of Contents
Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
System Requirements 2
Before You Begin 2
Record Your Serial and Part Numbers 2
Update Your PCI Express® Chipset Drivers 3
Uninstall Previous Graphics Card Drivers 4
Installing Hardware . . . . . . . . . . . . . . . . . . . . . . . . . 5
Quick Installation 5
Installation Steps 5
Detailed Installation 5
Connecting Additional Power 7
Turning on the System 9
Input and Output Adapters 10
Watching or Recording Movies on a PC
and Recording from a VCR or Camcorder 10
Watching PC Output on a TV and Recording on a VCR 11
Watching your PC Output on High-definition TV 12
Compatibility with Earlier All-in-Wonder® Products 13
Using the SCART Connector 14
Installing Software. . . . . . . . . . . . . . . . . . . . . . . . . 17
Installing Drivers and Software in Windows® 17
Software Installation Prerequisites 17
HydraVision™ Multi-monitor Management 18
Monitor Configuration 19
Reinstalling Drivers 19
Starting the ATI Multimedia Center 20
Catalyst™ Control Center . . . . . . . . . . . . . . . . . . 21
Launching Catalyst™ Control Center 21
Launching Catalyst™ Control Center Using the Start Menu 21
Other Quick Launch Access Points 22
Displays Manager 23
Video 24
Display Options 24

2
Color 25
Monitor Properties 25
Component Video Properties 25
Digital Panel Properties 26
Hotkeys Manager 26
ATI Overdrive 3 26
Profiles Manager 27
Preferences 27
Help 28
Using TV Display and Capture Features . . . . . . . 29
Using TV Out 29
Viewing Your PC’s Display on a TV 29
Connecting to a TV 29
Starting Windows® with TV Display Enabled 29
Using and Adjusting TV Display Features 30
TV Display Hardware Restrictions 30
Using a Monitor vs. Using TV Display 30
Adjusting Monitor Display 30
Viewing Text on a TV 31
Reducing Edge Distortion 31
Using a TV as the Only Display 31
Using Games and Applications 31
Using Multiple Displays . . . . . . . . . . . . . . . . . . . . 33
Connecting Your Monitors 33
Display Configurations 35
MulTView™ 36
MulTView™ Audio Requirements 38
EazyLook™ 38
Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Troubleshooting 39
Product Registration 41
Customer Care 41
Limited Product Warranty and Guideline for Obtaining Warranty
Service 43
Product Warranty 43
Warranty Exclusions and Limitations 44
Disclaimer 44

3
Obtaining Warranty Service 45
Getting Additional Accessories 45
Compliance Information 45
FCC Compliance Information 45
Industry Canada Compliance Statement 46
CE Compliance Information 46
Informations de conformité de la CE 46
Electrical Safety 46
Waste Electrical and Electronic Equipment
(WEEE) Directive Compliance 47
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

4

1
CHAPTER 1:
Getting Started
Welcome to the convergence of your PC with TV and video. The All-In-
Wonder® X1800 Series of graphics cards add TV, Personal Video
Recording, and powerful video acceleration to your PC. TV-on-Demand™
and several other software features are included to enhance your television
experience.
When attached to a video camera, your All-In-Wonder® X1800 Series can
add time-lapse video recording to your PC for security applications. Your
card’s advanced video recording and editing features also give you video
CD and DVD authoring capability.
You can use your All-In-Wonder® X1800 Series card to connect your
computer to a television. This feature is ideal for playing games, giving
presentations, watching movies, and browsing the Internet.
All-In-Wonder® X1800 Series turns your PC into an intelligent TV with
the following features:
TV-on-Demand™ ThruView™
MulTView™ TV Magazine™
EazyLook™ Zoom and pan
Scheduled viewing Channel scanning
Video recording Closed captioning with HotWords™
Program transcript recording
(North America only) Interactive Program Guide (in selected countries)
Personal video recorder with real-
time video compression Remote Wonder™ USB remote control (optional)
AC-3 digital audio playback
supporting Dolby® 5.1 surround
sound

2 System Requirements
System Requirements
Before You Begin
Before you begin installing your new All-In-Wonder® X1800 Series
graphics card, please do the following.
Record Your Serial and Part Numbers
The serial number and 102 part number printed on the graphics card are
required for registration. They are located on a sticker on the back of the
card.
Hardware • Intel® Pentium® 4, AMD Athlon®, or compatible
• 256 MB of system memory; 512 MB or more for best
performance
• Motherboard with free PCI Express® slot and correct
PCI Express® chipset-driver
• CD-ROM drive (for software installation)
• 450 watt or greater power supply recommended
Operating
System • Windows® XP Home or Professional (Service Pack 2)
• Windows® XP Media Center Edition 2005 (MCE)
Monitor • High-resolution MultiSync or multi-frequency monitor or
any other type of VGA monitor
• Digital flat-panel or digital CRT display
XSerial number (S/N)
Y102 part number (P/N)

Record Your Serial and Part Numbers 3
Write these numbers down before installing your new ATI product.
Update Your PCI Express® Chipset Drivers
Your All-In-Wonder® X1800 card uses the PCI Express® bus, and it
requires drivers that enable the PCI Express® functionality for your
motherboard’s chipset.
Ensure you have installed the latest PCI Express® chipset drivers before
replacing your current graphics card.
Determining the motherboard chipset
1Open the Control Panel from the Start Menu and select System; in
Windows® XP’s Category View, System can be found under
Performance and Maintenance.
2In the System Properties dialog, select the Hardware tab.
3Select Device Manager.
4From the Device Manager tree view, expand the System Devices
branch.
5Scroll through the list of system devices until you find a listing for the
PCI Express controller. Often you will see the name of a motherboard
chipset in connection with these terms. The chipset manufacturer’s
name will appear as part of the device name.
Once you have determined the chipset manufacturer for your motherboard,
obtain and then install the latest PCI Express® drivers from that
manufacturer’s Web site.
For your convenience, here is a list of common chipset manufacturers:
L
WARNING - Installing the wrong PCI Express® chipset drivers may
prevent you from successfully launching Windows®. Make sure that
the drivers you install are designed to function correctly with your
motherboard. If you are uncertain, please consult with your
motherboard manufacturer for advice.
VIA Technologies www.viaarena.com
Acer Laboratories (ALI) www.ali.com.tw
Silicon Integrated Systems
(SIS) www.sis.com
Advanced Micro Devices (AMD) www.amd.com

4 Record Your Serial and Part Numbers
Uninstall Previous Graphics Card Drivers
To ensure the successful installation of your new All-In-Wonder® X1800
card, you must uninstall the drivers for the existing graphics card before
removing it from your computer.
To uninstall previous drivers
With your current graphics card still in your computer:
1Close all applications that are currently running.
2Navigate to the Control Panel and select Add/Remove Programs.
3Select your current graphics card drivers and select Add/Remove.
The wizard will help you remove your current display drivers.
Note: If the previously installed graphics card has any additional
software installed, it should also be removed at this point.
4Restart your system after the drivers have been removed.
Intel Technologies support.intel.com
General Motherboard/chipset
information www.motherboards.org
ATI www.ati.com

Quick Installation 5
CHAPTER 2:
Installing Hardware
This chapter will guide you through the physical installation of your new
All-in-Wonder® X1800 Series graphics card.
Quick Installation
For experienced users and system administrators, follow these brief
instructions for installing your All-In-Wonder® X1800 card in the shortest
possible time.
Installation Steps
1Uninstall the drivers and software for your old graphics card.
2Shut down and disconnect your computer system.
3Remove any previously installed card.
4Install your new All-In-Wonder® X1800 card.
5Reassemble and connect your computer system.
6Install the All-In-Wonder® X1800 drivers and configuration software
from the ATI Installation CD-ROM by doing one of the following:
• Run through the automatic ATISETUP utility; or
•Start > Run > X:\ATISETUP.EXE (where Xis the drive letter
of your CD-ROM drive).
Detailed Installation
The following instructions will take you step by step through the
installation of your new All-In-Wonder® X1800.
LIf you are using a motherboard containing an on-board graphics
solution and do not intend to use it as part of a multiple monitor display,
disable it.

6 Detailed Installation
Installing the All-in-Wonder® X1800 Series graphics card
1Turn off the computer, monitor, and other peripheral devices.
2Unplug the computer’s power cord and disconnect all cables from the
back of your computer.
3Remove the computer cover.

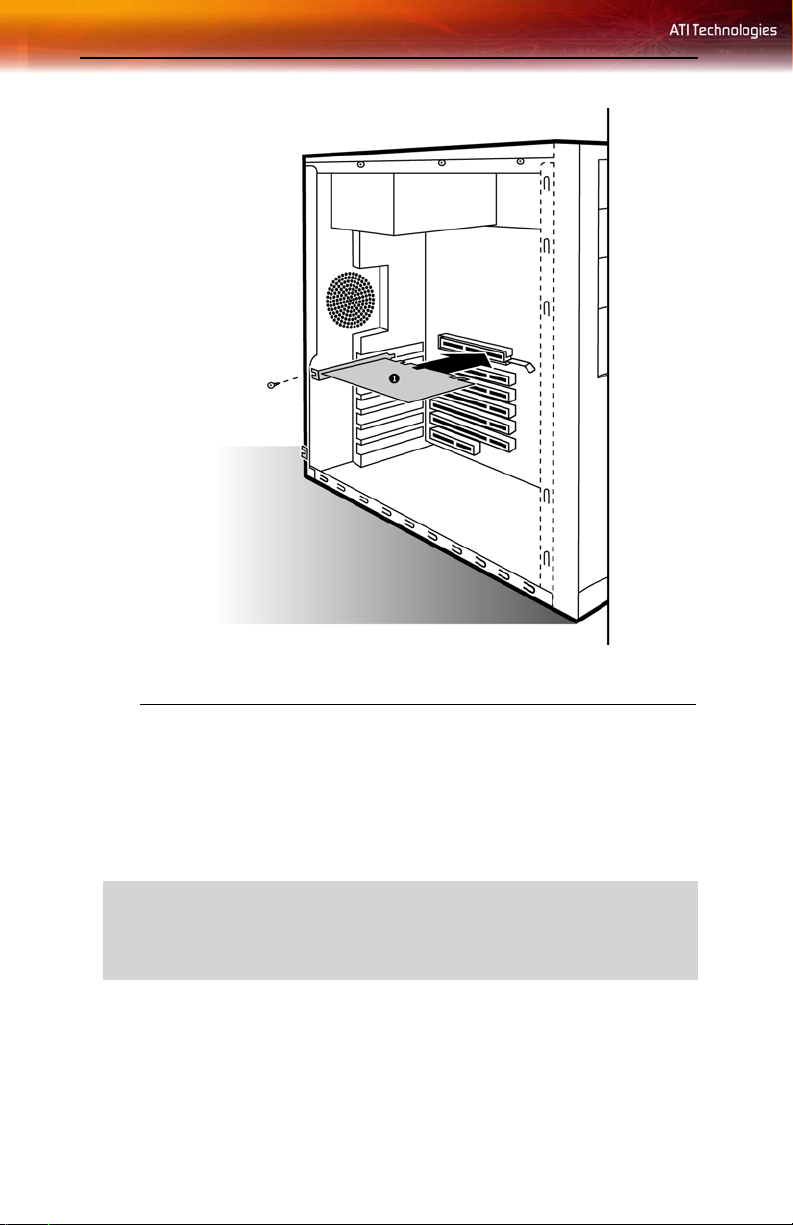

nAll-In-Wonder® X1800 Graphics Card
LWARNING - Wait approximately 20 seconds after unplugging the
power cord before disconnecting a peripheral or removing a
component from the motherboard to avoid possible damage to the
motherboard.

Connecting Additional Power 7
If necessary, consult your computer’s manual for help in removing
the cover.
4Unscrew or unfasten and remove any existing graphics card from
your computer.
Note: If your computer has an on-board graphics capability, you may
need to disable it on the motherboard. For more information, see your
computer documentation.
5Locate the appropriate slot and, if necessary, remove the metal back-
plate cover.
6Align your ATI graphics card with the slot and press it in firmly until
the card is fully seated.
7Screw in or fasten the graphics card securely. Make sure the cables
are not interfering with anything inside the computer (for example, a
cooling fan) and replace the computer cover.
8Reconnect any cables you have disconnected and plug in the
computer’s power cord.
9Turn on the monitor, and then your computer.
Connecting Additional Power
Some All-in-Wonder® X1800 Series graphics cards require an additional
power connection. If your All-in-Wonder® graphics card requires a
separate connection to the computer’s power supply, follow these
instructions for PCIe™, as appropriate.
Note: All-in-Wonder® X1800 Series graphics cards that require
connection to the computer’s power supply will have a power cable
connected to them.
LWARNING - Remember to discharge your body’s static electricity by
touching the power supply or the metal surface of the computer
chassis.
LConsult your system builder or OEM to ensure that your system has an
adequate power supply. A PCI Express® compatible system has a
specialized 12V graphics card power connector. A 450 watt or greater
power supply is recommended. Consult your computer system manual to
ensure the power supply is designed to accommodate a high-end
graphics card with a peak dissipation above 75 watts.

8 Connecting Additional Power
Connecting Display Devices
The following connections are available:
• VGA — for standard VGA monitors.
• DVI-I — for digital flat-panel displays.
You can connect an analog CRT display using an optional DVI-I-to-VGA
adapter, as shown.
Graphics Card Installation
1All-in-Wonder® X1800 Series Graphics Card
2Power Supply
36-pin Power Cable Connector
46-pin Power Connection
5Power connector to Graphics Card
6Power connector to Power Supply

Connecting Additional Power 9
Turning on the System
If you have properly installed your graphics card, operating system
messages will appear once the boot procedure is finished.
Your monitor will be running in a basic video mode. Higher refresh rates
arenotavailableatthisstageoftheinstallation. Once you have installed the
All-In-Wonder® X1800 drivers and software, you can use the Display
Properties control panel to adjust the video settings and configure multiple
monitors.
nMale VGA connector leading to analog monitor
oDVI to VGA adapter
pFemale DVI connection
LWARNING - Turn on your monitor before you turn on your
computer. Failure to do so could damage your monitor.

10 Input and Output Adapters
Input and Output Adapters
Your All-In-Wonder® X1800 uses input and output adapters that let you
connect audio and video devices to the card (for example, TV, VCR, or
camcorder).
This section outlines the configuration to use for a variety of situations.
Watching or Recording Movies on a PC
and Recording from a VCR or Camcorder
Use the ATI input adapter to connect a VCR or camcorder to your All-In-
Wonder® X1800 card, as shown.
LYour All-In-Wonder® X1800 card uses a digital audio path. The card’s
audio output does not require a separate connection to your sound card to
hear the audio accompanying your video output.
1Typical VCR or camcorder audio and video output connectors. Use
composite video out or S-Video out.

Input and Output Adapters 11
Watching PC Output on a TV and Recording on a
VCR
Use the ATI output adapter to connect a TV, camcorder, or VCR to your
All-In-Wonder® X1800 card, as shown.
2Cable with S-Video plug at each end.
3Cables with RCA plug at each end, available separately from a
consumer electronics dealer.
4ATI Input Adapter.
5Input / Output connector.
6All-In-Wonder® X1800 card.
RF1 Cable TV connection - Analog (and DVB-T where available).
RF2 Cable FM Radio connection.

12 Input and Output Adapters
Watching your PC Output on High-definition TV
UsetheATIoutputadapterto connect a high definition TV (North America
only) to your All-In-Wonder® X1800 card, as shown.
1Typical VCR or camcorder audio and video input connectors. Use
composite video in or S-Video in; S-Video will provide better results.
To use your TV as a display, you must enable TV Out .
2Cables with RCA plug at each end, available separately from a
consumer electronics dealer.
3Cable with S-Video plug at each end.
4ATI Output Adapter. You can snap the adapters together for
convenient placement and use.
5Input / Output connector
6All-In-Wonder® X1800 card.
7PC speaker connection (optional).
8Line-In to sound card
9Dolby® Digital AC-3 Amplifier.
