BYK m200
Moisture Meter
Measure what you see.
Manual

BYK-Gardner GmbH
Lausitzer Str. 8
D-82538 Geretsried
Germany
Tel. 0-800-gardner
(0-800-4273637)
[phone]
Fax [phone]
BYK - Gardner USA
9104 Guilford Road
Columbia, MD 21046
USA
Phone [phone]
301-483-6500
Fax [phone]
301-483-6555
BYK m200
Moisture Meter
www.byk-instruments.com
November 2019
Manual

4
Tabe of Contents
1 Safety Information .............................................................................05
2 Preparations ........................................................................................06
3 System Description .............................................................................07
4 Power On/OFF.....................................................................................09
5 Measurement ......................................................................................10
6 Moisture Measurement ......................................................................11
7 Settings................................................................................................17
8 Battery .................................................................................................20
9 Technical Data .....................................................................................21

5
1 Safety Information
CAUTION!
Read Instruction Manual before using this instrument.
WARNING!
This manual cannot address all of the safety considerations
associated with its use. It is the responsibility of the user to
consult this manual and establish appropriate safety practices
for use with this equipment and the individual material being
tested.
WARNING!
The BYK m200 Moisture Meter is designed and intended for
the use described in this manual. Using the Moisture Meter
for other purposes for which it was not designed may reduce
or eliminate the protection offered by the features of the
instrument. Serious injury may result.
WARNING!
Ultimate disposal of this product should be handled according
to all national laws and regulations.
Please note the following points:
• Familiarize yourself with the layout and
operation of the controls.
!
!
!
!

6
2 Preparations
Moisture meter for wood and building materials. The BYK m200
measures the moisture level for a variety of wood and building
materials. The meter also measures the ambient temperature &
humidity. The displayed value is material moisture in % with respect
to dry mass.
Example:
100% material moisture for 1 kg of wet wood = 500g water.)
IMPORTANT!
• Always keep the instrument dry
• Pay attention to the electrodes whenever the protective cap
is removed. They are sharp!
• Clean dirt and debris from the measuring electrodes
• Replace batteries when the battery warning symbol appears

7
Power On & Mode key

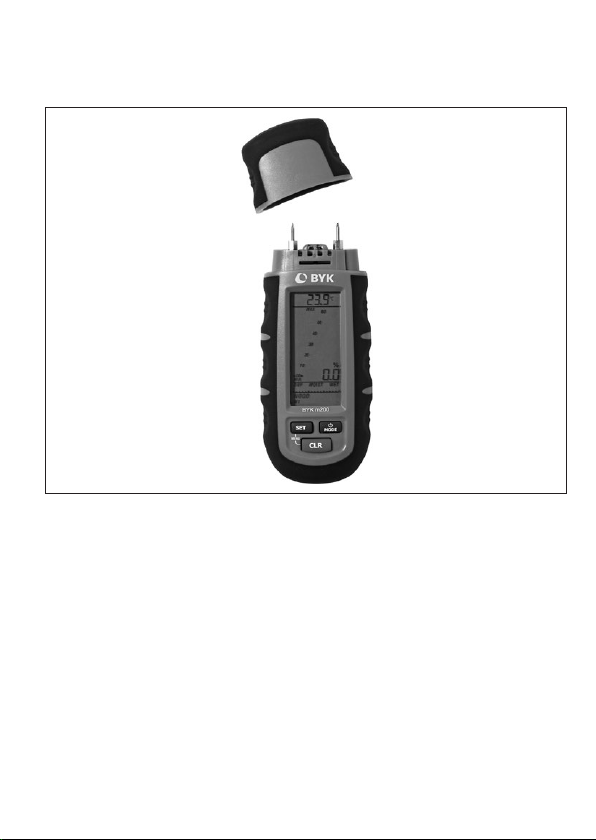

3 System Description
Protective cap
Test electrode
Ambient Temperature &
Humidity Sensor
Digital and analog LCD display
SET key
CLR key
Self-Test point
3.0 OVERVIEW

8
3 System Description
Low battery indicator
3.1 DISPLAY
Set menu indicator:
TEMPsetting compensation temperature
LIGHTsetting backlight mode
UNITsetting ambient temperature units
Digital Display of ambient
temperature & humidity
TEST measurement mode
Bar-graph display of
measured MIN/Max values
Bar-graph display of
material moisture value
Digital display of
material moisture in %
DRY / MOIST / WET indicator
Building materials (B1,B2,B3,B4)
Wood group (W1,W2,W3)

9
4 Power

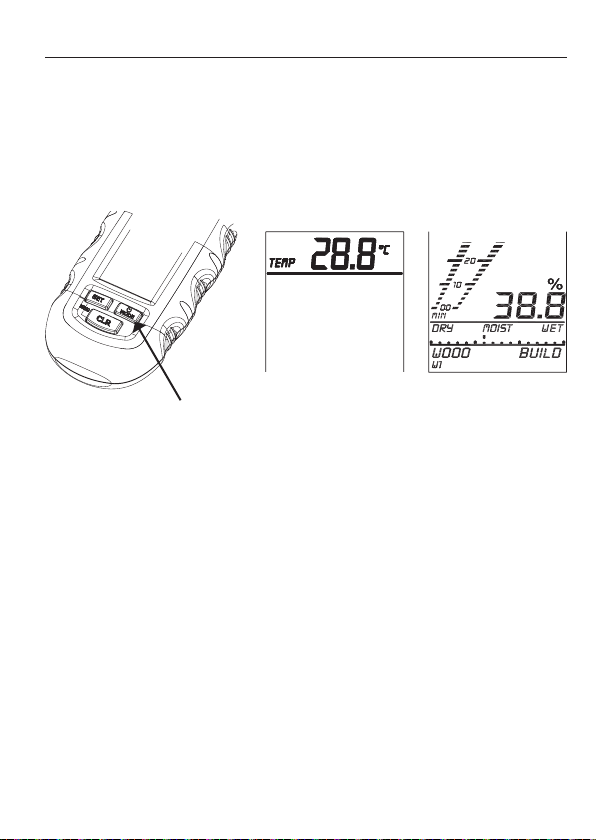

4.0 POWER ON/OFF
Press the “MODE” key for about 2 seconds, the device will power
on, when the device is activated, the display will show the ambient
temperature for 2 seconds. Press the “MODE” key for about 2
seconds, the device will power off. If not being used, the device will
auto power off after 3 minutes.
(1) Power on (Press about 2s) (2) Initial Display (3) Start Measuring

10
5 Measurement

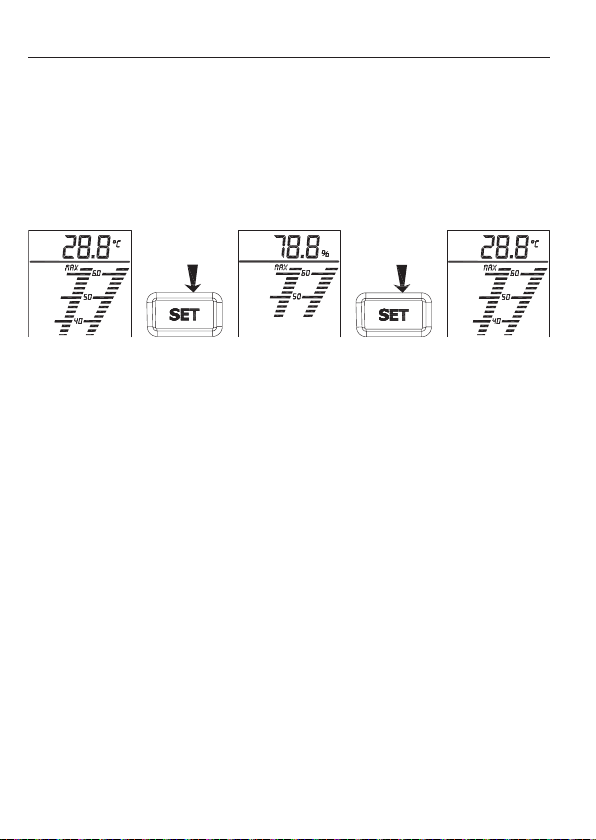

5.0 MEASURING AMBIENT TEMPERATURE & HUMIDITY
The device measures the ambient temperature & relative humidity.
The ambient temperature is used as a temperature compensation
to increase the moisture accuracy. Press the “SET” key for about 2
seconds, the display will switch between temperature and humidity.
To can change the temperature units from °C to °F in the settings
menu, please refer to chapter 7.4.
Press about 2s Press about 2s

11
6 Moisture Measurement
6.0 MOISTURE MEASUREMENT MODE MENU
There are three measuring modes; you can switch among them by
pressing the “MODE” key.
Wood Mode: Building Mode: Self-Test Mode
W1, W2, W3 B1, B2, B3, B4
6.1 SELECT WOOD GROUP IN WOOD MODE (W1,W2,W3)
When the meter is turned on the Wood Mode is the default position.
There are three wood groups. You can switch among them by
pressing the “SET” key. To select the correct wood group(W1, W2 or
W3), find the wood you are measuring in Table 1.
Once you have selected the wood group proceed with the
measurement by inserting the pins into the sample. The % Moisture
is displayed. The two bar graphs also display the measured value. The
left side bar graph shows the maximum % moisture measurement.
The maximum measurement is retained on the display until the
“CLR” key is pressed or the instrument is powered off. The right side
bar graph is a graphical version of the digital % moisture value.

12
6 Moisture Measurement
Wood
W1
Abachi Elm Rosewood
Abura Emien Southern yellow pine
Agba English Durmast Oak Teak
Aiele Guanandi Tree Health
Alder Hickory Willow
Andiroba Hornbeam Yellow heart
Ash Ilomba
Aspen Ipe
Balsa Iroko
Basralocus Izombe
Beech Jarrah
Beech-European hornbeam Juniper
Birch Kapok
Black Afara Karri
Campeachy Lime
Cedar Longwood
Chestnut-sweet, red African Maple
Cypress-C.Lusit Board Niangon
Cypress-Patagonian Niove
Dabema Oak
Douglas Fir Okoume
Douka Parana pine
Ebiara Pear wood
Ebony Purpleheart
TABLE 1: Wood Group

13
6 Moisture Measurement
Wood
W2 W3
Cherry mahogany White birch Afrormosia
Cherry wood White maple Cork
Cypress, red White poplar Imbuia
Damson wood White Tola Kokrodua
English Oak Wood fiber hard board Melamine Particle board
Fiber Board Wood fiber insulating board Niove Bidinkala
Kauramin particle board Phenolic resin particle board
Kosipo Rubber tree
Larch Tola – real red
Limba
Mahogany
Maritime pine
Meleze
Paper
Pine
Plum wood
Poplar
Red sandlewood
Swiss pine
Textile
Tola
Walnut
Western red
White beech

14
6 Moisture Measurement

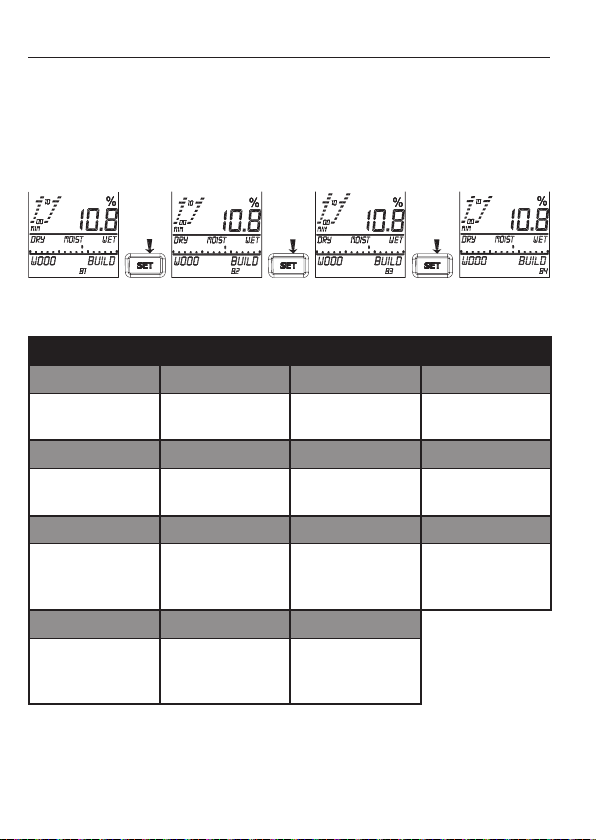

6.2 SELECT MATERIALS IN BUILDING MODE (B1,B2,B3,B4)
After you turn on the meter push the “MODE” key one time to select
the building mode. There are four building material groups, you can
switch among them by pressing the “SET” key. To select the correct
building group use Table 2 to find the material you are measuring
TABLE 2: Building materials detail
Building materials
B1 B2 B3 B4
Wall Board Aerated
concrete
Freshly poured
concrete Concrete
B05 B06 B07 B08
Anhydrite
concrete
Ardurapid
cement B25 cement B35 cement
B09 B10 B11 B12
Elastizell
concrete
Gypsum
concrete
Wood fiber
composite
concrete
Lime mortar
B13 B14 B15
Concrete
with bitumen
additive
Concrete with
plastic additive Cement mortar
For building materials from group B05 through B15 the Wet/Moist/
Dry indicator function has to be used to measure the % moisture
(refer to section 6.3).

15
6 Moisture Measurement
6.3 WET/MOIST/DRY INDICATOR
The wet/moist/dry indicator is displayed for evaluating the moisture
of materials B05 through B15 in Table 2. The moisture level is divided
into DRY, MOIST, WET grades. You can set the wet and dry threshold
values in the setting menu (refer to section 7.2). When measuring
a sample the indicator dot moves along the Dry/Moist/Wet scale.
To interpret the dot location to a % moisture value use Table 3. For
example, if the dot location is in the moist region and your building
material is a B06, the material moisture is between 0.9 – 1.2%.
Almost Dry In Moist area In Wet area
TABLE 3: Material Moisture % Values per Building Material Group
Group # B05 B06 B07 B08 B09 B10 B11 B12 B13 B14 B15
DRY <0.5 <0.9 <1.4 <1.8 <1.6 <0.6 <6.2 <1.6 <3.2 <2.8 <1.5
MOIST 0.5-
0.9
0.9-
1.2
1.4-
1.8
1.8-
2.3
1.6-
2.8
0.6-
1.2
6.2-
10
1.6-
2.5
3.2-
3.6
2.8-
3.2
1.5-
2.8
WET >0.9 >1.2 >1.8 >2.3 >2.8 >1.2 >10 >2.5 >3.6 >3.2 >2.8

16
6 Moisture Measurement
6.4 SELF –TEST/FUNCTION CHECK
Press the “MODE” key until the test screen shown below is displayed.
(1) Connect electrodes with “B” contacts
located on the protective cap.
Test approved Test not approved
(2) Connect electrodes with “T” contacts
located on the protective cap.
If the test is not approved – check the electrode pins for dirt or
damage. If the pins are damaged, replace the pins with new pins.
Please contact your BYK-Gardner representive if you need additional
assistance.
Test approved Test not approved

17
7 Settings

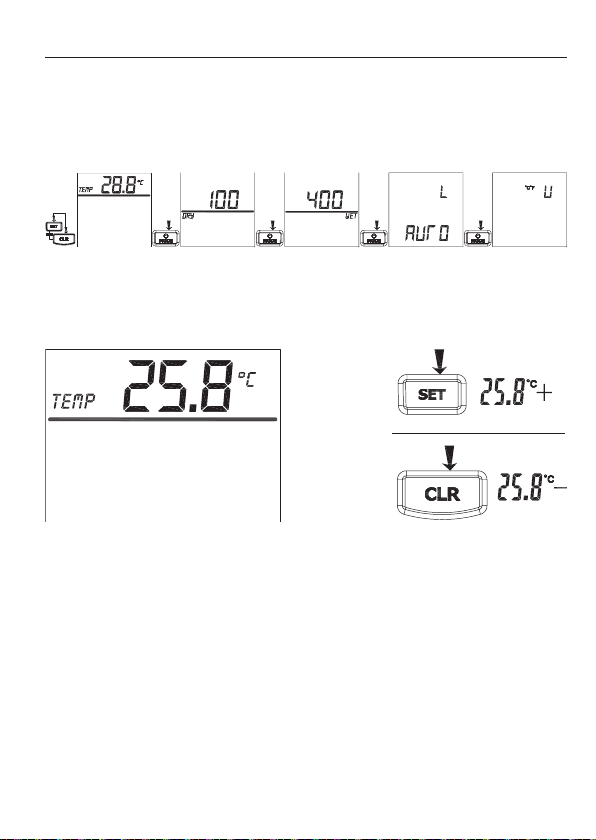

7.0 SETTING MENU
By pressing the “SET” and “CLR” keys simultaneously, the device will
enter the parameter setting menu. There are five setting menus, you
can switch among them by pressing the “MODE” key.
Set Set Set Set Set
Temperature Dry index Wet index Light mode Temp unit
7.1 SET MATERIAL TEMPERATURE COMPENSATION
Relative material moisture is dependent on the temperature of
the material. The meter automatically compensates for material’s
temperature. The ambient temperature value is used for the
compensation calculation.
The ambient temperature can be manually adjusted to increase the
measurement accuracy. This value is not stored and must be re-set
each time the device is switched on. Press the “SET” key to increase
the value; the “CLR” key decreases the value. The value is saved when
the “MODE” key is pressed.

18
7 Settings

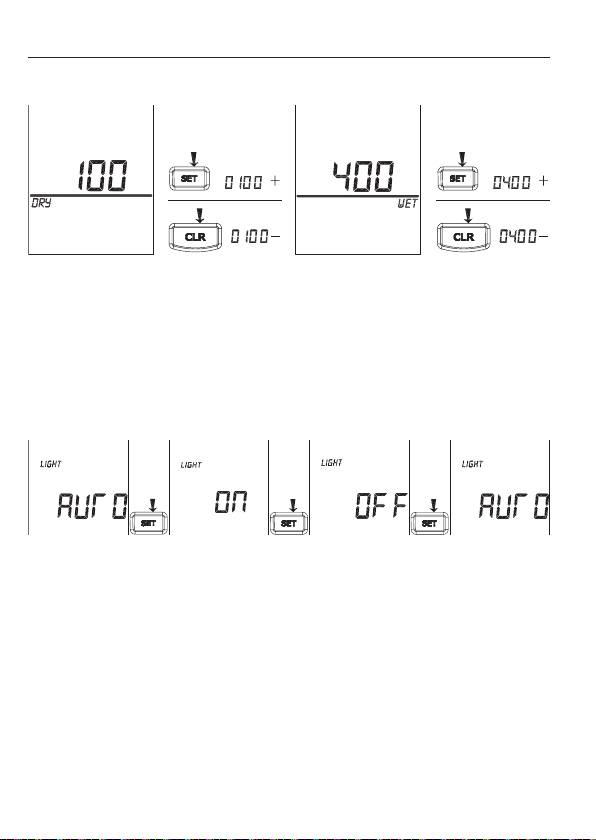

7.2 SET DRY/WET INDICATOR
The dry/moist/wet indicator is programmed from defined values.
The values may be changed as follows. The default “dry” threshold
value is 70 and the “wet” threshold value is 850. Press the “SET” key
to increase the value; the “CLR” key decreases the value. Press the
“MODE” key to sequence from the “Dry” setting screen to the “Wet”
screen. The values are saved by pressing the “MODE” key.
7.3 SET LCD BACKLIGHT MODE
The LED display illumination can be changed to:
AUTO: Display illumination switches off during periods of inactivity
and switches on automatically when in use.
ON: Display illumination remains on during use.
OFF: Display illumination remains off during use.
The ON/OFF settings are not stored when the meter is turned off.
The default is set to “AUTO” mode each time the device is switched
on. Press the “MODE” key to save the setting and sequence to the
“Set Temperature Units”

19
7 Settings

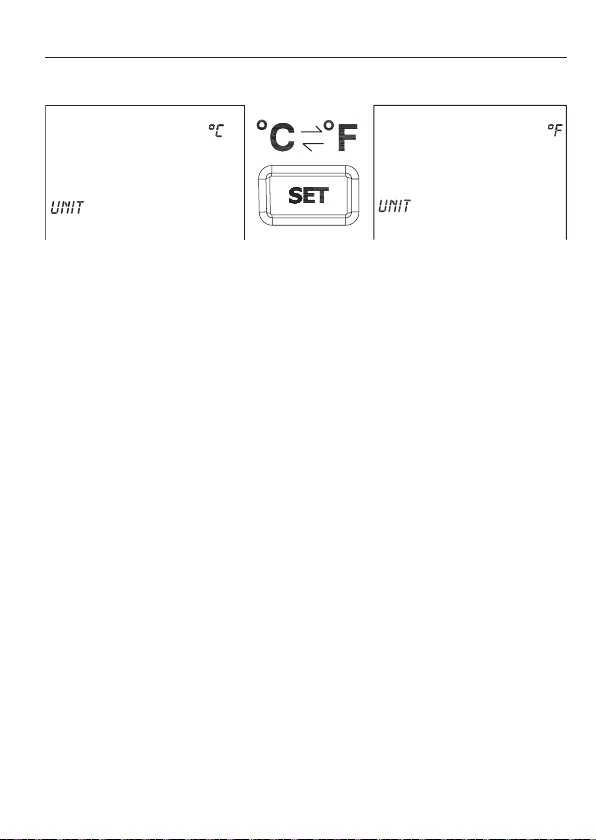

7.4 SET TEMPERATURE UNITS
The ambient temperature can be set to either °C or °F by pressing the
“SET” key. The setting is stored until it is changed manually. Press the
“MODE” key to save the change and sequence to the main display.

20
8 Battery
8.0 REPLACING BATTERIES
When the batteries drop below the operating voltage, the battery
warning symbol will appear; replace the batteries when the
warning symbol appears. The meter uses three (3) CR2032 coin style
batteries.
Unscrew the battery cover in the back of the meter.
Remove the battery cover. Change the batteries.
The positive side of the battery is in the up position at all three
locations. Re-attach the battery cover and tighten the screw to secure
the cover.
