Atlantic alfea hybrid duo gas Installation and operation manual

Installation and
commissioning
instructions
for professionals
to be kept by the user
for future reference
Outdoor unit Hydraulic unit
AOYA 30 LBTL 024200
AOYA 45 LBTL
AOY 54 LJBYL
WOYK112LCT
WOYK140LCT
WOYK160LCT
Air/water heat pump
with integrated gas burner,
split, 2 services
Document n° 1485-7 ~ 08/01/2013
alféa hybrid duo gas
atlantic-comfort.com
7KHVSHFL¿FDWLRQVRIWKLVHTXLSPHQWPD\
EHPRGL¿HGZLWKRXWSULRUQRWLFH
1RQFRQWUDFWXDOGRFXPHQW
FR EN IT DE EN
ES PT

The following are required for the installation of this appliance:
"TXDOL¿HG SHUVRQQHO FHUWL¿HG DV FDSDEOH RI KDQGOLQJ UHIULJHUDWLQJ ÀXLGV DFFRUGLQJ WR
environmental legislation ).
"a heating engineer.
&HUWL¿FDWHRIFRQIRUPLW\
7KHXVHRIDJDVERLOHUUHTXLUHVD&HUWL¿FDWHRI&RQIRUPLW\VLJQHGE\ORFDODXWKRULWLHV
Installation and commissioning instructions "1485 - EN"
Heat pump alféa hybrid duo gas
- 2 -

Contents
Packaging . . . . . . . . . . . . . . . . . . . . . . . 5
Optional equipment . . . . . . . . . . . . . . . . . . 5
Scope . . . . . . . . . . . . . . . . . . . . . . . . . 5
'H¿QLWLRQV . . . . . . . . . . . . . . . . . . . . . . . 5
General characteristics . . . . . . . . . . . . . . . .6

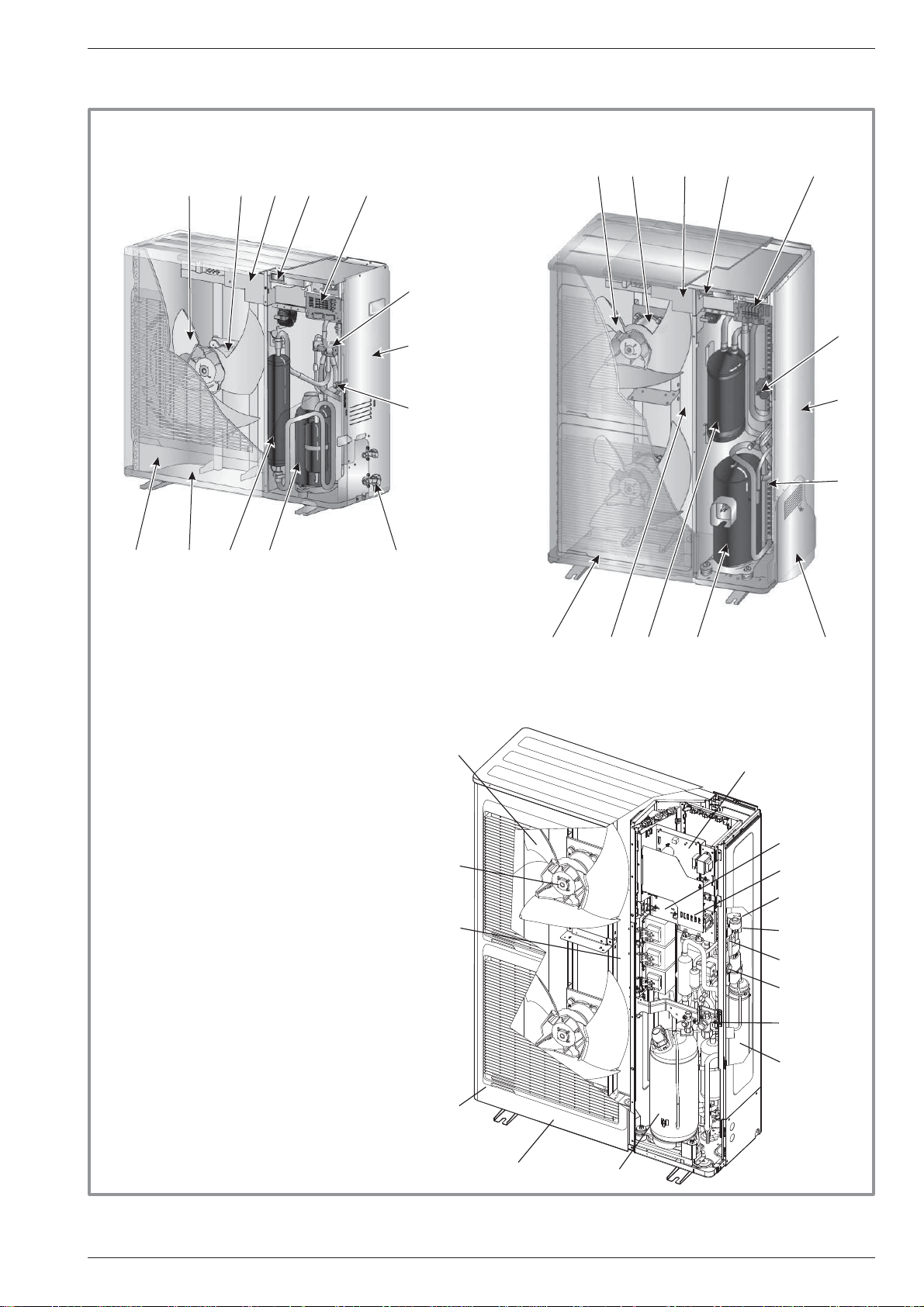

Description. . . . . . . . . . . . . . . . . . . . . . 11

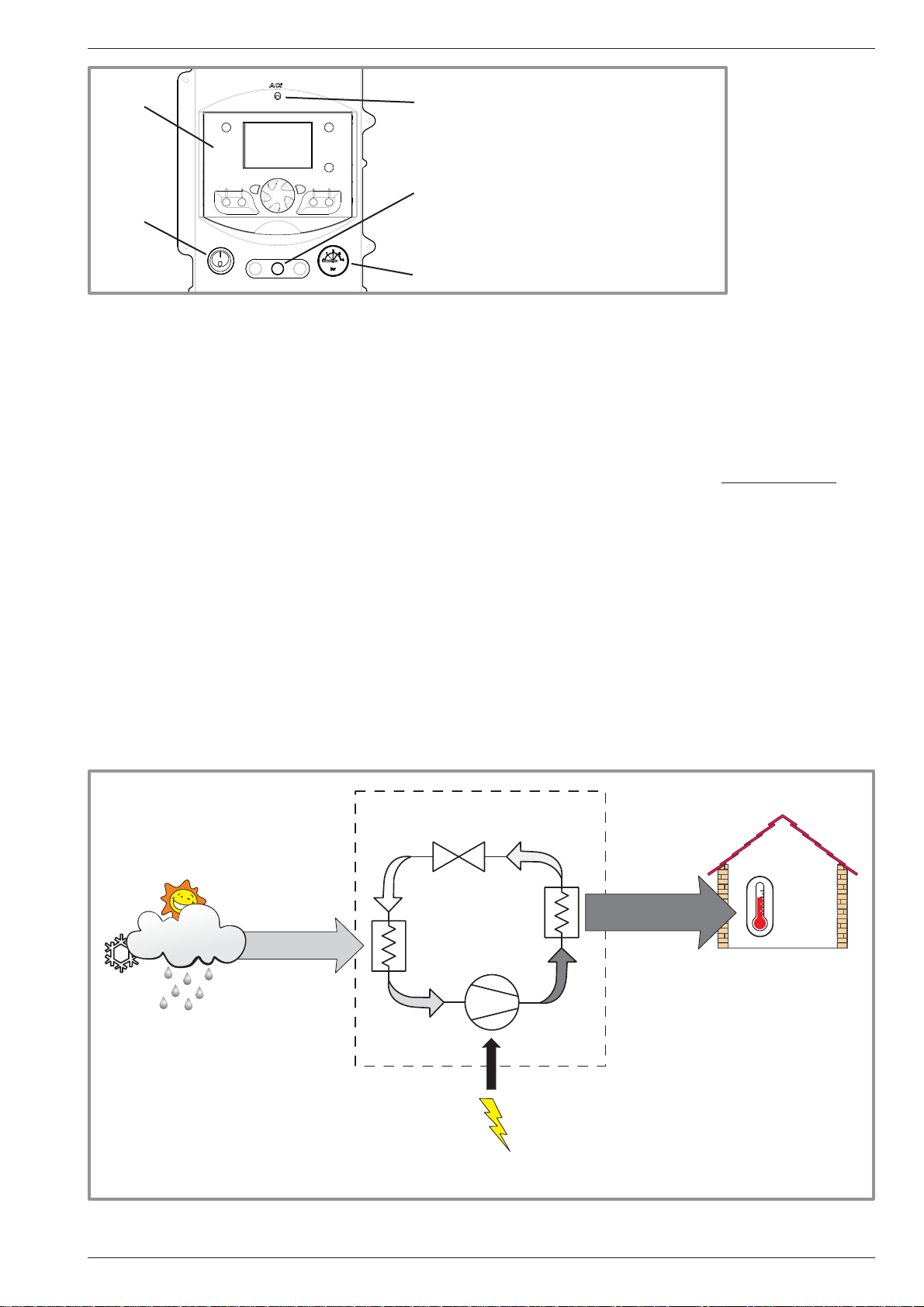

Operating principle . . . . . . . . . . . . . . . . . 13
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Installation and maintenance rules . . . . . . . . . 15
Unpacking and reserves. . . . . . . . . . . . . . . 15
Reception. . . . . . . . . . . . . . . . . . . 15
Handling . . . . . . . . . . . . . . . . . . . 15
Containment of refrigerant circuits . . . . . . 15
Accessories supplied . . . . . . . . . . . . . 15
Positioning. . . . . . . . . . . . . . . . . . . . . . 16
Installing the outdoor unit . . . . . . . . . . . . . . 16
Installation precautions . . . . . . . . . . . . 16
Fitting the outdoor unit . . . . . . . . . . . . 18
Connecting the condensate evacuation pipe . 18
Installing the hydraulic module . . . . . . . . . . . 19

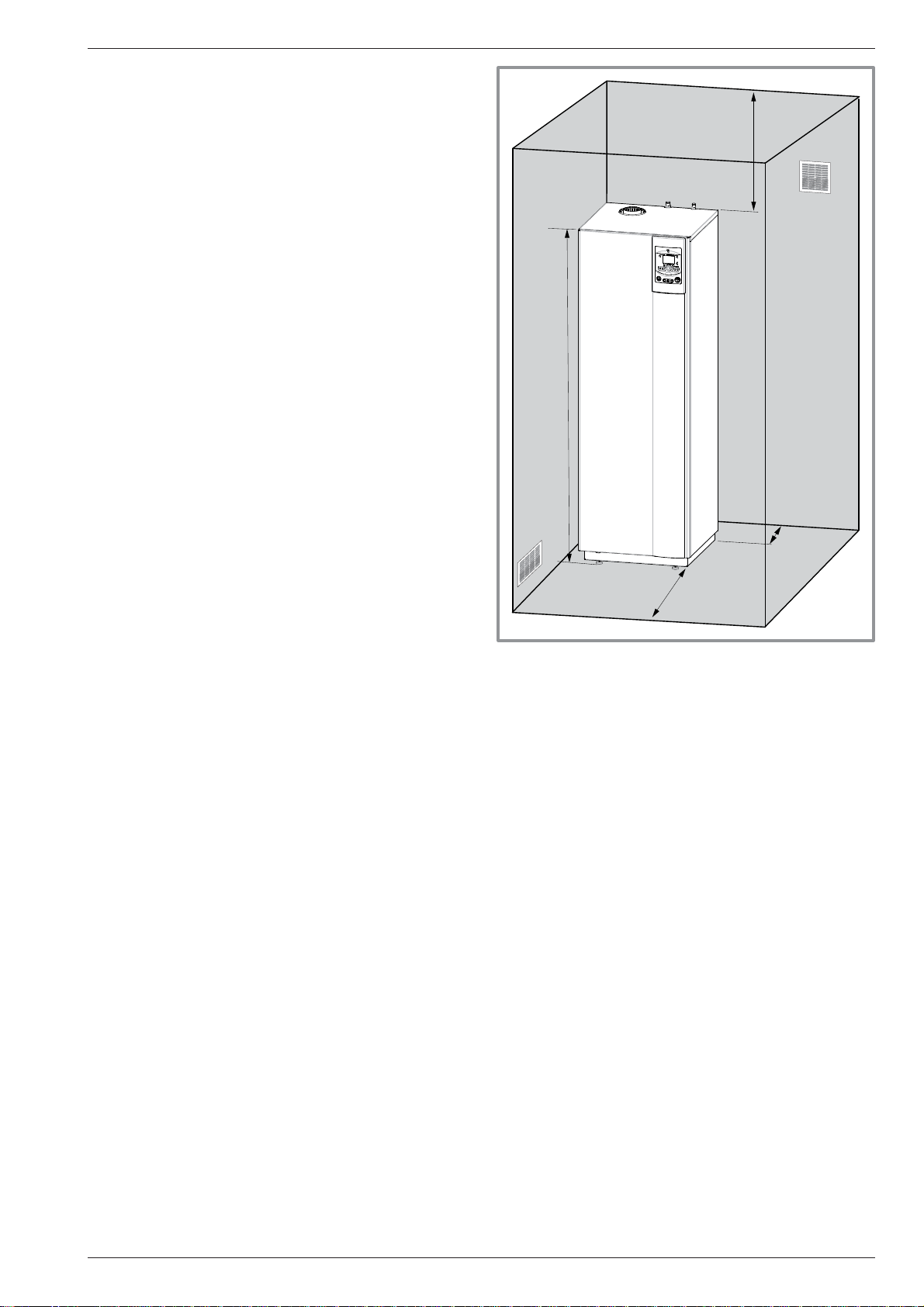

Room where to install. . . . . . . . . . . . . 19
Chimney evacuation pipe, B23, B23P. . . . . . . . 20
Chimney connection pipe, B23, B23P. . . . . . . . 20
Room-sealed connection pipe C13, C33, C53 . . . 21
Concentric horizontal room-sealed pipe
(C13 type). . . . . . . . . . . . . . . . . . . 21
Concentric vertical pipe (C33 type). . . . . . 23
Separate air intake
and smoke evacuation pipes (C53 type) . . . 23
Refrigerant connections . . . . . . . . . . . . . . . 25
Rules and precautions . . . . . . . . . . . . 25
Refrigerating connections. . . . . . . . . . . 25
Flaring . . . . . . . . . . . . . . . . . . . .26
Forming the refrigerant tubes. . . . . . . . . 26
&RQQHFWLQJWKHÀDUHFRQQHFWLRQV. . . . . . . 26
Filling the installation with gas. . . . . . . . . . . . 28
Commissioning procedure . . . . . . . . . . 28
Sealing test . . . . . . . . . . . . . . . . . . 29
Additional charge
(outdoor three phase unit) . . . . . . . . . . 30
&ROOHFWWKHUHIULJHUDQWÀXLGLQ
the outdoor unit . . . . . . . . . . . . . . . . 30
Connecting the heating circuit and
thedomesticcircuit . . . . . . . . . . . . . . . . .31
General . . . . . . . . . . . . . . . . . . . . 31
Rinsing the installation . . . . . . . . . . . . 31
Filling and draining the installation . . . . . . 32
&RQQHFWLRQWRDQXQGHUÀRRUKHDWLQJFLUFXLW. . 32
Connection to a fan coil circuit . . . . . . . . 32
Connection to the domestic circuit . . . . . . 32
Condensate evacuation . . . . . . . . . . . . . . . 32
Gas change . . . . . . . . . . . . . . . . . . . . . 33
Connection of the fuel supply . . . . . . . . . . . . 33
Electrical connections . . . . . . . . . . . . . . . . 34
Characteristics of the electrical power supply . 34
General remarks on the electrical connections . 34
Overall view of the electrical connections . . 35
Cross section of the cable and protection rating . 35
Electrical connections on outdoor unit side
(single phase model) . . . . . . . . . . . . . 37
Electrical connections on outdoor unit side
(three phase model) . . . . . . . . . . . . . 37
Electrical connections on
the hydraulic module side. . . . . . . . . . . 38
Outdoorsensor . . . . . . . . . . . . . . . . . . .40
Ambient sensor and/or central ambient unit. . . . . 40
Installing an ambient sensor . . . . . . . . . 40
Installing a central ambient unit . . . . . . . 40
Presentation of the equipment . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation and commissioning instructions "1485 - EN" - 3 -
Heat pump alféa hybrid duo gas

Fault display on the hydraulic module. . . . . . . . 67
Faults displayed on the outdoor unit
single phase model . . . . . . . . . . . . . . . . . 70
Servicing of the installation . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Faults displayed on the outdoor unit
three phase model. . . . . . . . . . . . . . . . . . 71
Displayinformation . . . . . . . . . . . . . . . . .72
Fault diagnostic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Servicing of the gas heat exchanger . . . . . . . . 73
Checking the hydraulic circuit . . . . . . . . . . . . 73
Servicing the evacuation pipe . . . . . . . . . . . . 74
Servicing the tank . . . . . . . . . . . . . . . . . . 74
Draining the hot water tank . . . . . . . . . . 74
Descaling . . . . . . . . . . . . . . . . . . . 74
Checking the outdoor unit . . . . . . . . . . . . . . 74
Checking the electrical circuit . . . . . . . . . . . . 74
Checking the combustion parameters. . . . . . . . 74
9DOXHVWREHJLYHQWRWKHXVHU. . . . . . . . . . . . . . . . . . . . . . . . . 75
Start-up procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Draining the hydraulic module. . . . . . . . . . . . 75
Directional valve. . . . . . . . . . . . . . . . . . . 75 ACI check . . . . . . . . . . . . . . . . . . . . . . 75
Regulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
The user interface, the central ambient unit (option)
and the ambient sensor (option). . . . . . . . . . . 46
Description of the display . . . . . . . . . . . . . . 48
Water logic. . . . . . . . . . . . . . . . . . . . . . 48
Setting . . . . . . . . . . . . . . . . . . . .48
Electrical wiring diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Regulationparameters . . . . . . . . . . . . . . .50
General . . . . . . . . . . . . . . . . . . . . 50
Setting the parameters . . . . . . . . . . . . 50
List of the function lines
(settings, diagnosis, state) . . . . . . . . . . 50
Checks before commissioning. . . . . . . . . . . . 42
Hydraulic circuit: . . . . . . . . . . . . . . . 42
Gas circuit: . . . . . . . . . . . . . . . . . . 42
Electriccircuit: . . . . . . . . . . . . . . . .42
Commissioning the heat pump . . . . . . . . . . . 42
Starting the gas generator to check the combustion. . 43
Heating installation with radiators. . . . . . . 43
Heating installation with
1XQGHUÀRRUKHDWLQJFLUFXLW. . . . . . . . . . 43
Setting the combustion parameters during a gas check . 44
Heating installation with radiators. . . . . . . 44
Heating installation with
1XQGHUÀRRUKHDWLQJFLUFXLW. . . . . . . . . . 44
&RQ¿JXUDWLRQRIWKHDPELHQWVHQVRU7 . . . . . . 45
&RQ¿JXUDWLRQRIWKHFHQWUDODPELHQWXQLW7RU7 . 45
Commissioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Commissioning assistance "check list" . . . . . . . 76
Beforestarting . . . . . . . . . . . . . . . .76
Start-up . . . . . . . . . . . . . . . . . . . . 77
&RQ¿JXUDWLRQ¿OH. . . . . . . . . . . . . . . . . . . 78
Technical commissioning instructions . . . . . . . . 79
Installation and commissioning instructions "1485 - EN"
Heat pump alféa hybrid duo gas
- 4 -

1 Presentation of the equipment
1.1 Packaging

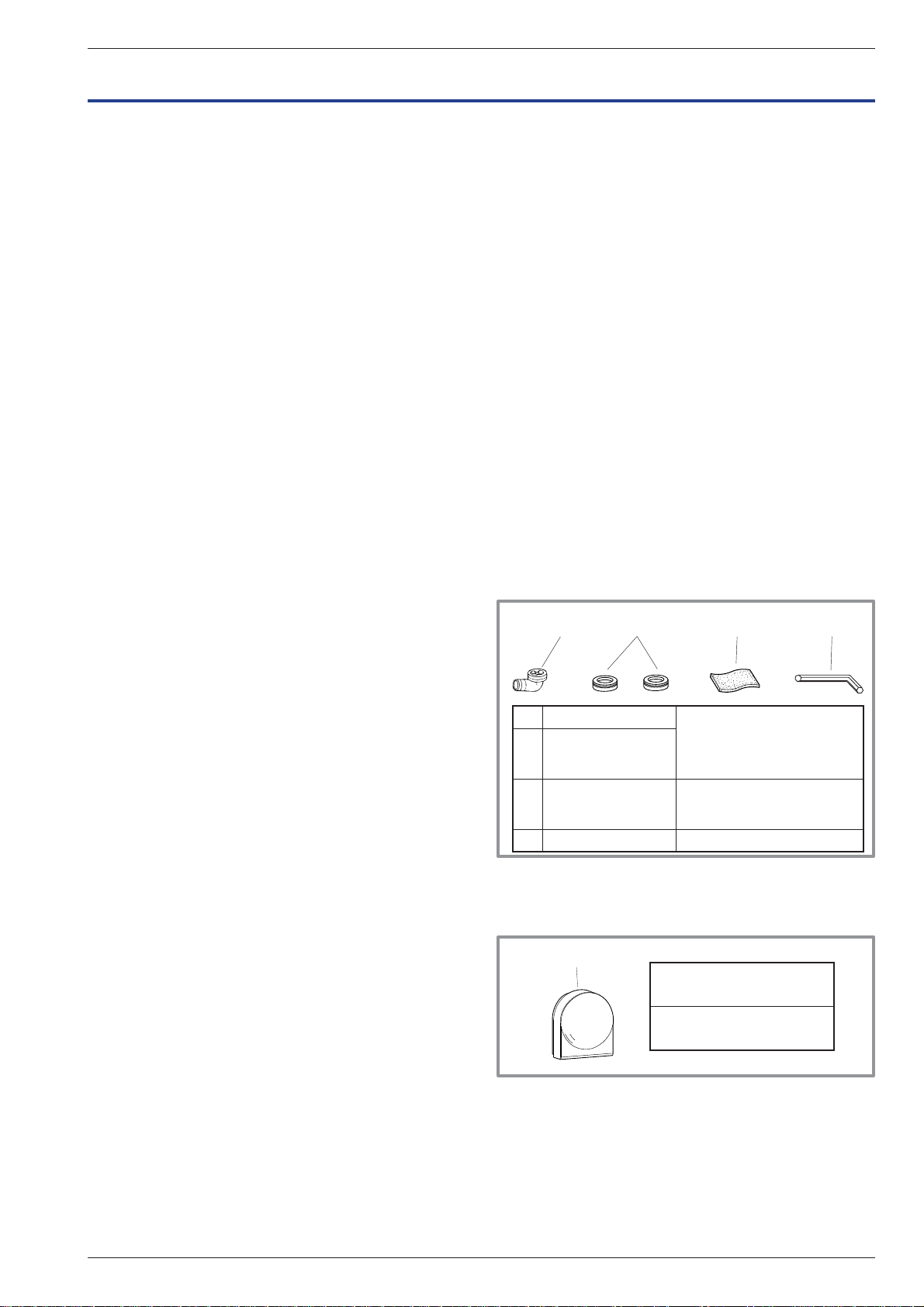

1 box: Outdoor unit.
1 box: Hydraulic module with gas generator
and outdoor temperature sensor.
1.4 'H¿QLWLRQV
- Split : The heat pump is formed by two elements (an
outdoor unit to be installed outdoors and a hydraulic
module to be installed indoors).
- Air/water: The outdoor air is the energy source. This
energy is transmitted to the heating water by the heat
pump.
- Inverter: The speed of the fan and the compressor
are modulated to suit the heat requirements. This
technology economises energy and permits operation
with single phase power supply, regardless of the
powerratingofthe heat pump,byavoidinghigh current
demands when started.
-COP FRHI¿FLHQW RI SHUIRUPDQFH WKLV LV WKH UDWLR
between the energy transmitted to the heating circuit
and the electrical energy consumed.
- Hybrid: the hydraulic module operates with dual
energy (air/water heat pump and built in gas boiler).
3DLULQJWDEOH
Heat pump Outdoor unit Hydraulic module
Model Export code Ref. Code Ref. Code
alféa hybrid duo gas 10 single phase 522181 AOYA30 LBTL 700730
MH
3922401 024200
alféa hybrid duo gas 13 single phase 522182 AOYA45 LBTL 700845
alféa hybrid duo gas 16 single phase 522183 AOY 54 LJBYL 700054
alféa hybrid duo gas 11 three phase 522184 WOYK 112 LCT 700118
alféa hybrid duo gas 14 three phase 522185 WOYK 140 LCT 700143
alféa hybrid duo gas 16 three phase 522186 WOYK 160 LCT 700163
1.2 Optional equipment
Optional equipment
2 circuit kit (ref. 074012)
WRFRQQHFWKHDWLQJFLUFXLWVRUDQXQGHUÀRRU
heating circuit.
Class A pump kit (ref. 074013)
DHW expansion kit (ref. 074026)
Chimney adaptor 80-125 (ref. 073423).
- for a B23* type connection
Ambient sensor T37 (ref. 075308),
Ambient sensor T55 (ref. 073951)
- to correct the ambient temperature.
Central ambient unit T75 (ref. 073954),
Central radio ambient unit T78 (ref. 074061)
- to correct the ambient temperature and programme
the heat pump.
Anti-vibration pads (ref. 523574).
:KLWH39&ÀRRUVXSSRUW (ref. 809532) or
%ODFNUXEEHUÀRRUVXSSRUW (ref. 809536).
1.3 Scope
This heat pump allows:
- Heating in winter,
- Control of two heating circuits*,
- Production of domestic hot water,
- The use of gas combustion for additional heating on
the coldest days.
* : These options require the use of additional kits (see §
"Optional equipment").
1 box: Choice of connection pipe.
Concentric...
C13 ... horizontal turbo pipe (073 224).
C33 ... vertical turbo pipe black (073 226 or 074 031).
... vertical turbo pipe ocher (073 226 or 074 032).
Adaptor...
C53 1Separate pipe adaptor 80 (073 428).
B23 2
B23P 2Chimney adaptor 80 (073 295).
1 &RQ¿JXUDWLRQSRVVLEOHRQO\LQERLOHUURRP
2 For B23 and B23P connection, the chimney adaptors
provided must be used.
Installation and commissioning instructions "1485 - EN" - 5 -
Heat pump alféa hybrid duo gas

1.5 General characteristics
Model denomination DOIpDK\EULGGXRJDV 10 13 16 11 three 14 three 16 three
Gas category FR II2Esi3P
CH - CZ - ES - IT - LT - PT - SK II2H3P
DK - EE - FI - IT - SE I2H
LU - DE I2E
NOx class 5
Nominal heating performances (T° outdoor/T° start)
&DORUL¿FSRZHU
&&XQGHUÀRRUKHDWLQJ kW 9.75 13.20 15.50 10.80 13.50 15.17
&&XQGHUÀRRUKHDWLQJ kW 8.10 10.30 12.15 10.80 13.00 13.50
&&/7UDGLDWRU kW 7.97 10.30 13.03 10.10 12.60 13.00
&&/7UDGLDWRUV kW 6.96 9.25 10.78 10.02 12.50 13.00
$EVRUEHGSRZHU
&&XQGHUÀRRUKHDWLQJ kW 2.50 3.30 4.31 2.51 3.20 3.70
&&XQGHUÀRRUKHDWLQJ kW 3.52 3.96 4.86 4.28 5.18 5.40
&&/7UDGLDWRUV kW 2.61 3.25 4.54 3.01 3.81 4.00
&&/7UDGLDWRUV kW 3.40 4.20 5.26 4.63 6.00 6.37
&RHI¿FLHQWRISHUIRUPDQFH&23&& 3.90 4.00 3.60 4.30 4.22 4.10
*DVERLOHUSHUIRUPDQFHV
&ODVVDFFRUGLQJWRRXWSXWGLUHFWLYH&(( kW &RQGHQVDWLRQ
&ODVVDFFRUGLQJWR57 kW &RQGHQVDWLRQ
1RPLQDOFDORUL¿FÀRZUDWH kW 24.7
1RPLQDOXVHIXOSRZHUKHDWLQJKRWZDWHU kW 24 / 24
1RPLQDOXVHIXOSRZHULQFRQGHQVDWLRQUHWXUQ& kW 24.8
0LQLPXPXVHIXOSRZHU& kW 5.5
0LQLPXPFDORUL¿FÀRZUDWH kW 5.7
Electrical characteristics
9ROWDJH+= V 230 230 230 400 400 400
0D[LPXPFXUUHQWRIWKHDSSOLDQFH A 17 20 26 8,5 9.5 10.5
1RPLQDOFXUUHQW A 11.7 16.7 20.6 3,7 4.8 5.5
$FWXDOSRZHUDEVRUEHG
E\WKHIDQ W 103 2 x 103 2 x 103 2 x 104 2 x 104 2 x 104
E\WKHKHDWÀRZSXPSFLUFXODWRUVPD[JDVJHQHUDWRU W 132 / 93
0D[LPXPSRZHUDEVRUEHG
E\WKHRXWGRRUXQLW W 3910 4600 5980 5865 6555 7245
E\WKHK\GUDXOLFPRGXOH W 244
+\GUDXOLFFLUFXLW
0D[RSHUDWLQJSUHVVXUH306 EDU 3
)ORZUDWHRIWKHK\GUDXOLFFLUFXLWDW&ǻW&QRPLQDOFRQGLWLRQV
- 0LQÀRZUDWH l/h 1000 1380 1670 1170 1460 1650
- 0D[ÀRZUDWH l/h 2100 2700 3300 2340 2920 3290
([SDQVLRQYHVVHO OLWUH 18
Refrigerating circuit
'LDPHWHUVRIWKHJDVSLSHV LQFK 5/8
'LDPHWHUVRIWKHOLTXLGSLSHV LQFK 3/8
)DFWRU\FKDUJHRIUHIULJHUDWLQJ5$ g 2100 3350 3400 2500 2500 2500
0D[RSHUDWLQJSUHVVXUH EDU 41,5
3LSHOHQJWKPLQPD[m 5 / 20 5 / 20 5 / 20 5 / 15 5 / 15 5 / 15
(1) 5HIULJHUDQW5$LQFRPSOLDQFHZLWKVWDQGDUG1)(1
(2) )DFWRU\FKDUJHRIUHIULJHUDWLQJÀXLG5$
7DNLQJLQWRDFFRXQWWKH SRWHQWLDODGGLWLRQDO FKDUJHRI UHIULJHUDWLQJÀXLG
5$VHHSDJH
Installation and commissioning instructions "1485 - EN"
Heat pump alféa hybrid duo gas
- 6 -

Model denomination DOIpDK\EULGGXRJDV 10 13 16 11 three 14 three 16 three
0D[SLSHOHQJWK0D[JUDGLHQW m - / 20 - / 20 - / 20 20 / 20 20 / 20 20 / 20
Domestic hot water tank
&DSDFLW\RIGRPHVWLFKRWZDWHUWDQN OLWUH 120
0D['+:FLUFXLWXVDJHSUHVVXUH306 EDU 7
6SHFL¿F'+:ÀRZUDWHDW'7.' l/mn 20
0D[WHPSHUDWXUH °C 65
Miscellaneous
:HLJKWRIWKHRXWGRRUXQLW kg 64 98 105 99 99 99
:HLJKWRIWKHK\GUDXOLFPRGXOHHPSW\ZLWKZDWHU kg 135 / 278
+\GUDXOLFPRGXOHZDWHUFDSDFLW\ OLWUH 23
$FRXVWLFSRZHUDFFRUGLQJWR(1
K\GPRGXOHWKHUPRG\QDPLFPRGH G%$ 46
1RLVHOHYHODWPRXWGRRUXQLW G%$ 41 40 44 39 41 42
$FRXVWLFSRZHULQFRPSOLDQFHZLWK(1RXWGRRUXQLW G%$ 68 71 71 66 68 69
Heating operating limits
0LQPD[RXWGRRUWHPSWKHUPRG\QDPLFPRGH °C -15 / +24 -15 / +24 -15 / +24 -25 / +35 -25 / +35 -25 / +35
0D[ZDWHUWHPSHUDWXUHWKHUPRG\QDPLFPRGH °C 52 52 52 60 60 60
0D[ÀRZZDWHUWHPSHUDWXUHIRUVWDUWRIKHDWLQJ °C 80
*DVERLOHUFKDUDFWHULVWLFV
*DVÀRZUDWHLQFRQWLQXRXVRSHUDWLRQ&PEDU
1DWXUDOJDV*PEDU m3/h 2.55
1DWXUDOJDV*PEDU m3/h 2.93
3URSDQH*PEDU m3/h 1.00
DiaphragmJDVYDOYHRXWOHW
1DWXUDOJDV*PEDULWHPGLDPHWHU LWHP 20 - 6.5 mm
1DWXUDOJDV*PEDULWHPGLDPHWHU LWHP none
SURSDQH*PEDULWHPGLDPHWHU LWHP FRQLFDOPP
&RPEXVWLRQSURGXFWV
6PRNHWHPSHUDWXUHPLQLPXPPD[LPXP °C 35 / 70
6PRNHPDVVÀRZUDWHPLQLPXPPD[LPXP g/s 2.87 / 11.9
&RQFHQWULFKRUL]RQWDORUYHUWLFDOURRPVHDOHGWXUERSLSH
6PRNHDLUDVSLUDWLRQWXEHGLDPHWHU&& mm 80 / 125
6PRNHWXEHGLDPHWHU& mm 80
0D[LPXPDXWKRULVHGVWUDLJKWOLQHOHQJWKH[FOXGLQJWHUPLQDO m11
/RVVRIFKDUJHE\HOERZ m 1 / 0.5
&RPSDWLEOHWHUPLQDODQGPDWHULDO 8%%,1.328-28/$7
:LWKFKLPQH\DGDSWRU
6PRNHWXEHGLDPHWHU mm 80
2SWLPXPORZSUHVVXUHLQWKHFKLPQH\W\SH% 3D 15
0D[SUHVVXUHDYDLODEOHRQWKHHYDFXDWLRQQR]]OHW\SH%3 3D 70
0D[SUHVVXUHDYDLODEOHRQWKHHYDFXDWLRQQR]]OHW\SH%3 3D
 6RXQGSUHVVXUHOHYHODW[PIURPWKHDSSOLDQFHPIURPWKHJURXQG
IUHH¿HOGGLUHFWLYLW\
 7KHDFRXVWLFSRZHULVDPHDVXUHPHQWPDGHLQWKHODERUDWRU\RIWKHSRZHU
RIWKHQRLVHHPLWWHGEXWFRQWUDU\WRWKHQRLVHOHYHOLWGRHVQRWFRUUHVSRQGWR
WKHPHDVXUHPHQWRIZKDWLVIHOW
 :HRQO\JXDUDQWHHWKHFRUUHFWRSHUDWLRQRIWKHJDVJHQHUDWRUZLWKWKH
URRPVHDOHGWXUERSLSHGHVFULEHGEHORZ
8EELQNVXSSOLHV.
-
8%%,1.52/8;&21'(16$7,21*$6ZLWKSRO\SURS\OHQH337/
LQWHUQDOSLSH
-
52/8;YHUWLFDOWHUPLQDO*
-
52/8;&21+5YHUWLFDOWHUPLQDO)9
- 5pQROX[V\VWHPIRUDGDSWDWLRQWRWKHH[LVWLQJHYDFXDWLRQSLSH

3RXMRXODWVXSSOLHV.
-
'XDOLVKRUL]RQWDOFRQGHQVDWLRQWHUPLQDO67+*33RXMRXODW
- 'XDOLVYHUWLFDOFRQGHQVDWLRQWHUPLQDO679*33RXMRXODW

&RQFHQWULFSLSHVRUPPDQGOHQJWKDGMXVWDEOH
WRPPDQGHOERZV
7KHXVHRIDOXPLQLXPFRQQHFWLRQSLSHVLVSURKLELWHG
Installation and commissioning instructions "1485 - EN" - 7 -
Heat pump alféa hybrid duo gas

Installation and commissioning instructions "1485 - EN"
Heat pump alféa hybrid duo gas
- 8 -

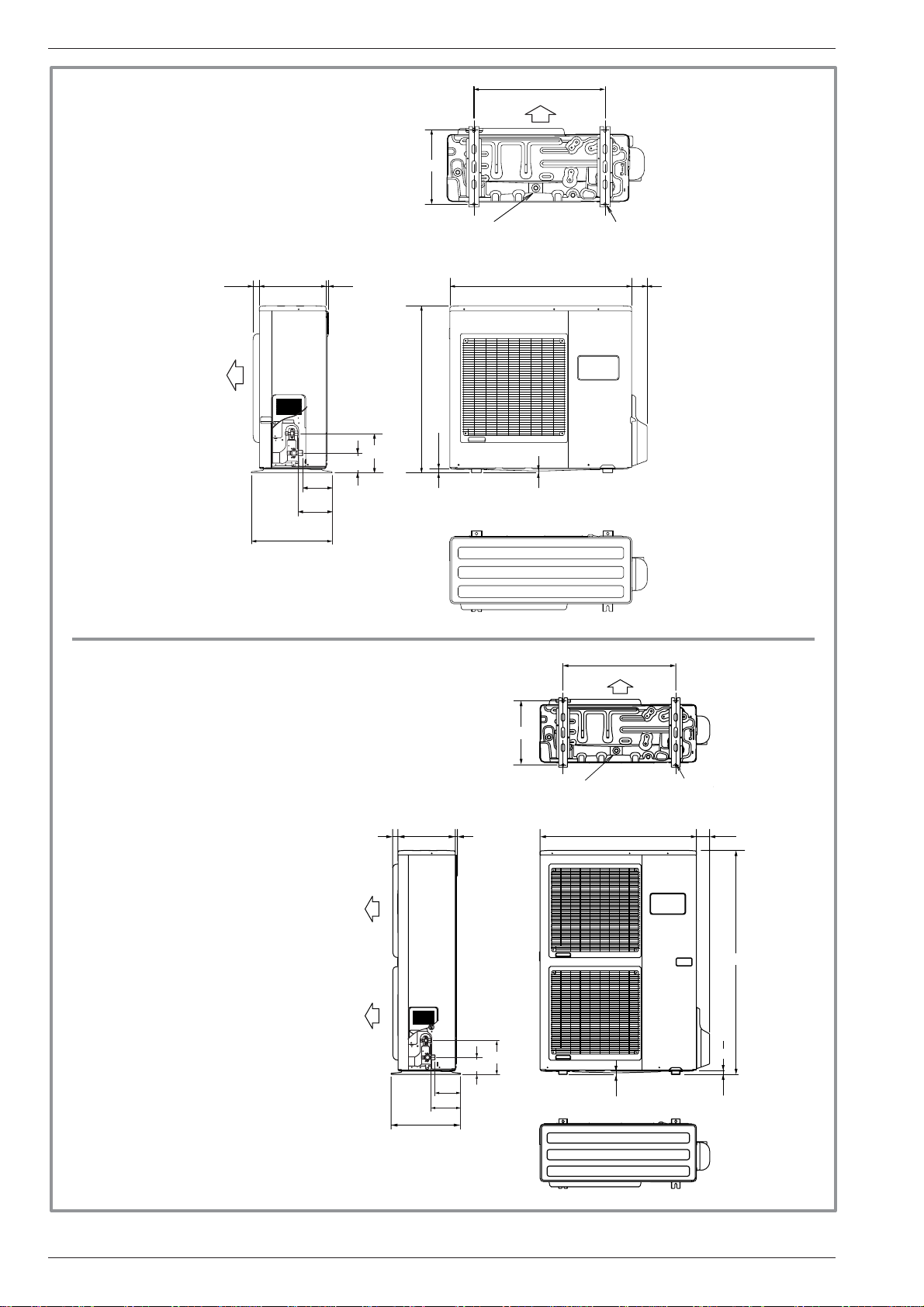

¿JXUHDimensions in mm
77900
830
21
9
400
33031 12
Vue de face
Vue de côté
196
147
170
99
3/8”
5/8”
Vue de dessus
370
650
AIR
Orifice d’écoulement (Ø 20) 4 trous Ø 10)
Vue de dessous
AIR
"2XWGRRUXQLW
K\EULGGXRJDVVLQJOHSKDVHPRGHO
31 77900330 12
9
400
650
Air
Orifice d’écoulement (Ø 20) 4 trous Ø 10)
Vue de dessus
Vue de face
Vue de dessous
Vue de côté
21
1290
147
170
196
370
99
3/8”
5/8”
Air
Air
"2XWGRRUXQLW
K\EULGGXRJDVVLQJOHSKDVHPRGHO
K\EULGGXRJDVVLQJOHSKDVHPRGHO
Flow opening Bottom view
Front view
Top view
Side view
4 holes
Front view
Top view
Side view
Bottom view 4 holesFlow opening

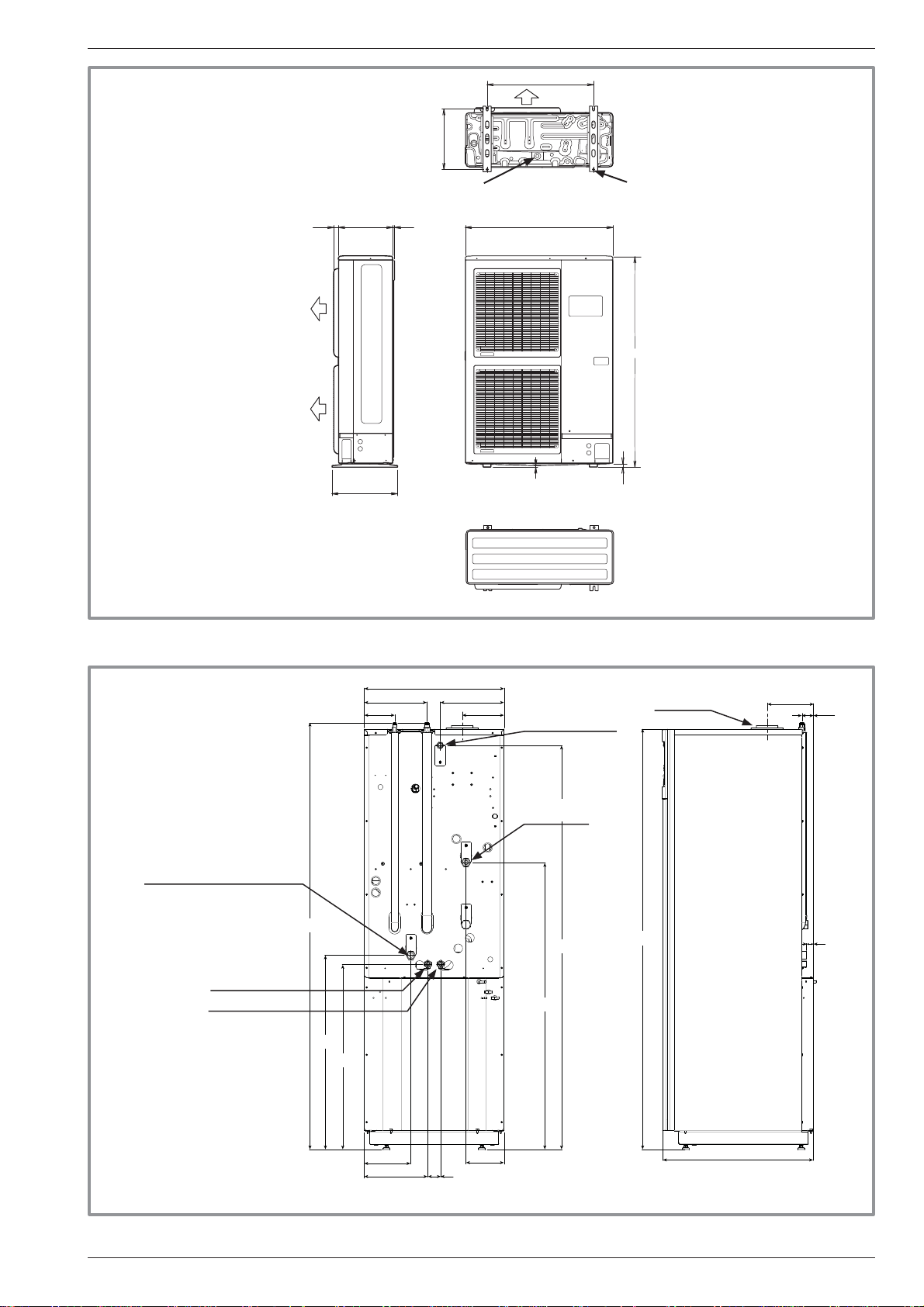

¿JXUHDimensions in mm
900
1290
9
21
650
370
Air
31 12330
400
Air
Air
"2XWGRRUXQLW
K\EULGGXRJDVWKUHHSKDVHPRGHO
K\EULGGXRJDVWKUHHSKDVHPRGHO
K\EULGGXRJDVWKUHHSKDVHPRGHO
Drain hole (ø 20) 4 holes (ø 10)
Bottom view
Front view
Top view
Side view
¿JXUHDimensions in mm
199
647
1800 30
49,3
832 794
1229
1729
1828
273
179
598
55271,5 163
130268
199
+HDWLQJÀRZ[0
'+:[0
&ROGZDWHU[0
+HDWLQJUHWXUQ
26x34 M
*DV[0
"+\GUDXOLFPRGXOH
Dimensions of the hydraulic module, see
¿JXUHSDJH.Rear view Side view
Chimney connection

Installation and commissioning instructions "1485 - EN" - 9 -
Heat pump alféa hybrid duo gas

-
50
-
25 0 25 50 75
°
C
43907
10000
2490
1000
338
N&

0 10 20 30 40 50 60 70 80 90 100 °C
32500
30000
27500
25000
22500
20000
17500
15000
12500
10000
7500
5000
2500
0
N&

Outdoor sensor QAC34
Heat pump return sensor
+HDWSXPSÀRZVHQVRU

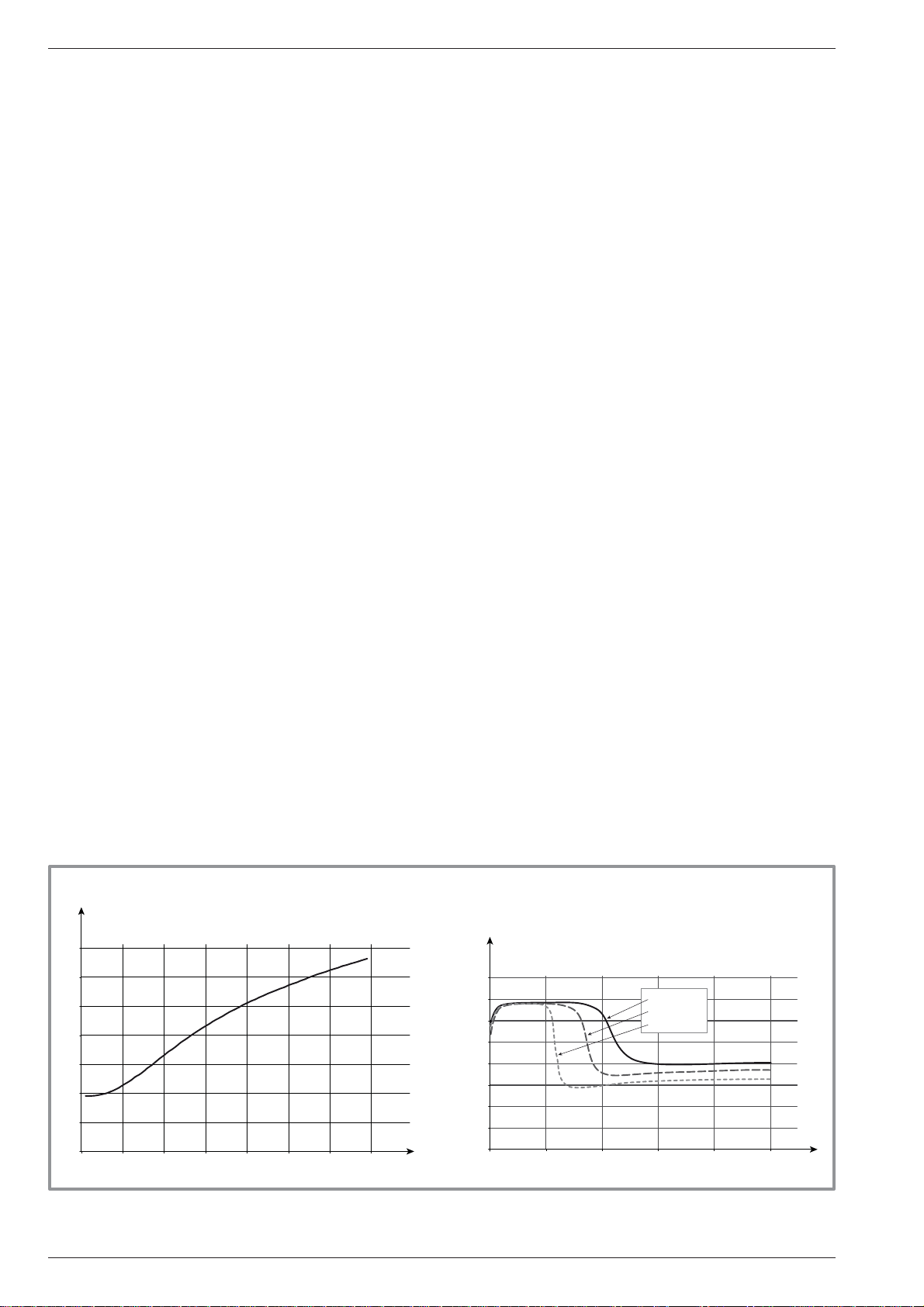

¿JXUHOhmic value of the sensors (hydraulic module)
¿JXUHOhmic value of the sensors (outdoor unit)
-20 -10 0 10 20 30 40 50 60 70 80 90 100 110 120 130
10000
1000
100
10
1
- Compressor
- Discharge
- Condensation
- Evaporator outlet
- Evaporator middle
- Compressor carter
- Outdoor
Temperature °C
2KPLFYDOXHNȍ
¿JXUH+\GUDXOLFSUHVVXUHVDQGÀRZUDWHVDYDLODEOH
1,4 1,6
1,8 2 2,2
0
100
200
300
400
500
600
700
800
mbar
1mbar=10mmCE=100Pa
2,4
m/h
3
1,21
vitesse
3
2
1
1 mbar = 10 mmCE = 100 Pa
Installation and commissioning instructions "1485 - EN"
Heat pump alféa hybrid duo gas
- 10 -

1.6 Description
¿JXUHOutdoor unit devices
/HJHQG
1 - High performance impeller and low noise level.
2 - Electrical motor with variable "inverter" operation.
3 - "Inverter" command module.
4 - Control LEDs and buttons.
5 - Connection terminal blocks
(power supply and inter-connection).
6 - 6WRUDJHERWWOHIRUUHIULJHUDWLQJÀXLG
7 - Cycle inversion valve.
8 - Panels treated against corrosion.
9 - Electronic pressure regulator.
10 - "Inverter" compressor acoustically and thermally
insulated.
11 - Refrigerating connection taps
ÀDUHFRQQHFWRUZLWKSURWHFWLYHFRYHU
12 - Condensate basin with drain hole
13 - High performance exchange surface evaporator;
DQWLFRUURVLRQWUHDWHGK\GURSKLOLFDOXPLQLXP¿QV
and grooved copper tubes.
14 - Solenoid valve for injection of liquid.
15 - Electronic pressure regulator for injection of liquid.
16 - "Inverter" compressor acoustically and thermally
insulated with liquid injection port.
13
12
12 1110
9
8
7
6
5
4
3
13
12
12 1110
9
8
7
6
5
4
3
"K\EULGGXRJDV "K\EULGGXRJDVK\EULGGXRJDV
"K\EULGGXRJDV
3-phase
WO*K1**LCT
2
1
3
4
5
7
9
8
10
12
13
11
14
15
6
16
Installation and commissioning instructions "1485 - EN" - 11 -
Heat pump alféa hybrid duo gas

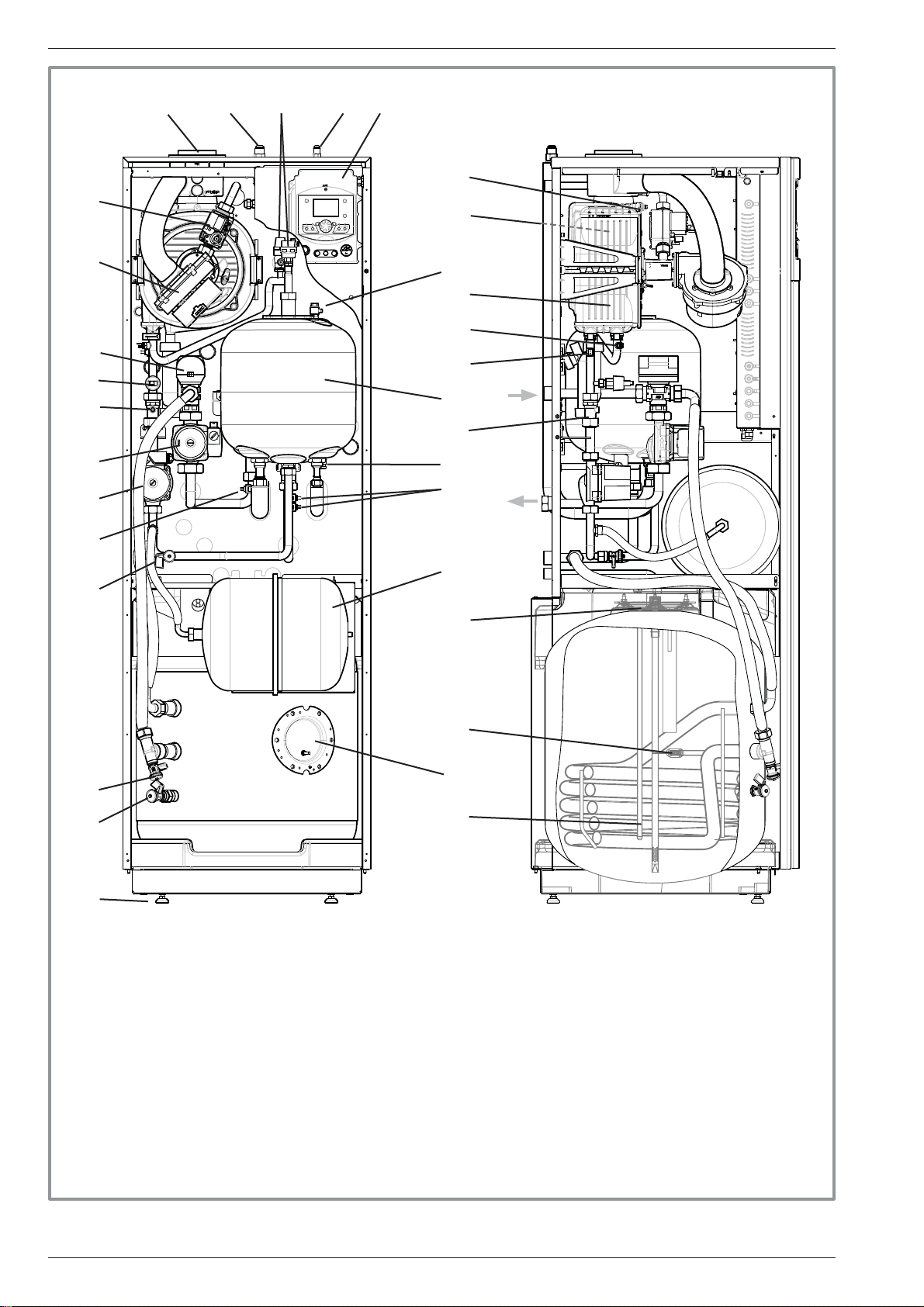

¿JXUHHydraulic module devices
Legend:
1 - Chimney adaptor.
2 - Control panel:
Regulator / User interface,
On / off switch,
Pressure gauge, Light.
3 - Heat pump condenser.
4 - "Gas" refrigerating connector
5 - "Fluid" refrigerating connector
6 - Directional valve.
7 - Circulator
a - Heating (heating circuit),
b - Gas exchanger (CEG).
8 - Drainage tap
a - Heating body
b - Hot water exchanger
c - Hot water tank
9 - Manual drain tap.
10 - Safety valve,
Automatic drain tap.
11 - 18l expansion vessel (maintenance
position).
12 - Gas valve.
13 - Fan.
14 - Gas condensing exchanger Gaz
(EG)
3UHVVXUHÀDS
16 - Disconnectable no return valve
17 - Inspection trap
18 - Titanium anode (ACI).
19 - Adjustable feet
20 - Hot water sensor.
21 - Heat pump output sensor, common
sensor.
22 - Heat pump return sensor
23 - Condensation sensor.
24 - EG output sensor
25 - EG return sensor
26 - Smoke sensor.
12
13
10
14
9
7b
22
6
15 3
16
21
23
24
25
26
16
7a
11
17
18
20
19
17
8c
8b
8a
1
9
2
45
Installation and commissioning instructions "1485 - EN"
Heat pump alféa hybrid duo gas
- 12 -

1.7 Operating principle
The heat pump transmits the energy in the outdoor air to
the home to be heated and the production of domestic
hot water.
The heat pump is formed of four main elements inside
ZKLFKDUHIULJHUDWLQJÀXLGFLUFXODWHV5$
- In the evaporator (item 13,¿JXUH  SDJH ):
The calories are taken from the outdoor air and
WUDQVPLWWHGWRWKHUHIULJHUDWLQJÀXLG$VLWVERLOLQJSRLQW
is low, it changes from the liquid state to the vapour
state, even when the weather is cold.
- In the compressor (item 10 or 16,¿JXUHSDJH):
7KH YDSRULVHG UHIULJHUDWLQJ ÀXLG LV SUHVVXULVHG DQG
thus carries more calories.
- In the condenser (item 3,¿JXUH ):
7KHHQHUJ\ RI WKH UHIULJHUDWLQJ ÀXLGLV WUDQVPLWWHG WR
WKHKHDWLQJFLUFXLW7KHUHIULJHUDWLQJÀXLGUHWXUQVWRLWV
liquid state.
- In thepressureregulator(item 9or 15,¿JXUHSDJH):
7KHQ OLTXH¿HG UHIULJHUDWLQJ ÀXLG LV UHGXFHG WR ORZ
pressure and its initial temperature and pressure.
The heat pump has a regulator that controls the indoor
temperature based on the measurement of the outdoor
temperature, regulation by water logic. The ambient
sensor (optional) provides a corrective action to the
water logic.
The hydraulic module is equipped gas generator which
operates at the request of the regulator:
- to provide additional heating during the colder
periods,
- to reach the DHW comfort value
- to provide a relay during "Peak rate" days (load
shedding or EJP function).
Priority is given to the operation of the heat pump.
:KHQWKHKHDWSXPSLVQRWVXI¿FLHQWIRUWKHKHDWLQJWKH
gas generator automatically takes over.
/HDNSURRIW\SHDSSOLDQFH&&&
The new air needed for combustion is taken from
outside the horizontal or vertical terminal and is then
aspirated into the boiler through the pipes (concentric
or separate).
&KLPQH\W\SHDSSOLDQFH%%3
The new air needed for combustion is taken from the
room where the appliance is installed.
¿JXUH
Control panel
Legend:
1 - Regulator / User interface.
2 - On / off switch.
3 - ACI light.
4 - Pressure gauge.
5 - Safety light.
1
2
3
5
4
¿JXUH2SHUDWLQJSULQFLSOHRIDKHDWSXPS
Ev
Dt Cn
Cp
1kW
COP 4
4kW
20 °C
PAC
PAC - Heat pump
Ev - Evaporator
Cp - Compressor
Cn - Condenser
Dt - Pressure regulator
$LUHQHUJ\
Heat produced
Electric
HQHUJ\
consumed
Installation and commissioning instructions "1485 - EN" - 13 -
Heat pump alféa hybrid duo gas

¿JXUH+RWZDWHUSHUIRUPDQFHV
00 5 10 2015 25 30 35 min.
10
20
30
40
50
60
70
°C
0
10
20
30
40
50
60
70
80
°C
min.
2520151050
10 l/min.
12,5 l/min.
15 l/min.
Increase in temperature of the tank (without drawing) Domestic hot water temperature (with open tab).
Regulation functions
- The initial temperature of the heating circuit is
controlled by water logic.
- In function of an initial heating temperature, the power
of the outdoor unit is modulated via the "inverter"
compressor.
- Management of the supplementary heating.
- The daily timer programme allows comfort or reduced
ambient temperature periods.
- Switching between summer/winter operation is
automatic.
- Ambient sensor*: The ambient sensor provides a
corrective action to the water logic.
- Management of a 2nd heating circuit*.
- Domestic hot water: Hourly heating programme,
management of the comfort temperature and the
reduced temperature.
*When the heat pump is equipped with options and associated kits.
Protection functions
- Anti-legionella cycle for the domestic hot water.
- Tankanti-corrosionprotection by titanium anode(ACI).
- Antifreeze protection for the installation, DHW, etc.
+\GUDXOLFSUHVVXUHPRQLWRULQJ
A pressure switch monitors the hydraulic pressure. If
the pressure is lower than:
- 0.5 bars: Safety
- 0.8 bars: Power reductionand informationon the display.
Miscellaneous
- Start and return temperature monitoring.
- Smoke temperature monitoring.
Operating principle of the domestic hot water
'+:
DHW production takes priority over heating.
Two domestic hot water (DHW) temperatures may
be set: comfort temperature (line 1610 at 55 °C)
and reduced temperature (line 1612 at 40 °C).
The default DHW programme follows the hourly heating
programme with 1 hour's advance on start-up.
Depending on the parameter setting (1620), the comfort
temperaturemaybereached24hours/dayoraccording
to the DHW programme.
The reduced temperature value may be useful to avoid
restarting the DHW too many times and for too long
through the day.
The production of domestic hot water (DHW) is started
when the temperature in the tank is 7°C below (setting
of line 5024) the reference value temperature.
The domestic hot water (DHW) is produced by the heat
pump and the boiler top-up.
A switching function of "reduced" to "comfort" is
available on the front panel of the user interface
(see item 1,¿JXUHSDJH).
Anti-legionnella cycles may be programmed.
Fan coil units with integrated regulation
Do not use an ambient sensor in the zone concerned.
Installation and commissioning instructions "1485 - EN"
Heat pump alféa hybrid duo gas
- 14 -

2 Installation
2.1 Installation and maintenance rules
The appliance must be installed and maintained by an
approved practice.
2.2 Unpacking and reserves
2.2.1 Reception
When the courier is present, carefully check the general
appearance of the appliances, check that the outdoor
unit has not been in horzontal position. In the event
of disagreement, write to the courier within 48 hours
mentioning all reserves and send a copy of this letter to
the After Sales Department.
2.2.2 Handling
Theoutdoorunitmustnotbeinhorizontalpositionduring
transport. Transport in a horizontal position creates risk
RIGDPDJHWRWKHDSSOLDQFHE\PRYLQJWKHFRROLQJÀXLG
and damaging the compressor's suspension.
Damage caused by transport transport in horizontal
position is not covered by the warranty.
If required, the outdoor unit may be tilted only when
being moved by hand (to get it through a doorway, or
up stairs...). This operation must be carried out carefully
and the appliance must be immediately returned to the
vertical position. 13
24
1 Elbow
for condensate evacuation
2Plugs (x2) (depending on
model)
3Flexible insulating
plate
WR¿OOWKHYDFXXPRQ
the entrance of the
interconnection cable
4 Spanner to open valves
¿JXUH$FFHVVRULHVVXSSOLHGZLWKWKHH[WHUQDOXQLW
Outdoor sensor
to detect the outdoor
temperature
¿JXUH$FFHVVRULHVSURYLGHGZLWKWKHK\GUDXOLFPRGXOH
6
5
2.2.3 Containment of refrigerant circuits
All refrigerant circuits fear contamination from dust and
moisture. If such pollutants introduced into refrigeration
circuit, they can contribute to degrade the reliability of
the heat pump.
",W¶V QHFHVVDU\ WR HQVXUH FRUUHFW FRQWDLQPHQW
FRQQHFWLRQV DQG UHIULJHUDQW FLUFXLWV K\GUDXOLF
XQLWRXWGRRUXQLW
",Q FDVH RI VXEVHTXHQW IDLOXUH DQG H[SHUWLVH WKH
¿QGLQJ RI WKH SUHVHQFH RI PRLVWXUH RU IRUHLJQ
REMHFWV LQWR WKH FRPSUHVVRU RLO ZRXOG OHDG WR
V\VWHPDWLFH[FOXVLRQRIZDUUDQW\
- &KHFNXSRQUHFHLSWWKDWWKH¿WWLQJVDQGWKHUHIULJHUDWLRQ
circuit caps mounted on hydraulic unit and outdoor unit
are properly seated and locked (impossible to loosen
bare hands). If this’s not the case, tighten them using
an against wrench.
- Check also that the refrigerant connections are sealed
(plasticcapsortubescrushedattheendsandsoldered).
If the caps must be removed during installation (tubes
cut by example), put back them as soon as possible.
2.2.4 Accessories supplied
Installation and commissioning instructions "1485 - EN" - 15 -
Heat pump alféa hybrid duo gas

2.3 Positioning
The choice of the position is particularly important
as having to move it later is a delicate operation that
UHTXLUHVDTXDOL¿HGSHUVRQ
Choosethe position ofthe outdoorunit andthe hydraulic
module after discussion with the client.
Respect the max. and min. distances between the
hydraulic module and the outdoor unit (¿JXUHSDJH),
as the performances and life of the system depend on this.
2.4 Installing the outdoor unit
2.4.1 Installation precautions
"7KH RXWGRRU XQLW PXVW RQO\ EH LQVWDOOHG
RXWGRRUV ,I D VKHOWHU LV UHTXLUHG LW PXVW KDYH
large apertures on all 4 sides and respect the
VSDFHUHTXLUHGIRUWKHLQVWDOODWLRQVLQJOHSKDVH
model ¿JXUH or three phase model ¿JXUH)
Prefer a sunny location, sheltered from strong and
cold dominant winds.
The appliance must be completely accessible for
subsequent installation and maintenance work (single
phase ¿JXUH or three phase model ¿JXUH).
¿JXUH0LQLPXPLQVWDOODWLRQFOHDUDQFHDURXQGWKHRXWGRRUXQLWVLQJOHSKDVHPRGHOV
AIR
100 mm 100 mm
600 mm
100 à 300 mm
250 mm
pour accès
250 mm
pour accès
250 mm
pour accès
300 mm
300 mm
AIR
AIR
AIR
minimum
600 mm
AIR
Contact your
energy distributor
for the installation
constraints.
100 to 300 mm
250 mm
for access
250 mm
for access 250 mm
for access
Installation and commissioning instructions "1485 - EN"
Heat pump alféa hybrid duo gas
- 16 -

Keep the outdoor unit away from sources of heat or
LQÀDPPDEOHSURGXFWV&RQWDFW\RXUHQHUJ\GLVWULEXWRU
for the installation constraints.
Ensure that the appliance does not disturb neighbours
or users (noise level, draughts caused, low of the air
blown causing a risk of freezing plants in its path).
7KHVXUIDFHRQZKLFKWKHRXWGRRUXQLWLV¿WWHGPXVW
- Be permeable (earth, gravel bed...),
- Support the weight comfortably,
- Permit it to be solidly attached,
- Not transmit any vibration to housing (anti-vibration
posts are available as accessories).
The wall bracket can not be used in conditions likely to
transmit vibrations, ground position is preferred.
1000 mm
ou plus
200 mm
300 mm
200 mm
1000 mm ou plus
150 mm
150 mm
300 mm
Max. 500 mm
1000 mm 1500 mm
250 mm 250 mm
500 mm
Max. 500 mm
1500 mm ou plus
300 mm 500 mm
1500 mm ou plus
1500 mm
500 mm
Max. 300 mm
1500 mm
¿JXUHMinimum installation clearance around the outdoor unit (three phase models)
Ensure that the connections can be made easily with
the hydraulic module.
The outdoor unit can be exposed to the weather,
however avoid installing it in places where it will
become dirty or have excessive water dripping onto it
(under a leaky drainpipe for example).
When operating water may escape from the outdoor
unit. Do not install the appliance on a terrace; install it
at a location which is drained (bed of gravel or sand).
If installed in a region where the temperature may be
below 0°C for a long period, check that the ice does not
cause any danger. It is also possible to connect a pipe to
evacuate to the outdoor unit (¿JXUH).
No obstacles must obstruct the circulation of
air through the evaporator and the fan outlet
(single phase ¿JXUH or three phase model ¿JXUH).
Contact your
energy distributor
for the installation
constraints.
1000 mm
or more 1000 mm or more
1500 mm or more 1500 mm or more
Installation and commissioning instructions "1485 - EN" - 17 -
Heat pump alféa hybrid duo gas

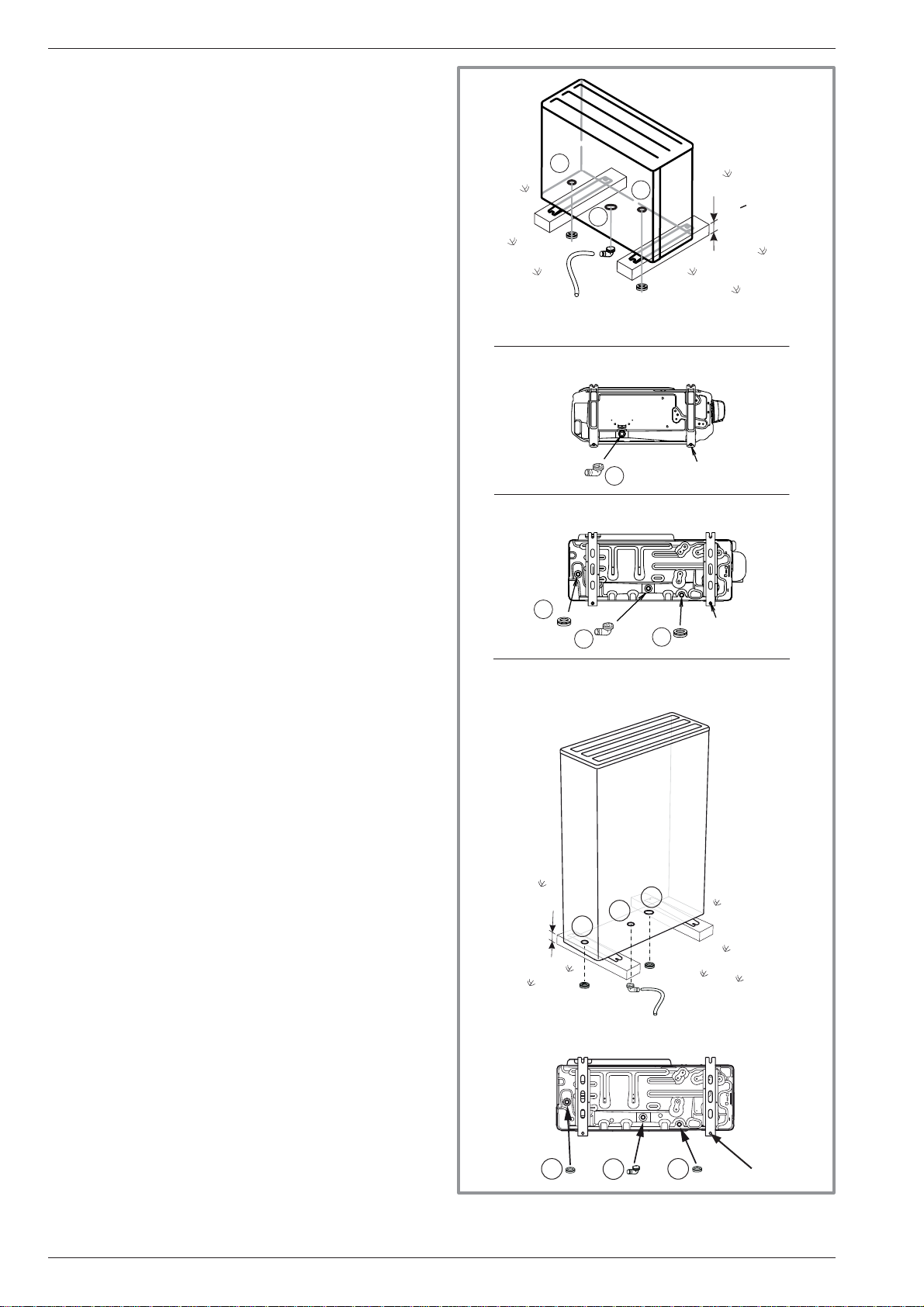

2.4.2 Fitting the outdoor unit
The outdoor unit must be raised by at least 50 mm
from the ground. In snowy regions, this height must be
increased but must not exceed 1.5 m (¿JXUH).
- Attach the outdoor unit using screw and spring or split
washers to ensure they do not come loose.
"Warning
In regions with heavy snowfall, if the outdoor unit's
HQWUDQFHDQGH[LWDUHEORFNHGE\VQRZLWPD\EHGLI¿FXOW
to heat up and may probably cause a breakdown.
Build an awning or place the appliance on a tall support
ORFDOFRQ¿JXUDWLRQ
- Put the appliance on a solid support to minimise
impact and vibration.
- Do not place the appliance directly on the ground as
this may cause problems.
2.4.3 Connecting the condensate evacuation pipe
(see ¿JXUH).
If an evacuation pipe must be used:
- Use the elbow provided (C DQG FRQQHFW D ÀH[LEOH
hose of 16 mm diameter to evacuate the condensates.
- Use the plug(s) supplied (%WRREVWUXFWWKHRUL¿FHRI
the condensate tray.
)LW VR WKDW JUDYLW\ ÀRZ RI WKH FRQGHQVDWHV LV HQVXUHG
(waste water, rainwater, gravel bed).
"If the appliance is installed in a region where
WKH WHPSHUDWXUH PD\ IDOO EHORZ  & IRU ORQJ
SHULRGV¿WWKHHYDFXDWLRQSLSHZLWKDUHVLVWDQFH
trace to avoid it icing over. The resistance trace
PXVWKHDWQRWMXVWWKHHYDFXDWLRQSLSHEXWDOVR
WKH ERWWRP RI WKH FRQGHQVDWH GULS WUD\ RI WKH
appliance.
¿JXUH)LWWLQJWKHRXWGRRUXQLW
evacuation of the condensates
B
B
B
C
C
C
B
*Dans les régions fréquemment enneigées,
(H) doit être supérieur à la couche moyenne de neige.
(Ø 12 mm)
(Ø 10 mm)
Suivant modèle
Suivant modèle
4trous
4trous
H>50mm
*
+PP %
%
%% C
C
4 holes
(ø 12 mm)
Depending on model
* In regions with frequent snowfall, (H) must be greater
than the average layer of snow.
Depending on model
Depending on model
4 holes
4 holes
Installation and commissioning instructions "1485 - EN"
Heat pump alféa hybrid duo gas
- 18 -

2.5 ,QVWDOOLQJWKHK\GUDXOLFPRGXOH
2.5.1 Room where to install
The room where the appliance operates must respect
the regulations in force.
7KLVHTXLSPHQWPD\QRWEHLQVWDOOHGLQDEDWKURRP
or a shower room.
The atmospheric conditions in the room must not be
humid; humidity is damaging for electrical appliances.
,IWKHJURXQGLVKXPLGRUVRIWXVHDEDVHRIVXI¿FLHQW
height.
To facilitatethe servicingoperations andpermit accessto
WKHYDULRXVSDUWVLWLVUHFRPPHQGHGWKDWVXI¿FLHQWVSDFH
be left all around the hydraulic module (¿JXUH).
If necessary, install the hydraulic module on anti-
vibration posts or any other resilient material to limit
the sound level caused by vibration.
5RRPVHDOHGWXUERSLSH (C13, C33)
$V WKH DSSOLDQFH LV OHDNSURRI QR VSHFL¿F SUHFDXWLRQV
are required concerning ventilation of the premises.
With Separate pipe adaptor (C53)
&RQ¿JXUDWLRQSRVVLEOHRQO\LQERLOHUURRP
:LWKFKLPQH\DGDSWRU (B23, B23P)
The appliance must be installed in a suitable and
well ventilated room. The room must have a fresh
air inlet (A) with a free non-blockable cross section
of at least 50 cm2located in the lower part and a
used air outlet (B) with a free non-blockable cross
section of at least 100 cm2positioned in the upper
part and opening directly outdoors (see ¿JXUH ).
The air renewal volume must be at least (P(kW) x 2) m3/h,
i.e. 48 m3/h.
The warranty on the heater will not cover any installation
of the appliance in a chlorine rich atmosphere
(hairdressers, launderette, etc.) or any other corrosive
vapours.
%HFDUHIXORIWKHSUHVHQFHRILQÀDPPDEOHJDVFORVH
to the heat pump when it is installed, especially
when brazing is required. The appliances are not
antiexplosion and must therefore not be installed in an
explosive atmosphere.
- To avoid condensation inside the condenser, remove
the refrigerant circuit caps RQO\ ZKHQ EXLOGLQJ WKH
refrigerant connections.
- If the refrigerant connection only occurs at the end of
theinstallation, besure thatthe refrigerant circuit caps*
remain in place and tight throughout the installation
duration.
* (hydraulic unit side and outdoor unit side)
- After every intervention on the refrigeration circuit and
EHIRUH¿QDOFRQQHFWLRQWDNHFDUHWRUHSODFHWKHSOXJV
in order to avoid any pollution from the refrigeration
circuit (The sealing with tape is prohibited).
¿JXUHMinimum installation clearances around the
K\GUDXOLFPRGXOHDQGJDSVWRWKHFRPEXVWLEOHSDUWLWLRQV
300 mm B
A
1000 mm
125 mm
1800 mm
Installation and commissioning instructions "1485 - EN" - 19 -
Heat pump alféa hybrid duo gas

2.6 &KLPQH\HYDFXDWLRQSLSH%%3
The evacuation pipe must comply with the regulations
in force.
The evacuation pipe must be dimensioned (according
to standard NF EN 13384-1).
The pipe must only be connected to a single appliance.
The pipe must be waterproof.
The pipe must have good thermal insulation.
The evacuation pipe must comply with the decree of
22nd October 1969 (¿JXUH).
%3W\SH¿JXUHSDJH)
The smoke pipe entry must be located:
Either in the premises which contain the appliance,
Or in adjacent premises.
- In this case, it must be coupled to a wall that separates
the two premises to enable direct connection through
this wall.
- 7KHFURVVSLHFHWKURXJKWKH¿UVWZDOOPXVWEHOHDNSURRI
- When the cross pieces are installed for the other walls,
no sealing system must be implemented to enable the
wall / pipe annular area to be completely free.
- The distance between the combustion product
evacuation pipe and the chimney pipe walls must be
greater than 20 mm.
- The space between the evacuation pipe and the
chimney pipe must be linked at the top with the outside
directly through an opening of at least 100 cm².
2.7 &KLPQH\FRQQHFWLRQSLSH%%3
The connection pipe must comply with the regulations
in force.
The cross section of the connection pipe must not be
smaller than the outlet nozzle of the appliance.
The connection pipe must be removable.
The evacuation nozzle is to be connected to the pipe so
that there are no leaks.
5HPLQGHU7KHFKLPQH\DGDSWRUSURYLGHGPXVWEH
XVHG(¿JXUH).
The appliance will be connected to the evacuation pipe
using commercially-available pipes that are approved to
withstand combustion products, condensate and smoke
temperatures of at least 120 °C.
7KHXVHRIDOXPLQLXPFRQQHFWLRQSLSHVLVSURKLELWHG
By design, the boiler's smoke temperature cannot
exceed 120 °C, therefore, there is no need to add an
evacuation pipe protection thermostat.
% ,WLVVWURQJO\UHFRPPHQGHGWR¿WDÀXHUHJXODWRUWRWKHSLSH
when the low pressure of the chimney is greater than 30 Pa.
%3 The drain T is not necessary since the condensate recovery
is incorporated into the boiler (¿JXUHSDJH).
OK
¿JXUHAssembly of the chimney
DGDSWRU%%3
40 cm
8m
40 cm
40 cm
8m
1,2 m
<15°
¿JXUH+HLJKWRIWKHEDVH
RIWKHHYDFXDWLRQGXFW%%3
Installation and commissioning instructions "1485 - EN"
Heat pump alféa hybrid duo gas
- 20 -
