Atlantic Alfea hybrid duo gas Series Installation and operation manual

Installation and
commissioning
instructions
for professionals
to be kept by the user
for future reference
Outdoor unit Hydraulic unit
WOYG112LHT 024200
WOYG112LCTA
WOYG140LCTA
WOYK112LCTA
WOYK140LCTA
WOYK160LCTA
Air/water heat pump
with integrated gas burner,
split, 2 services
Document n° 1485-20 ~ 04/01/2018
alféa hybrid duo gas
atlantic-comfort.com
FR EN IT DE EN
ES PT

Contents
Packaging . . . . . . . . . . . . . . . . . . . . . . . 5
Optional equipment . . . . . . . . . . . . . . . . . . 5
Scope of application . . . . . . . . . . . . . . . . . . 5
Denitions . . . . . . . . . . . . . . . . . . . . . . . 5
General characteristics . . . . . . . . . . . . . . . .6

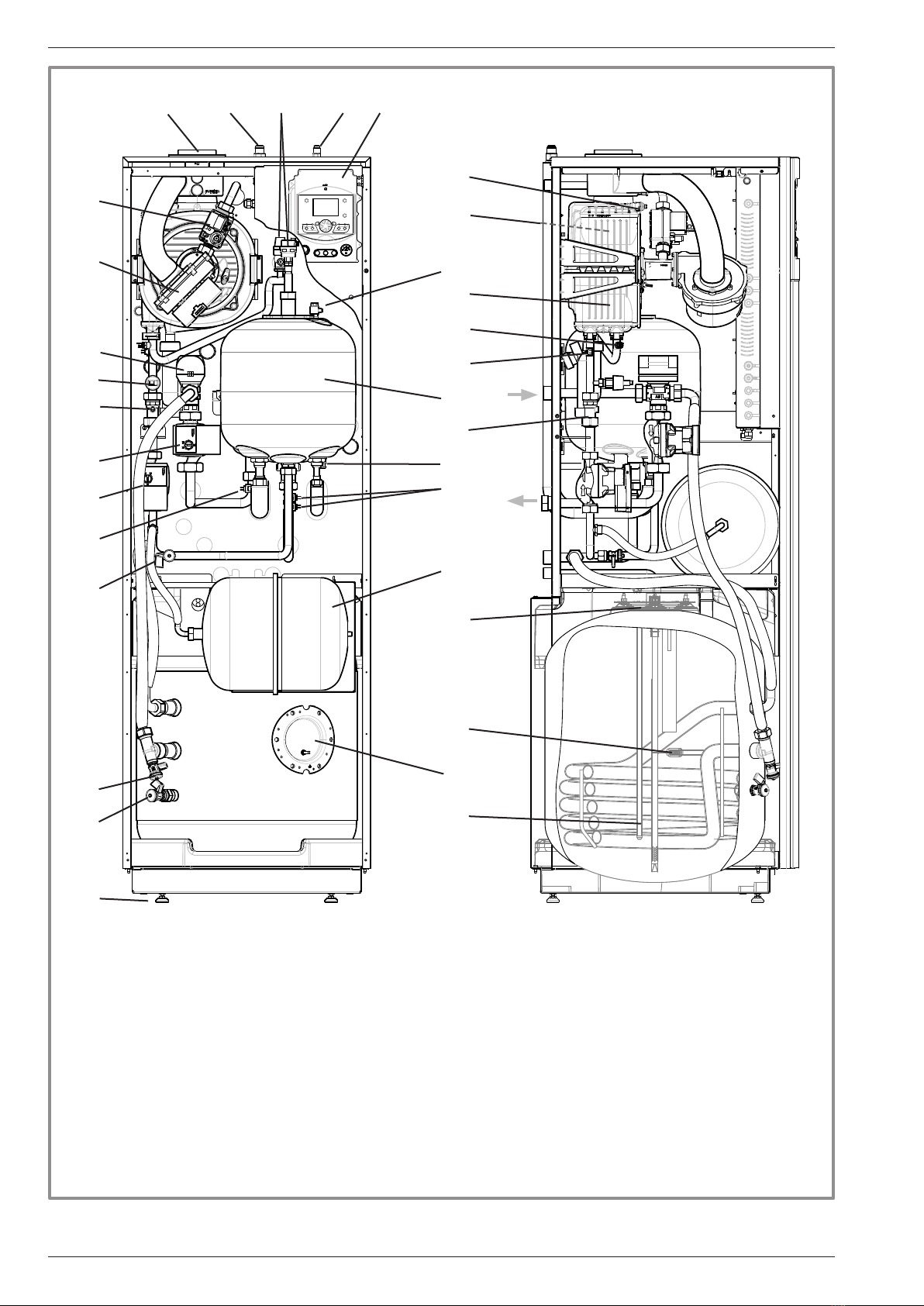

Description. . . . . . . . . . . . . . . . . . . . . . 11

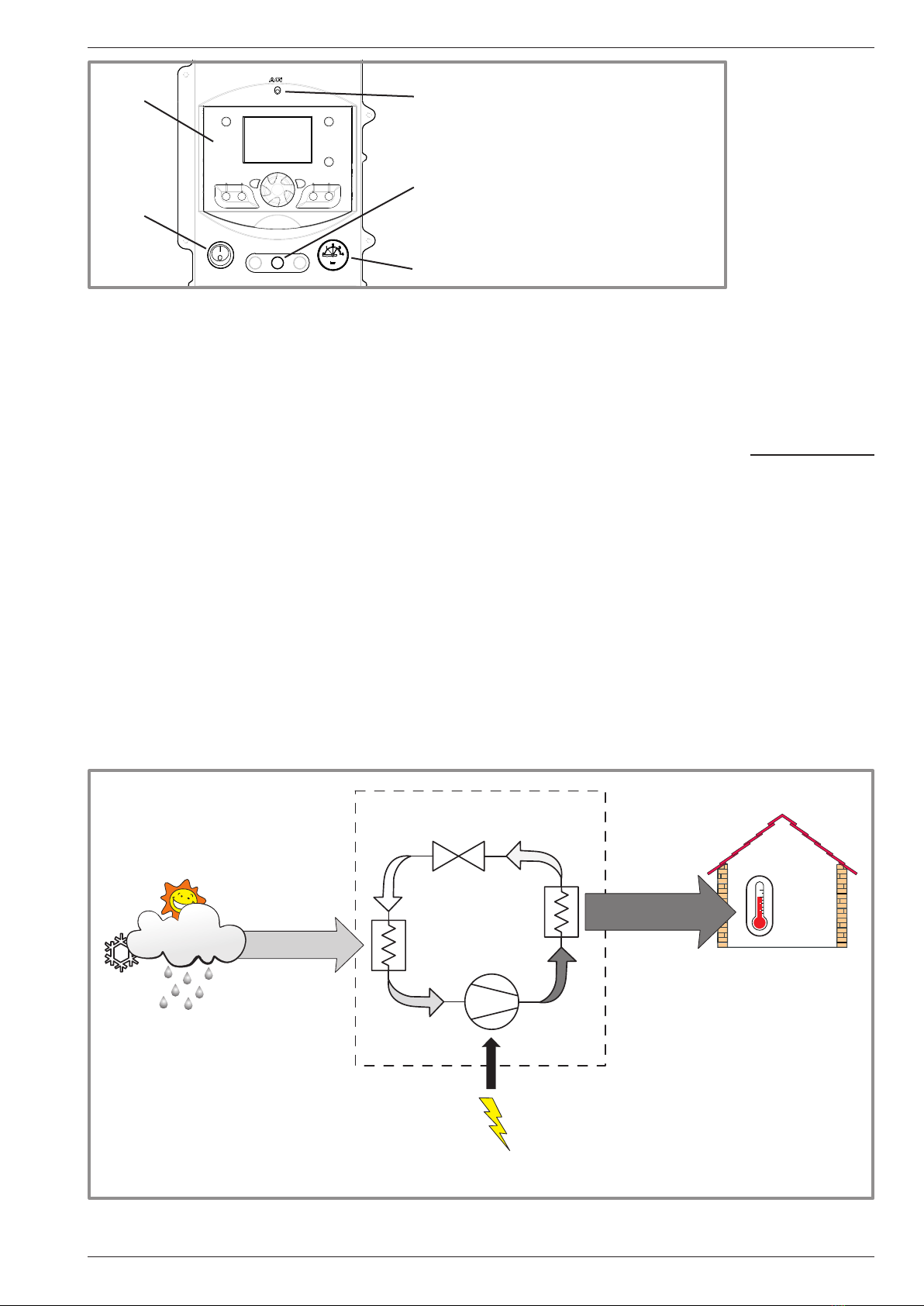

Operating principle . . . . . . . . . . . . . . . . . 13
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Installation and maintenance rules . . . . . . . . . 15
Unpacking and reserves. . . . . . . . . . . . . . . 15
Reception . . . . . . . . . . . . . . . . . . . 15
Handling . . . . . . . . . . . . . . . . . . . 15
Containment of refrigerant circuits . . . . . . 15
Accessories supplied . . . . . . . . . . . . . 16
Installation of refrigerant connections . . . . . . . . 16
Installation of the outdoor unit . . . . . . . . . . . . 17
Installation precautions . . . . . . . . . . . . 17
Outdoor unit positioning . . . . . . . . . . . 18
Condensate drain hose . . . . . . . . . . . . 18
Installing the hydraulic unit . . . . . . . . . . . . . 19
Installation precautions . . . . . . . . . . . . 19
Chimney evacuation pipe, B23, B23P. . . . . . . . 20
Chimney connection pipe, B23, B23P. . . . . . . . 20
Room-sealed connection pipe C13, C33, C53 . . . 21
Concentric horizontal room-sealed pipe (C13 type) 21
Concentric vertical pipe (C33 type) . . . . . . 23
Separate air intake
and smoke evacuation pipes (C53 type) . . . 23
Presentation of the equipment . . . . . . . . . . . . . . . . . . . . . . . . .5
Refrigerant gas connection and lling the installation with gas . . . . . . 25
Rules and precautions. . . . . . . . . . . . . . . . 25
Shaping the refrigerant pipes . . . . . . . . . . . . 25
Bending . . . . . . . . . . . . . . . . . . . . 25
Creating the arings . . . . . . . . . . . . . 25
Check and connecting. . . . . . . . . . . . . . . . 26
Filling the installation with gas. . . . . . . . . . . . 28
Seal test . . . . . . . . . . . . . . . . . . . 29
Creating a vacuum . . . . . . . . . . . . . . 29
Filling the installation with gas . . . . . . . . 30
Sealing test . . . . . . . . . . . . . . . . . . 30
Additional charge . . . . . . . . . . . . . . . 30
Pump down operation (Refrigerant collecting
operation) outdoor unit . . . . . . . . . . . . 31
Hydraulic connecting and gas connecting . . . . . . . . . . . . . . . . . . 32
Connecting to the Heating circuit . . . . . . . . . . 33
Rinsing out the installation . . . . . . . . . . 33
Connecting . . . . . . . . . . . . . . . . . . 33
Connection to an underoor heating circuit. . 33
Volume of the heating system . . . . . . . . 33
Connection to the domestic circuit. . . . . . . . . . 33
Condensate evacuation . . . . . . . . . . . . . . . 33
Overall hydraulic layout . . . . . . . . . . . 34
Filling and draining the installation . . . . . . . . . 36
Gas change . . . . . . . . . . . . . . . . . . . . . 37
Connection of the fuel supply . . . . . . . . . . . . 37
Electrical connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
General . . . . . . . . . . . . . . . . . . . . . . . 38
Characteristics of the electrical power supply . 38
General remarks on the electrical connections . 38
Overall view of the electrical connections . . 39
Cross section of the cable and protection rating 39
Electrical connections on
outdoor unit side (single phase model) . . . . 40
Electrical connections on
outdoor unit side (three phase model) . . . . 41
Electrical connections on
the hydraulic module side. . . . . . . . . . . 42
Outdoor sensor . . . . . . . . . . . . . . . . . . . 44
Room thermostat and/or Room control unit . . . . . 44
Installing an room thermostat. . . . . . . . . 44
Installing a room control unit . . . . . . . . . 44
Installation and commissioning instructions "1485 - EN"
Heat pump alféa hybrid duo gas
- 2 -

Fault display on the hydraulic module . . . . . . . . 73
Faults displayed on the single phase outdoor unit . 76
Servicing of the installation . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Faults displayed on the 3-phase outdoor unit . . . . 77
Display information . . . . . . . . . . . . . . . . . 78
Fault diagnostic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Servicing of the gas heat exchanger . . . . . . . . 79
Checking the hydraulic circuit . . . . . . . . . . . . 79
Servicing the evacuation pipe . . . . . . . . . . . . 80
Servicing the tank . . . . . . . . . . . . . . . . . . 80
Draining the hot water tank . . . . . . . . . . 80
Descaling . . . . . . . . . . . . . . . . . . . 80
Checking the outdoor unit . . . . . . . . . . . . . . 80
Checking the electrical circuit . . . . . . . . . . . . 80
Checking the combustion parameters . . . . . . . . . 80
Start-up procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Draining the hydraulic module. . . . . . . . . . . . 81
Directional valve . . . . . . . . . . . . . . . . . . . 81
ACI check . . . . . . . . . . . . . . . . . . . . . . 81
Regulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
User interface, Room control unit (option) and Room
thermostat (option) . . . . . . . . . . . . . . . . . 52
Description of the display . . . . . . . . . . . . . . 54
Water logic. . . . . . . . . . . . . . . . . . . . . . 54
Setting . . . . . . . . . . . . . . . . . . . . 54
Electrical wiring diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Regulation parameters . . . . . . . . . . . . . . . 56
General . . . . . . . . . . . . . . . . . . . . 56
Setting the parameters . . . . . . . . . . . . 56
List of the function lines. . . . . . . . . . . . 56
Checks before commissioning. . . . . . . . . . . . 46
Heating circulation pump speed settings . . . 46
Gas exchanger's pump speed settings . . . . 46
Gas circuit: . . . . . . . . . . . . . . . . . . 47
Electric circuit: . . . . . . . . . . . . . . . . 47
Commissioning the heat pump . . . . . . . . . . . 47
Starting the gas generator to check the combustion 48
Heating installation with radiators. . . . . . . 48
Heating installation with
1 underoor heating circuit.. . . . . . . . . . 48
Setting the combustion parameters during a gas check 49
Heating installation with radiators. . . . . . . 49
Heating installation with
1 underoor heating circuit.. . . . . . . . . . 49
Conguring room thermostat (T55 or T58) . . . . . 50
Conguration of the room control unit (T75 or T78) . 50
Commissioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Commissioning assistance "check list" . . . . . . . 82
Before starting . . . . . . . . . . . . . . . . 82
Start-up . . . . . . . . . . . . . . . . . . . . 83
Conguration le. . . . . . . . . . . . . . . . . . . 84
Technical commissioning instructions . . . . . . . . 85
ErP performance values . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
ErP Denition . . . . . . . . . . . . . . . . . . . . 86
ErP specications . . . . . . . . . . . . . . . . . . 86
Package che . . . . . . . . . . . . . . . . . . . . 88
Values to be given to the user. . . . . . . . . . . . . . . . . . . . . . . . . 89
Installation and commissioning instructions "1485 - EN" - 3 -
Heat pump alféa hybrid duo gas

The following are required for the installation of this appliance:
"qualied personnel, certied as capable of handling refrigerating uids (according to
environmental legislation ).
"a heating engineer.
Certicate of conformity
The use of a gas boiler requires a Certicate of Conformity signed by local authorities.
Installation and commissioning instructions "1485 - EN"
Heat pump alféa hybrid duo gas
- 4 -

1 Presentation of the equipment
1.1 Packaging
• 1 box: Outdoor unit.
• 1 box: Hydraulic module with gas generator
and outdoor temperature sensor.
1.4 Denitions
- Split : The heat pump is formed by two elements (an
outdoor unit to be installed outdoors and a hydraulic
module to be installed indoors).
- Air/water: The outdoor air is the energy source. This
energy is transmitted to the heating water by the heat
pump.
- Inverter: The speed of the fan and the compressor
are modulated to suit the heat requirements. This
technology economises energy and permits operation
with single phase power supply, regardless of the
power rating of the heat pump, by avoiding high current
demands when started.
- COP (coe󰀩cient of performance): this is the ratio
between the energy transmitted to the heating circuit
and the electrical energy consumed.
- Hybrid: the hydraulic module operates with dual
energy (air/water heat pump and built in gas boiler).
Pairing table
Heat pump Outdoor unit Hydraulic module
Model Export code Ref. Code Code
alféa hybrid duo gas 11 single phase 522197 WOYG112LHT 700197
024200
WOYG112LCTA 700174
alféa hybrid duo gas 14+ single phase 522198 WOYG140LCTA 700175
alféa hybrid duo gas 11 three phase 522184 WOYK112LCTA 700176
alféa hybrid duo gas 14 three phase 522185 WOYK140LCTA 700177
alféa hybrid duo gas 16 three phase 522186 WOYK160LCTA 700178
1.2 Optional equipment
Optional equipment
• 2 circuit kit (ref. 074012)
- to connect 2 heating circuits or an under-oor
heating circuit.
• Class A pump kit (ref. 074013)
• DHW expansion kit (ref. 074026)
• Chimney adaptor 80-125 (ref. 073423).
- for a B23* type connection
• Room thermostat T55 (code 073951),
Wireless room thermostatT58 (code 075313)
- to correct the ambient temperature.
• Room control unit T75 (ref. 073954),
Wireless room control unit T78 (ref. 074061)
- to correct the ambient temperature and programme
the heat pump.
• Anti-vibration blocks (ref. 523574).
• White PVC oor support (ref. 809532) or
Black rubber oor support (ref. 809536).
1.3 Scope of application
This heat pump allows:
- Heating in winter,
- Control of two heating circuits*,
- Production of domestic hot water,
- The use of gas combustion for additional heating on
the coldest days.
* : These options require the use of additional kits (see §
"Optional equipment").
• 1 box: Choice of connection pipe.
Concentric...
C13 ... horizontal turbo pipe (073 224).
C33 ... vertical turbo pipe black (073 226 or 074 031).
... vertical turbo pipe ocher (073 226 or 074 032).
Adaptor...
C53 1... separate pipe adaptor 80 (073 428).
B23 2
B23P 2... chimney adaptor 80 (073 295).
1 Conguration possible only in boiler room.
2 For B23 and B23P connection, the chimney adaptors
provided must be used.
Installation and commissioning instructions "1485 - EN" - 5 -
Heat pump alféa hybrid duo gas

1.5 General characteristics
Model denomination alféa hybrid duo gas 11 14+ 11 three 14 three 16 three
Gas category FR II2Esi3P
CH - CZ - ES - IT - LT - PT - SK II2H3P
DK - EE - FI - IT - SE I2H
LU - DE I2E
NOx class 6
Nominal heating performances (T° outdoor/T° start)
Caloric power
+7 °C/+35°C - under-oor heating kW 10.89 13.24 10.80 13.00 15.17
-7 °C/+35°C - under-oor heating kW 11.13 11.86 10.80 12.20 12.98
+7° C/+45°C - LT radiator kW 9.37 11.84 9.70 12.10 12.75
-7° C/+45°C - LT radiator kW 9.36 10.89 8.89 10.70 12.50
Absorbed power
+7 °C/+35°C - under-oor heating kW 2.54 3.27 2.62 3.11 3.70
-7 °C/+35°C - under-oor heating kW 4.10 4.79 4.28 5.13 5.70
+7 °C/+45°C - LT radiator kW 2.84 3.65 3.08 3.78 3.97
-7 °C/+45°C - LT radiator kW 4.28 4.92 4.33 5.14 6.15
Coe󰀩cient of performance (COP) (+7°C/+ 35°C) 4.29 4.05 4.12 4.18 4.10
Gas boiler performances
Class according to output directive 92/42/CEE kW Condensation
Class according to RT 2005 kW Condensation
Nominal caloric ow rate kW 24.7
Nominal useful power (heating / hot water) kW 24 / 24
Nominal useful power in condensation (return 30 °C) kW 24.8
Minimum useful power (80/60 °C) kW 5.5
Minimum caloric ow rate kW 5.7
Electrical characteristics
Voltage (50 HZ) V 230 400
Maximum current of the appliance A 22 25 8.5 9.5 10.5
Nominal current A 11.4 14.2 3.7 4.8 5.5
Actual power absorbed...
- by the fan W 2 x 110 2 x 104
- by the heat ow pump circulators (max) / gas generator W 75 / 45
Maximum power absorbed...
- by the outdoor unit W 5060 5750 5865 6555 7245
- by the hydraulic module W 153
Hydraulic circuit
Max. operating pressure (PMS) MPa (bar) 0.3 (3)
Flow rate of the hydraulic circuit at 4°C<Δt<8°C (nominal conditions)
- Min ow rate l/h 1170 1460 1170 1390 1650
- Max ow rate l/h 2340 2920 2340 2790 3290
Expansion vessel litre 18
Refrigerating circuit
Diameters of the gas pipes inch 5/8
Diameters of the liquid pipes inch 3/8
Factory charge of refrigerating R410A(1) g 2500
Max. operating pressure MPa (bar) 4.15 (41.5)
Pipe length (min / max (2))m 5 / 15
Max pipe length (3) / Max gradient (3) m 20 / 15
Installation and commissioning instructions "1485 - EN"
Heat pump alféa hybrid duo gas
- 6 -

Model denomination alféa hybrid duo gas 11 14+ 11 three 14 three 16 three
Domestic hot water tank
Capacity of domestic hot water tank litre 120
Max DHW circuit usage pressure (PMS) MPa (bar) 0.7 (7)
Specic DHW ow rate at DT 30°K (D) l/mn 20
Max temperature °C 65
Miscellaneous
Weight of the outdoor unit kg 92 99
Weight of the hydraulic module (empty/with water) kg 135 / 278
Hydraulic module water capacity litre 23
Acoustic power (5) according to EN12102
(hyd. module: thermodynamic mode) dB (A) 46
Noise level (4) at 5 m (outdoor unit) dB (A) 47 48 44 46 47
Acoustic power (5) in compliance with EN 12102 (outdoor unit)
(water range 45 ° C to NF PAC) dB (A) 69 70 66 68 69
Heating operating limits
Min./max. outdoor temp. (thermodynamic mode) °C -25 / +35
Max. water temperature (thermodynamic mode) °C 60
Max. ow water temperature for start of heating °C 80
Gas boiler characteristics
Gas ow rate in continuous operation (15°C - 1013 mbar)
- Natural gas (G20 - 20 mbar) m3/h 2.55
- Natural gas (G25 - 25 mbar) m3/h 2.93
- Propane (G31 - 37 mbar) m3/h 1.00
Diaphragm (gas valve outlet)
- Natural gas (G20 - 20 mbar) item - diameter item - Ø 20 - 6.5 mm
- Natural gas (G25 - 25 mbar) item - diameter item - Ø none
- propane (G31 - 37 mbar) item - diameter item - Ø conical - 3.9 mm
Combustion products
Smoke temperature (minimum / maximum) °C 35 / 70
Smoke mass ow rate (minimum / maximum) g/s 2.87 / 11.9
Concentric horizontal or vertical room sealed ( turbo ) pipe
Smoke / air aspiration tube diameter (C13, C33) mm 80 / 125
Smoke tube diameter (C53) mm 80
Maximum authorised straight line length (excluding terminal) m11
Loss of charge by elbow (90° / 45°) m 1 / 0.5
Compatible terminal and material UBBINK (6)
With chimney adaptor
Smoke tube diameter mm 80
Optimum low pressure in the chimney (type B23) Pa 15
Max. pressure available on the evacuation nozzle (type B23P) Pa 70
(1) Refrigerant R410A in compliance with standard NF EN 378.1.
(2) Factory charge of refrigerating uid R410A.
(3) Taking into account the potential additional charge of refrigerating
uid R410A (see "Additional charge", page 30).
(4) Sound pressure level at (x) m from the appliance, 1.5 m from the
ground, free eld, directivity 2.
(5) The acoustic power is a measurement made in the laboratory of the
power of the noise emitted but contrary to the noise level, it does not
correspond to the measurement of what is felt.
(6) :This appliance is certied (and its operation is
guaranteed) with only the room sealed (turbo) pipe
described below:
•Ubbink supplies.
-
UBBINK ROLUX CONDENSATION GAS with polypropylene
(PPTL) internal pipe.
-
ROLUX vertical terminal 80/125 - 4 G or 5G.
-
ROLUX CON HR vertical terminal FV80/125.
-
Rénolux system for adaptation to the existing evacuation pipe.
The use of aluminium connection pipes is prohibited.
Installation and commissioning instructions "1485 - EN" - 7 -
Heat pump alféa hybrid duo gas

900
1290
9
21
650
370
Air
31 12330
400
Air
Air
"Outdoor unit,
hybrid duo gas 11 three-phase model,
hybrid duo gas 14 three-phase model,
hybrid duo gas 16 three-phase model
Drain hole (ø 20) 4 holes (ø 10)
Bottom view
Front view
Top view
Side view
31 7790033012
9
400
650
Air
Orifice d’écoulement(Ø 20) 4 trousØ12
Vue de dessus
Vue de face
Vue de dessous
Vue de coté
21
1290
151
170
196
370
99
3/8”
5/8”
Air
Air
"Outdoor unit,
hybrid duo gas 11 single phase model,
hybrid duo gas 14+ single phase model
Front view
Top view
Side view
Bottom view 4 holes
Flow opening
Installation and commissioning instructions "1485 - EN"
Heat pump alféa hybrid duo gas
- 8 -
gure 1 - Dimensions in mm

gure 2 - Dimensions in mm
199
647
1800 30
49,3
832
794
1229
1729
1828
273
179
598
55271,5
163
130
268
199
Heating ow Ø 26x34 M
DHW Ø 20x27 M
Cold water Ø 20x27 M
Heating return Ø
26x34 M
Gas Ø 20x27 M
"Hydraulic module
Dimensions of the hydraulic module, see
gure 16, page 19.
Rear view Side view
Chimney connection
Ø 80/125
Installation and commissioning instructions "1485 - EN" - 9 -
Heat pump alféa hybrid duo gas

-50 -25 0 25 50 75 °C
43907
10000
2490
1000
338
1 kΩ, 25 °C
Ω
°C
0
2500
5000
7500
10000
12500
15000
17500
20000
22500
25000
27500
30000
32500
0102030405060708090 100
B3977
Outdoor sensor QAC34
Heat pump return sensor
Heat pump ow sensor
gure 4 - Ohmic value of the sensors (hydraulic module)
gure 5 - Ohmic value of the sensors (outdoor unit)
-20 -10 0 10 20 30 40 50 60 70 80 90 100 110 120 130
10000
1000
100
10
1
- Compressor
- Discharge
- Condensation
- Evaporator outlet
- Evaporator middle
- Compressor carter
- Outdoor
Temperature °C
Ohmic value (kΩ)
gure 3 - Hydraulic pressures and ow rates available
1 mbar=10 mmCE=100 Pa
0
1
2
3
4
5
6
7
mCE
m/h
3
11,5 2 2,50,50
2
4
66
88
11
44
88
1 mbar=10 mmCE=100 Pa
0
1
2
3
4
5
mCE
m/h
3
11,5 22,50,50
11
44
88
2
4
66
88
Variable pressure
Constante pressure
Installation and commissioning instructions "1485 - EN"
Heat pump alféa hybrid duo gas
- 10 -

1.6 Description
gure 6 - Outdoor unit devices
Legend
1 - High performance impeller and low noise level.
2 - Electrical motor with variable "inverter" operation.
3 - "Inverter" command module.
4 - Control LEDs and buttons.
5 - Connection terminal blocks (power supply and inter-connection).
6 - Storage bottle for refrigerating uid.
7 - Cycle inversion valve.
8 - Panels treated against corrosion.
9 - Electronic pressure regulator.
10 - "Inverter" compressor acoustically and thermally insulated.
11 - Refrigerating connection taps (are connector) with protective cover.
12 - Condensate basin with drain hole
13 - High performance exchange surface evaporator;
anti-corrosion treated hydrophilic aluminium ns and grooved copper tubes.
14 - Solenoid valve for injection of liquid.
15 - Electronic pressure regulator for injection of liquid.
16 - "Inverter" compressor acoustically and thermally insulated with liquid injection port.
1
2
3
4
5
6
7
8
9
10
11
12
13 14
15
"hybrid duo gas 11 & 14+ single phase "hybrid duo gas 11, 14 & 16 3-phase
2
1
3
4
5
7
9
8
10
12
13
11
14
15
6
16
Installation and commissioning instructions "1485 - EN" - 11 -
Heat pump alféa hybrid duo gas

gure 7 - Hydraulic module devices
Legend:
1 - Chimney adaptor.
2 - Control panel:
Regulator / User interface,
On / o󰀨 switch,
Pressure gauge, Light.
3 - Heat pump condenser.
4 - "Gas" refrigerating connector
5 - "Fluid" refrigerating connector
6 - Directional valve.
7 - Circulator
a - Heating (heating circuit),
b - Gas exchanger (CEG).
8 - Drainage tap
a - Heating body
b - Hot water exchanger
c - Hot water tank
9 - Manual drain tap.
10 - Safety valve,
Automatic drain tap.
11 - 18l expansion vessel
(maintenance position).
12 - Gas valve.
13 - Fan.
14 - Gas condensing exchanger Gaz (EG)
15 - Pressure ap
16 - Disconnectable no return valve
17 - Inspection trap
18 - Titanium anode (ACI).
19 - Adjustable feet
20 - Hot water sensor.
21 - Heat pump output sensor,
common sensor.
22 - Heat pump return sensor
23 - Condensation sensor.
24 - EG output sensor
25 - EG return sensor
26 - Smoke sensor.
1
6 6
3 3
1
11
4 4
88
12
13
10
14
9
7b
22
6
15
3
16
21
23
24
25
26
16
7a
11
17
18
20
19
17
8c
8b
8a
1
9
2
4 5
Installation and commissioning instructions "1485 - EN"
Heat pump alféa hybrid duo gas
- 12 -

1.7 Operating principle
The heat pump transmits the energy in the outdoor air to
the home to be heated and the production of domestic
hot water.
The heat pump is formed of four main elements inside
which a refrigerating uid circulates (R410A).
- In the evaporator (item 13,gure 6, page 11):
The calories are taken from the outdoor air and
transmitted to the refrigerating uid. As its boiling point
is low, it changes from the liquid state to the vapour
state, even when the weather is cold.
- In the compressor (item 10 or 16,gure 6, page 11):
The vaporised refrigerating uid is pressurised and
thus carries more calories.
- In the condenser (item 3,gure 7):
The energy of the refrigerating uid is transmitted to
the heating circuit. The refrigerating uid returns to its
liquid state.
- In the pressure regulator (item 9or 15,gure 6, page 11):
Then liqueed refrigerating uid is reduced to low
pressure and its initial temperature and pressure.
The heat pump has a regulator that controls the
indoor temperature based on the measurement of
the outdoor temperature, regulation by water logic.
The ambient sensor (optional) provides a corrective
action to the water logic.
The hydraulic module is equipped gas generator which
operates at the request of the regulator:
- to provide additional heating during the colder
periods,
- to reach the DHW comfort value
- to provide a relay during "Peak rate" days
(load shedding or EJP function).
Priority is given to the operation of the heat pump.
When the heat pump is not su󰀩cient for the heating, the
gas generator automatically takes over.
Leakproof type appliance (C13, C33).
The new air needed for combustion is taken from
outside the horizontal or vertical terminal and is then
aspirated into the boiler through the pipes (concentric
or separate).
Separate pipe adaptor (C53)
Conguration possible only in boiler room.
Chimney type appliance (B23, B23P)
The new air needed for combustion is taken from the
room where the appliance is installed.
gure 8 -
Control panel
Legend:
1 - Regulator / User interface.
2 - On / o󰀨 switch.
3 - ACI light.
4 - Pressure gauge.
5 - Safety light.
1
2
3
5
4
gure 9 - Operating principle of a heat pump
Ev
Dt
Cn
Cp
1kW
COP 4
4kW
20 °C
PAC
PAC - Heat pump
Ev - Evaporator
Cp - Compressor
Cn - Condenser
Dt - Expansion valve
Air energy
Heat produced
Electric
energy
consumed
Installation and commissioning instructions "1485 - EN" - 13 -
Heat pump alféa hybrid duo gas

gure 10 - Hot water performances
0
0 5 10 2015 25 30 35
min.
10
20
30
40
50
60
70
°C
0
10
20
30
40
50
60
70
80
°C
min.
2520151050
10 l/min.
12,5 l/min.
15 l/min.
Increase in temperature of the tank (without drawing) Domestic hot water temperature (with open tab).
• Regulation functions
- The initial temperature of the heating circuit is
controlled by water logic.
- In function of an initial heating temperature, the power
of the outdoor unit is modulated via the "inverter"
compressor.
- Management of the supplementary heating.
- The daily timer programme allows comfort or reduced
ambient temperature periods.
- Switching between summer/winter operation is
automatic.
- Ambient sensor*: The ambient sensor provides a
corrective action to the water logic.
- Management of a 2nd heating circuit*.
- Domestic hot water: Hourly heating programme,
management of the comfort temperature and the
reduced temperature.
*When the heat pump is equipped with options and associated kits.
• Protection functions
- Anti-legionella cycle for the domestic hot water.
- Tank anti-corrosion protection by titanium anode (ACI).
- Antifreeze protection for the installation, DHW, etc.
• Hydraulic pressure monitoring
A pressure switch monitors the hydraulic pressure.
If the pressure is ... Code
> 3 bar Safety. 322
< 0.5 bar 323
< 0.8 bar Power reduction and information on
the display. 22
• Miscellaneous
- Start and return temperature monitoring.
- Smoke temperature monitoring.
• Operating principle of the domestic hot water
(DHW)
DHW production takes priority over heating.
Two domestic hot water (DHW) temperatures may
be set: comfort temperature (line 1610 at 55 °C)
and reduced temperature (line 1612 at 40 °C).
The default DHW programme follows the hourly heating
programme with 1 hour's advance on start-up.
Depending on the parameter setting (1620), the comfort
temperature may be reached 24 hours / day or according
to the DHW programme.
The reduced temperature value may be useful to avoid
restarting the DHW too many times and for too long
through the day.
The production of domestic hot water (DHW) is started
when the temperature in the tank is 7°C below (setting
of line 5024) the reference value temperature.
The domestic hot water (DHW) is produced by the heat
pump and the boiler top-up.
A switching function of "reduced" to "comfort" is
available on the front panel of the user interface
(see item 1,gure 54, page 52).
Anti-legionnella cycles may be programmed.
• Fan coil units with integrated regulation
Do not use an ambient sensor in the zone concerned.
Installation and commissioning instructions "1485 - EN"
Heat pump alféa hybrid duo gas
- 14 -

2 Installation
2.1 Installation and maintenance rules
The appliance must be installed and the maintained
by an approved professional in accordance with the
prevailing regulations and code of practice, in particular:
- The legislation on the handling of refrigerants.
- Heating installation with oor heating system.
- Low voltage electrical installations - Rules.
2.2 Unpacking and reserves
2.2.1 Reception
When the courier is present, carefully check the general
appearance of the appliances, check that the outdoor
unit has not been in horzontal position. In the event
of disagreement, write to the courier within 48 hours
mentioning all reserves and send a copy of this letter to
the After Sales Department.
2.2.2 Handling
The outdoor unit must not be in horizontal position during
transport. Transport in a horizontal position creates risk
of damage to the appliance by moving the cooling uid
and damaging the compressor's suspension.
Damage caused by transport transport in horizontal
position is not covered by the warranty.
If required, the outdoor unit may be tilted only when
being moved by hand (to get it through a doorway, or
up stairs...). This operation must be carried out carefully
and the appliance must be immediately returned to the
vertical position.
2.2.3 Containment of refrigerant circuits
All refrigerant circuits fear contamination from dust and
moisture. If such pollutants introduced into refrigeration
circuit, they can contribute to degrade the reliability of
the heat pump.
"It’s necessary to ensure correct containment
connections and refrigerant circuits (hydraulic
unit, outdoor unit).
"In case of subsequent failure and expertise, the
nding of the presence of moisture or foreign
objects into the compressor oil would lead to
systematic exclusion of warranty.
- Check upon receipt that the ttings and the refrigeration
circuit caps mounted on hydraulic unit and outdoor unit
are properly seated and locked (impossible to loosen
bare hands). If this’s not the case, tighten them using
an against wrench.
- Check also that the refrigerant connections are sealed
(plastic caps or tubes crushed at the ends and soldered).
If the caps must be removed during installation (tubes
cut by example), put back them as soon as possible.
Installation and commissioning instructions "1485 - EN" - 15 -
Heat pump alféa hybrid duo gas

1*
3**
2*
4
1Elbow
for condensate evacuation
2Plugs (x2) (depending on
model)
gure 11 - Accessories supplied with the external unit
Outdoor sensor
to detect the outdoor
temperature
gure 12 - Accessories provided with the hydraulic module.
8
5 6 7
5
2.2.4 Accessories supplied 2.3 Installation of refrigerant connections
"Manipulate the pipes and made their
crossing (slab or wall) with protective caps in
place or after brazing.
"Keep the protective caps or ends soldered to
the commissioning of the appliance.
The outdoor unit must be connected to the hydraulic
unit only with new copper pipes and connections
(Refrigerant quality), insulated separately.
Respect the pipes diameters (gure 26, page 27).
Observe the maximum and minimum distances
between the hydraulic unit and the outdoor unit
(gure 26, page 27); the guarantee of the performances
and the system's service life depend on this.
The minimum length of the refrigerant connections
is 5 m for correct operation.
The appliance will be excluded from guarantee if it is
used with refrigerant connections less than 5 m long
(tolerance +/- 10%).
If the refrigerant connections are exposed to weathering
or UV- and the insulation is not strong, it is necessary to
provide protection.
gure 13 - Recommended example of
refrigerant connections disposition
Installation and commissioning instructions "1485 - EN"
Heat pump alféa hybrid duo gas
- 16 -

2.4 Installation of the outdoor unit
2.4.1 Installation precautions
The outdoor unit must be installed outdoor
(outdoors). If a shelter is required, it must have
broad openings on the 4 walls and observe the
installation clearances (gure 14).
• Choose the location of the appliance after discussion
with the client.
• Choose a site that is preferably sunny and sheltered
from strong cold predominant winds (mistral,
tramontana, etc…).
• The unit must be easily accessible for future installation
and maintenance work (gure 14).
• Ensure that it is possible to make the connections to
the hydraulic unit easily.
• The outdoor unit is able to withstand bad weather but
avoid installing in a position where it is likely to be
exposed to signicant dirt or owing water (under a
defective gutter for example).
• Water may drain away from the outdoor unit when it
is operating. Do not install the appliance on a paved
terrace; choose a well-drained place (e.g. gravel
or sand). If the installation is in an area where the
temperature can be lower than 0°C for a long period,
check that the presence of ice does not present any
danger. A drainage pipe can also be connected to the
outdoor unit (gure 15).
• Nothing should obstruct the air circulation through the
evaporator and from the fan (gure 14).
1000 mm
ou plus
200 mm
300 mm
200 mm
1000 mm ou plus
150 mm
150 mm
300 mm
Max. 500 mm
1000 mm
1500 mm
250 mm 250 mm
500 mm
Max. 500 mm
1500 mm ou plus
300 mm 500 mm
1500 mm ou plus
1500 mm
500 mm
Max. 300 mm
1500 mm
gure 14 - Minimum installation clearance around the outdoor unit (all models)
Contact your
energy distributor
for the installation
constraints.
1000 mm
or more
1000 mm or more
1500 mm or more 1500 mm or more
Installation and commissioning instructions "1485 - EN" - 17 -
Heat pump alféa hybrid duo gas

• Keep the outdoor unit away from heat sources and
inammable products.
• Make sure the appliance not disturb the surrounding
area or users (noise level, draught generated, low
temperature of the air being blown out, with the risk of
freezing plants in its path).
• The surface on which the appliance is installed must:
- be permeable (soil, gravel, etc),
- support its weight easily,
- provide a solid xing and
- not transmit any vibration to the dwelling.
(Anti-vibratory blocks are available as an option).
• The wall bracket can not be used in conditions likely to
transmit vibrations, ground position is preferred.
2.4.2 Outdoor unit positioning
The outdoor unit must be raised at least 50 mm above
ground level. In areas prone to snow, this height should
be increased but should not exceed 1.5 m (gure 15).
- Fasten the outdoor unit by means of screws and
rubber tightening or toothed lock washers to avoid
their coming loose.
"Warning
In the area with heavy snowfall, if the intake and outlet
of outdoor unit is blocked with snow, it might become
di󰀩cult to get warm and it is likely to cause of the
breakdown.
Please construct a canopy and a pedestral or place the
unit on high stand (local congured).
- Set the unit on a strong stand, such as one made of
concrete blocks to minimize shock and vibration.
- Do not set the unit directly on the ground because it will
cause trouble.
2.4.3 Condensate drain hose
(see gure 15).
"The outdoor unit can generate a large volume of
water (called condensate).
If the use of a discharge pipe is imperative:
- Use the elbow provided (C) to connect a 16mm-
diameter hose for draining away the condensate.
- Use the stopper or stoppers provided (B) to block the
opening of the condensate drain pan.
Allow for the condensate to ow away under the force of
gravity (waste water, rain water, gravel bed).
"If the installation is made in an area where
the temperature can be lower than 0°C for
a long period, provide the drain pipe with a
trace resistance to avoid it icing up. The trace
resistance must heat not only the pipe but also
the bottom of the the outdoor unit.
gure 15 - Fitting the outdoor unit,
evacuation of the condensates
B
B
B
C
C
C
B
* Dans les régions fréquemment enneigées,
(H) doit être supérieur àla couche moyenne de neige.
(Ø 12 mm)
(Ø 10 mm)
Suivant modèle
Suivant modèle
4 trous
4 trous
H>50 mm
*
H* ≥ 50mm B
B
BB C
C
4 holes
(ø 12 mm)
Depending on model
* In regions with frequent snowfall, (H) must be greater
than the average layer of snow.
Depending on model
Depending on model
4 holes
4 holes
Installation and commissioning instructions "1485 - EN"
Heat pump alféa hybrid duo gas
- 18 -

2.5 Installing the hydraulic unit
2.5.1 Installation precautions
• Choose the location of the appliance after discussion
with the client.
• The room in which the appliance operates must
comply with the prevailing regulations.
• As the temperature of the appliance walls is below
80°C, there is no need to provide protection or a
minimum safe distance around the appliance adjacent
to walls made of inammable materials (wood, plastics,
etc.).
• To facilitate maintenance and to allow access to the
various components, we recommend that you provide
su󰀩cient space all around the hydraulic unit (gure 16).
• In accordance with EN 378-1 -2017 standard
(Refrigerating systems and heat pumps - Safety and
environmental requirements), the system's hydraulic
unit and all refrigeration connections passing through
inhabited areas must comply with the minimum room
volume requirements shown hereafter.
The minimum volume of a room (in m³) is calculated
using the formula: "uid ll load" (in kg) / 0.39.
Alternatively, you must ensure that
- the location has natural ventilation through another
room where the combined volume of the two rooms is
greater than "liquid ll load" (in kg) / 0.39 kg/m³. The
opening between the two rooms must have a door
clearance of at least 1 cm.
- or that the location is mechanically ventilated.
• Be careful not to bring inammable gas near to the
heat pump during its installation, in particular when
it requires brazing. The appliances are not reproof
and should therefore not be installed in a potentially
explosive atmosphere.
- To avoid condensation inside the condenser, remove
the refrigerant circuit caps only when completing the
refrigerant connections.
- If the refrigerant connection only occurs at the end of
the installation, be sure that the refrigerant circuit caps*
remain in place and tight throughout the installation
duration.
* (hydraulic unit side and outdoor unit side).
- After every intervention on the refrigerant circuit and
before nal connection, take care to replace the plugs
in order to avoid any pollution from the refrigerant
circuit (The sealing with tape is prohibited).
gure 16 - Minimum installation clearances around the
hydraulic module
300 mm
A
1000 mm
125 mm
1800 mm
(A) Only on B23, B23P congurations :
direct or indirect new air ow.
Installation and commissioning instructions "1485 - EN" - 19 -
Heat pump alféa hybrid duo gas

2.6 Chimney evacuation pipe, B23, B23P
The evacuation pipe must comply with the regulations
in force.
The evacuation pipe must be dimensioned (according
to standard NF EN 13384-1).
The pipe must only be connected to a single appliance.
The pipe must be waterproof.
The pipe must have good thermal insulation.
The evacuation pipe must comply with the decree of
22nd October 1969 (gure 18).
B23P type (gure 19, page 21)
The smoke pipe entry must be located:
• Either in the premises which contain the appliance,
• Or in adjacent premises.
- In this case, it must be coupled to a wall that separates
the two premises to enable direct connection through
this wall.
- The cross piece through the rst wall must be leakproof.
- When the cross pieces are installed for the other walls,
no sealing system must be implemented to enable the
wall / pipe annular area to be completely free.
- The distance between the combustion product
evacuation pipe and the chimney pipe walls must be
greater than 20 mm.
- The space between the evacuation pipe and the
chimney pipe must be linked at the top with the outside
directly through an opening of at least 100 cm².
2.7 Chimney connection pipe, B23, B23P
The connection pipe must comply with the regulations
in force.
The cross section of the connection pipe must not be
smaller than the outlet nozzle of the appliance.
The connection pipe must be removable.
The evacuation nozzle is to be connected to the pipe so
that there are no leaks.
Reminder: The chimney adaptor provided must be
used (073295) (gure 17).
The appliance will be connected to the evacuation pipe
using commercially-available pipes that are approved to
withstand combustion products, condensate and smoke
temperatures of at least 120 °C.
The use of aluminium connection pipes is prohibited.
By design, the boiler's smoke temperature cannot
exceed 120 °C, therefore, there is no need to add an
evacuation pipe protection thermostat.
B23 It is strongly recommended to t a ue regulator to the pipe
when the low pressure of the chimney is greater than 30 Pa.
B23P The drain T is not necessary since the condensate recovery
is incorporated into the boiler (gure 30, page 32).
OK
gure 17 - Assembly of the chimney
adaptor 073295 (B23, B23P)
40 cm
8m
40 cm
40 cm
8m
1,2 m
< 15°
gure 18 - Height of the base
of the evacuation duct (B23, B23P)
Installation and commissioning instructions "1485 - EN"
Heat pump alféa hybrid duo gas
- 20 -
