Owner’s Manual TSD-DAC2i
2-CH PoE Dante
™
Transmitter
TSD-DAC2i
2-CH PoE Dante™Transmitter

AtlasIED.com – 2 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Owner’s Manual
TSD-DAC2i
2-CH PoE Dante
™
Transmitter
Table of Contents
Important Safety Instructions........................................................................................................................... 3
Introduction ........................................................................................................................................................ 6
Key Features....................................................................................................................................................... 6
Applications......................................................................................................................................................... 6
Front Panel Description..................................................................................................................................... 7
Matching Gain from an Analog Source In a Dante™Network ................................................................... 8
Selecting the Router or Network Switch ....................................................................................................... 8
Dante™Overview ................................................................................................................................................ 8
Important Information About Dante™.............................................................................................................. 9
Dante Controller™.............................................................................................................................................. 10
Integrating the TSD-DAC2i with a WTSD Wall Plate Mixer...................................................................... 12

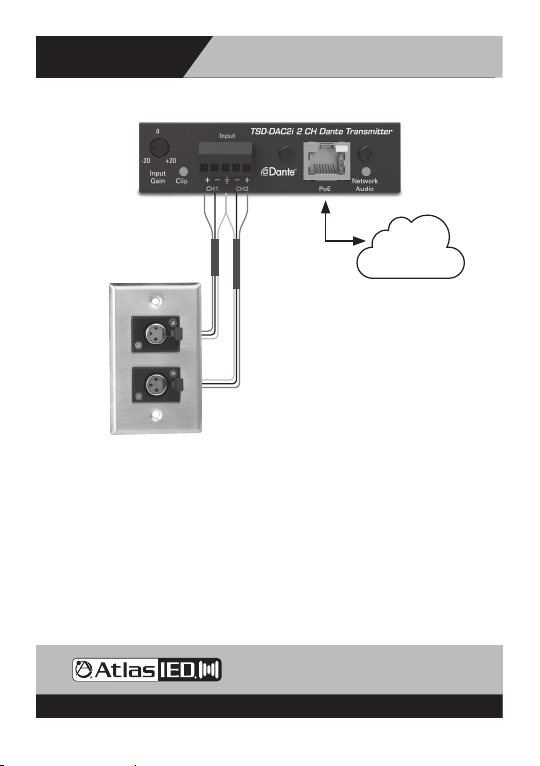

Integrating the TSD-DAC2i with Two Analog Sources .............................................................................. 13

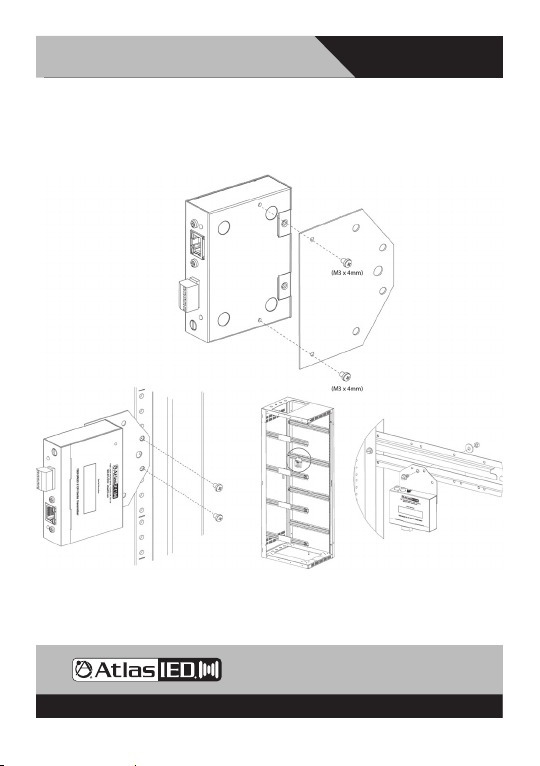

Mounting............................................................................................................................................................ 14

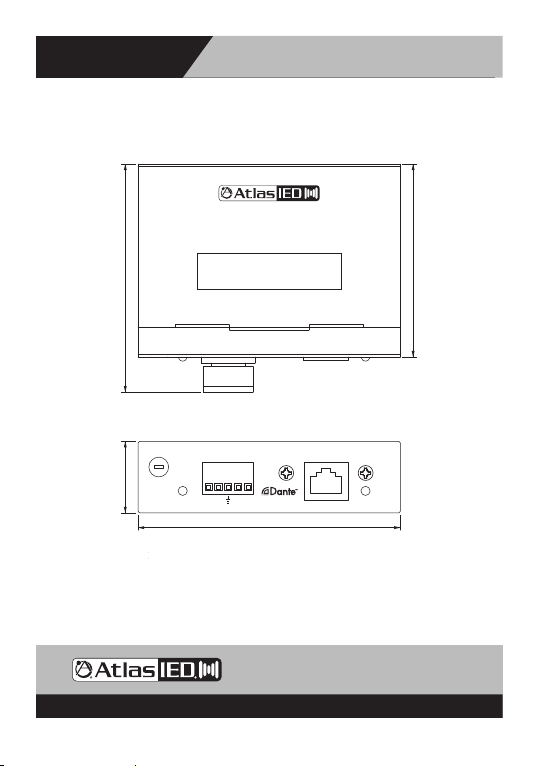

Dimensional Drawings..................................................................................................................................... 15
Specifications.................................................................................................................................................... 16
Warranty ............................................................................................................................................................ 20

AtlasIED.com– 3 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Owner’s Manual TSD-DAC2i
2-CH PoE Dante
™
Transmitter
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this device near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other device that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or
the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the device.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the device.
When a cart is used, use caution when moving the cart / device combination to avoid injury from tip-over.
13. Unplug this device during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled, or objects have fallen into
the device, the device has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. This product is equipped with a three-wire grounding-type plug, a plug having a third (grounding) pin. This plug
will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug
into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the
grounding-type plug.
16. WARNING: To reduce the risk of fire or electric shock, this device should not be exposed to rain or moisture and
objects filled with liquids, such as a vase, should not be placed on this device.
17. To completely disconnect this equipment from the mains, disconnect the power supply cord plug from the
receptacle.
18. The mains plug of the power supply cord shall remain readily operable.
19. Protective earthing terminal. The apparatus should be connected to a mains socket with a protective
earthing connection.
The lightning flash with arrowhead symbol within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage“ within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the product.
WARNING: SHOCK HAZARD - DO NOT OPEN
AVIS: RISQUE DE CHOC ELÉCTRIQUE - NE PAS OUVRIR
WARNING:TO REDUCETHE RISK OF FIRE OR ELECTRIC SHOCK
DO NOT EXPOSETHIS EQUIPMENT TO RAIN OR MOISTURE
AVIS: NE PAS EXPOSER CE MATÉRIEL À LA PLUIE OU L’HUMIDITE
AFIN DE REDUIRE LE RISQUE D’INFLAMMATION OU DE CHOC ELÉCTRIQUE

AtlasIED.com – 4 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Owner’s Manual
TSD-DAC2i
2-CH PoE Dante
™
Transmitter
WARNING - When The Device Is In Use
• WARNING: For the terminals marked with symbol of may be of sufficient magnitude to constitute a risk of
electric shock. The external wiring connected to the terminals requires installation by an instructed person or
the used of ready-made leads or cords.
• WARNING: The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such
as vases, shall not be placed on apparatus.
• WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable.
• To prevent electric shock, do not remove the product cover as there are high voltage components inside. Refer
all servicing to AtlasIED.
• Should any of the following irregularities occur during use, immediately switch off the power, disconnect the
power cord from the AC outlet and contact AtlasIED. Do not to attempt to continue operation with the product as
this may cause fire or electric shock:
• Smoke or strange smell coming from the unit.
• If the product falls or the case is damaged.
• If water or any metallic objects falls into the product.
• If the power supply cord is damaged in any way.
• If the unit is malfunctioning.
• Do not insert or drop metallic objects or flammable materials into the ventilation holes of the product’s cover, as
this may result in electric shock or fire.
• Do not place any containers with liquid or metallic objects on the top of the product. If any liquid spills into the
unit, fire or electric shock may result.
• Never operate this product or touch the power supply cord during an electrical storm, electric shock may result.
• Never exceed the power rating on the product when connecting equipment. Fire and/or property damage may
result.
• Operate the product only with the voltage specified on the unit. Fire and/or electric shock may result if a higher
voltage is used.
• Do not modify, kink, or cut the power cord. Do not place the power cord in close proximity to heaters and do not
place heavy objects on the power cord, including the product itself, doing so may result in fire or electrical shock.
• Ensure that the safety ground terminal is connected to a proper ground. Never connect the ground to a gas pipe
as a catastrophic disaster may result.
• Be sure the installation of the product is stable, avoid slanted surfaces as the product may fall and cause injury
or property damage.

AtlasIED.com– 5 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Owner’s Manual TSD-DAC2i
2-CH PoE Dante
™
Transmitter
CAUTION - When Installing The Product
• Plugging in or unplugging the power cord with wet hands may result in electric shock.
• Never move the unit with the power cord plugged into the wall, as damage to the power cord may result.
• When unplugging the cord from the wall, grasp the plug, NOT the cord.
• Never install this product in humid or dusty locations, nor in direct sunlight, near sources of heat, or in areas
where sooty smoke or steam are present. Fire and electric shock may result.
• Keep all sides of the unit at least 31⁄2" away from objects that may obstruct air flow to prevent the unit’s internal
temperature rise.
CAUTION - When The Product Is In Use
• Never place heavy objects on the product, causing it to fall and/or break, resulting in personal injury and property
damage. In addition, the product itself may fall and cause injury and property damage.
• Contact AtlasIED for instructions on cleaning the inside of the unit. Large accumulations of dust inside the unit
may result in heat buildup and fire.
• Ensure that the power supply plug is securely plugged into the wall outlet. Never allow dust to accumulate on the
power plug or inside the wall outlet.
• When cleaning the unit or the unit is not to be operated for an extended period, unplug the power cord from the
wall.

AtlasIED.com – 6 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Owner’s Manual
TSD-DAC2i
2-CH PoE Dante
™
Transmitter
Introduction
The AtlasIED TSD-DAC2i is a PoE 2-CH analog pre-amplifier that converts analog audio signals into Dante™digital
audio. The AtlasIED TSD-DAC2i can be used for any Analog to Dante™digital audio endpoint but is ideally suited
to be used with the AtlasIED WTSD wall mixer series. Once converted into Dante™digital audio, the audio can
be transmitted over IP networks and routed in the Dante Controller™software. The AtlasIED TSD-DAC2i Dante™
transmitter I/O module features two analog balanced line inputs with a variable gain to operate from Line to
Mic level. An input clip indicator prevents unwanted input clipping. There are indicators for Power and Network
connection. AtlasIED TSD-DAC2i requires no external power supply, it is powered via a network PoE port or a PoE
power injector.
Key Features
• Dante™Digital Audio Platform
• 2-CH Balanced Analog Line Input
• Gain Adjust
• AUX, Line & Mic Levels
• Input Clip Indicator
• PoE Powered
• Mounting Plate
• Incorporates with WTSD Wall Mixers
Applications
• Restaurants
• Government Facilities
• Schools
• Industrial Facilities
• House of Worship

AtlasIED.com– 7 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Owner’s Manual TSD-DAC2i
2-CH PoE Dante
™
Transmitter
Front Panel
1. Balanced Inputs
CH 1 & CH 2, Ensure proper polarity is observed when connecting devices to the Phoenix connector.
2. Input Gain
Rotary Selection
3. Input Clip LED
The LED will illuminate Red when an analog signal exceeds the maximum input level.
4. RJ45 PoE Port
The network LED will illuminate yellow when the unit is connected to a network. The network audio LED will
illuminate green / blink when the unit has an IP address and is communicating to the network.
5. Network Audio Indicator
The LED will illuminate blue when Dante™audio is being transmitted.
2 3 1 4 5

AtlasIED.com – 8 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Owner’s Manual
TSD-DAC2i
2-CH PoE Dante
™
Transmitter
Matching Gain from an Analog Source In a Dante™Network
Understanding the gain structure is very important to avoid clipping the audio signal or amplifier output. There are
three potential ways to clip the signal chain.
1. Amplifier Input Clipping
This occurs when the applied input signal exceeds the maximum input level of the amplifier input stage.
2. Amplifier Output Clipping
Driving the amplifier to maximum output level.
3. Digital Clipping
This occurs when the 0dBFS levels are exceeded. This is very important to understand. Several examples are
provided to help understand digital to analog gain structure. Note: AtlasIED recommends to always place a limiter
set for 0dB in the signal path prior to the Network Output of the transmitting device.
Selecting the Router or Network Switch - IMPORTANT!
It is extremely important to understand that when selecting a router or switch for the Dante™network, not all routers
or switches are the same. The size of the Dante™network will influence which router or switch is needed to handle
network traffic. There are three things to look for at a minimum or system dropouts may occur. Refer to Audinate®for
products they recommend.
1. Gigabit speed.
2. If using a network switch, it must be a “managed switch” type.
3. If using a router with a built-in switch, it should have DD-WRT firmware or Open Source firmware.
Dante™Overview
Audinate®created Dante™, an uncompressed, multi-channel digital media networking technology, with near-zero
latency and synchronization. Hundreds of Dante™enabled products are available from many manufacturers, enabling
devices from multiple manufactures to be deployed in the same installation.
Dante™does away with heavy, expensive analog or multicore cabling, replacing it with low-cost, easily-available
CAT5e, CAT6, or fiber optic cable for a simple, lightweight, and economical solution. Dante™integrates media and
control for an entire system over a single, standard IP network.
Dante™systems can easily scale from a simple pairing of a console to a computer, to large capacity networks
running thousands of audio channels. The network can be expanded and reconfigured at any time with just a few
mouse clicks because Dante™uses logical routes instead of physical point-to-point connections.
Since the signal audio is transmitted digitally, common analog challenges like interference from other electrical
equipment, crosstalk between cables, or signal degradation over long cable runs is not a problem. Setting up Dante™
networks is easy, even the most complex networks can be set up and configured quickly and easily with Dante™,
making system integration simple.
Signal routing and system configuration with Dante™is fast, simple, and incredibly flexible. Dante Controller™is a
powerful software application that manages devices on the network. Setting up a Dante™network is typically just a
matter of plugging devices into an Ethernet switch and connecting a computer to the network. All Dante™devices
are automatically discovered and displayed in Dante Controller™, so a system can be up and running in seconds.
Visit www.audinate.com for details or to learn more on using Dante™. There are many Dante™guides available in the
industry. AtlasIED offers one in the BlueBridge®DSP section of atlasied.com.

AtlasIED.com– 9 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Owner’s Manual TSD-DAC2i
2-CH PoE Dante
™
Transmitter
Important Information About Dante™
1. Dante™Levels in Dante Controler™
Signal level cannot be added or reduced within Dante Controller™. It is strictly a signal router.
2. What Does 0dBFS Mean
dBFS is a unit of measurement for amplitude levels in digital systems. When referenced to a number such as 0dBFS
or 20dBFS it is important to know that these are the maximum peak levels before clipping in the digital domain. It is
very important to know the source and receiver dBFS specification in order to set up the gain structure when signals
are being converted from the digital to analog domain or vise-versa.
3. Industry Standard
At the time of this writing, there is no industry standard between companies for scaling 0dBFS gain levels in
equipment. In a digital studio this is usually not an issue because most of the same brand is used or a limited number
of products are interfaced. However, with live sound or commercial audio there can be multiple brands used in one
project. Dante™can be great for connectivity between devices but be aware of gain structure matching.
4. Interfacing Data with Different Manufactures Equipment
To help understand scaling here are some examples:
• Source device 0dBFS = 20dBu, transmits to a receiver with a 0dBFS = 20dBu reference, the output is 0dBu.
This scenario is ideal when using an amplifier that has a 0dBu (775mV) input sensitivity.
• Source device 0dBFS = 20dBu, transmits to a receiver with a 0dBFS = 10dBu reference, the output is -10dBu.
To get full output of an amplifier that has a 0dBu (775mV) input sensitivity, increase the network output levels by
10dBu to get 0dBu into the amplifier’s input.
• Source device 0dBFS = 10dBu, transmits to a receiver with a 0dBFS = 20dBu reference, the output is +10dBu.
This combination will give too much signal into an amplifier that has a 0dBu (775mV) input sensitivity. Reduce the
signal from the DSP Network output.
• Source device 0dBFS = 10dBu, transmits to a receiver with a 0dBFS = 10dBu reference, the output is 0dBu.
5. Understanding Digital Noise vs Headroom
If headroom before clipping is a concern, the higher the ratio between 0dBFS and output level, the less likely
clipping will be an issue. If the application is paging and background music then a lower number is ok because
the headroom is not as critical. In live sound reinforcement applications such as a church band or a concert, more
headroom and gain is needed for dynamics. The issue with higher gain in a product is the higher the gain the higher
the noise output. To combat high gain output noise, use a Dante™Transmitter product with good signal to noise ratio
specification, such as 100dB or better. For instance, AtlasIED BlueBridge®DSP has a signal to noise ratio of 110dB.
The noise is very low before it is amplified, assuring low noise out of the amplifier. Look at the input and output 0dBFS
reference points and the noise floor specification. If they are not listed call the manufacturer.

AtlasIED.com – 10 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis,Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Owner’s Manual
TSD-DAC2i
2-CH PoE Dante
™
Transmitter
Dante Controller™
Below is snapshot of the Dante Controller™Device Information page for the TSD-DAC2i.
Below is a snapshot of the Dante Controller™Device Configuration page for the TSD-DAC2i.
