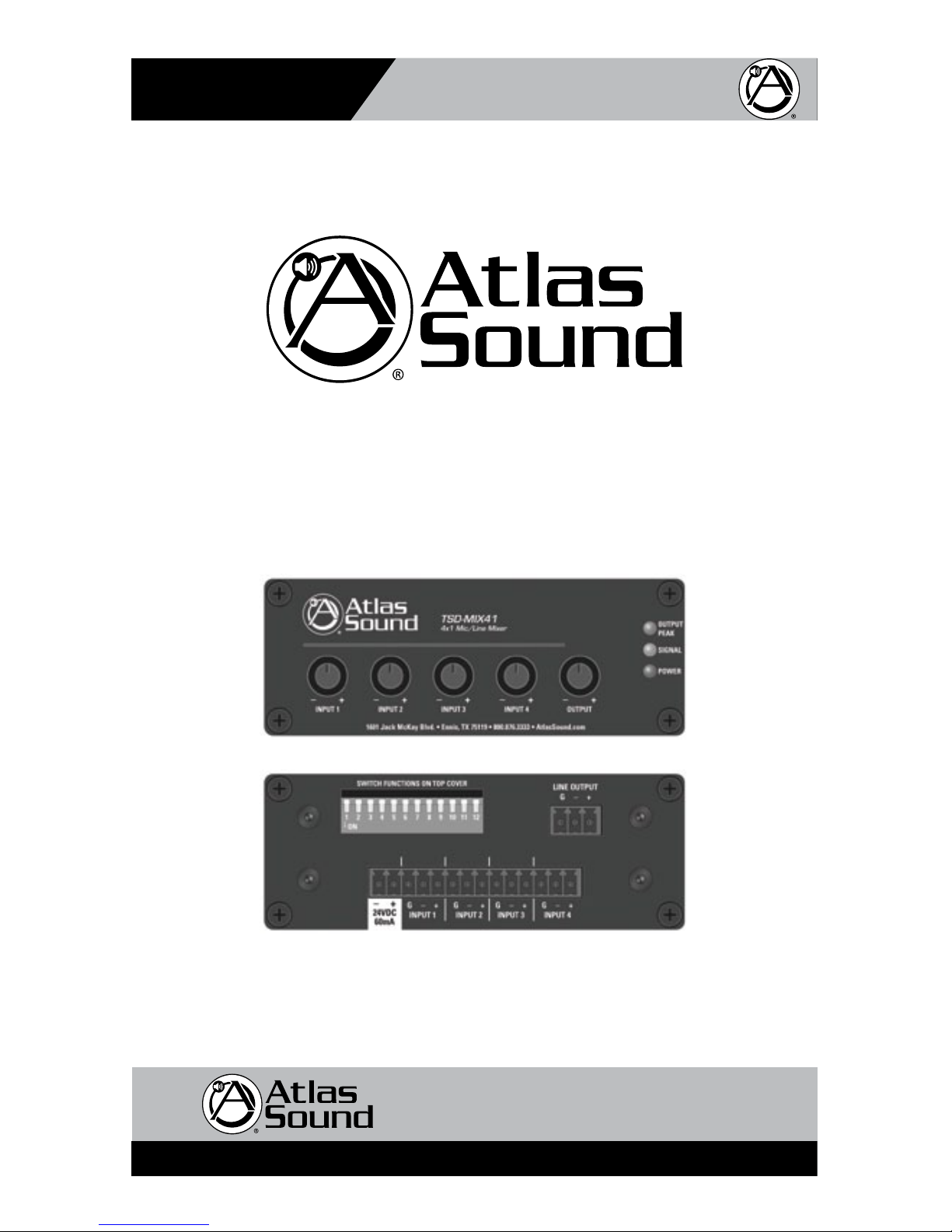

Atlas TSD-MIX41 User manual

Owner’s Manual
TSD-MIX41
4x1 Mic/Line Mixer
AtlasSound.com– 1 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
TSD-MIX41
4x1 Mic/Line Mixer

Owner’s Manual
TSD-MIX41
4x1 Mic/Line Mixer
AtlasSound.com – 2 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Description
The Atlas Sound TSD-MIX41 4x1 mic/line mixer is ideal for applications where multiple mic or line
sources need to be sub mixed or summed. In House of Worship applications the TSD-MIX41 is
especially useful for combining similar sources such as choir microphones to a single mixer channel.
The unit also works well as a stand-alone mic/line mixer that can be easily interfaced with Atlas
Sound amplifiers. Other applications include restaurants, conference rooms, and schools.
Each input is mic/line switchable with phantom power provided for condenser microphones. The
high quality, low noise internal mic preamps ensure clarity and quiet operation without unwanted
coloration. A 12dB/octave high pass filter @ 125Hz also is available on each input to minimize bass
rumble and low frequency feedback.
The TSD-MIX41 is part of a full line of Atlas Sound Time Saving Devices. These compact (1.5" x 4" x 2.75")
units are designed to solve some of the common audio system problems in the easiest and in the
most efficient and cost-effective way. All models are made from high quality components and include
removable individual I/O connectors for quick and precise wiring, separate ground terminals for all
I/Os assuring secured connections, and removable level controls that can be replaced with
tamper-proof security covers. The TSDs are highly efficient and meet Energy Star™ standards as one
24V DC power supply (available separately) can power multiple Atlas Time Saving Devices.
Features
 • Four(4)BalancedMic/LineInputs
 • Four(4)ProfessionalGradeMicrophone
  PreampswithSwitchable24VPhantom
  Power
 • Upto50dBMicGainPerInput
 • 12dB/OctaveLowCutFilter@125Hz
 • BalancedLineOutput
 • InputPeak&SignalIndicatorLEDs
 • HighGainOutputforDrivingLong
  BalancedLines
 • SeparateGroundConnections
 • RemovablePhoenixStyleI/OConnectors
 • SecurityCoversIncludedforAllFront
  PanelControls
 • MeetsEnergyStar™ Standards
 • CompactChassisDesign
Audio Applications
 • MicPreamp
 • LinePreamp
 • LineDrive
 • Choirs
Installation
 • Churches
 • Restaurants
 • SportsBars
 • Schools
 • IndustrialFacilities
 • HouseofWorship

Owner’s Manual
TSD-MIX41
4x1 Mic/Line Mixer
AtlasSound.com– 3 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Front Panel Description
1. Inputs 1-4 Level Controls - Adjusts the gain of the independent input signals. Turn clockwise to
increase the signal level and counter-clockwise to decrease it. Note:TheInputLevelControl 
knobs can be removed and replaced with a supplied security cover to prevent unauthorized
adjustment.
2. Mixed Output Level Conrol - Adjust the output level of the summed signals from the four inputs.
Turn clockwise to increase the signal level and counter-clockwise to decrease it. Note: The
output level control knobs can be removed and replaced with supplied security covers to prevent
unauthorized adjustment.
3. Power LED-IlluminatesBLUEwhen24VDCpowerispresent.
4. Output Signal LED-IlluminatesGreenwhentheinputsignalstrengthreaches25mVtoverifya 
signal path. Note:TheLEDwillnotilluminateiftheoutputLevelisturnedOff.
5. Output Peak LED-IlluminatesRedwhentheoutputsignalreaches3dBVbelowwhensignal
clipping will occur. Occasional flashing is normal but if this indicator is continuously On, then
reduce the input level using the input level control on the front panel.
6. Bracket Retainer Points - Each TSD includes two mounting brackets for securing the TSD to a
 cabinetorwall.Removescrewsandalignthebracketwiththepanelholebeforermlytightening 
the screws.
3
4
5
1 2
66
6 6

Owner’s Manual
TSD-MIX41
4x1 Mic/Line Mixer
AtlasSound.com – 4 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]

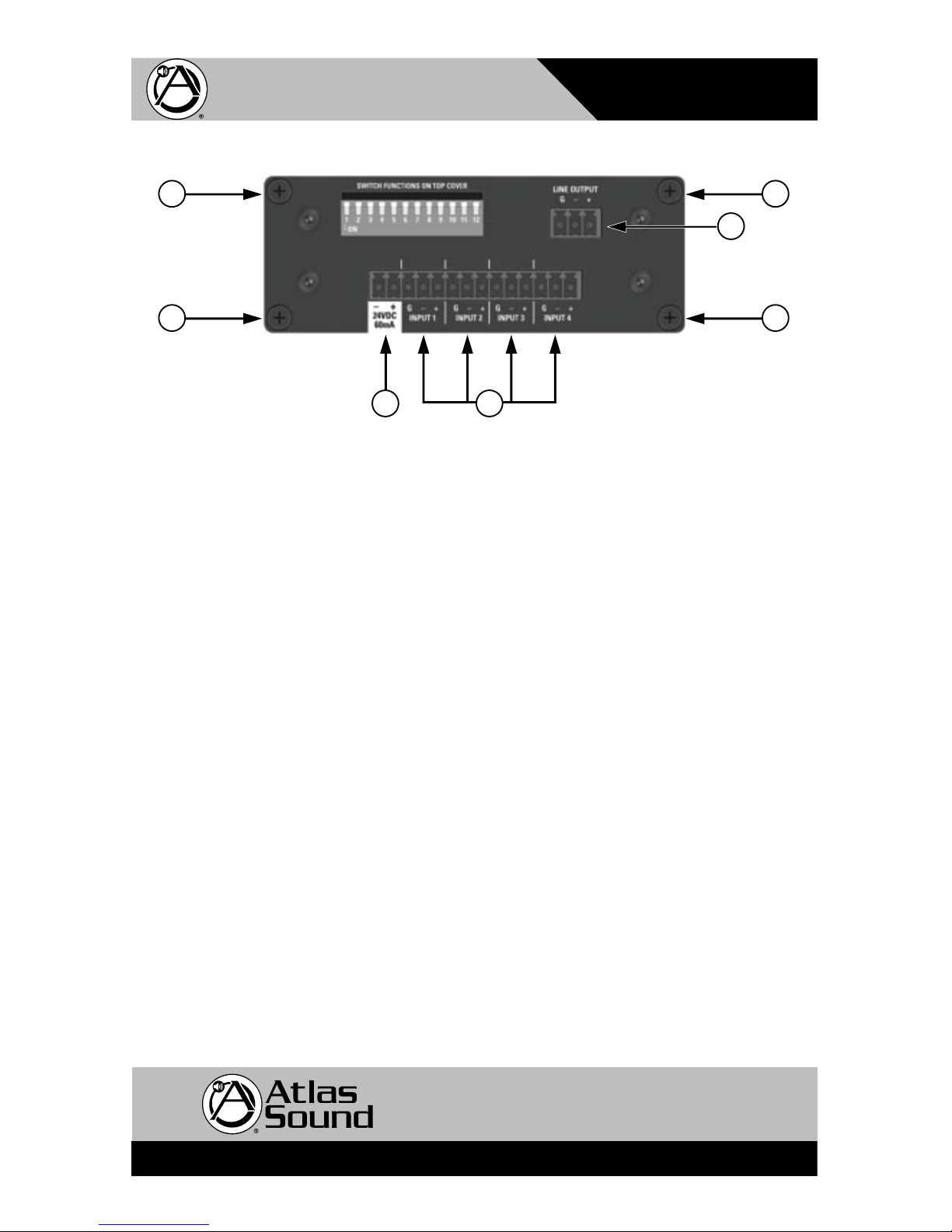

Rear Panel Description
TSD Input/Output connections are removable for easy system wiring. The connector has a 3.5mm
pitch between pins.
1. DC Power Input - Each TSD that requires DC power comes with a 2 position connector for
an external 24VDC power supply (sold separately). Because of the TSD’s low power consumption,
 asingleexternalpowersupplymaypowermorethanoneTSD.Pleaserefertothespecications 
on current requirements in milliamps to match with the appropriate power supply. Note: It is
acceptable to exceed the current requirements of the TSDs but NOT safe to use a power supply
that is below the current requirement of the device.
2. Balanced Inputs 1-4 - Connects to balanced line or mic level sources. Your connection must be
 matedproperlytotheinputconnectororsignallossand/ornoisemayoccur.Forgainorsource 
 inputtypeselection,refertothe“DipSwitchFunctionIdentication”chartforproperinputsetting.
Note:Unbalancedlinelevelinputscanbeinsertedwithproperwirecongurationbyconnecting 
 the(G)and(-)terminalstogether.
3. Balanced Line Output-Providesoutputwhenaninputsignalispresentforconnectionto 
balanced line level devices. Your output connections must be connected properly to the
connectors or loss and/or noise may be introduced into the signal. Note:Unbalancedlinelevel
 devicescanbeusedwithproperwirecongurationbyconnectingthe(G)and(-)terminals 
together.
4. Cable Management Retainer Points - Each TSD includes two cable retainer straps for securing
 theincludedcablemanagementretainers.Removeoneoftherearpanelscrews,alignthe 
panel hole with a retainer and firmly tighten the screws.
3
21
44
4 4

Owner’s Manual
TSD-MIX41
4x1 Mic/Line Mixer
AtlasSound.com– 5 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Dip Switch Function Identification
Switch Position
 • DIPSW#1,2,3,4-24VDCPhantomPowerappliespowerforcondensermicoperationto 
corresponding input terminal. Down position is On.
 • DIPSW#5,6,7,8-InputMicorLineSelectforinputgainselectionforeachoftheinputs.Up 
  positionisLine,downpositionisMicrophone.
 • DIPSW#9,10,11,12-LowCutFilterengagesatat125Hzwitharolloffrateof12dBperoctave.
  ThislteroperateseitherintheLineorMicmodeandisavailableoneachinput.Idealforvocal
microphones to reduce low frequency energy and to increase intelligibility. Down position is On.
Knob and Security Cover
All front panel level controls feature a removable knob that can be replaced with an included security
cover.Followthesestepstopreventpotentiometerdamageorunwantedchanges.
1. Knob Installation - Turn the potentiometer shaft fully counter-clockwise. Align the knob indicator
to the lowest setting on the panel and the potentiometer shaft slot. Carefully press the knob onto
the potentiometer shaft. Do not force or damage may occur to the potentiometer.
2. SecurityCoverInstallation–Removetheknobfromthepanelandinsertthecover.Donotforceor
damage may occur to the potentiometer. Small pliers may be required to remove the knobs.
Mounting
There are three ways to securely mount this TSD:
1. Velcro™ - Each unit includes industrial grade Velcro™ with adhesive backing to adhere to any
flat surface.
2. Brackets - Each unit includes two mounting brackets to secure to a cabinet or wall.
3. RackMountPanel-TheoptionalTSD-RMKrackmountpanelsupportsuptofourTSDsina
 1RUspace.

Owner’s Manual
TSD-MIX41
4x1 Mic/Line Mixer
AtlasSound.com – 6 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Specifications
Description 4x1Mic/LineMixer
Chassis Color Black
Chassis Material Aluminum
Inputs
Type Qty4,BalancedMicorLineSelectable
Connection Removable3PositionCaptiveScrew3.5mmSpacing
Impedance 1.2KΩBalanced,600ΩUnbalanced
Phantom 24VDCDefeatable
LowCutFilter 125Hz/12dBDefeatable

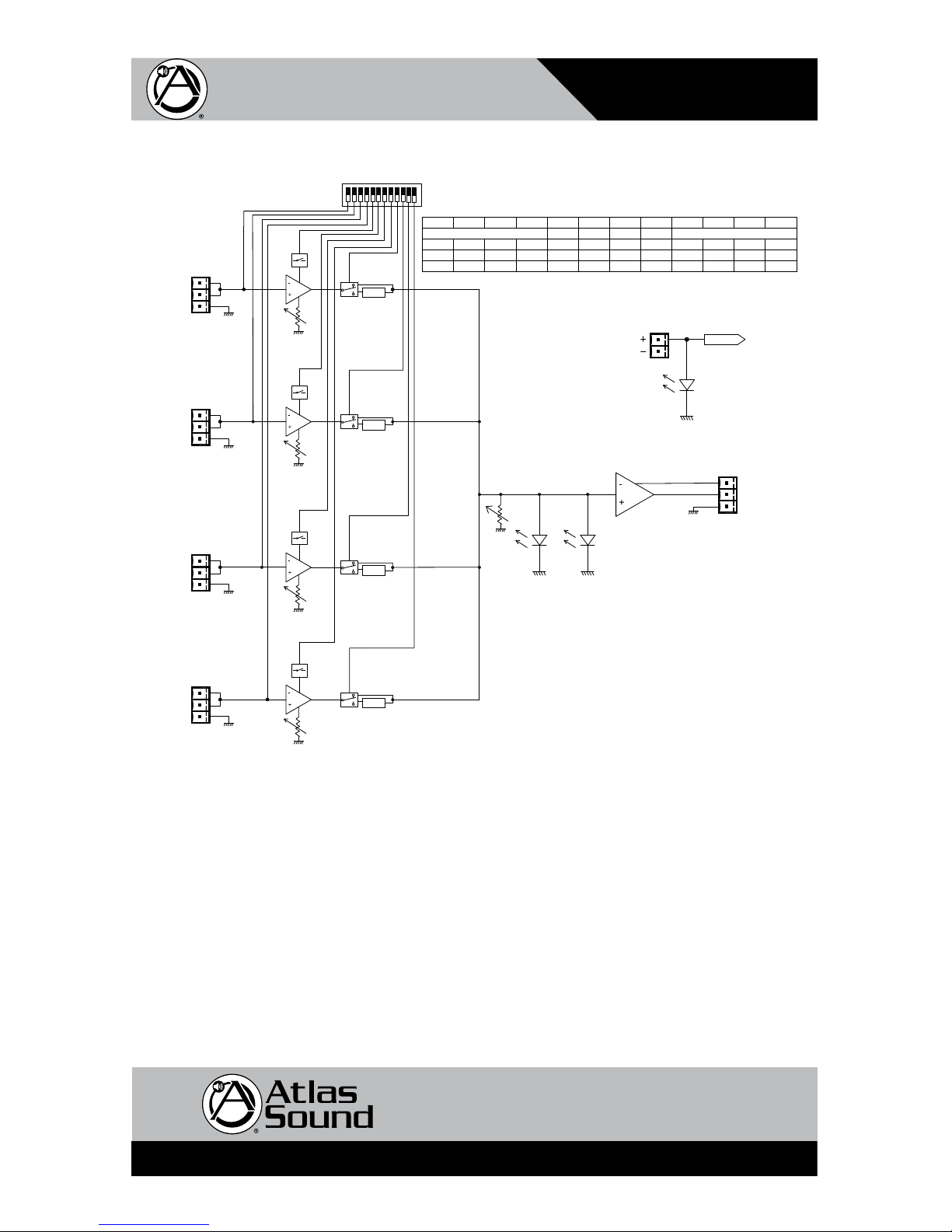

Block Diagram
1
INPUT 1
OFF
ON
PHANTOM LOW CUT 125Hz/12dB
2
INPUT 2
OFF
ON
3
INPUT 3
OFF
ON
4
INPUT 4
OFF
ON
5
INPUT 1
LINE
MIC
6
INPUT 2
LINE
MIC
7
INPUT 3
LINE
MIC
9
INPUT 1
OFF
ON
10
INPUT 2
OFF
ON
11
INPUT 3
OFF
ON
12
INPUT 4
OFF
ON
8
INPUT 4
LINE
MIC
INPUT 1
G
–
+
INPUT 2
G
–
+
INPUT 3
G
–
+
OUTPUT
OUTPUT 1
LEVEL
SIGNAL
LED
PEAK
LED
G
–
+
INPUT 4
G
–
+
MIC/LINE
LOW CUT
125Hz -3dB
LOW CUT
125Hz -3dB
LOW CUT
125Hz -3dB
LOW CUT
125Hz -3dB
MIC/LINE
MIC/LINE
MIC/LINE
1 2 3 4 5 6 7 8 9 10 11 12
INPUT
LEVEL
DC 24V 24V
POWER SHOW
LED
INPUT
LEVEL
INPUT
LEVEL
INPUT
LEVEL
DIP SWITCH FUNCTION SET

Owner’s Manual
TSD-MIX41
4x1 Mic/Line Mixer
AtlasSound.com– 7 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
LineInputLevel 1V(0dBV)Balanced=2V(+6dBV)BalancedOutput,
 MaximumInput6V(+15dBV)
MicInputLevel 46dBGain,10mV(-40dB)Balanced=2V(+6dBV)BalancedOutput,
 MaximumInput40mV(-27dBV)
Outputs
Type Qty1,BalancedLine
Connection Removable3PositionCaptiveScrew3.5mmSpacing
Impedance 300ΩBalanced,150ΩUnbalanced
LineOutputLevel 1V(0dBV)In=2V(+6dBV),MaximumOutput6V(15dBV)
Controls
InputLevelControl Qty4,RemovableKnobswithSecurityCovers
OutputLevelControl Qty1,RemovableKnobwithSecurityCover
DipSwitchFunction •PhantomPower24VDC,Qty4
 •InputMic/LineSelect,Qty4
 •Input125Hz/12dBHighPassFilter,Qty4
Indicators
OutputSignal Green,25mVOnThreshold
OutputPeak Red,-3dBBeforeClip
Power Blue
Electrical
FrequencyResponse 20Hz-20kHz(±1dB)
THD .06%&1kHz
SignaltoNoise LinetoLine:85dBV
 MictoLine:78dBV
Mounting
Velcro™ IndustrialGrade,Included
Brackets Qty 2, Included
TSD-RMK Optional1RURackMountPanel(Supports4TSDUnits)
CableRetainer Qty2,Included
Power Requirements
Voltage 24VDC
PowerConsumption 60mA
PowerConsumption 1.4W
Dimensions H1.5"(39mm)xW4"(101mm)xD2.75"(70mm)
Weight 6oz, .165kg
Accessories
TSD24VDCPowerSupplies
TSD-RMK1RURackPanel
Safety and Certifications
ExternalPowerSupply cUL,CE,RoHS,TUV

Owner’s Manual
TSD-MIX41
4x1 Mic/Line Mixer
AtlasSound.com – 8 –
Specifications are subject to change without notice.
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: [phone] • Fax: [phone]
Limited Warranty
All products manufactured by Atlas Sound are warranted to the original dealer/installer, industrial or
commercial purchaser to be free from defects in material and workmanship and to be in compliance
with our published specifications, if any. This warranty shall extend from the date of purchase for
aperiodofthreeyearsonallAtlasSoundproducts,includingSOUNDOLIERbrand,andATLAS
SOUNDbrandproductsexceptasfollows:oneyearonelectronicsandcontrolsystems;oneyearon
replacementparts;andoneyearonMusicianSeriesstandsandrelatedaccessories.Additionally,
fuses and lamps carry no warranty. Atlas Sound will solely at its discretion, replace at no charge or
repair free of charge defective parts or products when the product has been applied and used in
accordance with our published operation and installation instructions. We will not be responsible
for defects caused by improper storage, misuse (including failure to provide reasonable and
necessary maintenance), accident, abnormal atmospheres, water immersion, lightning discharge,
or malfunctions when products have been modified or operated in excess of rated power, altered,
serviced or installed in other than a workman like manner. The original sales invoice should be
retained as evidence of purchase under the terms of this warranty. All warranty returns must comply
with our returns policy set forth below. When products returned to Atlas Sound do not qualify for
repair or replacement under our warranty, repairs may be performed at prevailing costs for material
and labor unless there is included with the returned product(s) a written request for an estimate
of repair costs before any nonwarranty work is performed. In the event of replacement or upon
completion of repairs, return shipment will be made with the transportation charges collect.
EXCEPTTOTHEEXTENTTHATAPPLICABLELAWPREVENTSTHELIMITATIONOFCONSEQUENTIAL
DAMAGESFORPERSONALINJURY,ATLASSOUNDSHALLNOTBELIABLEINTORTORCONTRACT
FORANYDIRECT,CONSEQUENTIALORINCIDENTALLOSSORDAMAGEARISINGOUTOFTHE
INSTALLATION,USEORINABILITYTOUSETHEPRODUCTS.THEABOVEWARRANTYISINLIEUOF
ALLOTHERWARRANTIESINCLUDINGBUTNOTLIMITEDTOWARRANTIESOFMERCHANTABILITY
ANDFITNESSFORAPARTICULARPURPOSE.
Atlas Sound does not assume, or does it authorize any other person to assume or extend on its
behalf, any other warranty, obligation, or liability. This warranty gives you specific legal rights and
you may have other rights which vary from state to state.
Service
Should your Atlas TSD require service, please contact the Atlas Sound
warrantydepartmentat1-877-689-8055,ext.1274toobtainanRAnumber.
AtlasSoundTechSupportcanbereachedat1-800-876-3333.
Visit our website at www.AtlasSound.com to see other Atlas products
©2010AtlasSoundL.P.Allrightsreserved.AtlasSoundisatrademarkofAtlasSoundL.P.
Allothertrademarksarethepropertyoftheirrespectiveowners.ATS003942RevA9/10
