Atlona AT-LINE-PRO3 User manual

AtlonA
Professional 11- input Video Scaler
with Dual HDMI Output
AT-LINE-PRO3
User Manual

TABLE OF CONTENTS
1. Introduction .................................................. 1
2. Features .................................................. 1
3. Package Contents .................................................. 2
4. Specication .................................................. 2
5. Panel Descriptions .................................................. 3
5.1 Front Panel .................................................. 3
5.2 Rear Panel .................................................. 3
6. IR Remote .................................................. 4
7. Operation .................................................. 4
8. OSD Menu .................................................. 5
9. Output Format .................................................. 5
10. RS232 Commands .................................................. 6
11. RS232 Control Protocol .................................................. 6
12. Connection Diagram .................................................. 8
13. Safety Information .................................................. 9
14. Warranty .................................................. 10
15. Atlona Product Registration .................................................. 11

INTRODUCTION
1
Atlona’s AT-LINE-PR03 is an 11-input switcher with built in High Quality Scaler, designed to
switch between all of your AV devices and scale them to the native resolution of your displays.
This unit is designed to upscale digital/analog video signal from 2 Composite, 1 S-Video, 2
Component, 1 VGA, 1 DVI-I and 4 HDMI input sources, to 2 mirrored HDMI output of wide-
range HDTV and PC resolutions, up to 720p or 1080p and WUXGA (1920 x 1200.) Besides
video upscaling, this unit also converts digital/analog audio signal to digital format, then output
either through HDMI syncing with the video, or Coaxial S/PDIF separately. AT-LINE-PRO3 has
a comprehensive OSD menu that allows user to select a variety of output resolutions and ad-
just for best picture quality. Along with the ability of equalization and amplication, this HDCP
Compliant Scaler will also convert between PAL and NTSC.
• 11-inputs: 2 x Composite AV, 1 x S-Video, 2 x Component, 1 x VGA, 1 x DVI-I and 4 x HDMI.
• 2 x mirrored HDMI outputs (output signal will be identical on both outputs)
• Supports high denition resolutions 720p, 1080i, 1080p
• Both digital and analog inputs are format converted and pixel re-scaled
• 50Hz/60Hz conversion, perfect for customers who have USA TV’s in Europe or other way
around(PAL/NTSC)
• Supports VGA and DVI signals with resolutions up to 1920x1080
• VGA shares audio with Composite Video
• Bypass function on VGA and DVI-I port.
• DVI-I support both analog and digital input
• Additional audio output: Analog L/R and Digital Optical.
• 10-bit triple-ADC converter for RGB/YPBPR.
• Dual high quality scaling engines
• Control with IR remote, RS232 and manual input.
• Dual 3-D motion adaptive video de-interlaces.
• 3-D video noise reduction.
• HDCP Compliant
• Operates through on-screen OSD menu control and remote control.
FEATURES:

PACKAGE CONTENTS:
2
1. Atlona AT-LINE-PRO3 Scaler Box.
2. Remote Controller
3. 5V DC Power Supply Adaptor ( universal 110/220v)
4. Operation Manual
5. Rack ears (pair) x 1
• Digital Video Amplier Bandwidth: 1.65 Gbps
• Input DDC Signal: 5 volts
• Input Video Signal: 1.2 volts p-p
• Output/Input Resolutions: up to 1080p
• Inputs: 2 x Composite AV, 1 x S-Video, 2 x Component, 1 x VGA, 1 x DVI-I and 4 x HDMI (all
with audio)
• Outputs: 2 x HDMI ( Video/Audio) or route Audio though Digital Optical or Analog Audio out-
puts
• RS232 Control Port
• Power Supply: 5V DC ( universal 110/220v )
• Dimensions: 17.3”W x 1.7 “H x 7.9 “D
• Shipping Weight: 6lbs
• Operating Humidity Range: 5 to 90% RH (no condensation)
• Operating Temperature Range: -5 to +35oC (-41 to +95oF)
SPECIFICATIONS

2 3
PANEL DESCRIPTIONS
Front Panel

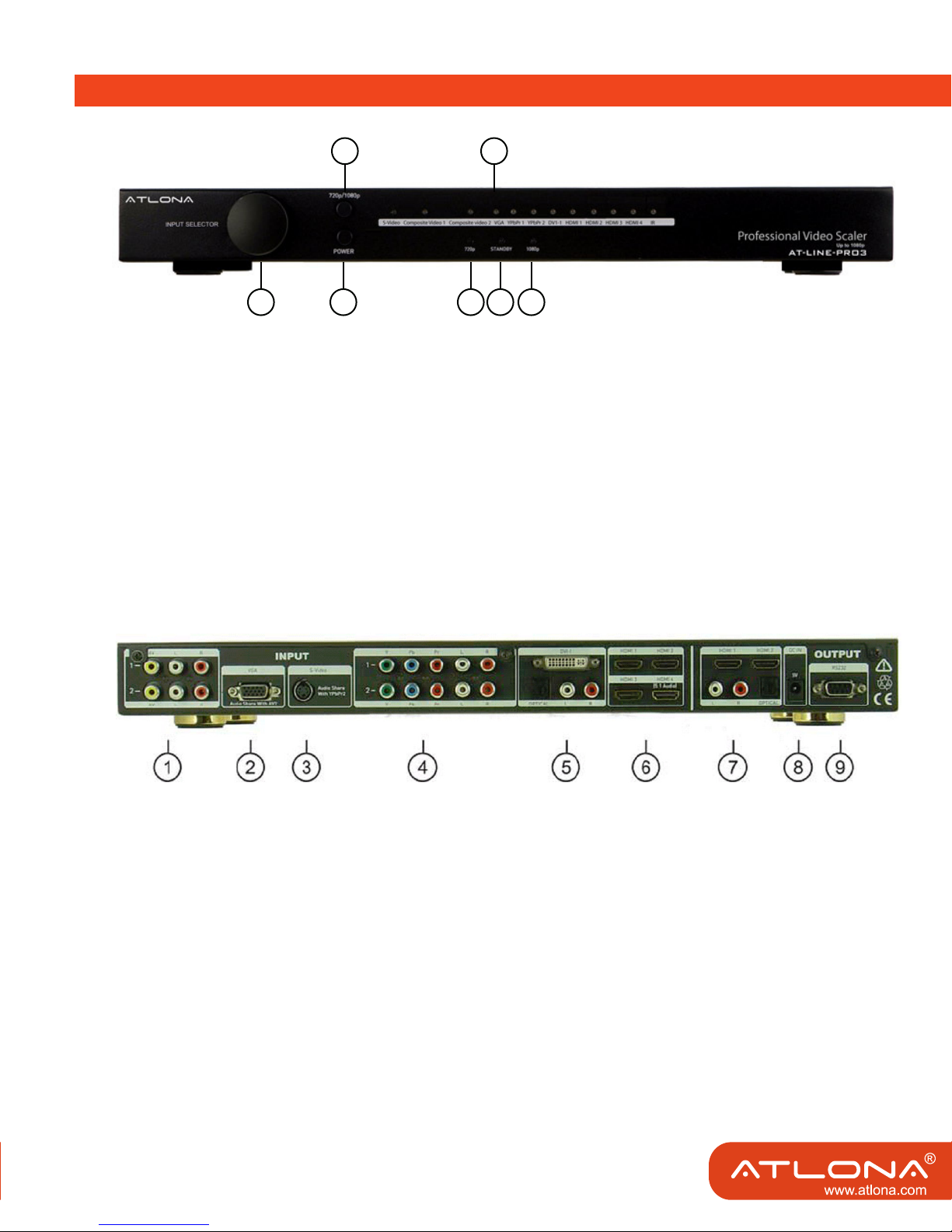

1. Input selection: Knob Left/Right to select desired input selection.
2. Standby: Press Button for power standby..
3. Button of output format rolling between 720P, 1080P and bypass. Bypass function is useful under
VGA and DVI-I input.
4. Indicator of 720P.
5. Indicator of power standby. When power is on standby, the LED lights.
6. Indicator of 1080P.
7. Indicator of input sources.
Rear Panel
1. Input: AV1 and AV2 with Stereo Audio.
2. Input: VGA
3. Input: S-Video
4. Input: Component1 (YPbPr) # 1 and Component1 (YPbPr) # 1 with Stereo Audio.
5. Input: DVI-I with audio R/L and optical.
6. Input: HDMI1 - 4 (supports audio 5.1)
7. Output HDMI1 and 2 with Stereo Audio and Optical.
8. Input: 5V DC Power supply – (universal 110/240v)
9. RS232
7
1 2 4 5 6
3

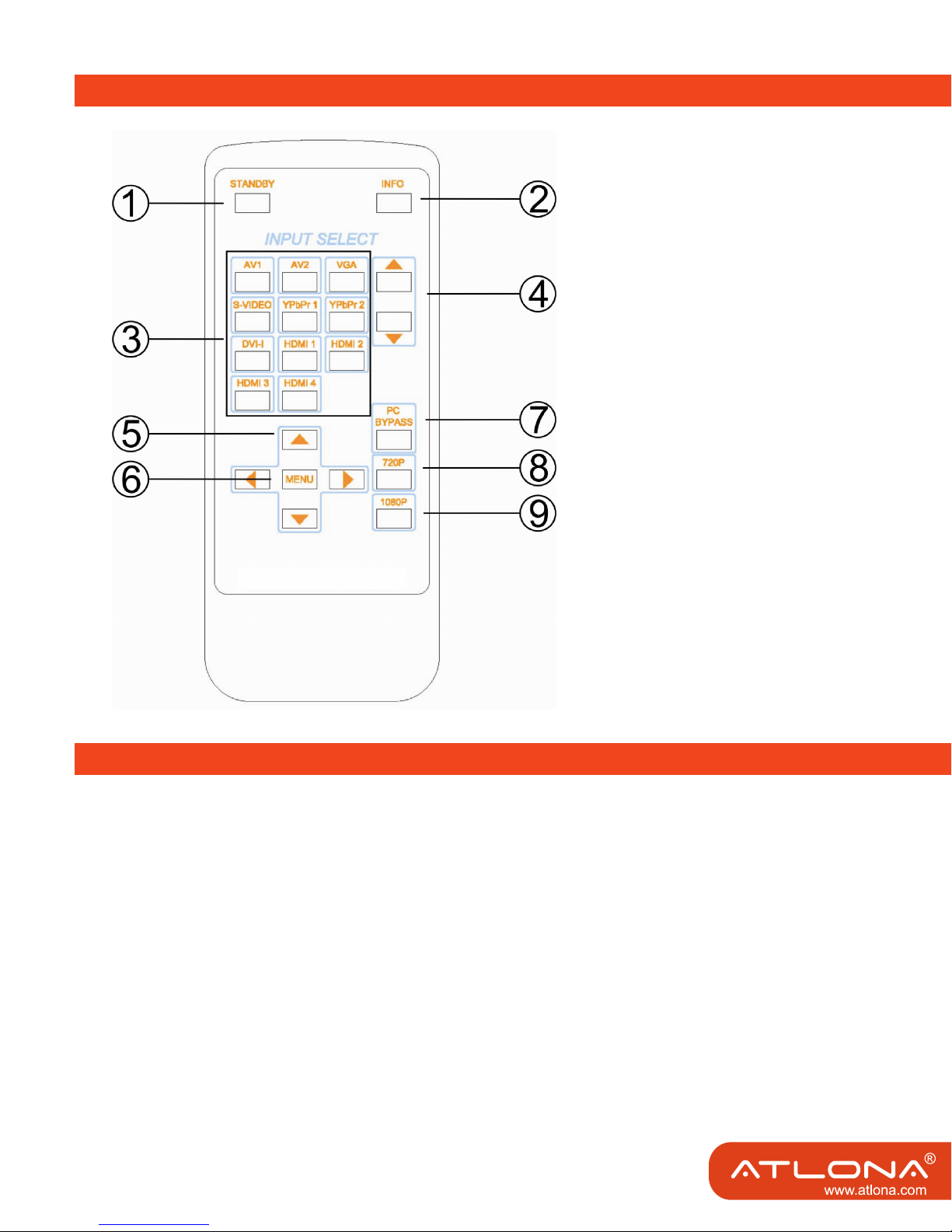

1. STANDBY: Press the button once to en-
ter standby mode; press again to power
the unit on
2. INFO: Press the button to view the input
and output message.
3. INPUT SOURCE: Press any of the button
to directly select desired Input source.
4. UP/DOWN: Select between the input
sources one by one.
5. UP/DOWN/LEFT/RIGHT: Press
UP/DOWN button to move the
highlighter bar to the desired parameter
in OSD menu. Press LEFT/RIGHT to
increase/decrease the setting value of a
selected parameter.
6. MENU: Press the button to activate an
on screen menu page.
7. PC BYPASS: Press the button to enter
bypass mode.
8. 720P: Press the button to directly output
720P.
9. 1080P: Press the button to directly output
1080P.
SYSTEM CODE : 00FF
1)Connect the inputs of the AT-LINE-PRO3 into desired sources (such as AppleTV, Blu-Ray Player,
PS3, Set Top Box etc)
2)Connect the AT-LINE-PRO3 Outputs to desired HD Displays (such as LCD, DLP or any other stan-
dard).
3) Power on the desired input source you want to show.
4)Connect the 5V DC power supply into the unit and turn on the display you want to watch.
5) Use IR remote or manually roll the Knob on the front panel to choose desired input source.
NOTE: VGA and AV2 share the same Stereo audio input, S-video and YPBPR2 share the same Stereo audio.
Atlona’s AT-LINE-PRO3 accepts AV, SV, VGA, YPBPR, DVI-I and HDMI inputs.
4
IR REMOTE
OPERATION
0x14
0x19 0x1B 0x11 0x15
0x080x17
0x50
0x5E 0x06
0x07
0x440x18 0x0F 0x51
0x1A0x1E
0x02
0x55 0x48
0x12 0x59
0x46

4
CONTRAST 0~100 of contrast level
BRIGHTNESS 0~100 of bright level
SATURATION 0~100 of saturation level
SHARPNESS 0~100 of sharpness level
HUE 0~100 of sharpness level
PICTURE MODE STANDARD/ DYNAMIC/ SOFT /PERSONAL
SCALE FULL/ OVERSCAN/ UNDERSCAN/ LETTERBOX/ PANSCAN
NR HIGH/ MID /LOW/ AUTO/ OFF
RESET Reset the above parameters to the default factory settings
PC
CONTRAST 0~100 contrast level
BRIGHTNESS 0~100 of bright level
H-POSITION 0~100 of H position level
V-POSITION 0~100 of V position level
H-SIZE 0~20 of H size level
V-SIZE 0~20 of V size level
RESET Reset the above parameters to the default factory settings
OSD
H-POSITION 0~100 of H position level
V-POSITION 0~100 of V position level
DURATION 5s/ 15s/ 30s/ 60s
HALFTONE 0~8 of halftone level
RESET Reset the above parameters to the default factory settings
INPUT
AV/SV PAL, NTSC
YPBPR/HDMI 480i,480P,576i,576P,720P@[50/60], 1080i@[50/60],1080P@[50/60]
VGA/DVI 800x600@60, 1024x768@60,1152x864@60, 1280 x768@60,
1280 x960@60,1280x1024@60, 1440 x900@60,1400 x1050@60,
1600 x1200@60,1920 x1200@60
VESA-BYPASS 800x600@60,1024x768@60,1280 x720@60, 1280x1024@60,
1280 x960@60,1440 x900@60,1600 x1200@60,1920 x1080@60
OUTPUT
AV/SV/YPBPR/HDMI/VGA/DVI 720P@[50/60], 1080P@[50/60]
VESA-BYPASS 800x600@60,1024x768@60,1280 x720@60, 1280x1024@60,
1280 x960@60,1440 x900@60,1600 x1200@60,1920 x1080@60
5
OSD MENU
OUTPUT FORMAT

TXD transmit serial data to PC
RXD receive serial data from PC
The RS232 connecter on our product is female type. User can use the USB to RS232 cable.
or use the direct serial cable. The female side connect to PC RS232 port, the male port con-
nect to the RS232 port on our product
female type (nine holes)
male type (nine pins)
The connection between AT-LINE-PRO3 and remote controller with RS-232 modem cable
AT-LINE-PRO3 Remote Controller
PIN Denition PIN Denition
1 NC 1 NC
2 Tx 2 Rx
3 Rx 3 Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
6
RS232 COMMANDS
RS232 CONTROL PROTOCOL

6
RS-232 transmission format:
Baud Rate : 9600 bps
Data Bit : 8 bits
Parity : None
Stop Bit : 1 bit
Command:
COMMAND ACTION
ASCII: “|s1” select source CVBS1
HEX: 0x7C 0x73 0x31
ASCII: “|s2” select source CVBS2
HEX: 0x7C 0x73 0x32
ASCII: “|s3” select source VGA
HEX: 0x7C 0x73 0x33
ASCII: “|s4” select source SVIDEO
HEX: 0x7C 0x73 0x34
ASCII: “|s5” select source YPBPR1
HEX: 0x7C 0x73 0x35
ASCII: “|s6” select source YPBPR2
HEX: 0x7C 0x73 0x36
ASCII: “|s7” select source DVI
HEX: 0x7C 0x73 0x37
ASCII: “|s8” select source HDMI1
HEX: 0x7C 0x73 0x38
ASCII: “|s9” select source HDMI2
HEX: 0x7C 0x73 0x39
ASCII: “|sA” select source HDMI3
HEX: 0x7C 0x73 0x41
ASCII: “|sB” select source HDMI4
HEX: 0x7C 0x73 0x42
ASCII: “|o1” select output format 1080P
HEX: 0x7C 0x6F 0x31
ASCII: “|o2” select output format 720P
HEX: 0x7C 0x6F 0x32
ASCII: “|bp” select bypass mode
HEX: 0x7C 0x62 0x70
ASCII: “|hh” show help information
HEX: 0x7C 0x68 0x68
7

8
ASCII: “|mm” show MENU
HEX: 0x7C 0x6D 0x6D
ASCII: “|mu” UP
HEX: 0x7C 0x6D 0x75
ASCII: “|md” DOWN
HEX: 0x7C 0x6D 0x64
ASCII: “|ml” LEFT
HEX: 0x7C 0x6D 0x6C
ASCII: “|mr” RIGHT
Attention:
1. This equipment has power memory function. When restarting this machine, input selection
would be xed as it was before.
2. Under bypass mode, the indicators of output will go out.
3. Under bypass mode, when switching from VGA or DVI-I to other inputs, the output will be in
1080P.
4. The output will be 1080P when powered on from bypass mode.
5. The bypass key is only useful under VGA and DVI-I input.
6. Besides the given VESA format, the output will be automatically 1080P.
CONNECTION DIAGRAM

8 9
SAFETY INFORMATION
Safeguards
To reduce the risk of electric shock, do not
expose this product to rain or moisture.
If the wall plug does not t into your local
power socket, hire an electrician to replace
your obsolete socket.
Do not modify the wall plug.
Doing so will void the warranty and safety
features.
This equipment should be installed near
the socket outlet and the device should
be easily accessible in case it requires
disconnection.
Precautions
FCC Regulations state that any
unauthorized changes or modications to
this equipment not expressly approved by
the manufacturer could void the
user’s authority to operate this
equipment.
Operate this product using only the
included external power supply. Use of
other power supplies could impair
performance, damage the product or cause
res.
In the event of an electrostatic discharge,
this device may automatically turn off. If this
occurs, unplug the device, and plug it back
in.
Protect and route power cords so they will
not be stepped on or pinched by anything
placed on or against them. Be especially
careful of plug-ins, or cord exit points from
this product.
Avoid excessive humidity, sudden
temperature changes or temperature
extremes.
Keep this product away from wet locations
such as bathtubs, sinks, laundries, wet
basements and swimming pools.
Use only accessories recommended by
ATLONA to avoid re, shock or other
hazards.
Unplug the product before cleaning. Use
a damp cloth for cleaning. Do not use
cleaning uid or aerosols, which could
enter the unit and cause damage, re or
electrical shock. Some substances may
also mar the nish of the product.
Never open or remove unit panels or make
any adjustments not described in this
manual. Attempting to do so could expose
you to dangerous electrical shock or other
hazards. It may also cause damage to your
AT-LINE-PRO3. Opening the product will
void the warranty.
Do not attempt to service the unit. Instead
disconnect it and contact your Authorized
ATLONA reseller or contact ATLONA
directly.

WARRANTY
10
1. LIMITED WARRANTY
Atlona Technologies warrants that (a) its products (the “Product”) will perform substantially in accordance with the
accompanying written materials for a period of 3 YEARS from the date of receipt and (b) that the Product will be
free from defects in materials and workmanship under normal use and service for a period of 3 years. In the event
applicable law imposes any implied warranties, the implied warranty period is limited to 3 years from the date of
receipt. Some jurisdictions do not allow such limitations on duration of an implied warranty, so the above limitation
may not apply to Customer.
2. CUSTOMER REMEDIES
Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technolo-
gies’ option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet
this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited
Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. Any replacement Prod-
uct will be warranted for the remainder of the original warranty period or 3 year, whichever is longer.
3. NO OTHER WARRANTIES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ATLONA TECHNOLOGIES AND ITS SUPPLI-
ERS DISCLAIM ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH
REGARD TO THE PRODUCT AND ANY RELATED WRITTEN MATERIALS. THIS LIMITED WARRANTY GIVES
CUSTOMER SPECIFIC LEGAL RIGHTS. CUSTOMER MAY HAVE OTHER RIGHTS DEPENDING ON THE JU-
RISDICTION.
4. NO LIABILITY FOR DAMAGES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ATLONA TECHNOLO-
GIES OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING WITHOUT LIMITA-
TION, SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR INDIRECT DAMAGES FOR PERSONAL INJURY, LOSS
OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER
PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS PRODUCT, EVEN IF ATLONA
TECHNOLOGIES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN ANY CASE, ATLONA
TECHNOLOGIES’ AND ITS SUPPLIERS’ ENTIRE LIABILITY UNDER ANY PROVISION OF THIS AGREEMENT
SHALL BE LIMITED TO THE AMOUNT ACTUALLY PAID BY YOU FOR THE PRODUCT. BECAUSE SOME JU-
RISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR
INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
ATLONA
2151 O’toole Ave, Ste D
San Jose CA 95131
Toll Free: 1-877-536-3976
International: 408-954-8782
FAX: [phone]
Website: www.atlona.com
E-MAIL: [email protected]

10 11
ATLONA PRODUCT REGISTRATION
Thank you for purchasing this Atlona product — we hope you’ll enjoy it.
We also hope that you’ll take a few moments to register your new purchase. Registration creates an ownership
record if your product is lost or stolen and helps ensure you’ll receive notication of performance issues and rm-
ware updates.
At Atlona, we respect and protect your privacy and assure you that your registration information is completely
secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited
warranty rights.
To register go to www.atlona.com/registration
