User Manual
8-input 2-output Professional Video Scaler
AT-PRO82

1www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
1. Introduction .................................................. 2
2. Specifications .................................................. 2
3. Package Contents .................................................. 3
4. Panel Descriptions .................................................. 3
4.1 Front Panel .................................................. 3
4.2 Rear Panel .................................................. 4
5. Connection .................................................. 5
6. Remote Control .................................................. 5
7. IR Extender .................................................. 6
7.1 Rear Panel IR Extender Ports .................................................. 6
7.2 The IR Extender Components Setup .................................................. 6
8. RS-232 Serial Interface .................................................. 7
8.1 RS-232 Serial Interface Connect a PC or Control System ................. 7
8.2 RS-232 .................................................. 7
8.3 Protocol Commands .................................................. 8
9. RS-232 Protocol Commands .................................................. 8
9.1 Standby Mode .................................................. 8
9.2 Power Off Mode .................................................. 8
9.3 Front Panel Lock .................................................. 8
9.4 Unit Reset .................................................. 8
10. Installation .................................................. 8
11. SafetyInformation .................................................. 9
12. Warranty .................................................. 10
13. AtlonaProductRegistration .................................................. 11
TABLE OF CONTENTS

2www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Atlona Technologies’ AT-PR082 is a unique 8-input 2-output Professional Video Scaler designed to work as a
switcher and scaler for multiple Audio/Video sources and displays. This Atlona unit is capable of switching 2
x Composite Video, 2 x S-Video, 2 x Component and 2 x VGA, all with Stereo Audio signals going out to 2 x
VGA with Stereo Audio Outputs. This gives the AT-PR082 the ability to switch between eight sources and two
displays. Both outputs are mirrored and therefore the image would be identical out of both outputs. This devise
will support sharp and highly defined video in multiple resolutions of up to 1080p or 1920x1200. Along with
supporting Pal and NTSC formatting, this unit has quick and easy installation. With manual, RS232, as well as
IR Remote control options, Atlona’s AT-PR082 Scaler/Switcher is perfect for all Video equip¬ment and applica-
tions that using Multiple Video formats and signals such as Cable and Satellite receivers, VCRs, DVD Players,
Set Top Boxes...etc.
Inputs 2x Composite Video and Stereo Audio Inputs; 2x S-Video with Stereo
Audio Inputs; 2x Component Video with Stereo Audio In¬puts; 2x VGA
with Stereo Audio Inputs
Outputs 2x VGA with Stereo Audio Outputs
Auto detection TV video system NTSC-M 3.58, NTSC-J, 4.43, PAL-B-D-I-G-H-K, PAL-M, PAL-N, PAL-N
COMB-N, SECAM (Impedance: 75 ohms)
OSD menu selections Adjust Color: Contrast, Brightness, Sharpness, Level and Gain
Video bandwidth 250MHz, (-3 d B)
Audio bandwidth >60MHz, (-3 d B)
Audio frequency response 20Hz ~ 20KHz
Input source resolutions CVBS/S-Video for STANDARD TV VIDEO SYSTEM; Compo¬nent
Video (YPBPR) for 480p, 720p & 1080p; VGA for VGA (640x480),
SVGA(800x600), XGA(1024x768), SXGA(1280x1024) or (1920x1200HD)
Maximum
Unit output resolutions VGA for SVGA, XGA, SXGA, WXGA, WSXGA or WUXGA (1920x1200HD)
Control Direct Front Panel menu, RS-232, and IR Remote control
RS-232 control 9600 bps, No Parity, 8 bits, 1 Stop bit
Safety approvals CE, FCC, RoHs(2002/95/EC)
Dimensions (LWH) 19”x 7.87”x 1.75”(482mm x 200mm x 44mm)
Power supply 12VDC, 2A (2.45A Max.) Universal Switch type 50/60Hz 100-230 VAC
Shipping weight 3.2kg
INTRODUCTION
SPECIFICATIONS

3www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
• Atlona 8-input 2-output Professional Video Scaler (AT-PR082)
• Instruction Manual
• IR Remote Control
• Universal AC/DC power adapter: 12VDC
1. POWER SWITCH. The power switch turns the unit ON/OFF. The LED will illuminate red to indicate the
switcher is ON and receiving power
2. INPUT SOURCES DISPLAY. Inputs 1-8 LEDs illuminate green to indicate that a video source signal is pres-
ent.
3. SOURCE SELECT BUTTONS. Outputs 1 and 2 source select buttons are provided for each destination.
Input 1 - Composite Video / Stereo Audio
Input 2 - Composite Video / Stereo Audio
Input 3 - S-Video / Stereo Audio
Input 4 - S-Video / Stereo Audio
Input 5 - Component Video (YPBPR) / Stereo Audio
Input 6 - Component Video (YPBPR) / Stereo Audio
Input 7- VGA (RGBHV)/Stereo Audio
Input 8- VGA (RGBHV)/Stereo Audio
4. IR SENSOR. The IR sensor receives IR commands.
5. OSD CONTROL. Adjust OSD on display via display screen.
6. AUDIO OUTPUT VOLUME. Adjust outputs Audio/Volume via LED display
PACKAGE CONTENTS
PANEL DESCRIPTIONS
1 2 6 5 4 3

4www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
1. 2x VGA/STEREO AUDIO OUTPUTS. Output 1 - VGA-RGBHV/Stereo Audio Output 2 - VGA-RGBHV / Stereo
Audio
2. 2x OD3.5mm AUDIO OUTPUTS. 2x Stereo Audio outputs.
3. INPUT 7& 8 VGA-AUDIO INPUTS.
Input 7 - VGA-RGBHV via 1x DB-15p connector
- Stereo Audio via 2x RCA connectors Input 8 - VGA-RGBHV via 1x DB-15p connector
- Stereo Audio via 2x RCA connectors
4. INPUTS 7& 8: AUDIO with OD3.5mm Jack.
Input 7 - stereo audio(AR/AL) via OD3.5mm phone jack Input 8 - a stereo audio(AR/AL) via OD3.5mm
phone jack
5. INPUTS 5& 6:
Input 5 - Component(YPBPR) via 1x RCA connectors
- Stereo Audio via 2x RCA connectors
Input 6 - Component(YPBPR) via 1x RCA connectors
- Stereo Audio via 2x RCA connectors
6. INPUTS 3&4:
Input 3 - S-Video (Y/C) via 1x Mini din-4 Female connector
- Stereo Audio via 2x RCA connectors
Input 4 - S-Video (Y/C) via 1x Mini din-4 Female connector
- Stereo Audio via 2x RCA connectors
7. INPUTS 1&2:
Input 1 - Composite Video via 1x RCA connectors
- Stereo Audio via 2x RCA connectors Input 2 - Composite Video via 1x RCA connectors
- Stereo Audio via 2x RCA connectors
8. RS232 CONTROL. RS 232 control allows for interfacing to a PC.
9. IR EXTENDER CONTROL. IR Extender to extend distance of 300M
10.POWER INPUT. Use to plug in 12V DC power adaptor.
2 4
31
5 6 7 8 9 10

5www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
CONNECTION
REMOTE CONTROL
Before making any connections to AT-PR082:
Be sure the mains voltage supply matches the label on the supplied plug-Pack (+/-10%) Make sure all devices
are powered down
Ensure that all system grounds (earth) are connected to a common point.
Connect all sources to the Desired Video/Audio Inputs
Connect all displays to desired Audio/Video Outputs
Power on all sources and displays
Set AT-PR082 Powerswitch to (ON)
When powering up, Atlona’s Matrix switcherwill return to its last used setting. For each destination output
select the appropriate input source by using:
•Thefrontpanelinput1-8selectbuttons
•RS232
•IRremotecontrol.
1. POWER ON/OFF
Press Power Button to switch ON and OFF
2. INPUT Selections
input- # 1 Composite Video / Stereo Audio
input - # 2 Composite Video / Stereo Audio
input - # 3 S-Video / Stereo Audio
input- #4 S-Video/Stereo Audio
input- # 5 Component Video (YPBPR) / Stereo Audio
input- # 6 Component Video (YPBPR) / Stereo Audio
input- # 7 VGA-RGBHV / Stereo Audio
input- # 8 VGA-RGBHV / Stereo Audio
3. SELECT VGA OUTPUT RESOLUTIONS
Select through VGA output resolutions:
- SXGA 1280 x1024
- WXGA 1440 x900
- WSXGA+1680 x1050
- WUXGA 1920 x1200
4. MEMU-OSD
Use OSD to setup or Adjust output resolutions and color.
5. EXIT - OSD
OSD to EXIT
6. AUDIO VALUE ADJUSTMENT OSD to setup or Adjust Audio
Output Volume

6www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
1. Rear Panel IR Extender Ports
2. The IR Extender Components Setup
IR EXTENDER

7www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515

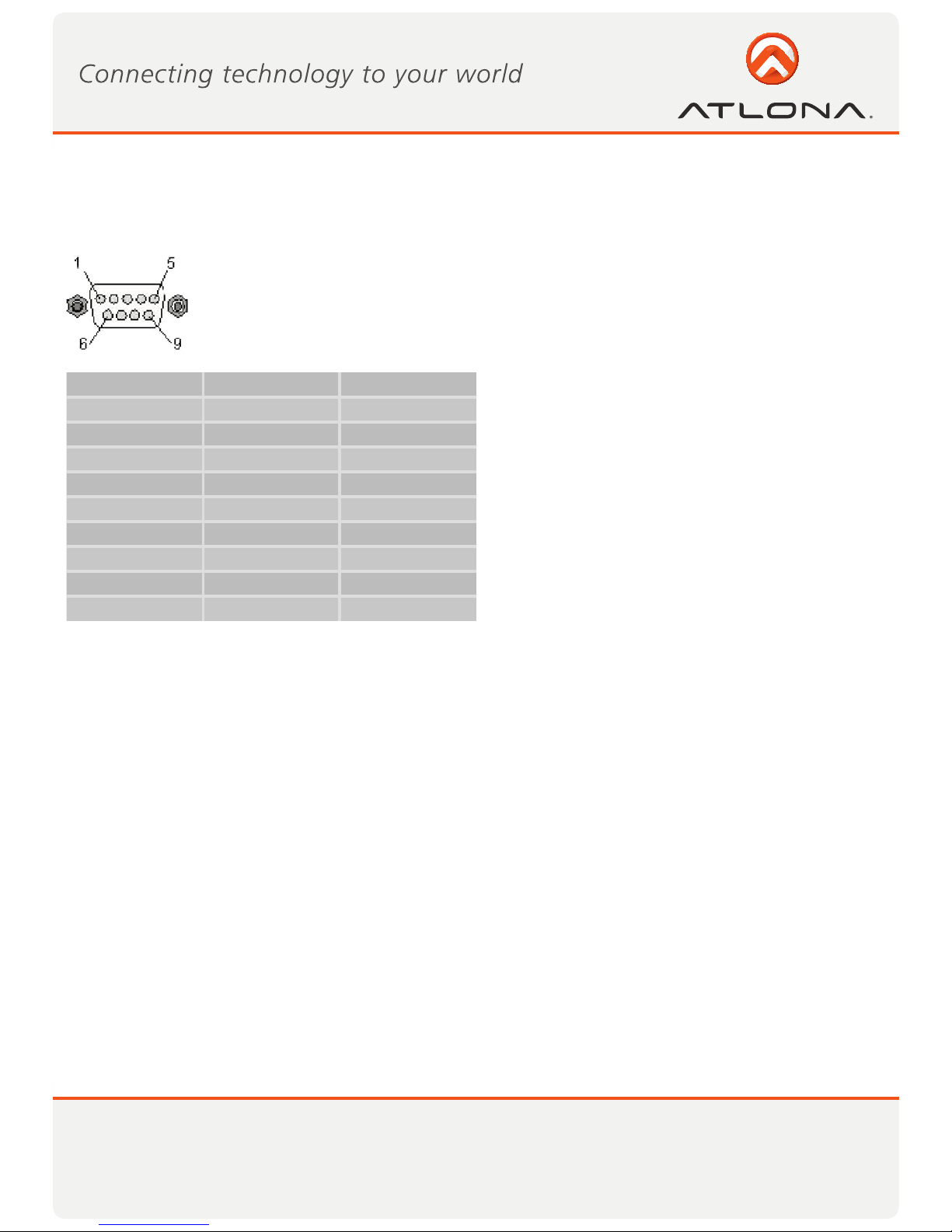

1. RS-232 Serial Interface Connect a PC or Control System
Pin RS-232 Definition
1 - Not used
2 TX Transmitter
3 RX Receiver
4 - Not used
5 GND Ground
6 - Not used
7 - Not used
8 - Not used
9 - Not used
2. RS-232
Atlona’s AT-PR082 can be controlled via the RS-232 serial control to allow interfacing with a PC, The serial
communication parameters are 9600 baud, 8 bit, No Parity and 1 stop bit - this is often referred to as 9600
8N1.
When the unit recognizes a complete command it will perform the requested action. There is no delimiter
character required. This unit does not send out a message when a value is changed from the front panel or
IR control. If the unit needs to be controlled via the front panel in addi¬tion to the RS232 control, regularly
poll the unit status to ensure the control system accurately reflects the current settings, or similar third party
control system.
RS-232 SERIAL INTERFACE

8www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
All# Transfer all input signals to matching output channels.
[x1] AV[x2] Transfer the audio and video signals from input channel [x1] to
output channel [x2]. Example: input 5 needs to be send to output 6, the commands
would be x5AVx6
[x1] AV[x2],[x3],[x4] Transfer the audio and video signals from input channel [x1] to output channels [x2],
[x3] and [x4].
[x1] A[x2] Transfer the audio signals from input channel [x1] to output channel [x2].
Example: input 5 needs to be send to output 6, 8, 10, 15 the commands would be
x5AVx6,x8,x10,x15
Status[x1] Acquires the input channel to the output channel [x1].
Example: Statusx1
Status Acquires the input channel to the output channel one by one
Save[Y] Save the present operation to the preset command [Y]. [Y] Ranges from 0 to 9.
Recall[Y] Recall the preset command [Y].
Vol000, Vol001,
Vol002, Vol003,
Vol004, Vol005
Volume adjustment on output
Clear[Y] Clear the preset command [Y].
Note: Code entry is CASE SENSITIVE. Do not insert spaces between letter/number code entries.
RS-232 PROTOCOL COMMANDS
INSTALLATION
DVD Player VCR
Set Top Box
VGA monitor
Projector RS232 Control

9www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
Safeguards
Precautions
FCC regulations state that any unauthorized changes or modifications to this equipment, not expressly
approved by the manufacturer, could void the user’s authority to operate this equipment.
Operate this product using only the included external power supply. Use of other power supplies could impair
performance, damage the product, or cause fires.
In the event of an electrostatic discharge this device may automatically turn off. If this occurs, unplug the device
and plug it back in.
Protect and route power cords so they will not be stepped on or pinched by anything placed on or against
them. Be especially careful of plug-ins or cord exit points from this product.
Avoid excessive humidity, sudden temperature changes or temperature extremes.
Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements, fish tanks, and
swimming pools.
Use only accessories recommended by Atlona to avoid fire, shock, or other hazards.
Unplug the product before cleaning. Use a damp cloth for cleaning and not cleaning fluid or aerosols.
Such products could enter the unit and cause damage, fire, or electric shock. Some substances may also
mar the finish of the product.
Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to
do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your
AT-PRO82. Opening the product will void the warranty.
Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or
contact Atlona directly.
To reduce the risk of electric shock, do not
expose this product to rain or moisture
If the wall plug does not fit into your local
power socket, hire an electrician to replace
your obsolete socket.
Do not modify the wall plug. Doing so will
void the warranty and safety features.
This equipment should be installed near
the socket outlet and the device should
be easily accessible in the case it requires
disconnection.
SAFETY INFORMATION

10 www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
WARRANTY
Limited Warranty
Atlona Technologies warrants that (a) its products (the AT-PRO82) will perform
substantially in accordance with the accompanying written materials for a period of 3 years from
the date of receipt and (b) that the product will be free from defects in materials and workmanship
under normal use and service for a period of 3 years. In the event applicable law imposes any
implied warranties, the implied warranty period is limited to 3 years from the date of receipt. Some
jurisdictions do not allow such limitations on duration of an implied warranty, so the above limitation
may not apply to customers that fall within those areas.
Customer Remedies
Atlona Technologies’ and its suppliers’ entire liability and Customer’s exclusive remedy shall
be, at Atlona Technologies’ decision, either return of the price paid for the product, repair, or
replacement of the product that does not meet this Limited Warranty and which is returned to Atlona
Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the
product has resulted from accident, abuse, misapplication, or natural occurrence. In example but not
limited to: power surges (electrical storms, local power outage), dropping the product (or items on
the product), contact with fluids, and physical misconduct (i.e. kicking or punching). Any replacement
product will be warranted for the remainder of the original warranty period.
No other warranties
To the maximum extent permitted by applicable law, Atlona Technologies and its suppliers
disclaim all other warranties, either expressed or implied, including, but not limited to, implied
warranties of merchantability and fitness for a particular purpose, with regard to the product and any
related written materials. This Limited Warranty gives customer specific legal rights. Customers may
have other rights depending on the jurisdiction.
No liability for damages
To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or
its suppliers be liable for any damages arising out of the use of or inability to use this product, even
if Atlona Technologies has been advised of the possibility of such damages. Such damages include
but are not limited to: special, incidental, consequential, or indirect damages for personal injury, loss
of business profits, business interruption, loss of business information, or any other pecuniary loss.
Atlona Technologies’ and its suppliers’ entire liability under any provision of this agreement shall
be limited to the amount actually paid by you for the product. Some Jurisdictions do not allow the
exclusion or limitation of liability for consequential or incidental damage. The above limitations may
not apply to you in such jurisdictional cases.

11 www.atlona.com
Toll free: 1-877-536-3976
Local: 1-408-962-0515
ATLONA PRODUCT REGISTRATION
Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few
moments to register your new purchase.
Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll
receive notification of performance issues and firmware updates.
At Atlona, we respect and protect your privacy, assuring you that your registration information
is completely secure. Atlona product registration is completely voluntary and failure to register will not
diminish your limited warranty rights.
To register go to: http://www.atlona.com/registration
