ATN BINOX HD User manual

BinoX HD
SMART HD BINOCULAR
OPERATOR’S MANUAL
FOR WEB USER MANUAL VISIT:
HTTP://MANUAL.ATNCORP.COM/BINOX
AMERICAN
TECHNOLOGIES
NETWORK CORP.

CAUTION!
THIS PRODUCT CONTAINS NATURAL RUBBER LATEX WHICH MAY CAUSE ALLERGIC REACTIONS
The information in this manual is furnished for informational use only, is subject to change without notice,
is not to be construed as a commitment by ATN Corp.
ATN Corp. assumes no responsibility or liability for any errors or inaccuracies that may appear in this book.
©2016 ATN Corp. All rights reserved.
TABLE OF CONTENTS
Section I. Preparing the device .................. 1-1
1.01. Unpacking ....................................1-2
1.02. Installation of batteries ...........................1-3
1.03. MicroSD, USB and HDMI ports .....................1-3
1.04. Firmware update ...............................1-4
1.05. ON / OFF ....................................1-5
1.06. Using keypad..................................1-5
1.07. Focusing .....................................1-5
1.08. Focus IR (left lens)..............................1-6
1.09. Mounting on a tripod ............................1-6
1.10. Compass calibration .............................1-7
Section II. Interface ............................. 2-1
2.01. Homescreen ..................................2-2
2.02. Main operations................................2-3
2.03. Shortcut carousel ..............................2-4
2.04. Using system menu .............................2-5
Section III. Functions............................ 3-1
3.01. Night Vision ...................................3-2
3.02. Photo and Video modes ..........................3-3
3.03. Rangefinder ..................................3-4
Section IV. System menu ........................ 4-1
4.01. Night Vision ...................................4-2
4.02. Photo/Video ..................................4-2
4.03. Display ......................................4-2
4.04. Settings .....................................4-3
Section V. Servicing............................. 5-1
5.01. Warnings and cautions ...........................5-2
Section VI. Mobile applications .................. 6-1
6.01. Mobile applications .............................6-2

1-1
SECTION I
PREPARING THE DEVICE

1-2
1.01. UNPACKING
The following steps must be accomplished prior to each mission where the device is used:
1. Open packaging box, remove BinoX HD and check the contents
2. Make sure that nothing is missing
3. Inspect the device for damage to optical surfaces, body, eyecups, operation buttons, etc.
4. Ensure that all optical surfaces are clean and ready for use.
NOTE
You must have a microSD card inserted in the device, in order to be able to update to the
latest firmware.
START/STOP VIDEO
RECORDING
ENTER
BUTTON
TAKE A PICTURE
ZOOM IN
MICROSD, MICRO HDMI
& MICRO USB
DIOPTER
ADJUSTMENT
POWER BUTTON
IR BEAM FOCUS
ADJUSTMENT RING
FOCUS
ADJUSTMENT
RING
ZOOM OUT
BATTERY
HOUSING COVER
TRIPOD THREAD

1-3
1.02. INSTALLATION OF BATTERIES
The BinoX HD will operate on three CR123 type batteries.
NOTE
We highly recommend using lithium CR123 batteries. They will provide much longer
battery life.
Install batteries as follows:
1. Remove the Battery Cover following the arrow direction
2. Insert batteries as shown.
3. Close the Battery Cover.
NOTE
Make sure that the device is turned off before changing sources of energy (batteries or
USB in power supply mode).
1.03. MICROSD, USB AND HDMI PORTS
The device is equipped with microSD, Micro USB and Micro HDMI ports. You can find them under
the rubber cover near the battery block (we marked the cover with appropriate icons). To open the
cover you should gently lift the rubber cover and move it out of the way.
NOTE
Make sure that the device is turned off before
inserting the microSD card into the slot.
1. A new card should be formatted before usage.
2. Insert microSD card as shown.
3. To lock the card in the slot push it in with a thin object
(a small coin, paper clip, toothpick, etc.).
4. Return the cover to its original position.
NOTE
There is only one correct direction to insert the
microSD Card.
Do not force the card into the slot as it may damage
both the device and the card itself.
Micro USB Micro HDMI
microSD

1-4
To remove the microSD Card from the slot, push it in
using the same thin object. When it pops up a few millime-
ters, it can be pulled with your fingers or tweezers.
NOTE
If you are going to record video we recommend
using a Class 10 microSD card (10 MB/sec) or faster
and have capacity from 4 to 64 GB.
1.04. FIRMWARE UPDATE
Before operating your device please
update the firmware to the latest version.
To receive a notification of new firmware
updates, please register your device on
our website (you’ll receive an email letting
you know when new firmware becomes
available).
To update the new firmware you will
need a microSD Card and batteries that
are fully charged.
NOTE
In the event of a power failure during an update the device may crash corrupting its
system files and will need to be sent back to the ATN factory for service. It is important
not to use additional sources of power during firmware update!
Update the new firmware as follows:
1. Download the ***.bin file and copy to your microSD Card – root directory
2. Insert the card into the device
3. Turn ON the device
4. In the “Firmware Update” dialog box select “Yes” to start the update
5. When the update counter reaches “100%” the device will automatically restart
6. Once the device is powered up it will enter self configuration mode
7. After completion, it will automatically restart and will be ready for use
8. Motion Sensing platform will be configured when first turned on.
NOTE
If the device does not restart within 30 seconds, remove and re-insert the batteries and
power-up the device.
NOTE
Once the device has been updated you will need to either format the card or delete
the update file manually. In the event you do not, the system will ask you if you wish to
update the device every time you turn it on.

1-5
1.05.ON / OFF
To TURN ON the device press and hold
the POWER button until you see the ATN
splash screen.
To TURN OFF the device press and
hold the POWER button, until the dialog
box “Shut down the device?” appears.
Choose “Yes” to turn off.
1.06. USING KEYPAD
The KEYPAD is programmed to be used in two different
ways:
• Short and Quick Taps — used for most functions
and to get around the menu;
• Press and Hold — designed to be used in the fol-
lowing situations — ON/OFF, ZOOM, SHORTCUT
MENU.
NOTE
Using LEFT or RIGHT buttons in the menu, lets you
quickly Exit Shortcuts from any position.
1.07. FOCUSING
DIOPTER ADJUSTMENT
By rotating the Diopter Adjustment Ring you will
achieve optimal sharpness for your vision. Look
through the eyepiece while focusing on the interface
on the screen.
Do not take the rubber cap off the objective lens.
NOTE
You should not need to re-adjust the Diopter
Adjustment unless another user with different
vision than yourself will be using the device.

1-6
INTERPUPILLARY ADJUSTMENT
Depending on the distance between your eyes, you may adjust the individual eyepieces by moving
each one horizontally.
1.08. FOCUS IR (LEFT LENS)
In Night Mode your IR Illuminator is critical to provid-
ing you extended range and “Total Darkness Capabil-
ity” by projecting a beam of IR light that is only seen by
a night vision device. The IR Illuminator will automati-
cally turn ON when Night Mode is activated (although it
may be turned off in the settings if you so choose).
1. The IR Illuminator beam may be focused by turn-
ing the left objective lens. This allows you to tighten the
beam for longer range or widen the beam for maximum
field of view.
2. There are a number of settings effecting the function
of your IR in the Settings Menu.
1.09. MOUNTING ON A TRIPOD
The BinoX HD is tripod mountable and can be mounted on tri-
pods with a 1/4” thread mount.

1-7
1.10. COMPASS CALIBRATION

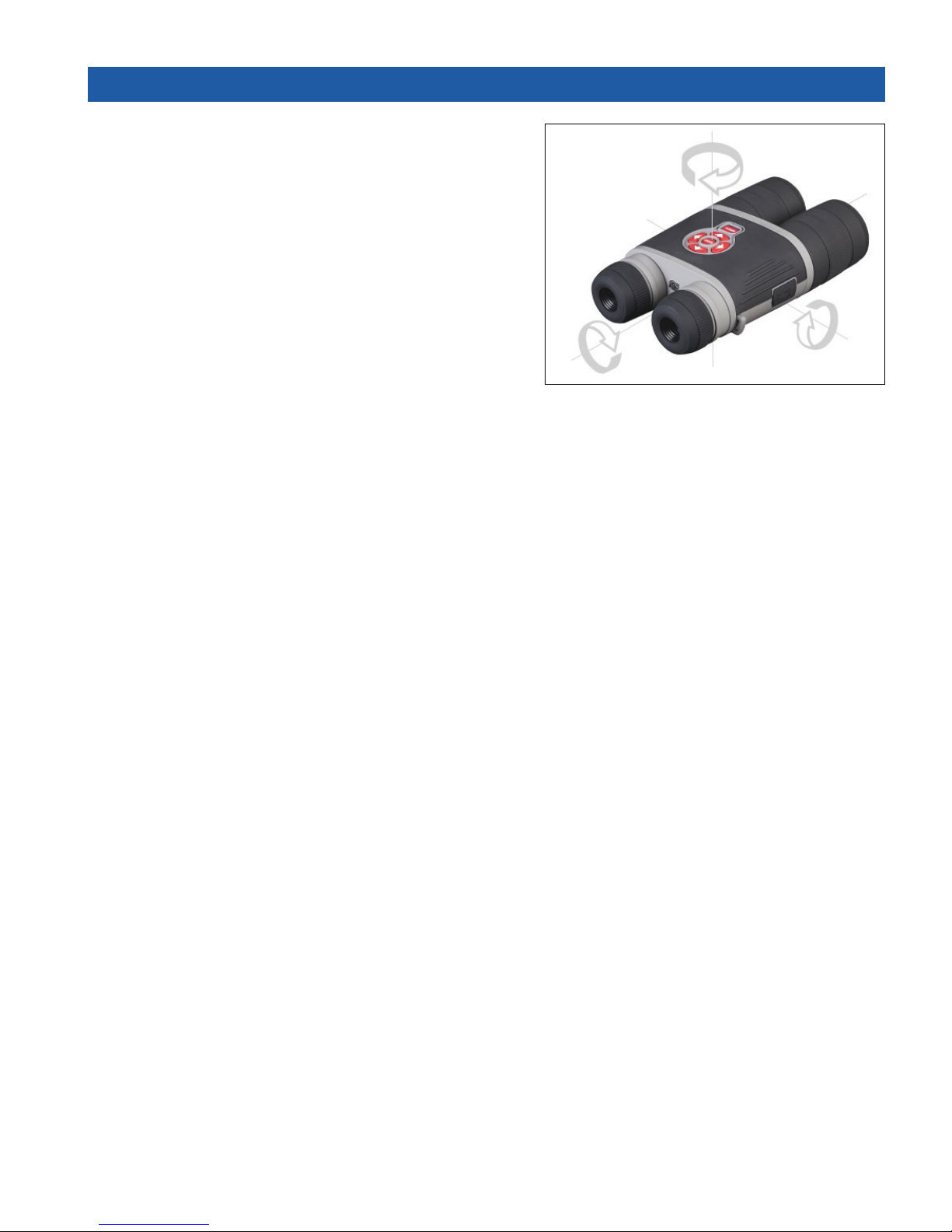

When the compass needs to be calibrated the word
“CAL” appears instead of the Compass Scale. To cal-
ibrate you should rotate the device on three axis as
illustrated.
NOTE
After calibrating the device please remember
that the compass will work best when holding
the BinoX parallel to the ground.
Other possible Errors:
• ERR — an error was detected (you may need to
restart the device or recalibrate the compass);
• SMF — your device is under Strong Magnetic Field (please, move away from the Magnetic
Field);
• UPD — your firmware needs to be updated.

1-8

2-1
SECTION II
INTERFACE

2-2
2.01. HOMESCREEN
First screen you’ll see after switching on the device is Homescreen. It consists of Scales, Status Bar
icons and different Informational Widgets.
SCALES
E-Compass Scale shows yaw angle based on e-Magnetometer data.
Roll Scale shows binocular cant based on internal 3D Gyroscope.
Pitch Scale shows binocular inclination based on internal 3D Gyroscope.
STATUS BAR
Its job is to display information about the current state of the system.
Currently inactive icons become invisible, so you will only see the important information on the
Homescreen Interface:
• Battery — appears when energy level is low
• SD Card — shows the presence or
absence (red icon) of memory card
• GPS and WiFi — show when the func-
tion is enabled.
WIDGETS
They are interface elements which pro-
vide quick access to useful information.
There are several types of widgets:
• icons without value — are used for
mode displaying (Photo and Video Modes)

2-3
• only numerical value (Detailed Roll
and Pitch Values)
• icons with a numerical value which
provide detailed numerical readings
• Photo Preview (appears in the
bottom of the homescreen, after the
photo is taken).
Display widgets can be disabled from
the System Menu.

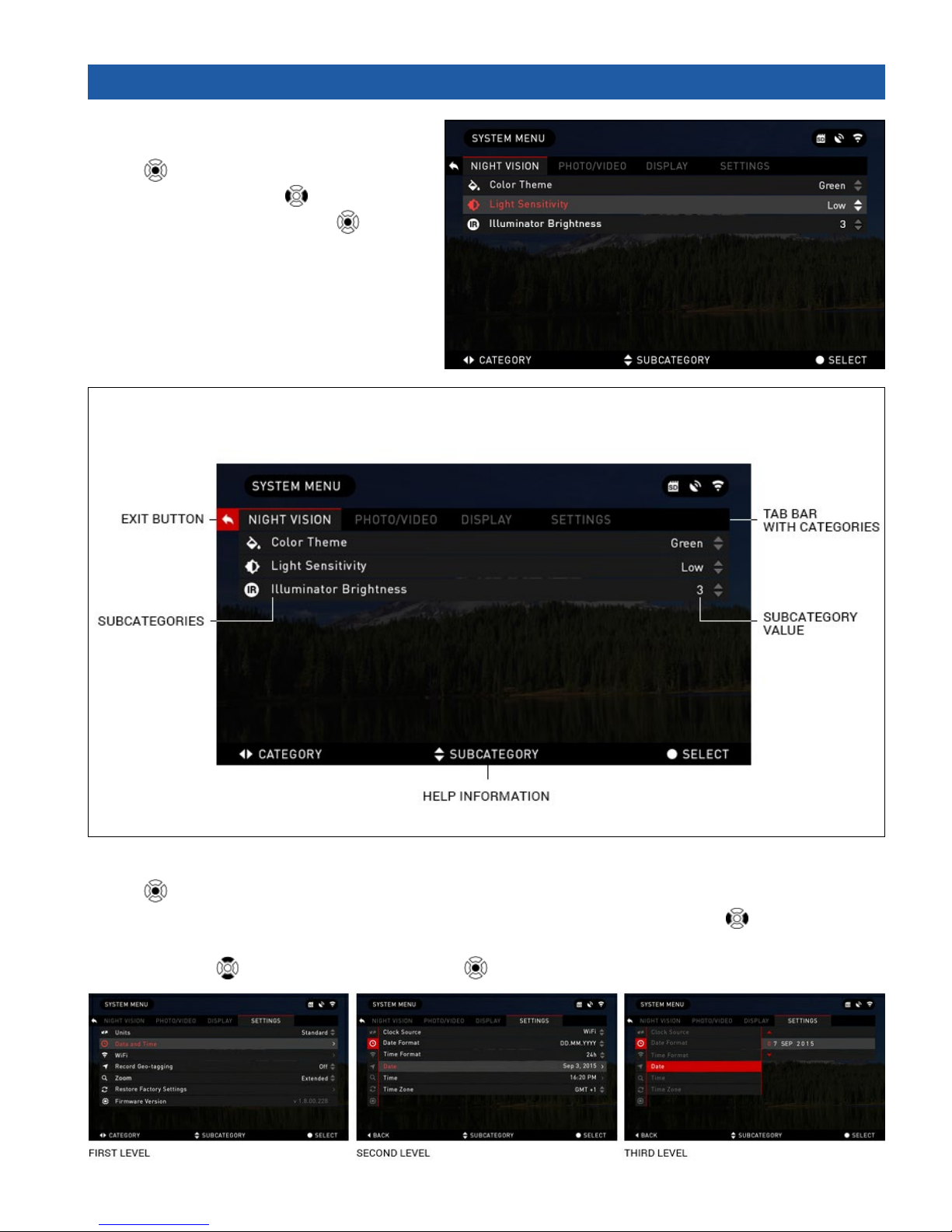

To get to the System Menu you should
click on the CENTER button from
Homescreen and access the Shortcut Carousel.
Then select the wrench icon with RIGHT or LEFT buttons and push CENTER button to
enter the menu.
Select Display tab with RIGHT button and choose subcategory Display Widgets with DOWN
button .
2.02. MAIN OPERATIONS
ZOOM LEVEL
By pressing and holding the UP or DOWN button on the keypad you will be able to Zoom IN
and OUT.
Current Zoom Level is displayed in the Zoom widget on the Homescreen.
TAKING PHOTOS
Press the LEFT button to TAKE A PHOTO.

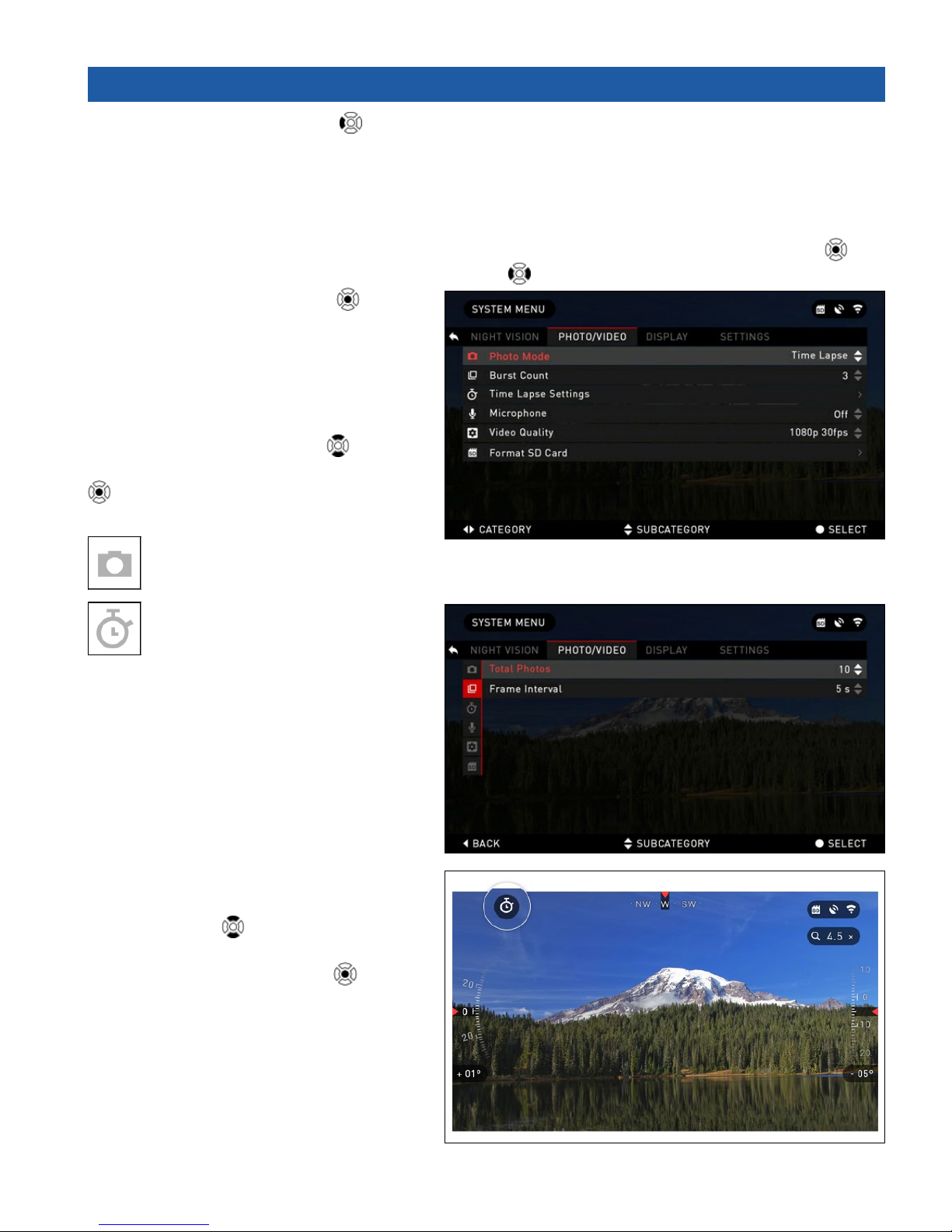

Depending on the selected mode, you will make one or several photos. You can choose from var-
ious photo modes in the System Menu.
VIDEO RECORDING
By pressing the RIGHT button you will be able to RECORD VIDEO.
NOTE
Your recording will automatically stop when the memory card is full or the battery is out
of power.
SHORTCUT CAROUSEL
The CENTER button opens the menu and closes it down when pressed again.

2-4
2.03. SHORTCUT CAROUSEL

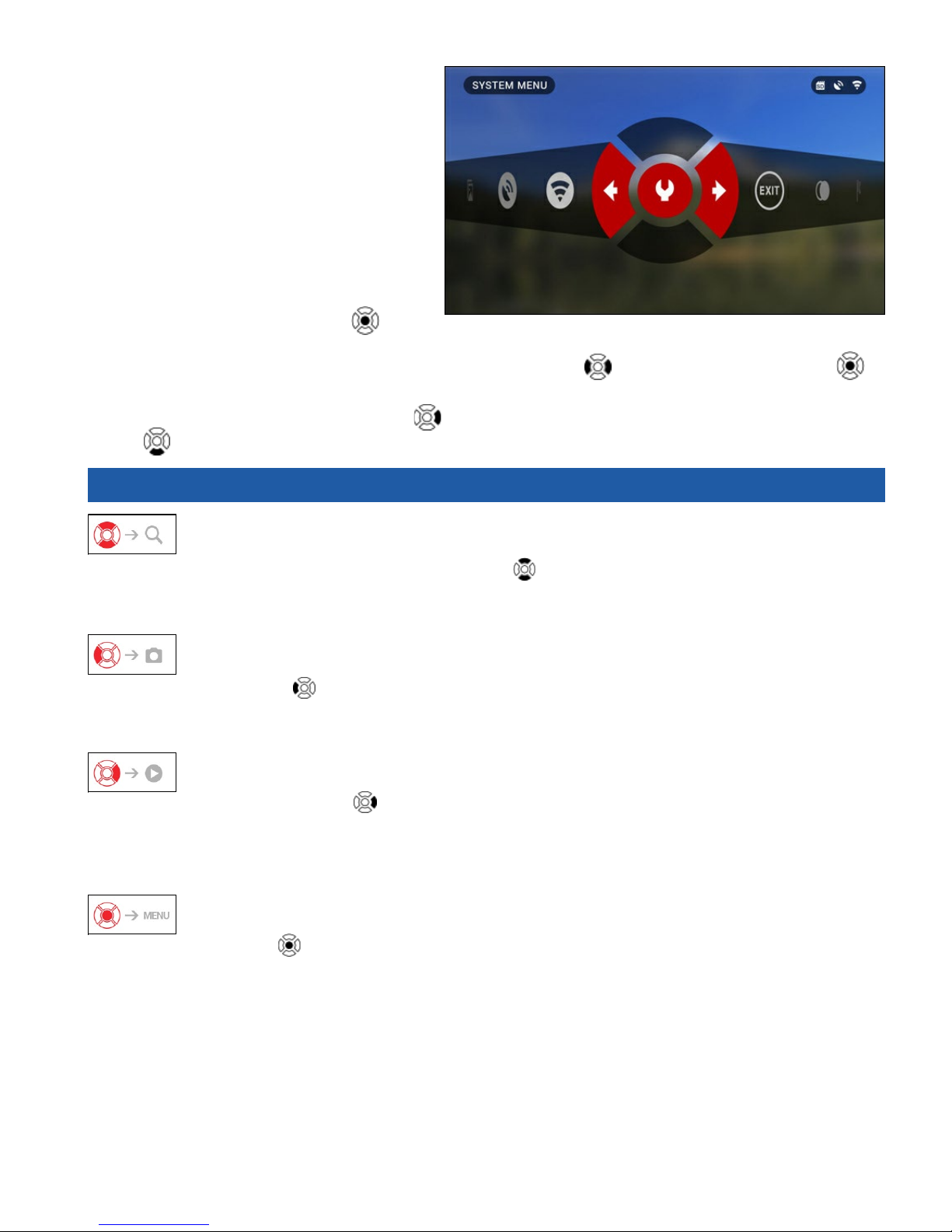

The Carousel is your access to a
number of Shortcuts that allows you quick
access to additional features. Just click on
the CENTER button from Homescreen
to access the Carousel.
Buttons highlighted in Red are the only
ones that activate a particular shortcut.
Movement between the items is carried
out using the LEFT & RIGHT buttons ,
except the group of ON/OFF switches
(WiFi, GPS, Bluetooth).
You should use the UP & DOWN buttons to switch modes.
To turn ON or OFF a particular switch you should click the CENTER button while having the
switch selected. Example — WiFi.

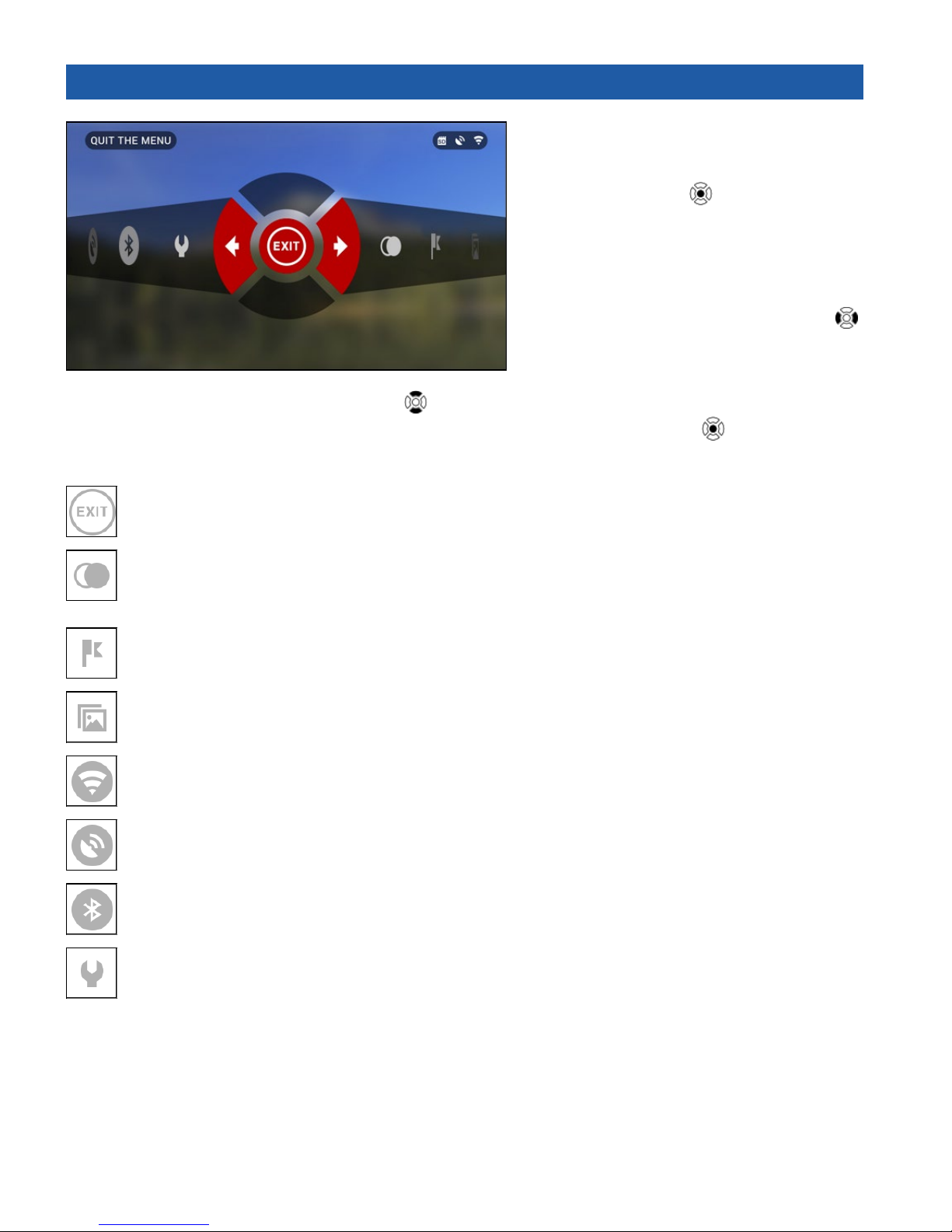

EXIT
Exit Carousel.

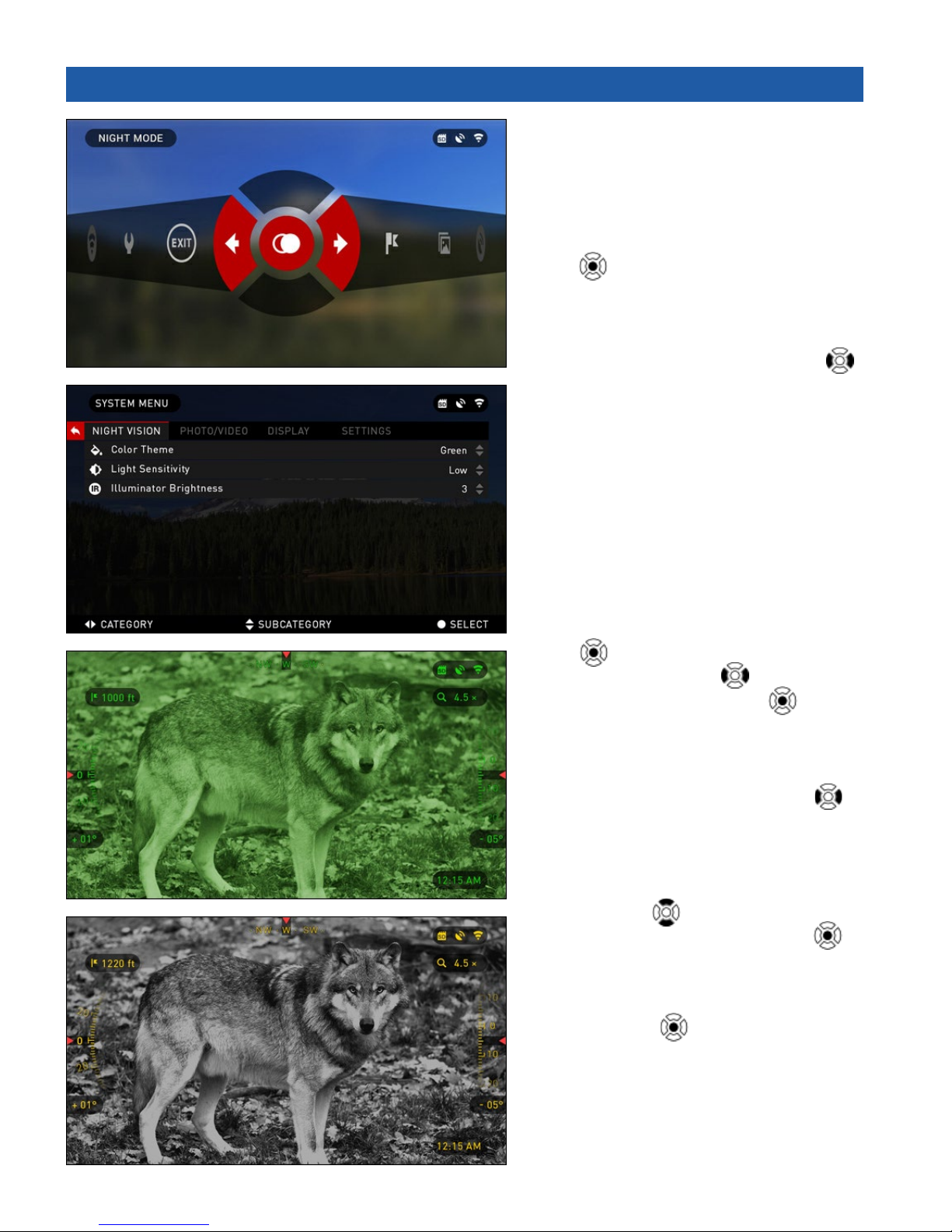

NIGHT MODE
Switch between Day and Night Mode.

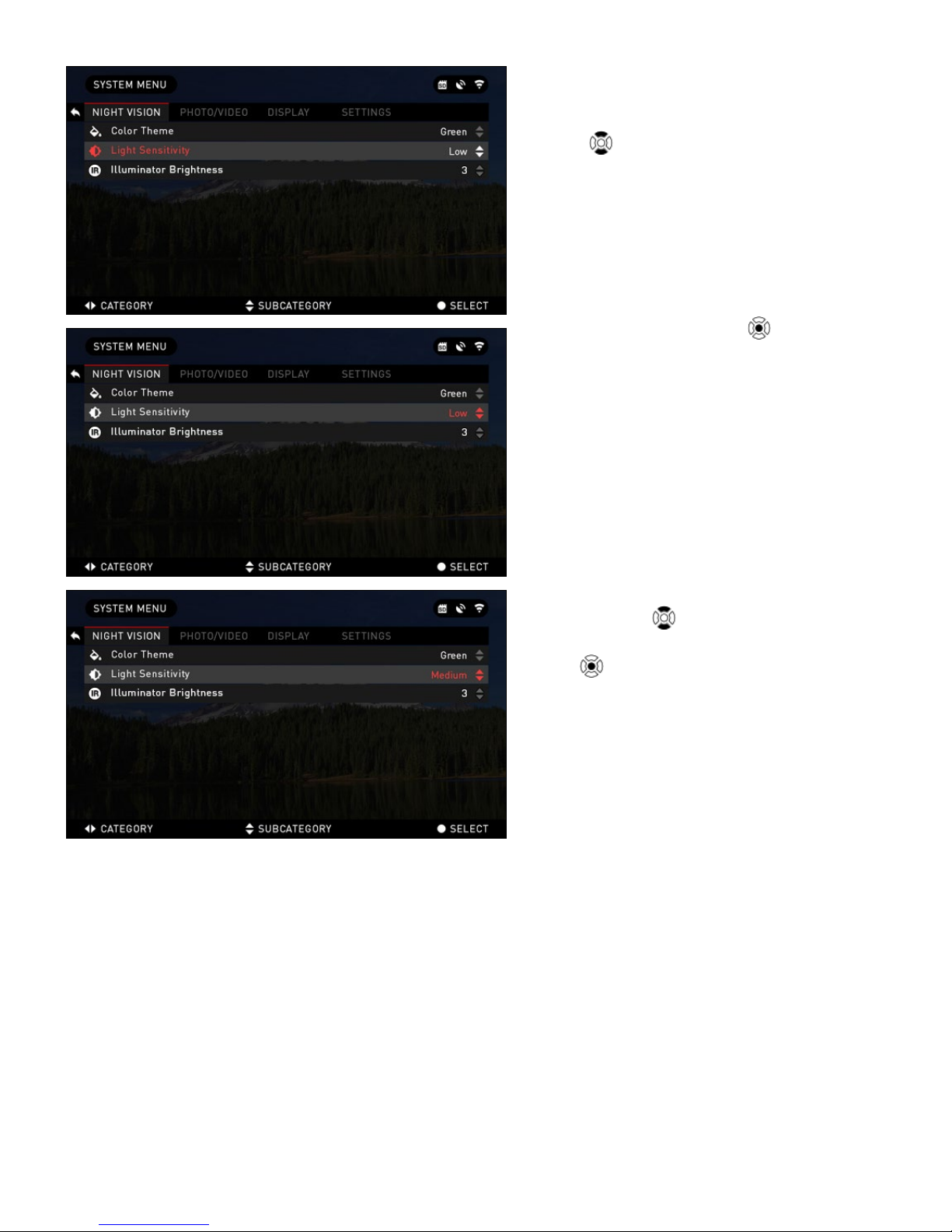

Options such as color palette and other settings for Night Mode can be changed in the System Menu.
RANGEFINDER
Activates Smart Rangefinder feature.
GALLERY
Gives you access to the library of Images and Videos that are stored on your unit’s SD Card.
WiFi module.
GPS module.
BLUETOOTH module
SYSTEM MENU
Allows for access to various system options and adjustments.

2-5
2.04. USING SYSTEM MENU
To enter the System Menu you should
open Shortcut Carousel with CENTER
button and select the wrench icon with
RIGHT or LEFT buttons .
Then push CENTER button to enter
the menu.
The System Menu consists of a Tab Bar
at the top of the screen, list of subcatego-
ries in the center and Help Information at
the bottom.
On the left side of the Tab Bar you will find the Exit (with arrow icon). Pressing it with CENTER
button will bring you back to the Homescreen.
Movement between the tabs is carried out using the LEFT and RIGHT buttons .
Each tab includes subcategories. To select a particular subcategory you should use the UP and
DOWN buttons and press CENTER button .

2-6
To change a particular value you should
follow the next few steps. Select the sub-
category you need with the UP or DOWN
buttons .
Press the Center button to select a
particular value (once selected it will turn
red).
Change the value with the UP and
DOWN buttons .
To select a new value press CENTER
button to confirm the change.

3-1
SECTION III
FUNCTIONS

3-2
3.01. NIGHT VISION
To switch between Day and Night Mode
you should choose NIGHT MODE in
Shortcuts.
Shortcuts allows you quick access to the
Carousel that contains quick access to your
units features. Just click on the CENTER
button to access the Carousel.
Buttons highlighted in Red are the only
ones that activate a particular shortcut.
Movement between the items is carried
out using the LEFT & RIGHT buttons .
NOTE
Remember that turning on Night
Mode during daylight will not harm
your device, however you may not be
able to see anything due to the image
being too bright.
You can choose preferred Сolor Theme
or adjust the Light Sensitivity in the System
Menu (Night Vision section).
To enter the System Menu you should
open Shortcut Carousel with CENTER
button and select the wrench icon with
RIGHT or LEFT buttons .
Then push CENTER button to enter
the menu.
Select Night Vision in the Menu Tab.
Movement between the tabs is carried out
using the LEFT and RIGHT buttons .
T
o switch between Green and
Black&White modes follow the next few
steps. Select Color Theme subcategory
in Night Vision Tab by pressing UP and
DOWN buttons .
Then Press the CENTER button to
select a particular value (once selected
it will turn red). And choose Green or
Black&White mode, confirm it by pressing
CENTER button .
Night Vision category will be available
from the Shortcut Menu.
NOTE
Light Sensitivity does not change
when changing color modes.

3-3
3.02. PHOTO AND VIDEO MODES
If you press the LEFT button while staying on the Homescreen to TAKE A PHOTO.
You must have a microSD card inserted in the device for these features to work. All files will be
stored on the microSD card.
Depending on the selected mode you will make one or several photos. You can choose from var-
ious photo modes in the System Menu.
To enter the System Menu you should open Shortcut Carousel with CENTER button and
select the wrench icon with RIGHT or LEFT buttons .
Then push CENTER button to enter
the menu.
There are three photo modes to choose
from. Switching between modes is done in
the System Menu in the Photo/Video tab,
subcategory Photo Mode.
Use UP or DOWN buttons to switch
between modes. Press the Center button
to select a particular value (once
selected it will turn red).
NORMAL
This default mode allows you to take one photo at a time.
TIME LAPSE
Time Lapse is where the device
takes a sequence of images of a
subject with an interval of time between
each image.
The interval and the number of photos
taken can be changed in the System
Menu.
To make changes choose Photo/Video
Tab in System Menu, then use UP or
DOWN buttons to select Time Lapse
Settings.
Press the CENTER button to enter
the mode settings. While you are in this
mode, the Time Lapse widget appears.

3-4
BURST
Burst mode captures a series of
photos.
You can select the best image of the group
or arrange them in a sequence to study
the transitions in detail.
The number of the photos taken can be
changed in the System Menu. While you
are in this mode, the Burst widget appears.
Regardless of which mode you are
using the preview appears after a photo-
graph is taken on the bottom of the screen
for several seconds.
If you press the RIGHT button to Start
Video recording. Press RIGHT button
again to stop Video recording.
3.03. RANGEFINDER
Using the Smart Range Finder you will quickly be able to estimate the distance to your target as
long as you have reasonable knowledge of the size of your target.
RANGEFINDER
To use select the Flag Icon from the
Shortcut Carousel.
