ATN NVB5 Series User manual

user`s guide
ATN NVB10X
Important Export Restrictions! Commodities, products,
technologies and services contained in this manual are
subject to one or more of the export control laws and
regulations of the U.S. Government and they fall under the
control jurisdiction of either the US Department of State
or the US BIS-Department of Commerce. It is unlawful
and strictly prohibited to export, or attempt to export or
ot her wise transfe r o r s e l l a n y h ar d ware or te c h n i c al dat a or
furnish any service to any foreign person, whether abroad
or in the United States, for which a license or written
approval of the U.S. Government is required, without
first obtaining the required license or written approval
from the Department of the U.S. Government having
jurisdiction. Diversion contrary to U.S. law is prohibited.
AMERICAN
TECHNOLOGIES
NETWORK
CORP.
ATN NVB5X

The information in this manual furnished for information use only, is subject to change without notice,
is not to be construed as a commitment by ATN Cor p.
ATN Corp. assumes no responsibility or liability for any errors or inaccuracies that may appear in this book.
©20 08 ATN Corp. All right reser ved.

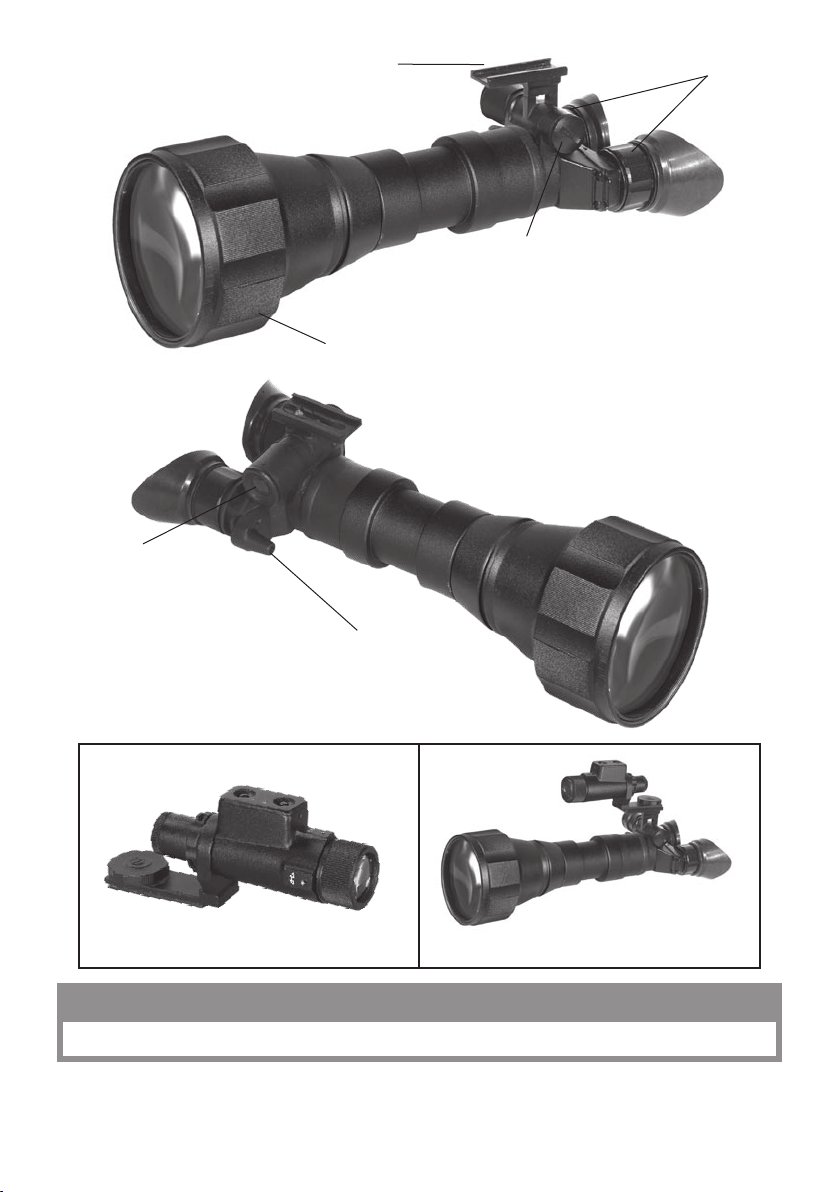

3m to Infinity focus
One 3 volt
battery
5 Diopter
Single switch
operation button
This producT conTains naTur al rubber laTex which may cause allerg ic reacTions.
CAUTION:
Bracket
Built-in IR illuminator
Infra-red illuminators IR450 NVB10 with IR450
NVB5

2

NVB5 NVB10
Magnification 5x 10x
Intensifier tube Gen. 2, CGT, HPT or Gen.3
Field of view 8° 4°
Range of Focus 3 m to 
Power Supply 3 V, Lithium
Battery Life (CR123A type) 60 hours (20 hours w/IR illuminator)- Gen.2+;
50 hours (17 hours w/IR illuminator)- Gen.3
Operating Temperature -40°C to + 50°C
Storage Temperature -50°C to +70°C
Dimensions 11.6’’ x 4.3’’ x 4''/
288mm x 108mm x 102mm
11.9’’ x 4.3’’ x 4”/
302mm x 108mm x 102mm
Weight 2.9 lb /1.32 kg 3.0 lb/1.36 kg
* ATN reserves the right to change the above specifications at any time without notice

• High Quality Gen. 2, CGT, HPT or Gen.3 image intensifier tube
• Super fast lens system provides the user with clear and sharp image
• Dual eye viewing system for long viewing sessions
• Built-in Infrared illuminator lets you see even in the total darkness
• Rugged and versatile design
• Easy-to-use digital controls
• Two-Year Warranty

The NVB5 and NVB10 are powerful night vision bi-oculars. They are waterproof and can
withstand the rigors of almost any environment. The NVB will give you the range and cla-
rity that other bi-oculars simply can not touch.
The NVB have a built-in IR for total darkness with indicator “ON” light within the FOV.
The NVB are available with a wide range of image intensifier options to meet a wide array
of specification requirements.
The NVB complex opticoelectronic system for individual use. The device consists of an
objective lens assembly, an eyepiece and a body. The body contains an image intensifier
tube assembly with an integrated high voltage power source and a battery housing.
The objective lens protective cover (not shown) is intended to protect the objective lens
from dust and scratches. It will also function as a daylight filter, allowing you to test the
scope in daylight or other bright light situations. The pinhole in the center of the protective
cover allows the user to check the operation ability of the device in daylight conditions.
NOTE: Do not test the scope in daylight conditions even with the daylight filter/lens cap on
for more than ten (10) minutes.

3

• Take the NVB out of the case.
• Install the battery into the housing with the
polarity order as shown on the scope. Battery
Type: 3 Volt, Lithium, CR123A .
• Press the button (short press - less than
1.5 sec.) to turn the unit on with the protec-
tive lens cover still attached to the lens. Do
not turn the unit on in the daytime without
the protective lens cap on. You should see
green glow in the eyepiece.
• Observe the scene and adjust the diopter for optimal image clarity.
• You may now enter dark environment or simply shut the lights off in order to darken the
room.
• Next, remove the lens cap/daylight filter. Adjust the front lens focus. You need not
change the diopter adjustments meanwhile.
• To turn the unit off, push the button again by short press (less than 1.5 sec.).

To focus the NVB, first you will need to adjust the diopter. Simply turn the diopter clock-
wise until it stops. Then, while looking through the eyepiece at an object, slowly turn the
diopter counter-clockwise until the grain in the image is sharp.
NOTE: We suggest that you focus the diopter in the daylight with the filter on.
Next focus the front lens until the image and the grain are both sharp. When you are in
low-light environment and the daylight filter is off, you may focus the front lens to obtain
the sharpness of the image, leaving the diopter adjustments unchanged.
NOTE: The front lens may be readjusted as you view objects at different distances.

Infrared illuminators, or IR illuminators, are
common for night vision. The IR light greatly
enhances the performance of the NVB while
remaining almost totally invisible to the naked
eye.
The NVB have a built-in IR with indicator “ON”
within the FOV. To turn the IR on, hold the
button pressed for more than 1.5 sec. It is
important to remember that the IR illumina-
tor is but an infrared light source, and like
any light source, it may loose its effectiveness over a great distance.
To turn the IR off, again hold the button pressed for more than 1.5 sec.
NOTE: The IR will automatically turn off when the unit’s power is off.
Diopter adjustment
Lens focus adjustment
Built-in IR illuminator

4

The 450 mW IR Illuminator is powered
with is own separate battery. To install
the battery unscrew the cap and insert
the bat ter y the way shown on the polar-
ity diagram.
To mount the 450 mW IR Illuminator
onto the bi-ocular loosen the IR illu-
minator clamp, insert the IR rail the
bi-ocular mounting bracket and tighten
the clamp.
The IR illuminator control buttons are located on its top. Pressing “+” and “-” buttons
simultaneously works both to turn the Digital IR Illuminator on and to switch it off after-
wards. When the IR illuminator is switched on you can see the green LED lit. By pushing
the buttons “+” and “-” one by one you may adjust the IR brightness.
The IR beam is focusable to change the field of coverage. To change the beam width
slightly turn the IR lens.
You may change the IR control panel fitting your needs. The screw-tool from the kit is
used to loosen the clamp located on the IR. Rotate the IR to the most convenient position.
Tighten the clamp with the screw-tool to secure it in the new position.
     
• If the device is not to be used for extended period of time (more than 10 days) take out
the battery.
• Avoid touching lenses. If fingerprints or traces of dirt or dust appear, clean their surface
with a Photographic lens cleaning tissue.
• Keep lens cap/daylight filter on when not in use.
• The NVB scopes are not harmful to the user or the environment.
• Do not disassemble except to clean the front lens and eyepiece: it will void your war-
ranty.
• Evaluate the scope function by looking through it in a lit environment with the daylight
filter lens cap on. Never use in daylight unprotected the daylight filter.
• Never point the NVB at a bright light source.
• Adverse atmospheric conditions such as fog, smog, or haze and a lack of ambient light
(moon or starlight) may diminish the effective viewing distance.
• If you use the rubber eye c ap s for a long perio d of time, you may suf fer skin inflamm atio n.
If you develop any symptoms, consult a doctor immediately.
Battery
Housing
Clamp
Elevation
Windage IR Focusing
IR Brightness Adjustment

5

Q: Flashes, flickers, or clicking occur while operating
S: If it occurs within the first five minutes of inserting new batteries, it is normal and the
device will resume normal operation soon thereafter. If it occurs for more than 10 minutes,
contact for service instructions.
Q: Dark spots on screen.
S: These are either cosmetic blemishes in the intensifier tube or dust particles.
Q: Screen becomes darker than at previous use.
S: Replace batteries. If problem persists, contact your dealer or other authorized service
representative for service instructions.
Q: Image not clear.
S: Adjust objective lens, and /or the eyepiece.

6
20112008

This product is guaranteed to be free from manufacturing defects in material and workmanship
under normal use for a period of 2 (two) years from the date of purchase. In the event a defect that
is covered by the foregoing warranty occurs during the applicable period stated above, ATN, at its
option, will either repair or replace the product, and such action on the part of ATN shall be the full
extent of ATN’s liability, and the Customer’s sole and exclusive remedy. This warranty does not
cover a product (a) used in other than its normal and customary manner; (b) subjected to misuse;
(c) subjected to alterations, modifications or repairs by the Customer of by any party other than ATN
without prior written consent of ATN; (d) special order or “close-out” merchandise or merchandise
sold “as-is” by either ATN or the ATN dealer; or (e) merchandise that has been discontinued by the
manufacturer and either parts or replacement units are not available due to reasons beyond the
control of ATN. ATN shall not be responsible for any defects or damage that in ATN’s opinion is a
result from the mishandling, abuse, misuse, improper storage or improper operation, including use
in conjunction with equipment which is electrically or mechanically incompatible with or of inferior
quality to the product, as well as failure to maintain the environmental conditions specified by the
manufacturer. CUSTOMER IS HEREBY NOTIFIED THAT OPERATION OF THE EQUIPMENT
DUR IN G DAYLIGHT HOURS OR UNDER ANY EXCESSIVE LIGHT COND IT IONS MAY PERMA-
NENTLY DAMAGE THE INTERNAL COMPONENTS OF THE UNIT AND SAID DAMAGE WILL
NOT BE COVERED UNDER THIS WARRANT Y. This warrant y is extended only to the original pur-
chaser. Any breach of this warranty shall be waived unless the customer notifies ATN at the address
noted below within the applicable warranty period.
The customer understands and agrees that except for the foregoing warranty, no other warranties
written or oral, statutory, expressed or implied, including any implied warranty of merchantability or
fitness for a particular purpose, shall apply to the product. All such implied warranties are hereby
and expressly disclaimed.
LIMITATION OF LIABILITY
ATN will n ot b e li abl e for any c laims, ac tio ns, suits, proce edi ngs, costs, expens es, dam ag es or liabi l-
ities arising out of the use of this product. Operation and use of the product are the sole responsibil-
ity of the Customer. ATN’s sole undertaking is limited to providing the products and services outlined
herein in accordance with the terms and conditions of this Agreement. The provision of products
sold and services performed by ATN to the Customer shall not be interpreted, construed, or re-
garded, either expressly or implied, as being for the benefit of or creating any obligation toward any
third party of legal entity outside ATN and the Customer; ATN’s obligations under this Agreement
extend solely to the Customer. ATN’s liability hereunder for damages, regardless of the form or
action, shall not exceed the fees or other charges paid to ATN by the customer or customer’s
dealer. ATN shall not, in any event, be liable for special, indirect, incidental, or consequential
damages, including, but not limited to, lost income, lost revenue, or lost profit, whether such
damages were foreseeable or not at the time of purchase, and whether or not such damages
arise out of a breach of warranty, a breach of agreement, negligence, strict liability or any
other theory of liability.
PRODUCT WARRANTY REGISTRATION
In order to validate the warranty on your product, ATN must receive a completed Product Warranty
Registration Card for each unit or complete warranty registration on our website at www.atncorp.
com. Please complete the included form and immediately mail it to our Service Center: ATN Corpo-
ration, 1341 San Mateo Avenue, South San Francisco, CA 94080.
OBTAINING WARRANTY SERVICE
To obtain warranty service on your unit, please contact our Customer Service department and
request an RMA number. Once you have received your RMA # please mark this # on the outside of
the shipping box and take or send the product, postage paid, with a copy of your sales receipt to our
service center, ATN Corporation at the address noted above. All merchandise must be fully insured
with the correct postage; ATN will not be responsible for improper postage or missing or damaged
merchandise during shipment. Packages that do not have an RMA # clearly marked on the outside
of the package will be delayed in being processedt.

For customer service and technical support, please contact
American Technologies Network Corp.
North American Office
1341 San Mateo Avenue, South San Francisco, CA 94080
phone: [phone]; fax: [phone]
European Office
phone: [phone], fax: [phone]
The following countries can use our
toll free number 00 800 9102- 8620
Austria, France, Germany, Holland, Italy, Spain, Sweden, Switzerland
www.atncorp.com
©2008 ATN Corporation
