ATN Night Spirit User manual

AMERICAN
TECHNOLOGIES
NETWORK
CORP.
Important Export Restrictions! Commodities, products,
technologies and services contained in this manual are
subject to one or more of the export control laws and
regulations of the U.S. Government and they fall
under the control jurisdiction of either the US Depart-
ment of State or the US BIS-Department of Commerce. It
is unlawful and strictly prohibited to export, or attempt to
export or otherwise transfer or sell any hardware or
technical data or furnish any service to any foreign person,
whether abroad or in the United States, for which a license
or written approval of the U.S. Government is required,
without first obtaining the required license or written
a p p r o va l f r o m t h e D e p a r t m e n t o f t h e U .S . G o v e r n m e n t h av -
ing juris dic tio n. Divers ion c ontrar y to U.S. l aw is p rohib ited.
user`s guide
ATN Night Spirit
Night VisioN moNocular

The information in this manual furnished for information use only, is subject to change without notice,
is not to be construed as a commitment by ATN Corp.
ATN Corp. assumes no responsibility or liability for any errors or inaccuracies that may appear in this book.
©2008 ATN Corp. All right reserved.
This producT conTains naTur al rubber laTex which may cause allergic reacTions.
CAUTION:

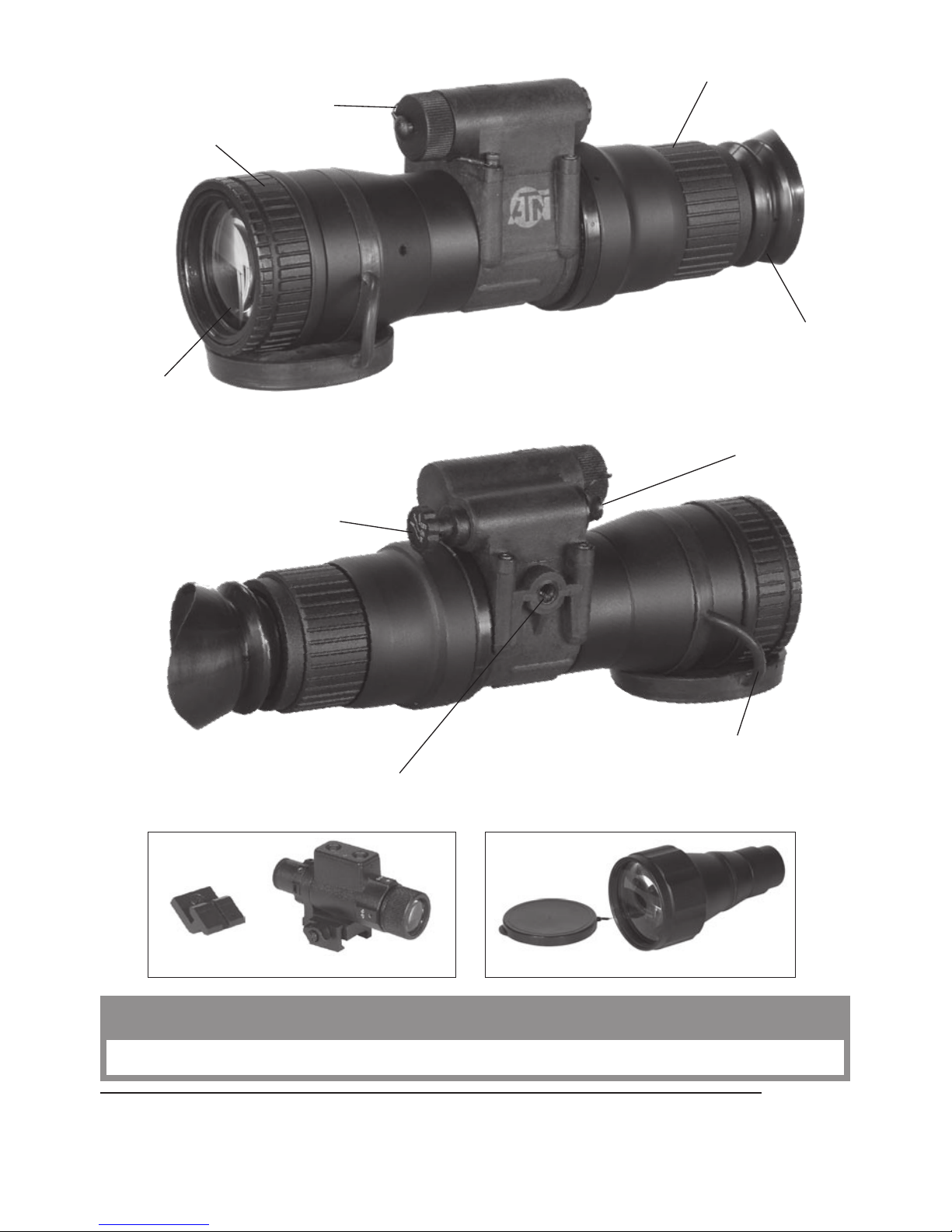

Built-in infra-red
illuminator
Operation switch
knob
Mounting
thread
3 m to infinity
focus
50 mm F 1:1.2 lens
for maximum clarity
One 1.5V AA or
3V Lithium battery
±5 diopter
Rotating rubber
eyepiece
Protective cover/
daylight filter
5x lens (optional)
Infra-red illuminator IR450 (optional)

2
• High Quality light intensifier tube
• Super fast lens system provides the user
with a clear and sharp image
• Built-in Infra-Red illuminator lets you see
even in total darkness
• Interchangeable lenses for different mag-
nification
• Rugged and versatile design
• Single switch knob operation
• Camera/camcorder-adaptable
• Flexible carrying case
• Uses one AA or Lithium battery
• Weather resistant
SpecificationS
Magnification ................................................. 3X (optional 5X)
Lens System .................................................. 50mm F1:1.2
Field of view ................................................... 18°
Diopter adjustment ......................................... ±5
Range of Focus .............................................. 3m to 
Power Supply ................................................. 1.5V AA or 3V CR123A Lithium battery
Battery Life ..................................................... 30 hours (15 hours w/IR illuminator)
Operating Temperature .................................. -40°C to +50°C
Storage Temperature ..................................... -50°C to +70°C
Weather resistant ........................................... Yes
Dimensions .................................................... 210x75x60 mm (8.2” x 2.9” x 2.3”)
Weight ............................................................ 0.65kg (1.4 lb)
* ATN reserves the right to change the above specifications at any time without notice
application
The Night Spirit is rugged and lightweight night vision monocular. It utilizes multicoated optics
specially coated to gather light to provide bright and clear images. Couple these optics with
state of the art quality image intensifier tubes and the Night Spirit is an excellent compact pocket
scope. The Night Spirit is an amazing combination of versatility, performance, and price.
The Night Spirit night vision monocular is a complex opticoelectronic system for individual
use. The device consists of the objective lens assembly, eyepiece and the body. The body
contains an image intensifier tube assembly with an integrated high voltage power source and
the battery housing.
Objective lens protective cover is intended to protect the objective lens from dust and
scratches. It also acts as a daylight filter, allowing you to test the scope in daylight or other
bright light situations. The pinhole in the center of the protective cover allows the user to check
the operation ability of the device in daylight conditions.
NOTE: Do not test the scope in daylight conditions even with the daylight filter/lens cap on for
more than ten (10) minutes.
Battery inStallation
Install standard AA batteries as follows:
1. Unscrew the battery cap(A).
2. Insert AA battery(B), observing the polarity as indi-
cated.
3. Replace the battery cap and screw cap hand tight.
featureS
AB

3
Install CR123A batteries as follows:
1. Unscrew the battery cap(A).
2. Screw the CR123 battery adapter(C) in to the cap.
3. Insert the battery(D), observing the polarity as indicated.
4. Replace the battery cap and screw cap hand tight.
operation
• Take the monocular out of the case.
• Rotate the operation knob from “OFF” position to “ON”
position to turn the unit on. The protective lens cover shall
be attached to the lens. Do not turn the unit on in daytime
without the protective lens cap on. You should see green
glow in the eyepiece.
• Observe the scene and adjust the diopter for optimal im-
age clarity.
• You may now enter a dark environment or simply shut the lights off in order to darken the room.
• Next, remove the lens cap/daylight filter. Adjust the front lens focusing. You should not have
to readjust the diopter. Remember that focusing range starts from 3 m.
• To turn the unit off, rotate the operation knob from “ON” to “OFF” position.
focuSing
To focus the Night Spirit first you will need to adjust the diopter. Simply turn the diopter clock-
wise until it stops. Then, while looking through the diopter at an object, slowly turn the diopter
back counter clockwise until the grain on the image becomes sharp.
NOTE: We suggest that you focus the diopter during daylight with the filter on.
Next focus the front lens until the image and the grain become both sharp. When you are in
low-light conditions and the daylight filter is off, you may focus the front lens to receive sharp
image, the diopter should not be adjusted.
NOTE: The front lens should be readjusted as you view objects at different distances.
Built-in infra-red illuminator
Infra-red illuminators, or IR illuminators, are common to night
vision. The IR light greatly enhances the performance of the
Night Spirit while remaining almost invisible to a naked eye.
To turn the built-in IR on, draw and rotate the operation knob
to “IR” position.
It is important to remember that the IR illuminator is simply
an infra-red light source, and like any light source, it may
loose its effectiveness over a great distance.

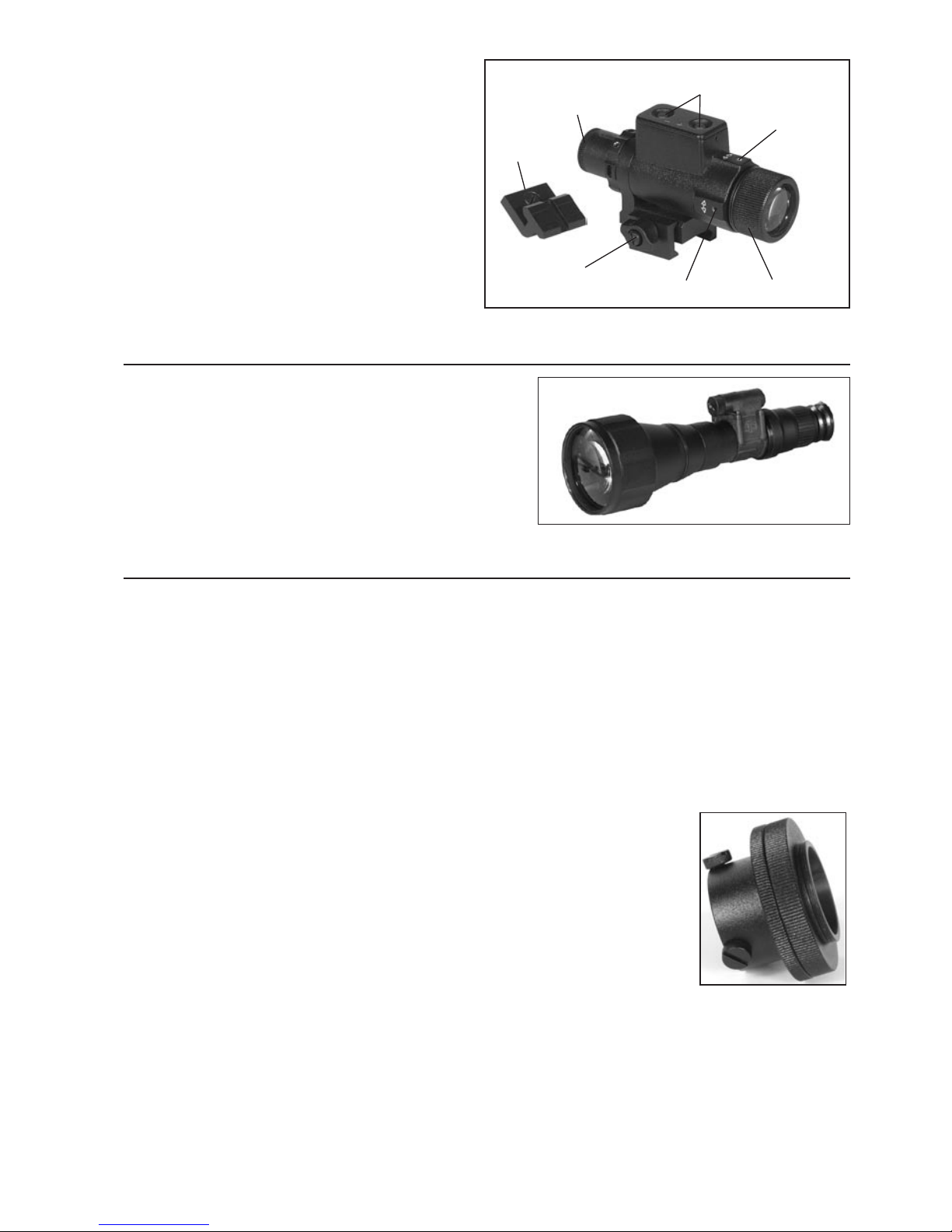

450 mw infra-red illuminator (optional)
The 450 mW IR Illuminator is powered by a separate from the main unit battery. To install
the battery unscrew the cap and insert a battery the way shown at the diagram on the IR. To
install the 450mW IR Illuminator onto the monocular screw the adapter into the thread on the
monocular. Install IR into the adapter’s rail and fix the clamp.
The IR illuminator control buttons are located on its side. To switch the Digital IR illumina-
tor on/off press “+” and “-” buttons simultaneously. When the IR illuminator is switched on
Built-in
Infra-red
Illuminator
Operation
knob
A
D
C

4
you can see the green LED lit. By pushing
the buttons “+” and “-” you may adjust the IR
brightness.
The IR beam is focusable to change the
field of coverage. To change the beam width
slightly turn the IR lens.
You could change the IR control panel fit-
ting your needs. The screw-tool from the
kit should be used for weakening the clamp
located on the IR. Rotate the IR placing it in
the most convenient position. Tighten the
clamp with the screw-tool to fix the new posi-
tion.
5X lenS (optional)
The additional 5X Lens for Night Spirit transform it to
5X night vision monocular.
To install 5X lens unscrew the o bjective lens of Night
Spirit and screw 5X Lens instead of it.
camera adapter (optional)
To use your Night Spirit with a 35mm camera or camcorder you will need the following:
1) If you plan to use a camcorder then your camcorder must have a MACRO feature. Most
modern camcorders today have a MACRO feature built-in.
2) If you plan to use a 35mm camera, you will need a MACRO lens. If you don’t have one, we
advise that you contact your local camera store.
3) You may or may not need a STEP-UP or STEP-DOWN ring in order to adapt the camera
ad apter to your lens. NOTE: The camera adapter comes with 37mm and 52mm threads. If you
need other sizes your local camera store should be able to help.
• Remove the rubber eyecup from the Night Spirit
• Screw the camera adapter onto the front of the lens on your Video ca-mera’s lens or your
35mm camera’s lens.
• Loosen the three set screws on the camera adapter.
• Place the camera adapter over the Night Spirit’s eyepiece.
• Tighten the three set screws to fit snugly to the Night Spirit’s eyepiece
• You may need to focus the 35mm camera or video camera in combina-
tion with the Night Spirit in order to get the sharpest possible image.
• We suggest that you find an open space to work in. Focus the Night
Spirit so that the scene is at its sharpest. For best results you should
disable the auto focus (if any) on either the 35mm camera or the video camera and manually
focus the 35mm camera or the video camera. Once the image is sharp, then simply adjust
the Night Spirit’s front lens to change focus.
* An important part to remember is that you are not taking a picture of an object that is far away
from you, but you are actually taking a picture of a phosphorous screen of the Night Spirit that is
only 2-3 inches away.
Battery
Housing
Clamp
IR Elevation
IR Windage IR Focusing
IR Brightness Adjustment
Adapter
5X Lens

5
Storage and care
• If the device will not be in use for extended period of time (more than 10 days) remove the
battery.
• Avoid touching of lenses. If fingerprints or traces of dirt or dust appear, clean their surface
with a Photographic lens cleaning tissue.
• Keep lens cap/daylight filter on when not in use.
• The Night Spirit is not harmful to the user or the environment.
• Do not disassemble except to clean the front lens and eyepiece: it will void your warranty.
• Evaluate the scope functionality by looking through it in a lit environment with the daylight
filter lens cap on. Never use in daylight without the daylight filter lens cap on.
• Never point the Night Spirit at a bright light source.
• Adverse atmospheric conditions such as fog, smog, or haze and a lack of ambient light
(moon or starlight) may diminish the effective viewing distance.
• If you use the rubber eyecaps for a long period of time, you may suffer skin inflammation. If
you develop any symptoms, consult a doctor immediately.
trouBleShooting
Q: Flashes, flickers, or clicking occur while operating
S: If it occurs within the first five minutes of inserting new batteries, it is normal and the device
will resume normal operation soon thereafter. If it occurs for more than 10 minutes, contact for
service instructions.
Q: Dark spots on screen.
S: These are either cosmetic blemishes in the intensifier tube or dust particles.
Q: Screen becomes darker than at previous use.
S: Replace batteries. If problem persists, contact your dealer or other authorized service
representative for service instructions.
Q: Image not clear.
S: Adjust objective lens, and /or the eyepiece.

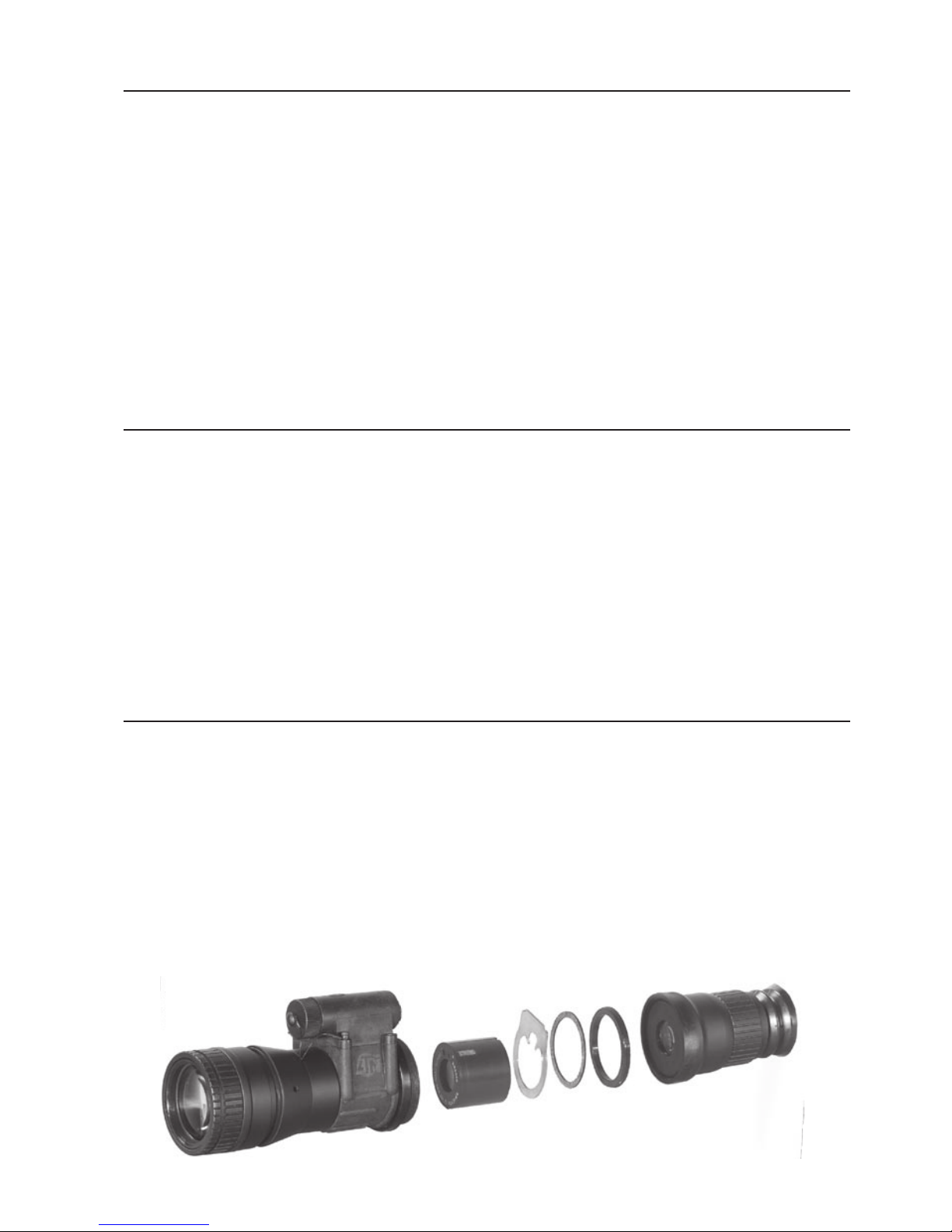

tuBe maintanance/replacement
Tube maintenance / replacement is to be per formed by qualified te chnicians only. These
procedures attempted by non-qualified personnel will void warranty.
1. Unscrew the eyepiece (F) from the case of device (A).
2. Unscrew the lock ring (E) from the case of device.
3. Extract the ring (D) from the case of device.
3. Extract the light guide (C) from the case of device.
4. Extract the tube (B) to be replaced from the case of device (A).
5. Introduce the new tube (B) into the case of device (A).
6. Set the light guide (C) onto the place in the case.
6. Set the ring (D) onto the place in the case.
7. Screw the lock ring (E) into the case of device.
8. Screw the eyepiece (F) into the case of device (A).
A
BCDEF

6
12052008
2 year product warranty
This product is guaranteed to be free from manufacturing defects in material and workmanship under
normal use for a period of 2 (two) years from the date of purchase. In the event a defect that is covered
by the foregoing warranty occurs during the applicable period stated above, ATN, at its option, will ei-
ther repair or replace the product, and such action on the part of ATN shall be the full extent of ATN’s li-
ability, and the Customer’s sole and exclusive remedy. This warranty does not cover a product (a) used
in other than its normal and customary manner; (b) subjected to misuse; (c) subjected to alterations,
modifications or repairs by the Customer of by any party other than ATN without prior written consent of
ATN; (d) special order or “close-out” merchandise or merchandise sold “as-is” by either ATN or the ATN
dealer; or (e) merchandise that has been discontinued by the manufacturer and either parts or replace-
ment units are not available due to reasons beyond the control of ATN. ATN shall not be responsible for
any defects or damage that in ATN’s opinion is a result from the mishandling, abuse, misuse, improper
storage or improper operation, including use in conjunction with equipment which is electrically or
mechanically incompatible with or of inferior quality to the product, as well as failure to maintain the en-
vironmental conditions specified by the manufacturer. CUS TO M ER IS HER E BY N OT I FI ED THAT OP-
ERAT I ON OF THE EQUI PM E NT DURI NG DAY LI GHT HOURS O R U NDER ANY E XCES SIVE LIG H T
CONDITIONS MAY PERMANENTLY DAMAGE THE INTERNAL COMPONENTS OF THE UNIT AND
SA I D DAM AGE W ILL N OT BE COVERED UN D ER T HIS WARR ANT Y. This warranty is extended only
to the original purchaser. Any breach of this warranty shall be waived unless the customer notifies ATN
at the address noted below within the applicable warranty period.
The customer understands and agrees that except for the foregoing warranty, no other warranties
written or oral, statutory, expressed or implied, including any implied warranty of merchantability or
fitness for a particular purpose, shall apply to the product. All such implied warranties are hereby and
expressly disclaimed.
LIMITATION OF LIABILITY
ATN will not be liable for any claims, actions, suits, proceedings, costs, expenses, damages or liabili-
ties arising out of the use of this product. Operation and use of the product are the sole responsibility of
the Customer. ATN’s sole undertaking is limited to providing the products and services outlined herein
in accordance with the terms and conditions of this Agreement. The provision of products sold and
services performed by ATN to the Customer shall not be interpreted, construed, or regarded, either
expressly or implied, as being for the benefit of or creating any obligation toward any third par ty of legal
entity outside ATN and the Customer; ATN’s obligations under this Agreement extend solely to the
Customer. ATN’s liability hereunder for damages, regardless of the form or action, shall not ex-
cee d t h e fe es or ot he r charg e s paid to ATN by t he customer or custo m er’s de ale r. ATN sh all not ,
in any eve nt , be liable for special, indir e ct, incidental, or conseque ntial damag es , including , but
not limi te d to, l ost income, lost revenue, or lost profit , whether such damages wer e fores e eable
or not at the time of purchase, and whether or not such damages arise out of a breach of war-
ranty, a breach of agreement, negligence, strict liability or any other theory of liability.
PRODUCT WARRANTY REGISTRATION
In order to validate the warranty on your product, ATN must receive a completed Product Warranty
Registration Card for each unit or complete warranty registration on our website at www.atncorp.com.
Please complete the included form and immediately mail it to our Service Center: ATN Corporation,
1341 San Mateo Avenue, South San Francisco, CA 94080.
OBTAINING WARRANTY SERVICE
To obtain warranty service on your unit, End-user must notify ATN service department by calling
800-910-2862 or 650-989-5100 or via e-mail [e-mail] to receive a Return Merchandise
Authorization number (RMA). When returning please take or send the product, postage paid, with
a copy of your sales receipt to our service center, ATN Corporation at the address noted above. All
merchandise must be fully insured with the correct postage; ATN will not be responsible for improper
postage or, missing or damaged merchandise during shipment. When sending product back, please
clearly mark the RMA# on the outside of the shipping box. Please include a letter that indicates your
RMA#, Name, Return Address, reason for service return, Contact information such as valid telephone
numbers and /or e-mail address and proof of purchases that will help us to establish the valid star t date
of the warranty. Product merchandise returns that do not have an RMA listed may be refused or a
significant delay in processing may occur. Estimated Warrant y ser vic e time is 10 -20 business days.
End-user/customer is responsible for postage to ATN for warranty service. ATN will cover return post-
age/shipping after warranty repair to end-user/customer only if product is covered by aforementioned
warranty. ATN will return product after warranty service by domestic UPS ground and/or domestic mail.
Any other requested or required shipping method the postage/shipping fee will be the responsibility of
the end-user/customer.

For customer service and technical support, please contact
American Technologies Network Corp.
North American Office
1341 San Mateo Avenue, South San Francisco, CA 94080
phone: [phone]; fax: [phone]
European Office
phone: [phone], fax: [phone]
The following countries can use our
toll free number 00 800 9102- 8620
Austria, France, Germany, Holland, Italy, Spain, Sweden, Switzerland
www.atncorp.com
©2008 ATN Corporation
