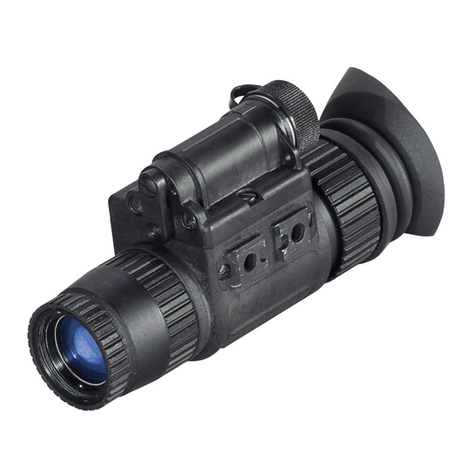

The ATN NVM14-3P Multi-purpose Night Vision Monocular utilizes a single,
technologically advanced ITT Pinnacle™ Image Intensifier tubes to provide crisp,
clear images in the darkest of conditions. The ATN NVM14-3P Multi-purpose
Night Vision Monocular’s flexibility and multi-mission versatility is evident; it can
be hand-held, head-mounted, helmet-mounted, weapon mountable, and is
compatible with most IR laser aiming/illuminating devices.
The ATN NVM14-3P can also be used with a camera for nighttime
photography. The ATN NVM14-3P great flexibility makes it perfect for police,
military, search/rescue, private security firms, and security conscience civilians
wanting to maximize night vision capability by choosing only one night vision
device for multiple missions. ATN NVM14-3P Multi-Purpose Night Vision Monocular unit allows for vertical adjustment (by using head straps),
fore-and-aft adjustment, objective lens focus, and eyepiece focus.
The ATN NVM14-3P Multi-purpose Night Vision Monocular utilizes the principle of intensification of the residual light which is reflected from the
surrounding objects. The ATN NVM14-3P Multi-purpose Night Vision Monocular is also equipped ATN’s Total Darkness Technology featuring a
built-in infrared light-emitting source giving it maximum flexibility even when available ambient light is minimal. The optical system of the rugged
ATN NVM14-3P Multi-purpose Night Vision Monocular consists of: an objective lens, an image intensifier tube and an eyepiece. The ATN NVM
14-3P Multi-Purpose Night Vision Monocular is an ideal choice for any outdoor enthusiast, whether hunting, boating, sailing, yachting, kayaking,
fishing, camping, or hiking. The ATN NVM14-3P Multi-purpose Night Vision Monocular is smaller and lighter than the Mil Spec PVS14 and is fully
submersible to a depth of 66 feet (20 meters). The ATN NVM14-3P Multi-purpose Night Vision Monocular is the total night vision package for the
modern nighttime military operator, police surveillance, search/rescue, or civilian concerned with securing family and property.
Export Warning: These products are subject to one or more of the export control laws and regulations of the U.S. Government. Pending the model these products are under the control
jurisdiction of either the US Department of State or the US Bureau of Industry and Security US Department of Commerce. Export without proper licensing or consent is strictly prohibited.
HIGH QUALITY 3P GEN IMAGE INTENSIFIER TUBE
DESCRIPTION ..................................... Pinnacle™
GENERATION ...................................... 3
PHOTOCATHODE TYPE .................... Thin Film GaAs
RESOLUTION, LP/MM * .................. 64 - 72
SIGNAL-TO-NOISE RATIO* .............. 24 typical
EXPORT .............................................. N/A for export
FIGURE OF MERIT ............................ 1800 typical
PHOTOCATHODE SENSITIVITY ....... 2000-2800
* Specifications are provided for informational purposes only. Actual values may vary
* Pinnacle is a registered trademark of ITT Night Vision
Magnification ........................... 1X
Lens system Element.............. F1.2, 25 mm
Exit Pupil .................................. 14 mm
Eye Relief ................................. 25 mm
Eye use..................................... Left or Right
FOV........................................... 40 deg.
Range of focus......................... 0,25 m to infinity
Diopter Adjustment ................. -6 to +6
ABC- Automatic Brightness
Control Cut-off to Protect
Image Intensifier Tube............. Yes
Bright Light Indicator.............. Yes
Controls.................................... Digital
Infra-red Illuminator................. Built-in Rotary Select - Flood & Spot
IR Illumination Range.............. 20 meters
IR Indicator............................... LED ON/ Battery Low
Weight w/ Battery .................... 0.34 kg
Dimensions .............................. 120 X 49 X 69 mm
Environmental rating .............. Waterproof 20 m, 1 hr.
Operation Temperature ........... -40 to +50 C
Storage Temperature............... -50 to +70 C
Flip Up Headset
w/ Automatic System Off ........ Yes
Battery Life w/o IR ON............. 30 hrs. (AA), 60 hrs. (3 V, Lithium)
Battery Life w/ IR ON............... 30 hrs. (3 V, Lithium) Continous
Power supply........................... (1) 3 V Lithium, or (1) AA Alkaline
Mil-Spec 810 Standards .......... Complies
Waterproof ............................... 20 m for 1 hrs.
Warranty .................................. 2 Year
• Lightweight
• Compact, rugged design
• Waterproof
• Weapon mountable
• Head or helmet mountable for hands-free usage
• Left or right eye use
• Easy of operation
• Auto Brightness Control
• Bright Light Cut-off
• Ergonomic, Simple, Easy to operate controls
• Compatible with most IR lasers
• Adaptable for use with cameras
• Total Darkness Technology with built-in Infrared Illumina-
tor and flood lens
• Optional Patented Life Tracker System available for
measuring hours of operation
• Limited Two-year Warranty
