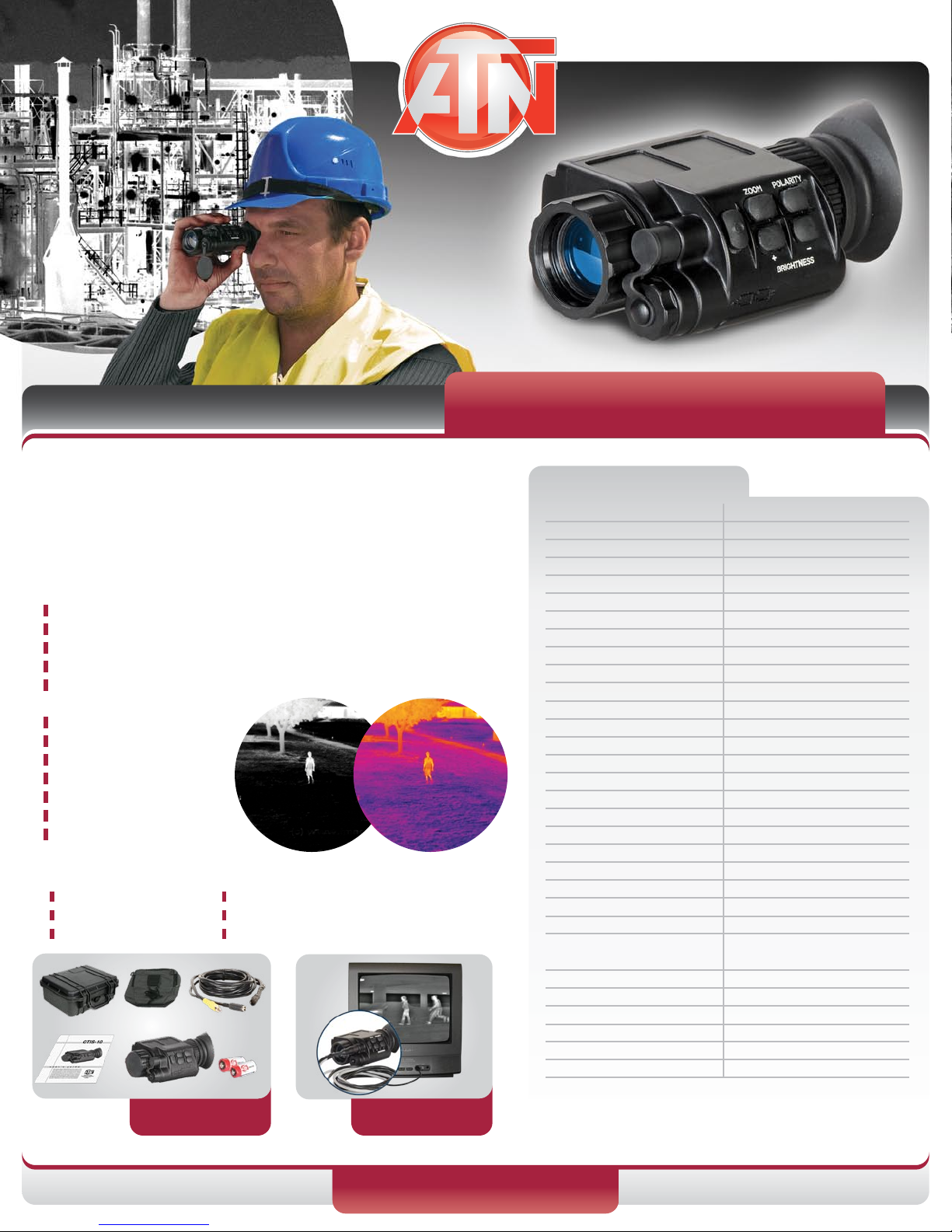

ATN OTS10 COLOR-9Hz User manual

1341 San Mateo Ave,
South San Francisco, CA 94080.
Tel: [phone],
fax: [phone]
Export Warning: These products are subject to one or more of the export control laws and regulations of the U.S. Government. Pending the model these products are under the control jurisdiction of
either the US Department of State or the US Bureau of Industry and Security US Department of Commerce. Export without proper licensing or consent is strictly prohibited.
www.atncorp.com
e-mail: [email protected], [email protected]
SPECIFICATIONS
Video Frame Rate 9Hz
Magnification 1.2X
Objective Focal Length 25 mm
FOV 11° x 8°
Focus Range from 1m to infinity
Focus Adjustment Manual
Exit Pupil 14mm
Eye Relief 25mm
Detector Type Uncooled Microbolometer
Spectral Response 7-14 µm
Pixels 160 x 120
Pixel Size 30 x 30 µm
Angular Resolution, mrad 1.2
Thermal Sensitivity < 0,1°C
Range to Detect a Human 475 m
Output Format Analog PAL / NTSC
Display OLED matrix
Display Format SVGA, 852 x 600 pxl
Color Color/Monochrome
Digital ZOOM 2x
Brightness Adjustment Manual
Contrast Adjustment Automatic
Power Supply 2 x 3V, 123Atype
Start-Up Time < 3 sec
Operating Time
w/one battery pack 4 hrs
External Power Supply DC 6V, 500 mA
Operating Temperature
Range from -20°C to +50°C
Waterproof Yes, up to 10m submersion
Dimensions 118 x 81 x 46 mm
Weight (w/batteries) 0.34 kg
OTS10
BASIC KIT
VIDEO
OUTPUT
The OTS10-9Hz sets the standard for affordable, small, lightweight
thermal imaging cameras. It is pocket-sized, rugged and durable.
It is built around state-of-the-art uncooled thermal imaging technology. It
offers superior performance, compact size, comfort of wear and cost
efficiency which makes it the perfect thermal imaging device.
The ATN OTS10-9Hz is ideal for home security, public safety, first
responder and security operations.
OTS10 COLOR-9Hz
THERMAL IMAGING MONOCULAR
BENEFITS AND FEATURES:
Law Enforcement
Home Security
Boating
USAGES:
Public Utilities
Construction
Search and Rescue
High resolution digital thermal imaging
Compact, light weight and durable housing
High Quality optics
Video output
Two Image/Video modes
(Black/White and Color)
Adjustable display brightness
Adjustable eyepiece diopter
Adjustable lens focus
Digital zoom
Power input capability
Waterproof
One-Year Warranty
