ATS Super Stringer II User manual

OWNER’S MANUAL
Issue 3 - January 2009
STRINGING MACHINE

2
OWNER’S MANUAL
LIMITED LIFETIME WARRANTY
ATS Sports (ATS) warrants to the original purchaser that the SuperStringer II stringing machine (“EQUIPMENT”) purchased
is free from defects in materials and workmanship for life of the EQUIPMENT. Should any defects develop under normal use,
ATS will at its option, repair or replace the defective EQUIPMENT provided it is returned to ATS prepaid at the purchaser’s
expense. This warranty does not apply to any damage or defect caused by negligence, abuse, misuse, unauthorized altera-
tion, shipping, handling, or part wear and tear as a result of normal use.
Routine maintenance, adjustment, and cleaning required to ensure proper operation are the responsibility of the purchaser
and are not covered under the terms of this warranty. These include, but are not limited to: String Clamp adjustment, as
described on page 4.
ATS’ obligation under this warranty is limited to repair or replacement of defective EQUIPMENT, and no one is authorized to
promise any other liability. ATS shall in no event be liable for any incidental or consequential damages.
To return defective EQUIPMENT, a return authorization (RA#) must be obtained from a ATS customer service representative
by calling 800-866-7071. The RA# must be marked on the outside of the shipping carton being returned. All returns must
be shipped prepaid by the customer to ATS Sports. Please retain the original shipping carton and packing materials for any
future shipments. ATS Sports will not be responsible for machines which are not sent in the original undamaged packaging.
TABLE OF CONTENTS
WARRANTY ................................................................................................PAGE 2
ASSEMBLY INSTRUCTIONS ..................................................................... PAGE 3
MOUNTING THE FRAME ...........................................................................PAGE 5
STRINGING THE FRAME ...........................................................................PAGE 6
PATHFINDER AWL ......................................................................................PAGE 9
PARTS LIST ............................................................................................. PAGE 10
PARTS DRAWING..................................................................................... PAGE 11

3
ASSEMBLY INSTRUCTIONS
Installing the Turntable
Insert the turntable center post into the bush-
ing assembly of the machine base.
Installing the Support Posts
Slide each support post onto the end of the
turntable bar. The posts should be oriented
so as to angle away from the turntable
center post.
Installing the Drop Weight
Remove the end cap from the tension bar and
slide the drop weight onto the bar. The weight
should be oriented with the knob end closest
to the string winder. Replace the end cap.

4
ASSEMBLY INSTRUCTIONS
Tension Bar Stop Screw
Raise the Tension Bar to an upright position.
Using the supplied 5MM wrench, securely
tighten the Stop Screw. This will prevent
the Tension bar from contacting the racquet
frame.
Clamp Adjustment
The oating clamps provided with your ma-
chine will need minor adjustments according
to what string type, construction, and gauge
you are using.
If the strings slip through the jaws of the
clamp, tighten the clamp by turning the
thumb knob opposite of the handle, in the
clockwise direction. If the clamps leave
impressions or damages the string, they are
too tight and the thumb wheel must be turned
counterclockwise.
The clamp jaws must be clean and free
from dirt, oil, and any string coating for them to grip properly. Keep the clamp jaws clean with
isopropyl alcohol.
Adjustment
Knob

5
Adjusting the Frame Support Posts
Place the racquet frame over the center posts
and onto the frame support posts. Loosen the
locking screws on one support post and slide
the post in the appropriate direction until the
plastic adapter contacts the frame. Securely
tighten the locking screws. Adjust the opposite
post in the same manner.
Note: It is extremely important both plastic
adapters are in contact with the frame to
prevent racquet damage.
MOUNTING THE RACQUET
Installing the Racquet Support
Adapters
The machine is supplied with two styles of
Racquet Support Adapters. A thick prole
adapter for wide body racquets and a thin
prole adapter for conventional racquet
frames. The Adapters are also tapered, use
the highest side of the adapter that does
not interfere with the string grommet holes.
Securing the Racquet
With the frame support posts properly ad-
justed, place the frame hold down clamps
over the center screws and tighten the clamp
bar knobs securely. Do not overtighten the
knobs as frame damage may occur.
Note: Inverted throat racquet frames may
require the throat clamp plate to be rotated
180 degrees to match the frame.

6
STRINGING THE FRAME
Setting Tension
The drop weight is of a two piece design.
When assembled, it will accommodate ten-
sions from 20 to 90 lbs. For tensions from 8
to 20 lbs., remove the 5mm bolt on the face of
the drop weight, and use the smaller portion
of the weight as described above.
Note: Tensions above 77lbs. require removal
of the drop weight bar end cap.
To set the stringing tension, loosen the
locking knob on the side of the drop weight.
Slide the weight in the appropriate direction
until the face closest to the string gripper is
indexed with the desired tension mark on
the tension bar.
Starting the Main Strings
To begin stringing the main strings, count the
number of holes at the throat of the frame,
which will determine the starting point. For
racquets with 4 or 8 holes at the throat,
the main strings will begin at the head. For
racquets with 2 or 6 holes at the throat, the
main strings will begin at the throat.
Thread the two ends of the string through
the two center grommet holes at the head
or throat as determined in the previous
step. Route the strings through the opposite
center holes.

7
STRINGING THE FRAME
Clamping the First Main String
Thread one end of the string through the
adjacent grommet hole and pull excess by
hand. Clamp both the center and the adjacent
string to each other on the inside of the frame.
Pulling Tension
Wrap the free string clockwise around the
gripper drum once and position between
the gripper jaw.
Gently turn the gripper clockwise while
squeezing the jaws together until all slack
in the string is removed.
Note: For proper operation, the string grip-
per jaw must be in the position shown. The
tension in the string provides the clamping
force to the jaws.
While holding the string gripper drum with
your hand, lift the tension bar to approximately
45 degree angle and let fall. If the tension
bar drops below horizontal, repeat the above
action until the bar comes to rest parallel to
the racquet. The set tension will be reached
when the bar rests horizontal.
If the bar comes to rest above horizontal,
release the string and re-pull tension.
Manually forcing the bar into the horizontal
position will greatly increase string tension
and may result in racquet damage.

8
STRINGING THE FRAME

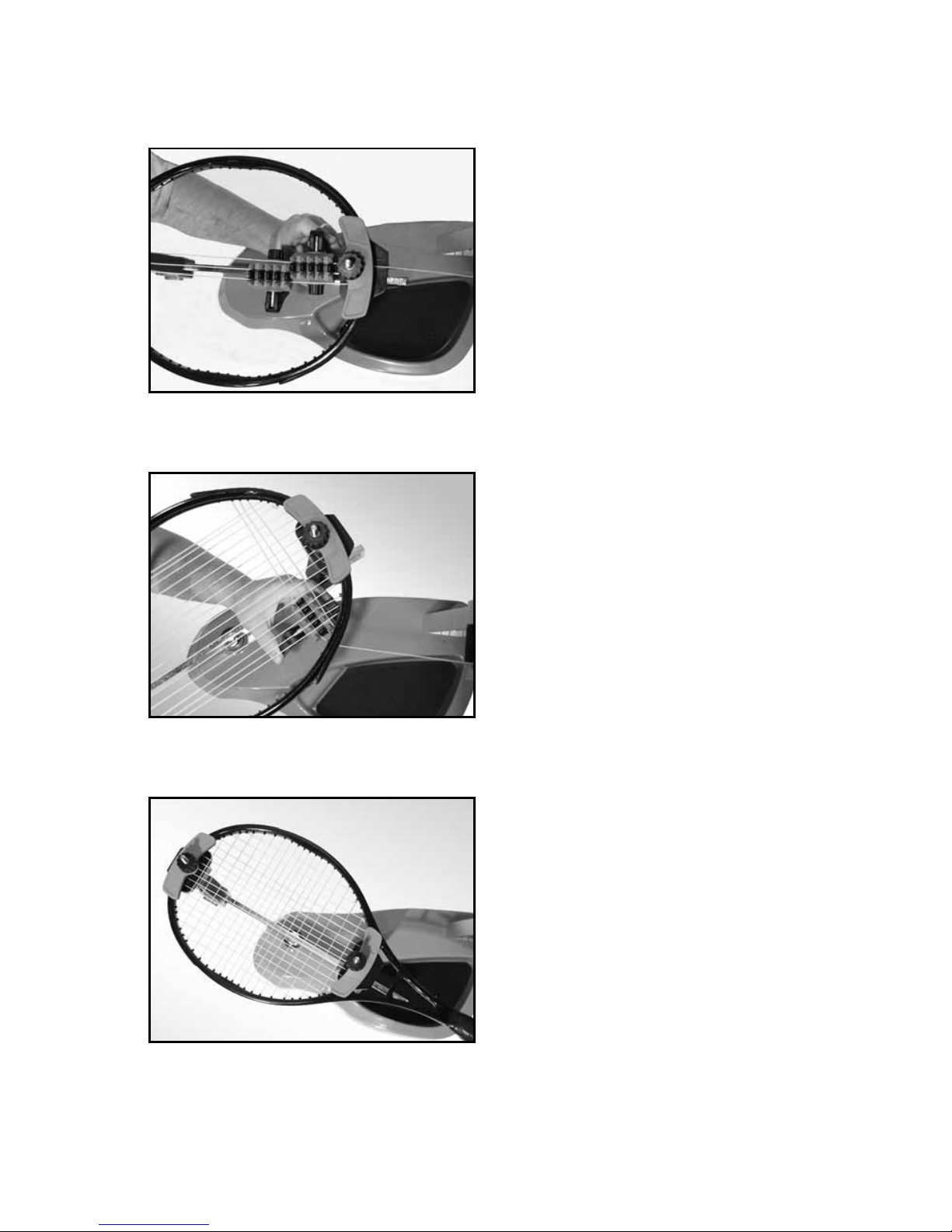

Clamping the String
Clamp the tensioned string to the next ad-
jacent string using the second string clamp.
Release the tensioned string by raising the
tension arm.
Repeat the procedure for all of the remaining
main strings and tie off following the racquet
manufacturers recommendations.
Finishing the String Job
Weave and tension the remaining cross
strings and tie off at the specied grommet
hole.
Remove the strung racquet from the reverse
order of mounting.
Starting the Cross Strings
Follow the manufacturer's recommended
stringing pattern for one or two piece string-
ing. This will determine the starting point for
the cross strings. Weave the rst two cross
strings and pull tension and clamp the cross
strings to each other.

9
PATHFINDER AWL
Once the awl is inserted, pull the handle of
the awl outward while holding the tip section
in place. This leaves the outer sheath in the
grommet hole. Insert the end of the string
into the outer sheath.
While holding the string, slowly pull the sheath
out of the grommet hole to leave the free end
of the string exposed.
The machine includes the pathnder string-
ing awl which creates a pathway between
or around strings to make inserting a string
through blocked grommets easier and
quicker.
Insert the awl through the grommet hole in
the same manner as for traditional awls. The
Pathnder awl must be in the closed position
before insertion.

10
PARTS LIST
4A TURNTABLE BUSHING
5 RUBBER FOOT
6A CAP SCREW- M8x25
8A SET SCREW- M5x6
24 KNOB
25 TENSION BAR
26 TENSION BAR CAP
27 DROP WEIGHT KNOB
28 FRONT WEIGHT
29 BACK WEIGHT
30 TENSION BAR DRUM
30A SET SCREW-
31 STRING GRIPPER DRUM
47 FLOATING CLAMP KNOB
48 SWING BOLT
49 RETURN SPRING
50 PIVOT PIN
51 RETAINING RING
78 CLAMP PLATE
79 CLAMP PLATE PAD
82 FRAME SUPPORT SHORT
82A FRAME SUPPORT TALL
83A TENSION BAR STOP SCREW
92 TURNTABLE
93 SUPPORT POST
94 SUPPORT POST PIN
95 SUPPORT POST PAD
161 WINDER BEARING
162 GRIPPER PIVOT PIN
163 PIVOT PIN RETAINER COLLAR
257 LOWER WINDER STAND
258 UPPER WINDER STAND
316 BASE
317 BASE COVER
MPFC FLOATING CLAMP
MRSG ROTATIONAL GRIPPER
70 5MM T-HANDLE HEX WRENCH*
98 BOX WRENCH- 10MM
108 UTILITY KNIFE
109 NEEDLE NOSE PLIERS*
MA STRINGER’S AWL*
MPSA PATHFINDER AWL*
* (NOT SHOWN)
OPTIONAL TOOLS & ACCESS
PART # DESCRIPTION TOOLS & ACCESSORIES
MBFC BADM FLOATING CLAMP
MPMC MACHINE COVER
MPG STARTING CLAMP
MPS CLEANING STONE
SGSM STRINGER'S MAT

11
PARTS DRAWING
316
MRSG
82A
5
317
4A
29
28
27
25
MPFC
31
49
51
47
50
48
94
82
92
95
93
24
79
78
26
30A
83A
30
8A
6A
162
163
161
258
257

ATS SPORTS
200 Waterfront Drive
Pittsburgh, Pennsylvania 15222
Phone: [phone] Fax: [phone]
Visit our website at www.atssports.com
Copyright 2009 ATS Sports - All Rights Reserved
