Contents
Package Contents ......................................................... 3
Assembly Guide ........................................................... 4
Top Panel ............................................................... 11
Rear Panel .............................................................. 12
1 Getting Ready.........................................................13
Connecting Audio Equipment ................................................ 13
Connecting the Pads ...................................................... 13

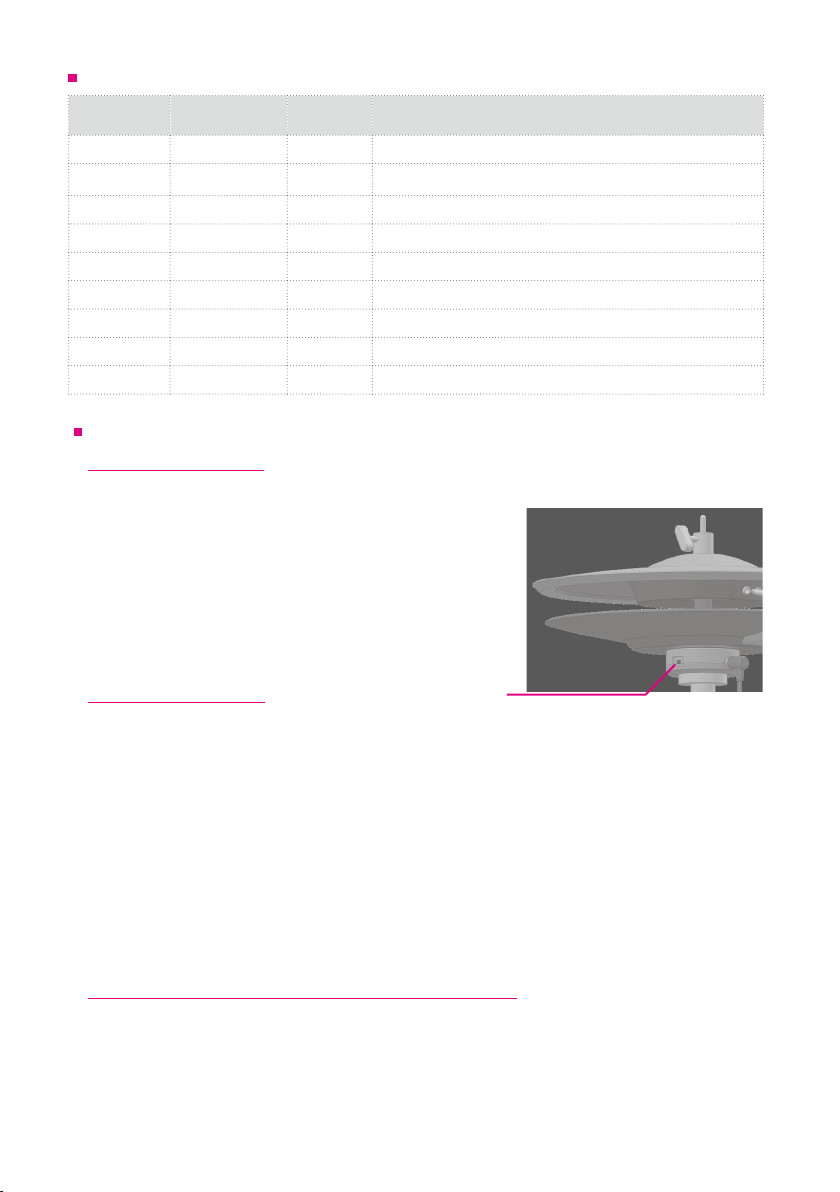

Zones supported by the xD3's trigger inputs .................................... 14
Power On / O ............................................................ 0
Turning the power o automatically (auto power-o) ............................... 14

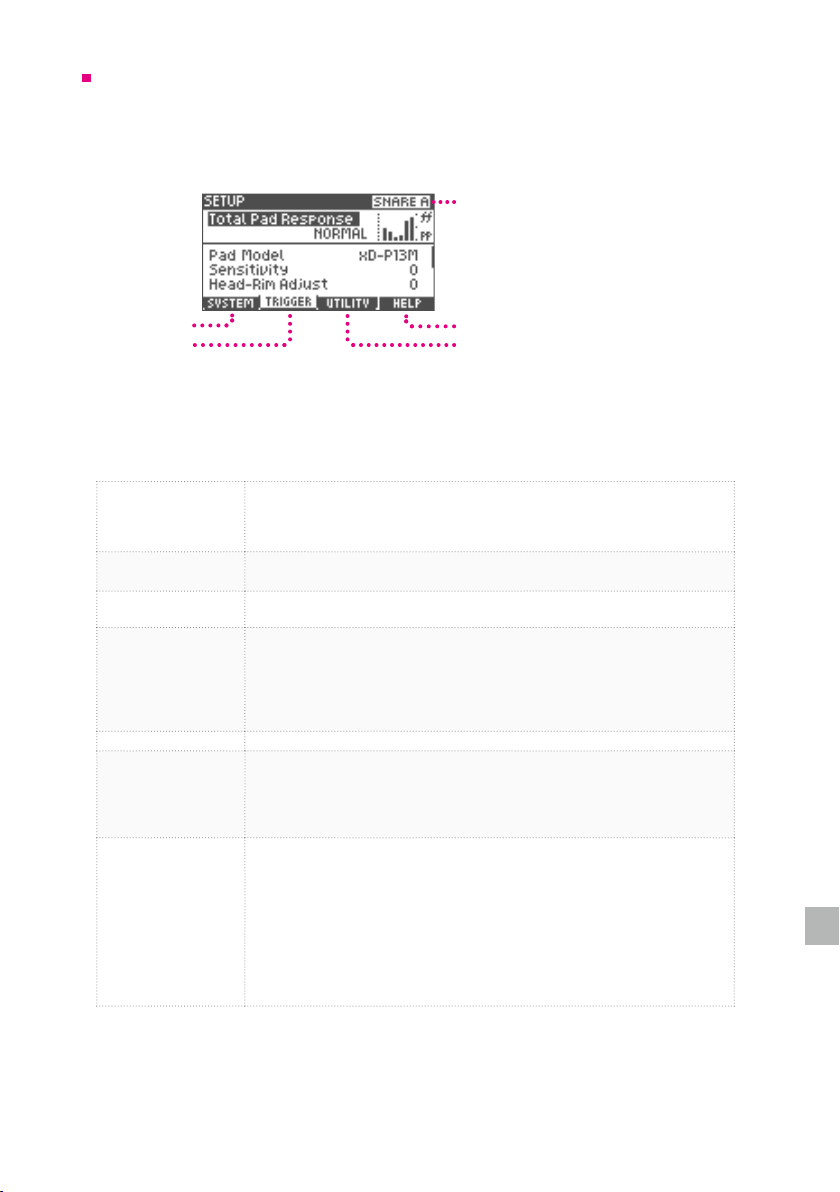

Trigger settings ........................................................... 15

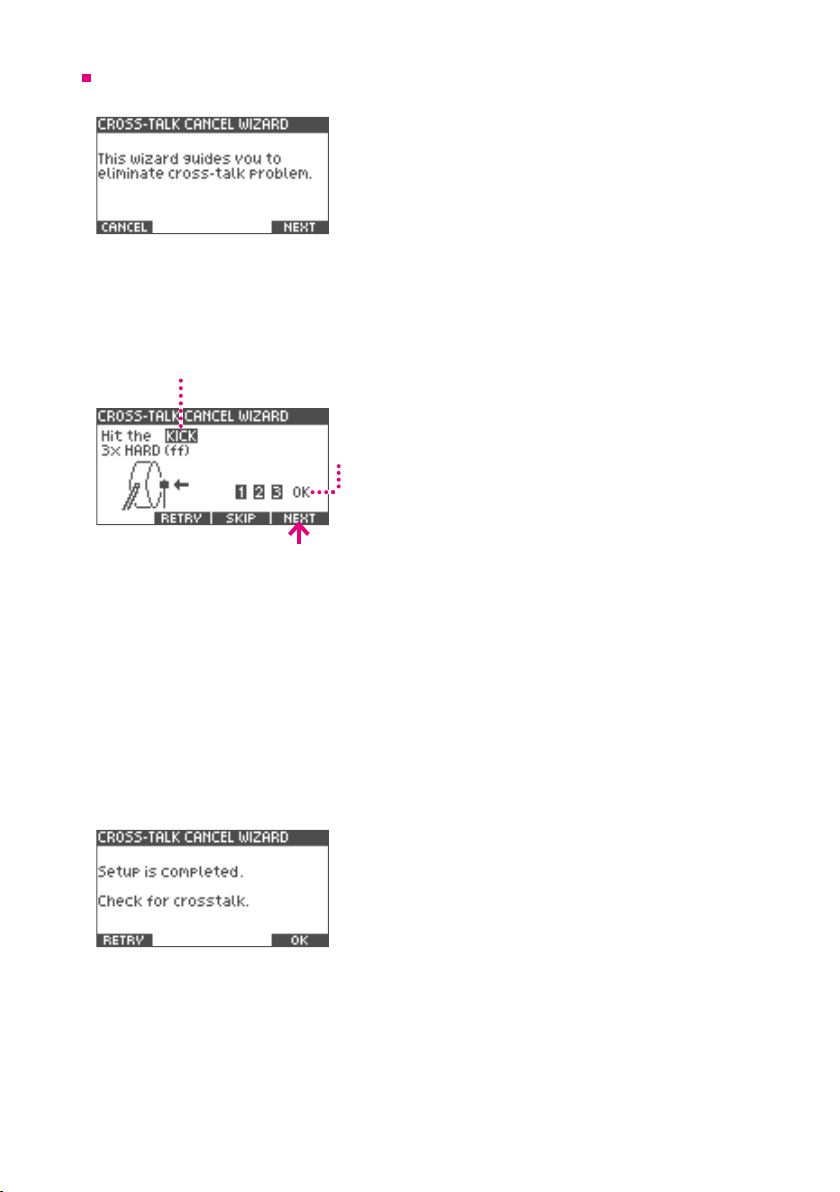

Cross-talk Cancel Wizard ................................................... 16
2 Performing............................................................17

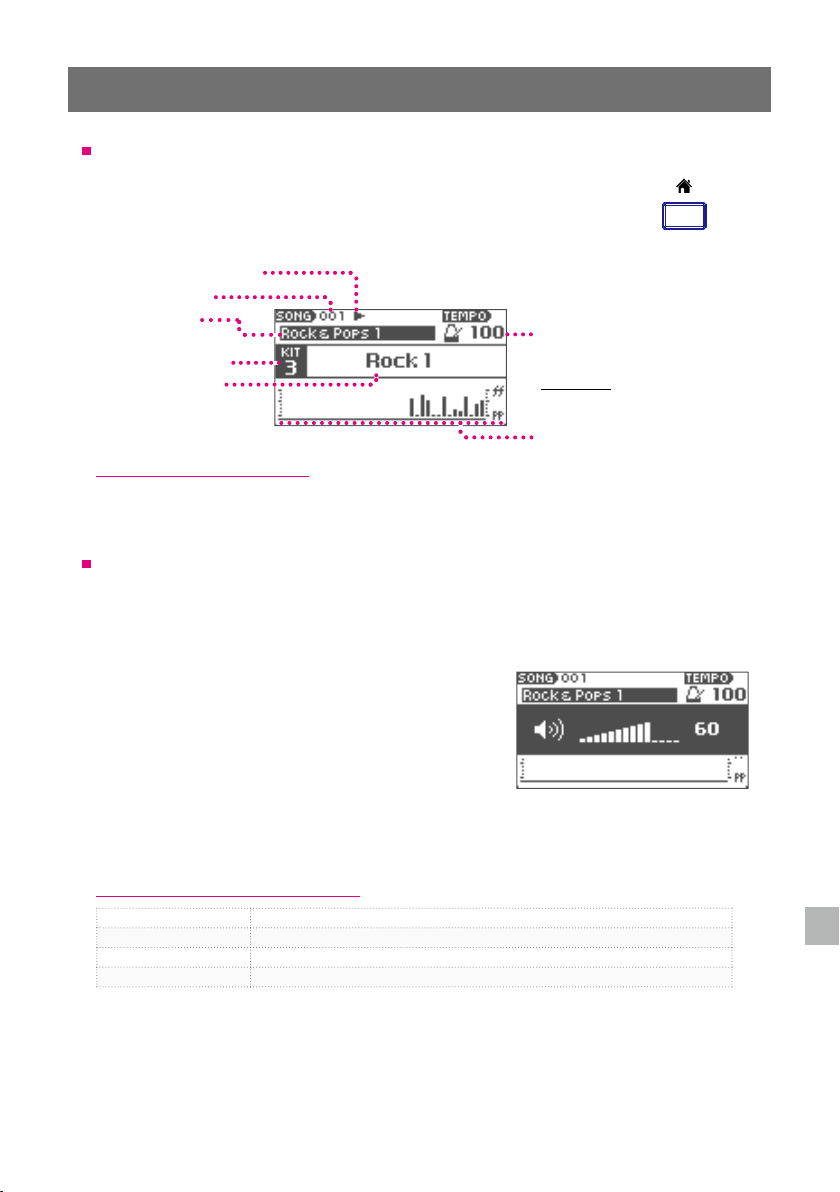

Home Screen ............................................................ 17
Performing .............................................................. 17
Corresponding styles of playing .............................................. 17

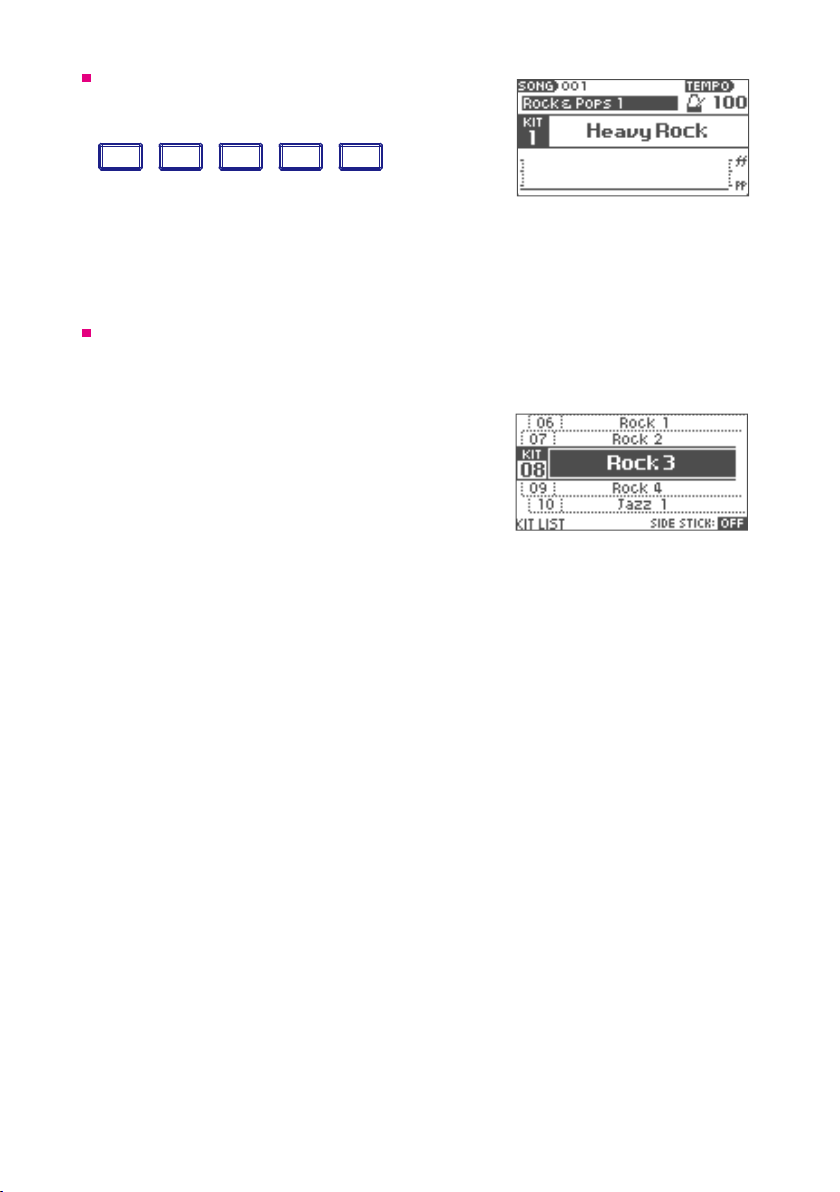

Changing the Drum Kit ..................................................... 18
Selecting a drum kit from the list.............................................. 18
3 Detailed Information....................................................19
Details of functions ........................................................ 19
Specications ............................................................ 19
Support ................................................................ 19
4 Important Notice ......................................................20
Important Safety Information................................................. 20
Important Information about Use ............................................. 21
Before using aDrums EXS-3CY, be sure to read ‘4 Important Notices’ p.20.
Welcome.

33
Setup
Package Contents
This product includes the following items.
xD3 drum sound
instrument Multi-trigger cable
Quick Start Guide (this booklet)
Drum key
Cable tie
SD memory card
Kick Pad
Tom Pads x3Snare Pad
Crash Cymbal Pad x2 Ride Cymbal Pad
Hi-hat pad
Spurs for Kick Pad x2
AC adapter
AC adapter for hi-hat pad
Drum Rack
Trigger cable
Tube A x2 Tube B x2
Drum Rack
Tube D
Tube E
Tube F
Tube C Drum arms x4Cymbal arms x3
Cymbal arm clamp Cymbal arms x3

44
SetupSetup

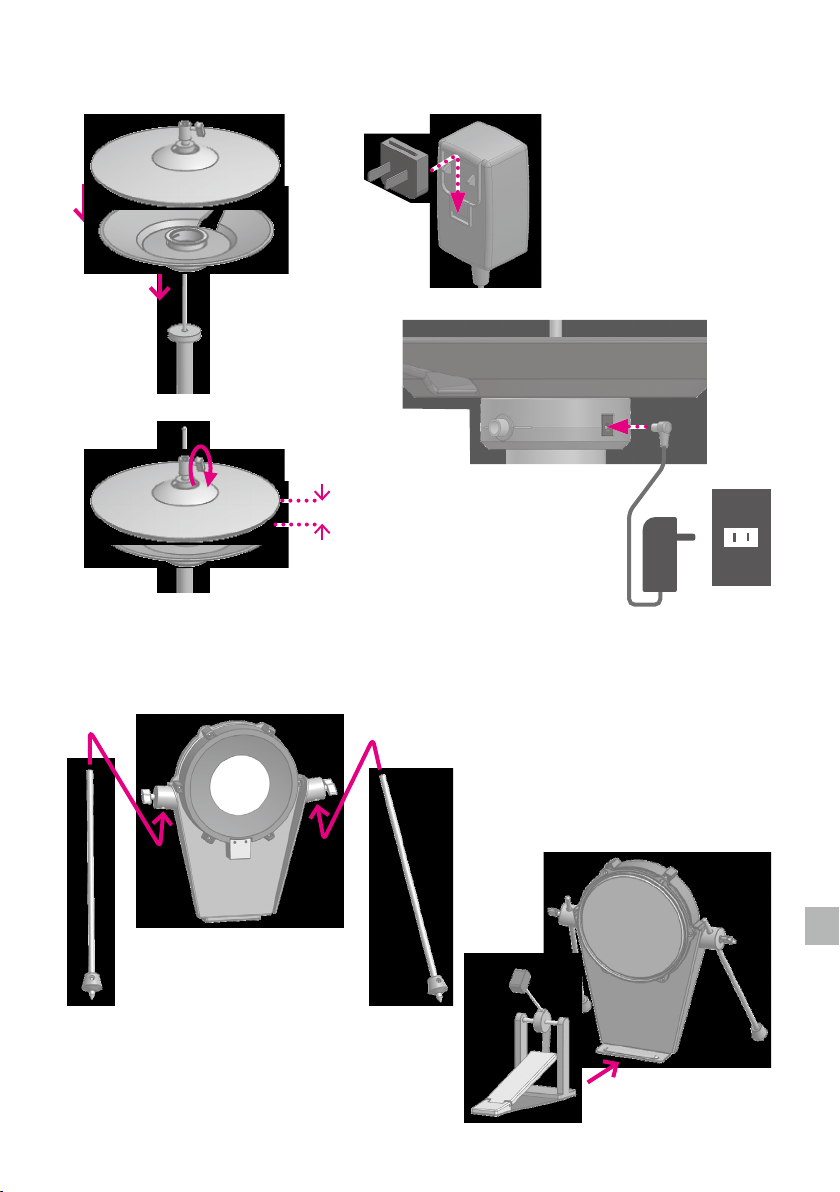

Assembly Guide
Connect tubes A to F as the gure right shows.
*A corresponding label (A to F) is attached to each tube.
1 Insert tube A into the tube C clamp
2 Insert tube A and tube B into the clamps at the ends of tube D
Tube A
Tube A
Stand L
*Securely tighten the
clamp bolts
*Securely tighten the clamp bolt
Tube B
Tube D
Tube C
D
D
B
C
A
B
E
F
A

55
2A Using the drum key remove the tube clamp from the end of tube F as shown
Tube End Clamp
• When removing the clamp, be careful to avoid inury or scratches to furniture
due to rough metal edges at the end of the tube.

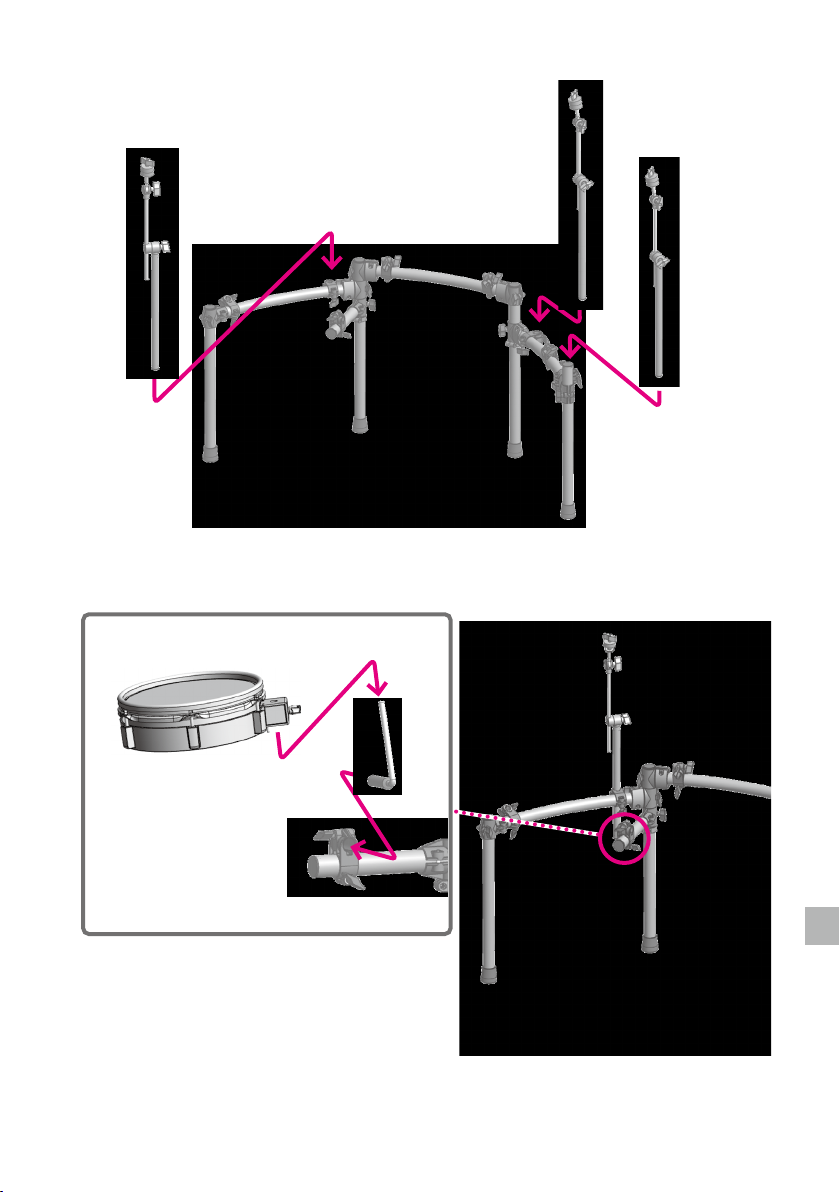

2B Insert the cymbal arm clamp onto pipe F as shown
Cymbal arm clamp
2C Reattach the tube end clamp to pipe F as shown
