ATV NFE5360 User manual

USER MANUAL
5MP FISHEYE
NETWORK CAMERA

Please read this manual thoroughly before use and keep it handy for future reference.

2
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EX-
POSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY
METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER
OPENNINGS ON THE EQUIPMENT.
CAUTION
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is in-
tended to alert the user to the presence of dangerous voltage within the products
enclosure that maybeof sufficientmagnitudeto constitute a riskof electric shock
to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) instructions
in the literature accompanying theproduct.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF ELECTRICSHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICABLE PARTSINSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

3
CAUTION
RISK OF EXPLOSION IF BATTERYIS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
FCC COMPLIANCE STATEMENT
CE COMPLIANCE STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful inter-
ference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC INFORMATION: This equipment has been tested and found to
comply with the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commer-
cial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the in-
struction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful in-
terference in which case the user will be required to correct the interference
at his own expense.
CAUTION: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil nume
`
rique de la classe A est conforme a
´
la norme NMB-003 du
Canada.
WARNING
This is a Class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.

4
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturers in-
structions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produceheat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two blades
and a third grounding prong. The wide blade or the third prong are provided for your safety,
if the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, conve-
nience receptacles, and the point where they exit from theapparatus.
11. Only use attachments/accessories specified by themanufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a cart is used.
Use caution when moving the cart/apparatus combination to avoid in-
jury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is re-
quired when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or ob-
jects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has beendropped.
15. CAUTION −THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED
SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT
PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE OPERATING IN-
STRUCTIONS UNLESS YOU QRE QUALIFIED TO DOSO.
16. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 power
source only.
17. ITE is to be connected only to PoE networks without routing to the outsideplant.

5
Contents
1Introduction 6
1.1 Components 6
1.2 Key Features 7
2Installation 8
2.1 Overview 8
2.2 Connection 10
2.3 Resetting to the factory default settings 11
2.4 Network Connection & IP assignment 12
3Operation 13
3.1 Access from a browser 13
3.2 Access from the internet 14
3.3 Setting the admin password over a secure connection 14
3.4 Live View Page 15
3.5 Playback 20
3.6 Network Camera Setup 22
3.6.1 Basic Configuration 22
3.6.2 Live View 26
3.6.3 Video & Image 27
3.6.4 Audio 35
3.6.5 Event 37
3.6.6 System 59
3.7 Help 81
AAppendix 82
A.1 Troubleshooting 82
A.2 Alarm Connection 83
A.3 Preventive Maintenance 83
A.4 System Requirement for Web Browser 84
A.5 General Performance Considerations 84
A.6 Product Specification 85

6
Introduction
The network camera supports the network service for a sensor image with progressive scan,
which can be monitored on a real-time screen regardless of distances and locations. By us-
ing its dedicated program, many users are able to have an access to the network camera
at once or a single user can monitor various network cameras at the same time. It also
enables users to play, store and retrieve a monitoring image by using a PC. All the settings
and real-time monitoring screens are also provided through an access to theweb.
The network camera is fully featured for security surveillance and remote monitoring needs.
It is based on the DSP compression chip, and makes it available on the network as real-time,
full frame rate Motion JPEG and H.264 videostreams.
The alarm input and alarm output can be used to connect various third party devices, such
as, door sensors and alarmbells.
Components
This system comes with the followingcomponents;
Network Camera ········································ 1
Installation Guide/CD ·································· 1
Template Sheet·········································· 1
Accessory Kit ············································ 1
Note 1. Check your package to make sure that you received the complete system, includ-
ing all components listed above.
Note 2. Adapter for DC 12V is not supplied.

7
Key Features
• Brilliant video quality
The network camera offers the highly efficient H.264 video compression, which
drastically reduces bandwidth and storage requirements without compromising
imagequality. Motion JPEG is also supported for increased flexibility.
• Wide Dynamic Range
The network camera provides digital WDR (Wide Dynamic Range) that improves
video exposure quality in scenes with high contrast between bright and dark
areas in the video, for example a shady area and a sunny area in the same scene.
• Triple Streams
The network camera can deliver triple video streams simultaneously at maximum
15frames per second in all resolutions up to 2592x1944 using H.264 and Motion
JPEG. This means that several video streams can be configured with different
compression formats, resolutions and frame rates for different needs.
• Image setting adjustment
The network camera also enables users to adjust image settings such as
contrast, brightness and saturation to improve images before encoding takes place.
• Intelligent video capabilities
The network camera includes intelligent capabilities such as enhanced video
motion detection. The network cameras external inputs and outputs can be
connected to de- vices such as sensors and relays, enabling the system to react
to alarms andactivate lights or open/closedoors.
• Improved Security
The network camera logs all user access, and lists currently connected users. Also,
its full frame rate video can be provided overHTTPS.
• PoE (Power over Ethernet)
This network camera can be powered through PoE (IEEE802.3af), which
simplifies installation since only one cable is needed for carrying power, as well as
video controls.
• ONVIF Certificate
This is a global interface standard that makes it easier for end users, integrators,
consultants, and manufacturers to take advantage of the possibilities offered by
network video technology. ONVIF enables interoperability between different vendor
products, increased flexibility, reduced cost, and future-proofsystems.
• Micro-SD Recording support
The Network Camera also supports a micro-SD memory slot for local recording
with removable storage of type SDHC and SDXC.
• Audio support
The Network Camera also supports two-wayaudio.

8
Installation
For the operation of the Network Camera, it is necessary to connect a network cable for
data transmission, power connection from power adapter. Depending on operation
methods, it is possible to connect an alarm cable additionally. For its fixation on different
locations, please consult with aninstaller.
Overview
• Dimension
• Extension Cable
NO
Wire Color
Description
1
Black
Ethernet, RJ-45 port compatible
with 10/100Mbps PoE Modular Jack
2
Red: DC12V
Main Power, 2pin terminal, DC12V
Black: GND
3
Yellow: Alarm In
Alarm input and output, 3pin terminal
Black: GND
Violet: Alarm Out
4
Grey: Audio In
Audio line input, 2pinterminal
Black: GND
5
White/Black: Audio Out
Audio line output, 2pinterminal
Black: GND

9

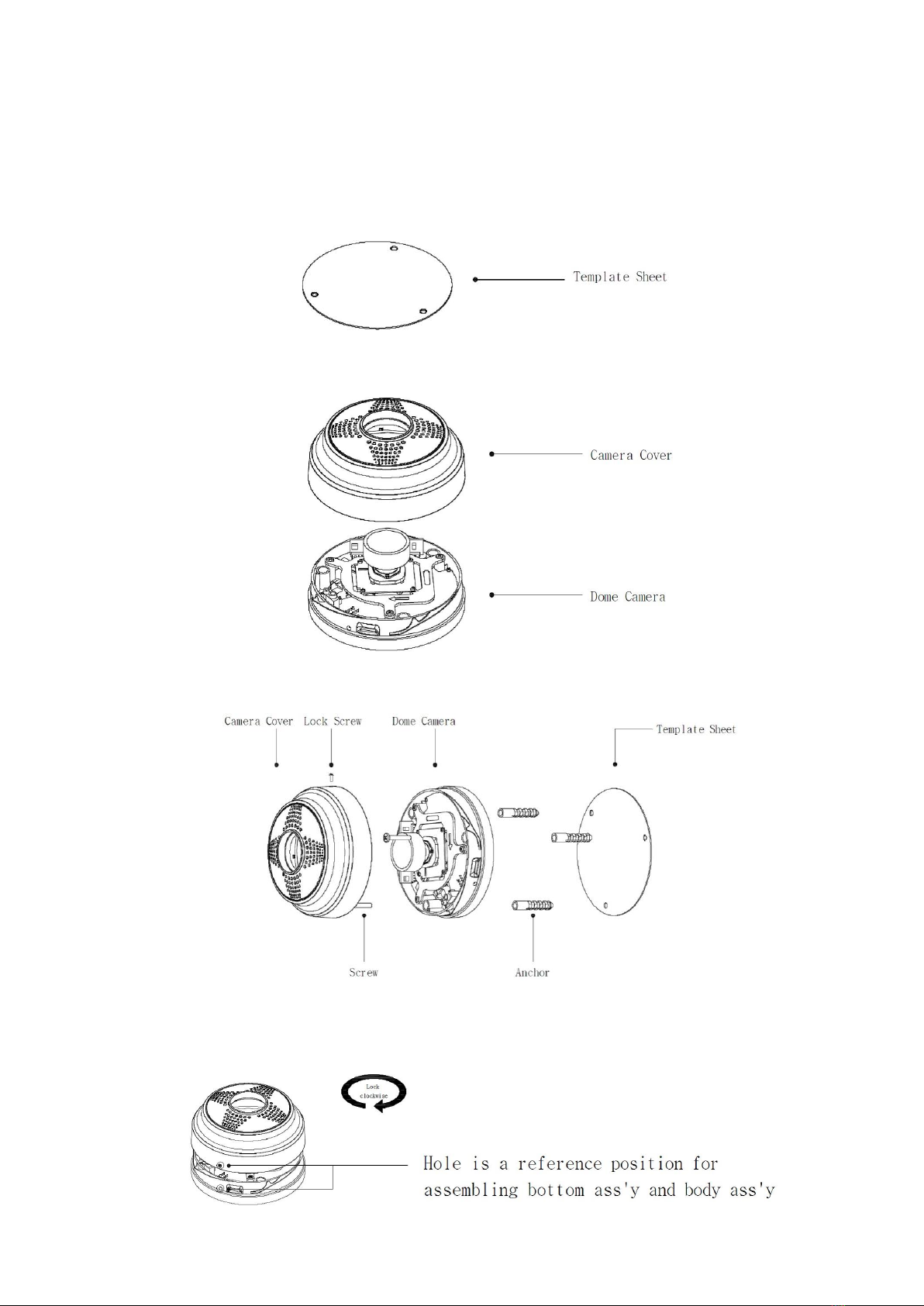

• Installing Camera
Carefully remove the contents from the box, and verify that nothing was damaged in
shipment.
1. Make screw holes for the camera on the ceiling with TemplateSheet.
2. Disassemble Camera Cover from thecamera.
3. Fix the camera set using Anchors (3x) and Screws (3x) to the ceiling.
4. Assemble Camera Cover to Dome Camera. Turn the Camera Cover clockwise to
complete installation.

10
Connection
• Micro SD memory cardinsertion
Insert a micro-SD card in the SD card slot.
• Connecting to the RJ-45
Connect a standard RJ-45 cable to the network port of the network camera.
Generally a cross-over cable is used for directly connection to PC, while a direct
cable is used for connection to a hub. Youcan also use a router featuring PoE
(Power over Ethernet) to supply power to thecamera.
• Connecting Alarms
AI(Alarm In): You can use external devices to signal the network camera to react
on events. Mechanical or electrical switches can be wired to the AI (Alarm In)
and G (Ground) connectors.
G(Ground): Connect the ground side of the alarm input and/or alarm output to
the G (Ground)connector.
AO(Alarm Out): The network camera can activate external devices such as
buzzers or lights. Connect the device to the AO (Alarm Out) and G (Ground)
connectors.
• Connecting the Power
Connect the power of 12 VDC for the network camera. Connect the
positive(+) pole to the ‘+’ position and the negative (-) pole to the ‘-’position for the
DC power.
– Be careful not to reverse the polarity when connecting the power cable.
– A router featuring PoE (Power over Ethernet) can also be used to supply power to
the camera.
– For the power specifications, refer to the Appendix, Product Specification.
– If PoE and 12 VDC are both applied, the camera will be supplied with power from
PoE.
• Connecting Audio
Connect Speaker to Audio line output and external Mic to Audio input line.

11

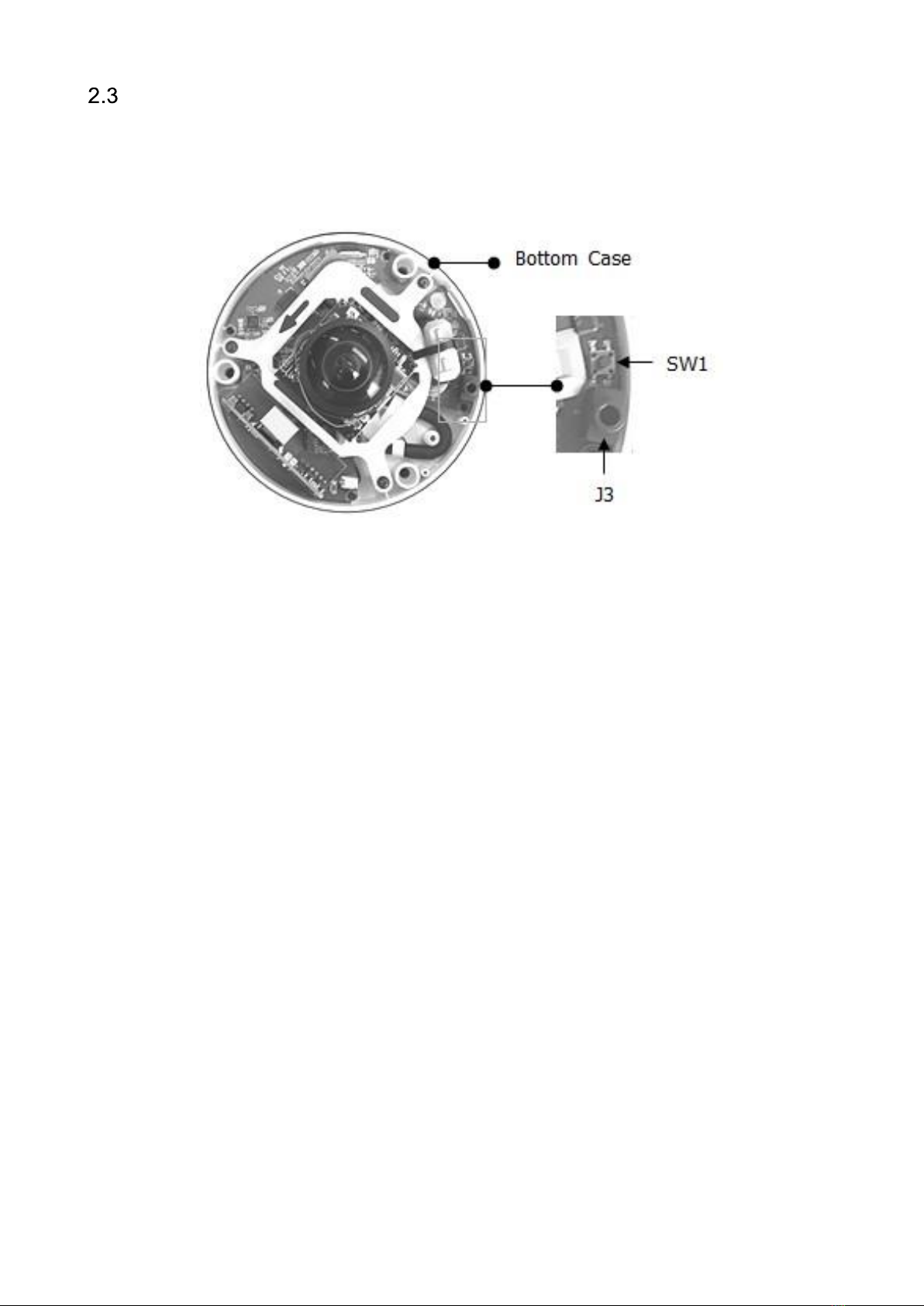

Resetting to the factory default settings
To reset the network camera to the original factory settings, go to the Setup > System >
Maintenance web page (described in “System > Maintenance” of User Manual) or use the
Reset button on the network camera, as describedbelow.
• Using the Reset button:
Follow the instructions below to reset the network camera to the factory default settings
using the Reset button.
1. Switch off the network camera by disconnecting the power adapter.
2. Open the top cover.
3. Press and hold the Reset button while reconnecting thepower.
4. Keep the Reset button pressed for at least 2 or more seconds.
5. Release the Reset button.
6. The network camera resets to factory defaults and restarts after completing the
factory reset.
CAUTION: When performing a Factory Reset, you will lose any settings that have
been saved. (Default IP 192.168.30.220)

12
Network Connection & IP assignment
The camera supports the operation through the network. When a camera is first connected
to the network, it is necessary to allocate an IP address to the device with the “SmartMan-
ager” utility on the CD. (Default IP192.168.30.220)
1) Connect the network camera/device to the network and power up.
2) Start SmartManager utility (Start > All programs > SmartManager > SmartManager).
The main window will display, and after a short while any network devices connected to the
network will be displayed in thelist.
3) Select the camera on the list and click right button of the mouse. You can see the pop-up
menu as below.
4) Select Assign IP Address. The Assign IP window will display. Enter the required IP ad-
dress.
NOTE: For more information, refer to the SmartManager User’s Manual.

13
Operation
The network camera can be used with Windows operating system and browsers. The rec-
ommended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with
Windows.
NOTE: To view streaming video in Microsoft Internet Explorer, set your browser to allow
ActiveXcontrols.
Access from a browser
1. Start a browser (Internet Explorer).
2. Enter the IP address or host name of the network camera in the Location/Address field
of your browser.
3. Youcan see a starting page. Click Live View, Playback, or Setup to enter web page.
4. The network cameras Live View page appears in yourbrowser.

14
Access from the internet
Once connected, the network camera is accessible on your local network (LAN). To access
the network camera from the Internet you must configure your broadband router to allow
incoming data traffic to the network camera. To do this, enable the NAT traversal feature,
which will attempt to automatically configure the router to allow access to the network cam-
era. This is enabled from Setup > System > Network > NAT.For more information, please
see “3.5.7 System > Network > NAT” of User’s Manual.
Setting the admin password over a secure connection
Togain access to the product, the password for the default administrator user must be set.
This is done in the “Admin Password” dialog, which is displayed when the network camera
is accessed for the setup at the first time. Enter your admin name and password, set by the
administrator.
NOTE: The default administrator user name and password is “admin”. If the password is
lost, the network camera must be reset to the factory default settings. Please see “Resetting
to the factory defaultsettings.”
Toprevent network eavesdropping when setting the admin password, this can be done via
an encrypted HTTPS connection, which requires an HTTPS certificate (see NOTEbelow).
Toset the password via a standard HTTP connection, enter itdirectlyinthefirstdialogshown
below. Toset the password via an encrypted HTTPS connection, please see “3.5.7 System
> Security > HTTPS” of User’s Manual.
NOTE: HTTPS (Hypertext Transfer Protocol over SSL) is a protocol used to encrypt the
traffic between web browsers and servers. The HTTPS certificate controls the encrypted
exchange ofinformation.

15
Live View Page
The Live View page comes in several screen modes: 2592x1944, 2048x1536, 1944x1944,
1440x1440, 1280x1024, 1280x960, 1024x1024, 1024x768, 720x720, 704x576, 640x480
and 480x480. Users are allowed to select the most suitable one out of those modes.Adjust
the mode in accordance with your PC specifications and monitoringpurposes.
1) General controls
Live View Page Playback Page Setup Page Help Page
The video drop-down list allows you to select a customized or pre-
programmed video stream on the Live View page. Stream profiles are con-
figured under Setup > Basic Configuration > Video & Image. For more in-
formation, please see “3.5.1 Basic Configuration > Video & Image” of User’s
Manual.
The resolution drop-down list allows you to select the most suitable one out
of video resolutions to be displayed on Live View page.
The protocol drop-down list allows you to select which combination of pro-
tocols and methods to use depending on your viewing requirements, and
on the properties of your network.

16

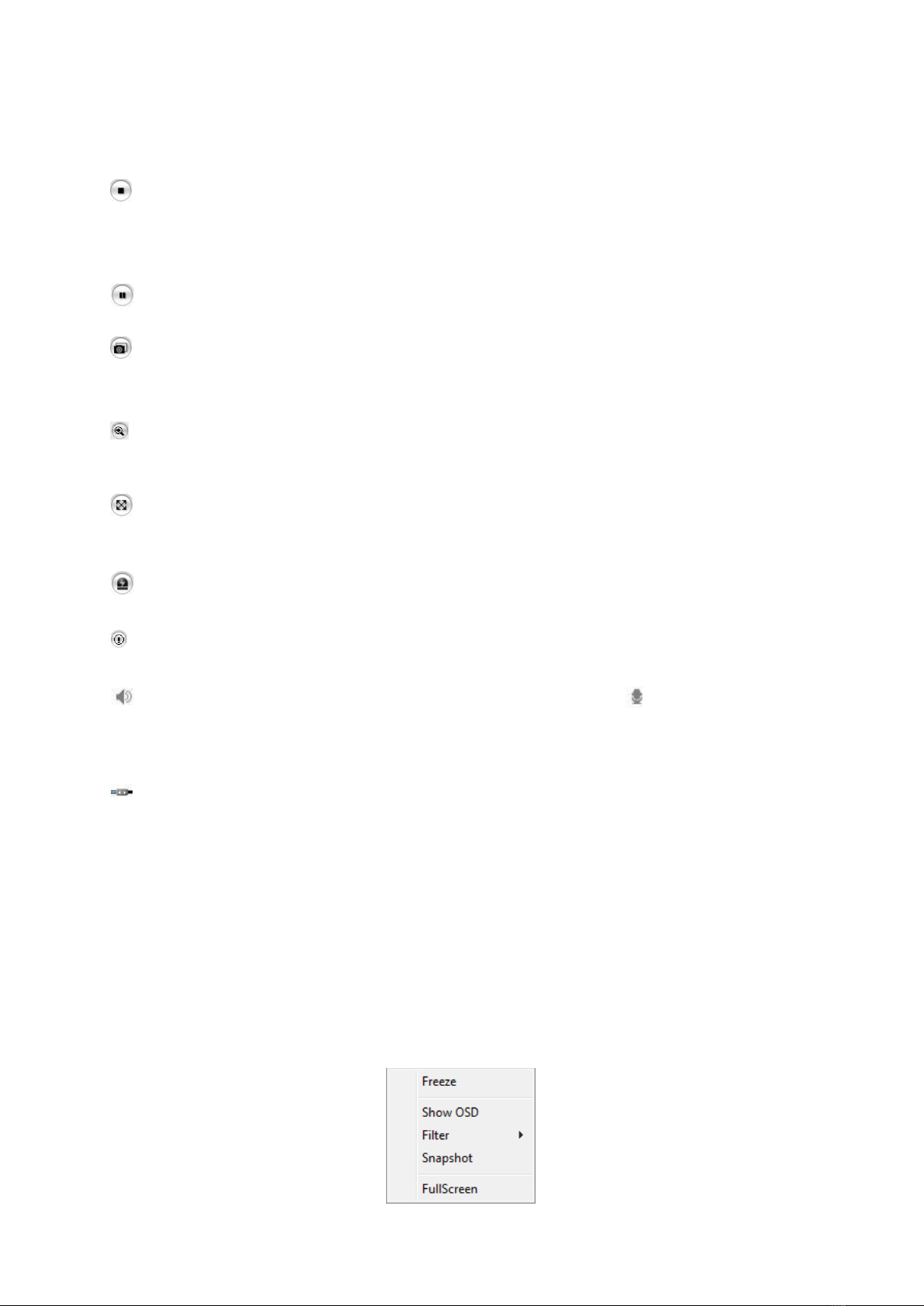

2) Control toolbar
The live viewer toolbar is available in the web browser page only. It displays the following
buttons:
The Stop button stops the video stream being played. Pressing the key again toggles
the start and stop. The Start button connects to the network camera or starts playing
a video stream.
The Pause button pauses the video stream being played.
The Snapshot button takes a snapshot of the current image. The location where the
image is saved can be specified.
The Digital Zoom button activates a zoom-in or zoom-out function for video image on
the live screen.
The Full Screen button causes the video image to fill the entire screen area. No other
windows will be visible. Press the ‘Esc’ button on the computer keyboard to cancel full
screen view.
The Manual Trigger button activates a pop-up window to manually start or stop the
event.
The Relay Output button manually triggers relay out. (This Icon appears only if “En-
able alarm out” is selected in “Event Out - AlarmOut”.)
The Speaker button activates/deactivates external speaker.
The Mic button activates/deactivates microphoneinput.
Use this scale to control the volume of the speakers and microphones.
3) Video Streams
The network camera provides several images and video stream formats. Your require-
ments and the properties of your network will determine the type youuse.
The Live View page in the network camera provides access to H.264 and Motion JPEG
video streams, and to the list of available video streams. Other applications and clients
can also access these video streams/images directly, without going via the Live View
page.
Click the right mouse button on the image, then a pop up window will appear as shown
in the followingfigure.

17
• Freeze
Pause the video stream beingplayed.
• Shown OSD
A toggle switch to show or hide current frame rate, date, and time on the video image.
• Snapshot
Takesa snapshot of the current image. The location where the image is saved can be
specified.
• FullScreen
Causes the video image to fill the entire screenarea.

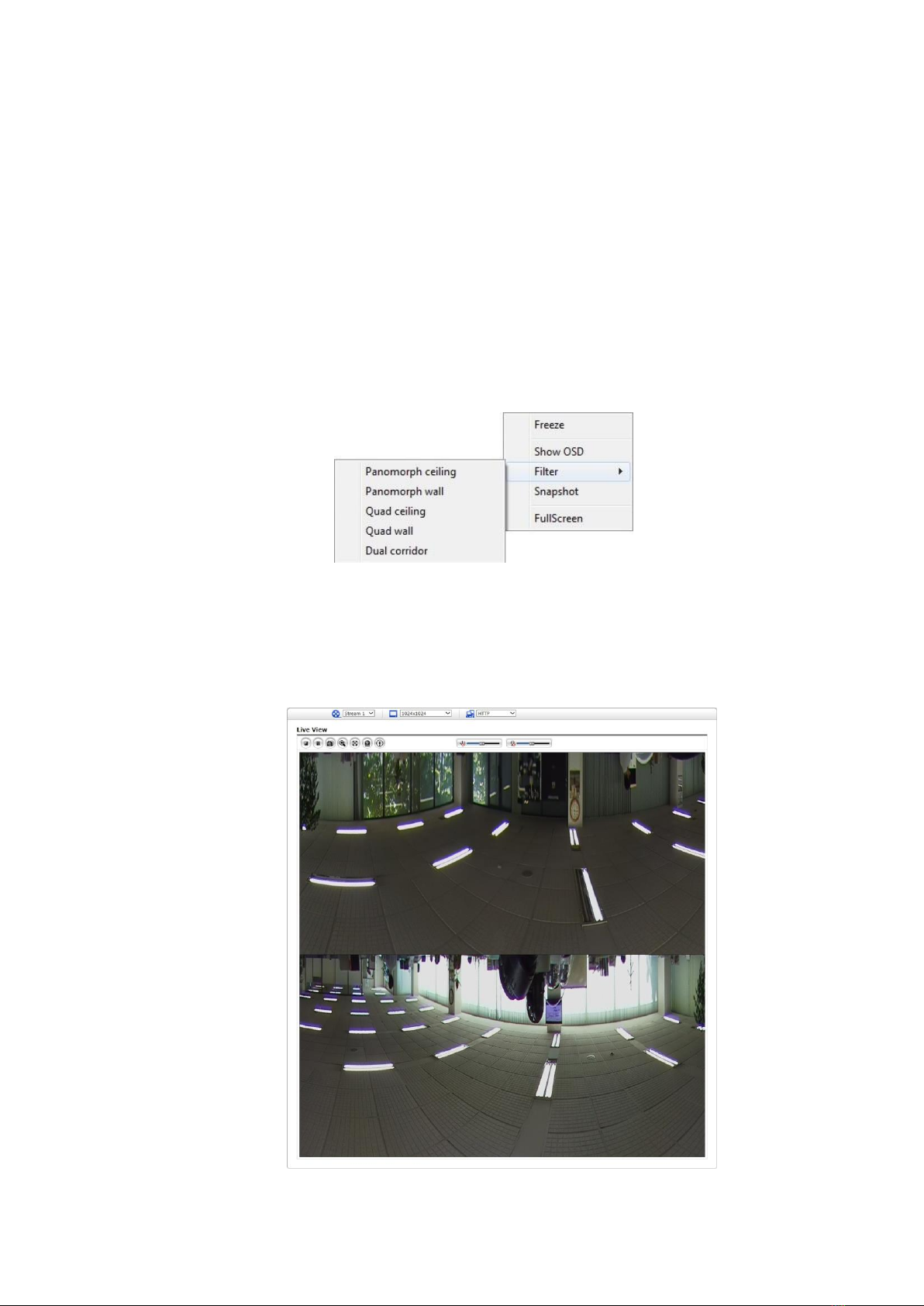

• Filter: This camera provides the following five filter options, one toggle filter andchoice
among 5 filters.
User can refer the following images for each 5 filter effects.
–PanomorphCeiling
Two horizontal dewarped images for ceiling mount. User can change FoV by
dragging mouse on the image, which pansimage.

18

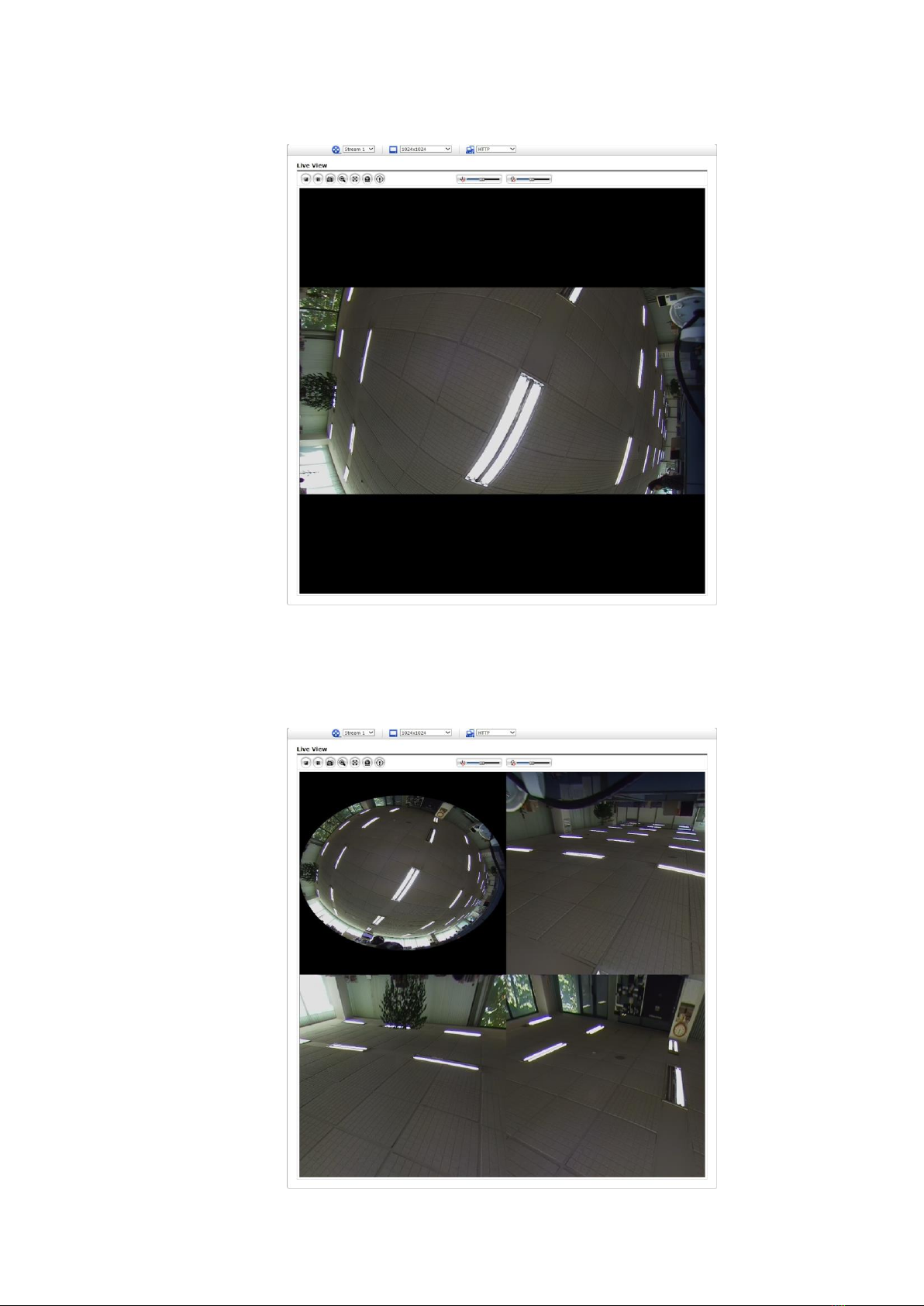

– Panomorph Wall
Single dewarped image for wallmount.
– Quad Ceiling
Quad dewarped images for ceiling mount. User can change FoV of each window
by dragging mouse or roll mouse wheel on the image, which pans, tilts, or zoom
image.

19
– Quad Wall
Quad dewarped images for wall mount. User can change FoV of each window
by dragging mouse or roll mouse wheel on the image, which pans, tilts, or zoom
image.
– Dual Corridor
Two vertical dewarped images. User can change FoV of each window by dragging
mouse or roll mouse wheel on the image, which pans, tilts, or zoom image.
