USER MANUAL
VP DOME NETWORK CAMERA
Please read this manual thoroughly before use and keep it handy for future reference.

2
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EX-
POSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY
METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER
OPENNINGS ON THE EQUIPMENT.
CAUTION
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is in-
tended to alert the user to the presence of dangerous voltage within the products
enclosure that maybeof sufficientmagnitudeto constitute a riskof electric shock
to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) instructions
in the literature accompanying theproduct.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF ELECTRICSHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICABLE PARTSINSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

3
FCC COMPLIANCE STATEMENT
CE COMPLIANCE STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful inter-
ference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC INFORMATION: This equipment has been tested and found to
comply with the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commer-
cial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the in-
struction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful in-
terference in which case the user will be required to correct the interference
at his own expense.
CAUTION: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil nume
`
rique de la classe A est conforme a
´
la norme NMB-003 du
Canada.
WARNING
This is a Class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
CAUTION
RISK OF EXPLOSION IF BATTERYIS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

4
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturers in-
structions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produceheat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two blades
and a third grounding prong. The wide blade or the third prong are provided for your safety,
if the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, conve-
nience receptacles, and the point where they exit from theapparatus.
11. Only use attachments/accessories specified by themanufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a cart is used.
Use caution when moving the cart/apparatus combination to avoid in-
jury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is re-
quired when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or ob-
jects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has beendropped.
15. CAUTION −THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED
SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT
PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE OPERATING IN-
STRUCTIONS UNLESS YOU QRE QUALIFIED TO DOSO.
16. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 power
source only.
17. ITE is to be connected only to PoE networks without routing to the outsideplant.

5
Contents
1Introduction 6
1.1 Components 6
1.2 Key Features 7
2Installation 8
2.1 Overview 8
2.2 Connection 11
2.3 Resetting to the factory default settings 12
2.4 Network Connection & IP assignment 13
3Operation 14
3.1 Access from a browser 14
3.2 Access from the internet 15
3.3 Setting the admin password over a secure connection 15
3.4 Live View Page 16
3.5 Playback 19
3.6 Network Camera Setup 21
3.6.1 Basic Configuration 21
3.6.2 Live View 25
3.6.3 Video & Image 26
3.6.4 Audio 35
3.6.5 Event 37
3.6.6 System 61
3.7 Help 82
AAppendix 83
A.1 Troubleshooting 83
A.2 Alarm Connection 84
A.3 Preventive Maintenance 84
A.4 System Requirement for Web Browser 85
A.5 General Performance Considerations 85
A.6 Product Specification 86

6
1 Introduction
The network camera supports the network service for a sensor image with progressive scan,
which can be monitored on a real-time screen regardless of distances and locations. By us-
ing its dedicated program, many users are able to have an access to the network camera
at once or a single user can monitor various network cameras at the same time. It also
enables users to play, store and retrieve a monitoring image by using a PC. All the settings
and real-time monitoring screens are also provided through an access to theweb.
The network camera is fully featured for security surveillance and remote monitoring needs.
It is based on the DSP compression chip, and makes it available on the network as real-time,
full frame rate Motion JPEG and H.264 videostreams.
The alarm input and alarm output can be used to connect various third party devices, such
as, door sensors and alarmbells.
1.1 Components
This system comes with the followingcomponents;
Dome Camera 1
Installation Guide/CD 1
Template Sheet 1
Accessory Kit 1
Note 1. Check your package to make sure that you received the complete system, includ-
ing all components listed above.
Note 2. Adapter for DC 12V is not supplied.

7
1.2 Key Features
• Brilliant video quality
The network camera offers the highly efficient H.264 video compression, which drasti-
cally reduces bandwidth and storage requirements without compromising image quality.
Motion JPEG is also supported for increased flexibility.
• Wide Dynamic Range
The network camera provides digital WDR (Wide Dynamic Range) that improves video
exposure quality in scenes with high contrast between bright and dark areas in the
video, for example a shady area and a sunny area in the same scene.
• Quad Streams
The network camera can deliver quad video streams simultaneously at full frame rate
in all resolutions up to Full-HD (1920 x 1080p) using H.264 and Motion JPEG. This
means that several video streams can be configured with different compression for-
mats, resolutions and frame rates for differentneeds.
• Image setting adjustment
The network camera also enables users to adjust image settings such as contrast,
brightness and saturation to improve images before encoding takes place.
• Intelligent video capabilities
The network camera includes intelligent capabilities such as enhanced video motion
detection. The network cameras external inputs and outputs can be connected to de-
vices such as sensors and relays, enabling the system to react to alarms and activate
lights or open/close doors.
• Improved Security
The network camera logs all user access, and lists currently connected users. Also, its
full frame rate video can be provided overHTTPS.
• PoE (Power over Ethernet)
This network camera can be powered through PoE (IEEE802.3af), which simplifies
installation since only one cable is needed for carrying power, as well as video controls.
• ONVIF Certificate
This is a global interface standard that makes it easier for end users, integrators, con-
sultans, and manufacturers to take advantage of the possibilities offered by network video
technology. ONVIF enables interoperability between different vendor products, increased
flexibility, reduced cost, and future-proofsystems.
• Micro-SD Recording support
The Network Camera also supports a micro-SD memory slot for local recording with
removable storage of type SDHC and SDXC.
• Audio support
The Network Camera also supports two-wayaudio.

8
2 Installation
For the operation of the Network Camera, it is necessary to connect a network cable for
data transmission, power connection from supplied power adapter. Depending on operation
methods, it is possible to connect an alarm cable additionally. For its fixation on different
locations, please consult with aninstaller.
2.1 Overview
• Dimension

9
• Extension Cable
NO
Item
Description
1
RJ-45
Ethernet, RJ-45 port compatible
with 10/100Mbps PoE Modular Jack
2
DC Jack
Main Power, DC Jack, DC12V
3
AI: Alarm In
Alarm input and output, 3pin terminal
G: GND
AO: Alarm Out
4
MIC: Audio In
Audio line input, 2pinterminal
G: GND
5
SPK: Audio Out
Audio line output, 2pinterminal
G: GND

10

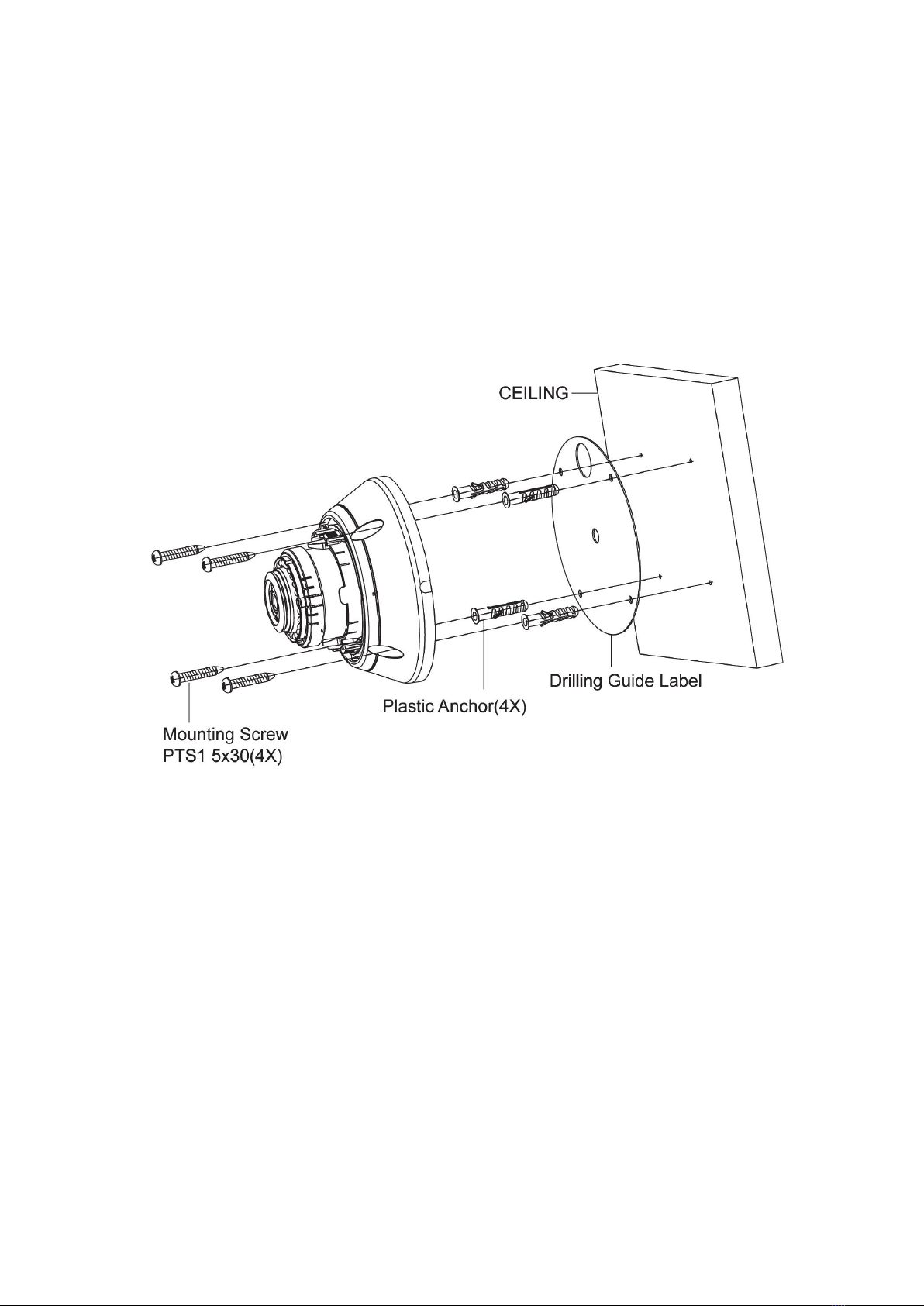

• Installing Camera
Carefully remove the contents from the box, and verity that nothing was damaged in ship-
mint.
1. Mark the screw whole positions on the ceiling or wall surface using the Template
Sheet.
2. Disassemble the camera by removing the domecover.
3. Mount the camera assembly using the Anchors (x2) and Screws (x2) to the surface of
the ceiling or wall.
4. Reassemble the dome cover on the camera assembly. TurnCamera Cover clockwise
to complete installation.

11
2.2 Connection
• Micro SD memory card insertion
Remove the bubble of the camera to insert the SD memorycard.
• Connecting to the RJ-45
Connect a standard RJ-45 cable to the network port of the network camera. Generally
a cross-over cable is used for directly connection to PC, while a direct cable is used for
connection to a hub. You can also use a router featuring PoE (Power over Ethernet) to
supply power to thecamera.
• Connecting Alarms
AI(Alarm In): Youcan use external devices to signal the network camera to react on
events. Mechanical or electrical switches can be wired to the AI (Alarm In) and G
(Ground) connectors.
G(Ground): Connect the ground side of the alarm input and/or alarm output to the G
(Ground)connector.
AO(Alarm Out): The network camera can activate external devices such as buzzers or
lights. Connect the device to the AO (Alarm Out) and G (Ground)connectors.
• Connecting the Power
Connect the power of 12 VDC 450mA for the network camera. Connect the positive
(+) pole to the ‘+’ position and the negative (-) pole to the ‘-’position for the DC power.
– Be careful not to reverse the polarity when connecting the power cable.
– A router featuring PoE (Power over Ethernet) can also be used to supply power to
the camera.
– For the power specifications, refer to the Appendix, Product Specification.
– If PoE and 12 VDC are both applied, the camera will be supplied with power from
PoE.
• Connecting Audio
Connect Speaker to Audio line output and external Mic to Audio input line.
SD memory card

12
2.3 Resetting to the factory default settings
To reset the network camera to the original factory settings, go to the Setup > System >
Maintenance web page (described in “System > Maintenance” of User’s Manual) or use
the Reset button on the network camera, as describedbelow.
• Using the Reset button:
Follow the instructions below to reset the network camera to the factory default settings
us- ing the Reset button.
1. Switch off the network camera by disconnecting the power adapter.
2. Press and hold the Reset button while reconnecting thepower.
3. Keep the Reset button pressed during about 2 seconds ormore.
4. Release the Reset button.
5. The network camera resets to factory defaults and restarts after completing the
factory reset.
CAUTION: When performing a Factory Reset, you will lose any settings that have
been saved. (Default IP 192.168.30.220)
Reset Button

13
2.4 Network Connection & IP assignment
The camera supports the operation through the network. When a camera is first connected
to the network, it is necessary to allocate an IP address to the device with the “Smart Man-
ager” utility on the CD. (Default IP192.168.30.220)
1) Connect the network camera/device to the network and power up.
2) Start Smart Manager utility (Start > All programs > Smart Manager > Smart
Manager). The main window will display, and after a short while any network devices
connected to the network will be displayed in thelist.
3) Select the camera on the list and click right button of the mouse. You can see thepop-up
menu as below.
4) Select Assign IP Address. The Assign IP window will display. Enter the required IP ad-
dress.
NOTE: For more information, refer to the Smart Manager User’s Manual.

14
3 Operation
The network camera can be used with Windows operating system and browsers. The rec-
commended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome
with Windows.
NOTE: To view streaming video in Microsoft Internet Explorer, set your browser to allow
ActiveXcontrols.
3.1 Access from a browser
• Start a browser (Internet Explorer).
• Enter the IP address or host name of the network camera in the Location/Address field
of your browser.
• You can see a starting page. Click Live View, Playback, or Setup to enter web page.
• The network cameras Live View page appears in yourbrowser.

15
3.2 Access from the internet
Once connected, the network camera is accessible on your local network (LAN). To access
the network camera from the Internet you must configure your broadband router to allow
incoming data traffic to the network camera. To do this, enable the NAT traversal feature,
which will attempt to automatically configure the router to allow access to the network cam-
era. This is enabled from Setup > System > Network > NAT.For more information, please
see “3.5.7 System > Network > NAT” of User’s Manual.
3.3 Setting the admin password over a secure connection
To gain access to the product, the password for the default administrator user must be set.
This is done in the “Admin Password” dialog, which is displayed when the network camera
is accessed for the setup at the first time. Enter your admin name and password, set by the
administrator.
NOTE: The default administrator user name and password is “admin”. If the password is
lost, the network camera must be reset to the factory default settings. Please see “Resetting
to the factory defaultsettings.”
Toprevent network eavesdropping when setting the admin password, this can be done via
an encrypted HTTPS connection, which requires an HTTPS certificate (see NOTEbelow).
Toset the password via a standard HTTP connection, enter itdirectlyinthefirstdialogshown
below. Toset the password via an encrypted HTTPS connection, please see “3.5.7 System
> Security > HTTPS” of User’s Manual.
NOTE: HTTPS (Hypertext Transfer Protocol over SSL) is a protocol used to encrypt the
traffic between web browsers and servers. The HTTPS certificate controls the encrypted
exchange ofinformation.

16
3.4 Live View Page
TheLiveViewpagecomesin severalscreenmodes: 1920x1080,1280x1024,1280x720(960),
1024x768, 704x480(576), 640x480(360) and 320x240. Users are allowed to select the most
suitable one out of those modes. Adjust the mode in accordance with your PC specifications
and monitoring purposes.
1) General controls
Live View Page PlaybackPage Setup Page Help Page
The video drop-down list allows you to select a customized or pre-
programmed video stream on the Live View page. Stream profiles are con-
figured under Setup > Basic Configuration > Video & Image. For more in-
formation, please see “3.5.1 Basic Configuration > Video & Image” of
User’ s Manual.
The resolution drop-down list allows you to select the most suitable one out
of video resolutions to be displayed on Live View page.
The protocol drop-down list allows you to select which combination of pro-
tools and methods to use depending on your viewing requirements, and
on the properties of your network.

17
2) Control toolbar
The live viewer toolbar is available in the web browser page only. It displays the following
buttons:
The Stop button stops the video stream being played. Pressing the key again toggles
the start and stop. The Start button connects to the network camera or starts playing
a video stream.
The Pause button pauses the video stream being played.
The Snapshot button takes a snapshot of the current image. The location where the
image is saved can be specified.
The Digital Zoom button activates a zoom-in or zoom-out function for video image on
the live screen.
The Full Screen button causes the video image to fill the entire screen area. No other
windows will be visible. Press the ‘Esc’ button on the computer keyboard to cancel full
screen view.
The Manual Trigger button activates a pop-up window to manually start or stop the
event.
The Lens Control button allows user to control Zoom and Focus manually. (This Icon
appears for motorized lens model only.)
• Focus: Click “-” button for far focus and click
“+” button to near focus.
• Zoom: Click “-” button to zoom out and click
“+” button to zoom in. The focus is moved
slightly after adjusting zoom; adjust the focus
again, asnecessary.
• Smart Focus User can get automated focus
here.
The Smart Focus button activates smart focus function which set the focus to the
optimum position. (This Icon appears for motorized lens model only.)
The Relay Output button manually triggers relay out. (This Icon appears only if “En-
able alarm out” is selected in “Event Out - AlarmOut”.)
The VCA button shows/hides VCA rule setting and detected objects.
The Speaker button activates/deactivates externalspeaker.

18
The Mic button activates/deactivates microphoneinput.
Use this scale to control the volume of the speakers and microphones.
3) Video Streams
The network camera provides several images and video stream formats. Your require-
ments and the properties of your network will determine the type youuse.
The Live View page in the network camera provides access to H.264 and Motion JPEG
video streams, and to the list of available video streams. Other applications and clients
can also access these video streams/images directly, without going via the Live View
page.

19
3.5 Playback
The Playback window contains a list of recordings made to the memory card. It shows each
recording’s start time, length, the event type used to start the recording, calendar and time
slice bar indicates if the recording is existed ornot.
The description of playback window follows.
(1) Video Screen
Youcan see the video screen when playing the video clip in the Micro SDmemory.
(2) Playback Buttons
To view a recording data in the SD local storage, select it from the list and click the
Playbackbuttons.
Go to the first: go to the beginning of the videoclip.
Fast backward play: fast play backward of the video clip.
Backward play: play backward of the videoclip.
Step backward play: go back one frame of the video clip.
Pause: pause playback of the videoclip.
Step forward play: go forward one frame of the video clip.
Forward Play: play forward the videoclip.
Fast forward play: play fast forward of the video clip.
Go to the last: go to the end of the video clip.
Clip copy: copy the video clip.
Zoom In: zoom in the video clip.
Full Screen: display full screen of thevideo.

20
(3) Time Chart
Display an hour-based search screen for the chosen date. If there is recording data, a
blue section will be displayed on a 24-hour basis. If you select a particular hour in the
chart, a yellow square on the hour will bedisplayed.
(4) Speaker Control Bar
Use this scale to control the volume of thespeakers.
(5) Search Calendar
Search results from the SD local storage in the network camera connected are displayed
monthly. If there is a recorded data for a particular date, a blue square on the date will be
displayed. If you select a particular date in the calendar, a yellow square on the date will
bedisplayed.
(6) Play Time
Displays time of the videoplaying.
(7) Event SearchWindow
Select a search option in the drop-down list and click GO button. You can also enter
the time period for searching. If you click Start Date or End Date zone, displays Search
Calendar.
(8) Event List Window
Event List displays the event(s) that were recorded in the SD local storage. Select a list
and click the play button. The video clip will beplayed.
