Audibax Detroit 1000 DSP User manual

Detroit 1000 DSP
Please read the manual before using the product
USER´S
MANUAL
3
Detroit 1000 DSP
Specifications
Model No.
Detroit 1000 DSP-SAT
Type
Active full range column speaker
Frequency Response (-6dB)
200 Hz - 21 kHz
Max. SPL (1m, free space)
109 dB
Power Output (RMS)
60W
Impedance
4Ohms
Transducer MF
4 * 2.75", neodymium magnet, 1" voice coil
Amplifier
Class-D amplifier
Audio / Power Input / Output
Top and bottom 4-pins-quick-insert with 4 core ( 2Core 24V / 2Core
Signal +/- )
Enclosure
PP Plastic
Grille
1.0mm thickness metal grille without acoustic fabric
Dispersion (H * V)
120° * 30°
Package Measure
19*17*38 cm
Gross Weight
2.1 kgs
Model No.
Detroit 1000 DSP-SUB
Type
10'' active bass reflex
Frequency Response (-6dB)
47 Hz - 200 Hz
Max. SPL (1m, free space)
117 dB
Power Output (RMS)
400W
Impedance
4 Ohms
Transducer LF
10" subwoofer, 1.5" voice coil
Amplifier
Class-D amplifier
DSP Module
96 kHz, 24-bit DSP processor with preset modes: Monitor, DJ, Live
Protection
Short circuit overheating, over-current
Controls
Power On / Off switch, satellite level, subwoofer level, Line/Mic
switch, Bluetooth On / Off switch, TWS switch, reset switch, DSP modes
switch
Indicators
Power, signal, limit, bluetooth, reset
Audio Input / Output
Left / Right female and male XLR input, 1 * XLR output, 1* Satellite
Speakon output
Power Input / Output
Speakon
Power Supply
100-230V~ 60/50Hz
Enclosure
15mm MDF with regular raindrop painting
Grille
1.0mm thickness metal grille without acoustic fabric
M20 Stand Adaptor
Yes
Package Measure
72*37*48 cm
Gross Weight
22 kgs

Detroit 1000 DSP USER´S
MANUAL
1 2
Please read and keep all safety and use instructions. Important Safety Instructions
Refer to the user manual for more information about your Detroit 1000 DSP
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufactu-
rer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produces heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding-type plug
has two blades and a third grounding prong. The wider blade or third prong is
provided for your safety. If the provided plug does not fit in your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles, and the point where it exits from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
13. Unplug this apparatus during lightning storms or when unused for long periods of
time.
14. Refer all servicing to qualified personnel. Servicing is required when the apparatus
has been damaged in any way such as power-supply cord or plug is damaged,
liquid has been spilled or objects have falleninto the apparatus, the apparatus has
been exposed to rain or moisture, does not operate normally, or has been dropped.
WARNINGS/CAUTIONS:
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
This symbol on the product means there is uninsulated, dangerous voltage
within the product enclosure that may present a risk of electrical shock.
This symbol on the product means there are important operating and
maintenance instructions in this guide.
Contains small parts which may be a choking hazard. Not suitable for
children under age 3.
This product contains magnetic material. Consult your physician on whether
this might affect your implantable medical device.

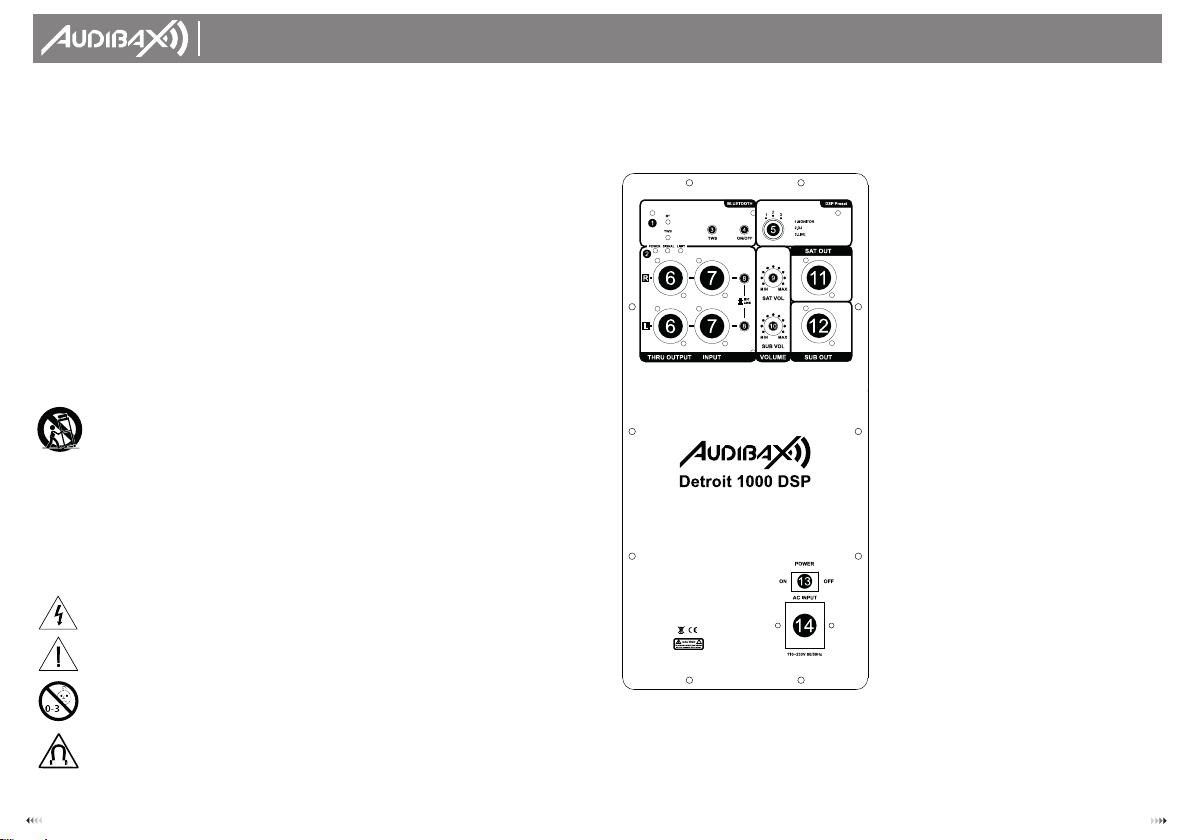

1. BT & TWS Indicator Light: Bluetooth mode /
True Wireless Stereo mode.
2. Indicator Light: Power / Signal / Limit.
T3. WS Button: Press once to enter True Wireless
Stereo Bluetooth mode.
4. ON/OFF Button: Press once to connect a
Bluetooth device or disconnect a paired
Bluetooth device.
5. DSP Preset: There are three preset mode:
Monitor / DJ / Live.
6. THRU Output:Balanced XLR connectors
connected in parallel to the inputs to connect
another device (e.g. another active speaker
system).
7. Input: Balanced XLR input for getting signals
from mixers or preamplifiers.
8. MIC/Line Select Button: Press down for Line
level signal, press up for Microphone level signal.
9. SAT VOL: Satellite Volume Control.
10. SUB VOL: Subwoofer Volume Control.
11. SAT Out: Balanced Speakon connectors
connected in parallel to the inputs to connect
satellite.
12. SUB Out: Balanced XLR connectors
connected in parallel to the inputs to connect
subwoofer.
13. Power Switch: Turns unit on or o.
14. AC Input: Please Use AC input cable from
the original manufacturer only.
System Setup
Connections and Controls
