Audio international RCP-020-x User manual

7300 Industry Drive, North Little Rock, AR 72117
Phone: [phone] Fax: [phone]
Guide to Operations
Cassette Player / AM-FM Tuner
Model #’s: RCP-020-x (-40x)
RCP-021-40x
Document #560023

AUDIO INTERNATIONAL, INC. 4/98
2
Document #560023, Rev IR , Model No.: RCP-020-x (-40x), RCP-021-40x
The RCP-020-x (-40x) and RCP-021-40x have been specially
engineered to meet aircraft use requirements.
READ THIS MANUAL COMPLETELY BEFORE
OPERATING YOUR CASSETTE PLAYER / AM-FM TUNER
If you have any questions, please contact Audio International, Inc. See the last
page of this booklet for the nearest AI representative.

AUDIO INTERNATIONAL, INC. 4/98
3
Document #560023, Rev IR , Model No.: RCP-020-x (-40x), RCP-021-40x
(This page intentionally left blank)

AUDIO INTERNATIONAL, INC. 4/98
4
Document #560023, Rev IR , Model No.: RCP-020-x (-40x), RCP-021-40x
TABLE OF CONTENTS
Page #
Table of Contents…………………………………………………………………….. 4
Product Features……………………………………………………………………… 5
Warnings………………………………………………………………………...……. 6
Cautions……………………………………………………………………...……….. 7
Introduction……………………………………………………………...…………… 8
Illustration of Front Panel...…………………………………………………………... 10
Radio Operation...….…………………………………………………………………. 11
Cassette Player Operation…………………………………………………………….. 12
Troubleshooting………………………………………………………………………. 14
Authorized Representatives………………………………………………………….. 15
PROPRIETARY NOTICE: Despite any copyright notice, this data and information disclosed herein is unpublished
and contains confidential, proprietary design owned by Audio International Incorporated. Neither this data nor the
data contained herein shall be reproduced, used or disclosed to anyone

AUDIO INTERNATIONAL, INC. 4/98
5
Document #560023, Rev IR , Model No.: RCP-020-x (-40x), RCP-021-40x
PRODUCT FEATURES
•Custom Design for Aircraft: Operates directly from 28 VDC
Compact, lightweight package
•Multiple Control Options: Backlit LCD indicator
Optional infrared remote controllable
RS-485 digital data bus compatible
•High Quality Output: Adjustable stereo output level from 1 to 5 V RMS
Full range frequency response
•Installation Options: Standard plating options for front bezel
Optional stacked mounting frame
Easy to mount and connect

AUDIO INTERNATIONAL, INC. 4/98
6
Document #560023, Rev IR , Model No.: RCP-020-x (-40x), RCP-021-40x
WARNINGS
•DO NOT touch the liquid crystal fluid if the LCD is damaged
or broken. The liquid crystal fluid may be dangerous. If the
liquid crystal fluid contacts your body or clothing, wash it off
with soap immediately.
•DO NOT attempt to open the case. Refer servicing to qualified
personnel.
•DO NOT place foreign objects into openings. Contact with
foreign objects may result in dangerous voltage or electric
shock.
•DO NOT place unit near hot air ducts, heating elements, or
other heat sources.
STOP

AUDIO INTERNATIONAL, INC. 4/98
7
Document #560023, Rev IR , Model No.: RCP-020-x (-40x), RCP-021-40x
CAUTIONS
•DO NOT use this unit other than for its intended purpose. Doing
so might lead to electric shock or injury or damage to the
equipment.
•DO NOT use near water, moisture, or volatile sprays. Do not use
any type of solvent when cleaning (surface damage may occur).
•DO NOT leave cassettes loaded in the unit with no power applied.
CAUTION

AUDIO INTERNATIONAL, INC. 4/98
8
Document #560023, Rev IR , Model No.: RCP-020-x (-40x), RCP-021-40x
INTRODUCTION
•The names and functions of the RCP front panel are as follows:
1. Tuner Off – To turn the tuner to the “off”state or to select the tuner during
cassette playback (the cassette will stop if the tuner “off”button is pressed
during playback).
2. AM/FM Dolby - To select the radio band (AM or FM)or to select Dolby
Noise Reduction during cassette playback (the cassette will stop if the
Dolby button is pressed during playback; the play button must be pressed
to restart playback).
3. Track (Forward) –To fast-forward a cassette or to start a forward
radio station search while player is in tuner mode.
4. Track (Reverse) - To reverse a cassette or to start a reverse radio
station search while player is in tuner mode.

AUDIO INTERNATIONAL, INC. 4/98
9
Document #560023, Rev IR , Model No.: RCP-020-x (-40x), RCP-021-40x
5. Play/Reverse -- To play or reverse playback direction without having
to remove the cassette. Select cassette playback from tuner mode if a
cassette is loaded.
6. Eject - To eject a cassette from the unit.

AUDIO INTERNATIONAL, INC. 4/98
10
Document #560023, Rev IR , Model No.: RCP-020-x (-40x), RCP-021-40x

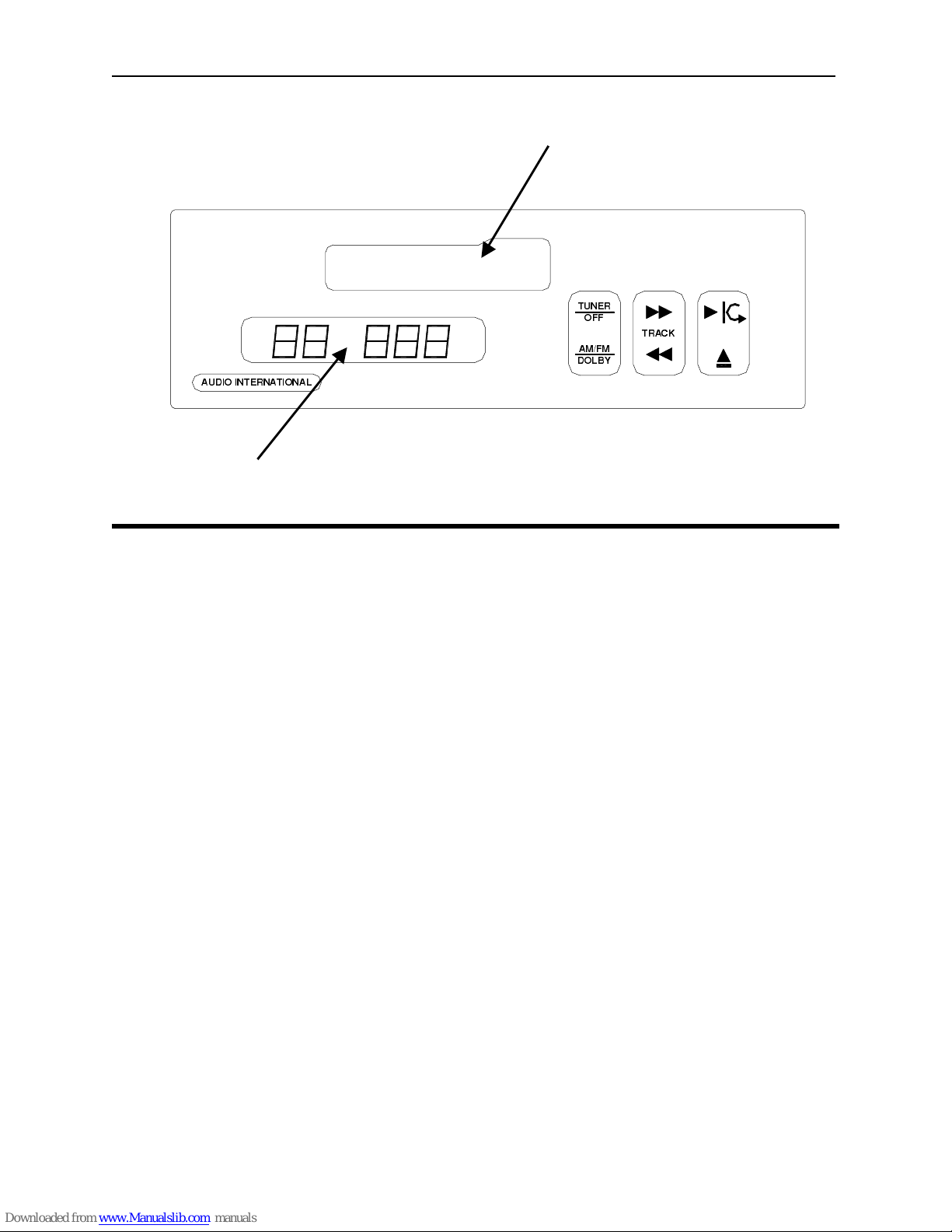

ILLUSTRATION OF FRONT PANEL
CassetteInsertionSlot
Digital Display
TRACK
TUNER
OFF
AM/FM
DOLBY
AUDIO INTERNATIONAL

AUDIO INTERNATIONAL, INC. 4/98
11
Document #560023, Rev IR , Model No.: RCP-020-x (-40x), RCP-021-40x
RADIO OPERATION
1. Press “Tuner”button to activate the radio.
2. Press AM/FM to select the desired band. Each time you press, the band switches
between AM/FM.
3. The AM/FM DOLBY button, track advance , and track reverse buttons
may be utilized to “search”for and lock in a radio station. Press the appropriate
button until the desired station is located. The digital display will indicate the
selected station.
4. Press “Tuner Off”to deactivate the radio.

AUDIO INTERNATIONAL, INC. 4/98
12
Document #560023, Rev IR , Model No.: RCP-020-x (-40x), RCP-021-40x
CASSETTE PLAYER OPERATION
1. Insert a cassette into the slot with the label facing up. The digital display will
read “cassette - IN”. The symbol will illuminate when a cassette is being
played.
2. Press to reverse playback direction of the tape to the opposite side of the
inserted cassette. The symbol or symbol will illuminate on the digital
display to indicate the direction of play of the cassette.
3. To stop playing a cassette, press the symbol. The cassette will stop playing
and eject from the slot.
4. To fast-forward cassette play, press the symbol. The cassette will fast-
forward until the next selection is located. Fast-forward will stop and playback
will resume.
5. To reverse cassette play, press the symbol. The cassette will reverse
playback until the preceding selection is located. Reverse search will stop and
playback will resume.

AUDIO INTERNATIONAL, INC. 4/98
13
Document #560023, Rev IR , Model No.: RCP-020-x (-40x), RCP-021-40x
6. To make a reverse track search, press the symbol. The display will indicate
a “0”(current selection). Press once to search back to the beginning of the current
track, press twice to search back to the beginning of the previous selection (the
display will indicate “1”), etc. Each press of the button will change the display to
count the number of selections from 1 to 9. Play starts at the beginning of the
displayed selection number.
7. To make a forward track search, press the symbol. The display will
indicate a “1”. Press once to fast forward to the next selection (the display will
indicate a “2”), press twice to fast forward to the next selection (the display will
indicate a “3”), etc. through 9 selections. Play starts at the beginning of the
displayed track number.
8. To eject the cassette from the slot, press the eject symbol .

AUDIO INTERNATIONAL, INC. 4/98
14
Document #560023, Rev IR , Model No.: RCP-020-x (-40x), RCP-021-40x
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
No Power. Faulty wiring
Circuit breaker not ON
Connect to 28 VDC. Check connections.
Turn circuit breaker to ON position.
No Sound Cassette not installed
Cassette defective
Tuner not turned “on”
Install Cassette
Replace Cassette
Turn tuner “on”
Buttons not operating Moisture may have condensed inside the
unit. Allow unit to warm to room temperature and moisture has evaporated.
Cassette cannot be
inserted Foreign object in tape slot Remove foreign object
Unit does not eject
cassette EJECT button not functioning See above or play cassette to end for automatic cassette ejection

AUDIO INTERNATIONAL, INC. 4/98
15
Document #560023, Rev IR , Model No.: RCP-020-x (-40x), RCP-021-40x
AUTHORIZED REPRESENTATIVES
Audio International, Inc. – Home Office Audio International, Inc. –Midwest Operations
7300 Industry Drive
North Little Rock, AR 72117 8925 West Maple Street, Suite #1
Wichita, KS 67209
Phone [phone] •Fax [phone] Phone [phone] •Fax [phone]
Audio International, Inc. –Southwest Operations
7350 Cedar Springs
Dallas, TX 75235
Phone [phone] •Fax [phone]
Audio International, Inc. –Western Operations
1255 Aero Park Blvd.
Tucson, AZ. 82706
Phone [phone] •Fax [phone]
Audio International, Inc. –Canadian Operations
200 Cote Vertu Road West
Dorval, Quebec H4S-1Y9
Phone [phone], Ext. 2459 •Fax [phone]
