Audio Technica 3000 Series User manual

3000 Series
Wireless In-Ear Monitor System
User Manual
English
Safety precautions
Cautions for the headphones
Cautions for charging case
Cautions for rechargeable battery
Notes on use
About water-resistant (drip-proof) performance
For a more comfortable Bluetooth communication experience
Part names and functions
Headphones
Charging case
Accessories
Charging the battery
Charging the headphones and charging case
Charging headphones without the USB charging cable
Power supply ON/OFF
Turning on the product
Turning off the product
Connecting via Bluetooth
Pairing a Bluetooth device
Pairing with Fast Pair
About pairing
Wearing the product
Touch sensors
Unlocking
Using the product
Listening to music
R (right) side headphone touch sensor operations
L (left) side headphone touch sensor operations
Talking on the phone
R (right) side headphone touch sensor operations
L (left) side headphone touch sensor operations
Hear-through mode
Low latency mode
Auto power off function
Indicator lamp display
Pairing
Connecting
Battery level
Voice guidance
Cleaning
Eartips
Eartip size
Replacing the eartips
Resetting
If the product operates abnormally (reset)
Troubleshooting
Specifications
Headphones
Microphone
Communication specifications
Other
Trademarks

1
Important information
The product is intended for commercial use, not for general use.
Warning:
To prevent fire or shock hazard, do not expose this apparatus to rain or moisture.
Caution:
•Do not expose this apparatus to drips or splashes.
•To avoid electric shock, do not open the cabinet.
•Refer servicing to qualified personnel only.
•Do not expose this apparatus to excessive heat such as sunshine, fire or the like.
•Do not subject this apparatus to strong impact.
•This apparatus should be located close enough to the AC outlet so that you can easily grasp the AC adapter at any
time.
•In case of emergency, disconnect the AC adapter quickly.
•Do not place any objects filled with liquids, such as vases, on this apparatus.
•To prevent fire, do not place any naked flame sources (such as lighted candles) on this apparatus.
•Keep the product out of the reach of small children. The product is not intended for use around children.
•Do not place the product near fire to avoid an accident or the product catching fire.
•Do not install this apparatus in a confined space such as a bookcase or similar unit.
•Install this apparatus only in the place where ventilation is good.
•The rating label is put on the bottom of this apparatus.
•It is desirable that the transmitter should be installed and operated keeping it at least 20 cm or more away from
person’s body.

2
Battery caution:
•Keep batteries out of the reach of children.
•Observe correct polarity as marked.
•Do not expose the battery to excessive heat such as sunshine, fire or the like.
•Always consider the environmental issues and follow local regulations when disposing of batteries.
•Remove depleted battery immediately.
•Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
•Use only disposable LR06 (AA) alkaline or Ni-MH batteries.
•Do not use new and old batteries at the same time.
•Do not use different battery types or models.
•Do not use a leaking battery. If battery leakage occurs, avoid contact with skin. If contact occurs, immediately wash
thoroughly with soap and water.
•If battery leakage comes into contact with your eyes, immediately flush with water and seek medical attention.

3
For customers in the USA
FCC Notice
Warning:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Caution:
You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to
operate this equipment. A license is required to use the frequency bands under FCC Part 74.
Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
− Reorient or relocate the receiving antenna.
− Increase the separation between the equipment and receiver.
− Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
− Consult the dealer or an experienced radio/TV technician for help.
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter used in other
systems.
RF Exposure Statement
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC
radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that is deemed to comply
without testing of specific absorption rate (SAR).
Contact:
Responsible Company: Audio-Technica U.S., Inc.
Address: 1221 Commerce Drive, Stow, Ohio 44224, USA
Tel: [phone]

4
For customers in Canada
ISED statement
CAN RSS-Gen/CNR-Gen
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic
Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.
This device complies with RSS-102 radiation exposure limits set forth for an uncontrolled environment.

5
Notes on use
•Be sure to read the user manual for any microphone or cable that you attach to the product.
•Unplug the AC adapter from the power outlet when not using the product.
•Turn off the power of this product before connecting or disconnecting cables.
•If you use the product near a TV or radio antenna, noise may be generated in the TV or radio. If this occurs, move
the product away from the device.
•Two waves of the same frequency can't be used simultaneously.
•Be careful of interference noise caused by the surrounding radio wave environment and use of multiple systems.
•Wireless systems may be affected by the spark noise of vehicles, dimmer of lighting apparatus, computers, office
automation apparatus and electronic musical instruments. Place and use the product where it is less likely to be
affected by the above.
•Be sure to use the product in combination with components specified by Audio-Technica.
•Be sure to use a general-purpose LAN that complies with the Ethernet standard (CAT5e or higher, with shielding is
recommended).
•Disconnect the LAN cable when not using the network.
•Be sure the connected cable is plugged all the way into the product.
•If you use the product close to an electronic or communications device (such as a mobile phone), the product may
produce unwanted noise. If this occurs, move the product away from the device.
•When installing the product, ensure that there are no obstacles between the receiver and transmitter that may block
the signal.
•To prevent depletion of the batteries/rechargeable batteries, turn off the receiver after use or when not in use.
•Over time, discoloration may occur due to ultraviolet rays (especially direct sunlight) and friction.
•It is legally prohibited to dismantle and modify this product. In addition, this product is so precisely manufactured
that dismantling it could cause electric shock, failure, or fire. Never dismantle this product.
Using multiple wireless systems
•When using multiple units at the same time, use them in the same group and channel.
•When multiple units are used simultaneously, the receiver and transmitter should be at least 3 m (9.8') apart.
•When using multiple units, turn on receivers one by one, making sure there is no unwanted noise.

6
About Hearing Damage
WARNING!
USE AS LOW A VOLUME AS POSSIBLE. PERMANENT HEARING DAMAGE CAN RESULT FROM USING THIS SYSTEM
AT EXCESSIVE VOLUMES.
For safe operation of this in-ear monitor system, do not listen at excessive sound pressure levels.
Most national safety and health administrations have established guidelines for maximum time being exposed to sound
pressure levels before hearing damage occurs.
Sound pressure levels (SPL)
Maximum time being exposed
85 dB (A) SPL
8 hours
88 dB (A) SPL
4 hours
91 dB (A) SPL
2 hours
94 dB (A) SPL
1 hour
97 dB (A) SPL
30 minutes
100 dB (A) SPL
15 minutes
120 dB (A) SPL
avoid or hearing damage may occur
In live settings it is difficult to make exact measurements of sound pressure levels (SPL) present at the eardrum, which
is affected not only by the in-ear monitor volume, but by ambient sound on the stage and other factors.
To protect your ears from hearing damage:
•Use the in-ear monitor system at the lowest volume possible; turn up the volume only enough to hear.
•Be aware that ringing in your ears may indicate that the volume is set too high.
•Have your ears examined regularly by an audiologist.
•If wax builds up in your ears, stop using the in-ear monitor system until you have seen an audiologist.
•To avoid infections, use an antiseptic to wipe the earphones before and after using the system.
•Stop using the earphones if you experience ear discomfort or infection.

7
Maintenance
•If the product becomes stained or covered with dust, be sure to disconnect the power plug before wiping it off with
a dry and soft cloth.
•Do not use benzene, thinner, or electrical contact cleaner, etc. Doing so may cause deformation, damage, or
malfunction.

8
About this system
This system (3000 Series Wireless In-Ear Monitor System) is designed to provide professional sound quality and
functionality for all levels of live performance. It creates an optimal in-ear monitoring environment for live performance
venue owners, system integrators, and performing musicians. A rack-mounted transmitter with front panel controls and
large OLED display, a body-pack receiver with efficient headphone amplifier, and the ATH-E40 professional in-ear monitor
headphones that create a balanced monitoring environment, are included in the package. These elements combine to
provide clear, natural sound quality at every stage. Additional features include network monitoring and control via
dedicated “Wireless Manager” software, and a cue mode that allows audio engineers to monitor multiple channels with
a single receiver.

9
Part names and functions

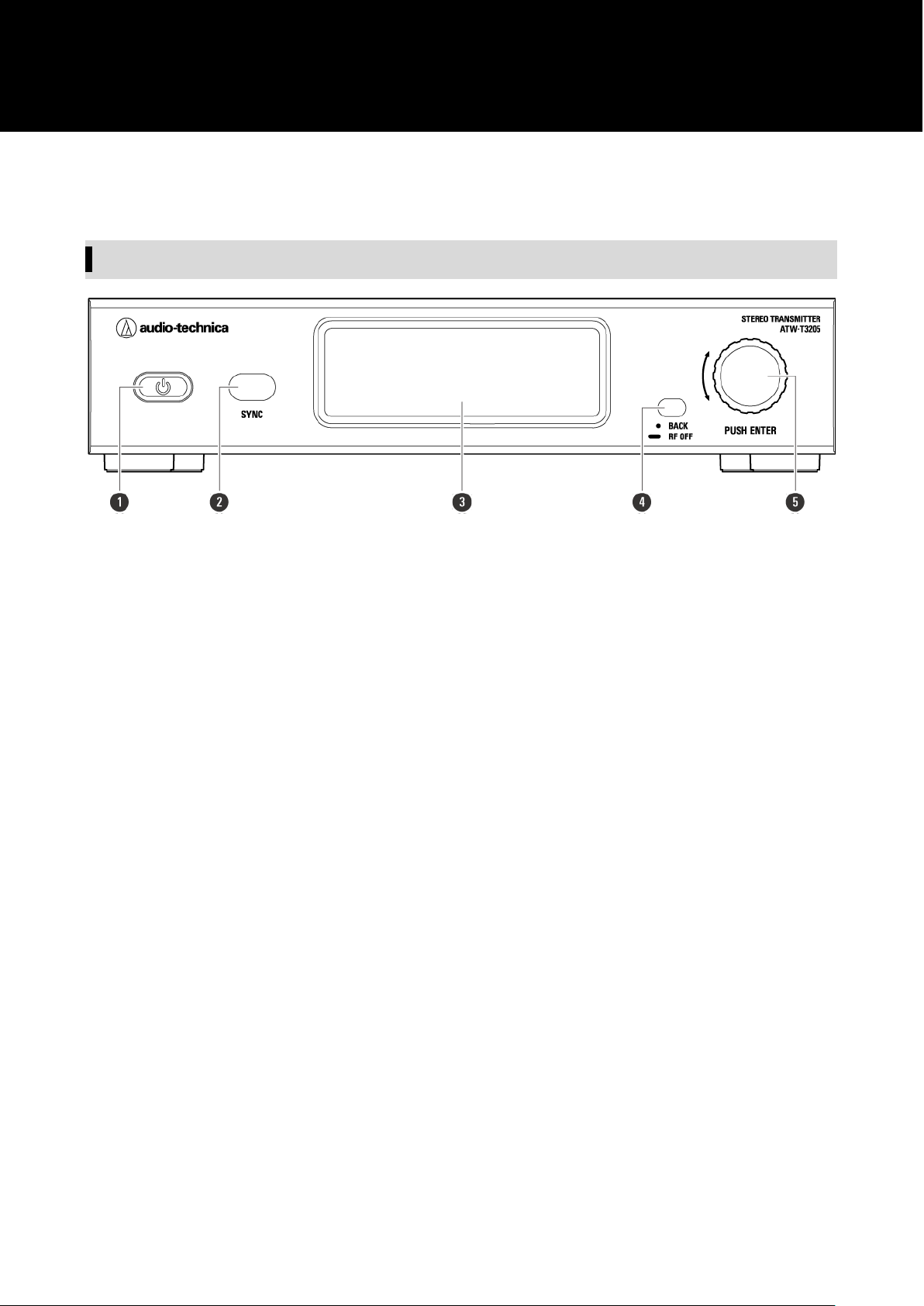

ATW-T3205 (Stereo Transmitter)
Front panel
❶Power button
Turns transmitter on or off.
❷IR sync window
Used for IR SYNC with receiver.
➌Display
Displays the transmitter status and settings.
❹BACK button
Press to take the display back one screen.
Press and hold (about 2 seconds) on the main screen to toggle RF OFF (turning on while pressing and holding the BACK
button will start the transmitter in RF OFF mode).
Press and hold on the menu screen to return to the main screen.
➎Control dial
Press to display the setting menu. Turn the control dial to select a setting item and press to confirm.
Press and hold (about 2 seconds) to display the “RX SYNC” screen.

10
Rear panel
❶RF output jack
Connect the included flexible UHF antenna.
❷Balanced input jack (XLR 3-pin male)
➊GND
➋HOT
➌COLD
➌Balanced output jack (6.3 mm (1/4”) TRS female)
❹Network interface
By connecting to a PC via Ethernet, you can use the PC for monitoring and control.
LAN: 100Base-TX
➎Power input jack
Connect the AC adapter.
➏AC adapter cord hook
Hang the power cord of the AC adapter to prevent it from pulling loose accidentally.

11
ATW-R3250 (Stereo Receiver)
➊Receiving antenna
➋Function button
Press to turn the screen back on if it shuts off.
Press when the screen is lit to enter the audio setup screen.
➌3.5 mm (1/8”) headphone output jack
➍ON/OFF volume knob
Turns the power on or off.
Turn the knob to adjust the volume.

12
➎Indicator
LED that shows the status of the receiver.
When unmuted: Solid green
When muted: Solid red
➏Display
Shows the current status. If no buttons are pressed for a period of 30 seconds, the display will turn off.
➐SYNC button
Use to IR SYNC with the transmitter.
➑UP button
Use to select various settings.
➒BACK button
Press to take the display back one screen. Press and hold to return to the main screen.
➓SET button
Press to display the settings screen. Select the setting item and press to confirm the selection.
⓫DOWN button
Use to select various settings.
⓬Battery cover
⓭IR sync window
Use to IR SYNC with the transmitter.
⓮Charging terminal
Note
•When using the ATW-CHG3 or ATW-CHG3N Two-Bay Charging Station (sold separately), the receiver can
be charged.

13
ATH-E40 (Dynamic In-Ear Headphones)
Also read the ATH-E40 user manual before use.
➊A2DC connector plug
➋Housing
➌Cable adjustment slider
❹1.6 m (5.2') detachable cable
➎Input plug (3.5 mm (1/8”) gold-plated stereo mini-plug (L-shaped))
➏LEFT/RIGHT (L/R) indicator
➐Eartip

14
Replacing the detachable cable
The cable on the ATH-E40 is detachable. If there are signs of deterioration, replace the cable (sold separately). Do not
detach the cable except when replacing it with a new cable.
➊Headphone
➋Cable
How to detach the cable
Hold the connector and pull straight out in the direction shown by the arrow.
How to attach the cable
Plug the left or right connector in as shown in the figure until it clicks.
Caution
•The detachable connector is very delicate. Pulling at an angle or mounting at an angle will cause the
pins to bend, resulting in malfunction. Only pull or attach in a straight motion to prevent malfunction.
Wearing the headphones
1Wear the headphones with the “L” (left) marked on the left ear and the “R” (right) marked on the right ear and
adjust the eartips.
2Adjust the cable length with the cable adjustment slider.

15
System configuration examples
Basic connection example
The mixer mixes the sound of vocals, guitars, and other instruments, transmits that sound from the transmitter to the
receiver, and monitors it through headphones from the receiver.
Loop out connection example (1)
Use the loop out to send the band mix from the mixer and individual vocals, guitars, and other instrument sounds from
the transmitter to the receiver, mix them at the receiver, and monitor them through headphones. The band mix is shared
to all transmitters using the loop out, with individual sound and mix balance adjustments.

16
Loop out connection example (2)
Use the loop out to output the sound input to the transmitter to an external connected device (recorder, speakers, etc.).
You can record simultaneously with your performance or output to floor speakers.

17

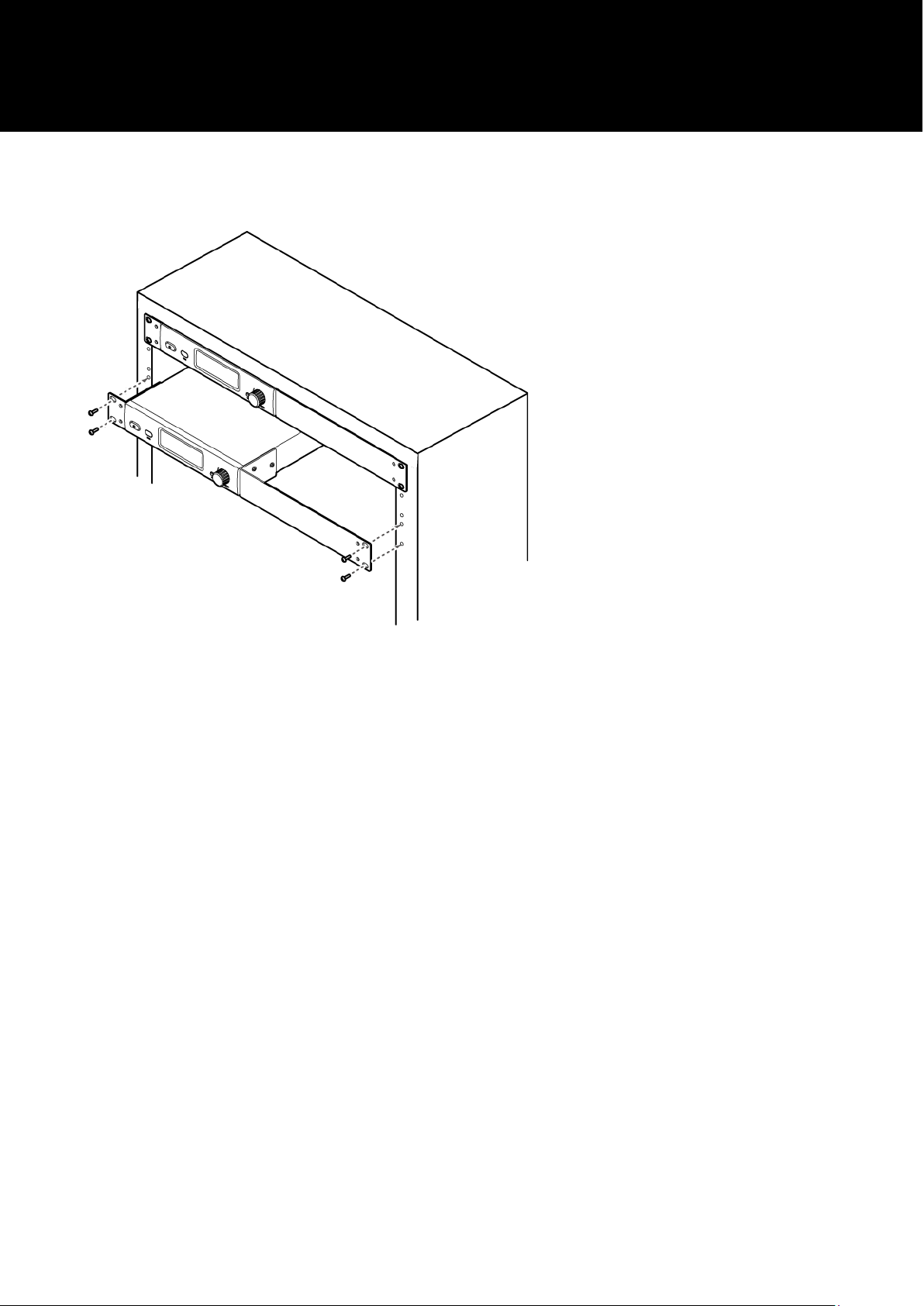

Rack-mounting (ATW-T3205)
•Screws for rack-mounting the transmitter are not included.
•Consider ventilation when rack-mounting to avoid heat building up in the rack.

18
Using the belt clip (ATW-R3250)
The ATW-R3250 is equipped with a belt clip, so it can be attached to a belt, etc.
Belt clip orientation
The belt clip can be attached in the opposite direction.
How to remove the belt clip
To remove the belt clip from the receiver, pull both sides of the belt clip strongly outward.

19
Inserting batteries (ATW-R3250)
1Slide the battery cover latches down.
2Open the battery cover while holding the latches down.
