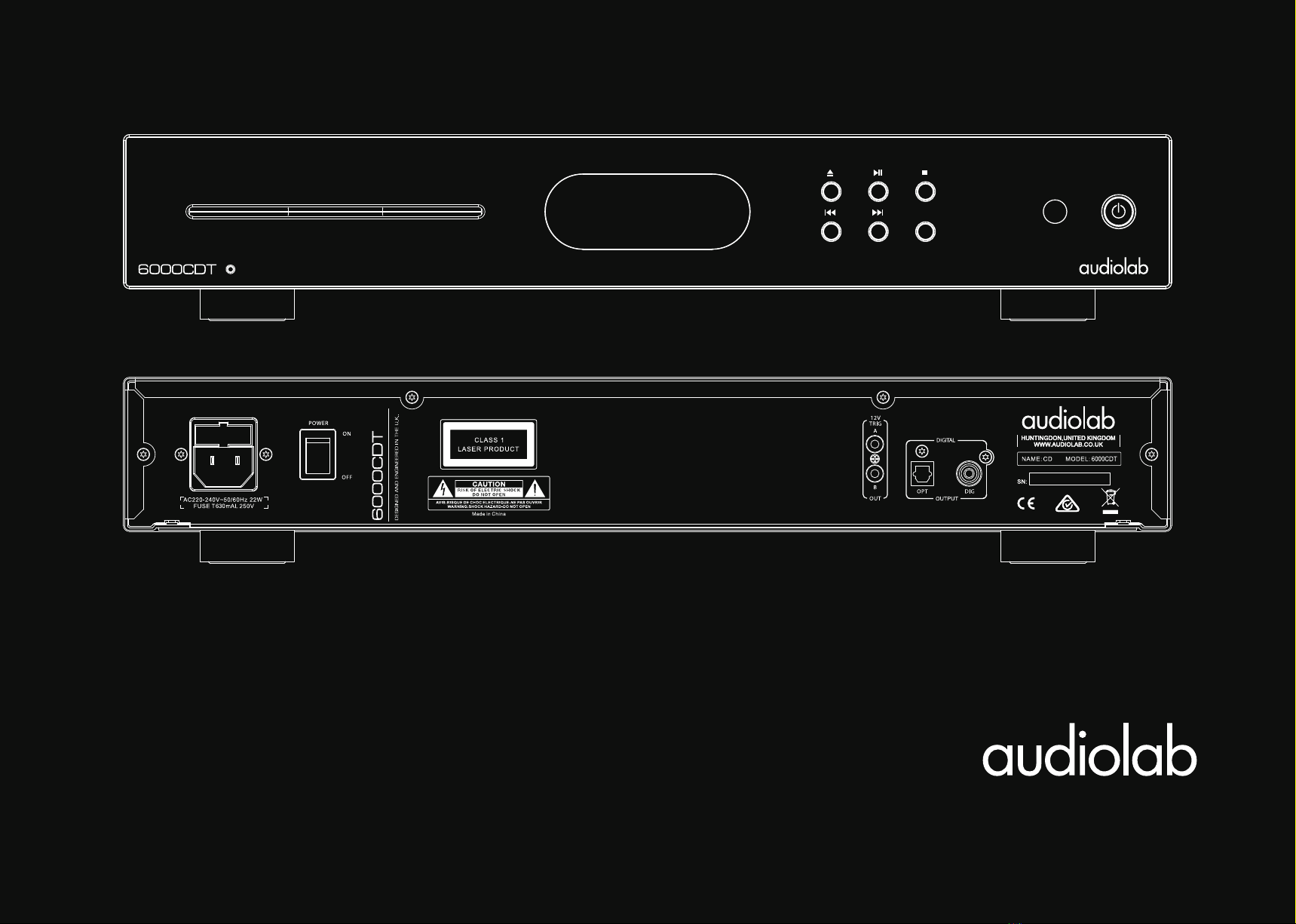

Audiolab 6000CDT User manual

User Instructions
6000CDT
REPEAT

Page 1
1: Important Safety Information
IMPORTANT SAFETY INFORMATION
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
WARNING: SHOCK HAZARD-DO NOT OPEN
This lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of non-insulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock.
Warning: To reduce the risk of electric shock, do not remove
cover (or back) as there are no user-serviceable parts inside.
Refer servicing to qualified personnel.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance instructions in the literature
accompanying the appliance.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding plug has two blades
and a third grounding prong. The wide blade or the third
prong is provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched
particularly at the plugs, convenience receptacles, and at
the point where they exit from the apparatus.
Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart or rack
is used, use caution when moving the
cart/apparatus combination to avoid injury
from tip-over.
Unplug this apparatus during lightning storms or when
unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any
way, such as power supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
CAUTION: These servicing instructions are for use by
qualified service personnel only. To reduce the risk of
electric shock, do not perform any servicing other than that
contained in the operating instructions unless you are
qualified to do so.
Do not install this equipment in a confined or built-in space
such as a bookcase or similar unit, and keep well ventilated
in open space. The ventilation should not be impeded by
covering the ventilation openings with items such as
newspaper, table-cloths, curtains etc.
WARNING: Only use attachments/accessories specified
or provided by the manufacturer (such as the exclusive
supply adapter, battery etc).
WARNING: Please refer to the information on the exterior
panel of the enclosure for electrical and safety information
before installing or operating the apparatus.
WARNING: The battery (battery or batteries or battery pack)
shall not be exposed to excessive heat such as sunshine, fire
or the like.
CAUTION: Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type.
WARNING: For the terminals marked with symbol of “ ”
may be of sufficient magnitude to constitute a risk of electric
shock. The external wiring connected to the terminals
requires installation by an instructed person or the used of
ready-made leads or cords.
WARNING: This product takes the power plug as the disconnecting
device, may maintain the convenient operation when using.
Mains Supply: The mains operating voltage of Audiolab
6000 series units is shown on the rear panel. If this voltage
does not match the mains voltage in your area, consult your
Audiolab dealer about converting the unit.
The mains supply fuse on the rear panel is accessible when
the IEC mains plug has been removed. In the rare event that
it has broken, check for any obvious cause before replacing
the fuse with one of the correct rating and type.
The fuse values are:
220 – 240V (UK, China, etc.) T630mAL 250V Slow Blow
100 – 120V (USA, Japan, etc.) T1AL 250V Slow Blow
This label tells you that the unit
contains a laser component.
Opening the unit will expose the
user to radiation from the laser
beam.
The apparatus with CLASS I construction shall be connected
to a MAINS socket outlet with a protective earthing connection.

Placement
2: Getting Started
Welcome to Audiolab 6000 Series.
We hope you will enjoy its performance for many years to come.
Please read through this manual to obtain the very best performance from 6000CDT.
Inputs:
• CD disc playback.
Outputs:
• Optical and coaxial SPDIF digital output.
Features:
• Automatic equipment activation via 12V trigger output .
• Display on/off options.
• Auto standby function with function on/off options.
Unpacking
Unpack the product fully. The carton should contain:
• The Audiolab 6000CDT
• One IEC power cord suitable for your area.
• One Remote handset with two AAA batteries
• This instruction manual.
Page 2
lf an item is missing or damaged , report this to your dealer as soon as possible. Retain the
packing for safe transport of your unit. If you dispose of the packing, do so with regarding
to any recycling regulation in your area.
Note: The 6000CDT should be used with the DIGl or OPT outputs connected directly to a
preamplifier with inbuilt DAC.
6000CDT is a high performance CD transport that is the perfect partner for other
Audiolab components such as 6000A.
The unit is designed to run warm during normal operation but ensure you do not block
any ventilation openings.Place the unit on a sturdy shelf or table. If you use an equipment rack,
ensure the unit has adequate ventilation and is on its own shelf. To minimize any interference,
place the power supply in a stable location as far from sensitive analogue input as
possible.Ensure your mains voltage corresponds to the rating plate on the rear of the
product’s power supply. If in doubt, consult your dealer. If you move to an area with a different
mains voltage,seek advice from an Audiolab appointed dealer or a competent service
technician.

Page 3
3: Controls and Connectors
REPEAT

4: Remote Handset
Page 4
Fitting Batteries
Handset Operation

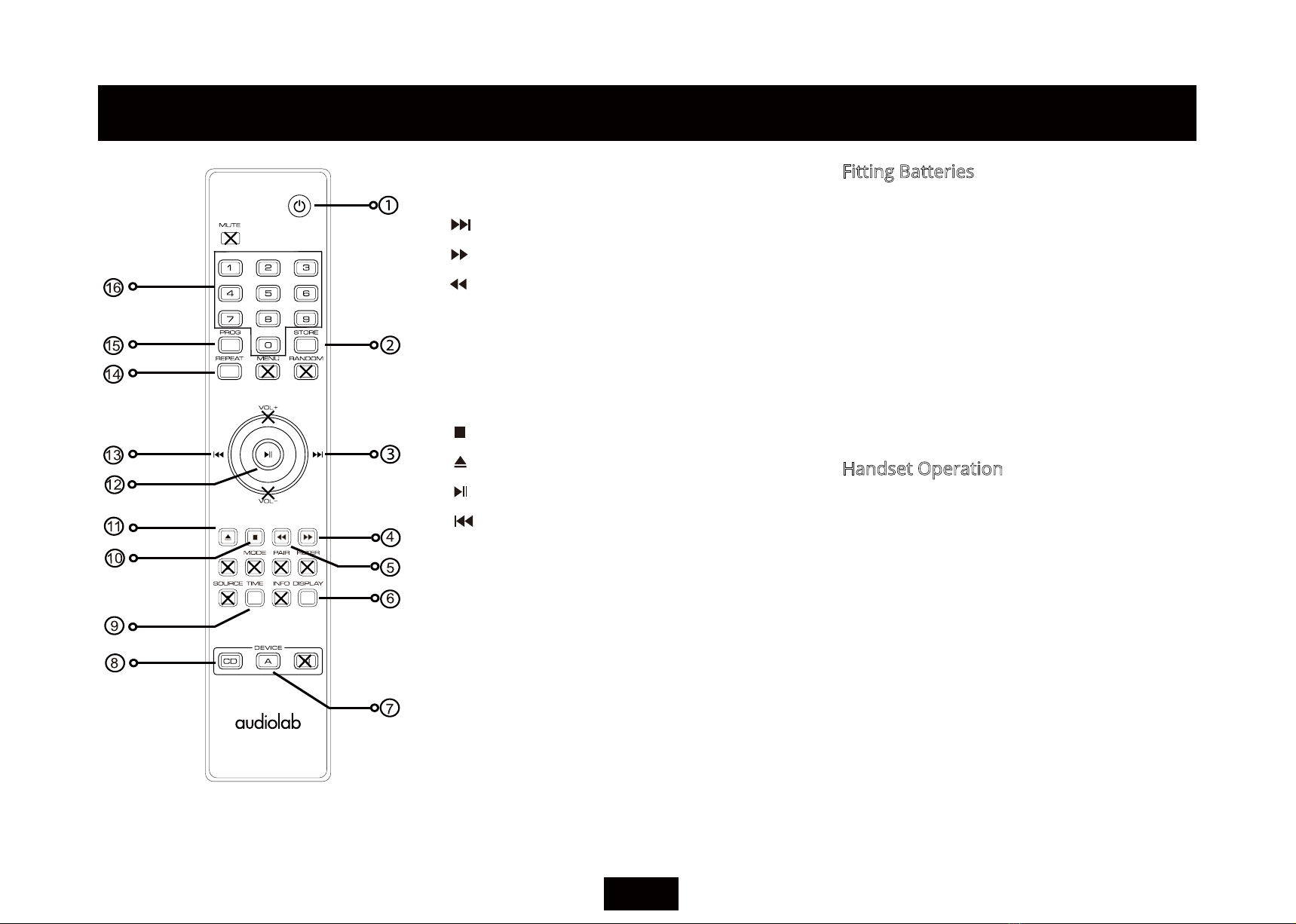

1 STANDBY Press to bring the unit in/out of Standby
2 STORE Press to store a track in Program mode
3 Move to the next track of CD
4 Press and hold to Fast Forward
5 Press and hold to Fast Reverse
6 DISPLAY Press to toggle the display on/off
7 A Press to select 6000A remote mode
8 CD Press to select 6000CDT remote mode
9 TIME Press to toggle track time remaining and elapsed
10 Press to stop CD
11 Press to eject/load the disc
12 Press to start/pause CD playback
13 Press once to replay the current track of CD
Press again to move to the previous track of CD
14 REPEAT Press to repeat whole CD playback
15 PROG Press to program tracks of your choice
16 NUMBER KEYS Press to go directly to a track by number
NOTE : the handset buttons shown crossed out are for use with other Audiolab units likeAudiolab 6000A and are
not operational when used with the 6000A
Open the battery compartment cover, unwrap the supplied
AAA batteries and place them in the battery compartment
with the correct polarity. Replace the cover.
Always use AAA batteries and replace them in sets - never
mix old and new batteries.
Very weak batteries can leak and damage the handset.
Replace them in good time!
Note: there is a risk of fire and burns if a battery is handled
improperly. Do not disassemble, crush, puncture, short the
contacts or dispose of the batteries in fire or water.
Do not attempt to open or service a battery. Discard used
batteries in full accordance with recycling regulations in force
in your area.
The handset operates several Audiolab components. The
handset buttons shown crossed out are for use with other
Audiolab units and are not operational when used with the
6000CDT.
Point the handset at the remote receiver and press the
relevant key. The handset should be within 15 meters of the
player and there must be a clear line of sight between the
two units.

Trigger Connections
Page 5
5: Connections

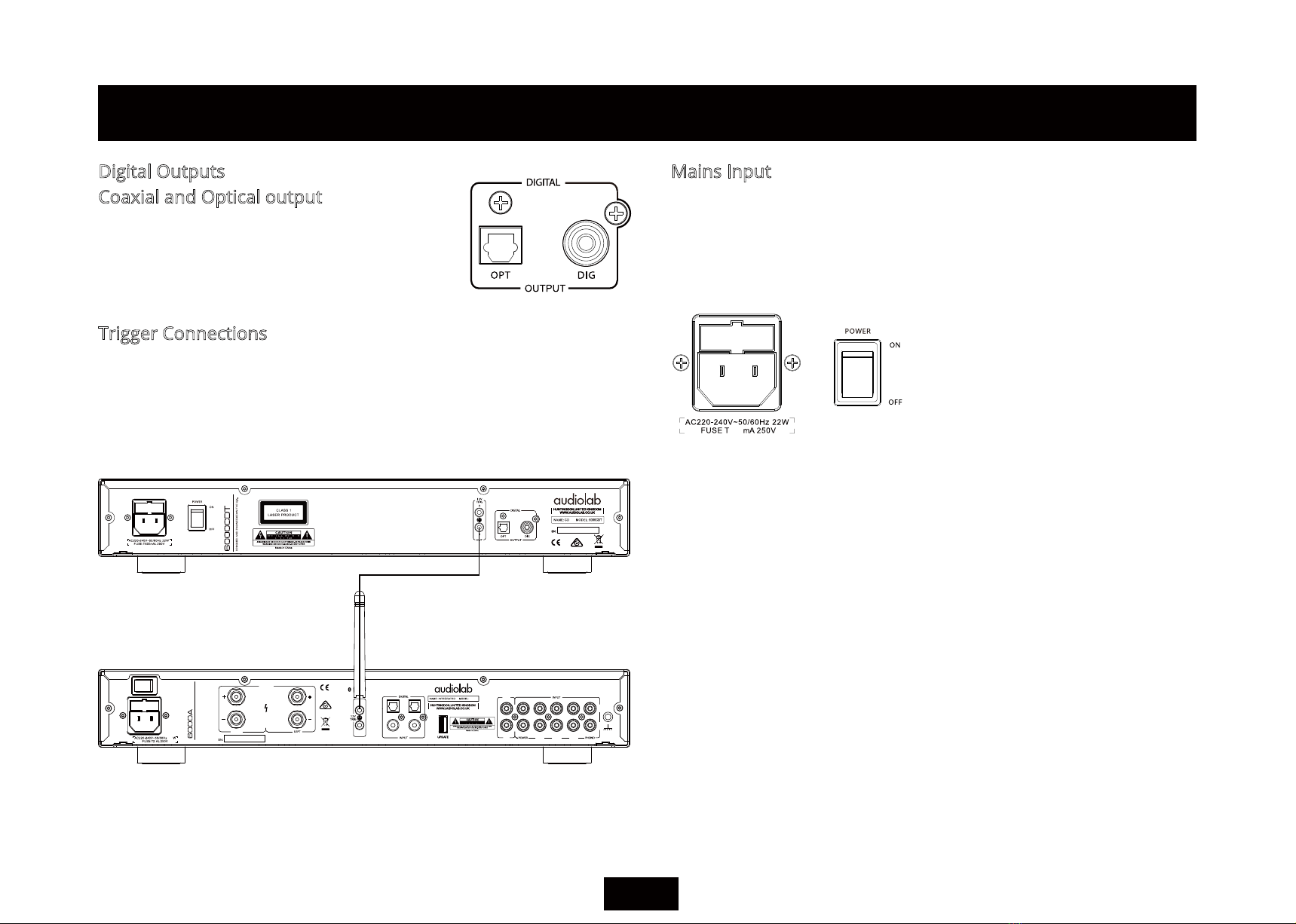

Mains InputDigital Outputs
Coaxial and Optical output
P
ON O FF
IN
RE
OUT
AU X3AUX 2AUX 1
L
R
RIG HT
OU TP UT
OU T
DESIGNE D AND ENGINEERED IN THE U.K..
DI
G1
DI
G2
OP T1 OPT2
600 0A
330
One Coaxial and one Optical SPDIF digital output. Connect a
suitable Digital coaxial (fully screened) interconnect or optical
cable from the appropriate SPDIF output of the 6000CDT to
the input of a DAC or digital input on your amplifier or
preamplifier.
Audiolab 6000CDT has a pair of trigger connections on the rear panel that can activate 6000A’s
or any other source’s trigger input. If you have a 6000 system, we advise connecting the
triggers. This will enable all 6000 units to be brought in and out of standby using the trigger
connections. To connect to your control unit, you will need a cable with one end to match the
trigger output of the control unit and other terminating in a 3.5mm jack plug. For Audiolab
6000series, this will be a 3.5mm to 3.5mm interconnect.
Before connecting the 6000CDT to the mains supply make sure that all the other connections to
your system have been properly and securely made. Make sure the ON/OFF switch on the
6000CDT is switched off. Switch the mains supply off at the wall socket, and then, using the cable
supplied, connect the socket on the back of your 6000CDT to an AC supply outlet. The 6000CDT
is now ready for operation.
630

Connect power to all system units. Switch the mains on. Switch on all source units including
the 6000CDT. Switch on the power amplifiers.
When switching off: switch off the amplifier first before switching off the 6000CDT unless
they are trigger enabled.
When switching on: The power LED illuminates, the display shows the welcome screen. After
a short period the unit boots up.
The 6000CDT will enter standby mode after being powered on. Press the “Standby” button to
bring the 6000CDT out of standby, the power indicator LED becomes brighter and the display
shows “6000CDT” welcome screen while the unit is getting ready for operation.
The Auto Standby feature will, by default, put the unit into standby after 20min of inactivity.
This feature can beconfigured by holding the standby button for 3 seconds and be set to
20min, 1hour or Never.
Insert one CD into the slot. The disc information will now display. After reading the track
information the disc will stop.
6: Operation
Page 6
Switching On and Off
Standby Mode
Loading a Disc
Playing a Disc
Press to play a disc.
Press to pause a disc, press again to resume play
Press to stop the disc
Press to eject the disc
Next/Previous Track
Press to move to the next track.
Press once to replay the current track,twice to move to the previous track.
Press / repeatedly to move through the tracks forward or back on track at a time.
If you exceed the number of tracks on the disc, the player will wrap round and play from track
1.
If you go past track 1, the player will wrap round and reverse search from the final track on the
disc.
Forward and Reverse Search during play
Press and hold the / on the handset. The forward and reverse search will start.
Direct selection of the tracks from the handset
When in PROG mode, the time dot is flashing.
Track Time Display
When in PROG mode, press the Repeat key on the handset to repeat all chosen tracks.
Display Setting
Pressing the DISPLAY button on the remote to control the display ON/OFF.
Select the wanted track directly from the remote key pad. The disc will play forward from the
chosen track. If you choose a single digital track (e.g.1) in a disc which contains more than 10
tracks, the player will pause briefly, waiting for you to enter a second digit. If none is entered,
player will commence from the entered single-digit track. If the choice is invalid the display
reverts to the previous state.
You can create a custom program of up to 99 chosen tracks..
Program mode must be accessed when the disc has stopped.
Press PROG to enter program mode. Insert the a track number, press STORE to save.
To play the program: Press
To stop program play: Press
To erase a program from memory: The program is stored in the player’s memory until erased.
When the display is OFF: Pressing any key will momentarily switch the display on. After a few
moments the display will go off.
Repeat Play
Press the Repeat key on the handset to repeat all tracks on the disc continuously.
Press the Time key to toggle track time remaining and elapsed
Program Play

Audiolab Ltd. warrants this product, subject to the terms and conditions below, to be free from
defects in materials and workmanship. During the warranty period Audiolab will repair or
replace (at Audiolab’s option) this product, or any defective part in this product, if it is found to
be defective due to faulty materials, workmanship or function. The warranty period may vary
from country to country.
Audiolab shall not be liable for any incidental or consequential damages for breach of any express
or implied warranty in this product. Except to the extent prohibited by law, this warranty is
exclusive and in lieu of all other warranties whatsoever, both express and implied, including, but
not limited to, the warranty of merchantability and fitness for a practical purpose.
This warranty provides benefits that are additional to and do not affect your statutory rights as a
consumer.
Some countries and U.S. states do not allow the exclusion or limitation of incidental or
consequential damages or implied warranties so the exclusions in the paragraph above may not
apply to you. This warranty gives you specific legal rights, and you may have other statutory rights,
which vary from state to state or county to county.
To obtain warranty service contact the Audiolab authorized dealer from which you purchased this
product. Do not dispatch goods without the prior agreement of the dealer, Audiolab or their
authorized distributors.
If asked to return products for inspection and/or repair, pack carefully, preferably in the original
cartons or packing affording an equal degree of protection, and return prepaid. If unsuitable
packaging is used, Audiolab may make a charge for the supply of new packaging.
Insurance is recommended and goods are returned at owner’s risk. Audiolab or their authorized
distributors cannot be held liable for loss or damage in transit.
You must provide proof of purchase/delivery before work can be carried out. Without this proof,
any work carried out will be chargeable to you.
This warranty is valid only in the county of purchase, applies only to the first purchaser and is
not transferable.
Accidental damage, fault caused by commercial use, acts of God, incorrect installation,
connection or packing, misuse, neglect or careless operation or handling of the product which
is not in accordance with Audiolab’s user instructions.
1. Repairs or alterations carried out by parties other than Audiolab or its authorized agents or
Page 7
7: Warranty
Terms and conditions
The warranty starts on the date of purchase (or the date of delivery if this is later).
All work will be carried out by Audiolab or its authorized agents or distributors.
Any unauthorized repair or modification will void this warranty.
If any part is no longer available it will be replaced with a functional replacement part.
Any parts that are replaced will become the property of Audiolab.
Any repair or replacement under this warranty will not extend the period of warranty.
The following are not covered:
1. Products where the serial number has been removed, altered or otherwise made illegible.
2. Normal wear tear and cosmetic damage.
3. Transportation or installation of the product.
2. Products are not purchased from an Audiolab authorized dealer.
distributors.
3. Products that were not new at the time of original purchase.
4. Products sold ‘as is’, ‘as seen’ or ‘with all faults’.
Repairs or replacements as provided under this warranty are the exclusive remedy of the consumer.
How to claim:

Page 8
8: Specification
Measurement made with 230V power supply
Corrent disposal of this product. This marking indicates that this product should not be
disposed with other household wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it responsible to
promote the sustainable reuse of material resources. To return your used device, please use
the return and collection systems or contact the retailer where the product was purchased.
They can take this product for environmental safe recycling.
Digital Output Voltage Level 600±50mVpp
Frequency response ≤0.01dB @ 20-20kHz
Output Impedance 75±1 ohm
Max Sampling Rate 44.1 KHz
Max. Power Consumption 15W
Standby Power Consumption <0.5W
Power Requirements 240V ~ 50 - 60Hz
230V ~ 50 - 60Hz
115V ~ 50 - 60Hz
100V ~ 50 - 60Hz
Dimensions (mm) (W x H x D) 445 x 300 x 65.5 - including feet, terminals and controls
Carton Size (mm) (W x H x D) 512 x 467x 146
Weight 5.4kg (Net)

Page 9

Page 10

Audiolab
IAG House,
13 /14 Glebe Road,
Huntingdon,
Cambridgeshire,
PE29 7DL,
UK
Tel: [phone]
Fax: [phone]
http://www.audiolab.co.uk
CODE: AH14-MNL0004a
