Audiovox MEDIABRIDGE User manual

for select Audi and Volkswagen vehicles in SAT emulation
Installation Guide/User manual

2
Copyrights and Trademarks
Copyright 2012 Audiovox Electronics Corporation
The Audiovox and Audiovox Driven by DICE Electronics logos are trademarks of
Audiovox Electronics Corporation
iPod and iPhone are trademarks of Apple, Inc.
All Trademarks and Logos are the property of their respective owners.
All rights reserved.
Printed in China.

3
Table of Contents
Warning and safety
Product registration
MediaBridge kit contents
Dip switch conguration
Supported iPod models
Note to Installer
Connection Diagram
Installation
A-MBR-1503-AVW Connector
iPod content browsing and charging
iPod locked/unlocked settings
SAT Emulation (A-MBR-1503-AVW)
Basic Operation and Settings
Overview of Audi Symphony radio
Overview of VW radio
Overview of Audi Concert radio
Overview of Audio Navigation Plus radio
Overview of VW Navigation radio
Controlling the MediaBridge iPod source
Controlling the MediaBridge USB memory source
Controlling the MediaBridge SIRIUS source
Bluetooth & MAT
Paring MediaBridge with your cell phone
Answering / making a phone call
Playing music from a cell phone
Auxiliary audio source
Internet Radio Applications
Optional Remote Kit for iPod/App/USB
Optional Remote Kit for Sirius
Firmware Update
Troubleshooting
Warranty
..............................................................4
..............................................................5
....................................................6
........................................................7
............................................................8
.......................................................................9
..............................................................10
.............................................................................11
...........................................................14
.......................................15
.............................................16
..........................................17
..................................18
......................................................19
.......................................20
.........................21
....................................22
............................................23
..............................24
.......................................25
..................................................................................26
...........................................27
........................................................27
.........................................................27
.........................................................................28
.................................................................29
...............................................33
.............................................................34
.................................................................................35
..................................................................................36
..............................................................................................38

4
Please read these instructions carefully before proceeding. Failure to follow instructions may result in
improper operation or injury. Neither Audiovox nor Apple Inc., its regional ofces, distributors or resellers take
any responsibility for any damage or injury as a result of using the integration kit.
- Do not open, disassemble or alter the interface in any way.
- Do not insert anything into the casing.
- Do not cut or try to alter cables in any way and always use the correct connections.
- Only operate unit when stationary or ask passengers to operate it for you.
- Do not allow the Apple iPod/iPhone to distract you from driving.
- Exercise good judgement and keep your eyes on the road at all times.
- Do not expose unit to extreme temperatures, humidity or shock.
- Keep the unit and iPod/iPhone away from uids.
- Keep away from children! - Interface components may contain small parts, can be broken or disassembled
and components may become loose from vibration and heat. Small components and packaging materials
may be a choking hazard when handled by children.
Warning and safety!

5
Thank you for purchasing this integration kit. Please review this booklet before operating the unit. This
interface was designed and manufactured to seamlessly integrate with your vehicle’s factory audio system.
We recommend registering your Audiovox product so you can receive news about important rmware updates
and have unlimited access to our online support system.
To register your Audiovox product, please complete the following steps:
1. Visit http://www.audiovoxproducts.com
2. Look up and save the serial number of the product.
3. Complete the product registration form.
4. Submit the form.
5. Save the registration sheet in a safe place for future reference.
If you are unable to complete the registration via internet, please call Audiovox at 1-800-645-4994.
Congratulations on your purchase!
Product registration
Prior to installation make sure the module’s rmware is up to date to ensure compatibility with the latest
features and enhancements. Please refer to page 35 to update rmware.

6

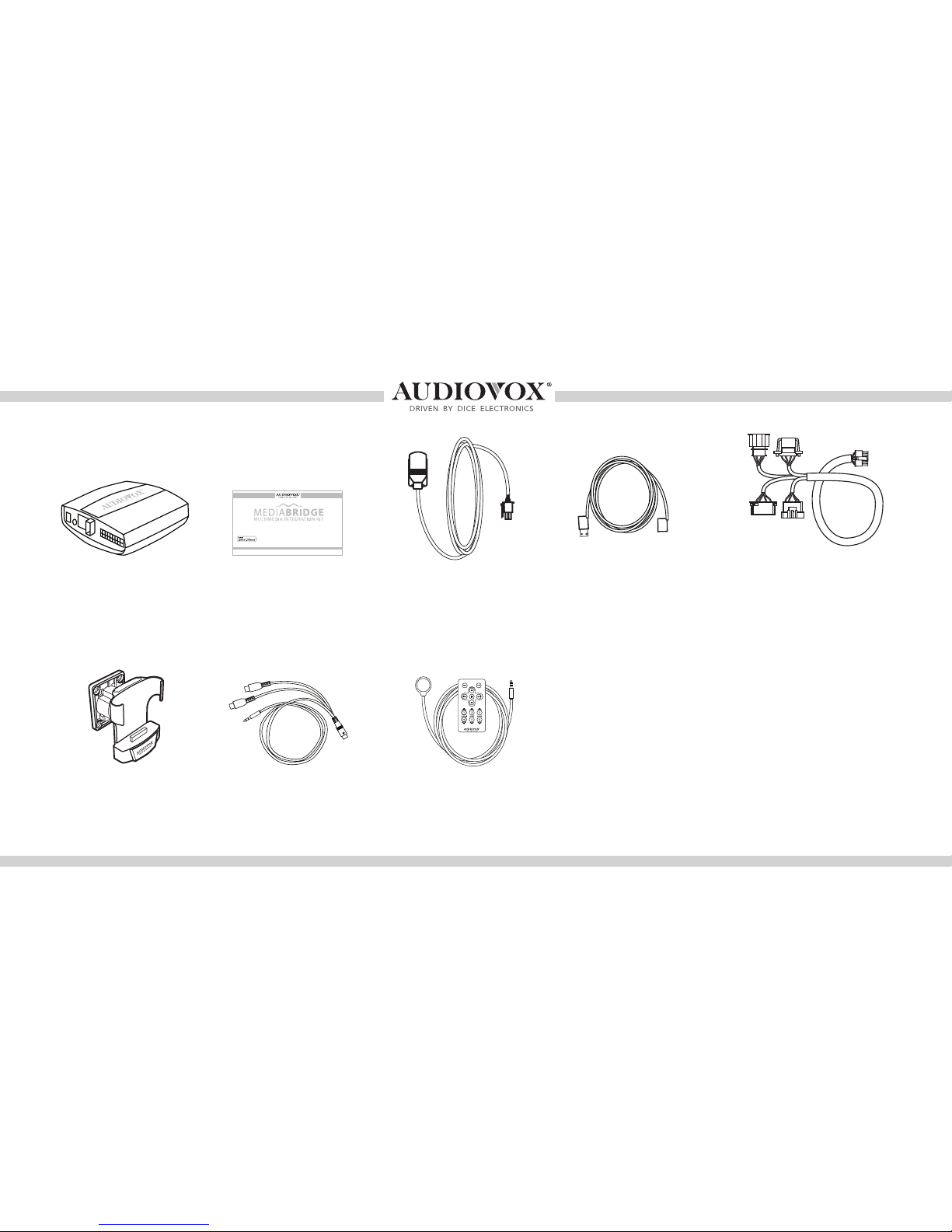

MediaBridge kit contents
MediaBridge
module
user manual
for select Audi and Volkswagen vehicles
Installation Guide/User manual
IR Receiver & Remote
(A-ACC-613-RCK)
AUX connector
(A-ACC-106-AUX)
For more accessories, visit www.audiovoxproducts.com
microphone USB extension A-MBR-1503-AVW
connector
Optional accessories (sold separately):
Cradle
(A-DCR-150-USB)

7
DIP switch conguration
The conguration switches located on the MediaBridge module are used to set functionality for various radio
models. Refer to pages 18-22 for correct DIP switch settings. Incorrect dip switch settings may cause the
interface to not work properly or to not operate at all. Disconnect the vehicle harness from the module and
cycle ignition off for 60 seconds after changing the switches then reconnect the module!
MediaBridge module
This setting must be performed for proper functionality of the MediaBridge kit. See pages 18-22
to determine the correct DIP switch setting for your vehicle’s specic radio.

8
Supported iPod models and rmware version requirements
Model Model
1G nano 160 GB classic
iPod 5G 5G nano
2G nano 3G touch
iPod classic iPhone 4
3G nano
4G touch
iPod touch
6G nano
iPhone
iPhone 3G
4G nano
120 GB classic
2G touch
iPhone 3GS
Firmware / OS Version Firmware / OS Version
1.3.1 2.0.4
1.3 1.0.2
1.1.3 iOS 5.1
1.1.2 iOS 5.1
1.1.3
iOS 5.1
iOS 3.1.3
1.2
iOS 3.1.3
iOS 4.2.1
1.0.4
2.0.1
iOS 4.2.1
iOS 5.1
iPhone 4S iOS 5.1

9
Attention installer! Please read the following!
Audiovox strongly recommends that the unit be installed in an easily accessible place!
DO NOT PLACE IT BEHIND THE RADIO AND DO NOT HIDE UNDER CARPET!
Whether the unit is professionally or self installed, put the module where you, the end user can get to it easily
in the future. (Have the installer show you where the interface module is installed.)
Installing the module behind the radio will make it difcult to:
-Add possible future upgrades, changing software, adding new features, improving operation;
-Access the AUX input on the module to attach any audio device;
-Access the DIP switches located on the module;
-Remove the unit in case of failure.
MAKE SURE THAT THE MODULE IS IN AN ACCESSIBLE PLACE!

10

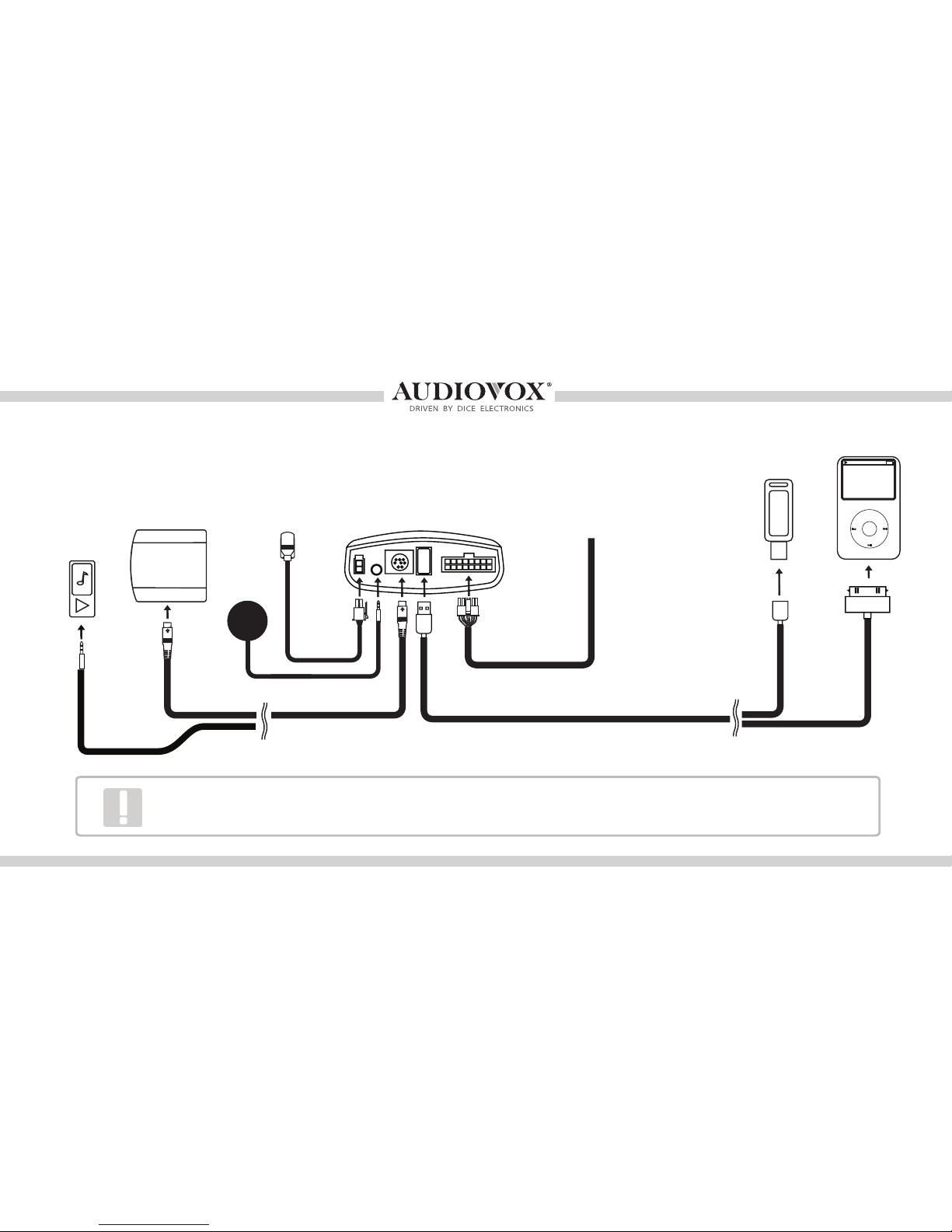

Connection diagram
*Do not connect the iPod dock cable under any circumstance to the SIRIUS module connector!
Improper connection can cause permanent damage to iPod/SIRIUS module.
MENU
MediaBridge module
Microphone
IR receiver or AUX
connector
Sirius SC-C1
factory cable
Sirius SC-C1 SAT tuner
(not included)
Vehicle BUS connector
To radio/vehicle
USB thumb
drive
iPhone/iPod
USB cable or iPhone/iPod docking cable
AUX audio
device
AUX connector
(optional)

11
Installation
1. Verify compatibility 2. Disconnect battery 3. Remove radio from car*
*The radio needs to be removed only to connect the MUTE/TEL Audio connections.
** When you are installing the MediaBridge module near the factory SAT tuner (to allow SAT retention) be ready to run the MediaBridge MUTE/
Phone+/Phone- lines to the back of the radio.
4A. Connect MediaBridge Bluetooth Phone Wires**
7
8
9
10
11
12
1
2
3
4
5
6
Pinout numbers when viewed from BACK of 12-pin molex. Note
location of locking tab which is located on top row of molex.
1. Media Bridge Mute line on Molex Pin 10 connects to radio’s
TEL MUTE line.
2. Use a scotch lock connector to tap into MediaBridge Audio
Ground and connect to the radio’s TEL- line (see page 12.)
3. Use a scotch lock connector to tap into MediaBridge Left
Audio and connect to the radio’s TEL+ line (see page 12.)
xx
x

12
4B. Please use a scotch lock connector (not included) to connect wires listed below to complete MediaBridge
Bluetooth integration:
• MediaBride Mute to TEL MUTE
• MediaBridge Left Audio to TEL+
• MediaBridge Audio Ground to TEL-
A couple of typical Audi/VW radio pinouts are listed. Most Audi/VW radios will have a diagram of their pinout
posted on the radio chasis, if not please refer to the radio user manual. Incorrect connection may result
in damage to product and radio not covered by warranty. Some older radios do not have the TEL MUTE,
TEL+ and TEL- lines.
TEL
_TEL
+
TEL
MUTE
Telephone Navigation
7.5A
TEL
MUTE
FUSE 15A
1 6
7 12
1 6
7 12
TEL-
TEL+
No devices other than the MediaBridge can
be allowed to use the MUTE line while the
MediaBridge is installed. Multiple devices
acting upon the MUTE line will cause the
MediaBridge to malfunction. Do not connect
the MUTE wire when the harness is used
with other accessories.

13
6. Connect battery & test
7. Complete install by re-installing radio (if radio was uninstalled)
Some radios will enter an anti-theft security mode and will lock requiring the radio’s security code to be entered
to unlock it. This code can be requested from the vehicle’s dealership.
5. Route kit to glove box or other accessible location

14
Vehicle BUS Connector - A-MBR-1503-AVW Connector
Factory SAT
harness in vehicle
SAT Tuner (optional)*
To MediaBridge
Interface Module
Vehicle BUS Connector
*Connect SAT Tuner only if the SAT subscription is activated or will be activated in the near future. If vehicle did not come with a factory satellite
tuner, two connections inside the front passenger-side kick panel may have to be mated together for the MediaBridge to recognize as an audio
source. The SAT Tuner must be connected rst, and then the MediaBridge should be connected.
The factory Satellite tuner connections must be accessed, for which the location varies depending on vehicle
(inside trunk panels, under passenger seat, etc). The harness provided with the kit is long enough to reach
from these locations. If there is a factory satellite tuner, unplug its two connections and these can connect into
the interface harness. If satellite radio is intended to be retained, connect the other two plugs into the satellite
tuner.

15
By default, the interface creates a Playlist having a name that is the same
as the name of the iPod. This Playlist is the very rst on the list of Playlists
shown while browsing in Playlist mode. This Playlist contains all the songs
on the iPod. Once a Playlist is selected an Artist may be selected within
that Playlist using the Artist Mode. Albums by the selected Artist within
the selected Playlist may be selected in Album Mode. “ALL ARTIST” and
“ALL ALBUM” designate all available content in those categories.
The interface automatically charges the battery of the iPod when
connected and your vehicle ignition key is in the ACC/ON position.
Charging may be shown by an
icon that appears on the upper
right corner of the iPod screen.
May vary by model.
Less browsable content
More browsable content
iPod content browsing
Charging
Playlist
Artist
Album
Song

16
Radio control Limited
iPod control
For iPod touch and iPhone, when the screen is not active (as shown on the left), the
iPod/iPhone is locked (Press the power button to lock the iPhone/iPod Touch).
Before connecting the iPod to the module,
turn the hold switch ON to fully control and
browse the songs from the wireless remote.
The iPod is locked in this state.
Note: Setting the iPod’s hold switch must be done prior to connecting it to the dock cable.
iPod nano 6th generation will always be in locked mode since it does not have a lock switch.
Before connecting the iPod to the
module, turn the hold switch OFF to fully
control and browse the songs from iPod.
Browsing capabilities are limited from the
wireless remote.
iPod locked/unlocked settings and features
slide to unlock

17
Accessing the MediaBridge as the audio source:
Much like the radio’s AM/FM tuner, satellite radio or CD audio sources, the MediaBridge is integrated to be
part of the vehicle’s audio system. To access the MediaBridge source, press the SAT button on the radio.
MediaBridge source selection:
The MediaBridge adds additional audio sources including USB iPod/Memory, auxiliary audio input, SIRIUS
Satellite Radio* and Bluetooth. To cycle between these sources, use the SEEK, TRACK or TUNE buttons
within the rst 5 seconds of accessing the MediaBridge as the audio source.
*Auxiliary audio input is only available when SIRIUS Satellite Radio is not connected.
MediaBridge Interface settings (within rst 5 seconds of accessing it as the audio source):
Select PRESET 1 to apply settings and resume audio playback.
Select PRESET 3 to change default volume level; use track up/down to adjust between Min and Max.
Select PRESET 4 to enable/disable scrolling text; use track up/down to adjust the scroll setting.
Select PRESET 6 to view MediaBridge serial number and rmware version.
PRESET 2 and 5 have no settings available.
Basic Operation and Settings

18
Operating MediaBridge as an audio source on various radio systems -
Audi symphony
2
1
3
SONG
PLAYLIST
ARTIST
ALBUM
SONG*ARTIST SOURCE
SETTINGS
SAT 01:52
3
3
22
1
Radio source selector (SAT / MediaBridge)
Preset buttons - press to enter: Song / Playlist / Artist /
Album / Podcast / Audiobook modes
Track Up / Down
Set DIP switch:

19
2
4
1
3
LOAD EJECT
BASS MIDDLE TREBLE BALANCEF ADER
SCAN
TUNE
ON
VOL
FM
AM
CD
SAT
CAT
FLDR
SEEK
TRACK
XM 1 001
001 002 003 004 005 006
ARTIST * ALBUM
Club Mix
2
3
4
4
1
Radio source selector (SAT / MediaBridge)
Preset buttons - press to enter: Song / Playlist
/ Artist / Album / Podcast / Audiobook modes
Category/Preset Up / Down
Track Up / Down
Note: Some versions of this radio unit require preset buttons to be pro-
grammed. Use to select one of the modes, then press and hold each
preset button for 5 seconds.
3
Operating MediaBridge as an audio source on various radio systems -
VW with SAT button
Set DIP switch:

20
2
1
3
SEEK
FM AM
CD SAT
FM
SR1 AM
CD SAT
1
3
3
2
Audi concert
Radio source selector (SAT / MediaBridge)
Preset buttons - press to enter: Song / Playlist / Artist /
Album / Podcast / Audiobook modes
Track Up / Down
Operating MediaBridge as an audio source on various radio systems -
Audi concert
Set DIP switch:
1 2 3 4 5
SONG * ARTIST
