WCC100
IN-VEHICLE CHARGING CRADLE
128-9237B WCC100 In-Vehicle Charging Cradle 12 03 13.indd 1 12/4/2013 10:38:04 AM

128-9237B WCC100 In-Vehicle Charging Cradle 12 03 13.indd 2 12/4/2013 10:38:04 AM

INTRODUCTION ���������������������������������������������������������������������2
Features ��������������������������������������������������������������������������������������������2
Trademarks��������������������������������������������������������������������������������������2
IMPORTANT NOTICES ����������������������������������������������������������2
ICES-001 and NMB-001 Compliance Statement ����������������2
FCC Compliance Statement�������������������������������������������������������3
CAUTIONS and WARNINGS�������������������������������������������������4
MATERIALS INCLUDED IN THIS PACKAGE�����������������������5
INSTALLATION INSTRUCTIONS������������������������������������������6
OPERATING INSTRUCTIONS�����������������������������������������������8
CHARGING CRADLE STATUS���������������������������������������������11
SPECIFICATIONS �����������������������������������������������������������������11
WARRANTY���������������������������������������������������������������������������12
TABLE OF CONTENTS
1
128-9237B WCC100 In-Vehicle Charging Cradle 12 03 13.indd 3 12/4/2013 10:38:04 AM

Thank you for choosing the Audiovox WCC100 In-Vehicle
Charging Cradle�
The WCC100 In-Vehicle Charging Cradle utilizes
Qi ® (pronounced “Chee”) global interface standard for
inductive electrical power transfer� Qi technology makes
it possible to charge a Qi ® -compatible mobile device via
electromagnetic induction simply by placing the device
into WCC100 Charging Cradle� There is no need to connect
any cables�
Trademarks
INTRODUCTION
2
3
Features
• Nomobiledevicechargingcablestoconnect
• Windshield Suction Mount
• AutomaticrecognitionofaQi ® -compatible mobile
device
• OperationalstatusLEDindicator
Qi ® and are registered trademarks of Wireless Power
Consortium (WPC)� All rights reserved�
Canadian Compliance:
This ISM device complies with Canadian ICES-001
Cet appareil ISM est conforme à la norme NMB-001 du
Canada�
IMPORTANT NOTICES
128-9237B WCC100 In-Vehicle Charging Cradle 12 03 13.indd 4 12/4/2013 10:38:05 AM

IMPORTANT NOTICES
3
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a digital
device, pursuant to Part 18 of the FCC Rules�
The product generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications� However, there is no guarantee that
interference will occur in a particular installation� If the product does cause
harmful interference to radio or television reception, which can be determined
by turning the product on and o, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna�
• Increase the separation between the product and the receiver�
• Connect the product into an outlet on a circuit dierent from that to
which the receiver is connected�
• Consult the dealer or an experienced radio/TV technician for help
FCC Caution: Changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment�
Radiation Exposure Statement:The equipment complies with FCC radiation limits
set forth for an uncotrolled environment� This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body�
Declaration of Conformity
Tradename: AUDIOVOX
Model No�: WCC100
ResponsibleParty: AUDIOVOXElectronicsCorp.
Address: 150 Marcus Blvd�, Hauppauge, NY 11788 U�S�A�
ThisdevicecomplieswithPart18oftheFCCRules.Operationissubjecttothe
following two conditions:
1� This device may not cause harmful interference, and
2� This device must accept any interference received, including
interference that may cause undesired operation�
128-9237B WCC100 In-Vehicle Charging Cradle 12 03 13.indd 5 12/4/2013 10:38:05 AM

CAUTION: The WCC100 In-Vehicle Charging Cradle is
designed for in car use with an input voltage of 9VDC
to16VDCviaavehiclepoweroutlet.Donotconnectto
higher input voltages� Use only the supplied power supply�
CAUTION:Donotplacemetalbetweenthemobiledevice
and the WCC100 In-Vehicle Charging Cradle surface� Metal
between the charging surface and the mobile device will
increase temperature and stop the charging function�
CAUTION: DonotexposetheWCC100 In-Vehicle Charging
Cradle to moisture�
CAUTION: Clean the WCC100 In-Vehicle Charging Cradle
using only a dry soft cloth. Do not use alcohol or other
cleaning solutions�
CAUTION: Ensure that the device cover used is not too
thick and does not contain metal parts� Any distance
between mobile device and charging surface will aect
charging eciency and functionality�
WARNING: Do not mount the WCC100 In-Vehicle
Charging Cradle within the driver’s eld of vision�
WARNING: Do not mount the WCC100 In-Vehicle
Charging Cradle in the deployment path of the vehicle’s
air bags�
CAUTIONS and WARNINGS
4
5
128-9237B WCC100 In-Vehicle Charging Cradle 12 03 13.indd 6 12/4/2013 10:38:05 AM

MATERIALS INCLUDED IN THIS PACKAGE
1� WCC100 In-Vehicle Charging Cradle P/N 31512250
2� Windshield Suction Mount P/N 31512060
3. CLAPowerCableP/N31512161
4. Owner’sManualP/N31512020
Opentheboxandensurethatthecontentslistedbelow
are present� If any of the parts are missing, please contact:
Audiovox Technical Support 1-800-225-6074�
1 2
3 4
Figure 1� Materials Included
5
128-9237B WCC100 In-Vehicle Charging Cradle 12 03 13.indd 7 12/4/2013 10:38:05 AM

INSTALLATION INSTRUCTIONS
1� Remove the protective wraps from the windshield
suction mount base (1) of the WCC100 In-Vehicle
Charging Cradle�
2. Locateasmoothlevelareainthevehicleorposition
on the windshield so that it does not obstruct the
driver’s view� Clean the area�
3� Press the windshield suction mount base (1) rmly
against the mounting surface
4� Press the suction lever (2) down to secure the
windshield suction mount to the mounting surface�
NOTE: Observe all local laws and regulations pertaining to
the use of windshield mounted devices.
Figure 2� Windshield Suction Mount Base
2
1
6
7
128-9237B WCC100 In-Vehicle Charging Cradle 12 03 13.indd 8 12/4/2013 10:38:05 AM

5� Remove the protective wraps from the charging
cradle surface (3) and the brackets (4) of the charging
cradle�
6� Mount the charging cradle to the windshield suction
mount by sliding the clip (5) into the slot (6) on the
rear of the wireless charging cradle� Move the wireless
charging cradle upward to secure it to the windshield
suction mount�
7. Adjustthechargingcradlepositionforacomfortable
viewing angle�
8� Connect the power cable to the charging stand (7)
then route the wire carefully to the vehicle power
outlet� Insure that the wire does not interfere with
any vehicle controls or safety devices such as airbags�
9. Toadjustthecharging cradle brackets and to release
the mobile device from the charging cradle surface,
press the release button (8)�

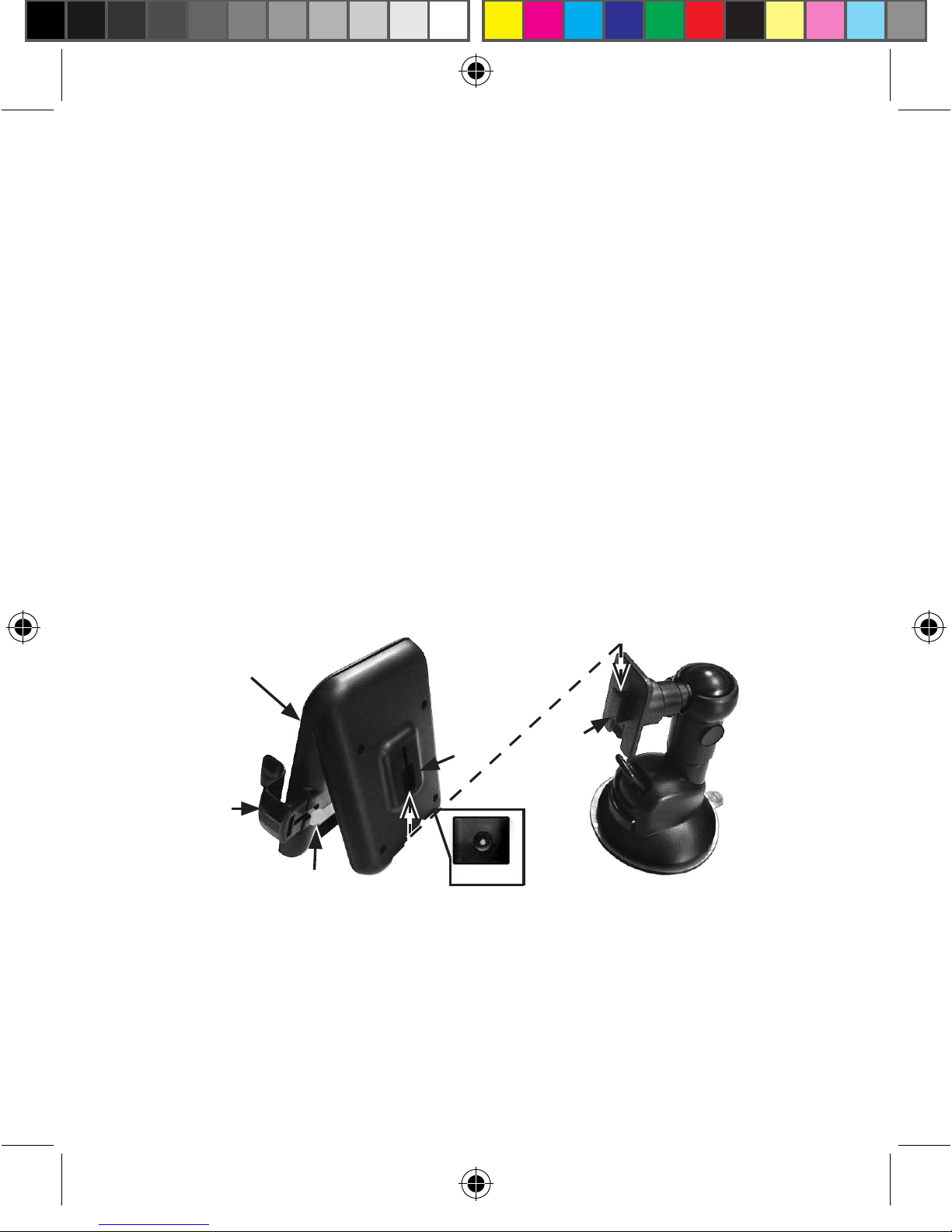

Figure 3� Attaching the Charging Cradle to the
Windshield Suction Mount
4
3
5
6
7
8
7
128-9237B WCC100 In-Vehicle Charging Cradle 12 03 13.indd 9 12/4/2013 10:38:06 AM

NOTE: Before charging your mobile device please read
the mobile device manual thoroughly for charging
parameters.
1. Open the brackets  of the WCC 100 by pressing
the release button (1), located on the backside of the
charger�
2� Place your Qi-compatible mobile device upon the
charger�
OPERATING INSTRUCTIONS
1
Figure 4� Docking Brackets Open
8
9
Figure 5� Placing Device on Charging Surface
128-9237B WCC100 In-Vehicle Charging Cradle 12 03 13.indd 10 12/4/2013 10:38:06 AM

9
3� Fasten the mobile phone by pressing the brackets
towards the phone�
In the unlikely case, charging does not start automatically,
retry from beginning�
The integrated detection sensor will identify the
Qi ® -compatible mobile device when it is placed on
the charging surface of the charging cradle� The charging
process will start automatically�
NOTE: Phone cases may interfere with charging. Do not
use any phone case that contains metal or metal particles
as it can cause the charger to not operate correctly. If you
place your Qi ® -compatible mobile device into the charger
and it does not automatically start charging remove your
phone carry/protective case and insert the phone into the
charger to conrm operation.
Figure 6� Device Locked onto the Charging Surface
128-9237B WCC100 In-Vehicle Charging Cradle 12 03 13.indd 11 12/4/2013 10:38:06 AM

10
11

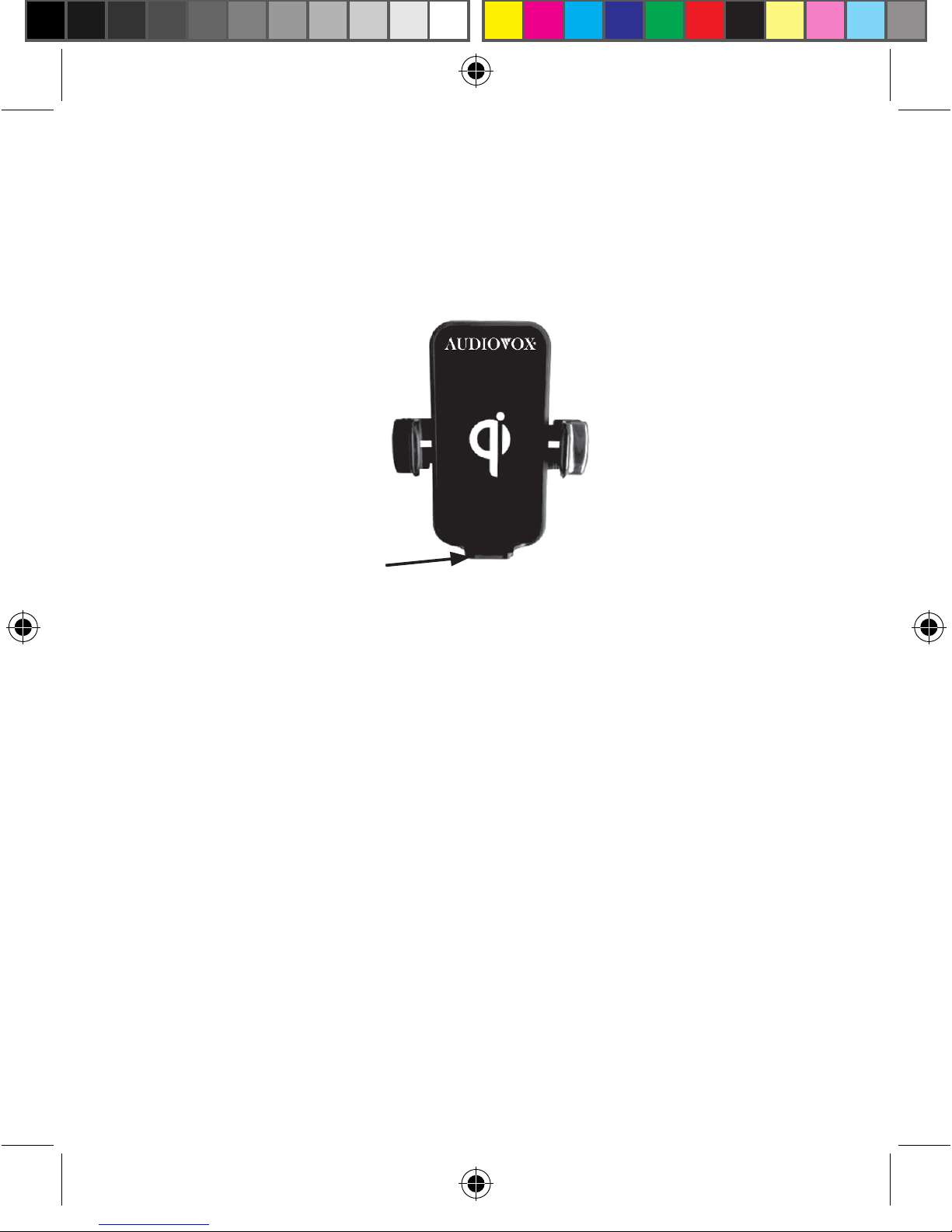

The status of the WCC100 In-Vehicle Charging Cradle is
displayed by the integrated LED (1). Refer to Charging
Cradle Status Chart on page 11�
1
Figure 7� Charging Cradle
128-9237B WCC100 In-Vehicle Charging Cradle 12 03 13.indd 12 12/4/2013 10:38:06 AM

11
WCC100 In-Vehicle Charging Cradle Status Chart
PowerOFF LEDOFF
PowerON LEDFlashesGreenThreeTimes
Qi ® -Device
Detected
LEDFlashesGreenTwoTimes
Charging LEDLightsGreen
Charge Complete Check Phone Charging Status�
DeviceError LEDFlashesYellowThreeTimes
Charging Cradle
Error
LEDFlashesYellowContinuously
CHARGING STATUS
Power Converter Specications
Input:DC9~16V
Temperature range:- 20º to 50ºC
Height 104mm
Width 72mm
Charging Power: up to 5 Watt
Power Cable length: 150 cm
Depth114mm
Weight typ� 185g
SPECIFICATIONS
NOTE: For best experience it is recomended that only Qi ®
certied charging accessories are used�
NOTE: Specicationssubjecttochangewithoutnotice.
128-9237B WCC100 In-Vehicle Charging Cradle 12 03 13.indd 13 12/4/2013 10:38:06 AM

12 MONTH LIMITED WARRANTY
AUDIOVOX Electronics Corporation (the Company) warrants
to the original retail purchaser of this product that should this
product or any part thereof, under normal use and conditions, be
proven defective in material or workmanship within 12 months
from the date of original purchase, such defect(s) will be repaired
or replaced with new or reconditioned product, (at the Company's
option) without charge for parts or repair labor�
To obtain repair or replacement within the terms of this Warranty,
the product is to be delivered with proof of warranty coverage
(e�g� dated bill of sale), authorization number, specication
of defect(s), transportation prepaid, to an approved warranty
station� This warranty is not transferable�
This Warranty does not cover damage to the vehicle's electrical
system or costs incurred for the installation, removal or
reinstallation of the product� This Warranty does not cover
batteries nor apply to any product or part thereof which, in the
opinion of the Company, has suered or been damaged through
alteration, improper installation, mishandling, misuse, abuse,
neglect, accident, or by removal or defacement of the factory
serial number/bar code label(s)�
This Warranty is in lieu of all other express warranties or liabilities�
ANYIMPLIEDWARRANTIES,INCLUDINGANYIMPLIED
12
13
128-9237B WCC100 In-Vehicle Charging Cradle 12 03 13.indd 14 12/4/2013 10:38:07 AM

WARRANTY OF MERCHANTABILITY, SHALL BE LIMITED TO THE
DURATIONOFTHISWRITTENWARRANTY.ANYACTION
FOR BREACH OF ANYWARRANTY HEREUNDER INCLUDING ANY
IMPLIEDWARRANTY OF MERCHANTABILITY MUST BE BROUGHT
WITHIN A PERIOD OF 24 MONTHS FROM DATE OF ORIGINAL
PURCHASE.INNOCASESHALLTHECOMPANY
BELIABLEFORANYCONSEQUENTIALORINCIDENTALDAMAGES
FORBREACHOFTHISORANYOTHERWARRANTY.
No person or representative is authorized to assume for the
Company any liability other than expressed herein in connection
with the sale of this product�
The company does not warrant that this product cannot be
compromisedorcircumvented.THEEXTENTOFTHECOMPANY'S
LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR
ORREPLACEMENTPROVIDEDABOVEAND,INNOEVENT,SHALL
THE COMPANY'S LIABILITY EXCEED THE PURCHASE PRICE
PAID BY PURCHASER FOR THE PRODUCT WITHOUT COST OF
INSTALLATION.
Some states do not allow limitations on how long an implied
warranty lasts or the exclusion or limitation of incidental or
consequential damage so the above limitations or exclusions may
not apply to you� This Warranty gives you specic legal rights and
you may also have other rights which vary from state to state�
Audiovox Electronics Corporation, 150 Marcus Blvd�, Hauppauge, New York 11788
1-800-645-4994 128-7939A
13
128-9237B WCC100 In-Vehicle Charging Cradle 12 03 13.indd 15 12/4/2013 10:38:07 AM

www
.audiovoxproducts.com
31512020P/N:7625000003C
2013 AUDIOVOX,150 Marcus Blvd. Hauppauge, NY 11788
128-9237B
128-9237B WCC100 In-Vehicle Charging Cradle 12 03 13.indd 16 12/4/2013 10:38:07 AM
