Audiovox MMDV70CB User manual

MMDV7OC / MMDV7OC B
7” LCD OVERHEAD MONITOR
WITH DVD PLAYER
OPERATION MANUAL
S
TOP EJECT
DO M E LIGHT
ON OFF AU TO
POW ER PLAY
OFF ON
POWER

IMPORTANT
AnLCDpaneland/orvideomonitormaybeinstalledinamotorvehicleandvisibleto thedriverif
the LCD panel or video monitor is used for vehicle information, system control, rear or side
observationornavigation.IftheLCDpanelorvideomonitorisusedfortelevisionreception,video
or DVD play, the LCD panel or video monitor must be installed so that these features will only
functionwhenthevehicleisin‘park’orwhenthevehicle’sparkingbrakeisapplied.
An LCD panel or video monitor used for television reception, video or DVD play that operates
whenthevehicle isingearorwhentheparkingbrakeisnotapplied,mustbeinstalledtotherear
of the driver’s seat where it will not be visible, directly or indirectly, to the operator of the motor
vehicle. Warnings
♦Do not use any solvents or cleaning materials when cleaning the video system.
♦Do not use any abrasive cleaners, they may scratch the screen. Use only a lightly
dampened lint free cloth to wipe the screen if it is dirty.
♦Lock the LCD screen in the fully closed position when not in use.
♦Beforeputtingonheadphonesalwaysadjustthe volumesetting tothelowestposition.
♦Remember to leave the dome light switch in the off or auto positions when the
vehicle is unattended, as the dome lights, if left on, can drain the vehicle’s battery.
♦Do not put pressure on the screen.
♦Caution children to avoid touching or scratching the screen, as it may become dirty
or damaged. Safety Precaution
For safety reasons, when changing video tapes it is recommended that the vehicle is not in
motion, and that you do not allow children to unfasten seatbelts to change tapes or make any
adjustmentstothesystem. Systemadjustmentscanbeaccomplishedusingtheremotecontrol
unit,whileseatbeltsremainfastened. EnjoyyourMovies2Goentertainmentsystembutremember-
safety of all passengers remains the number one priority.

Congratulations on your purchase of the Movies 2 Go MMDV7OC / MMDV7OC B
drop-down Video Monitor with DVD player. The MMDV7OC / MMDV7OC B has been
designed to give you and your family many years of video entertainment in the mobile
environment. Please read the directions that follow to familiarize yourself with the
product and to ensure that you obtain the best results from your equipment.
NOTE: Installation options vary, see the individual owner’s manuals for each
component in your system to obtain a full understanding of each component’s
operation.
FEATURES
♦7”TFT(ThinFilmTransistor)ActiveMatrixLCD(LiquidCrystal
Display)MonitorwithDVDplayer
♦OSD(OnScreenDisplay)forControlofPictureQualityand
Functions
♦DVD/CD/MP3 compatible
♦Infrared Transmitter for the included IR Wireless
Headphones
♦Two Audio / Video Source Inputs (One is for internal
DVD player)
♦Power ON/OFF Switch
♦RemoteRepeaterSensor
♦DomeLightswithBuilt-inThreeWaySwitch
♦VideoDisplayON/OFFControl(whenLCDPanelisOpened
andClosed)

4

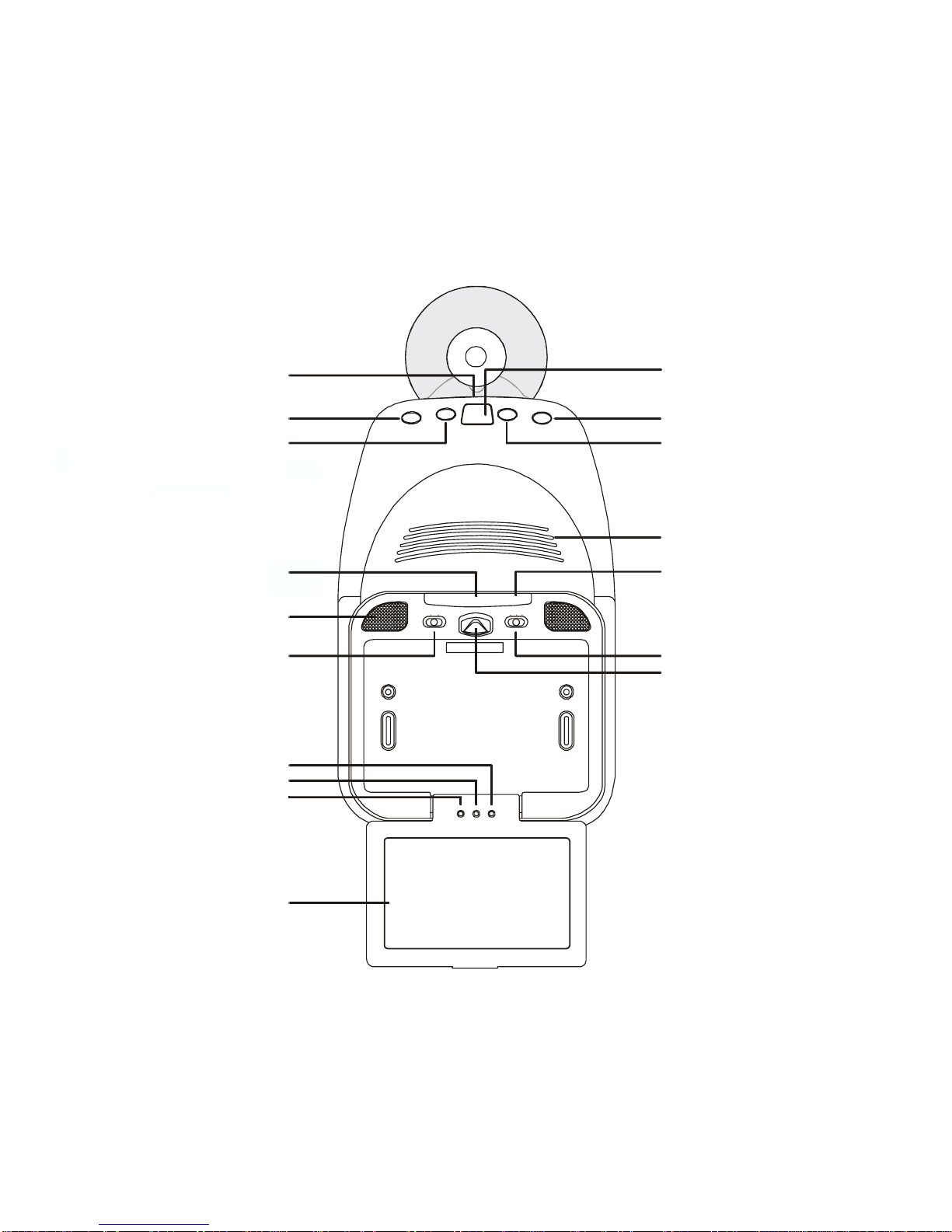

CONTROLS AND INDICATORS DIAGRAM
1
POWER PLAY STO P EJECT
DOM E LIG H T
ON OFF AUTO
OFF ON
POW ER
MENU DOWN UP
2
3
4
5
6
7
8
9
16
14
10
11
12
13
15
17

5
MAINFUNCTIONDESCRIPTIONS
1. DVD disc insertion slot.
2. Power Button – For internal DVD player
3. Play Button
4. Eject Button
5. Stop Button
6. MMDV7OC / MMDV7OC B Ventilation opening
7. Infrared Transmitter – Used to transmit audio to wireless headphones.
8. Dome Lights – Provide additional interior illumination.
9. Power ON/OFF Select Switch – For LCD monitor.
10. Select Up Button
11. Select Down Button
12. Menu button – Display MENU, PICTURE, SOURCE and DISPLAY OFF.
13. LCD Panel
14. Screen Release – Slides in the direction of the arrow to release the drop
down screen.
15. Three Position Dome Light Switch
• Auto – Automatically switches on the dome lights in conjunction with the
vehicle’sinterior illumination.
• Off – The Dome lights will not turn on in this position.
• On – Turns on the Dome lights.
16. Remote Sensor – For remote repeater.
17. Remote Sensor – For remote internal DVD player.

6
BATTERY INSTALLATION
Before attempting to operate your
RemoteControl,installthebatteriesas
described below.
1) TurntheRemote Control facedown.
Using a fingernail, lift the battery
cover off.
2) Installtwo“AAA”batteries asshown.
Makesurethatproperpolarity(+or
–) is observed.
3) Align the cover tabs with he remote
control and press down until the
cover clicks.
The remote control will operate the
MMDV7OC/ MMDV7OCBDVDplayer
only. Itisnot a universal remotecontrol
and will not control equipment from
other manufacturers.
REMOTECONTROLOPERATION
+
–
+
–
MENU
RETURN
A-B
REPEAT
SETUP
EJECT
DISPLAY
ANGLE
AUDIO
ZO O M
1
4
2
5
3
6
0
Enter
1
2
3
4
5
6
7
8
9
10
11
12
13 14
15
16 17
19
18
20 21
22
23
24
25

7
DVD FUNCTION DESCRIPTIONS
1. DISPLAYButton
Press to display DVD Disc current information.
2. ANGLE Button
Allows the user to select the DVD angle if the DVD contains this feature.
3. SUBTITLE Button*
Allows the user to select the DVD subtitle feature. Use cursor keys to highlight desired
item, use ENTER to switch.
4. AUDIO Button*
Allowsthe user to entertheAudio menu features (languagespokenetc.). Use the ( )
buttons to highlight desired item, use the ( ) buttons to switch.
5. ZOOM Button
Press this button to zoom the picture.
Press ZOOM button O SD DVD PlayerPerform
Once ZOOM x2 ZOOM picture 2 times
Tw ice ZOOM x3 ZOOM picture 3 times
3 times ZOOM x4 ZOOM picture 4 times
4 times ZOOM x1/2 Reduced picture to 1/2
5 times ZOOM x1/3 Reduced picture to 1/3
6 times ZOOM x1/4 Reduced picture to1/4
7 times ZOOM OFF NormalDisplay
Press DISPLAY button DVD PlayerPerform
Once Display currentTITLE & CHAPTER
Tw ice D isplay currentSUBTITLE
3 times Display currentAUDIO language & channel
4 times Display currentANGLE
5 times Display A-B curre n t status
6 times Display REPEAT currentstatus
7 times Display is turned off
*NOTE: Some DVDS only allow access to these functions through the root menu.

8
6. UP ( ) Button
Allows the user to scroll upwards in the menu options.
7. LEFT ( ) Button
Allows the user to shift left in the menu options.
8. MENU Button
Allows the user to access the main DVD menu.
9. RETURN Button
Allows the user to exit the set up menu.
10.NEXT ( )Button
Allows the user to skip to the next chapter or track.
11. PREVIOUS ( ) Button
Allows the user to return to the previous chapter or track.
12.SCANBACKWARD ( ) Button
Allows the user to search in a backward direction at 2,4,6,8,16 and 32 times the normal
speed.
13.SCAN FORWARD ( ) Button
Allows the user to search in a forward direction at 2,4,6,8,16 and 32 times the normal
speed.
14.SLOW Button
The DVD viewing speed will be reduced to 1/2, 1/4, 1/8 and 1/16 times of the normal
speed.
15. STOP ( ) Button
DVD disc play will be stopped.
16.PLAY( ) Button
Pressthisbuttontoactivatetheplaymodewhileadiscisloadedintothedisccompartment.
17.PAUSE ( ) Button
Allows the user to pause the playback.
18.A–B REPEAT Button
Allows the user to repeat play of a DVD or CD from pointAto point B.

9
21.SETUP Button
Allows the user to select the DVD options (Display, OSD Language, Default, Parental
Control,Password,ExitSetup). Thesetupdisplaycanbeviewedonlywhentheplayeris
in stop mode.
22.RIGHT ( ) Button
Allows the user to shift to the right in the menu options.
23.ENTERButton
Used to select or switch a highlighted selection.
24.NUMBERS Buttons
Allows the user to enter the number 0 to 9 for selection of CD tracks, dvd chapters and
passwordsetting.
25.EJECT ( ) Button
The disc will be ejected from the disc compartment.
19.REPEAT Button
Allows the user to repeat various titles, chapters or tracks of a DVD,CD or MP3 and
displaysthe repeat menu.
20.DOWN ( ) Button
Allows the user to scroll downward in the menu options.

10
TURNINGTHEMMDV7OC/MMDV7OCBONOROFF
(LCDDISPLAYUNIT&INTERNALDVDPLAYER)
1. Sliding the screen release lock forward will unlock the LCD screen and drop
downslightly. Movethescreen downwardand pivotituntilacomfortableviewing
angle is reached. The internal friction detent will hold the screen in position
while the system is in use.
2. Slide the POWER switch to the ON position on the monitor.
3. Press the POWER Button to switch on the Internal DVD source.
4. Select AV1 from the menu options (see page 14 for details).
5. After the unit is turned ON and begins to display a picture, adjust the viewing
angle by pivoting the screen to optimize the picture quality.
6. Remember to turn the unit OFF and pivot the LCD to the locked position when
not in use.
S
TOP EJECT
DOM E LIGHT
ON OFF AUTO
POW ER PLAY
OFF ON
POW ER
Power
ON/OFF
Switch
Power
Button

11
OPERATION
OVERHEAD DOME LIGHTS
The Dome Lights integrated into the MMDV7OC / MMDV7OC B are controlled by a
three position slide switch. Sliding the switch to the ON position will turn the lights
ON. The OFF position will prevent the lights from turning ON with the vehicle’s
interior lighting, and the auto position will allow the lights to turn ON and OFF with
the vehicle’s interior lighting. Do not leave the vehicle unattended with the dome
light switch in the ON position, as this could result in a discharged battery. Refer to
the Installation Guide for wiring information).
S
TOP EJECT
DOM E LIG H T
ON OFF AU TO
POW ER PLAY
OFF ON
POWER

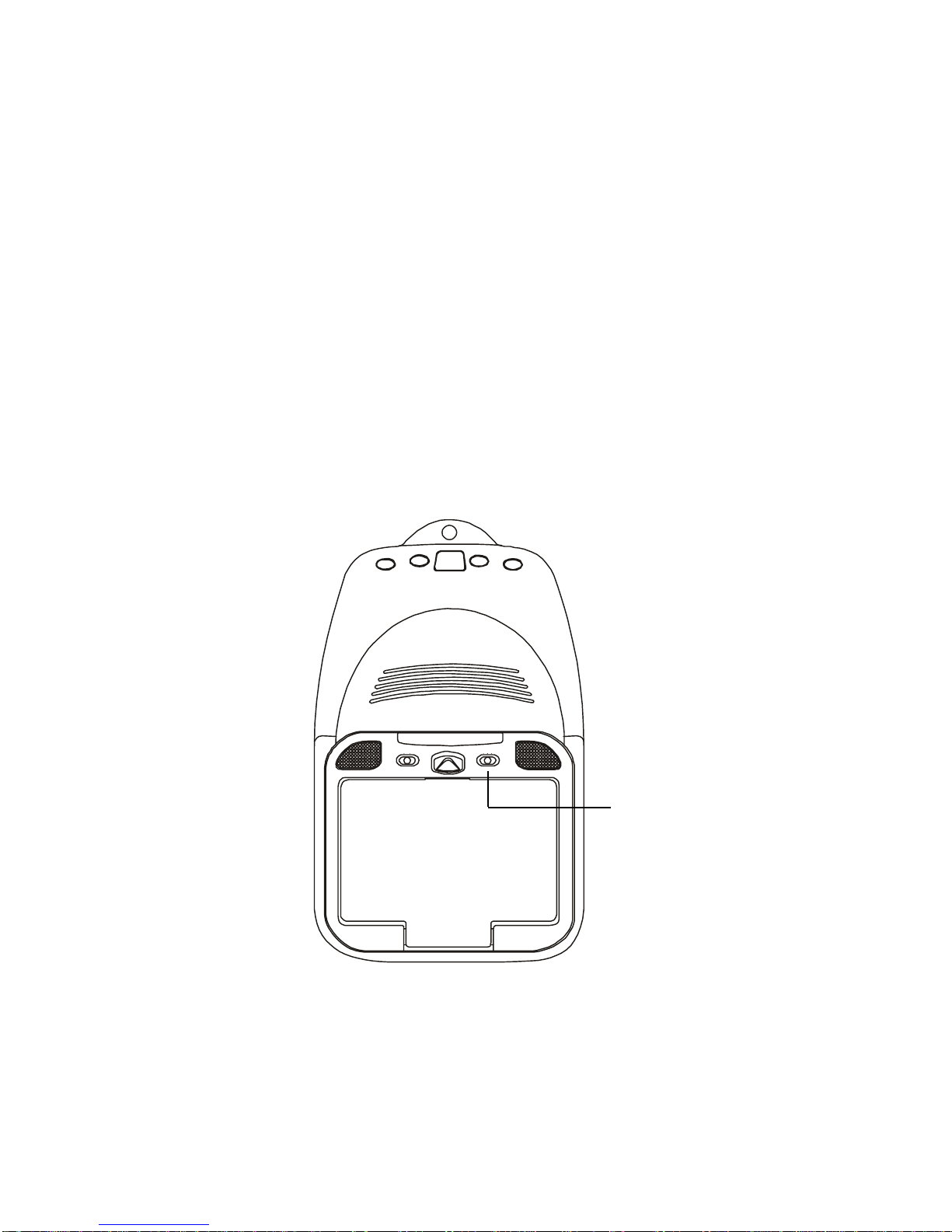

Dome
Light
Switch

12
REMOTESENSOR
TheMMDV7OC /MMDV7OCB incorporatesanInfrared sensor whichrelayssignals
from the remote control to allow the source connected to AV2 to be controlled
simplybypointing its remote control attheremotesensoreye. This provides control
of auxiliary equipment such as a Video Cassette Player. The infrared sensor can
relay signals from most manufacturer’s remote control to its respective component
connectedto theVideo2 input.Inthiscase youmustuse theremotecontrol supplied
with the component.
Remote
Sensor Eye
Infrared Transmitter
S
TOP EJECT
DOM E LIGHT
ON OFF AUTO
POW ER PLAY
OFF ON
POW ER
Remote Sensor Eye
DVD Remote Sensor
The MMDV7OC / MMDV7OC B
incorporate an Infrared sensor which
relays signal from the MMDV7OC /
MMDV7OC B remote control that allow
the internal DVD player to be controlled
by simply by pointing the remote control
at the remote sensor eye.

13
To darken the picture
Decrease the contrast
for soft color
To decrease the color
intensity
Increases the
greenish skin tones
To brighten the picture
Increase picture
contrast for vivid color
To increase the color
intensity
Increases the reddish
skin tones
To restore the factory settings, select RESET and press either the UP or
DOWN button. All of the picture settings (BRIGHTNESS, CONTRAST, COLOR
and TINT) will return to the factory preset settings.
BRIGHTNESS
CONTRAST
COLOR
TINT
PICTURE ADJUSTMENT
When watching the program, the quality of the picture can be adjusted to suit your
taste.
Press the MENU button, the main menu
will appear. Then press the DOWN/UP
buttontoselecttheitem youwanttoadjust.
Pressthe MENU button againtoselect the
item. For example: Press MENU button,
highlight PICTURE and press the MENU
buttontoenter.The PICTURE menu will appear, highlight BRIGHTNESS and press
the MENU button to enter. Then press the DOWN/UPbutton to adjust the selected
function.
Description of Adjustment Items:-
Item Press DOWN button Press UP button
CONTRAST
COLOR
TINT
RESET
BRIGHTNESS 32
32
32
00
CONTRAST
COLOR
TINT
RESET
BRIGHTNESS
32
32
00
32
32 BRIGHTNESS 32 BRIGHTNESS
MENU
SOURCE
DISPLAY OFF
MENU
SOURCE
DISPLAY OFF

14
SOURCESELECT
There are 2 inputs to select from the SOURCE Select Menu:AV1 andAV2.
To select the source, highlight SOURCE and press MENU button to enter.
Then, press UP / DOWN button to selectAV1 or AV2.
EXIT THE MENU
To exit the main menu, highlight DISPLAY OFF and press MENU button to enter,
the menu will disappear.
NOTE: The menu also disappears from the screen automatically if you do
not press any button within few seconds.
NOTE : The built in DVD player is source “AV1”. To play the internal DVD
source, press the MENU button to select SOURCE SELECT. Press UP/DOWN
until “AV1” is displayed on the screen (below). The MMDV7OC is now ready to
play the audio and video signal from the internal DVD player.
MENU
SOURCE
DISPLAY OFF
MENU
DISPLAY OFF
SOURCE
SOURCE
AV2
AV1

15
WIRELESS HEADPHONES
The MMDV7OC / MMDV7OC B includes a built-in infrared transmitter and two
pairs of Audiovox wireless headphones (Part Number MMIRHS). The volume
can be adjusted with volume control on each headset. The wireless headphones
must be used within line of sight from the transmitter, as infrared transmissions,
like visible light travel only in a straight line.
Controls and Indicators (Figure 1)
1. INFRARED PICKUP SENSORS – (Receives signals from the transmitter)
2. BATTERY COVER
3. VOLUME CONTROL
4. POWER SWITCH
5. POWER INDICATOR LED
ON•OFF
VOL
1
Figure 1
RL
2
3
4
5

16
Battery Installation (Figure 2)

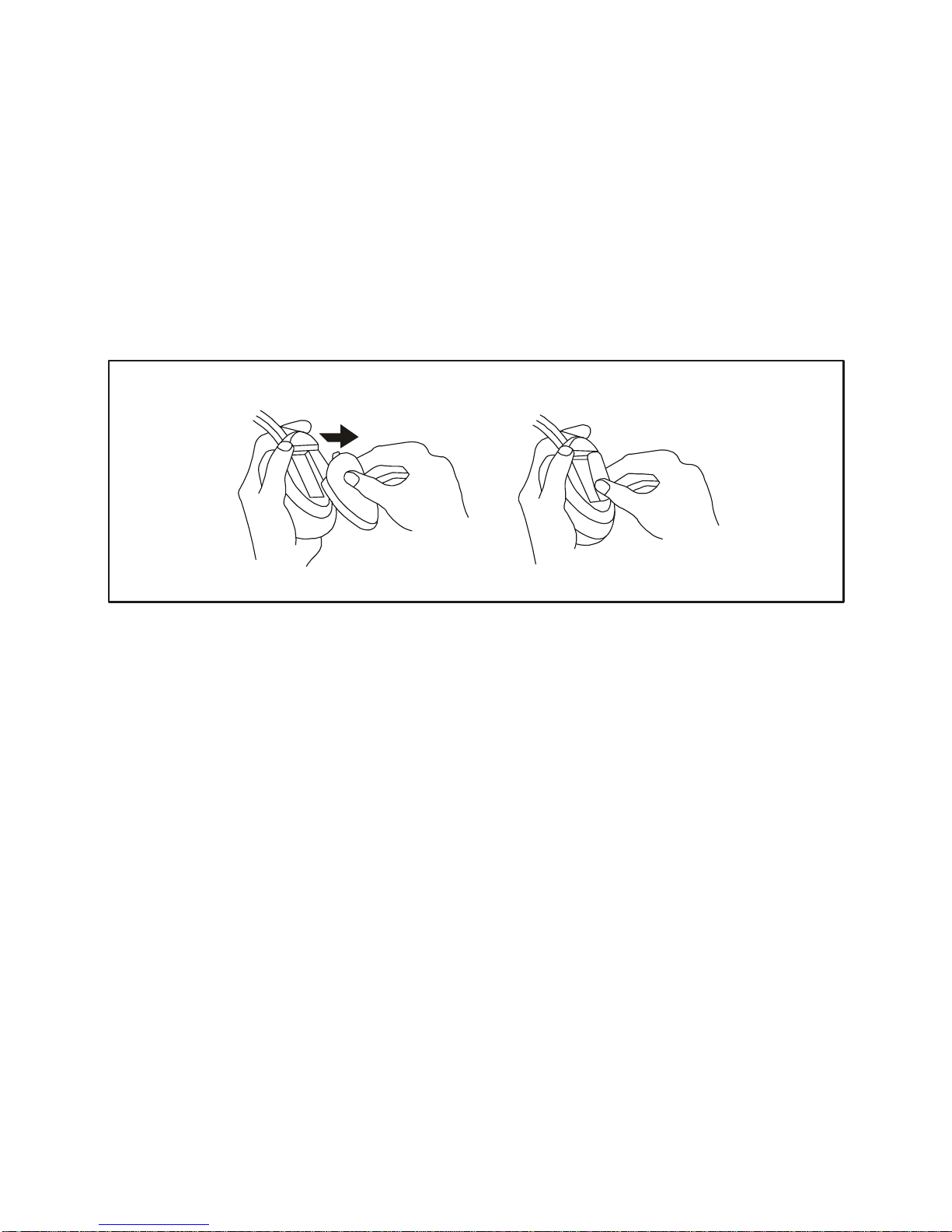

1. Place two alkaline AAA batteries into the Headphone’s battery compartment
making sure that the battery polarity is correct.
2. Replace the battery cover.
HEADPHONEOPERATION
IMPORTANT: To prevent possible hearing damage,
Read the following carefully!
1. Turn the headphone volume down before turning on the power. Turn on the
headphone power then increase the headphone volume to a comfortable
level.
Figure 2

17
OPTIONALACCESSORIES
AV 2*
The second video input may be connected to a VCPplayer, video game system,
or other audio / video input. To play the Video 2 source, turn the MMDV7OC /
MMDV7OC B ON and press the Menu button on the MMDV7OC / MMDV7OC B
to select INPUT SELECT and press the UP/DOWN button until “AV2” is
displayed on the screen.Turn the source component on with its power button or
remote control. The MMDV7OC / MMDV7OC B is now ready to play the audio
and video signals from the source connected to the video 2 input.
* NOTE: Additional Accessory Cable is required (Part Number 8010730) to
connect more then one video source to the MMDV7OC / MMDV7OC B.

18
DVD Basics
To get the optimum use out of the DVD section, make sure you read this section
completely.
Regional Coding
Both the DVD player and disc are coded by region. These regional codes must
match in order for the disc to play. If the codes don’t match, the disc won’t play.
This unit’s code is region 1. Other regional codes cannot be played in this unit.
The unit will display “WRONG REGION.”
Types of Discs your DVD will play
•DVD discs – DVDs discs which contain video.
•Audio discs – Audio CDs that contain musical or sound content only.
•MP3 discs – A disc that contains audio files (for example, a CD-R with
downloadedMP3files).
Loading and Playing Discs
Before you load a disc, make sure that it is compatible with the player.
Note: the following Discs CANNOT be used with this player :
•MiniDisc
•Laserdisc
•CD-I, CD-ROM, DVD-ROM
To load and Play a Disc
When you press the Power button the unit will turn on and display the source
selected. Select DVD mode (AV1 mode) and insert the disc (Label Up) into the
disc compartment. When the disc is half way in it will be automatically pulled in
and play will begin.

19
Settings and Adjustments
This chapter describes how to set and how to adjust using the on-screen SETUP
menu.
Using the Setup Menu
Using the setup display, you can do the initial setup and set the various outputs.
Youcan also set a language for the on-screen display and the setup display and
limit playback by children.
1) Press the SETUP button to display the “setup menu” on the TV screen.
2) Select the main item you want using the cursor ( ) buttons, and then
press the ENTER button.
To Cancel Using the Setup Display
Press the SETUP button on the remote.

20
Settings for Display
Press the SETUP button and select Display. The DISPLAY SETUP allows you
to adjust screen setting (aspect ratio) Press and then use the (▼▲▼▲
▼▲▼▲
▼▲)buttons
to select the appropriate settings.
4:3/PS
This displays the wide picture on the screen with a portion of the left &
right side removed.
4:3/LB
This displays the wide picture with black bands on the upper and lower
portions of the screen.
16:9
This displays a picture with black bands on the upper and lower portion
of the screen.
Then press ENTER to confirm your selection.
