OPERATION
MANUAL
128-8938
HR7011PKG
Two Custom Vehicle Headrests
with 7” LCD Monitors Touch Screen Control
and Built-in
DVD Player for Rear Entertainment
AUX AUX

IMPORTANT
An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used
for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television
reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is
in “park” or when the vehicle’s parking brake is applied.
An LCD panel or video monitor used for television reception, video or DVD play that operates when the vehicle is in gear or when the
parking is not applied must be installed to the rear of the driver’s seat where it will not be visible, directly or indirectly, to the operator of the
motor vehicle.
Licensed under one or more of the following patents:
Patent NOS. 7,245,274, 6,899,365, and 6,678,892.
2

3
HR7011PKG
Quick Start Guide
The HR7011PKG contains two vehicle specific headrests. Each has a 7” Monitor with touch screen controls and a built-in DVD Player. This
system allows the users to either watch individual DVDs or watch the same DVD on both monitors. Both users can also share each other’s
program. The full function remote control can operate either unit by selecting M1 or M2 on the remote.
1. Turn on the M1 Monitor To gain access to the DVD slot press the top center of the screen frame. The screen will tilt forward.
2. Insert a DVD, CD or MP3 disc into the slot, disc label toward driver. Push down gently on the disc until the player pulls the disc in.
3. Use the touch screen to access the DVD mode.
4. Tilt the monitor to a comfortable viewing position. The headrest itself can be tilted forward to help achieve a comfortable viewing
position.
5. Each wireless headphone has a CH A/CH B switch. Turn the volume down to its lowest setting before putting them on your head.
When sitting in front of the M1 screen, use the CH A switch setting. When sitting in front of the M2 screen, use the CH B switch setting.
Set the headphone to the proper channel and press the Power On/Off switch. The power indicator will light up red.
6. When the DVD menu appears, select the menu item using the cursor keys and touch the OK or play button.
7. If audio playback through the vehicle radio is preferred, use the FM transmitter On/Off button on the remote control. Set the vehicle
radio to the channel selected on the M1 monitor. If interference with a local radio station occurs, set the FM modulator to one of the
other 15 radio frequencies using the CHANNEL SELECT button on the remote control.
8. Turn on the M2 Monitor using the power button on the front of the screen or remote control.
9. Tilt the screen to a comfortable viewing position (the headrest itself can be tilted forward to help achieve a comfortable viewing
position).
10. Touch the screen and touch on M1 or press the SOURCE button on the remote control to view program from M1, or select from the
other available sources: DVD, USB, AV, AUX, and MEDIA for M2 Monitor.
To operate the M1 screen, press M1 on the remote control.
To operate the M2 screen, press M2 on the remote control.
.,
NOTE:

4

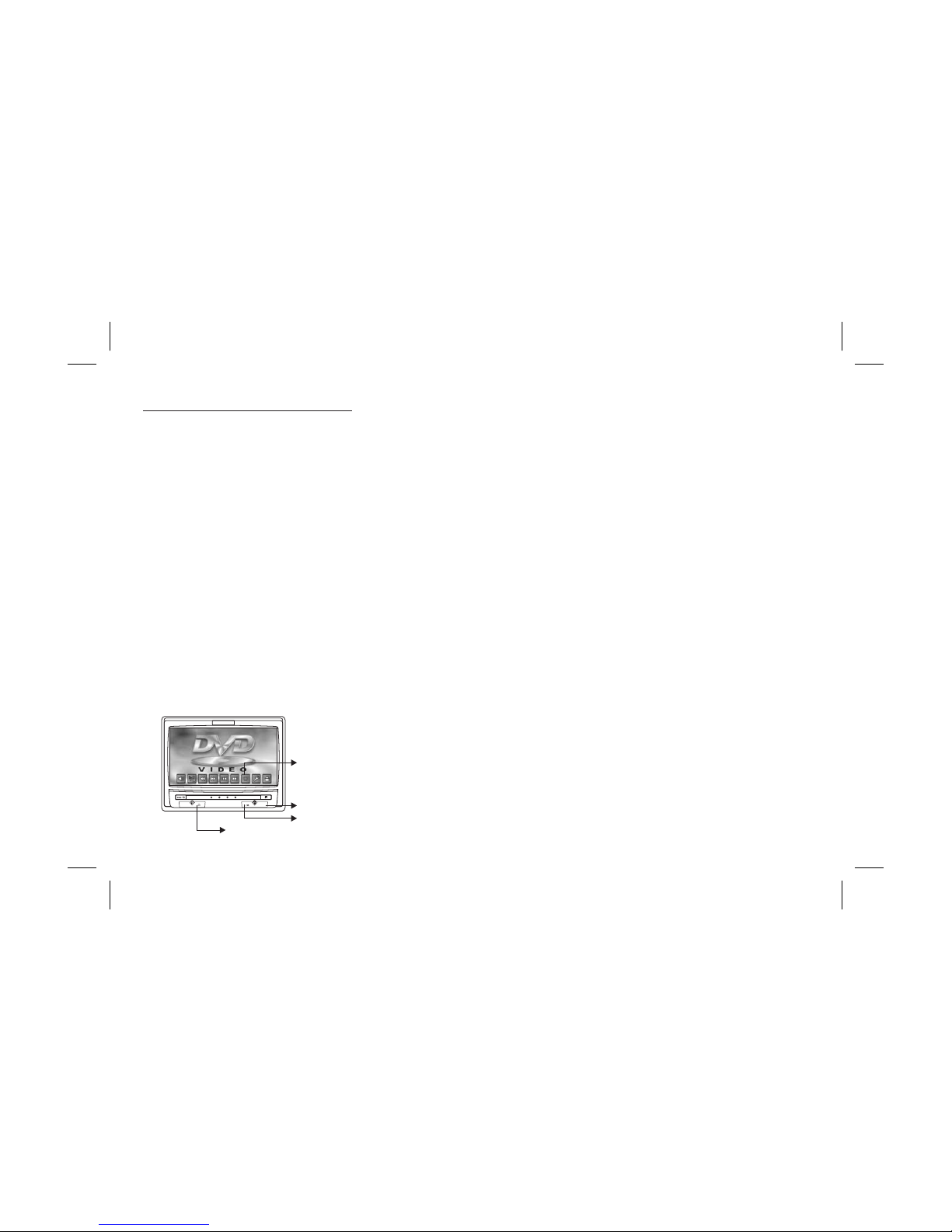

HR7011PKG SYSTEM OVERVIEW
1) The HR7011PKG SYSTEM is a versatile headrest system. The headrests are referred to as M1 and M2 in this manual.
2) The M1 Monitor is comprised of a 7" Touch Screen TFT LCD monitor with a built-in DVD player that allows the user to select from several sources
(DVD, USB, M2, AV, AUX, MEDIA, and GAME Source). The M1 monitor has a built-in infrared audio transmitter channel (CH A) for use with the two-
channel wireless headphones (CH A).
When the DVD menu appears on the screen, touch the desired DVD menu selection to start the DVD playing. Refer to page for 6 operation.
3) The M2 Monitor is comprised of a 7" Touch Screen TFT LCD monitor with a built-in DVD player that allows the user to select from several sources
(DVD, USB, M1, AV, AUX, and MEDIA Source). The M2 monitor has a built-in infrared audio transmitter channel (CH B) for use with the two-channel
wireless headphones (CH B).
When the DVD menu appears on the screen, touch the desired DVD menu selection to start the DVD playing. Refer to page for 6 operation.
4) The monitors will display all of the functions with the comprehensive Graphical User Interface (GUI) and can be accessed using the touch screen.
5) The two-channel wireless headphone sets have an A-B switch that allow the users to select the audio from either M1 (CH A) or M2 (CH B).
6) When using the IR remote control, the M1 Monitor will only respond to the remote control unit when the Monitor Select M1 button on remote control is
pressed. The M2 Monitor only responds to the Remote Control unit when the Monitor Select M2 button on remote control is pressed.
7) Optional wired headphones allow the user to listen to audio from the system.
8) The M1 and M2 Monitor will accept an audio / video input through the 1/8” jack located on the front of the unit. The audio / video device can be a video
game system, video camera or other input device.
NOTE:
NOTE:
()
()
AUX
WIRED HEADPHONE
USB
AUX
TOUCH SCREEN GRAPHICAL USER INTERFACE (GUI)

5

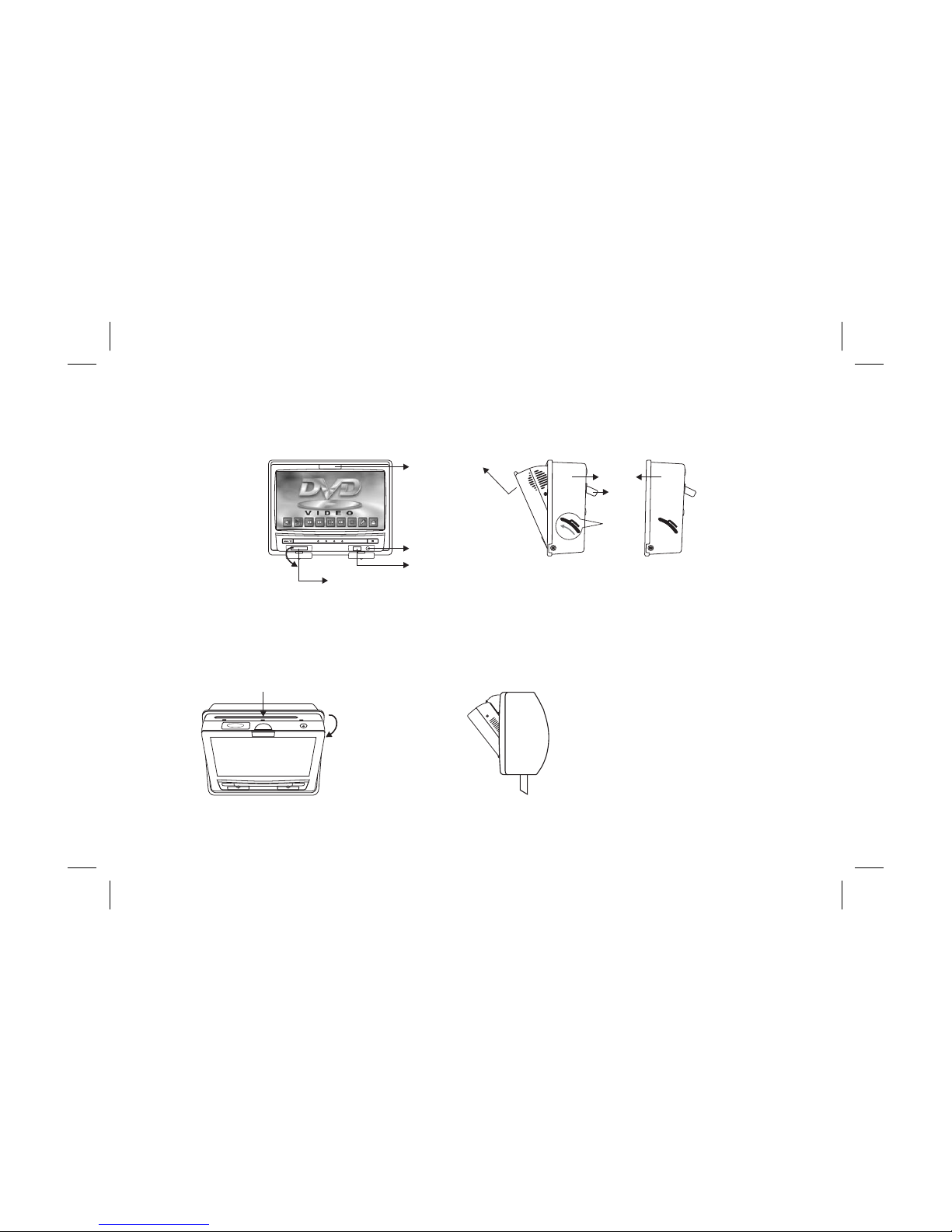

9) Press and release the screen at the top of the screen to release the screen for disc insertion. The headrest itself can be tilted forward to help achievea
comfortable viewing position. Pressing it again will lock the screen back in the closed position.
PULL UP
AUX
USB JACK
WIRED HEADPHONE
PUSH IN
Inner Ring
Hook
Shaft Angle
Closed Position
10) Insert/Eject disc.
Insert/Eject Disc
19 Degrees
19 degrees

6

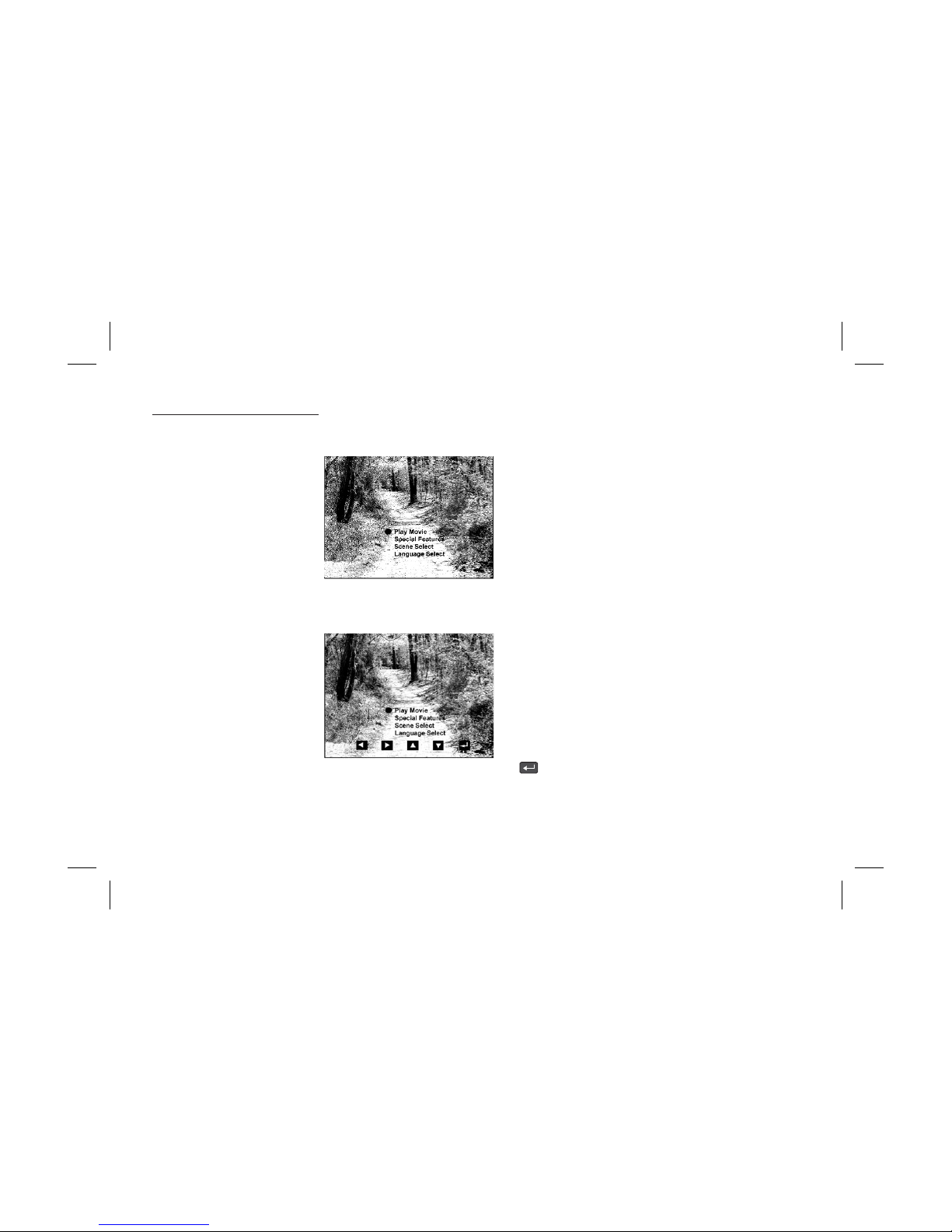

HR7011PKG Touch Screen
The touch screen allows the user to start DVD play by touching PLAY MOVIE or any of the DVD menu features on the LCD screen.
Some DVDs will not allow this function. One method is to use the remote control instead of the touch screen. The other method is to touch any of
four corners of the screen to access the DVD menu navigation screen (see below).
Use the up/down/left/right icons to select an item from the DVD menu. Use the Enter / to start DVD play.

1
2
AUX
3
4567
M1/M2 Panel Control
1. DVD disc insertion slot
2. EJECT ( ) Button - Press this button to eject the disc
3. MENU/POWER ( ) Button with Power Indicator LED
4. Wired Headphone Jack
5. IR Transmitter LEDs
6. USB Port
7. AUX Jack
8. IR Sensor
9. Graphical User Interface (GUI) Touch Screen
CONTROLS AND INDICATORS DIAGRAM
Control Function Description for M1 and M2 Monitor
7
8
9

8

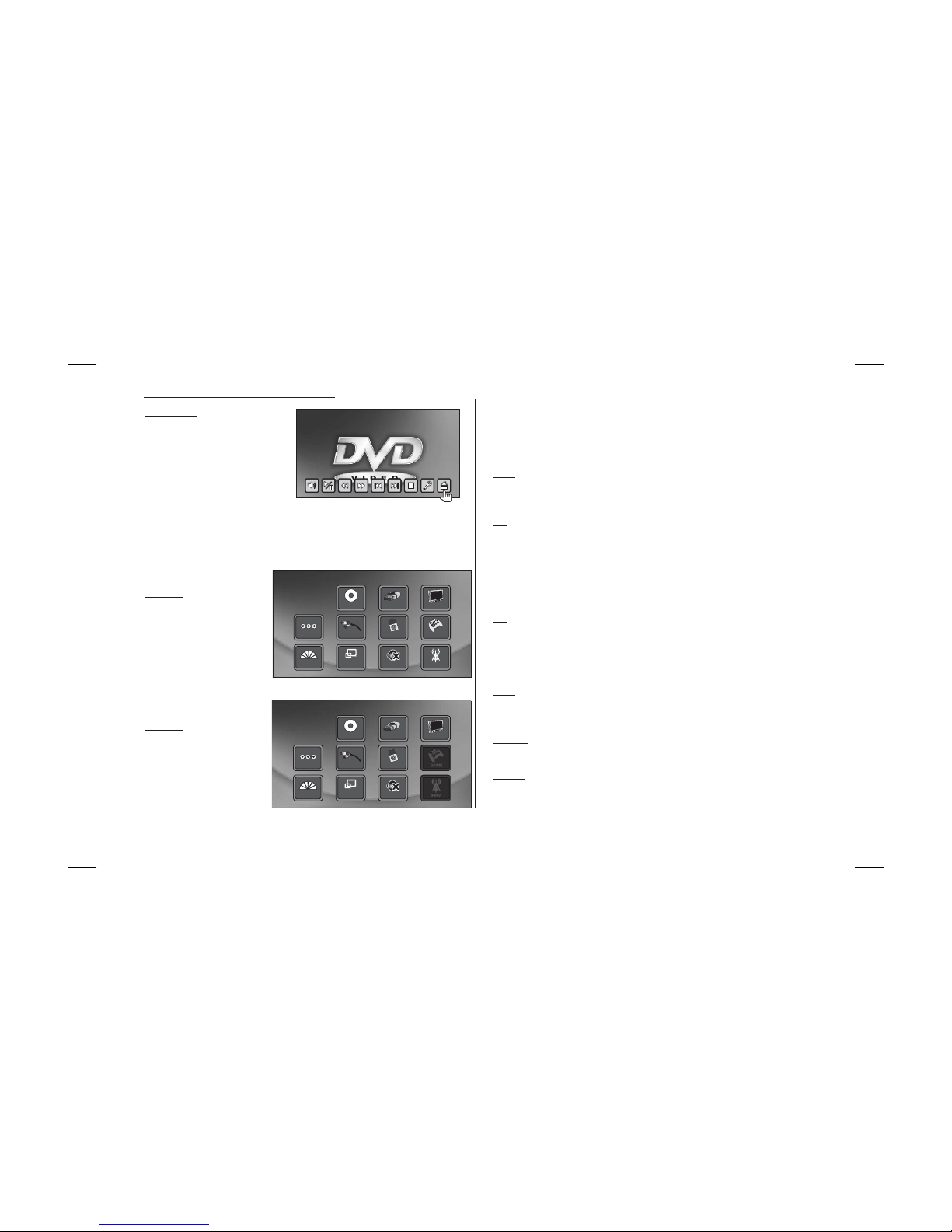

Touch Screen For HR7011PKG
Main Page
M1 Unit
M2 Unit
Turn on the unit by pressing
the power button located on
the lower left of the unit.
1) Touch the panel then
touch the Home icon to
display the Main Menu. The
Main Menu can also be
accessed by pressing the
MENU button on the unit’s
front panel.
2) The Main Menu screens
for M1 and M2 contain
the following icons:
DVD, USB, M2, AV,
AUX, MEDIA, GAME,
PIX, SCREEN OFF,
MUTE, FMM.
DVD, USB, M1, AV,
AUX, MEDIA, PIX,
SCREEN OFF, MUTE.
Main Menu
SCREEN
OFF MUTE
MEDIA
FMM
GAMEAUX
USB M2
DVD
Main Menu
AV
AV
PIX
M1
M2
SCREEN
OFF MUTE
MEDIA
FMM
GAMEAUX
USB M1
DVD
Main Menu
AV
AV
PIX
DVD
USB
M2
M1
AV
AUX
MEDIA
GAME
Touch the Main Menu DVD icon to set the source to DVD.
Insert the DVD into the slot, disc label toward driver. Gently push
down on the disc and the disc will load automatically.
Insert the USB device into the USB Slot. Touch the Main Menu
USB icon to set the unit’s source to USB.
Touch the Main Menu M2 icon on the M1 unit to link the M1 unit
to the M2 unit. The M1 unit will now receive its AV from M2.
Touch the Main Menu M1 icon on the M2 unit to link the M2 unit
to the M1 unit. The M2 unit will now receive its AV from M1.
Touch the Main Menu AV icon to view the A/V source. The AV
input may be connected to a external video source, video game
system or other audio/video device. Contact your dealer for
more information.
Touch the Main Menu AUX icon to route external audio and
video supplied to the unit via the cable adapter.
Touch the Main Menu MEDIA icon to select the MEDIA display.
Main Menu to select a gameTouch the GAME icon (for M1
only). The GAME selection is controlled by wireless game
controller.

PIX
Touch the Main Menu PIX icon to gain access to the display’s
picture controls. The controls available are BRIGHTNESS,
CONTRAST, COLOR, TINT, and RESET.
Adjustment of each control is made by touching + (increase)
or - (decrease) then
The on-screen DVD menu of most DVDs can be used to select a
DVD menu feature such as “Play Movie”, “Scene Select”, etc. by
touching the menu item on the touch screen. For example,
touching “Play Movie” in the below screen will start movie play.
A small number of DVD discs will not function like this. In
this event use the remote control to start the movie or select the
different DVD options.
, touching (enter) to exit.
NOTE:
,
9
MUTE
SCREEN OFF
Touch the Main Menu MUTE icon to toggle the unit’s audio
between on and off.
Touch the Main Menu SCREEN OFF icon and the screen will
shut off. Touch the screen again to turn it back on. The screen will
turn back on after cycling power.
Touch the Main Menu FMM icon (For M1 only) to gain access to
the FM Modulator controls.
To turn on the FM Modulator, touch + or - icon, then select the FM
modulator transmission frequency by touching - (decrease) or
+ (increase) [88.1MHz ~ 91.1MHz]. Touch (enter) to exit.
Set the vehicle radio to the selected frequency to listen to the
movie over the vehicle sound system.
To turn off the FM Modulator function, touch the OFF icon. Then
touch (enter) to exit.
FMM
OFF
FMM 88.1 MHZ
PIX
COLOR 16
COLOR 16
Scene Select
•
Extras
•
ETC
•
Audio
•
Play Movie
•

Back View
10

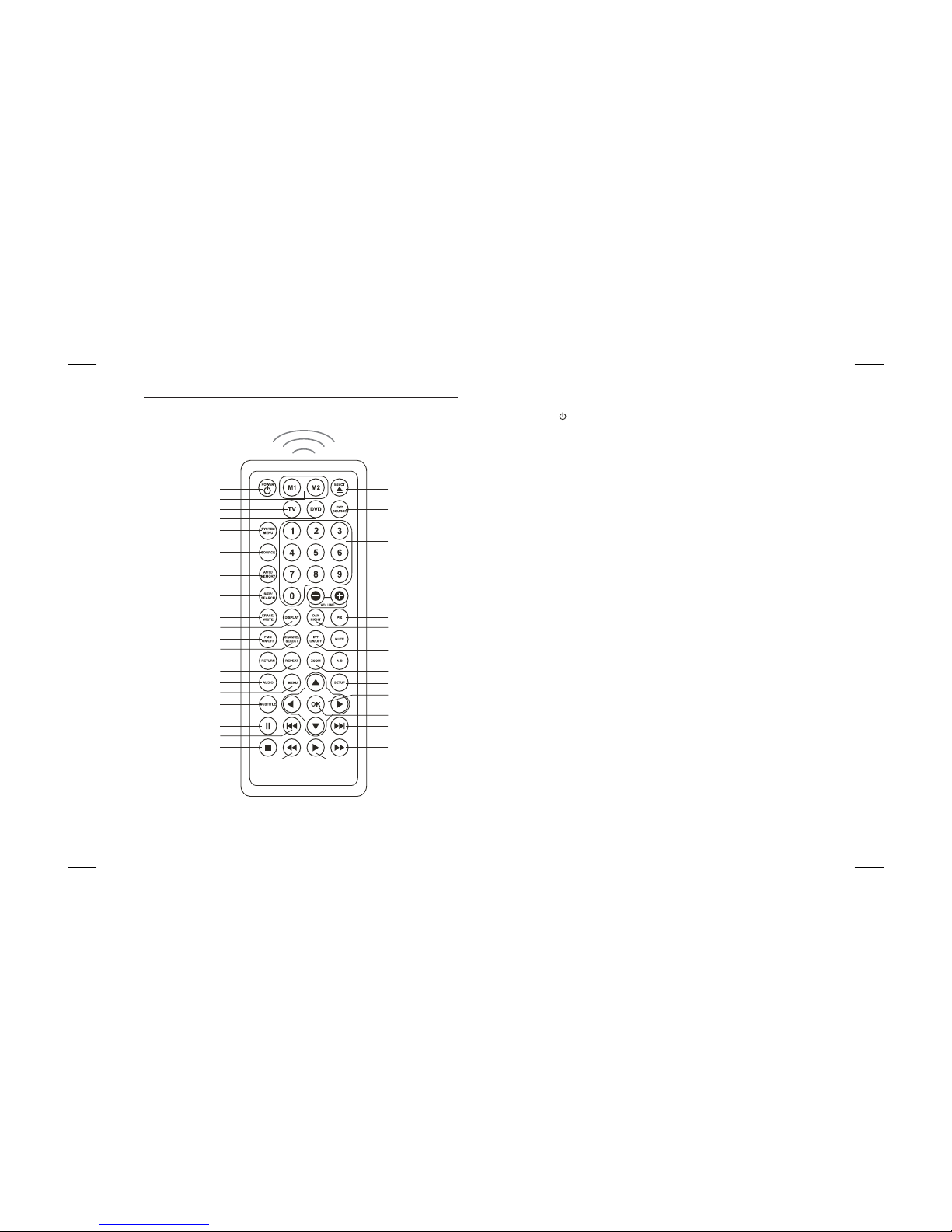

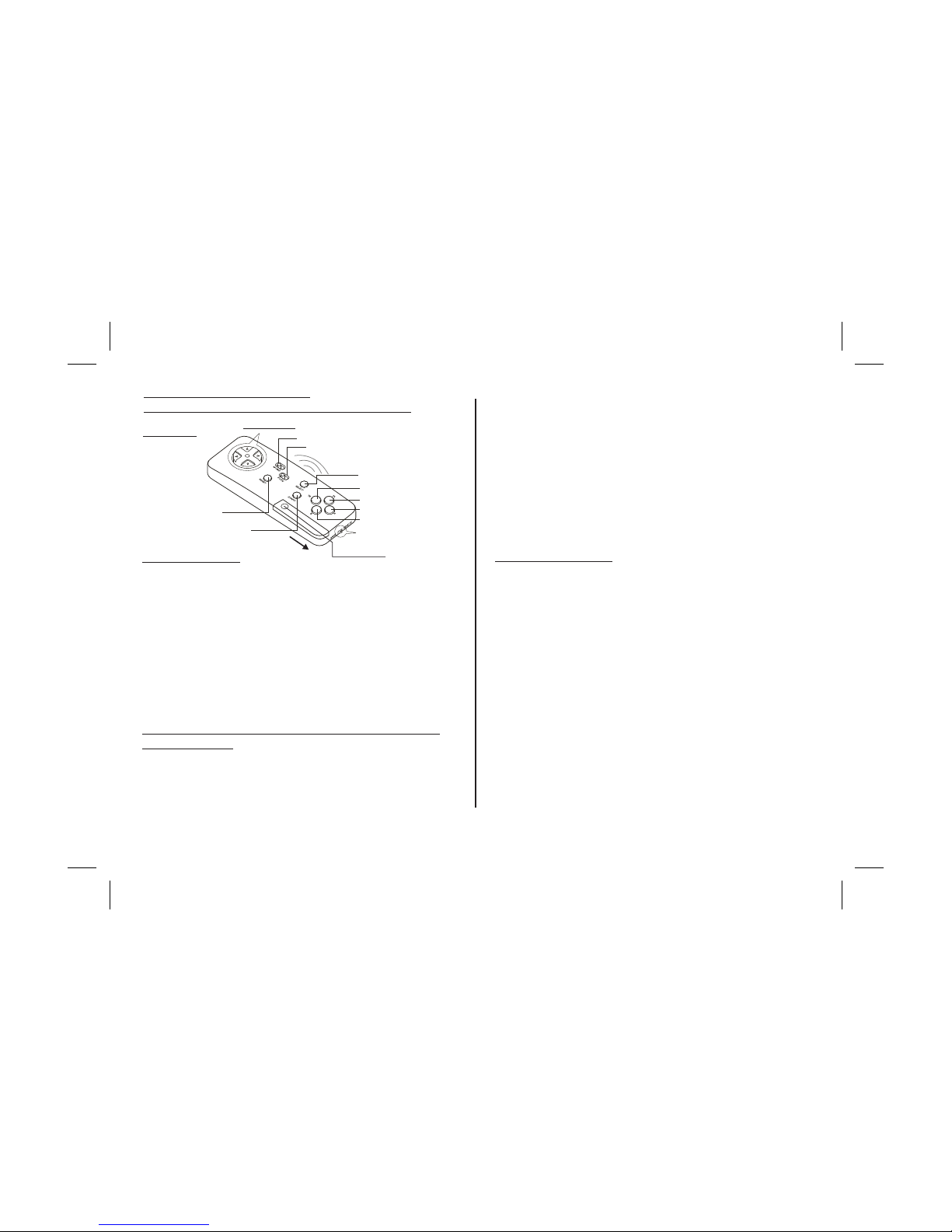

REMOTE CONTROL WITH
WIRELESS GAME CONTROL OPERATION
DIRECTION KEYS
M1/M2
P1/P2
SELECT
TB
A
TA
B
GAME/REMOTE
SELECTOR SWITCH
BATTERY COVER
START
RESET
Battery Installation
Before attempting to operate your remote control, install the
batteries as described below:
1) Turn the remote control face down. Using a finger, slide
battery cover off in the direction of the arrow.
2) Install three “AAA” batteries. Make sure that proper polarity
(+ or -) is observed.
3) Align the cover tabs with the remote control and slide the
cover until it locks.
The remote control will only operate the M1/M2 Monitors. It is not
a universal remote control and will not control equipment from
other manufacturers.
WIRELESS GAME CONTROLLER FUNCTIONAL
DESCRIPTION
1. Position the GAME/REMOTE selector switch to the GAME
position.
2. Use the SELECT button (page up & page down) to display
the games (1-32). Then use the direction buttons to move the
arrow to the desired game. Press START to select the game.
3. A Key : “A Function Key” activates the jump and optional
weapons.
4. B Key : “ B Function Key” activates Bullet fire and attack.
5. TA Key : TURBO “A” Function Key.
6. TB Key : TURBO “B” Function Key.
7. Press START to begin the game. Press START again at any
time to pause the game.
8. Return the GAME/REMOTE selector switch to the REMOTE
position after use.
Two-Player Games
The game source can only be selected from the M1 Monitor.
When playing two-player games, select the GAME source on the
M1 Monitor and select the M1 source on the M2 Monitor.
When playing two-player games, use two remote controls and set
the remote controls as follows:
Player 1 (M1 Monitor) sets their remote to Game/M1/P1
Player 2 (M2 Monitor) sets their remote to Game/M1/P2.
Single player games can be played on the M2 Monitor but the M1
Monitor must be turned on and set to the GAME source. You
cannot watch a DVD on the M1 Monitor and play a game on the
M2 Monitor. When playing a single player game on the M2
Monitor, set the remote control to GAME/M1/P1 and point the
remote control to the M2 Monitor.
