Audiovox D1805 User manual

1
D1805
PORTABLE 8" LCD MONITOR AND DVD PLAYER

2
A. Introduction
Thank you for selecting the D1805 portable DVD player. The main
features include a 8" Wide Screen (16:9 Aspect Ratio) Liquid Crystal
Display (LCD) monitor and a DVD player. The unit applies the latest
state of the art electronics and is designed for use in hotels, offices,
vehicles or your home. The unit is constructed to provide years of
reliable, trouble-free service, and is compact so that you can take it
with you anywhere and is designed for quick and easy installation.
Please read the entire instruction manual supplied with this product
prior to operation. The documentation will assist you in installing the
system properly to obtain the best equipment performance. Please
treat this manual proplely for later use.
B. Cautions and Warnings
1. Placement
To prevent fire or electric shock, do not expose this appliance to
rain or moisture. Do not place the set on an unstable cart, stand,
tripod, bracket or table to prevent it from falling. Keep the unit away
fromstrongmagnets,heatsources,directsunlight,excessivedust.
If the unit is brought directly from a cold to a warm location, mois-
ture may condense inside the unit. When you move it from a cold
to a warm location, wait for about one hour before operating the
unit, or remove the disc and leave the unit turned on until the mois-
ture evaporates.
2. Installation
Ensure that the D1805 is installed in accordance with the instruc-
tions and illustrations provided in this manual.
3. Object and Liquid
Do not push objects of any kind into the unit through openings; do
not spill or spray liquid of any kind on or in the system (this may
result in a fire or electric shock). Do not place anything heavy on
the unit. To ensure proper ventilation and proper operation, never
coveror blockthe slotsand openingswith acloth orother material.

3
5.Cleaning Unit
Whencleaning,makesurethesystemisunplugged fromthepower
source. Do not use liquid cleaners or aerosol cleaners. Use a
cloth lightly dampened with water for cleaning the exterior of the
system only.
6.Disc
Do not use irregularly shaped discs such as heart or star-shaped
discs as they may cause the unit to malfunction. Do not stick pa-
per, tape or glue on the disc. Do not expose the disc to direct sun-
light or heat sources such as hot air ducts. Do not touch the sur-
face of disc. Handle the disc by its edge. Clean the disc by wiping
thedisc from the center out with a cleaning cloth. Remove the disc
from the unit and store it in its case after playing. Some playback
operations of discs may be intentionally fixed by software produc-
ers. Since this unit plays discs according to the disc contents the
softwareproducersdesigned,someplaybackfeaturesmaynotbe
available. Also refer to the instructions supplied with the discs.
C. Contents
1. 1 x 8’’ LCD Monitor & DVD Player Combo
2. 1 x AC to DC Adapter
3. 1 x Rechargeable Battery
4. 1 x Remote Control with battery
5. 1 x Instruction Manual
6. 1 x AV Cable
7. 1 x DC Power Adapter
4.Disassemble
Do not attempt to disassemble the cabinet. There is a risk of elec-
tric shock and/or exposure to Laser Radiation. Contact qualified
service personnel if your system is in need of repair.

4
D. Powering and installation
1. Powering the system indoors (Refer to Figure 1)
Plug one end of the AC to DC adapter into the DC 9V jack on the
left side of the main unit, then plug the other end into the 120V AC
power socket.
2. Powering the system in a car (refer to Figure 1)
Plug one end of the DC Power adapter into the DC 9V jack on the
unit, then plug the other end into the cigarette lighter socket.
1 2
Figure 1

5
E. Controls, Indicators, and Connectors
1. Unit View (Refer to Figure 2)
1) DC 9V Input Jack
2) Audio Jack (L+R)
3) Video Jack
4) AV Input /Output Switch
5) Brightness Control
6) MENU
7) Up button
8) Left Button
9) OK Button
10) Down Button
11) Right Button
12) Close disc cover point
13) Open Button
14) Previous Button
15) Stop Button
16) Next Button
17) Play Button
18) Pause Button
19) Screen Mode ( wide) Button
20) Power Saving Mode Switch
21) NTSC/PAL Switch
22) Coaxial Jack
23) Hi-Fi Headphone Jack
24) Volume Control
25) Power On/ Off Switch
26) Remote Control Sensor
27) Power LED
28) Battery Clips
29) Battery Connector
Figure 2

6
2. Remote Control View (Refer to Figure 3)
1) Display Button
2) Angle Button
3) Subtitle Button
4) Audio Button
5) Zoom Button
6) UP/DOWN/LEFT/RIGHT/
ENTER Buttons
7) Return Button
8) A-B Button
9) Forward Button
10) Reverse Button
11) Slow Button
12) Stop Button
13) Number Buttons
14) Setup Button
15) Menu Button
16) Repeat Button
17) SKIP-
18) SKIP+
19) Play Button
20) Pause Button Figure 3
F. Loading and Playing a Disc
a. After connecting power to the unit, Slide the power switch to the
“ON” position, the power indicor will illuminate red.
b. Open the disc tray by pressing OPEN , and place a disc into the
tray with the labal side facing up.
c. Close the tray with pressing “PRESS” button.The unit will load the
disc and start playing by pressing “PLAY”.
d. Rotate the BRIGHT and VOLUME Controls to adjust the LCD’s
brightness and the DVD player’s volume.
e. To stop playing a disc, press STOP.

7
G. SETUP
Press ‘SETUP’ to display the Main screen of the SETUPMenu on the
screen. Press ‘SETUP’ again to exit the SETUP Menu and the unit
will resume it’s last playback mode.
Figure 7. Main SETUP Menu Screen
1) Press“Setup”, the‘GENERALSETUPPAGE’ willdisplayonscreen.
Figure 8. SPDIF Output Screen
a).Select “SPDIF Output” using the DOWN button, Then, press
“Right” enter the Submenu, select SPDIF OFF, SPDIF/RAW,
SPDIF/PCM by press UP/DOWN and confirm the setting by
Enter. Press LEFT to return.
* SPDIF OFF: the digital signal Audio output is off.
* SPDIF/RAW: the signal output from“COAXIAL”.
* SPDIF/PCM: the signal output will be pulse code Modulation
b).Select TV DISPLAY using the DOWN button, and then press
RIGHT toenterthesubmenu.SelecttheTVdisplaymodeonthe
screen using UP/DOWN, and press ENTER to confirm the set-
ting. Press LEFT to return.

8
* NORMAL/PS: When the player is connected to a normal TV,
and a wide picture is shown on the full screen.
* NORMAL/LB: When the player is connected to a normal TV,
and a wide picture is shown on the screen with a black strip
at both the top and bottom of the screen.
* WIDE: When the player is connected to a wide screen TV, a
wide picture is shown on the full screen.
Figure 9. TV DISPLAY Screen Display
c).Select ‘ANGLE MARK’ using the DOWN buttton, and then press
the RIGHT button to enter the submenu. Choose Angle Mark on
or off using the UP/DOWN buttons and then press ENTER to
confirm the setting. Press the LEFT button to return.
Figure 10. ANGLE MARK Screen Display
* ON: The screen will show the angle mark icon. (*If an angle
option is available).
* OFF: The screen will not display the Angle Mark
NOTE: Not all discs contain above features.

9
d). Select ‘SCREEN SAVER’ using the DOWN button.
Figure 11. SCREEN SAVER Display
*ON: enables screen saver
*OFF: disables screen saver (off)
*NOTE:The DVD player will enter the Screen Saver mode after
approximately five minutes if the same image remains on the
screen.
e). Select “ Last Memory” using the DOWN button.
Figure 12. LAST MEMORY Screen Display
*on: The unit will return to the last position on the disc.
*off: The unit will not return to the last position on the disc.
2) With no disc inside the player select “Video quality Setup”by using
the LEFT/RIGHT buttons, press “enter” to enter the video quality
set up page.
Figure 13. Main SETUP Menu VIDEO QUALITY

10
a).Select“Brightnessbyusingthe UPorDOWNbuttons ,thenpress
“Enter”you can change the Brightness by pressing the LEFT or
RIGHT buttons. To exit “Brightness Setting”, press “Enter”again
to return to the main Menu.

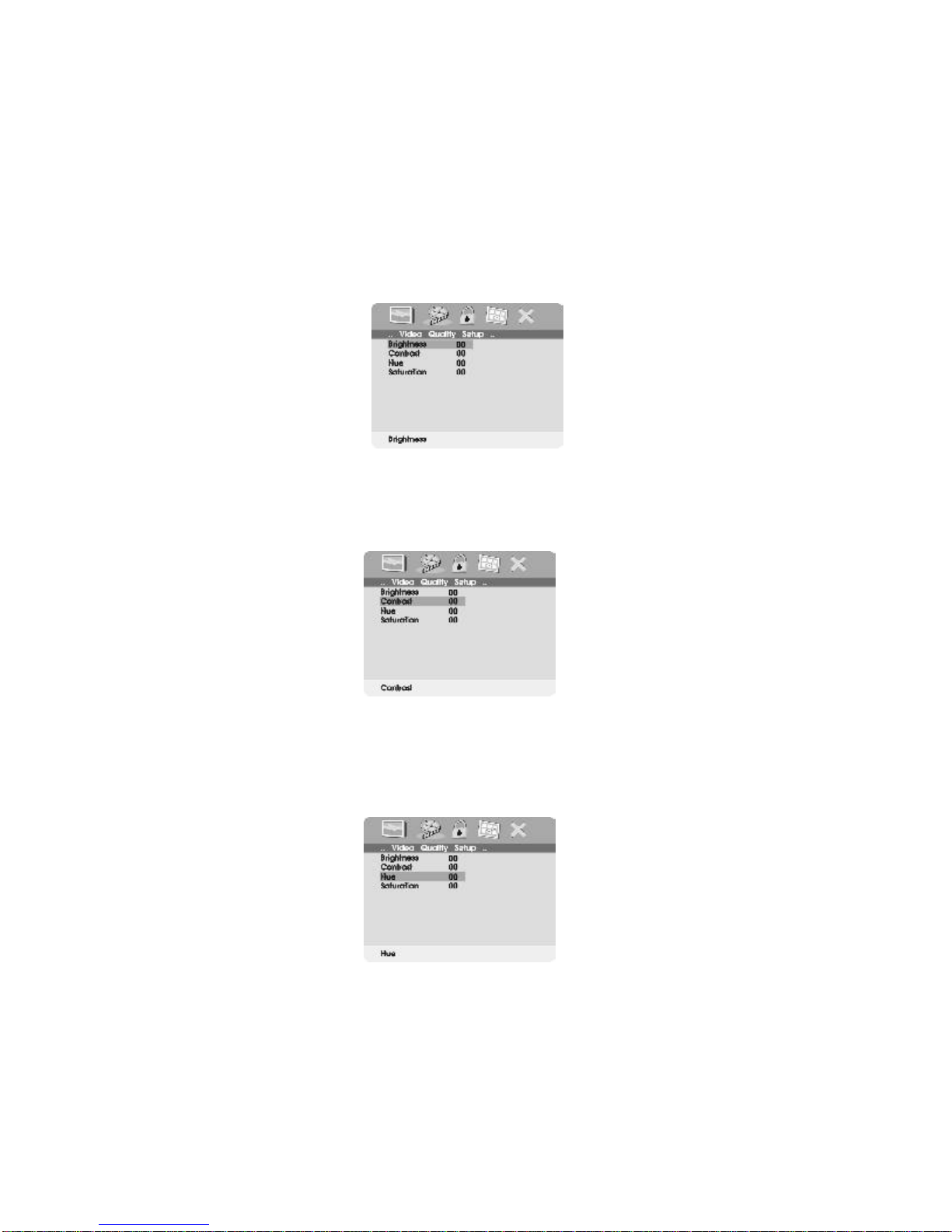

Figure 14. BRIGHTNESS Screen Display
b).Select “Contrast” by using the UP or DOWN buttons,then press
“Enter” you can adjust the Contrast by pressing the LEFT or
RIGHT butttons.
Figure 15. CONTRAST Screen Display
To exit “Contrast” Setting, press “Enter”again to return to the main
Menu.
c).Select “Hue” by using the UP or DOWN buttons, then press
“Enter” you can adjust the Hue by pressing the LEFT or RIGHT
buttons.
Figure 16. HUE (Tint) Screen Display
To exit “Hue”Setting,press “Enter”again to return to the mainMenu.

11
d).Select “Saturation “ by using the UP or DOWN buttons, then
press “Enter”you can adjust the Saturation bypressingtheLEFT
or RIGHT buttons.
Figure 17. SATURATION(Color) Screen Display
To exit “Saturation”Setting,press “Enter”again to return to the main
Menu
3).With no disc inside the player ,select “password” using the LEFT
or RIGHT buttons, then press the ENTER button to enter the
submenu .
Figure 18. PASSWORD CHANGE Menu
Press ‘ENTER’ to enter the Password Change Page. Input the Old
Password or the Default Password, the New Password, and the
Confirmed New Password. Press ‘ENTER’ to confirm the change.
Figure 19. PASSWORD CHANGE MENU

12
4).Withnodiscinsidetheplayerselect‘PREFERENCES’usingthe LEFTor
RIGHTbuttons,thenpress‘ENTER’toenterthepreferencespage.
Figure 18. Preference Audio Language
a. Select ‘AUDIO’ using the UP/DOWN buttons, then press
‘RIGHT’ to enter the submenu. Select the audio language you
desire using the UP or DOWN buttons, then press ‘ENTER’ to
confirm the setting. Press LEFT to return.
NOTE:The Default Password is 3308. This password is
always effective even after you have selected your own
password and changed it. To avoid the possibility of others
using the defaultpassword to settheparentallevel andchange
thepassword,you can record this default password inanother
area anddelete it from this manual. Some discscan be limited
depending on the age of users while some discs cannot.
Figure 17. PASSWORD VERIFY Input Screen Display

13
Figure 20. Preference DISC MENU LANGUAGE
Note:Language and subtitle selection is only available for discs
that are recorded in the above listed languages. If the selected,
language is not available, the player will play and display on the
screen the original recorded language contained in the disc.
c. Select ‘DISC MENU’ using the UP or DOWN buttons, then press
‘RIGHT’ to enter the submenu. Select the Disc Menu Language
you desire using the UP or DOWN buttons , then press ‘ENTER’
to confirm the setting. Press ‘LEFT’ to return.
b.Select‘SUBTITLE’theusingtheUPorDOWNbuttons,thenpress
RIGHTto enter the submenu. Select the desired subtitle lan-
guage or SUBTITLE OFF using the UP or DOWN buttons , then
press ‘ENTER’ to confirm the setting. Press ‘LEFT’ to return.
Figure 19. Preference SUBTITILE LANGUAGE

14

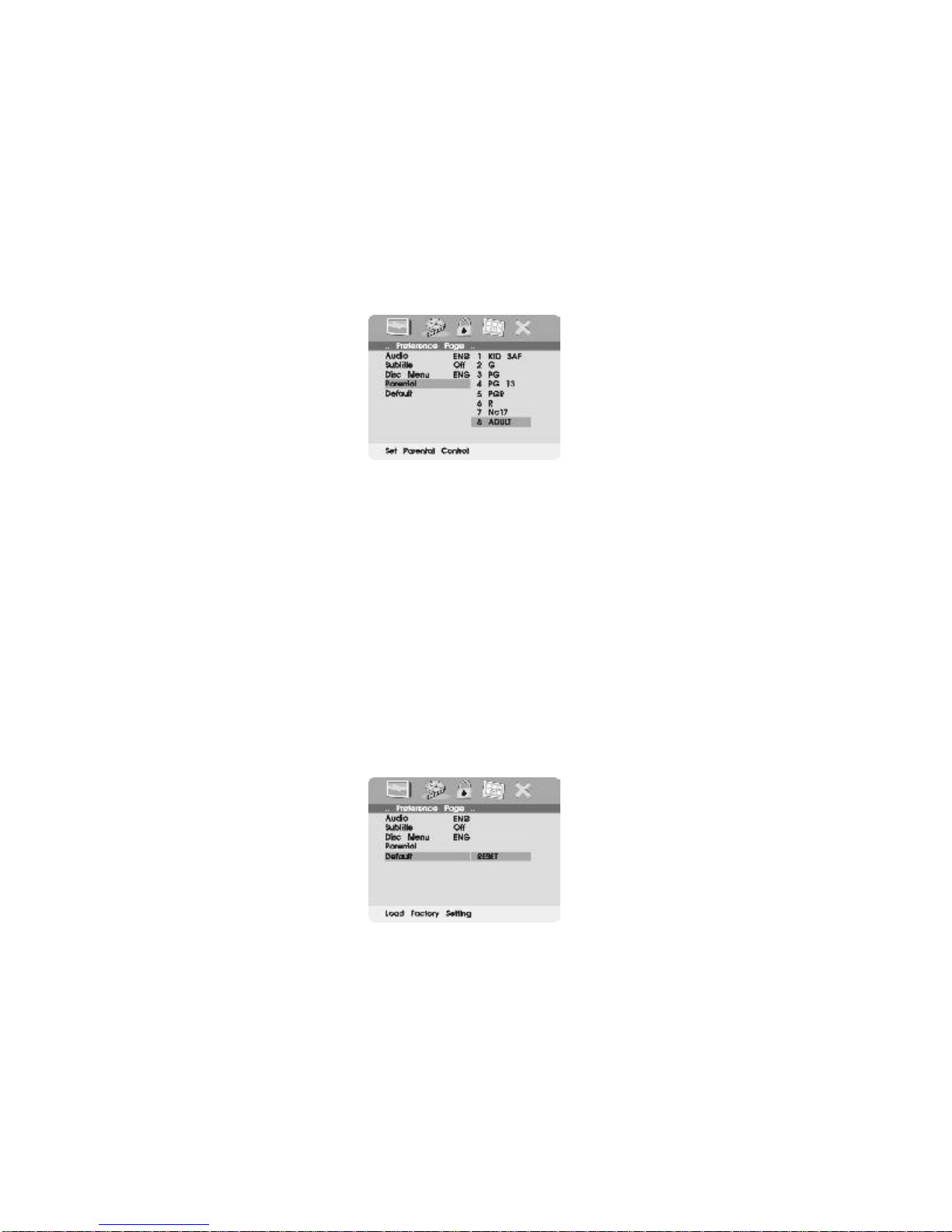

Figure 22. Loading Factory Setting
e. Select ‘DEFAULTS’ using the UP or DOWN buttons, then press
RIGHT to enter the submenu. Press ENTER to make the setting
return to the factory-set mode.
NOTE: The parental setting is not affected by the default reset
function.
d. Select ‘PARENTAL’ using the UP or DOWN buttons , then press
RIGHT to enter the submenu.
Figure 21. PARENTAL Preference Screen Display
Select the parental level you desire using the UP or DOWN but-
tonsfordiscswithlock-outfunctionormultipleratinglevels.These
are listed from the lowest level (1 Kid Safe) to the highest level
(Adult). Enter a 4 digit password, then press ‘ENTER’ to confirm
the parental level setting.
NOTE:The level of 8 Adult is the factory default.

15
1.Basic Operation
Turn the unit on/off
Remove/load the disc
Start Play/Execute item or setting
Play at 1/2, 1/4, 1/8 or 1/16 times speed
Still Picture
(1 time) Stop at the present playing point /
(2 times) Stop playing
Go to the next chapter, track or scene dur-
ing play back
Go back to the previous chapter, track or
scene during play back
Scan forward at 2, 4, 8,16 or 32x times
speed
Scan backward at 2, 4, 8, 16 or 32x times
speed
Used for Menu Navigation
Execute item or confirm setting
Select item or setting
Return
Display the main menu of the disc
Repeat playing title, chapter, or track
RepeataspecificportionfrompointAtopoint
B of the disc
Display information (title, chapter, track,
time, etc.).
Change the viewing angles on the scene
Select the subtitle language and turn it on/
off
Select the audio language
Enlarge an image to 2, 3, or 4 times the
original size.
Display the setup menu to select and set
items, and exit the setup menu.
POWER
OPEN
PLAY
SLOW
PAUSE
STOP
NEXT
PREVIOUS
FORWARD
REVERSE
LEFT/RIGHT/UP/DOWN
ENTER
NUMBERS
RETURN
MENU
REPEAT
A-B
DISPLAY
ANGLE
SUBTITLE
AUDIO
ZOOM
SETUP

16
2. MENU
A DVD is divided into sections called titles and chapters. When you
play a DVD, a root menu of the disc will appear on the screen of your
TV or Monitor. The contents of the menu vary from disc to disc. Press
MENU during playback to display the menu. Some DVDs only allow
you to select disc playback options using the DVD root menu.
3. DISPLAY(Display contents vary from disc to disc.)
1. PLAYING TIME AND REMAINING TIME
a. During playback press the ‘DISPLAY’ button to display the cur-
rent Title Number (1), the total Number of Titles (2), the current
Chapter Number (3), the total Number of Chapters (4), and the
Playing elapsed Time for the title (5). The heading will disappear
automatically after 3 seconds if no buttons are pressed.
b. Press ‘DISPLAY’ again to display the Remaining Time of the title.
The heading will disappear automatically in 3 seconds.
Figure 24. Title Remaining Time Screen Display
Figure 23. Title, Chapter Number, and Time Screen Display

17
c. Press ‘DISPLAY’ a 3rd time to display the Elapsed Time for the
chapter. The heading will disappear automatically in 3 seconds.
d.Press ‘DISPLAY’a 4thtime todisplay theRemaining Timefor the
chapter. The heading will disappear automatically in 3 seconds.
e. Press ‘DISPLAY’ a 5th time to exit, ‘DISPLAY OFF’ will be dis-
played and will disappear automatically in 3 seconds.
2. ANGLE
During playback of a disc, press ‘ANGLE’ to display the available
angles for discs containing multi-angles*, with the current angle
number (1) and the total number of angles (2) displaying. Press
‘ANGLE’ to select another angle, then press again to exit and re-
turn to the normal viewing angle. The angle display will disappear
automatically if the ‘ANGLE’ button is not pressed again within 3
seconds.
*NOTE: Not all discs contain this feature. This is indicated by
the invalid icon.

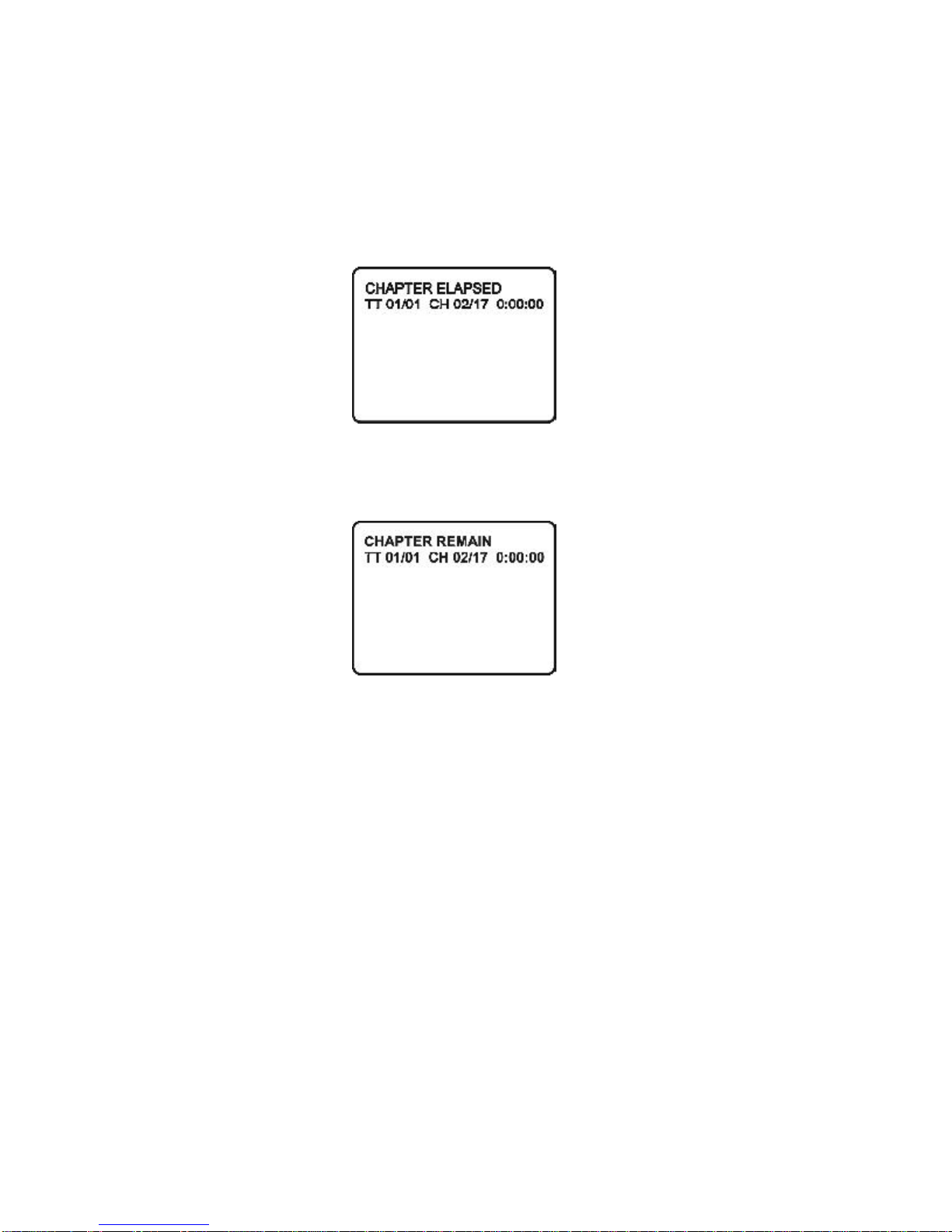

Figure 25. Chapter Elapsed Time Screen Display
Figure 26. Chapter Remaining Time Screen Display

18
3. SUBTITLE
During disc playback press ‘SUBTITLE’ to select the subtitle lan-
guage you desire*, with the current Subtitle Language Number(1)
and the total Number of Subtitle Languages (2) displayed. If there
are multiple languages press ‘SUBTITLE’ again to select another
subtitle language. To turn subtitles OFF, press the ‘SUBTITLE’
button until ‘SUBTITLE OFF’ is displayed. The Subtitle display will
disappear automatically if the ‘SUBTITLE’ button is not pressed
again within 3 seconds.
Figure 27. Angle Screen Display
Figure 28. Subtitle Screen Display
* Some DVDs only allow access to this function through the DVD
menu.

19
4. AUDIO
During playback press ‘AUDIO’ to select the audio language you
desire*, with the current Audio Channel Number (1) and the total
number of Audio Channels (2) displayed. Press AUDIO again to
select another audio language. The audio display will disappear
automatically if the ‘AUDIO’ button is not pressed within for 3
seconds.

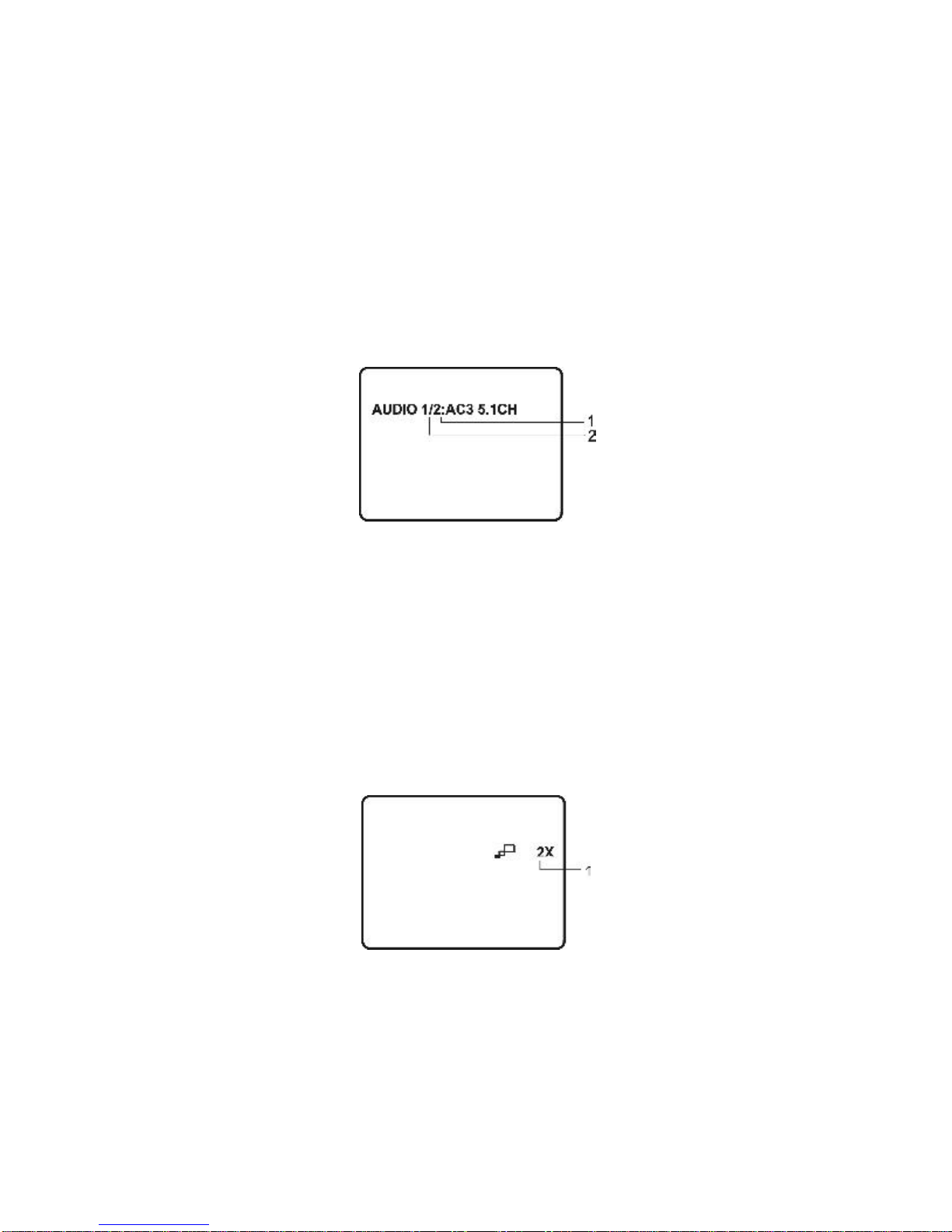

Figure 29. Audio Language Screen Display
* Some DVDs only allow access to this function through the DVD
menu.
5. ZOOM
Duringplaybackpress‘ZOOM’toenlargethepictureby2x,3xor4X
with the current zoom multiple.(1)Press “zoom”one time ,the pic-
turewill be enlarged 2X.(2)Press“zoom a ”secondtime ,the picture
will be enlarged 3X.(3)Press “zoom a ”3rd time ,the picture will be
enlarged 4X.(4)Press “zoom”4th time ,the picture will return to nor-
mal size.
Figure 30. ZOOM Screen Display

20
6. A-B REPEAT
a. During playback press ‘A-B’ to set the Starting Point A.

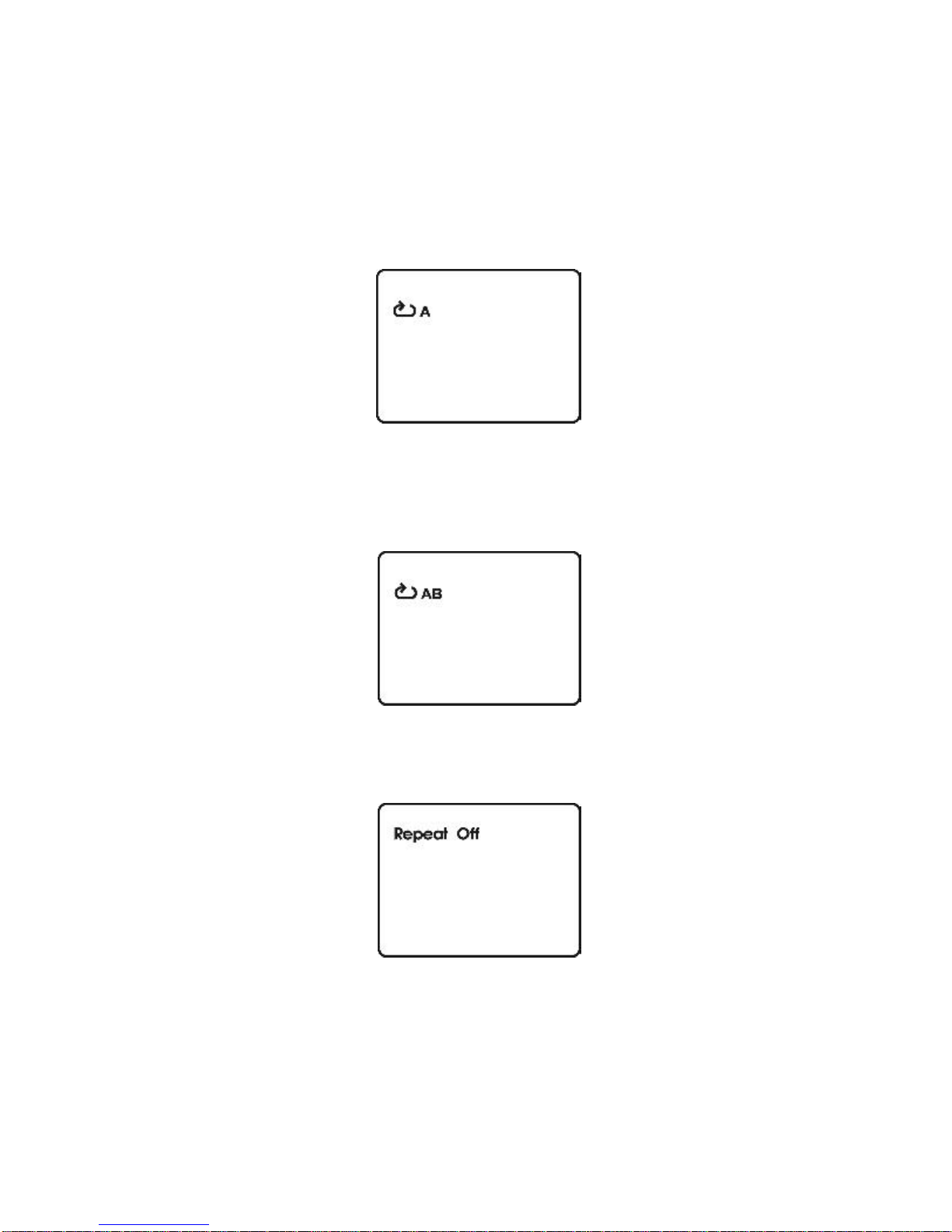

Figure 31. A-B Repeat Starting Point Screen Display
b.Press ‘A-B’ a second time to set the Ending Point B and the
player will repeatedly play the part between Point A and Point
B.
Figure 33. A-B Repeat Cancelled Screen Display
Figure 32. A-B Repeat Ending Point Screen Display
c. Press A-B a third time to cancel A-B repeat and resume
playback.
