Audiovox VBP3900 User manual

VBP3900
VIDEOINABAGSYSTEMWITH
5"LCD MONITOR&DVDPLAYER

Notice:
ThisProductincorporatescopyrightprotection technologythatispro-
tected bymethod claimsofcertainU.S.Patentsand otherintellectual
propertyrightsownedbyMacrovisionCorporationandotherrightsowners.
Useofthiscopyrightprotection technologymustbe authorized by
MacrovisionCorporation,andisintendedforhomeandotherlimitedview-
ingusesonlyunlessotherwiseauthorizedbyMacrovisionCorporation.
Reverseengineeringordisassemblyisprohibited.

3
SAFETYPRECAUTION
Forsafetyreasons,when changing video media,itisrecommended
thatthe vehicleisnotinmotion,and thatyou do notallowchildren to
unfasten seat-beltstochange video mediaormakeanyadjustments
tothe system.Enjoyyourentertainmentsystembutalways remem-
ber-safetyofall passengersremainsthe numberone priority.
IMPORTANTNOTICE
It isunlawfulinmostjurisdictionsforaperson todriveamotorvehicle
whichisequipped withatelevision viewerorscreen thatislocated in
the motorvehicleatanypointforwardofthe back ofthe driver’s seat, or
thatisvisible,directlyorindirectly,tothe driverwhileoperating the ve-
hicle.Inthe interestofsafety,thissystemshouldneverbe installed
whereitwill be visible,directlyorindirectly,bythe operatorofthe motor
vehicle.
A.Introduction
Thankyou forselecting the VBP3900 “Video inaBag”System.The
system'smainfeaturesinclude a5"LiquidCrystalDisplay(LCD)
monitorand aDVDplayer.The systemutilizesthe lateststateofthe
artelectronics and isdesigned foruseinvehicles,hotels,officesor
yourhome.The VBP3900 Video inaBag isconstructed toprovide
yearsofreliable,trouble-free service.The systemiscompactso
thatyou can takeitwithyou anywhereand isdesigned forquick and
easy installation.One additionalmonitor*can be purchased and
added tothe systemsetup allowing you toutilizetwomonitorsat
once.The connection ofthe additionalmonitorisplug and play.
Pleaseread the entireinstruction manualsupplied withthisproduct
priortooperation.The documentation will assistyou ininstalling the
systemproperlytoobtainthe bestequipmentperformance.All
manualsshouldbe stored forlateruse.

4
*NOTE:The ACpowersupplythatcomeswiththe VBP3900 can only
suplythe mainunit. If an additionalmonitorisused,you must
usethe powersupplythatissupplied withit.
B. Cautions and Warnings
1. Placement
Topreventfireorelectricshock,do notexposethisapplianceto
rainormoisture.Donotplacethe seton an unstablecart, stand,
tripod,bracketortabletopreventitfromfalling.Keep the unitaway
fromstrong magnets,heatsources,directsunlight, excessivedust.
If the unitisbroughtdirectlyfromacoldtoawarm location,mois-
turemaycondenseinside the unit. When you moveitfromacold
toawarm location,waitforaboutone hourbeforeoperating the
unit, orremovethe disc and leavethe unitturned on until the mois-
tureevaporates.
2. Installation
Ensurethatthe LCD Monitor,DVDPlayer,Bag areinstalled in
accordancewiththe instructionsand illustrationsprovided inthis
manual.When the mainunitisinthe bag,ensurethe latchofthe
bag arefastened topreventthe unitfromfalling.The “S”hooks and
all strapsmustbe fastened correctlytosecurethe systeminthe
vehicleinthe eventofan accident. Operatethe “Video inaBag”
Systemwiththe bag open toensureproperventilation ofthe moni-
torand the DVDplayer.The systemisintended tobe mounted for
rearseatviewing only.Donotusethe systeminthe frontseat
whileoperating yourvehicle.
3.Power
ThissystemMUSTbe powered fromthe type ofswitched (Acces-

5
sory)powerindicated on the marking label(i.e.notdirectlyfrom
the carbattery).Powershouldbe applied tothe unitwhen the
ignition keyisinthe Run and/orAccessorypositions.Toprevent
batterydischarge,disconnectthe “Video inaBag”Systemjack
fromthe cigarettelightersocketwhen the unitisnotinuse.Use
onlythe supplied powercablematching thissettoavoidelectric
hazards.Always disconnectthe powersourcefirstand then the
jack fromthe system.
4.Objectand Liquid
Donotpushobjectsofanykind intothe systemthrough openings;
do notspill orsprayliquidofanykind on orinthe system(thismay
resultinafireorelectricshock).Donotplaceanything heavy on
the unit. Toensureproperventilation and properoperation,never
coverorblock the slotsand openingswithaclothorothermaterial.
5.Disassemble
Donotattempttodisassemblethe cabinet. Thereisarisk ofelec-
tricshock and/orexposuretoLaserRadiation.Contactqualified
servicepersonnelifyoursystemisinneed ofrepair.
6.Cleaning Unit
Whencleaning,makesurethesystemisunplugged fromthepower
source.Donotuseliquidcleanersoraerosolcleaners.Usea
clothlightlydampened withwaterforcleaning the exteriorofthe
systemonly.
7.Disc
Donotuseirregularlyshaped discs suchasheartorstar-shaped
discs astheymaycausethe unittomalfunction.Donotstick paper,

6
tape orglue on the disc.Donotexposethe disc todirectsunlight
orheatsourcessuchashotairducts.Donottouchthe surfaceof
disc.Handlethe disc byitsedge.Clean the disc bywiping the disc
fromthe centeroutwithacleaning cloth.Removethe disc from
the unitand storeitinitscaseafterplaying.Someplayback opera-
tionsofdiscs maybe intentionallyfixed bysoftwareproducers.
Sincethisunitplays discs according tothe disc contentsthe soft-
wareproducersdesigned,someplayback featuresmaynotbe
available.Alsorefertothe instructionssupplied withthe discs.
C. Contents
1.1xMonitor&DVDPlayerCombo
2.1xACtoDCAdapter
3.1xCigaretteLighterAdapter
4.1xRemoteControl
5.1xMounting Bag with4Straps
6.1xStorage bag
7.1xInstruction Manual
D.PowerSource

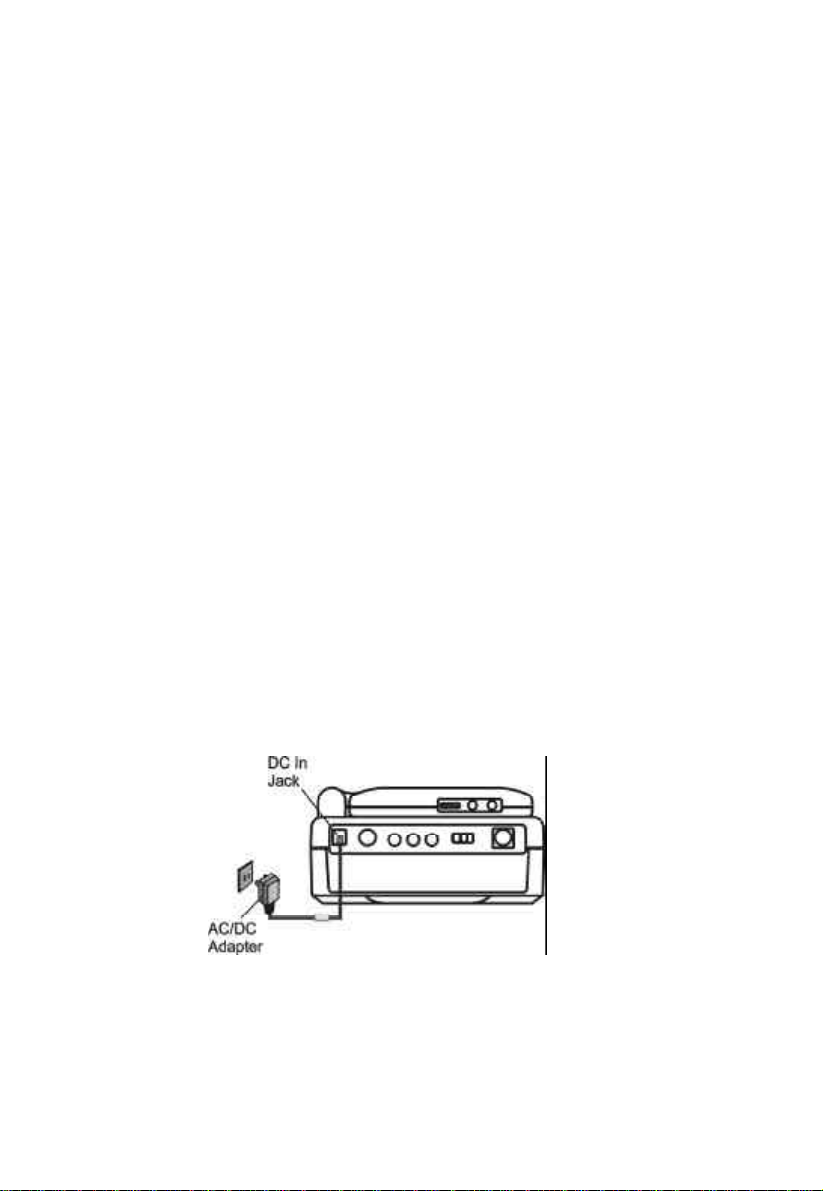

1.Powering thesystemindoors(RefertoFigure1)
Figure1
Unzipthe lowercompartmentofthe bag and takeouttheACtoDC
adapter.Plug one end ofthe ACtoDC adapterintothe DC 12V
jack on the left side ofthe mainunit, then plug the otherend into
the 110VACpowerreceptacle.

7
2.Powering thesysteminthevehicle(RefertoFigure2)
Figure2
Unzipthe lowercompartmentofthe bag and takethe cigarette
lighteradapter.Plug one end intothe DC 12Vjack on the left side
ofthe mainunit, then plug the otherend intothe cigarettelighter
socket.

8
E.Installation

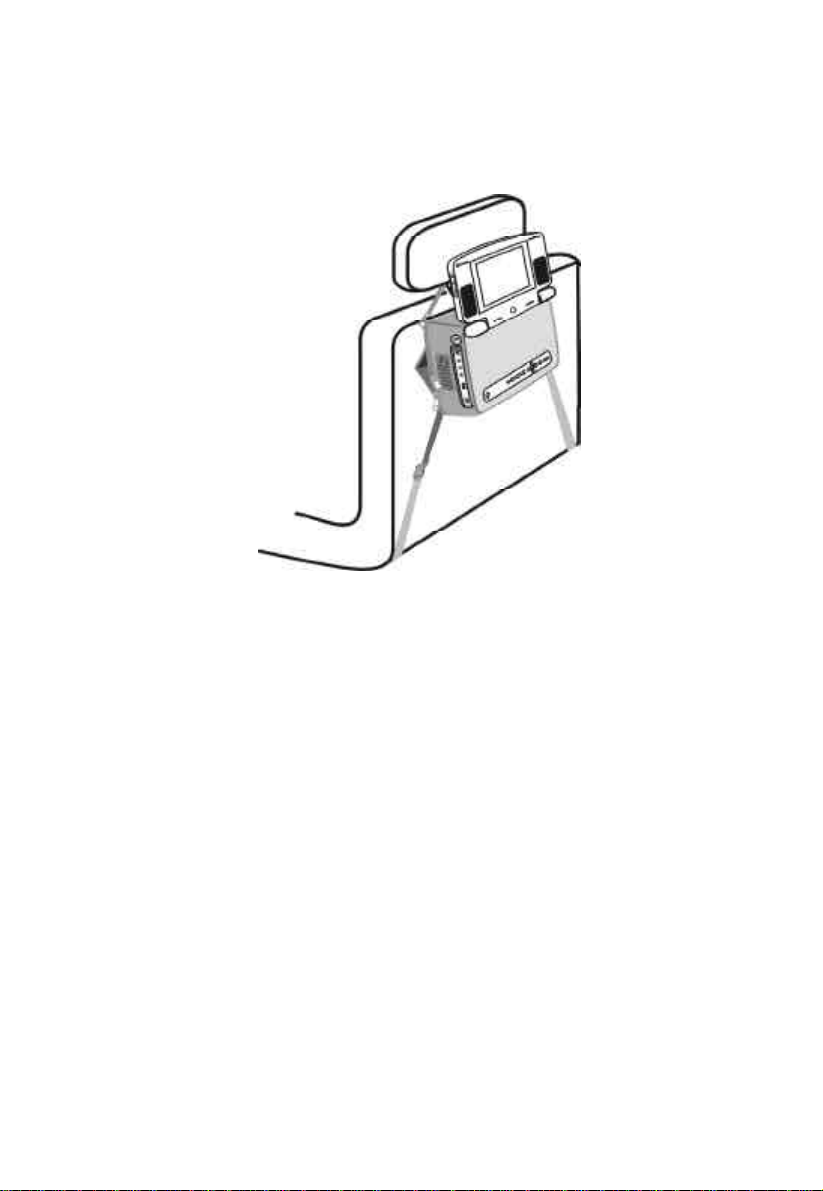

1.Installing thesystemontotheseatback inacar
(RefertoFigure3)
Figure3
1)Unfasten the velcrostrap on the rearofthe bag.Foldthe strap
intothe shape ofatriangleand fasten ittothe bag.
2)Takeone ofthe supplied strapsfromthe lowercompartment.
Connectthe latchtoone ofthe uppermetalringson the mounting
bag.Connectthe “S”hooktothe otheruppermetalring and place
the loop overthe headrest. Adjustthe strap until the bag isfirmly
secured.
3)Takeone ofthe supplied strapsfromthe lowercompartmentof
the bag,and connectthe latchtothe lowermetalring on the left
side ofthe bag.Attachthe "S"hooktothe samering afterlooping
the strap around the seatrail.Repeatthisprocess forthe right
side.Insomevehicles,itmaybe necessarytoattachthe "S"
connectortotherail directly,asitmaynotbe long enough toreach
back tothe ring.
4)Adjustthe strapstightlysothatthe bag issecured.

9

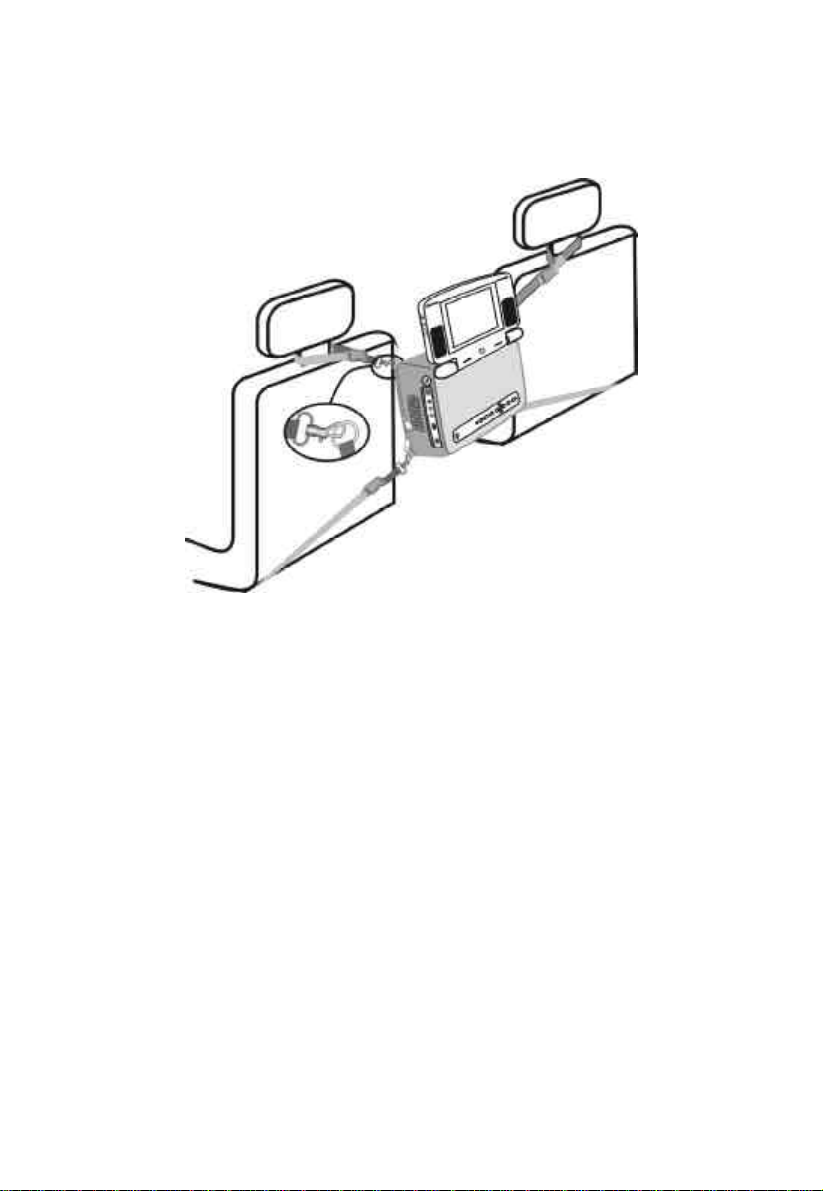

2.Installingthesystembetweenthedriver/passengerseat
(RefertoFigure4)
Figure4
1)Takeone ofthe supplied strapsfromthe lowercompartmentof
the bag,and connectthe latchtothe upperside metalring on the
left side ofthe bag.Attachthe "S"hooktothe samering after
looping the strap around the headrestofthe driver'sseat.Repeat
thisprocess forthe rightside (PassengerSeat).
2)Takeanotherstrap and connectthe latchtolowermetalring on
the left side ofthe bag.Attachthe "S"hooktothe samering after
looping the strap around the driver'sseatrail.Repeatthispro-
cess forthe rightside.Insomevehicles,itmaybe necessaryto
attachthe "S"connectortothe rail directly,asitmaynotbe long
enough toreachback tothe ring.
3)Adjustthe strapstightlysothatthe bag issecured.

10
4)Unzipthebagandflipdownthefrontflap.Ensuretheretaining
Velcrostrap ofthe bag isfastened topreventthe unitfrom
falling out. Swing the monitorupwardsand adjustthe screen
forthe desired viewing angle.

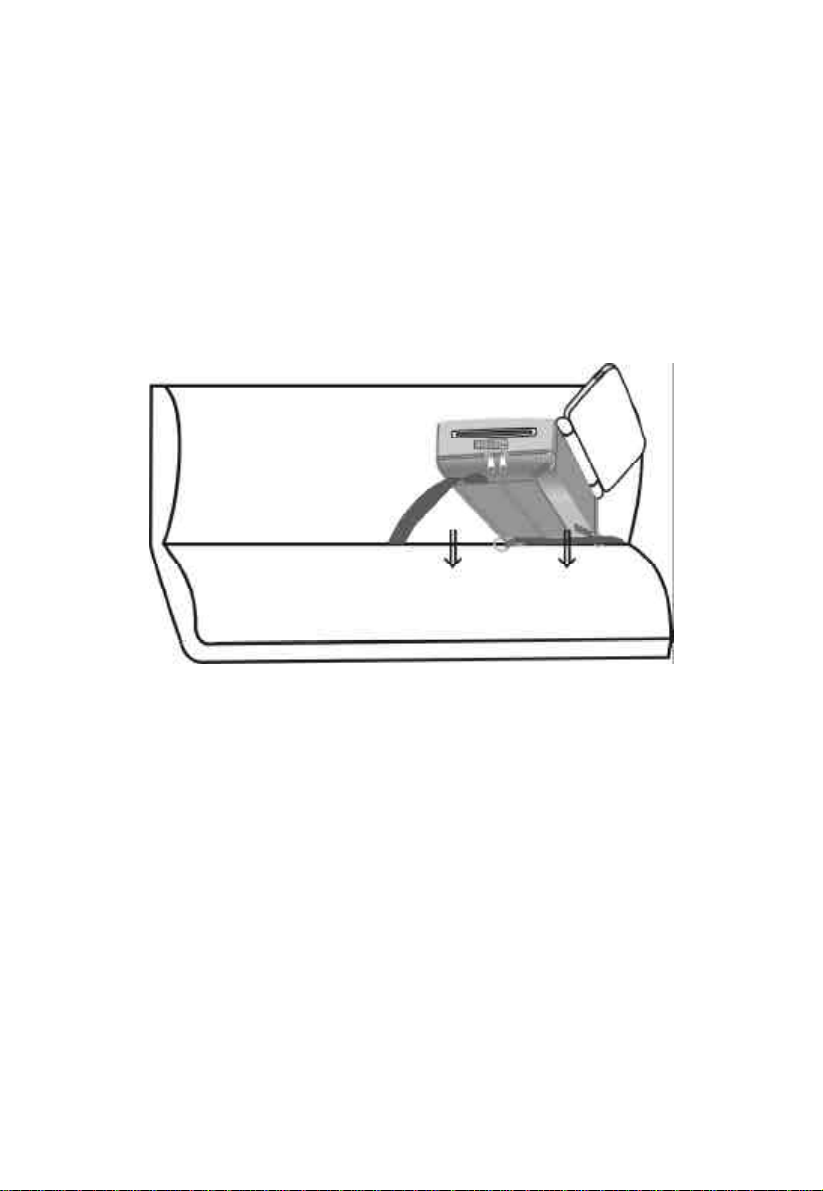

3.Installing thesystemontheback seatinacar
(RefertoFigure5)
Thereisno need toremovethe fourstrapsfromthe bag asthey
arenotused inthisinstallation.
Figure5
Ensurethe rearstrap ofthe bag isattached tothe upperVelcro
stripon the back ofthe bag.Carefullyplacethe system(frontfac-
ing up)on the back seat. Guide the vehicle’s safetybeltthrough the
rearpieceofthe bag.Then secureand adjustthe safetybeltso
thatthe systemisnotfree tomovearound.Swing the monitor
upwardand adjustthe screen forthe desired viewing angle.En-
surethe retaining strap ofthe bag isfastened topreventthe unit
fromfalling out.

11
F.Controls,Indicators,and Connectors
1.UnitView(RefertoFigure6)
Figure6
1)Headphone Jack 1
2)Headphone Jack 2
3)VolumeUp/DownThumbwheel
4)DC 12VpowerJack
5)SVideo OutputJack
6)Video Jack
7)AudioLJack
8)AudioRJack
9)Input/OuputSwitch
10)MonitorPort
11)RemoteControlSensor
12)PowerButton
13)PowerIndicator
14)Menu Button
15)PreviousButton
16)PlayButton
17)NextButton
18)Up/Down/Left/Right/Enter
Buttons
19)Stop Button
20)EjectButton
21)Brightness Up/Down
Thumbwheel

12
2.RemoteControlView(RefertoFigure7)
1)PowerButton
2)DisplayButton
3)AngleButton
4)SubtitleButton
5)AudioButton
6)ZoomButton
7)Up/Down/Left/Right/
EnterButtons
8)Menu Button
9)ReturnButton
10)A-BButton
11)ForwardButton
12)ReverseButton
13)SlowButton
14)Stop Button
15)EjectButton
16)NumberButton
17)Setup Button
18)RepeatButton
19)Skip-Button
20)Skip+Button
21)PlayButton
22)PauseButton
G. Playing ADVD
Afterconnecting powertothe unit, press the powerbutton on the
mainunitmomentarily.Insertthe disc intothe sloton the rightside of
the mainunit, the unitwill load the disc and startplaying automatically;
ifthere’s adisc inside unit, press the POWERbutton,the unitwill
startplaying automatically.
Fugure 7

13
1.BasicOperation
POWER
EJECT
PLAY
SLOW
PAUSE
STOP
NEXT
PREVIOUS
FORWARD
REVERSE
UP/DOWN/LEFT /RIGHT
ENTER
NUMBERS
RETURN
MENU
REPEAT
A-B
DISPLAY
ANGLE
SUBTITLE
AUDIO
ZOOM
SETUP
Turntheuniton/offtheunit
Eject/loadthedisc
StartPlay
Playat1/2,1/4,1/8or1/16timesspeed
StillPicture
(1time)Stopatthepresentplayingpoint/
(2times)Stopplaying
Gotothenextchapter,trackorsceneduring
playback
Gobacktotheprecedingchapter,trackor
sceneduringplayback
Scanforwardat2,4,8,16,or32timesspeed
Scanbackwardat2,4,8,16or32timesspeed
UsedforMenuNavigation
Executeitemorsetting
Selectitemorsetting
Selectingpasswordorothernumericfunctions
Returntothepreviousselection
Displaytherootmenuofthedisc
Repeatplayingtitle,chapterortrack
RepeataspecificportionfrompointAtopoint
Bofthedisc
Displayinformation (title,chapter,ortrack,
time,etc.).
Changetheanglesonthescene*NotallDVDs
containthisfeature
Selectthesubtitlelanguageandturniton/off
Selecttheaudiolanguage
Enlargeanimageto2,3,or4timesthe
original
Displaythesetup menu forselection ofvari-
ousvideoandaudiofunctionsandexitthesetup
menu.

14
2. MENU
ADVDisdividedintosectionscalledtitlesandchapters.Whenyou
playaDVD,arootmenuofthediscwillappearonthescreenofyour
TVorMonitor.Thecontentsofthemenuvaryfromdisctodisc.Press
MENUduringplayingtodisplaythemenu,andpressENTERorPLAY
tostartplaying.SomeDVDsonlyallowyou toselectdisc playback
optionsusingtheDVDmenu.
3.DISPLAY(Displaycontentsvaryfromdisc todisc.)
1)PLAYINGTIMEANDREMAININGTIME
a.During playback press ‘DISPLAY’firsttimetodisplaythe cur
rentTitleNumber(1),thetotalNumberofTitles(2),the current
ChapterNumber(3),the totalNumberofChapters(4),andthe
Playing elapsedTimeforthetitle(5).Theheadingwilldisappear
automaticallyafter3secondsifnobuttonsarepressed.
b.Press ‘DISPLAY’againtodisplaythe Remaining Timeofthe
title.Theheadingwilldisappearautomaticallyinabout3seconds.
Figure9.TitleRemaining TimeScreenDisplay
Figure8.Title,ChapterNumber,and TimeScreenDisplay

15
c.Press ‘DISPLAY’the 3rdtimetodisplaythe ElapsedTimefor
thechapter.Theheadingwilldisappearautomaticallyinabout
3seconds.
d.Press‘DISPLAY’the4thtimetodisplaytheRemainingTimefor
the chapter.The heading will disappearautomaticallyafter3
seconds.
e.Press ‘DISPLAY’a5thtimetoexit, ‘DISPLAY OFF’will be
displayedandwilldisappearautomaticallyafter3seconds.
2)ANGLE
During playback ofadisc,press ‘ANGLE’todisplaythe avail
ableanglesfordiscs containing multi-angles*,withthe current
anglenumber(1)and the totalnumberofangles(2)displaying.
Press ‘ANGLE’toselectanotherangle,then press againtoexit
and returntothe normalviewing angle.The angledisplaywill
disappearautomaticallyifthe ‘ANGLE’button isnotpressed
againwithin3seconds.
*NOTE:Notall discs containthisfeature
Figure10.ChapterElapsedTimeScreenDisplay
Figure11.ChapterRemaining TimeScreenDisplay

16
3)SUBTITLE
During discplayback press‘SUBTITLE’toselectthesubtitlelanguage
you desire*,withthe currentSubtitleLanguage Number(1)and the
totalNumberofSubtitleLanguages(2)displayed.If therearemul-
tiplelanguagespress ‘SUBTITLE’againtoselectanothersubtitlelan-
guage.ToturnsubtitlesOFF,press the ‘SUBTITLE’button until
‘SUBTITLEOFF’isdisplayed.The Subtitledisplaywill disappearau-
tomaticallyifthe ‘SUBTITLE’button isnotpressed againwithin3
seconds.
Figure13.SubtitleScreenDisplay
*SomeDVDsonlyallowaccesstothisfunctionthroughtheDVDmenu.
Figure12.AngleScreenDisplay

17
4)AUDIO
During playback press ‘AUDIO’toselectthe audiolanguage you
desire*,withthe currentAudioChannelNumber(1)and the total
numberofAudioChannels(2)displayed.PressAUDIO againto
selectanotheraudiolanguage.The audiodisplaywill disappear
automaticallyifthe ‘AUDIO’button isnotpressed withinfor3
seconds.
Figure14.AudiLanguageScreenDisplay
*SomeDVDsonlyallowaccess tothisfunction through the
DVDmenu.
5)ZOOM
During playback press ‘ZOOM’toenlarge the pictureby2x,3xor
4Xwiththe currentzoommultiple.(1)Press “zoom”firsttime,the
picturewill be enlarged 2X.(2)Press “zoom”second time,the pic-
turewill be enlarged 3X.(3)Press “zoom”3rdtime,the picture
will be enlarged 4X.(4)Press “zoom”4thtime,the picturewill be
rusumnormal.
Figure15.ZOOMScreenDisplay

18
6)A-BREPEAT
a.During playback press firsttime‘A-B’tosetthe Starting
PointA.

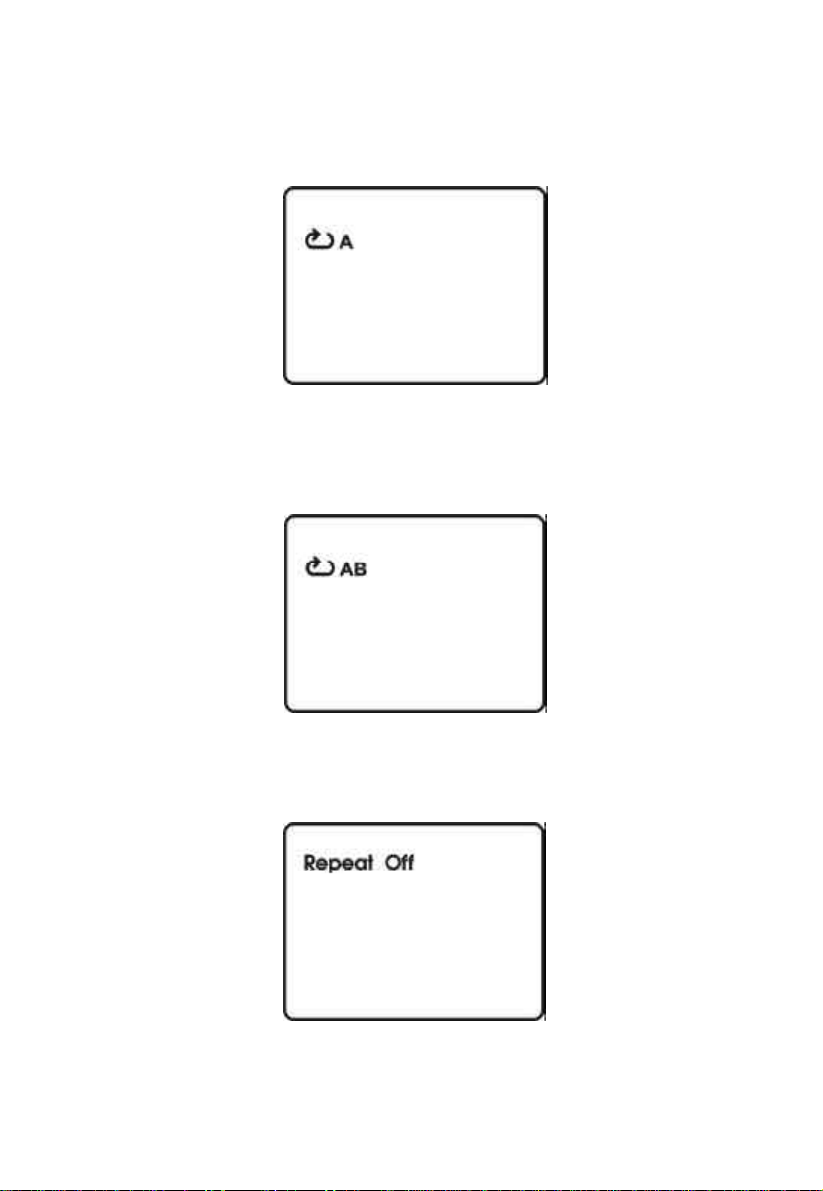

Figure16.A-BRepeatStarting PointScreenDisplay
b.Press ‘A-B’second timetosetthe Ending PointBand the
playerwill repeatedlyplaythe partbetween PointAand
PointB
Figure18.A-BRepeatCancelledScreenDisplay
Figure17.A-BRepeatEnding PointScreenDisplay
c.PressA-BathirdtimetocancelA-Brepeatand resume
playback frompointA.

19
7)REPEAT
a.During playback press ‘REPEAT’oncetorepeatedlyplaythe current
chapter.
Figure19.ChapterRepeatONScreenDisplay
b.During playbackpress ‘REPEAT’againtorepeatedlyplaythe current
title.
Figure20.TitleRepeatONScreenDisplay
c.During playback press ‘REPEAT’a3rdtimetorepeatall Chapters
and Titles.
Figure21.TitleRepeatONScreenDisplay

20
d.Press “REPEAT”4thtimes,then resumnormal.
Figure22.RepeatOff ONScreenDisplay
4.PLAYINGAUDIO CDS
During playing back,When playing an audioCD.Pressthe DISPLAY
button on the remotetodisplaythe DISPLAY Banner.The options
belowshowyou whathappenswhen you press the DISPLAYbutton.
a.The currenttrack and playing timeofthattrack will dispayon the
screen.
Figure23.SINGLEELAPSEDScreenDisplay
b.Press ‘DISPLAY’firsttimeand SINGLEELAPSEDappearsalong
withthe currenttrack playing theamountoftimeleft.
Figure26.SINGLEElapsedScreenDisplay
