A.Introduction
Thankyoufor choosingthe D1812PK. The main features includea
8" Wide Screen (16:9 Aspect Ratio) LiquidCrystalDisplay(LCD)
monitor, a DVD player and a game controller with 30 built-in games.
Theunitapplies the latest stateof the artelectronics andisde-
signed forusein hotels, offices, vehicles or yourhome. Theunit is
constructedto provide years of reliable, trouble-free service, and is
compact so that you can take it with you anywhere and is designed
forquick andeasyinstallation. Pleaseread theentireinstruction
manualsuppliedwith this product priortouse.Thedocumentation
willassistyouin installingthe system properly to obtain the bestequip-
mentperformance. Please save this manual for later use.
B. Cautions and Warnings
1. Placement
Toprevent fireorelectric shock,donotexpose this appliance to
rain or moisture.Donot place the set on an unstable cart, stand,
tripod, bracket ortable toprevent it fromfalling. Keeptheunit away
from strongmagnets,heatsources,directsunlight, excessive dust.
Ifthe unit is brought directlyfrom a cold to a warm location, mois-
ture maycondense inside the unit. When you move it from a cold
toa warm location, wait forabout one hourbefore operating the
unit, or removethe discandleave theunitturnedonuntilthemois-
ture evaporates.
2. Installation
Ensurethatthe D1812PK is installedinaccordancewith the in-
structions andillustrations provided inthis manual.
3. Caution
Donotpushobjectsof anykindintothe unitthroughopenings;do
notspill or sprayliquid ofany kind on orin the system (this may
result in a fireor electricshock). Donot place anything heavyon
the unit. To ensure proper ventilation and proper operation, never
coverorblocktheslotsandopenings withaclothorothermaterial.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

5
Keep theunit away froman openflame such as,.fire,candle etc,. It
ishazardoustoreplacethe battery incorrectly.Replacethebattery
onlywiththe sameorequivalent type.In orderto protect the
enviromnent pleasedisposeofthebattery properly.Donotusethe
unit intemperatureshigherthan 104degreesFahrenheit or40 de-
grees Celsius.
4.Disassemble
Do not attempt to disassemble the cabinet. There is ariskofelec-
tricshock and/orexposure to LaserRadiation. Contact qualified
service personnel ifyour system needs repair.
5.Cleaning Unit
Whencleaning,makesurethesystem isunplugged fromthepower
source. Donotuseliquid cleaners or aerosolcleaners. Usea cloth
lightly dampenedwith waterfor cleaningtheexterior ofthe system
only.
6. Disc
Do not use irregularlyshaped discs such asheart orstar-shaped
discs as theymay cause the unittomalfunction.Donotstickpaper,
tapeor glue on the disc. Do not expose thedisc to direct sunlight
or heat sources. Do not touchthe surface ofdisc. Handle thedisc
by itsedge. Cleanthedisc bywipingthedisc from the center out
with acleaning cloth. Removethe disc from the unit and store it in
its case after playing. Some playbackoperationsofdiscs maybe
intentionally fixed bysoftwareproducers. Since this unitplays discs
according to the disc contentsthesoftwareproducers designed,
some playbackfeatures maynot be available. Also refer to the in-
structionssuppliedwiththediscs.
7.Regional Coding
Both theDVDplayer and disc are coded by region. These
regional codes must match inorder for thedisc toplay.Ifthe
codesdon’t match, the disc won’t play. This unit’s code is region
1. DVD’swith other regionalcodes cannot beplayed in this unit.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

6
C. Contents
1. 1x 8’’ LCD Monitor & DVD Player
2. 1 xAC to DC Adapter
3. 1 x Remote Control with battery(CR2025)
4. 1 x Instruction Manual
5.1xAudio/VideoAdapterCable
6. 1 xDC Power Adapter
7. 1x Rechargeable Battery
8. 1 x YConnector (for headphones)
9. 2 x Wired headphones
10. 1 xBagW/ Straps
D. Powering and installation
1. Powering the system indoors (Refer to Figure 1)
Plugone end ofthe AC to DC adapter into the DC 9V jackon the
left side ofthemain unit, then plug the otherendinto the120VAC
power outlet.

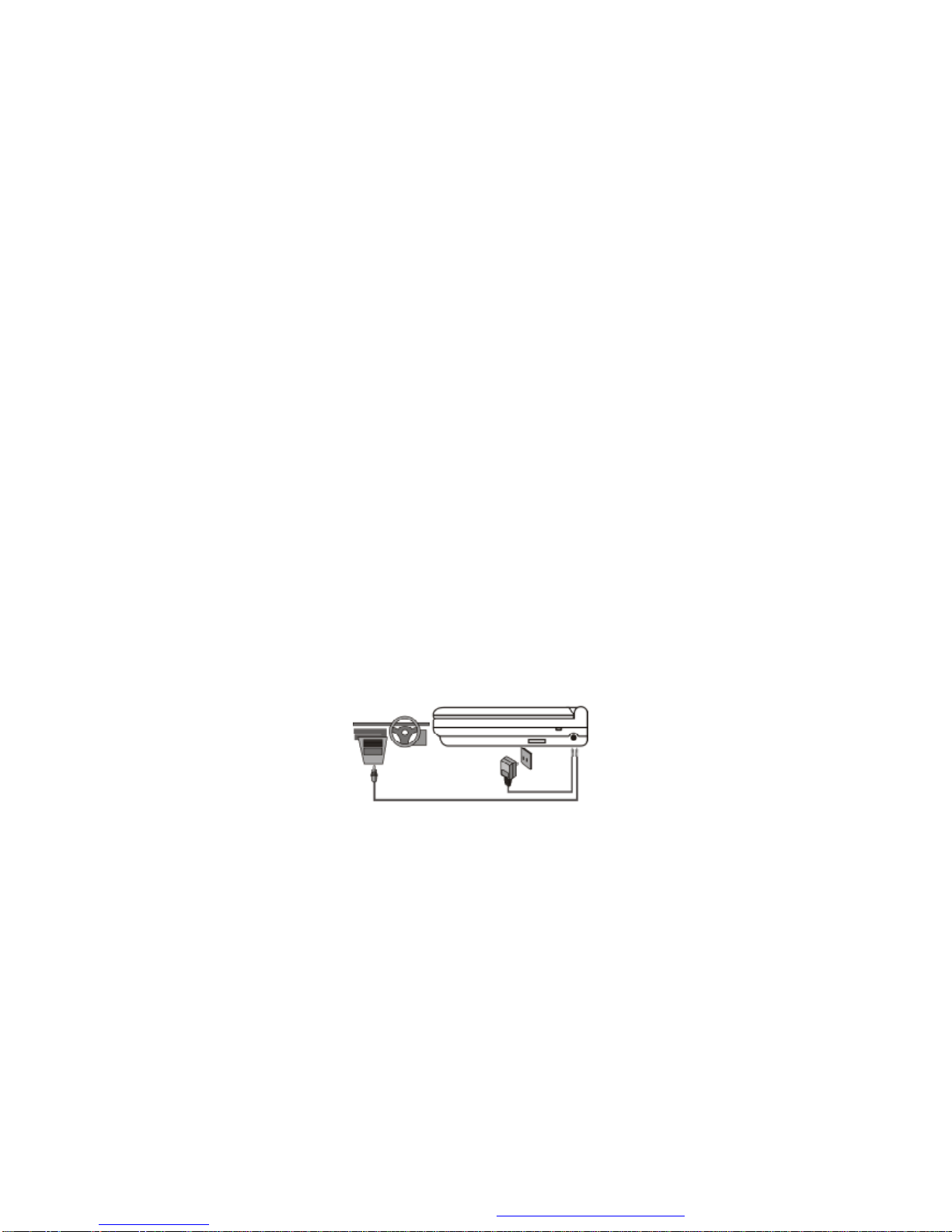

2. Powering the system in a car (refer to Figure 1)
Plug oneend ofthe DC Poweradapterinto the DC 9V jack on the
unit, thenplugtheother end into the vehiclepower outlet.
Figure1
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

7
E. Vehicle Installation
Make surethatthe unit isplaced into the bag withtheclearplastic
coveringontheright sideof theunit. Loadthediscinto the DVD
compartmentandthenadjust the retainingcordacross the topportion
ofthe unit. If youare installing the bag onto the seatback you may
need to use the Seat Standoff attached to the backofthe mounting
bag to obtain the proper viewingangleasshown inFigure 2

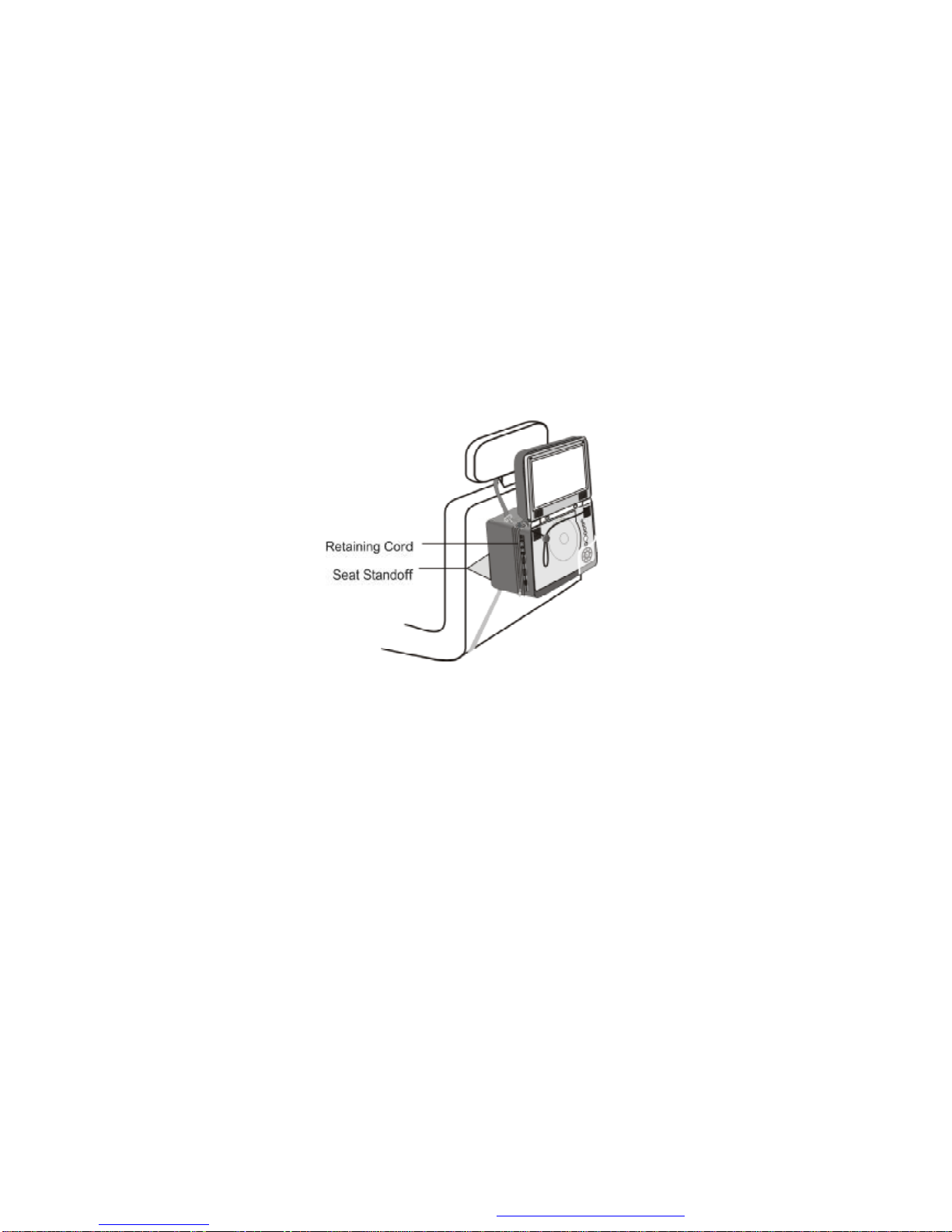

1. Installing the System onto the seat back in a car
(Refer to Figure 2)
Figure 2
1).Take oneof thesuppliedstraps from the carrier bag. Connect
thelatchtoone oftheuppermetal rings on the mountingbag.
Connectthe S”hookto theother upper metalringandplacethe
loopoverthe headrest. Adjust thestrapuntil thebag isfirmly
secured.
2).Take anotherstrapfrom thecarrierbag, andconnectthelatchto
the lower metalring on the left side of the bag. Attach the S”
hook to the same ring afterlooping thestrap aroundtheseat rail.
Repeat thisprocessfor the right side.Insome vehicles, it may
be necessary to attach the S”connector to the rail directly,as it
may not be longenough to reach back to the ring.
3).Adjust the straps tightlyso that the bagis secured.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

8
2. Installing the system between the driver/passenger seat
(Refer to Figure 3)
Figure 3
1).Take onestrap andconnectthelatch to theupper metal ringon
the leftside of the bag. Attach the S”hook tothe samering
after looping thestrap aroundthe headrest of thedriver’sseat.
Repeat thisprocess for the right side(Passenger Seat).
2).Takeanother strap and connect thelatchto lower metal ringon
the leftside of the bag. Attach the S”hook tothe samering
after loopingthe strap around thedriver’sseat rail. Repeat this
processfor therightside. Insome vehicles,it maybeneces-
sary to attachthe S”connector directly totherail, as itmaynot
be long enoughto reach backto thering.
3).Adjust the straps tightlyso that the bagis secured.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

9
F.Controls, Indicators, and Connectors
1. Unit View (Refer to Figure 4)
Figure4
1)LCD Panel Shut Off Switch
2) Wide Button
3) Stop Button
4) Previous Button
5) NextButton
6) Play Button
7)Menu
8) UpButton
9) RightButton
10) OK/Enter Button
11) DownButton
12) LeftButton
13)AVIN/OUT Switch
14)AudioJack
15)Video Jack
16)HeadphoneJack
17) Volume Up/DownControl
18) Brightness Up/Down Control
19)PowerOn/Off Switch
20) PowerLED
21) Remote Control Sensor
22) Open Button
23) Charge LED
24)DC9V Input Jack
25) E Port
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

10

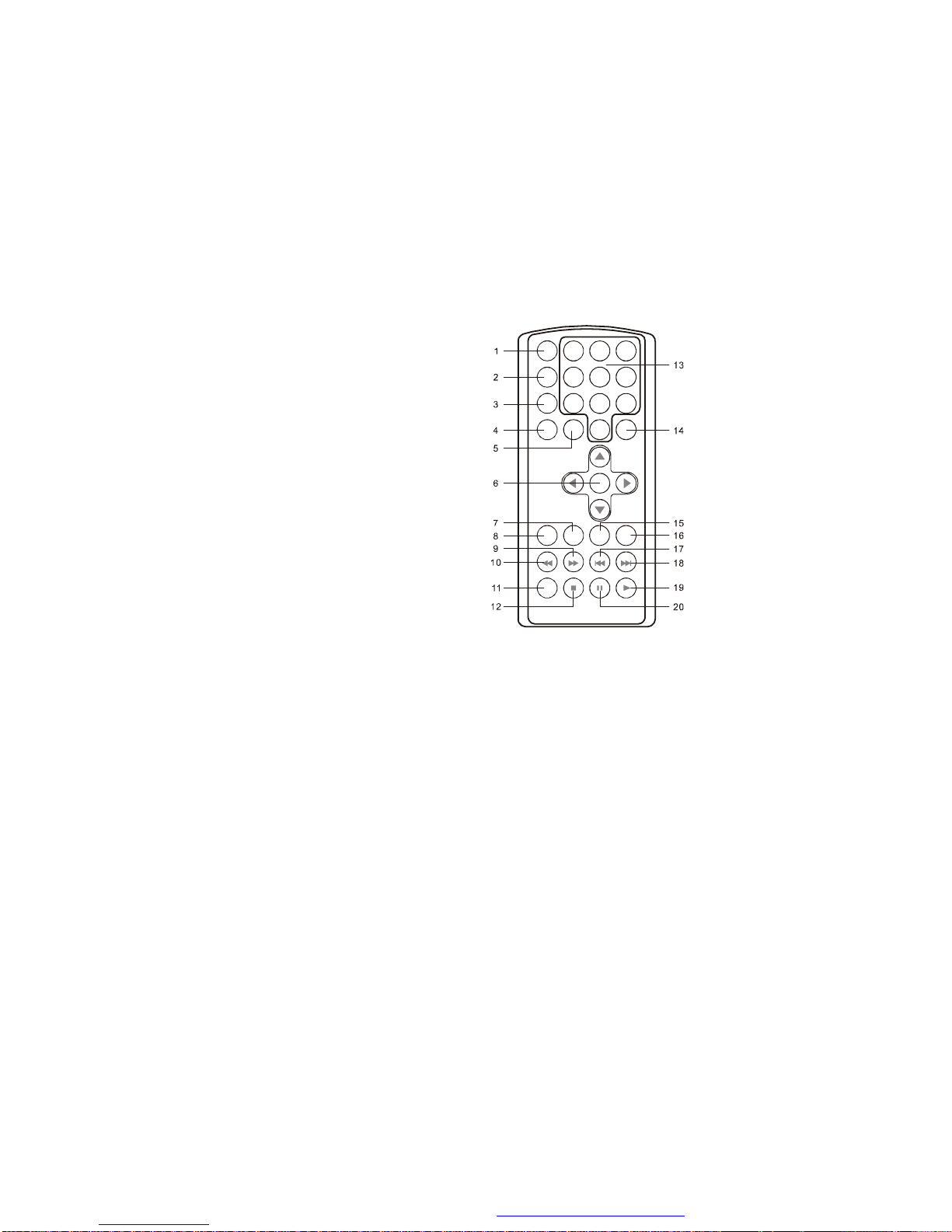

2. Remote ControlView (Refer to Figure5)
1) DisplayButton
2) AngleButton
3) Subtitle Button
4) AudioButton
5) Zoom Button
6) UP/DOWN/LEFT/RIGHT/
ENTER Buttons
7) Return Button
8) A-BButton
9) Forward Button
10) Reverse Button
11)Slow Button
12) Stop Button
13) Numeric Keypad
14) Setup Button
15)MenuButton
16) Repeat Button
17) Previous Button
18) NextButton
19) Play Button Figure5
20)Pause Button
G. Loading and Playing a Disc
a.After connecting power to the unit, turn on the DVD player”with
the power switch. The power indicator will light.
b.Open the disctraybyslidingthe OPEN buttonin thedirection of
thearrowand placea disc intothe tray with the label sidefacing
up.
c.Close the traybypressingthe area marked PRESS”on the disc
door. The unit willread the discand start playing.
d.Rotate theBRIGHTNESSandVOLUMEcontrolsto adjust the
brightness and the volume to the desired levels.
e.Tostopplayingadisc, pressSTOP.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

11
H.Setup
Press ‘SETUP’to displaythe Main screenofthe Setup Menu on the
screen.Press ‘SETUP’again toexittheSetupMenuand the unitwill
resume it’s last playbackmode.
Main SetupMenu Screen

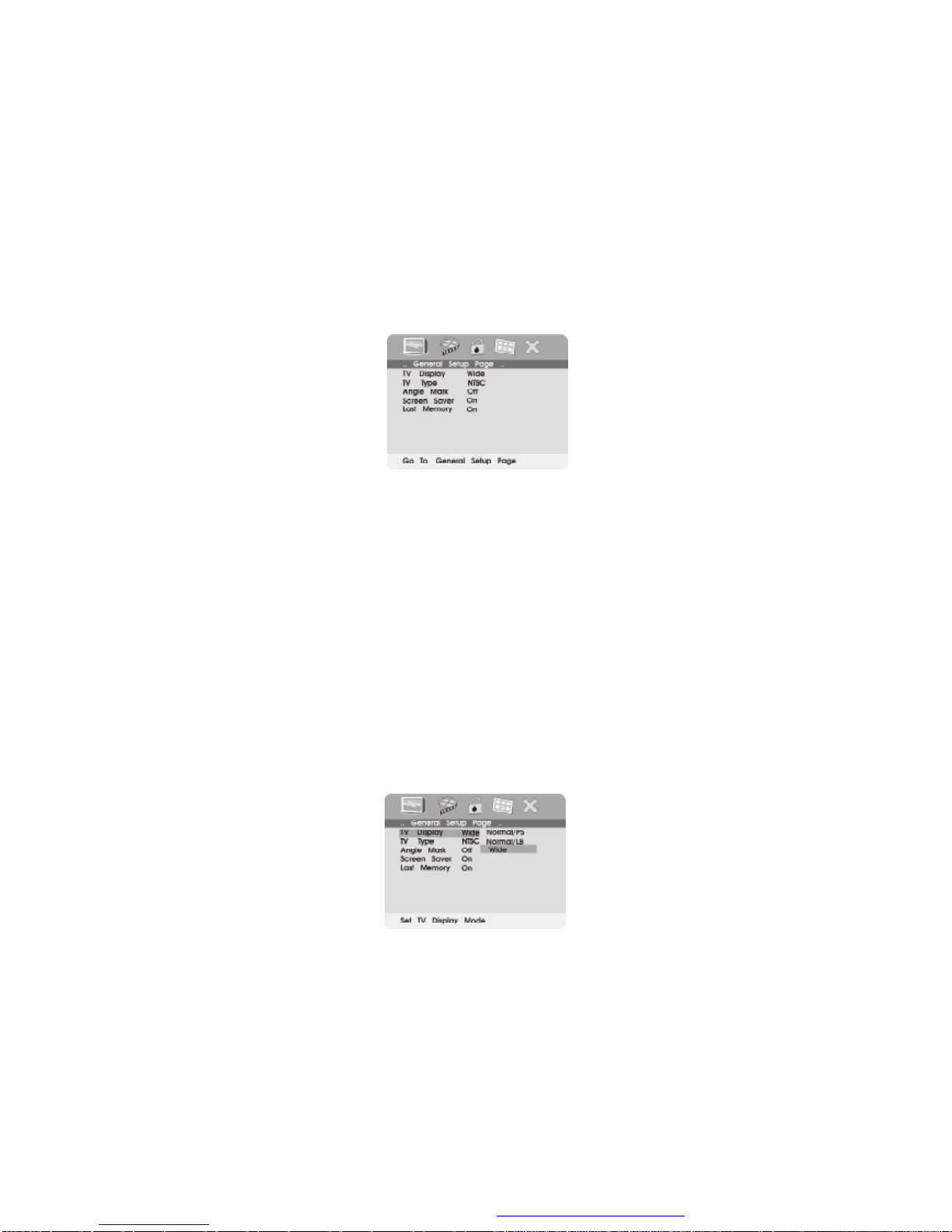

1) Press SETUP”, the ‘General Setup Page’will display on screen.
a).Select ‘TV Display’usingthe UP/DOWNbutton, andthen press
RIGHTtoenterthe submenu.Selectthe TVdisplaymode on the
screenusingUP/DOWN, and pressENTERto confirm the
setting. Press LEFT to return.
*Normal/PS:Whentheplayerisconnectedto anormal TV,and
a widepicture is shown on the full screen.
*Normal/LB:When the playeris connectedto anormalTV, and
a widepictureisshown onthe screenwith a blackstripatboth
the top and bottom of the screen.
*Wide: Whenthe player is connected to a wide screen TV,a
wide picture is shown on the full screen.
TV DisplayScreen Display
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

12
b).Select ‘TV Type’using theUP/DOWNbutton, and then press the
RIGHT button toenterthe submenu.Choose TVType usingtheUP/
DOWN buttonandthenpressENTER toconfirmthesetting. Press
the LEFT button to return.
TV TypeScreenDisplay
c).Select ‘AngleMark’usingthe UP/DOWNbuttton, and then pressthe
RIGHTbutton to enterthesubmenu. Choose Angle Markon or off
using the UP/DOWNbutton and then press ENTER to confirmthe
setting. Press the LEFT button to return.
AngleMark Screen Display
*On:Thescreenwillshow the angle mark icon.(*If an angle option is
available).
* Off:The screen will not display theAngle Mark
NOTE: Not all discs contain abovefeatures. The abovefeatures are
discdependent.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

13
d).Select ‘Screen Saver’usingthe UP/DOWN button,and then press
theRIGHTbuttonto enterthesubmenu.ChooseScreenSaveron or
offusingthe UP/DOWNbuttonand thenpressENTERto confirm the
setting. Press the LEFT button to return.
ScreenSaver ScreenDisplay
*On:Enables screensaver
*Off:Disables screen saver(off)
*NOTE: The DVD playerwill enter the Screen Savermode after ap-
proximatelyfive minutes ifthe same image remains onthe screen.
e). Select ‘Last Memory’by UP/DOWNbutton.
Last MemoryScreen Display
*on: Theunit will returntothe lastpositiononthedisc.
*off:The unit will not return to the last position on thedisc.
Note: TheLast position memoryfunction will onlyworkwhen the
power is on.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

14
2) Select VideoQuality Setup”byusingtheLEFT/RIGHT button, press
ENTER to enterthevideoquality setuppage.

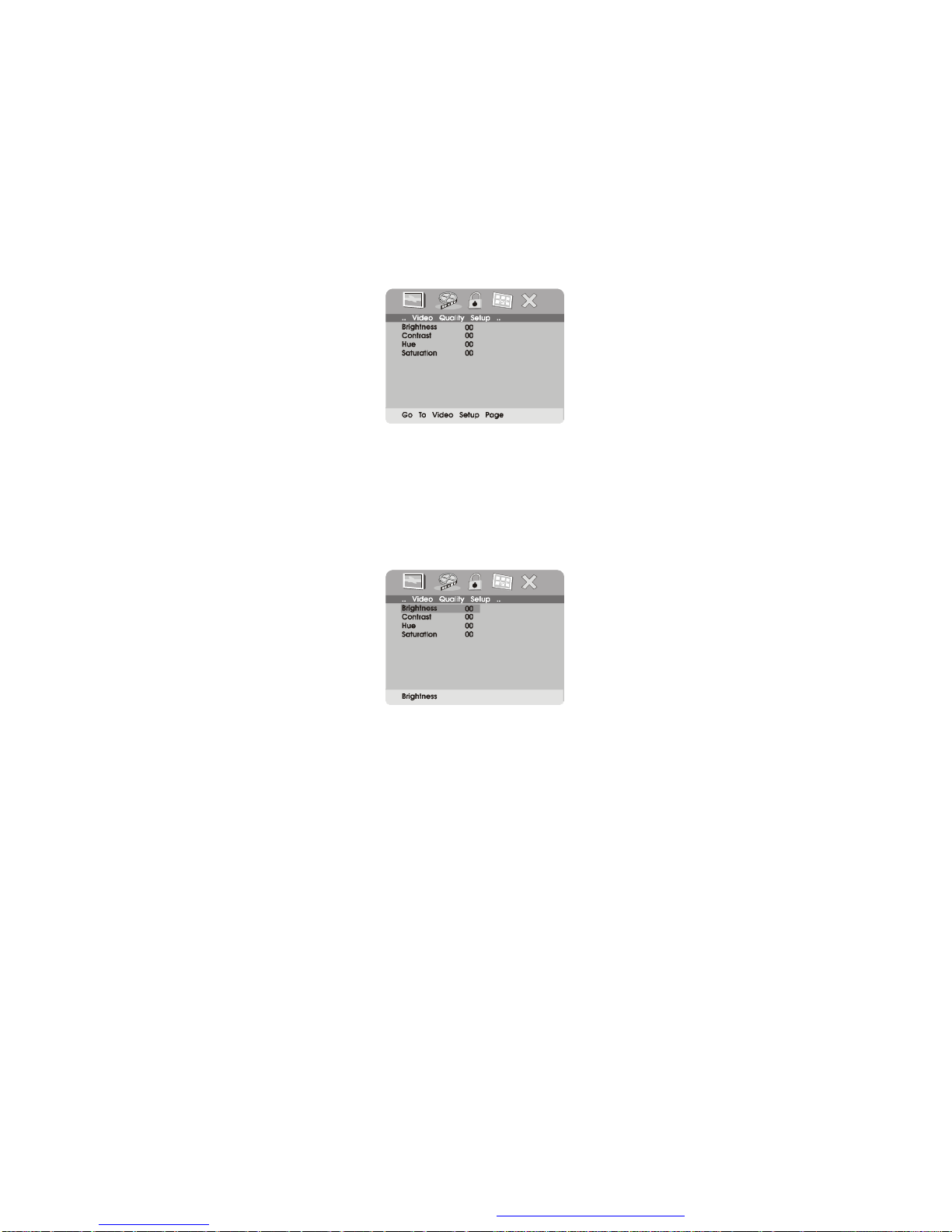

Video QualitySetup Screen Display
a).Select ‘Brightness’by usingtheUP/DOWNbutton, then pressEN-
TERyoucanchange theBrightnessbypressing the LEFT/RIGHT
button.Toexit ‘Brightness’setting, pressENTER againtoreturn
themainMenu.
Brightness Screen Display
b).Select ‘Contrast’byusing the UP/DOWNbutton,thenpress EN-
TER youcan adjust the Contrast bypressingthe LEFT/RIGHT
button.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

15
ContrastScreen Display
Toexit ‘Contrast’Setting,pressENTER againto return the main Menu.
c).Select ‘Hue’byusingthe UP/DOWN button, then press ENTER you
canadjust theHue by pressingtheLEFT/RIGHT button.
HueScreenDisplay
Toexit ‘Hue’Setting, press ENTERagainto return the main Menu.
d).Select ‘Saturation’byusing the UP/DOWNbutton,thenpress ENTER
youcanadjust the Saturation by pressing the LEFT/RIGHTbutton.
Saturation Screen Display
To exit ‘Saturation’setting, press ENTER again to returnto the main
Menu.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

16
3).Select Password”using the LEFT/RIGHTbutton,thenpressthe
RIGHT button to enterthesubmenu.

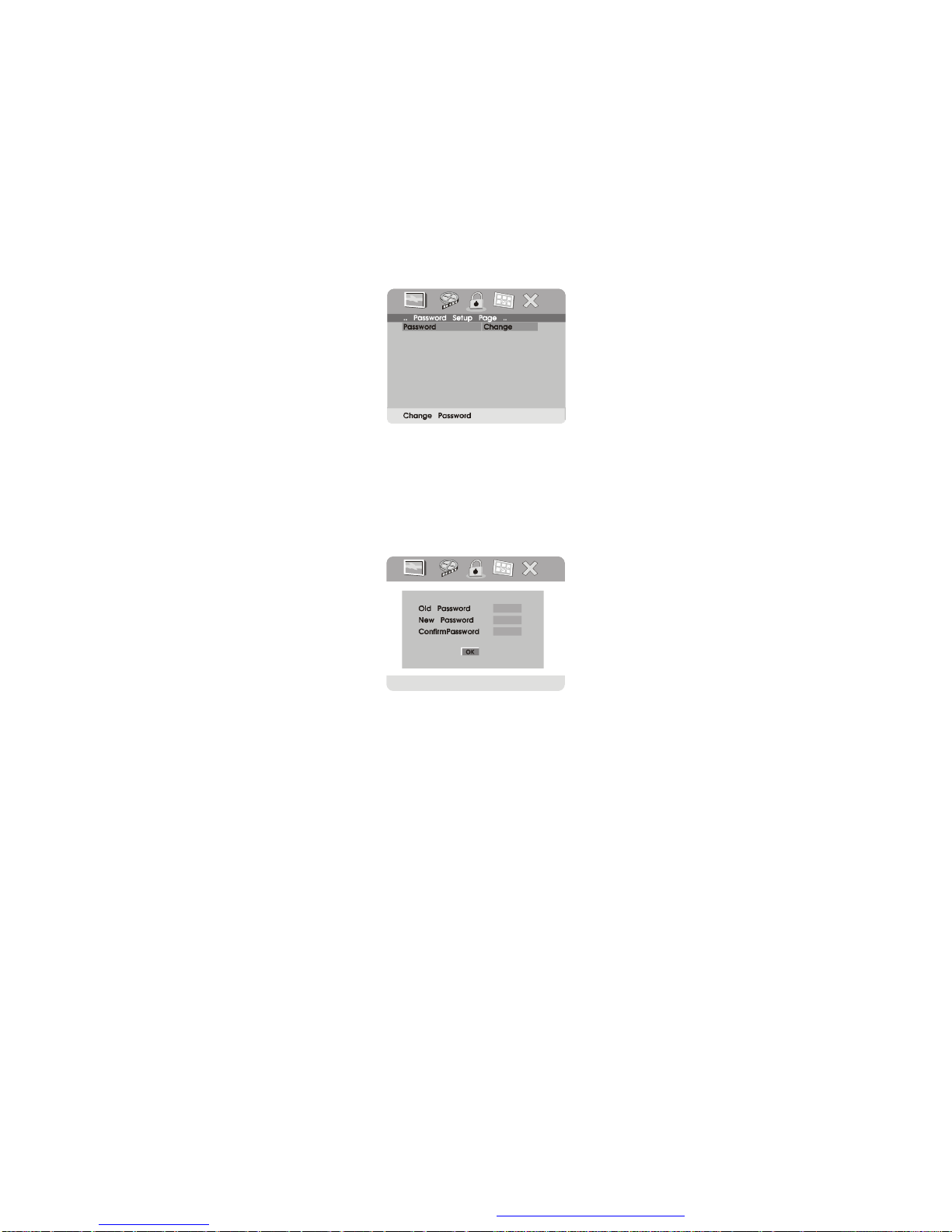

Password Setup Page Screen Display
Press ENTER to enter the Password Change Page.Input the Old
Password ortheDefault Password, theNewPassword, andthe Con-
firmedNewPassword. Press ENTER to confirm the change.
PASSWORD VERIFYInput Screen Display
NOTE: TheDefaultPassword is 3308.Thispasswordis always
effectiveevenafter youhave selectedyourownpasswordand
changedit. Toavoid the possibility of othersusing thedefault
passwordtosettheparental level andchangethe password,you
canrecord this defaultpassword in anotherarea anddelete itfrom
this manual. Some discs canbe limited dependingon the age of
userswhilesomediscs cannot.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

17
4).With nodisc inside the player select ‘Preference Page’usingthe LEFT /
RIGHTbuttons, thenpress ENTERto enterthe preference page.
a. Select ‘Audio’usingthe UP/DOWN button, thenpress RIGHTto
enterthe submenu. Selectthe audio languageyou desireusingthe
UP/DOWNbutton, thenpressENTERtoconfirm the setting. Press
LEFT toreturn.
PreferenceAudioLanguage
b. Select ‘Subtitle’theusing UP/DOWNbutton, then press RIGHT to
enterthe submenu.Selectthe desired subtitle languageorSubtitle
Offusing the UP/DOWNbutton, thenpressENTER to confirm the
setting. Press LEFT to return.
PreferenceSubtitleLanguage
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

18
Note: Language andsubtitle selection is only availablefor discsthatare
recorded in the above listed languages. Ifthe selected, languageis
not available,theplayerwill playand display on the screenthe original
recordedlanguage contained inthe disc.
c. Select ‘Disc Menu’usingtheUP/DOWN button,then pressRIGHTto
enterthesubmenu.SelecttheDiscMenu Languageyou desire using
theUP/DOWNbutton,thenpressENTERto confirmthesetting.Press
LEFT toreturn.
PreferenceDisc MenuLanguage
Note: Language and subtitle selection isonly available for discs that
arerecorded in the abovelisted languages.If the selected,language
is notavailable,the playerwill playand displayon thescreen the origi-
nalrecorded language containedin thedisc.
d. Select ‘Parental’using the UP/DOWNbutton,thenpressRIGHT to
enter thesubmenu.
Parental PreferenceScreenDisplay
Select the parental level you desireusingtheUP/DOWN button for
discs with lock-out function or multiplerating levels. Theseare listed
fromthe lowestlevel (1Kid Safe)to the highestlevel (8Adult). Entera
4digitpassword,thenpressENTER to confirmthe parentallevel
setting.
NOTE: The levelof8Adult isthe factorydefault.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

19
e.Select ‘Default’usingtheUP/DOWN button, then press RIGHTtoen-
terthesubmenu. PressENTER to make thesettingreturnto thefac-
tory-set mode.
NOTE: The parental setting isnotaffected bythedefault reset
function.

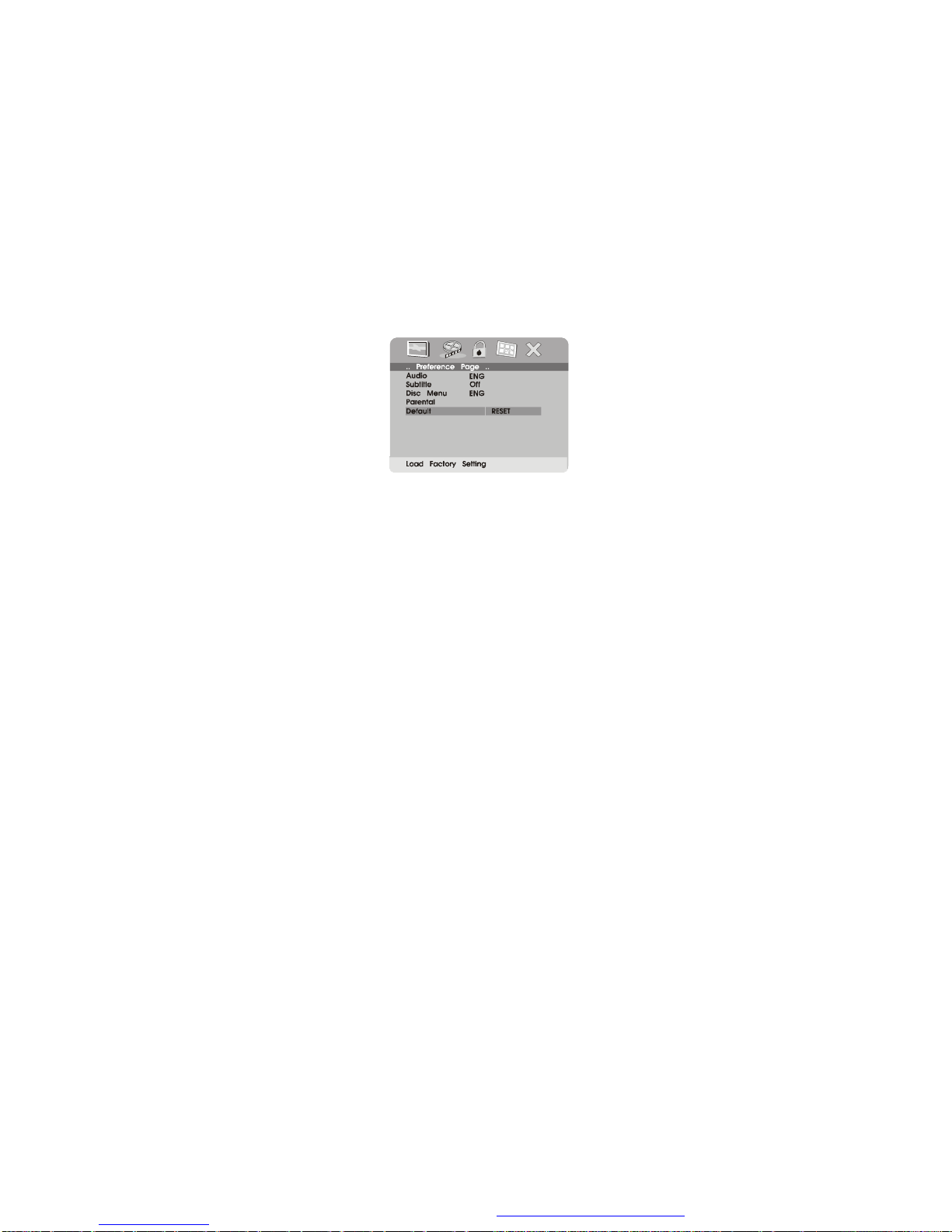

Loading FactorySetting
NOTE: TheDefault Password is 3308.This passwordis always ef-
fectiveevenafteryou haveselected your ownpasswordand changed
it. Toavoid the possibilityofothers usingthe defaultpasswordto set
the parentallevelandchangethe password, you canrecord this
defaultpasswordin anotherareaand deleteit fromthismanual. Some
discscan be limited dependingonthe age ofuserswhile some discs
cannot.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com

20
I. Basic Operation
POWER
OPEN
PLAY
SLOW
PAUSE
STOP
NEXT
PREVIOUS
FORWARD
REVERSE
LEFT/RIGHT/UP/DOWN
ENTER
NUMBERS
RETURN
MENU
REPEAT
A-B
DISPLAY
ANGLE
SUBTITLE
AUDIO
ZOOM
SETUP
Turnthe uniton/off
Remove/load the disc
Start Play/Execute item or setting
Play at 1/2, 1/4,1/8 or 1/16times speed
Still Picture
(1time) Stopatthepresentplaying point /
(2 times) Stop playing
Go tothe nextchapter, track orsceneduring
play back
Gobacktothe previous chapter, trackor
scene duringplay back
Scan forwardat2,4,8,16 or32xtimes speed
Scan backward at 2,4, 8, 16 or32x times
speed
Used forMenu Navigation
Execute item or confirm setting
Select item or setting
Return
Display the mainmenu ofthe disc
Repeat playingtitle, chapter, or track
Repeat aspecific portionfrompointAtopoint
B ofthe disc
Display information (title,chapter, track, time,
etc.).
Changethe viewingangle of the scene
Selectthesubtitlelanguage andturn it on/off
Selecttheaudio language
Enlargean imageto 2, 3, or 4 times the
original size.
Displaythe setupmenutoselect andset
items, and exit the setup menu.
PDF created with FinePrint pdfFactoryPro trial version http://www.fineprint.com
