Audiovox VBP58 User manual

VBP58
PORTABLE 5.8" LCD MONITOR & DVD PLAYER

2
Notice:
ThisProductincorporatescopyrightprotectiontechnologythatispro-
tectedbymethodclaimsof certain U.S. Patents and other intellectual
propertyrightsownedbyMacrovisionCorporationandotherrightsown-
ers.Use of thiscopyrightprotection technology mustbeauthorizedby
MacrovisionCorporation,andisintendedforhomeandotherlimitedview-
ingusesonlyunlessotherwiseauthorizedbyMacrovisionCorporation.
Reverseengineeringordisassemblyisprohibited.

3
A. Introduction
ThankyouforselectingtheVBP58portableDVDplayerinabag. The
mainfeaturesinclude a5.8"Screen(16:9AspectRatio)LiquidCrys-
tal Display (LCD) monitor and a DVD player.The unit applies the
latest state of the art electronics and is designed for use in hotels,
offices or your home. The unit is constructed to provide years of
reliable,trouble-free service,andis compact sothatyou can takeit
withyouanywhere and is designed for quickand easyinstallation.
Pleaseread theentireinstruction manualsuppliedwith thisproduct
priortooperation.Thedocumentationwillassistyouininstalling the
systemproperlytoobtainthebestequipmentperformance. Allmanu-
alsshould bestoredfor later use.
B. Cautions and Warnings
1. Placement
To prevent fire or electric shock, do not expose this appliance to
rainormoisture.Do not place the set on an unstablecart, stand,
tripod,bracketortabletopreventitfromfalling.Keeptheunitaway
fromstrongmagnets,heatsources,directsunlight,excessivedust.
Ifthe unit isbroughtdirectlyfrom a cold toawarmlocation, mois-
turemaycondenseinside theunit. Whenyou moveitfrom acold
to a warm location, wait for about one hour before operating the
unit,orremovethediscandleavetheunitturnedonuntilthemois-
ture evaporates.
2. Installation
Ensurethat theVBP58isinstalledinaccordancewiththeinstruc-
tionsandillustrationsprovidedinthismanual.
3. Object and Liquid
Donot pushobjectsofanykindintotheunit throughopenings;do
not spill or spray liquid of any kind on or in the system (this may
resultin a fire or electric shock). Do not place anything heavy on
theunit.To ensureproperventilationandproper operation,never
coverorblocktheslotsandopeningswithaclothorothermaterial.
4. Disassembly
Do not attempt to disassemble the cabinet. There is a risk of elec-
tric shock and/or exposure to Laser Radiation. Contact qualified
service personnel if your system is in need of repair.

4
5. Cleaning Unit
Whencleaning,makesurethesystem is unplugged from thepower
source. Do not use liquid cleaners or aerosol cleaners. Use a
cloth lightly dampened with water for cleaning the exterior of the
system only.
6. Disc
Do not use irregularly shaped discs such as heart or star-shaped
discs as they may cause the unit to malfunction. Do not stick pa-
per, tape or glue on the disc. Do not expose the disc to direct sun-
light or heat sources such as hot air ducts. Do not touch the sur-
face of disc. Handle the disc by its edge. Clean the disc by wiping
the disc from the center out with a cleaning cloth. Remove the disc
from the unit and store it in its case after playing. Some playback
operations of discs may be intentionally fixed by software produc-
ers. Since this unit plays discs according to the disc contents the
software producers designed, some playback features may not be
available. Also refer to the instructions supplied with the discs.
C. Contents
1. 1 x 5.8’’ LCD Monitor & DVD Player Combo
2. 1 x AC to DCAdapter
3. 1 x Remote Control w/Battery
4. 1 x Instruction Manual
5. 1 x Audio/Video Input Cable
6. 1 x Audio/Video output Cable
7. 1 x Cigarette LighterAdapter
8. 1 x Mounting Bag w/Straps
9. 1 x Carrying bag
OPTIONAL:
Rechargable Battery Pack - No. VBB5058
D. Powering and installation

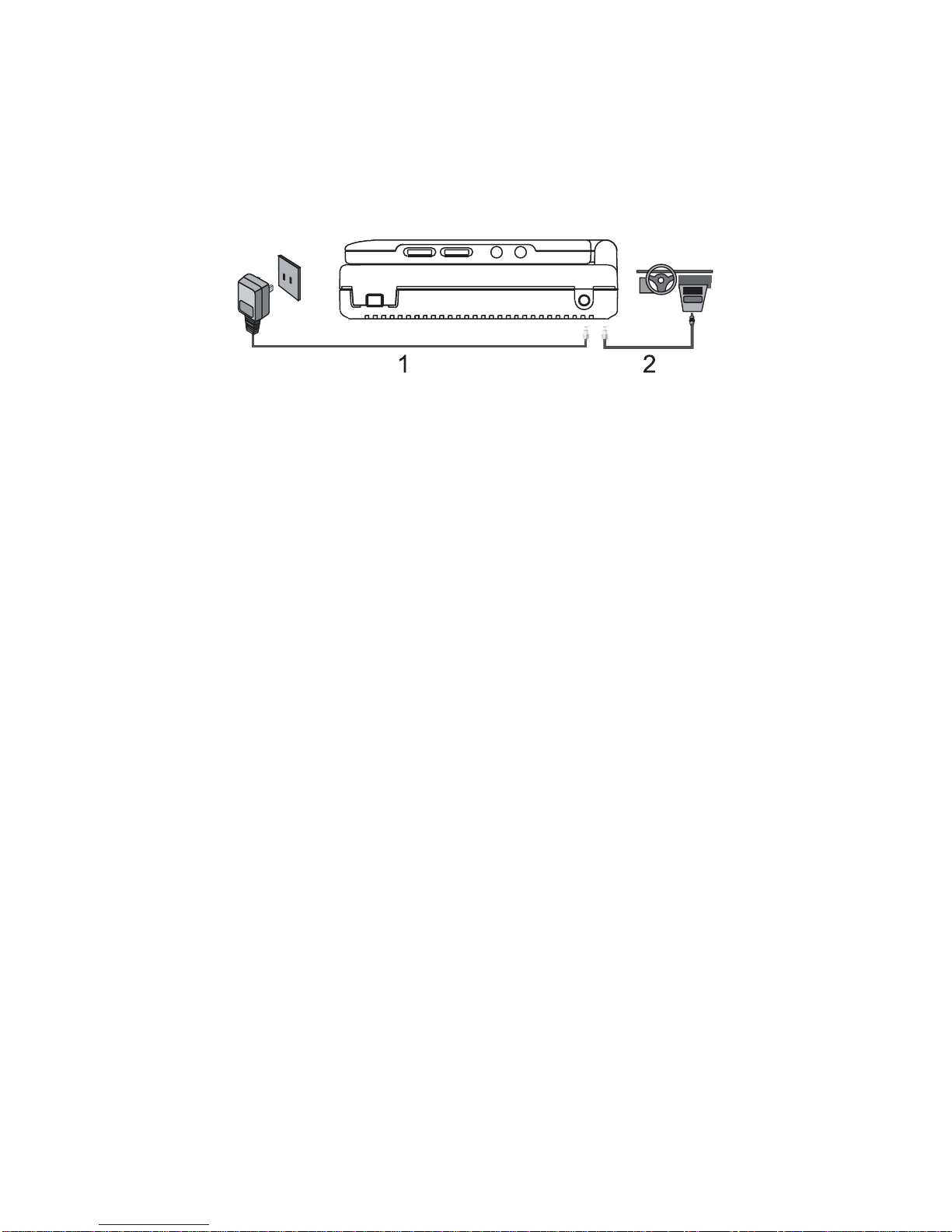

1. Powering the system indoors (Refer to Figure 1)
Plug one end of the AC to DC adapter into the DC 9V jack on the
rightsideof themainunit, thenplugthe other endinto the 120V AC
power receptacle.

5
2. Powering the system in a car
Plug one end of the cigarette lighter adapter intothe DC 9V jackon
the unit, then plug the other end into the cigarette lighter socket.
Figure 1
3. Powering the system with optional rechargeable Battery
Please refer to L. * Rechargeable Battery Installation and Use
(Page 29 to page 31).
* Rechargable Battery Pack No. VBB5058 is OPTIONAL
E. Installation Prior to installation
Make sure that the unit is placed into the bag with the clear plastic
coveringaround DVD door, Load disc into the DVD compartment and
then fasten the Velcro strap accross the top portion of the unit. If you
are installing the bag onto the seatback you will need to attach the
supplied Seat Standoff to the back of the mounting bag with the
Velcro bands to obtain the proper viewing angle as shown in Figure

6
Seat Standoff

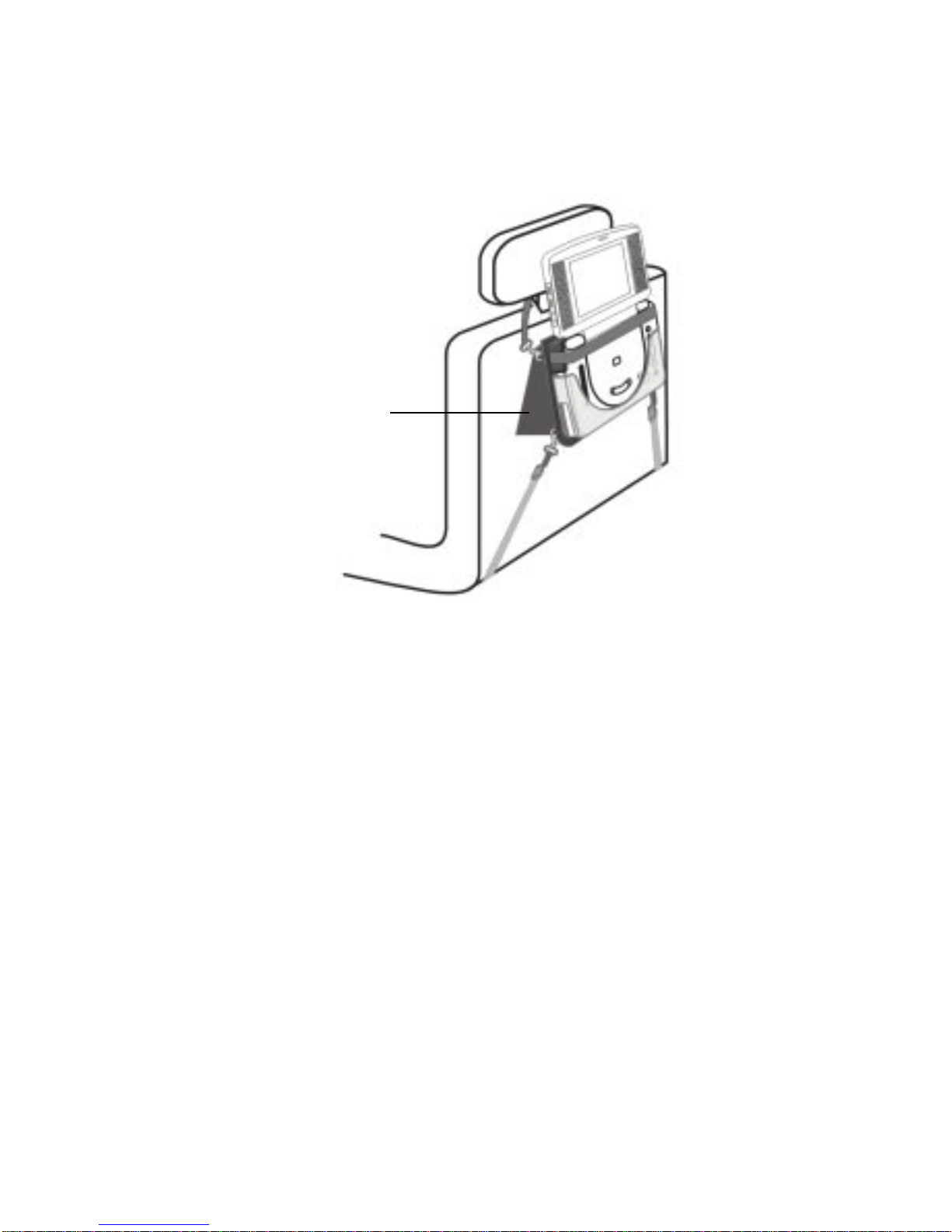

1.Installing the System onto the seat back in a car
(Refer to Figure 2)
Figure 2
1). Take one of the supplied straps from the carrier bag. Con-
nect the latch to one of the upper metal rings on the mounti
ng bag. Connect the “S” hook to the other upper metal ring
and place the loop over the headrest. Adjust the strap until
the bag is firmly secured.
2). Take anotherstrapfrom the carrierbag,and connect thelatch
to the lower metal ring on the left side of the bag.Attach the
“S” hook to the same ring after looping the strap around the
seat rail. Repeat this process for the right side. In some
vehicles, it may be necessary to attach the “S” connector to
therail directly,as it may notbe long enoughto reach back to
thering.
3). Adjust the straps tightly so that the bag is secured.

7

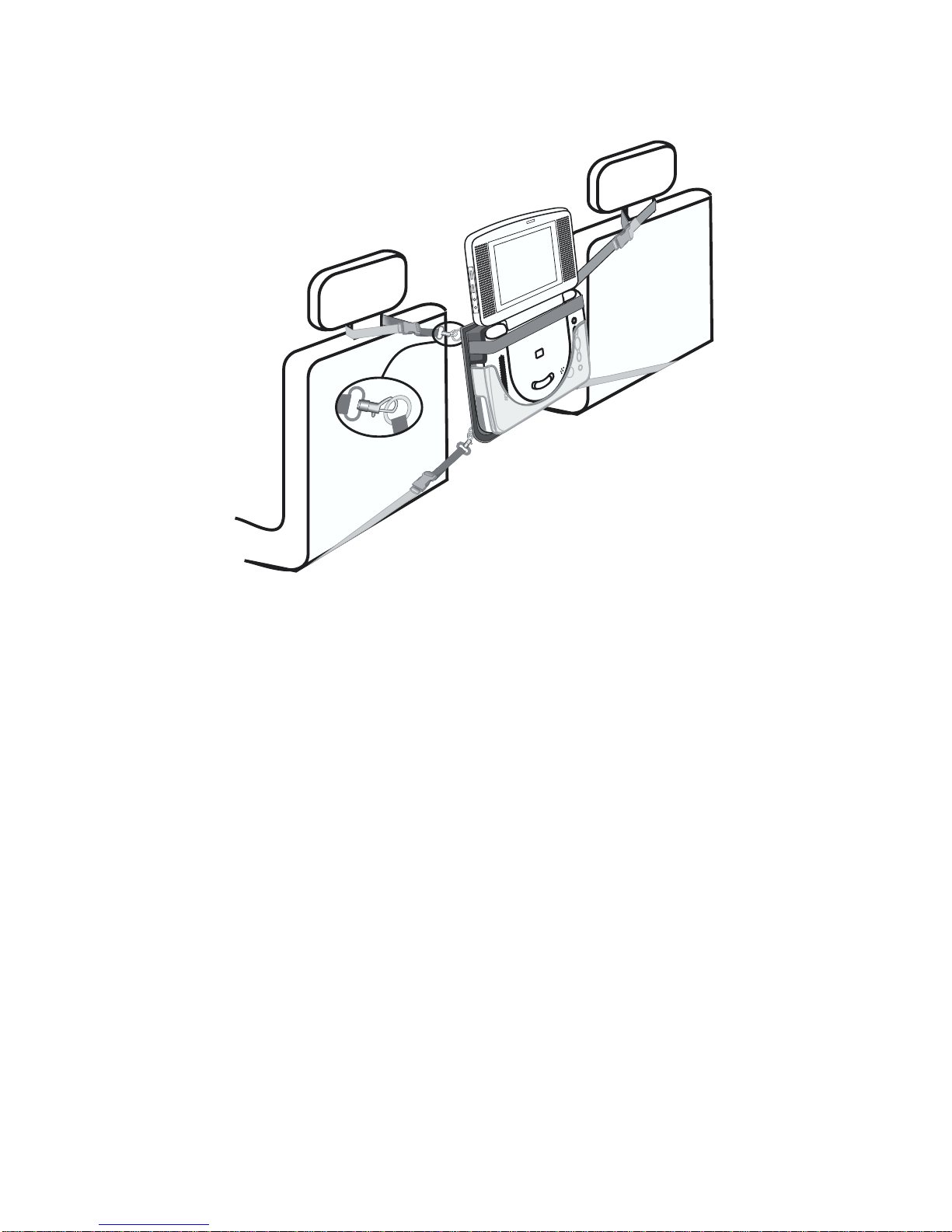

2. Installing the system between the driver/passenger seat
(Refer to Figure 3)
Figure 3.
1). Take one strap and connect the latch to the upper metal ring on
the left side of the bag. Attach the “S” hook to the same ring
after looping the strap around the headrest of the driver’s seat.
Repeat this process for the right side (Passenger Seat).
2). Take another strap and connect the latch to lower metal ring on
the left side of the bag. Attach the “S” hook to the same ring
after looping the strap around the driver’s seat rail. Repeat this
process for the right side. In some vehicles, it may be neces-
sary to attach the “S” connector directly to the rail, as it may not
be long enough to reach back to the ring.
3). Adjust the straps tightly so that the bag is secured.

8
F. Controls, Indicators, and Connectors
1. Unit View (Refer toFigure4)
Figure 4
1) Close Button on Disc cover
2) Open button
3) Previous Button
4) Stop Button
5) Next Button
6) Play Button
7) Screen Mode (WIDE) Button
8) Pause Button
9) Remote Control Sensor
10) DVD Video Output Jack
11) DVDAudio L+R Output Jack
12)Video Input Jack
13)Audio L+R Input Jack
14) Brightness Up/Down Thumbwheel
15) Volume Up/Down Thumbwheel
16) Headphone Input Jack 1
17) Headphone Input Jack 2
18) Power On/Off Switch
19) DC 9V Input Jack

9

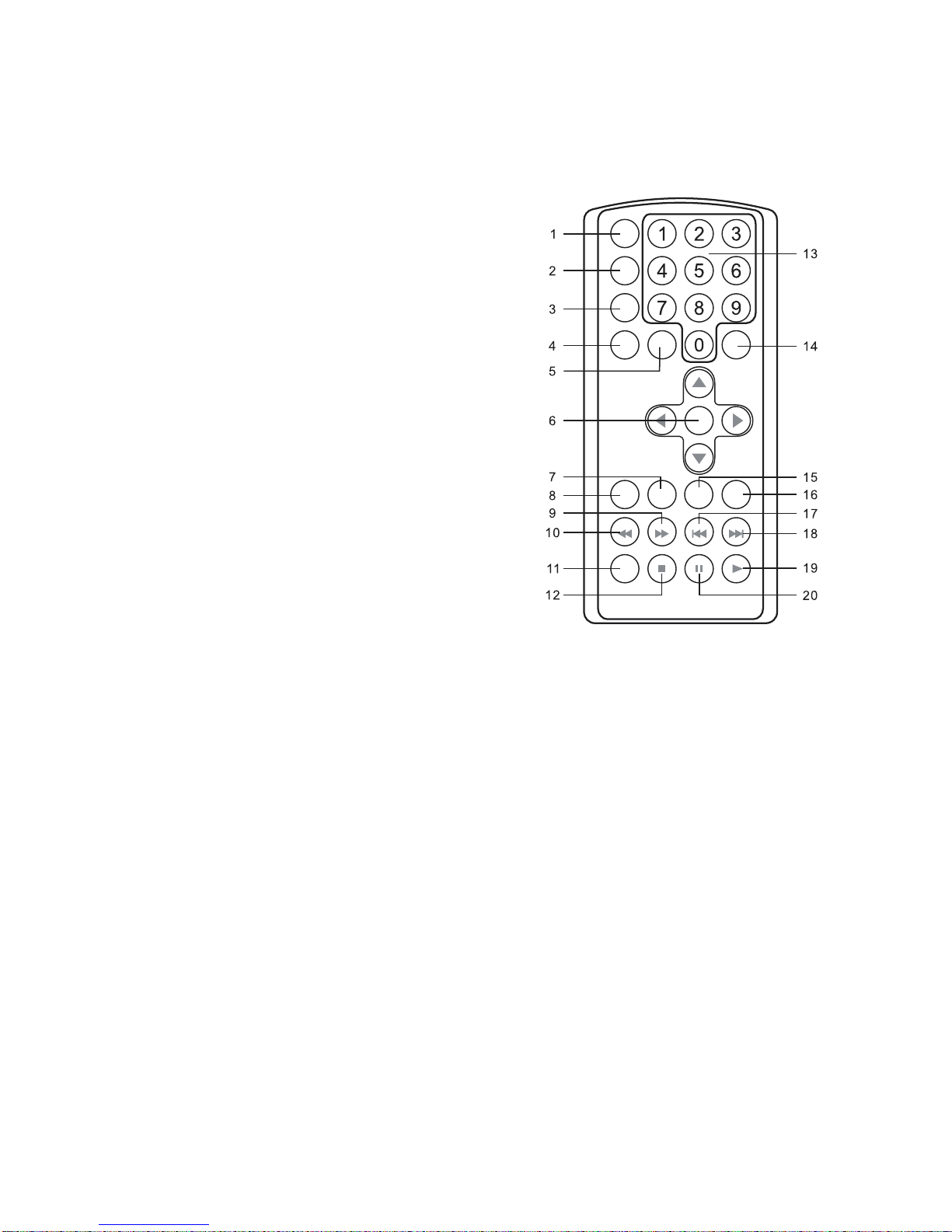

2. Remote Control View (Refer to Figure 5)
1) Display Button
2) Angle Button
3) Subtitle Button
4) Audio Button
5) Zoom Button
6) Up/Down/Left/Right/Enter Buttons
7) Return Button
8) A-B Button
9) Forward Button
10) Reverse Button
11) Slow Button
12) Stop Button
13) Number Buttons
14) Setup Button
15) Menu Button
16) Repeat Button
17) Previous Button
18) Next Button
19) Play Button
20) Pause Button Figure 5
F. Loading and Playing a Disc
a. After connecting power to the unit, slide the POWER ON/OFF on
the right side to ON, the DVD player’s POWER indicator lights.
b. Open the disc tray by pressing OPEN at the lower right of the disc
tray,and place a disc into the tray with the disc’s label facing up.
c. Press PRESS at the right side of the door until it clicks shut.The
unit will load the disc and start playing by pressing PLAY located
either on the right side of the disc tray or on the remote .
d.Rotate BRIGHT and VOLUME to adjust the LCD’sbrightness and
the DVD player’s volume.
e. To stop playing a disc, press STOP.

10
f. To turn off the DVD player, slide POWER ON/OFF to OFF. The
DVD player’s POWER indicator turns off.
g. To remove the disc, open the disc tray, then you will see a picture
on the right inner corner of the cover to indicate how to remove
the disc, just use your finger to access the right inner corner of
the disc tray and lift up the disc and remove it from the disctray.
Please refer to Figure 6.
Figure 6

11
G. SETUP
Press ‘SETUP’ to display the Main screen of the SETUP Menu on
the screen. Press ‘SETUP’ again to exit the SETUP Menu and
the unit will resume it’s last playback or stop mode.
1) Select ‘GENERAL SETUP’ using the UP/DOWN buttons, then
press ‘ENTER’ to enter the GENERAL Setup screen.
a. Select TV DISPLAY using UP/DOWN, and then press RIGHT
to enter the submenu. Select the TV display mode on the
screen using UP/DOWN, and press ENTER to confirm the
setting. Press LEFT to return.
* NORMAL/PS: When the player is connected to a normal TV,
and a wide picture is shown on the full screen.
* NORMAL/LB: When the player is connected to a normal TV,
and a wide picture is shown on the screen with a black strip
at both the top and bottom of the screen.
Figure 7. Main SETUP Menu Screen
Figure 8. General SETUP Menu Screen

12
* WIDE: When the player is connected to a wide screen TV, a
wide picture is shown on the full screen.
b.Select ‘ANGLE MARK’ using UP/DOWN, and then press the
RIGHTbutton to enter the submenu. Choose Angle Mark on
or off displayed on the screen using the UP/DOWN and then
press ENTER to confirm the setting. Press the LEFT
button to return.

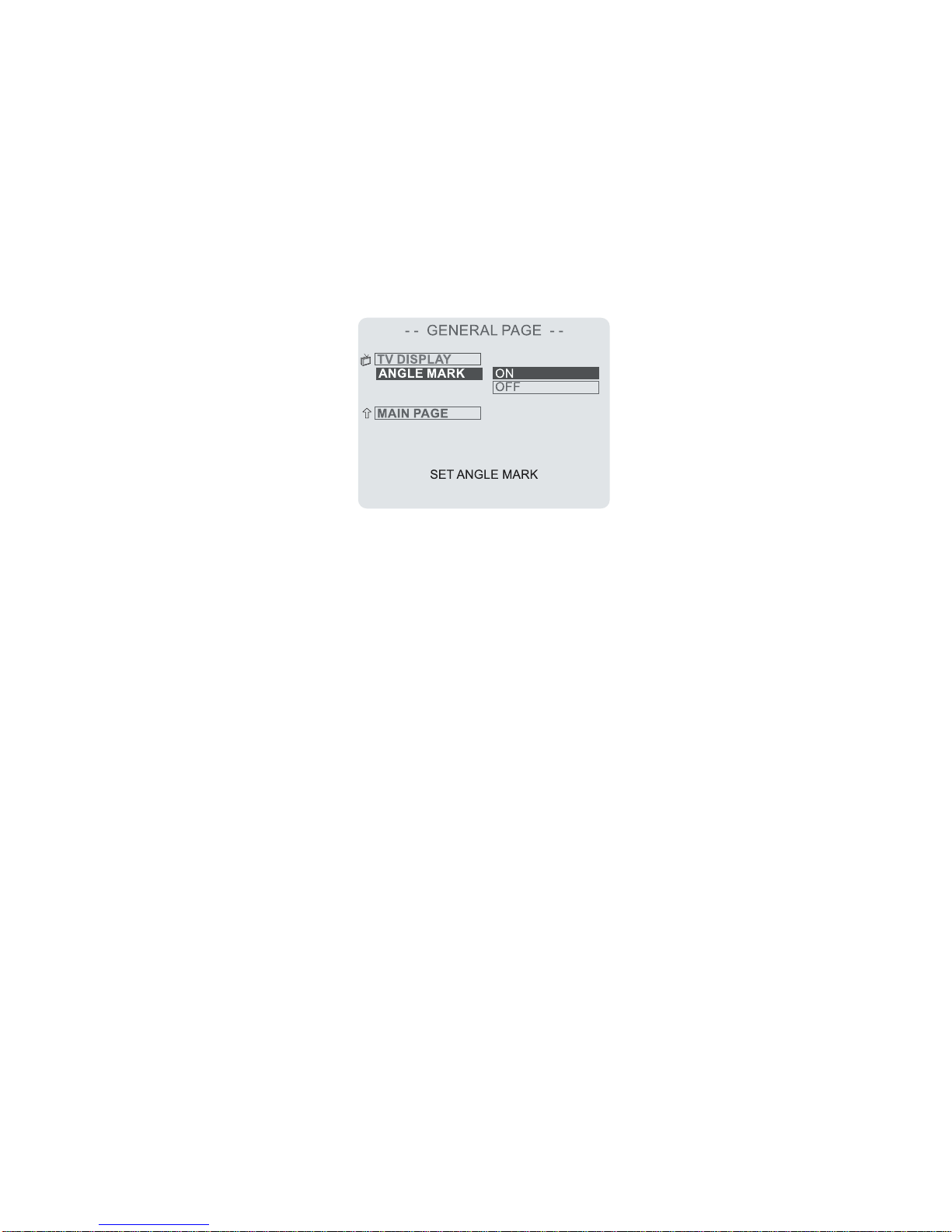

Figure 9. ANGLE MARK Screen Display
* ON: The screen will show angle mark.
(*Ifangle option isavailable)
OFF: The screen will not display theAngle Mark
c. Select ‘MAIN PAGE’ using UP/DOWN, and then press EN-
TER to return to the main page.
*NOTE: The DVD player will enter the Screen Saver mode after 5
minutes if the image on the screen remains the same for
more than 5 minutes.

13
2) Whenthereisno discinsidetheplayer select‘PREFERENCES’
usingUP/DOWN, then press‘ENTER’ toenter thepreferences
page.

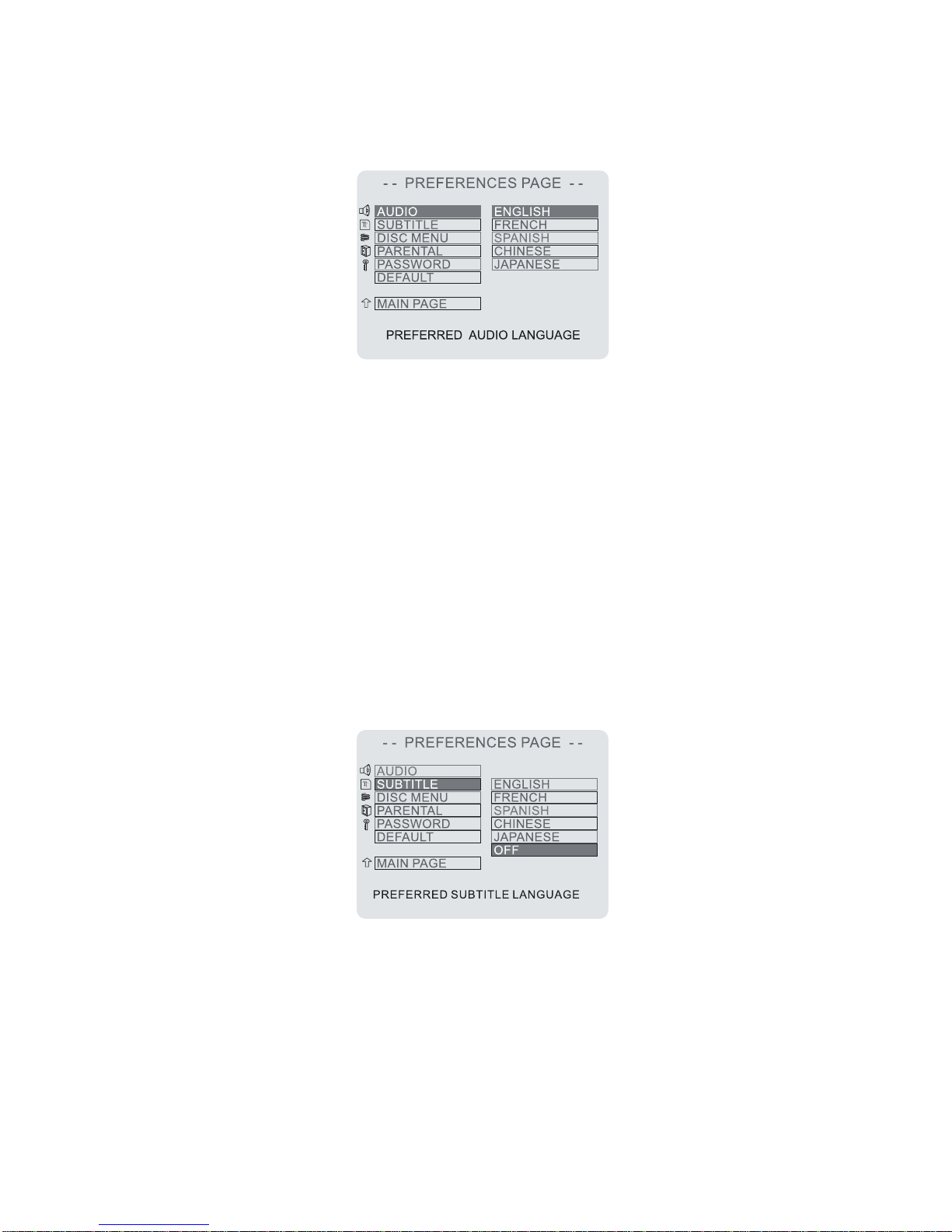

Figure 10. AUDIO Preference Screen Display
a. Select ‘AUDIO’ using UP/DOWN, then press ‘RIGHT’ to enter
the submenu. Select the audio language you desire using UP/
DOWN,then press ‘ENTER’ to confirm the setting.Press LEFT
to return.
b. Select‘SUBTITLE’usingUP/DOWN,thenpressRIGHTtoenter
thesubmenu.Selectthedesired subtitlelanguageorSUBTITLE
OFF using UP/DOWN, then press ‘ENTER’to confirm the
setting.press ‘LEFT’ to return.
Figure 11. SUBTITLE Preference Screen Display
c. Select ‘DISC MENU’ using UP/DOWN, then press ‘RIGHT’ to
enterthe submenu. Select the DiscMenu Languageyou desire
using UP/DOWN, then press ‘ENTER’ to confirm the setting.
Press ‘LEFT’ to return.

14

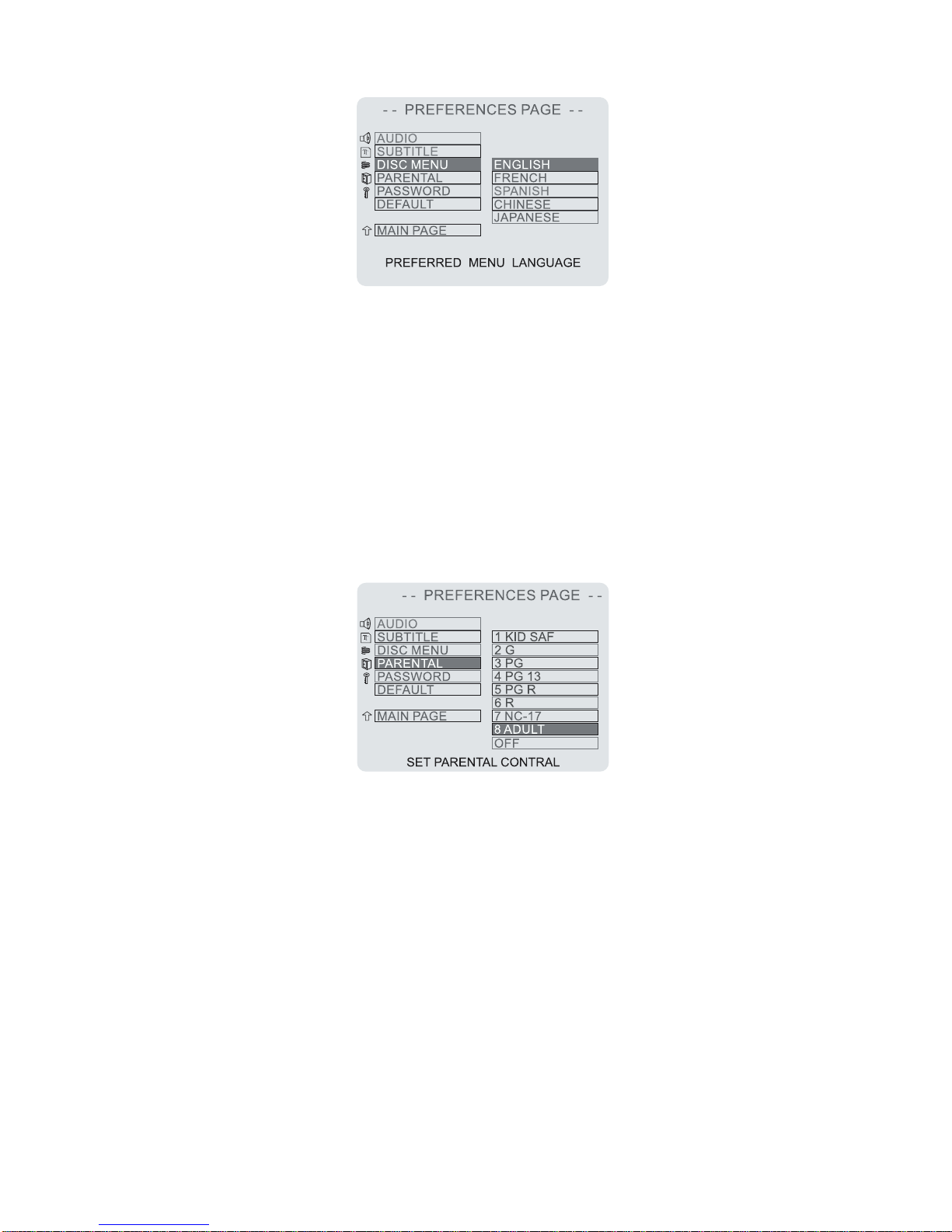

Figure 12. DISC MENU Preference Screen Display
NOTE: Languageand subtitle selection is only available fordiscs
that are recorded in the above listed languages.If the
selected,languageis notavailable, the player will playand
display on the screen the original recorded language
contained in the disc.
d.Select‘PARENTAL’usingUP/DOWN,thenpressRIGHTtoenter
the submenu.
Figure 13. PARENTAL Preference Screen Display
Select the parental level you desire using UP/DOWN for discs
with lock-out function or multiple rating levels. These are listed
from the lowest level (1 Child) to the highest level (OFF). Press
‘ENTER’ to enter the Password Verify Page.
NOTE: The level of 8Adult is the default setting.

15
Figure 14. PASSWORD VERIFY Input Screen Display
Enter a 4 digit password, then press ‘ENTER’ to confirm the
parentallevel setting.
NOTE: For 1st time use the default password is 3308.
e. Select ‘PASSWORD’ using UP/DOWN, then press RIGHT
to enter the submenu.
Figure 15. PASSWORD CHANGE Screen Display
Press ‘ENTER’ to enter the Password Change Page. Input
the Old Password or the Default Password, the New Pass-
word, and the Confirmed New Password. Press ‘ENTER’ to
confirm the change.
Figure 16. PASSWORD CHANGE PAGE Screen Display

16
NOTE: The Default Password is 3308. This password is al-
ways effective even after you have selected your own password
and changed it. To avoid the possibility of others using the de-
fault password to set the parental level and change the pass-
word, you can record this default password in another area and
delete it from this manual. Some discs can be limited depending
on the age of users while some discs can not.
f. Select ‘DEFAULTS’ using UP/DOWN, then press RIGHT to
enter the submenu. Press ENTER to make the setting return
to the factory-set mode.
NOTE: Theparentalsetting isnotaffected by thedefault
function.

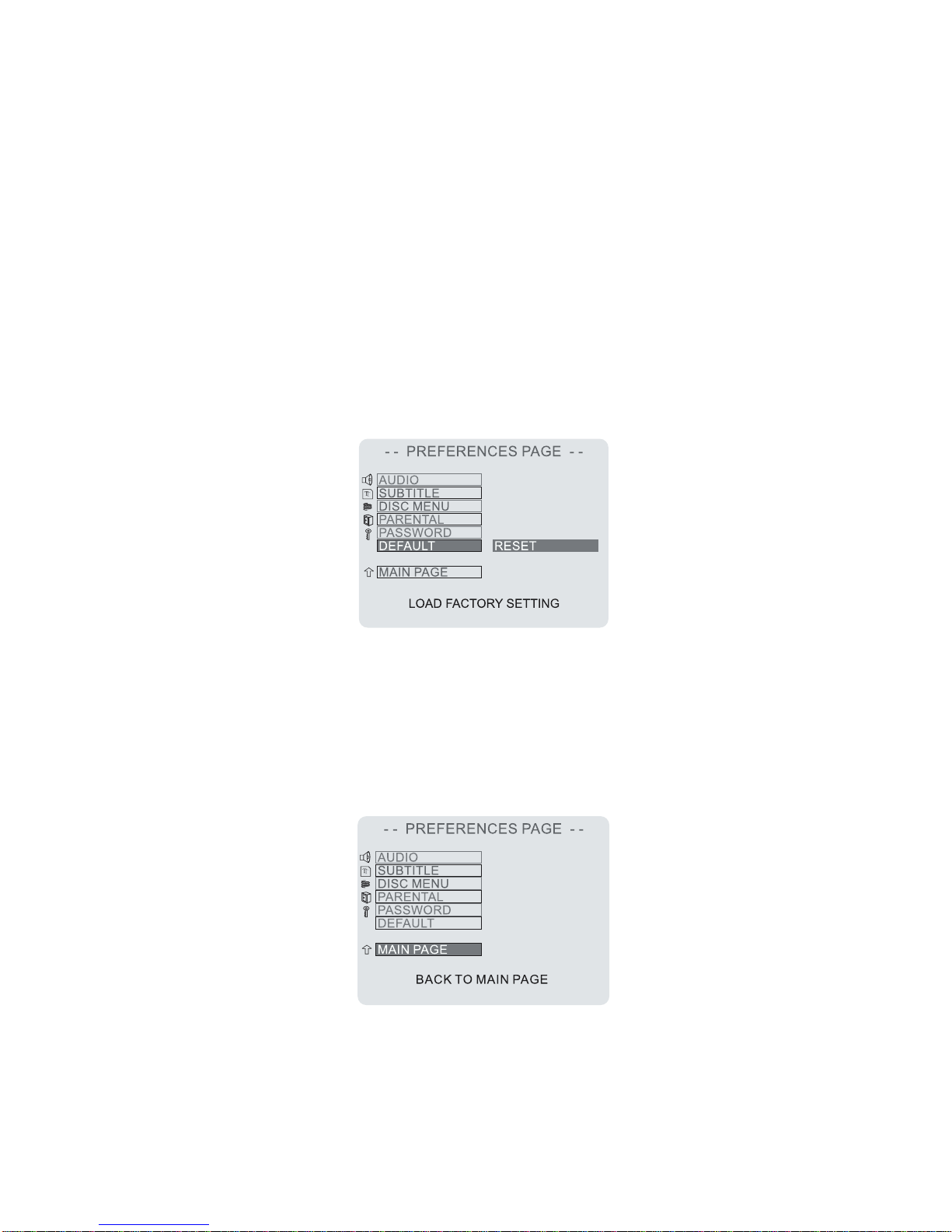

Figure 17. DEFAULT PRESET Screen Display
g. Select ‘MAIN PAGE’ using UP/DOWN, then press ENTER to
returntothemainpage. PressSETUP toexittheMAIN PAGE.
Figure 18. PREFERENCE MAIN Page Screen Display Figure

1. Basic Operation
17
Turntheuniton/off
Remove/loadthedisc
StartPlay/Executeitemorsetting
Playat1/2,1/4,1/8or 1/16timesspeed
StillPicture
(1time)Stop atthepresentplayingpoint/
(2times)Stopplaying
Goto the next chapter,track or scene dur-
ingplayback
Gobackto theprecedingchapter,trackor
sceneduringplayback
Scan forward at 2, 4, 8,16 or 32x times
speed
Scan backward at 2, 4, 8, 16 or 32x times
speed
UsedforMenuNavigation
Executeitemor setting
Selectitemorsetting
Return
Displaytherootmenu ofthedisc
Repeatplayingtitle,chapter,ortrack
RepeataspecificportionfrompointAtopoint
B of the disc
Display information (title, chapter, track,
time,etc.).
Changetheanglesonthescene
Selectthe subtitle language andturniton/
off
Selecttheaudiolanguage
Enlargean imageto2, 3, or4times the
original
Display the setup menu to select and set
items,andexitthesetupmenu.
POWER
OPEN
PLAY
SLOW
PAUSE
STOP
NEXT
PREVIOUS
FORWARD
REVERSE
UP/DOWN/LEFT/RIGHT
ENTER
NUMBERS
RETURN
MENU
REPEAT
A-B
DISPLAY
ANGLE
SUBTITLE
AUDIO
ZOOM
SETUP

2. MENU
A DVD is divided into sections called titles and chapters. When
you play a DVD, a root menu of the disc will appear on the screen
of your TV or Monitor. The contents of the menu vary from disc to
disc. Press MENU during playing to display the menu, and press
ENTER or PLAY to start playing. Some DVDs only allow you to
select disc playback options using the DVD menu.
3. DISPLAY (Display contents vary from disc to disc.)
1) PLAYINGTIMEANDREMAININGTIME
a. During playback press ‘DISPLAY’ to display the current Title
Number(1), the totalNumber ofTitles (2),the current Chapter
Number(3), the totalNumber of Chapters (4), and the Playing
Time for the title (5). The heading will disappear automatically
after 3 seconds if no buttons are pressed.

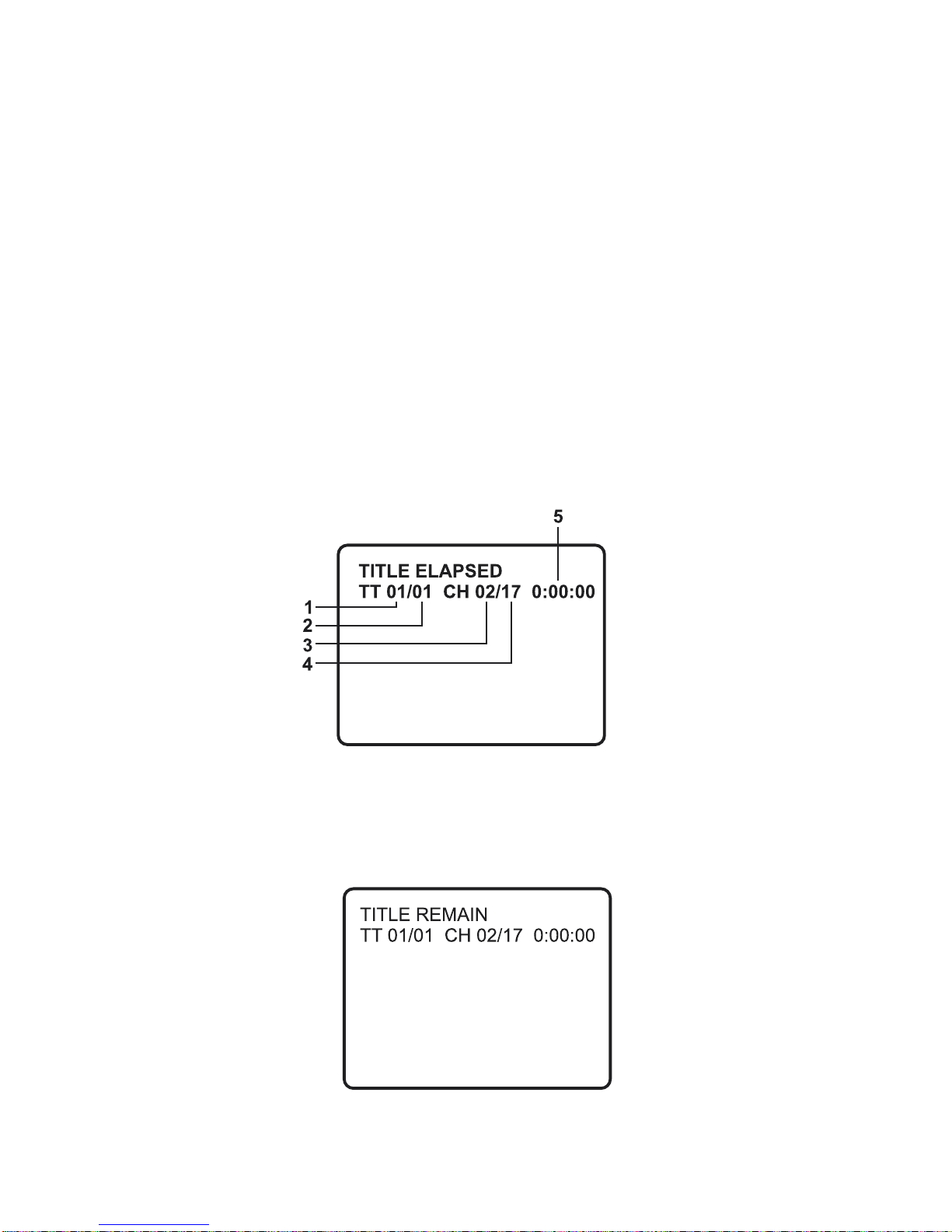

Figure 19. Title, Chapter Number, and Time Screen Display
b. Press ‘DISPLAY’ again to display the Remaining Time of the
title. Theheading will disappear automatically in about3 sec-
onds.
Figure 20. Title Remaining Time Screen Display

19
c. Press ‘DISPLAY’ the 3rd time to display the Elapsed Time for
the chapter. The heading will disappear automatically in about
3 seconds.
Figure 21. Chapter Elapsed Time Screen Display
d. Press‘DISPLAY’the 4th time to display the RemainingTimefor
the chapter. The heading will disappear automatically after 3
seconds.
Figure 22. Chapter Remaining Time Screen Display
e. Press ‘DISPLAY’ a 5th time to exit. ‘DISPLAY OFF’ will be
displayed and will disappear automatically after 3 seconds.
2) ANGLE
During playback of a disc, press ‘ANGLE’ to display the avail
able angles for discs containing multi-angles*, with the current
angle number (1) and the total number of angles (2) displaying.
Press ‘ANGLE’ to select another angle, then press again to exit
and return to the normal viewing angle. The angle display will
disappearautomaticallyif the‘ANGLE’buttonisnotpressedagain
within 3 seconds.
*NOTE: Notall discscontain thisfeature.

20

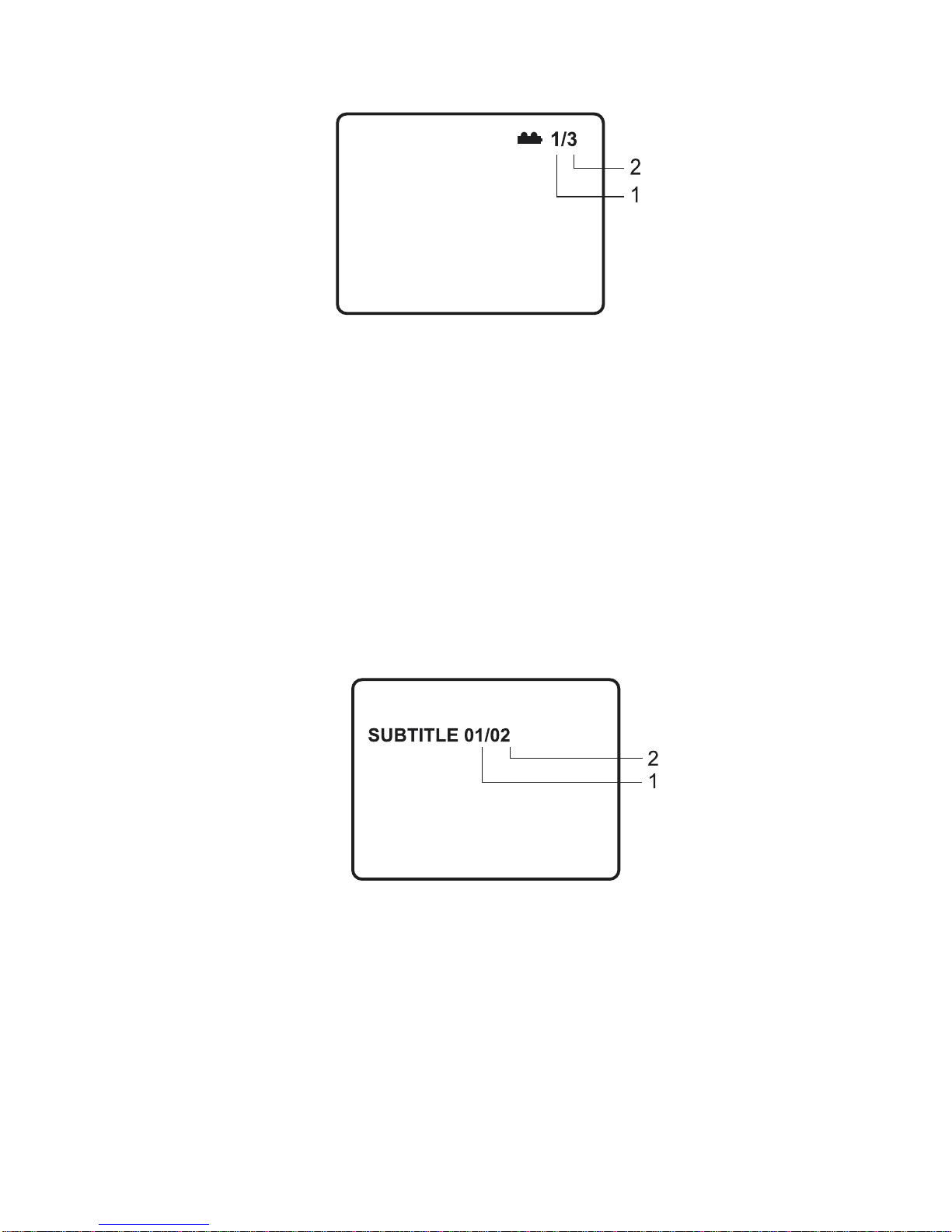

Figure 23. Angle Screen Display
3)SUBTITLE
Duringdisc playbackpress ‘SUBTITLE’to select the subtitle lan-
guage you desire*, with the current Subtitle Language Number
(1) and the total Number of Subtitle Languages (2) displayed. If
there are multiple languages press ‘SUBTITLE’ again to select
anothersubtitlelanguage. Toturn subtitles OFF, pressthe‘SUB-
TITLE’ button until ‘SUBTITLE OFF’ is displayed. The Subtitle
display will disappear automatically if the ‘SUBTITLE’ button is
not pressed again within 3 seconds.
Figure 24. Subtitle Screen Display
*Some DVDs only allow access to this function through the DVD
menu.
